Walvoil Monoblock Directional Control Valve 513403169
Walvoil Monoblock Directional Control Valve 513403169
KPM KAWASAKI HYDRAULIC PUMP

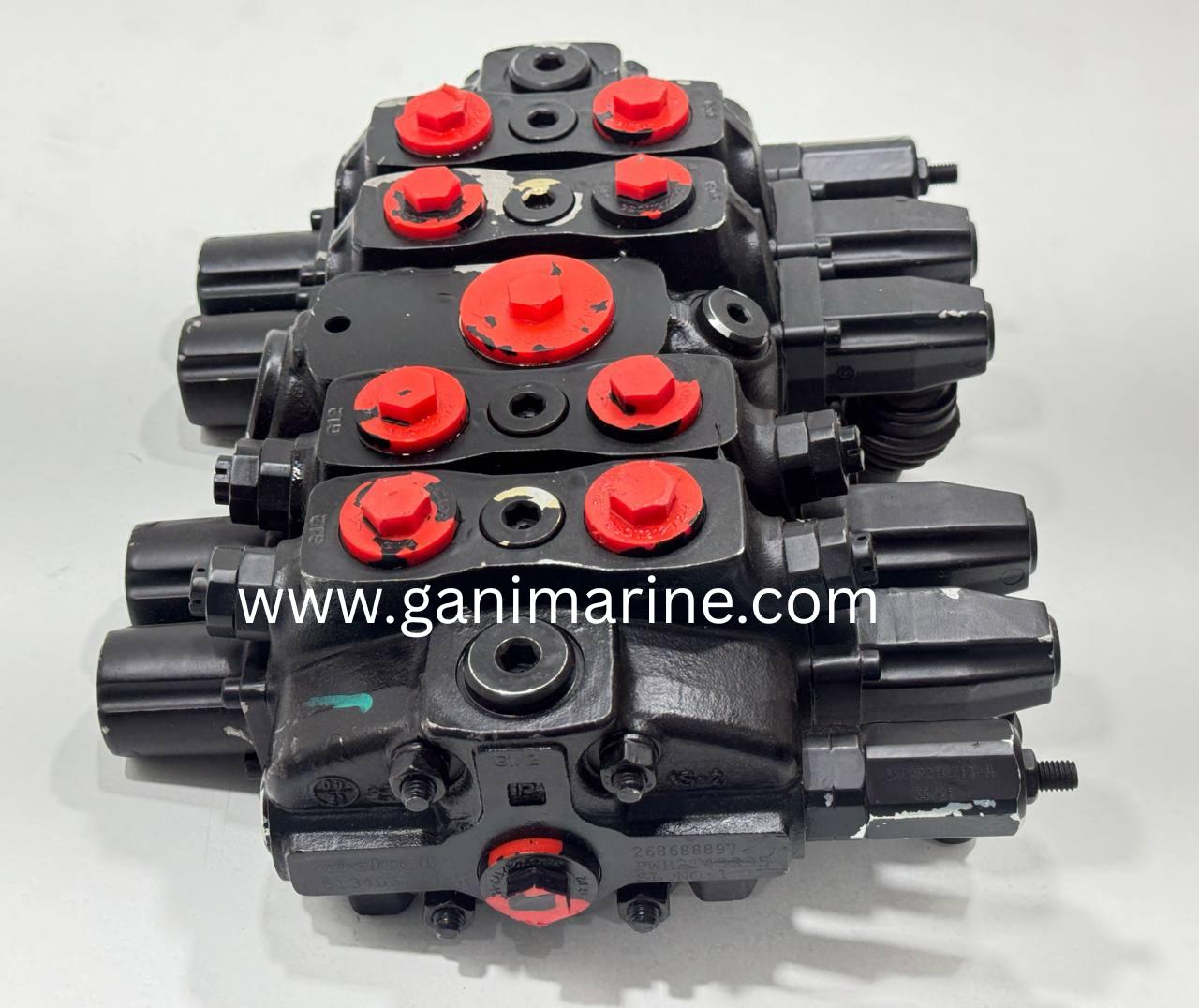

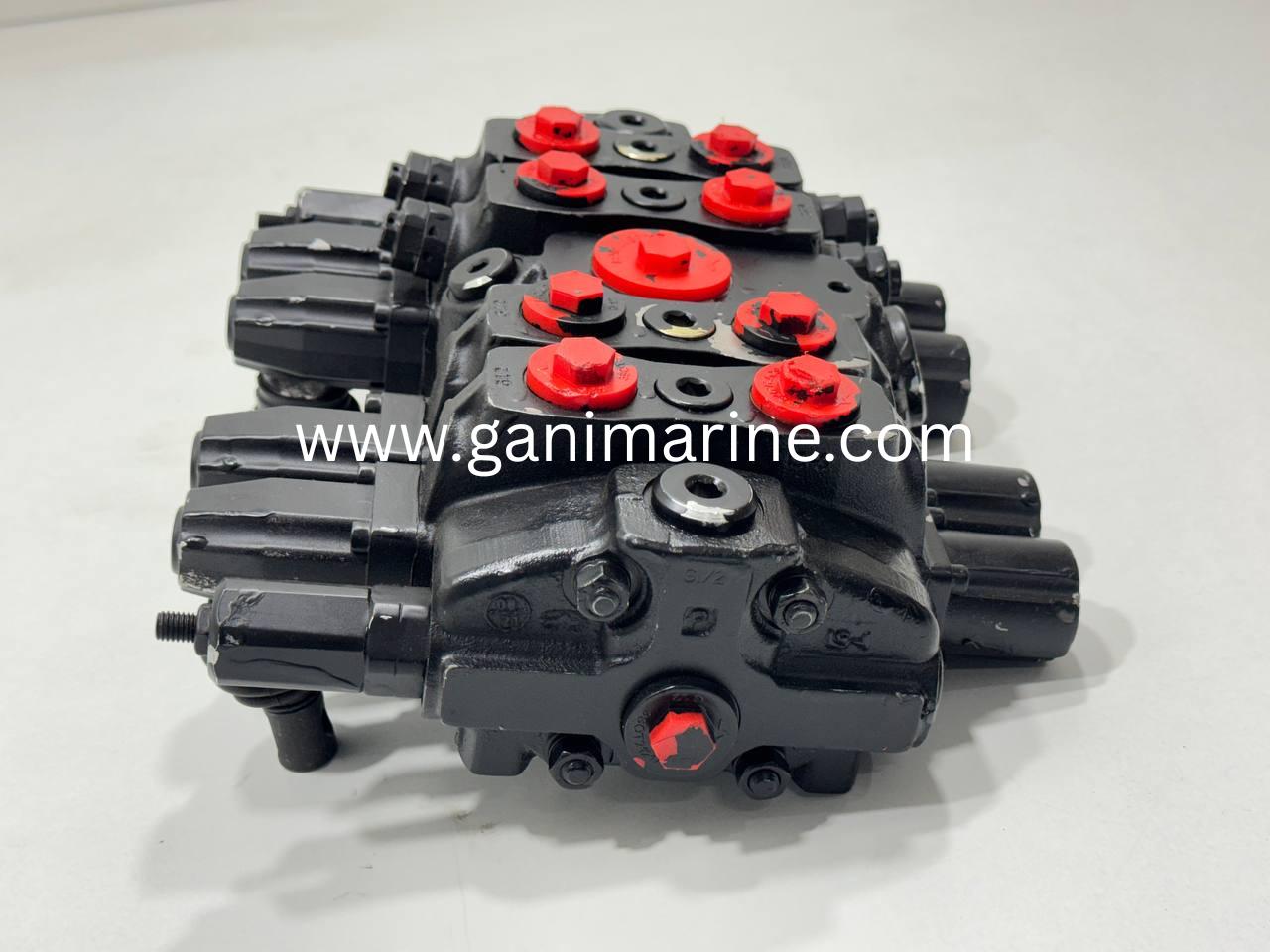

The Walvoil SD Series monoblock directional control valve is a robust, high-pressure hydraulic valve block designed for precise control of hydraulic cylinders and motors. Manufactured in Italy, Walvoil SD valves are widely used in agricultural machinery, construction equipment, and truck-mounted cranes due to their reliability, compact design, and long service life.

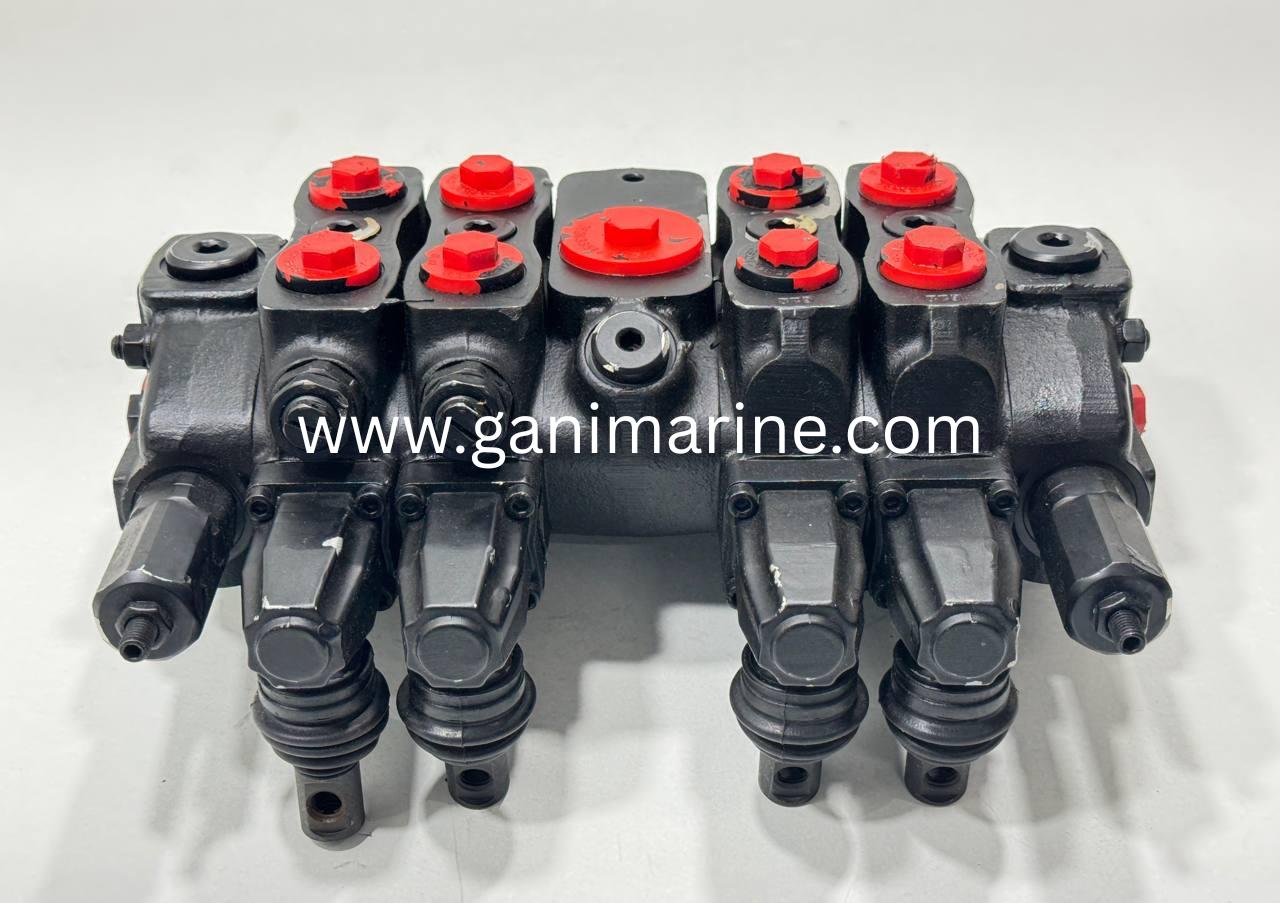

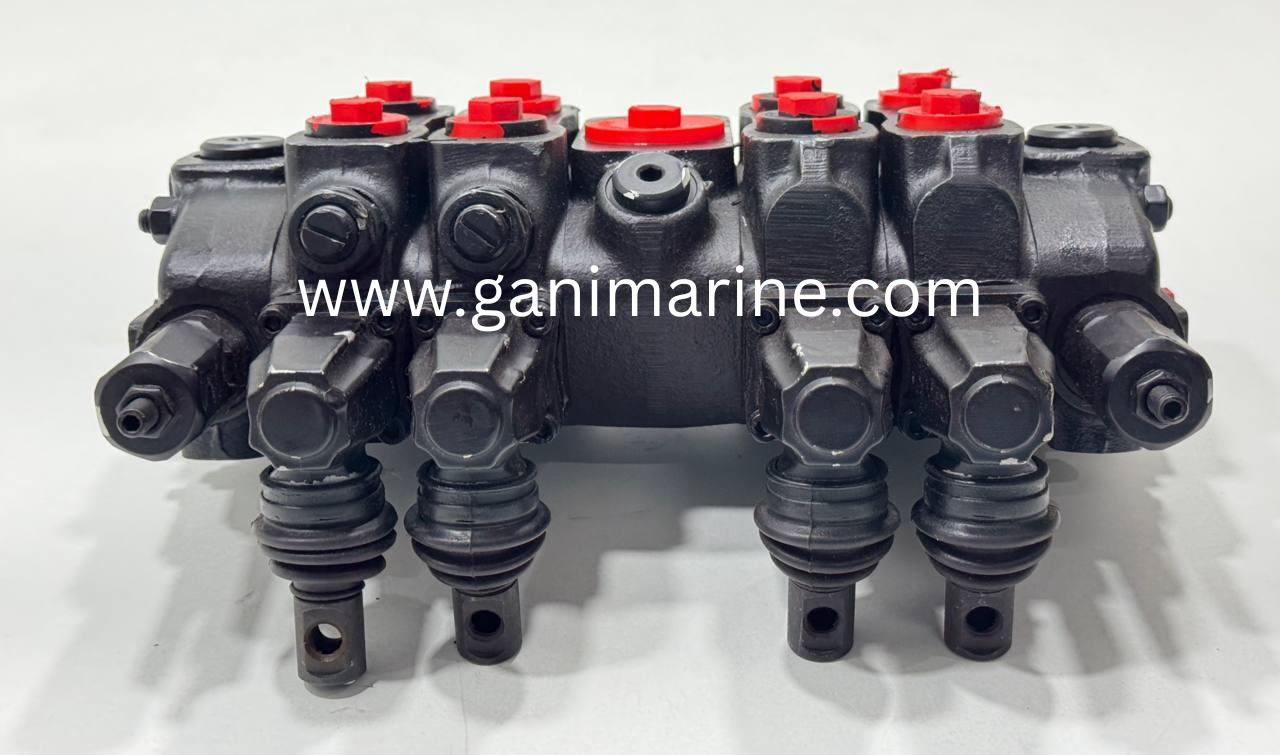

This unit features a 4-spool manual configuration, making it suitable for multi-function hydraulic systems.
Identification Details
• Manufacturer: Walvoil (Italy)
• Series: SD (likely SD5 / SD11)

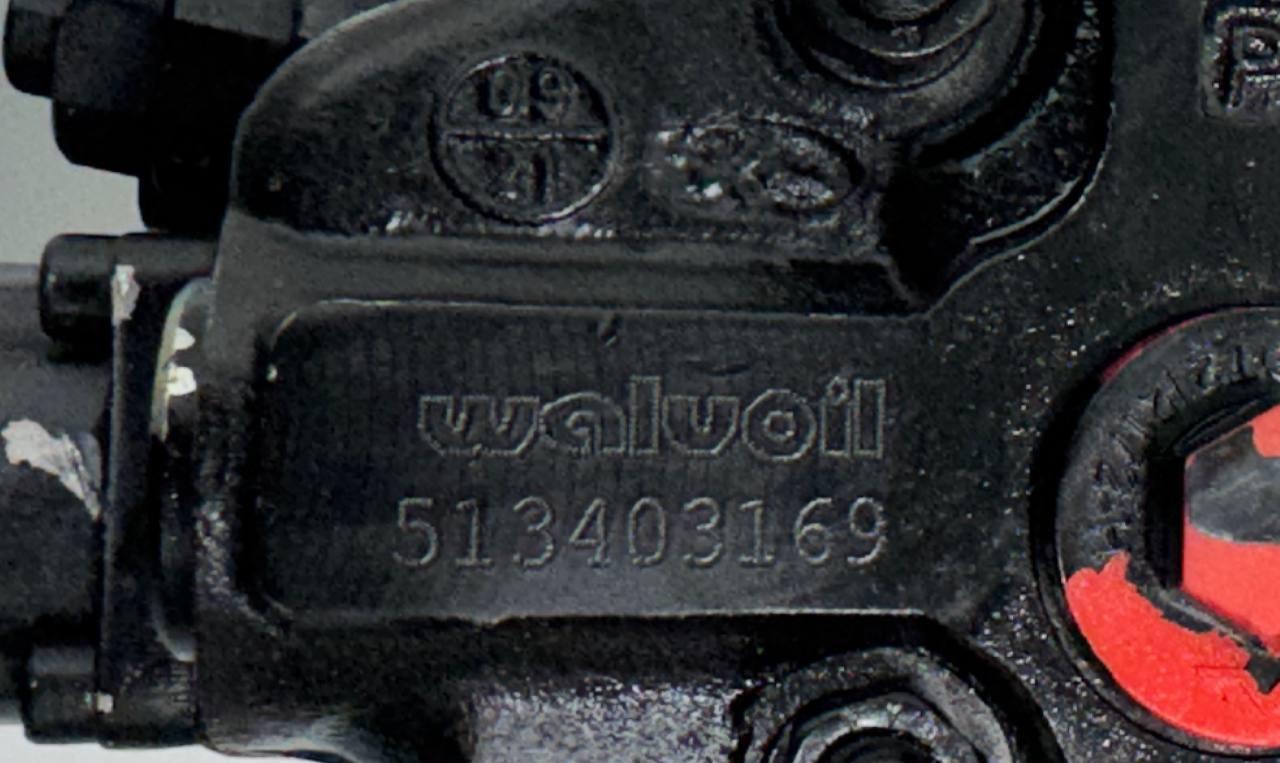

• Casting Part Number: 513403169

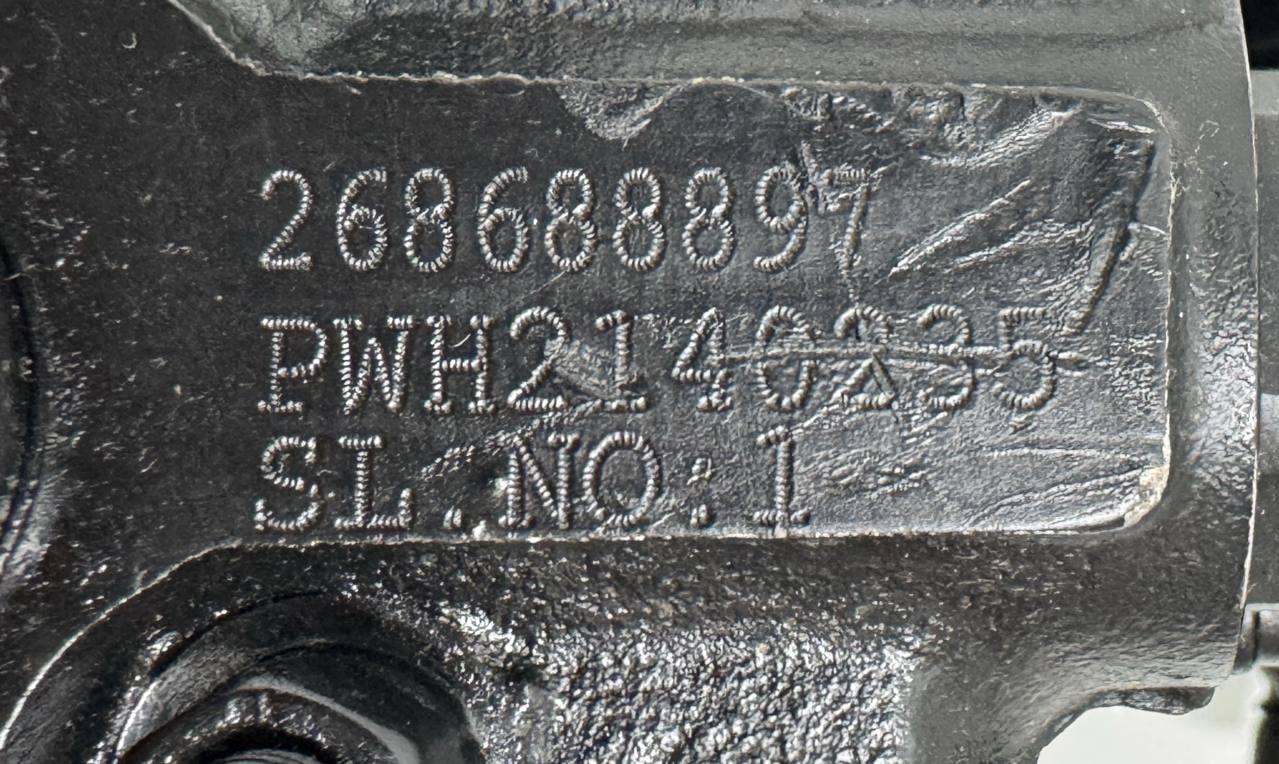

• Assembly ID: 268688897 / PWH2140235
• Valve Type: Monoblock directional control valve
• Number of Sections: 4 Spool
Technical Specifications
• Manufacturer: Walvoil (Italy)
• Series: SD (SD5 / SD11)
• Type: Monoblock Directional Control Valve
• Spools: 4 Sections, Manual Lever Operated
• Max Flow: 45 – 70 L/min
• Max Pressure: 315 bar
• Tank Pressure: 25 bar
• Construction: Cast Iron Monoblock
• Load Check Valves: Yes, on each spool
• Pressure Relief Valve: Adjustable
• Return Type: Spring Return to Neutral
• Applications: Agriculture, Cranes, Construction, Hydraulic Winches
Design & Functional Features
• Monoblock Cast Iron Body: High resistance to vibration and pressure spikes
• 4 Independent Spools: Allows simultaneous multi-function operation
• Integrated Load Check Valves: Prevents oil backflow and ensures smooth load handling
• Adjustable Pressure Relief Valve: Protects the hydraulic system from over-pressure
• Dust-Protected Work Ports: Red protective caps on A & B ports
• Compact Design: Ideal for mobile hydraulic applications
Typical Applications
• Front-end loaders
• Backhoe loaders
• Agricultural tractors
• Truck-mounted cranes
• Small timber cranes
• Hydraulic winches
• Construction and material handling equipment
Industries Served
• Agriculture
• Construction
• Material handling
• Forestry
• Mobile hydraulics
• OEM hydraulic systems
Maintenance Notes
• Keep spool ends clean to prevent contamination
• Replace spool seals (O-rings / U-cups) if leakage appears
• Periodically check and adjust relief valve pressure
• Use clean hydraulic oil to extend service life
Key Advantages
• Proven Walvoil reliability
• Long service life
• Easy servicing and spare availability
• High pressure capability
• Smooth and precise manual control
