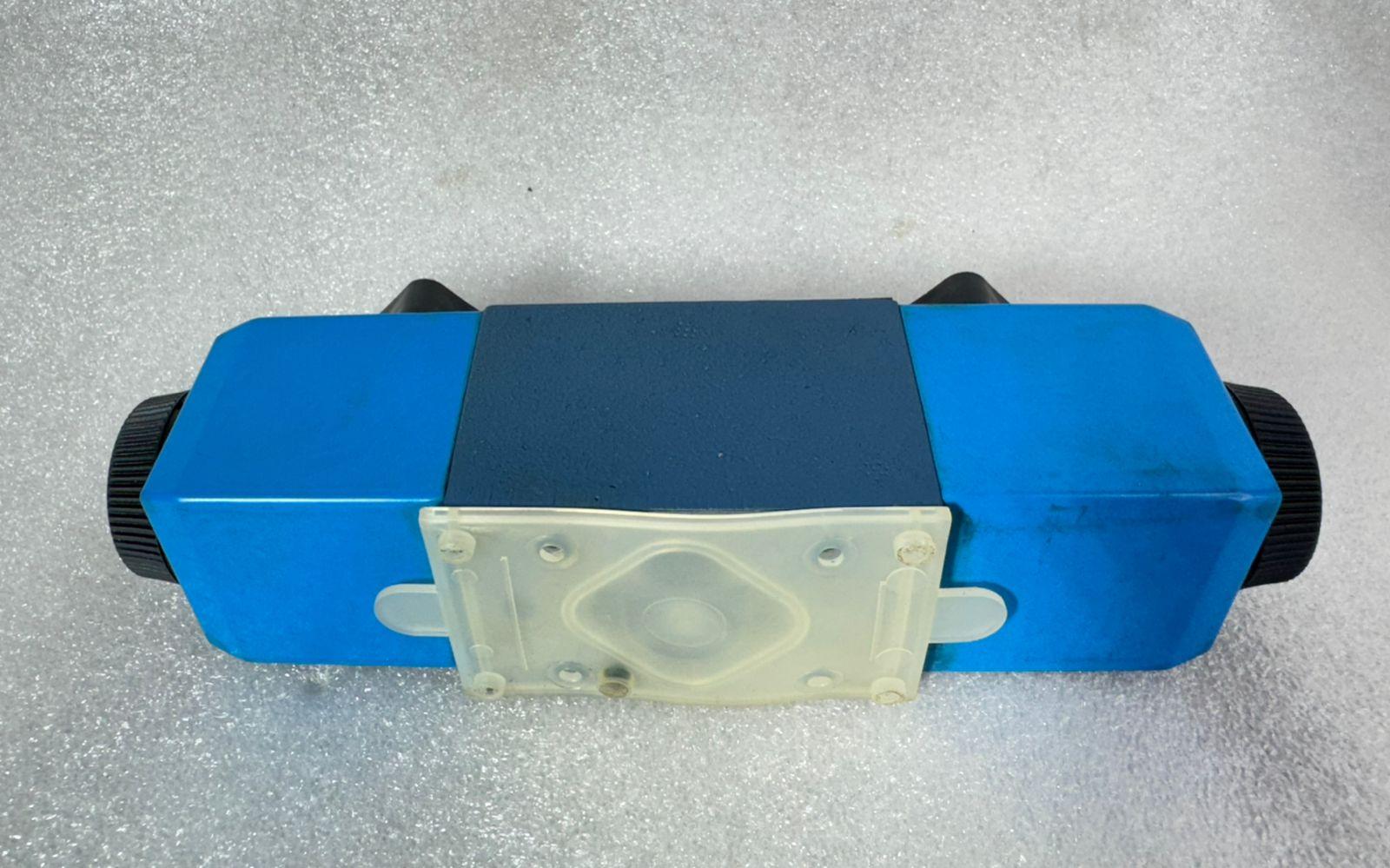

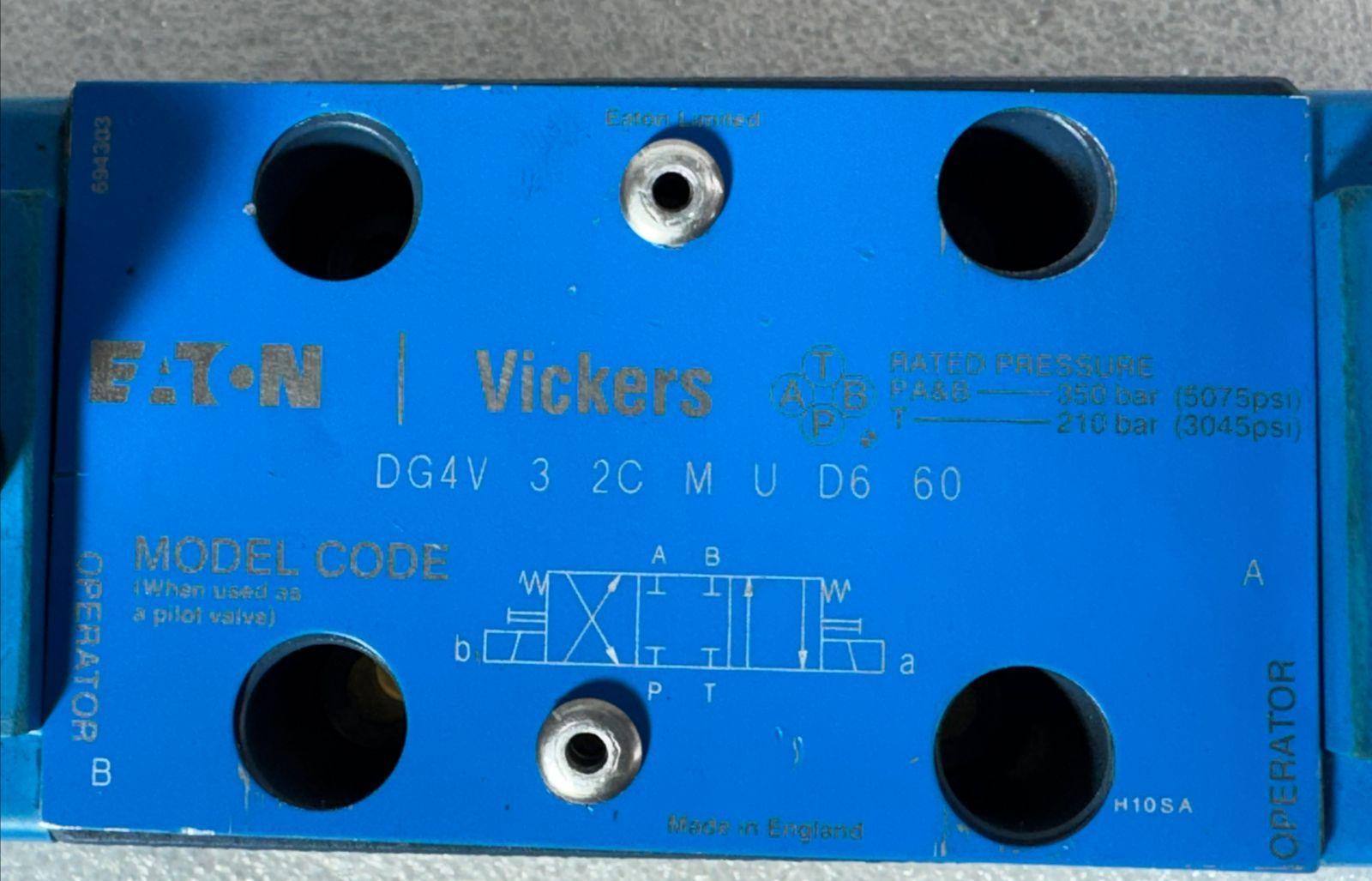

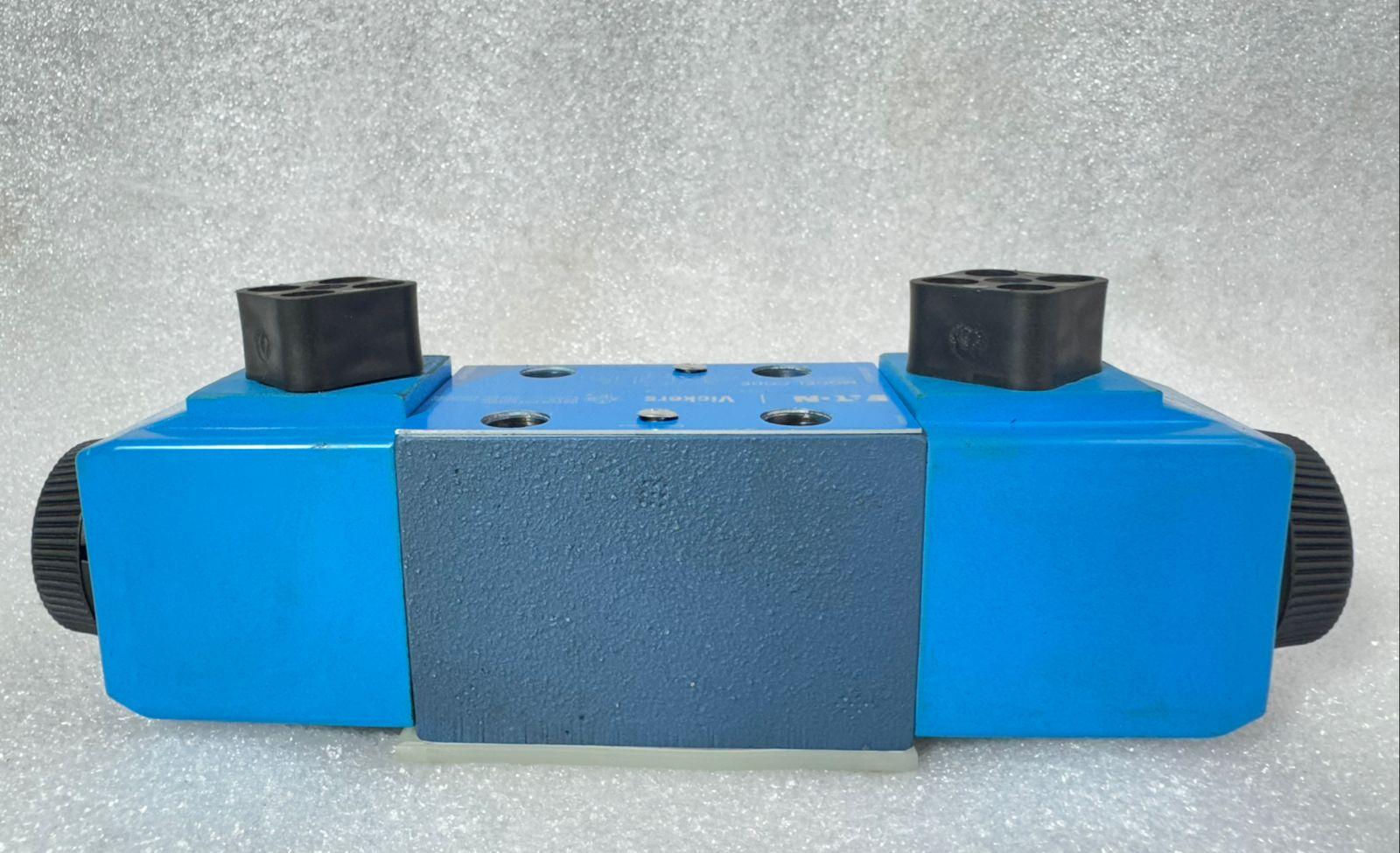

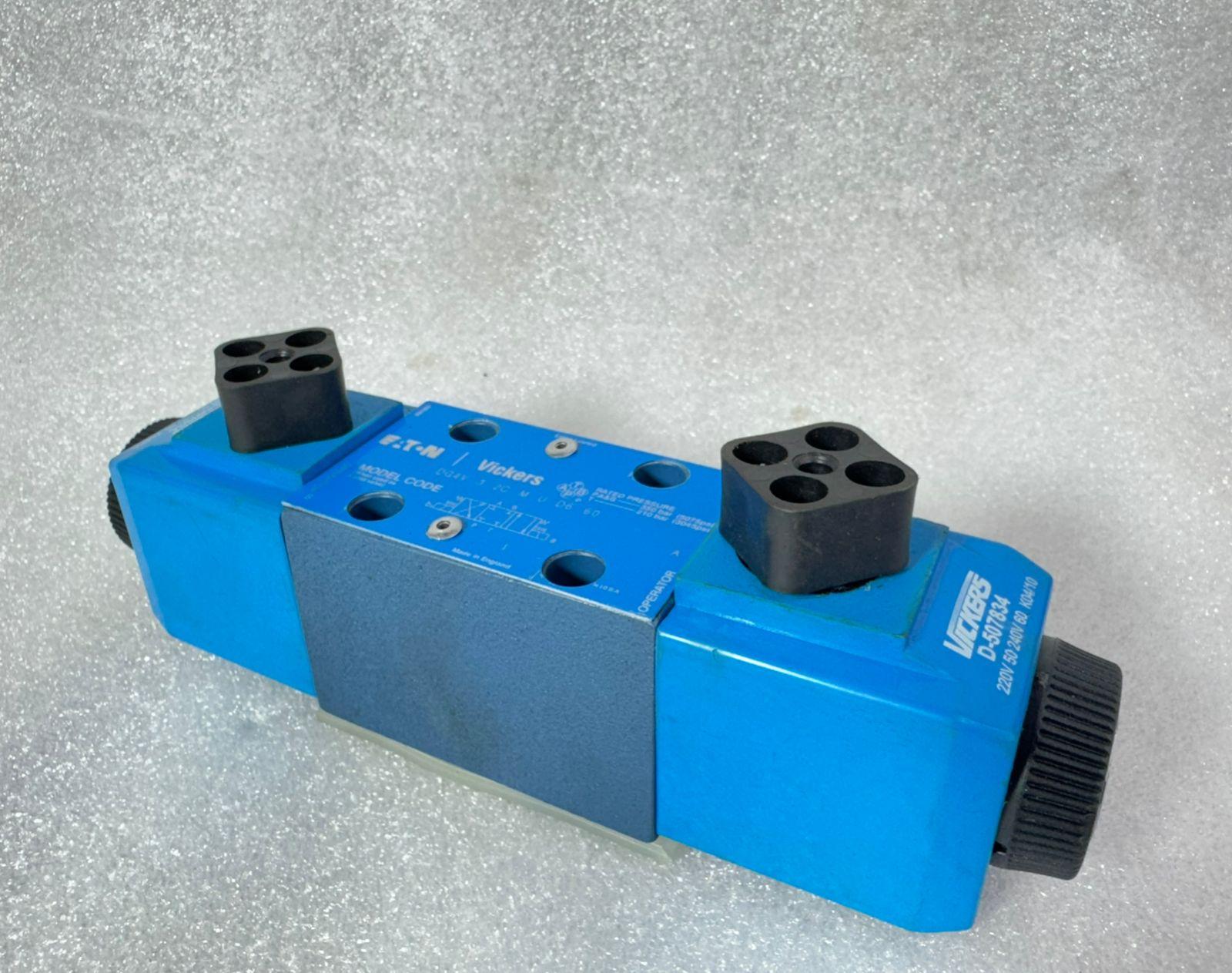

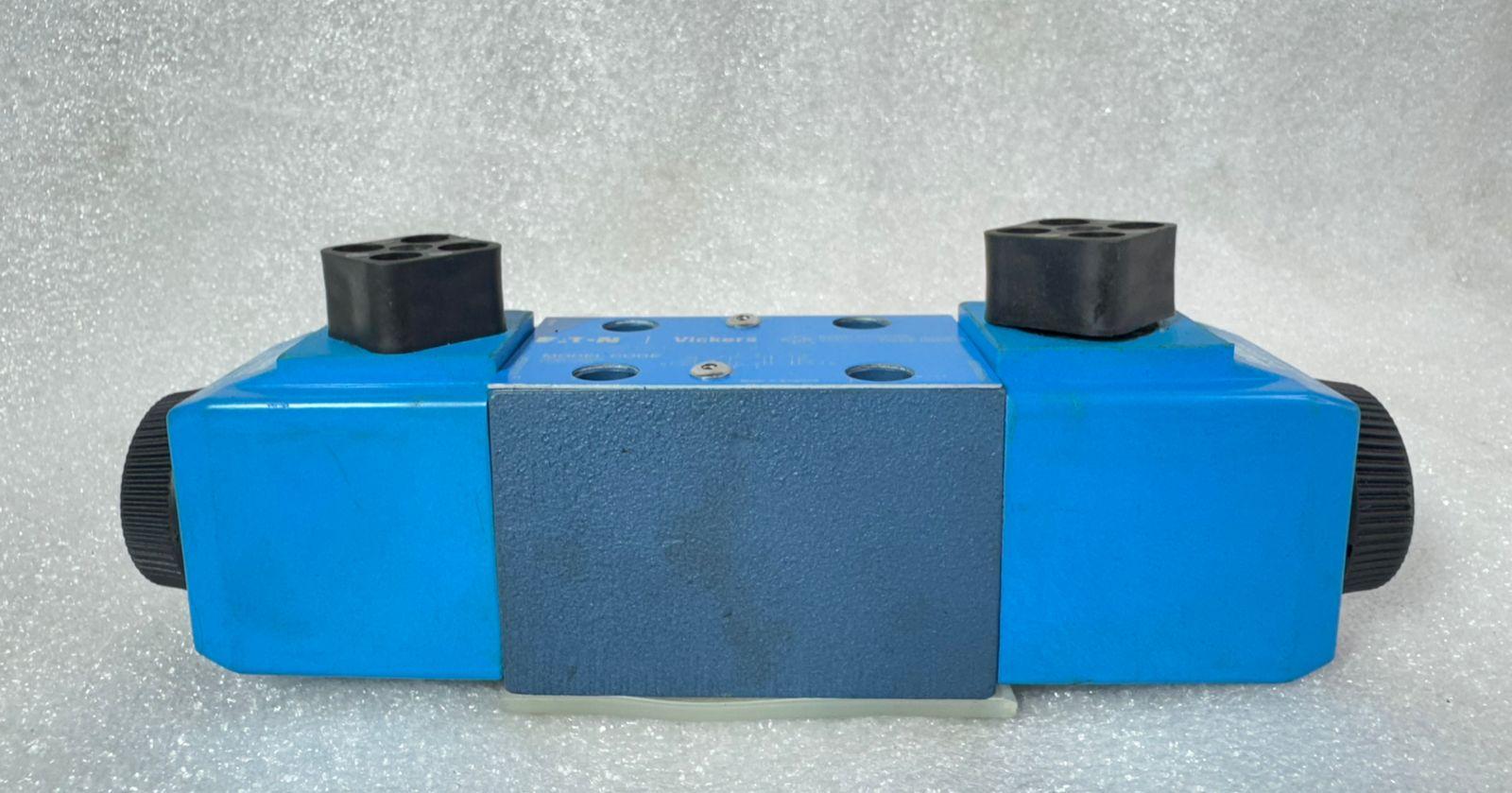

VICKERS DG4V 3 2C M U D6 60 HYDRAULIC VALVE

The VICKERS DG4V-3-2C-M-U-D6-60 is a high-performance solenoid-operated directional control valve designed for precise fluid direction in marine and offshore hydraulic systems. With a rated pressure of 350 bar on ports P, A, and B, and 210 bar on port T, it delivers dependable flow switching even under continuous high-pressure operation.

Paired with the VICKERS H-507834 Solenoid Coil (rated for 220V 50Hz / 240V 60Hz), this valve is ideal for use in hydraulic power units (HPUs), deck machinery, cranes, winches, steering gear, and industrial automation circuits.

Gani Marine Export supplies this valve as part of a complete global hydraulic control solution—delivered with competitive pricing, testing, and export documentation to ports and shipyards worldwide.

---

? Technical Specifications:

Valve (Main Unit):

Brand: VICKERS (Eaton)

Model: DG4V-3-2C-M-U-D6-60

Function: Solenoid-Operated Directional Control

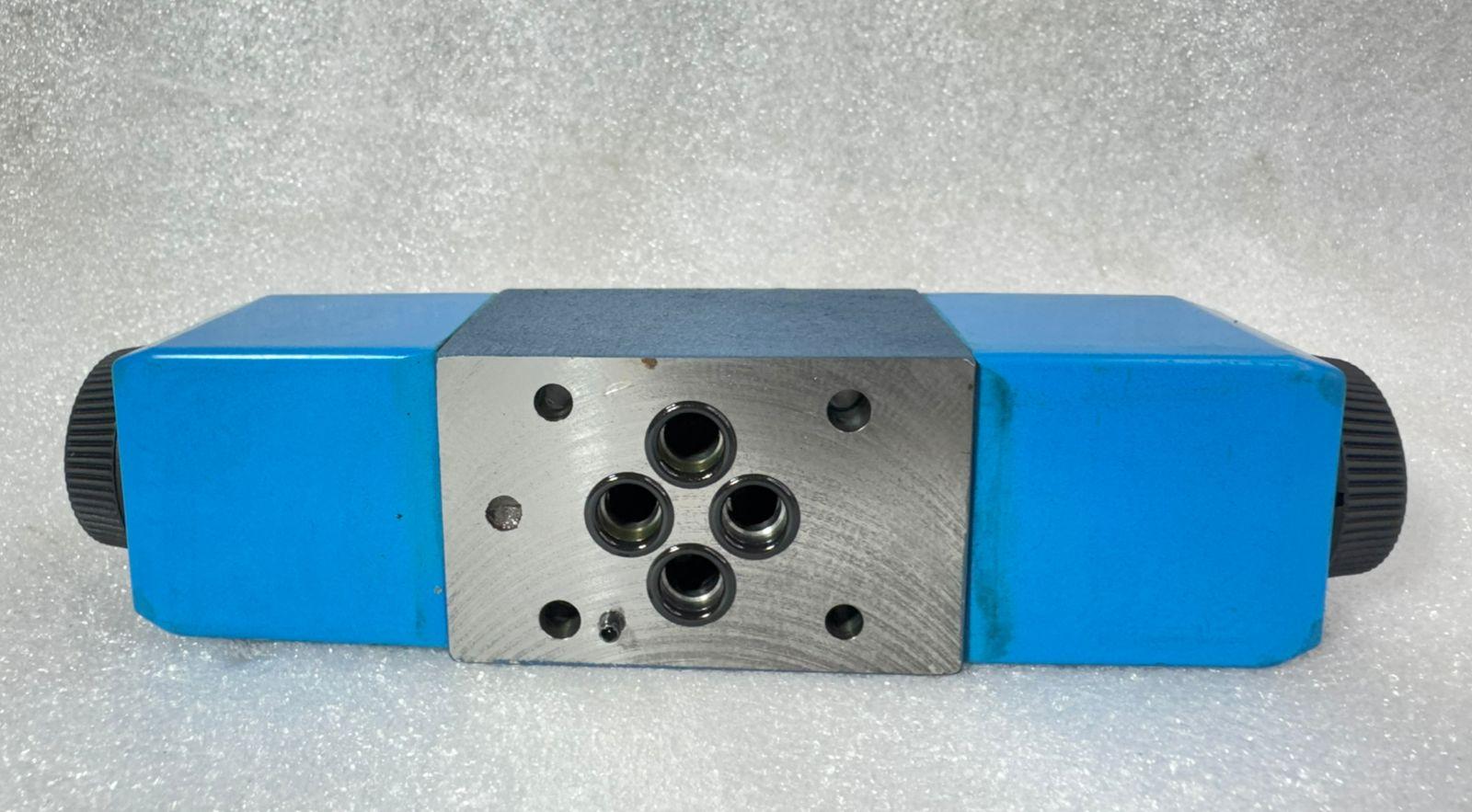

Mounting: Subplate / Manifold (D03 / CETOP 3)

Ports: P, A, B rated at 350 bar; T rated at 210 bar

Spool Type: 2-position, spring offset

Fluid Type: Mineral or synthetic hydraulic oil

Temperature Range: -20°C to +80°C

Seal Type: Buna-N / Viton (on request)

Application: Marine, Offshore, Industrial

Solenoid Coil:

Model: H-507834

Voltage: 220V @ 50Hz / 240V @ 60Hz

Power Code: K04/10

Connector Type: DIN-style plug

Operation: Continuous duty (100% ED)

Condition: New / Bench-Tested

Supplier: Gani Marine Export

---

? Applications:

Ship Steering Gear Control

Winch and Crane Hydraulic Direction

Hydraulic Power Units (HPUs)

Ballast and Hatch Cover Automation

Engine Room and Deck Equipment

Offshore Jacking Systems

Shipbuilding, Repair & Vessel Retrofitting

---

? Product Highlights:

? Genuine VICKERS Valve and Coil

? Rated 350 Bar (P, A, B), 210 Bar (T)

? DIN Coil – 220V/240V Compatible

? Subplate Mount – Easy Integration

? Rugged for Marine & Offshore Environments

? Supplied by Gani Marine – Global Marine Hydraulic Supplier

? Ready for Worldwide Delivery with Export Documents

---
