Uchida-Rexroth DBDS 6 P - A0 / 100 Pressure Relief Valve
Uchida-Rexroth DBDS 6 P - A0 / 100 Pressure Relief Valve
This Direct Operated Pressure Relief Valve is manufactured by Uchida-Rexroth, a Japanese joint venture between Uchida and Bosch Rexroth.
The DBDS series is designed to protect hydraulic systems by limiting maximum system pressure to a preset value. This compact and reliable valve is widely used in industrial, marine, and hydraulic power pack applications.
We are a trusted Uchida Rexroth relief valve supplier India, hydraulic pressure relief valve UAE distributor, DBDS 6 valve USA supplier, Rexroth hydraulic valve Singapore exporter, industrial hydraulic valve Brazil supplier, direct operated relief valve exporter India, hydraulic safety valve UAE, pressure control valve USA distributor, supplying worldwide.
Valve Identification

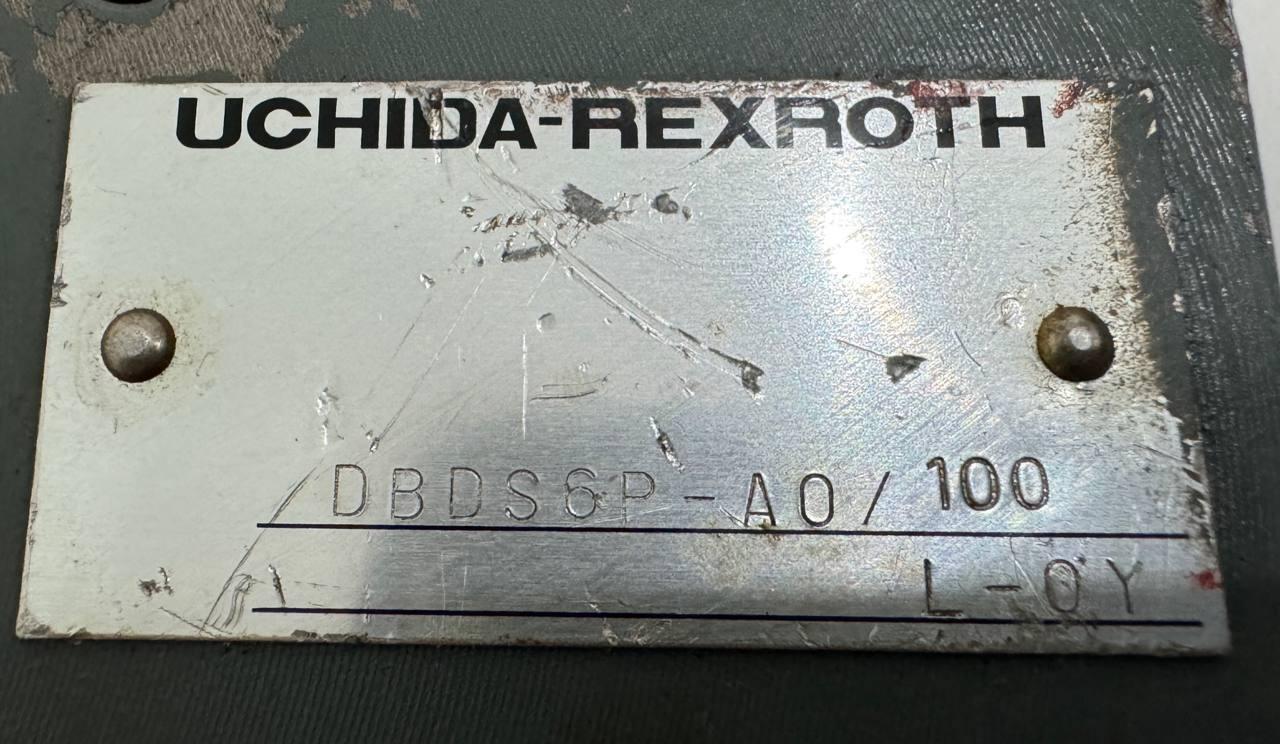

• Model Code: DBDS 6 P - A0 / 100

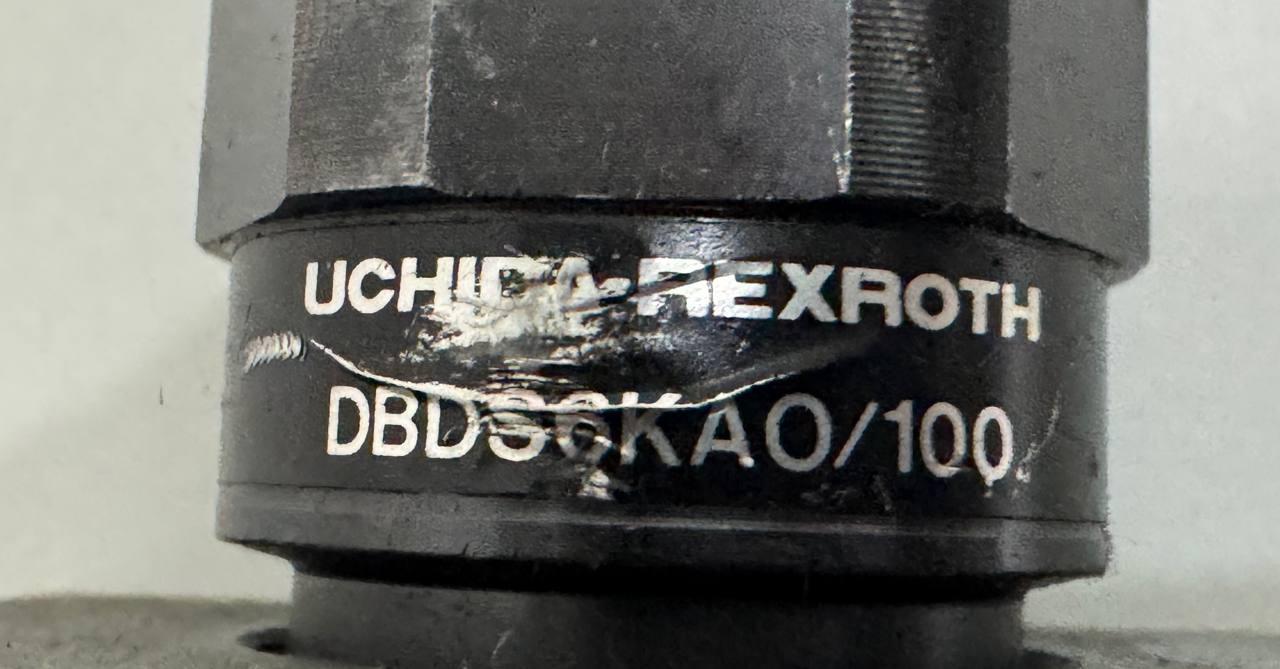

• Neck Marking: DBDS 6 K A0 / 100
• Valve Type: Direct operated pressure relief valve
• Lot Number: L - 0Y
• Series: A0
Technical Specifications Breakdown
Valve Type – DBD
Direct operated pressure relief valve.
Unlike pilot-operated types, this valve controls pressure directly via a spring-loaded poppet system.
Adjustment Type – S
Screw adjustment with protective cap.
Nominal Size – 6
Size 6 – commonly used for modular subplate mounting or manifold blocks.
Mounting Type – P
Subplate mounting configuration.
Alternative Neck Marking – K
Indicates cartridge-style internal construction.
Pressure Rating – 100
Maximum adjustable pressure:
100 bar (approx. 1,450 PSI)

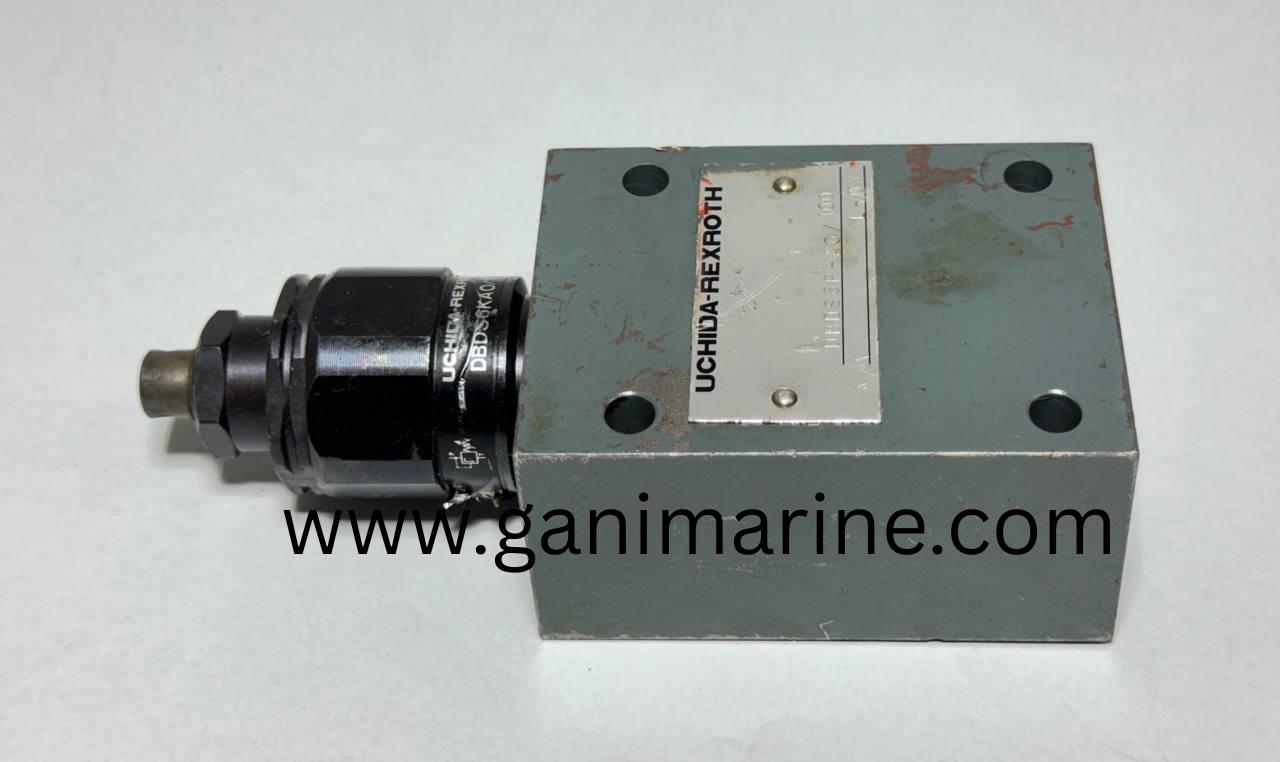

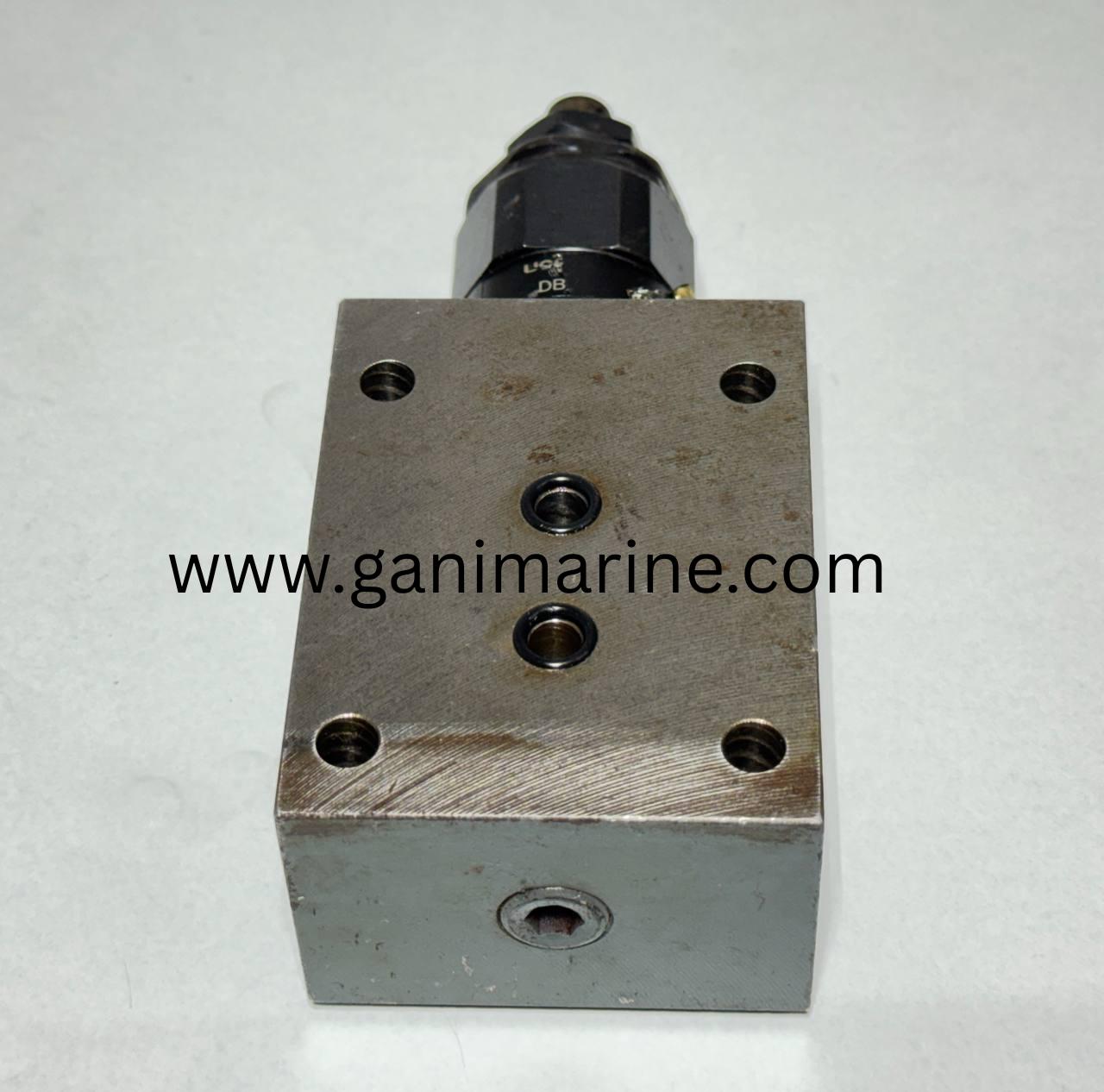

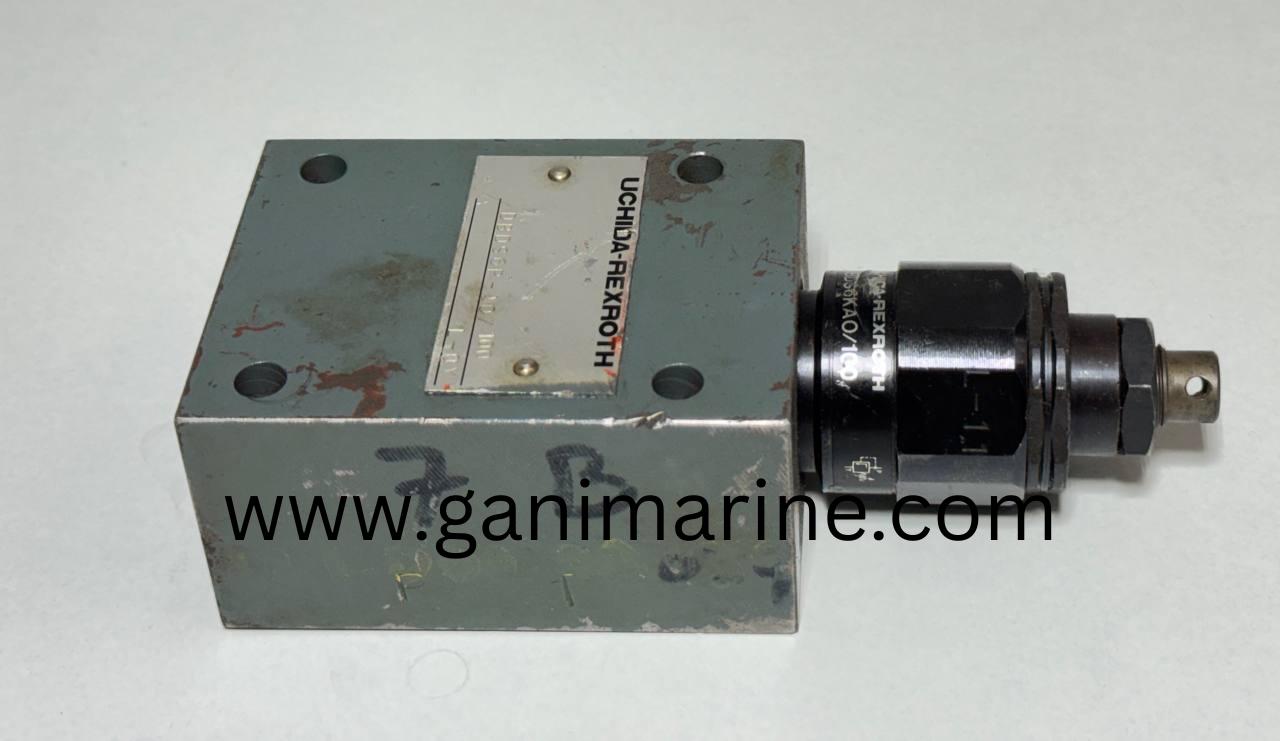

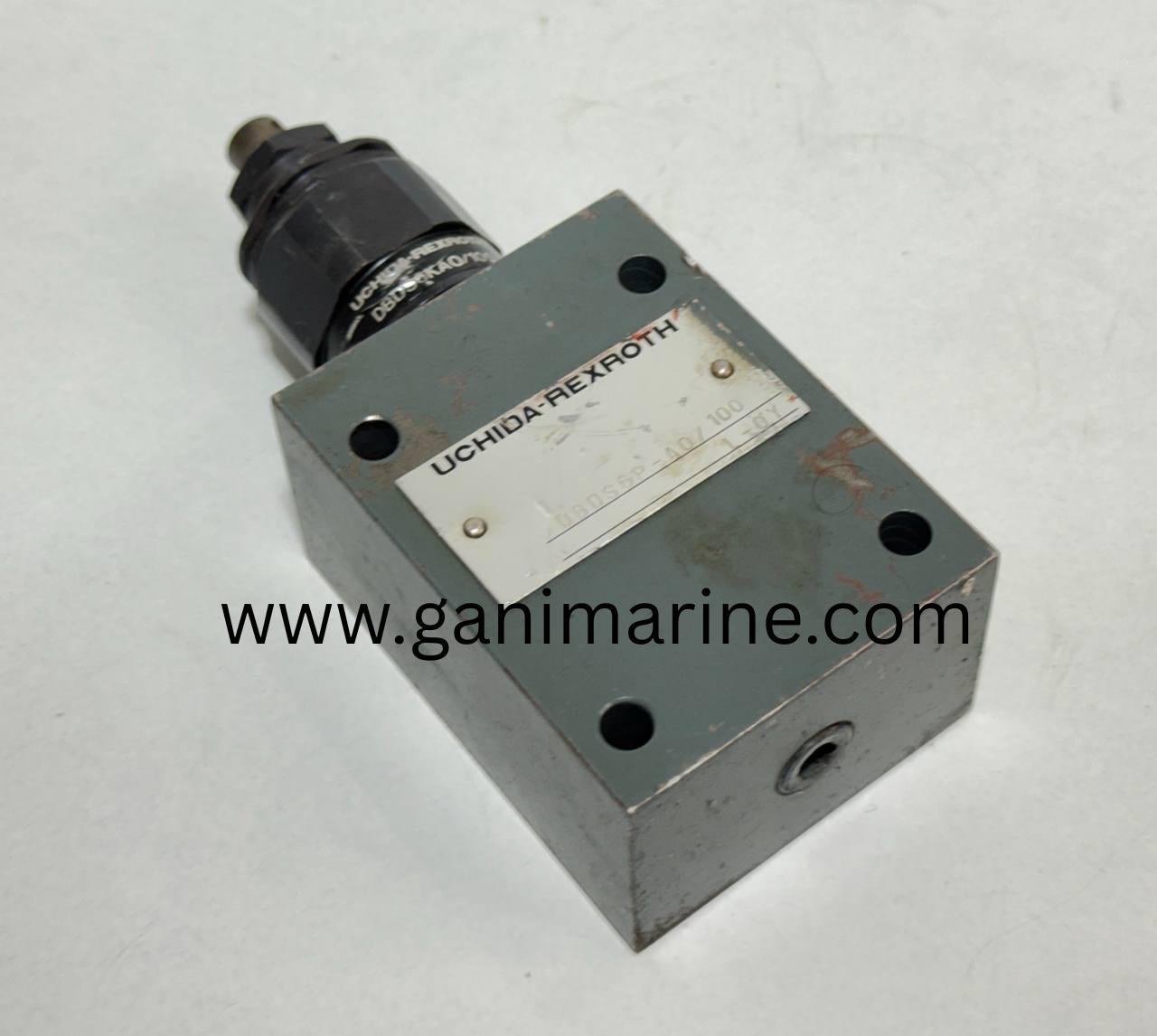

Physical Characteristics
• Mounted on subplate/manifold block
• Four mounting bolt holes
• Bottom or side port connections
• Compact industrial design
• Heavy-duty steel body
Adjustment Method
The hexagonal top section is used for pressure setting:
• Turn clockwise ? Increase relief pressure
• Turn counter-clockwise ? Decrease relief pressure
Always tighten locknut after adjustment.
Working Principle
This valve operates using:
• Spring-loaded poppet
• Direct pressure sensing
• Instant response to pressure rise
When system pressure exceeds set value, the valve opens and diverts flow to tank, protecting pumps, cylinders, and hoses.
Typical Applications
• Hydraulic power packs
• CNC machines
• Injection molding machines
• Marine hydraulic systems
• Industrial automation
• Hydraulic test benches
• Medium-pressure circuits
• Safety pilot valve applications
Industries Served
• Manufacturing plants
• Marine & offshore
• Oil & gas
• Construction equipment
• Heavy engineering
• Process industry
Usage Note
Since this valve is rated for 100 bar, it is ideal for:
• Medium-pressure control circuits
• Secondary protection circuits
• Pilot control stages in larger hydraulic systems
