SEIL-SERES VRCS Indicator & Valve Control System (BL0043 / SS-PI-084663)

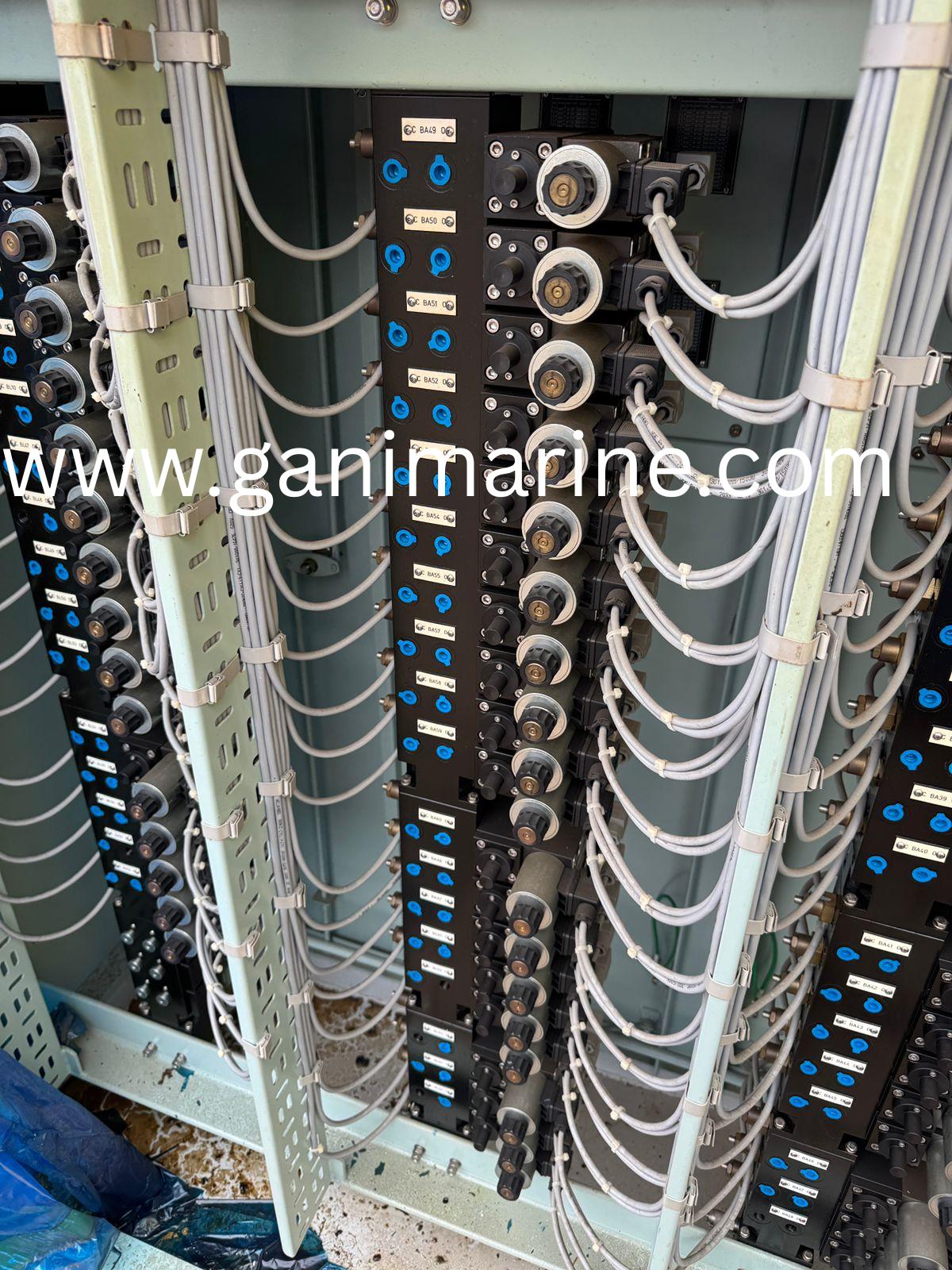

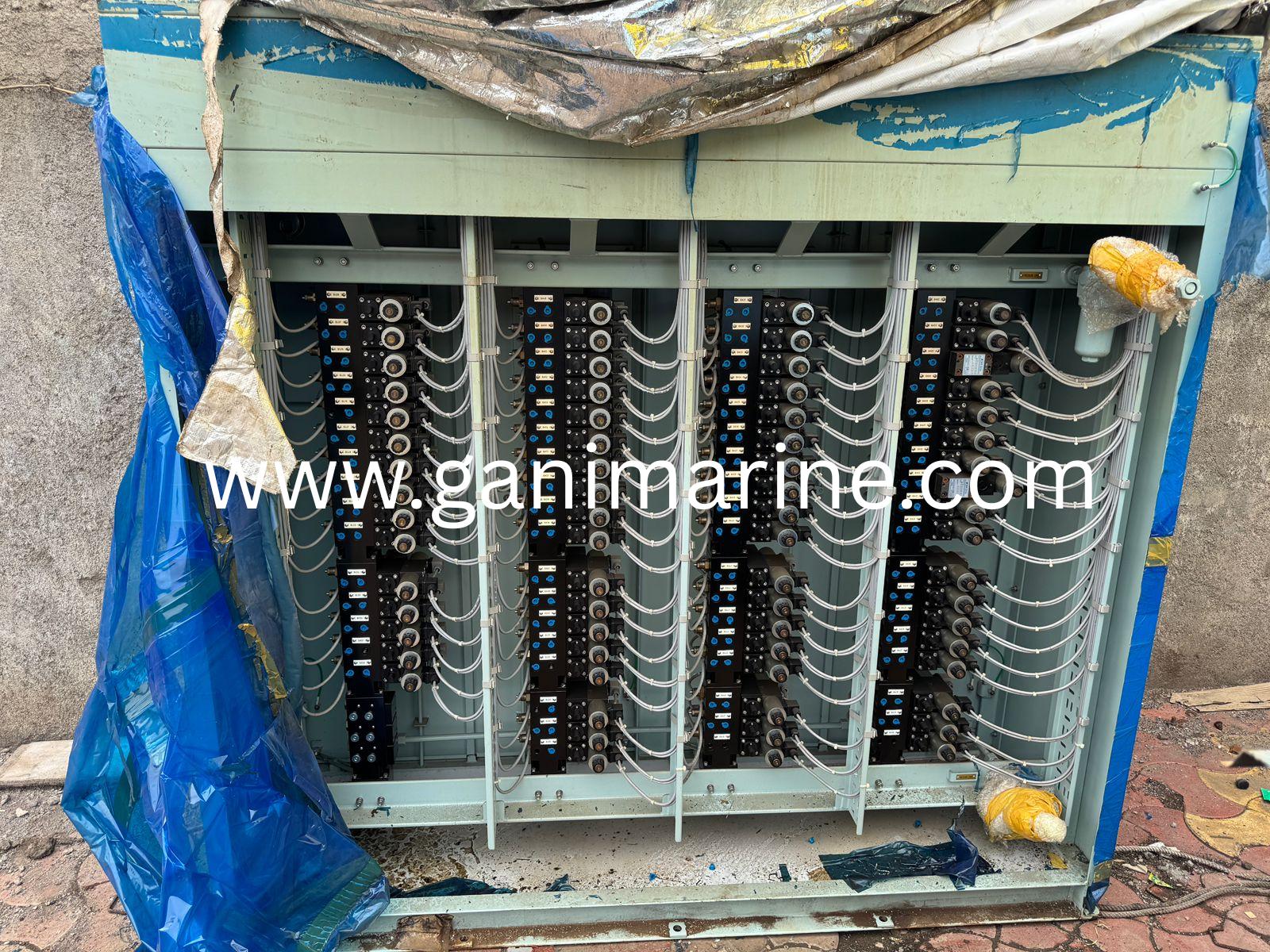

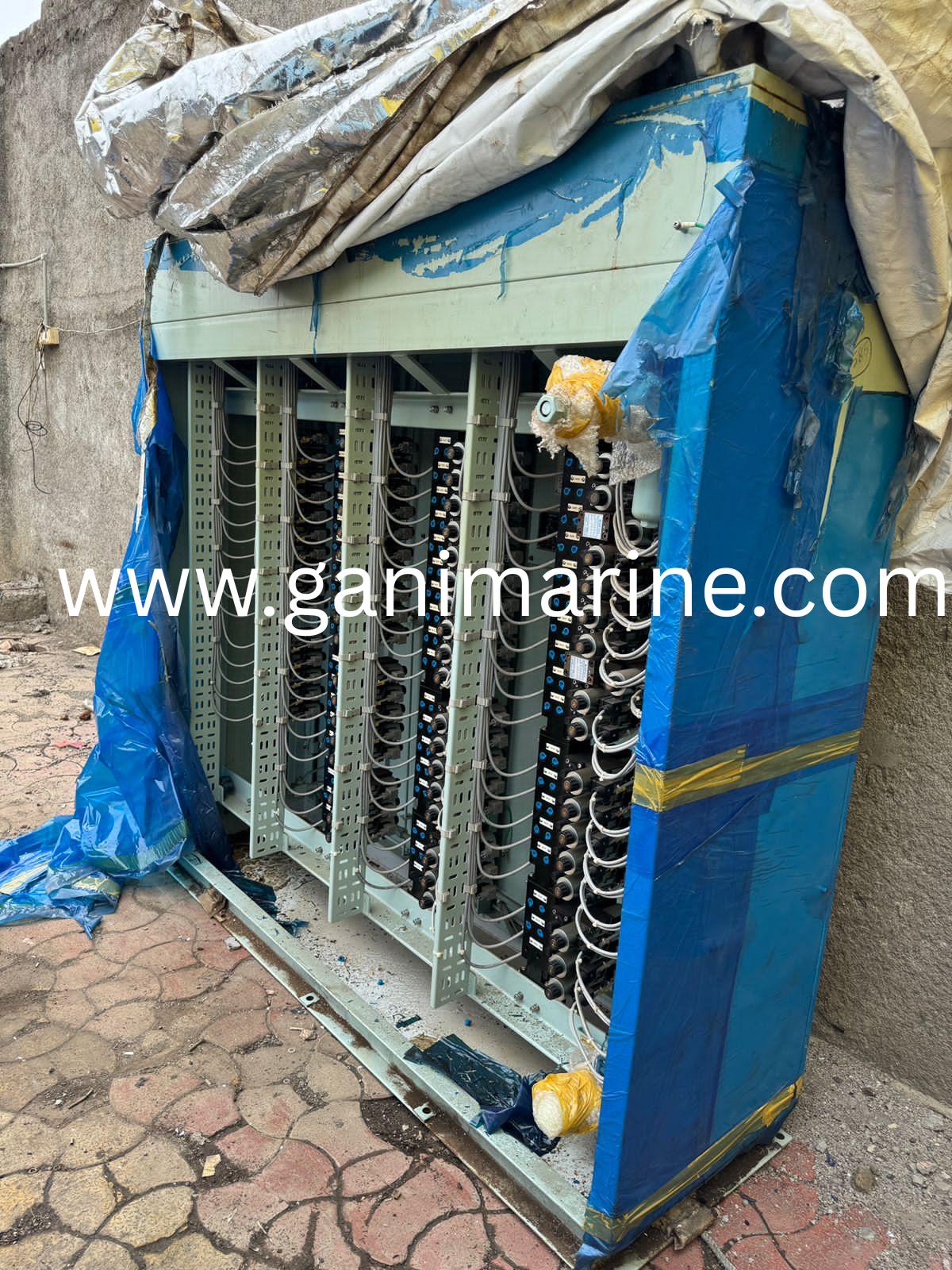

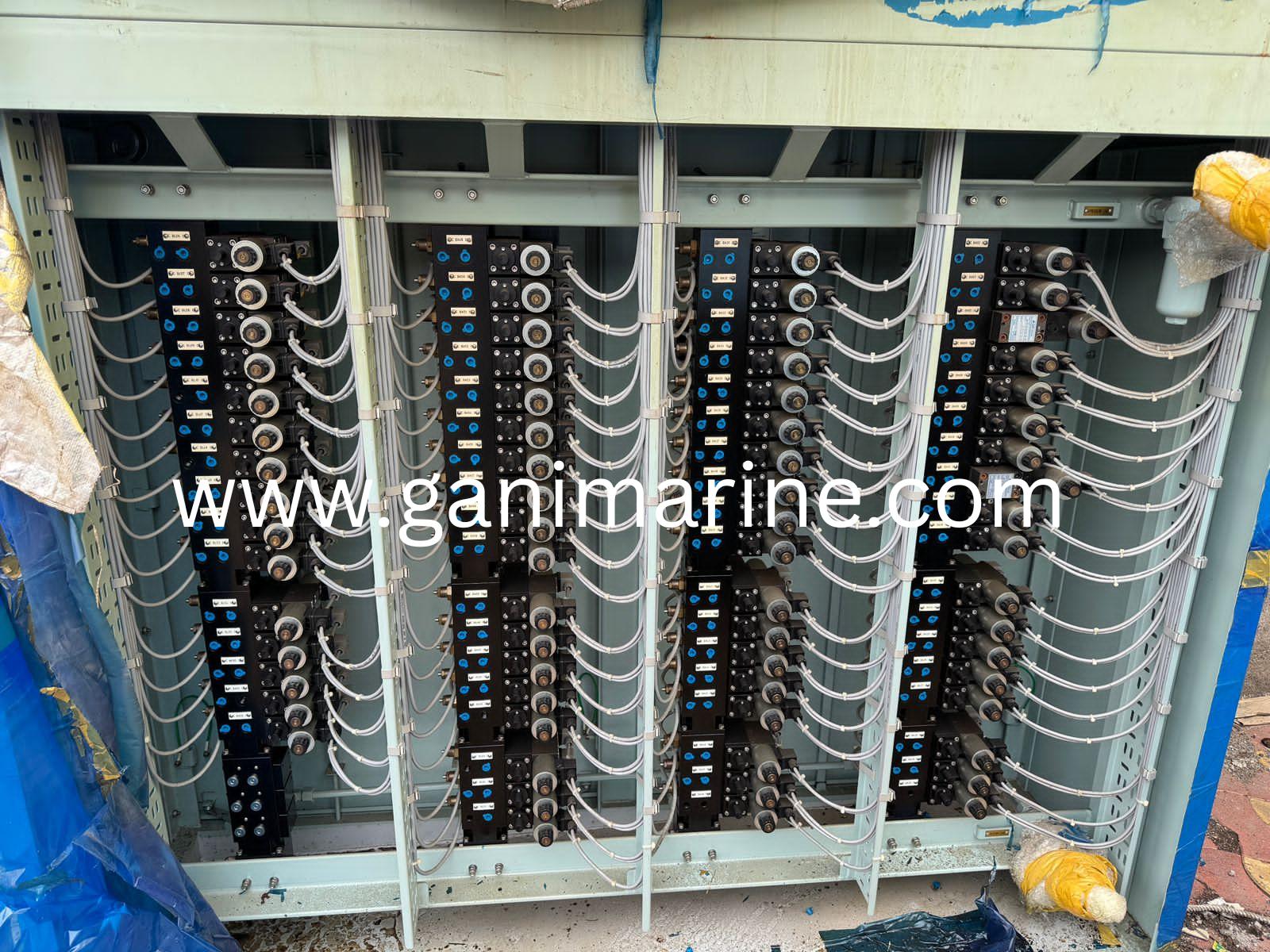

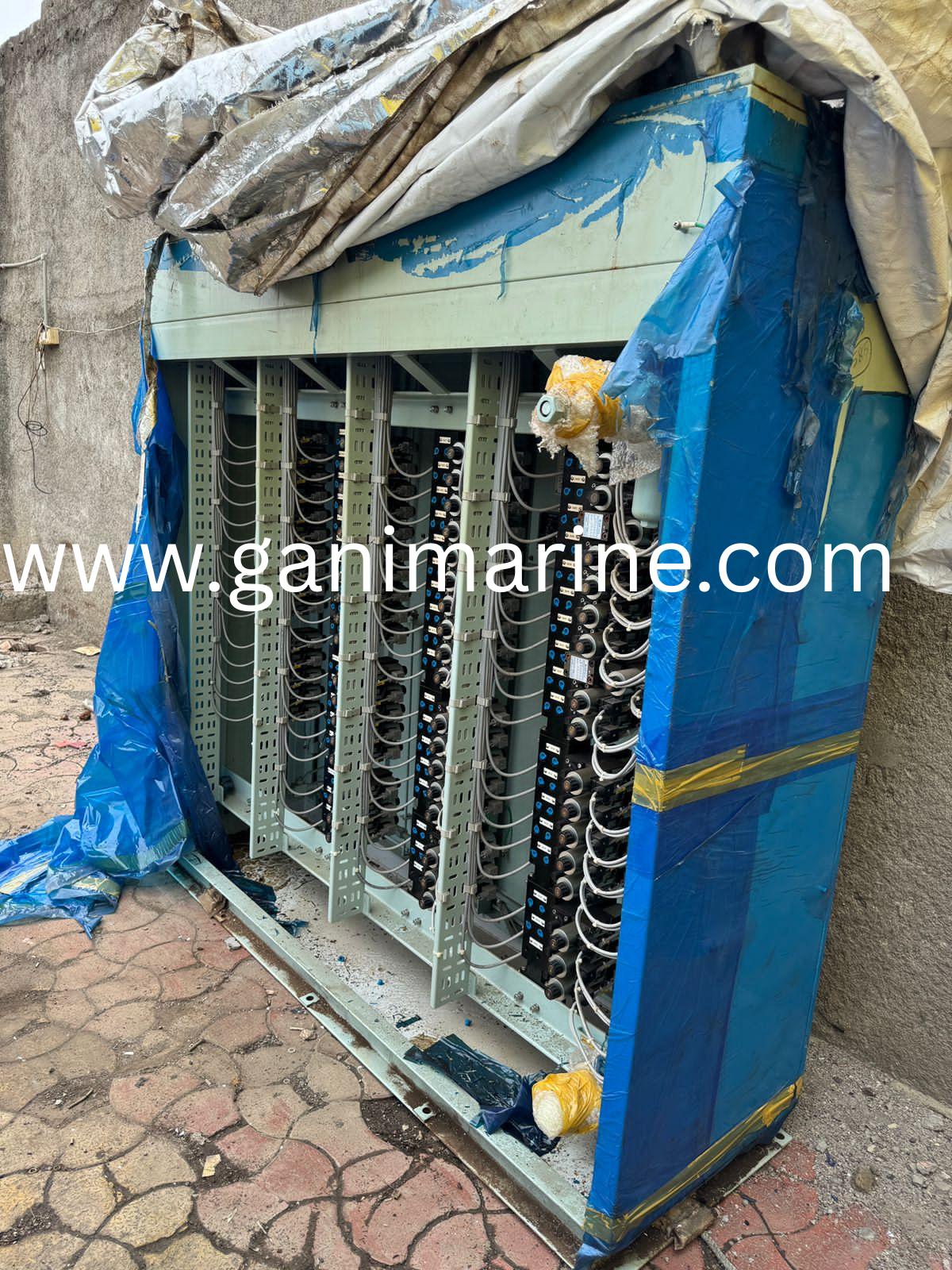

The SEIL-SERES Valve Remote Control System (VRCS) is a fully integrated solenoid valve rack designed for marine and offshore applications. Built with SEIL-SERES blocks, Parker solenoid valves, WIKA pressure gauges, STAFF pressure filters, and HY-LOK connectors, it ensures safe and reliable valve control on ships and offshore platforms.

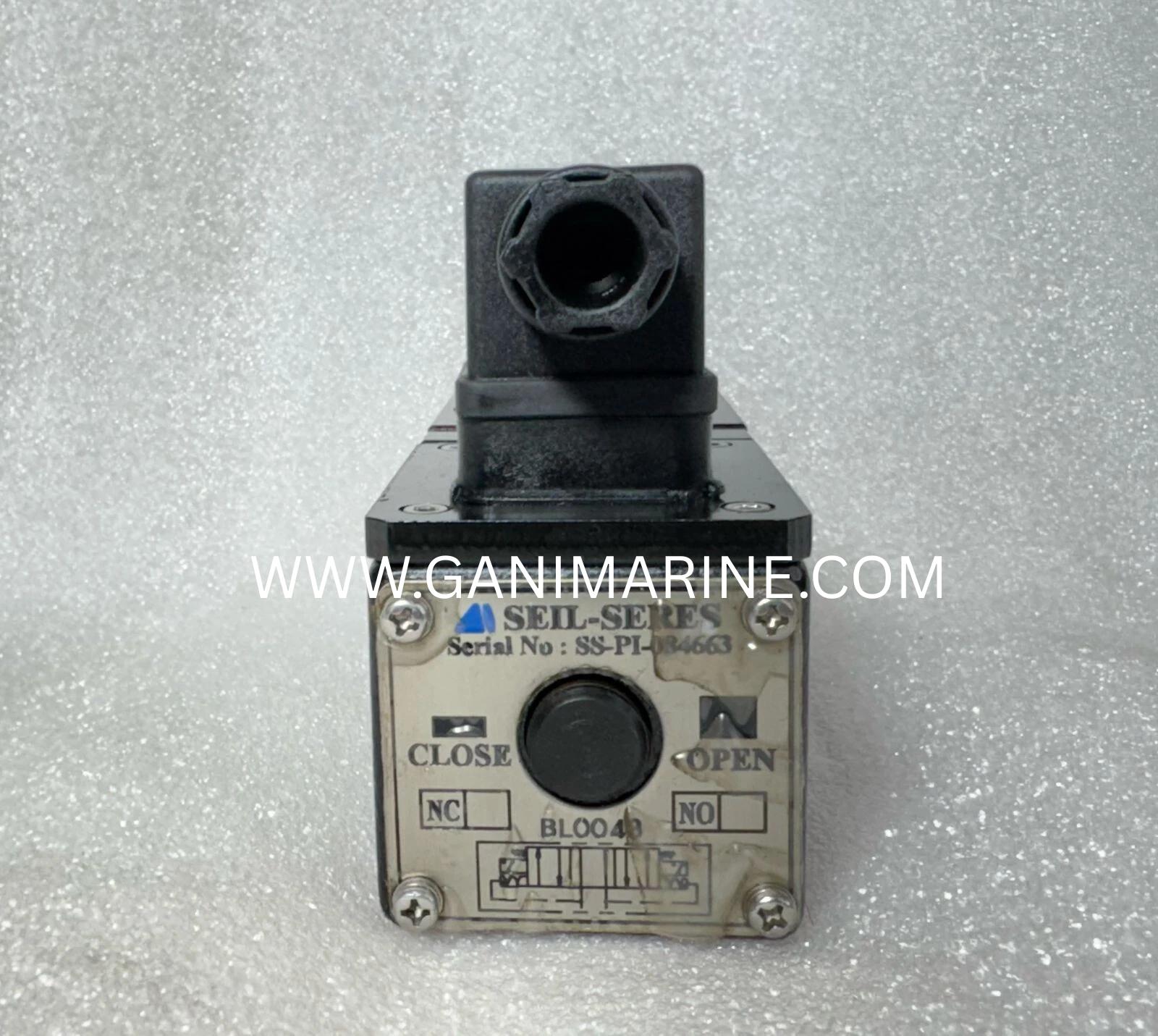

A key component of the VRCS is the SEIL-SERES Indicator (BL0043 / SS-PI-084663), which provides visual position feedback of valve operation. These indicators are widely used in ballast, cargo, and service valve control applications.

The complete VRCS system is installed on bulk carriers, tankers, LNG/LPG carriers, offshore platforms, and is supported by shipbuilding yards worldwide.

Gani Marine Exporter supplies original SEIL-SERES VRCS systems, indicators, solenoid racks, blocks, gauges, and Parker valves with fast global delivery.

---

Technical Specifications

Type: Solenoid Valve Rack – VRCS System

Indicator Models:

SEIL-SERES BL0043 (Position Indicator)

SEIL-SERES SS-PI-084663 (Pressure Indicator / Position Indicator)

Solenoid Valves: Parker D1VW4CNTWF-DC24V

Pressure Gauges: WIKA 0–250 Bar

Pressure Filters: STAFF with Visual Closing Indicator

Connectors: HY-LOK (138 pcs, 1/4” OD, 10 pie)

Sub Plates & Distribution Blocks: SEIL-SERES

Flow Meter & Reducer: SEIL-SERES (THR Type & COMP-001)

Working Pressure: Up to 350 Bar

Application: Remote Hydraulic Control of Marine Valves

Design Reference: SS-VH42-T368 – ABG Shipyard (54000 DWT Bulk Carrier Project)

---

Key Features and Specifications

Product Name: SEIL-SERES Valve Remote Control System (VRCS) – Solenoid Valve Rack

Drawing No.: SS-VH42-T368

Shipyard: ABG Shipyard

Vessel: 54000 DWT Bulk Carrier

Document Date: April 01, 2008 (Final Revision: Oct 13, 2008)

System Type: Solenoid Valve Rack for VRCS

Application: Marine Valve Remote Control System (VRCS)

Main Specifications (from Part List)

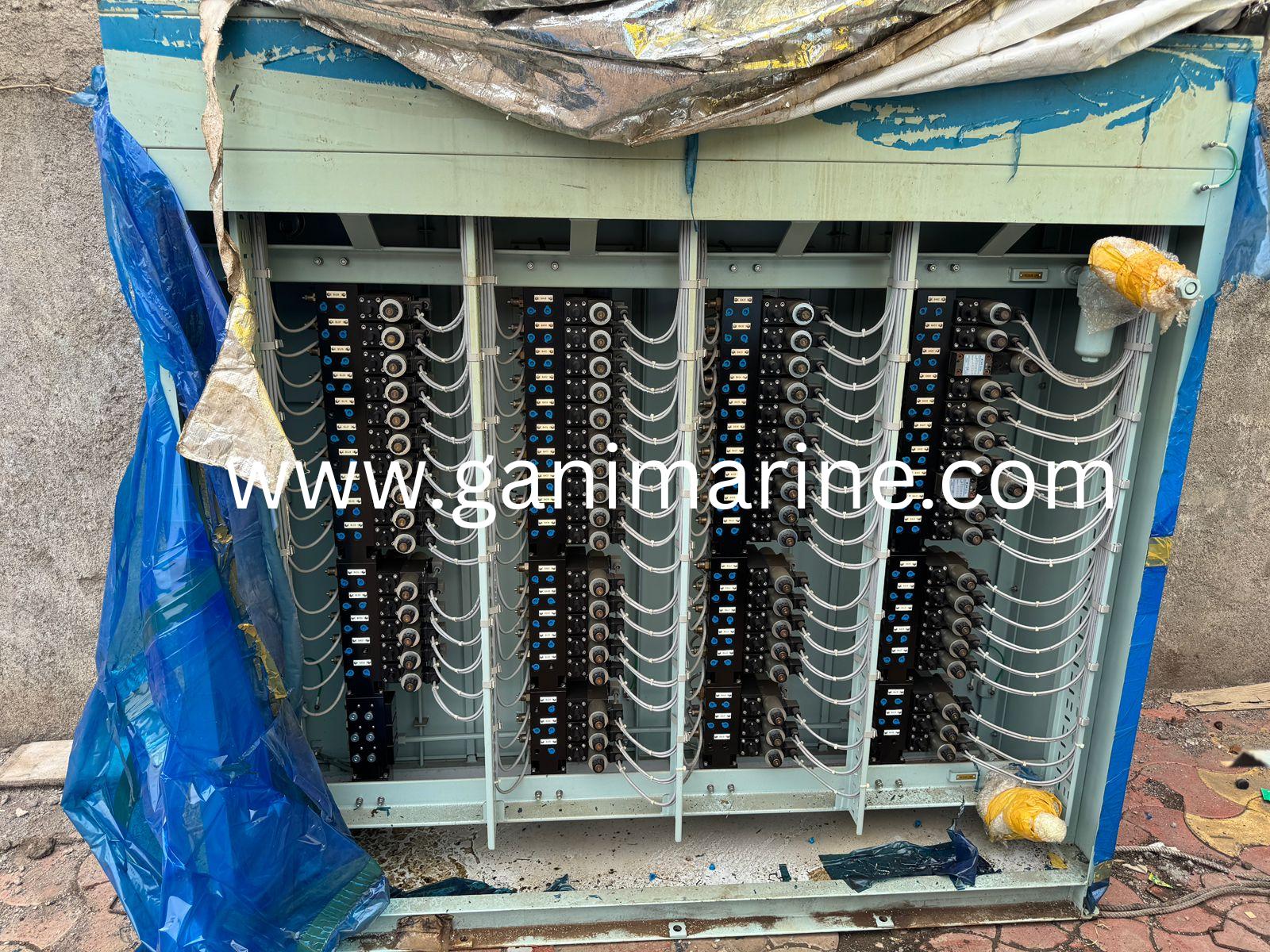

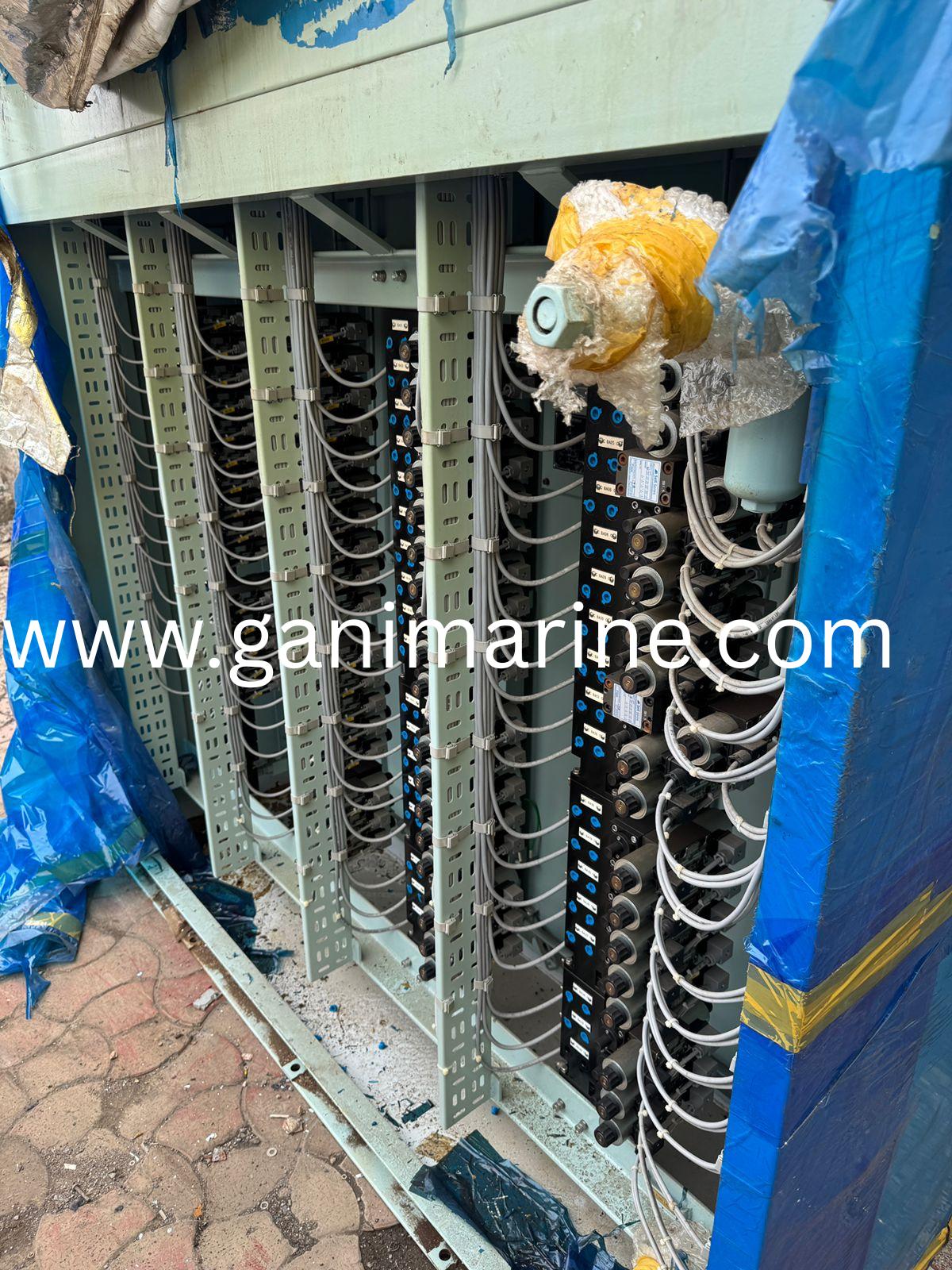

Valve Cabinet: SEIL-SERES – Qty 1

Seamless Tube (16 pipe, Steel): Qty 2 (Pressure line & Return line)

Ball Valve (1/2” & 3/8” Steel, MHA): Qty 10 total

Pressure Filter w/Visual Closing Indicator (STAFF): Qty 1

Connector (HY-LOK 1/4” 10 pcs, ADM10CL-02C): Qty 138

Pressure Gauge (WIKA 0–250 bar, 213.53.063): Qty 1

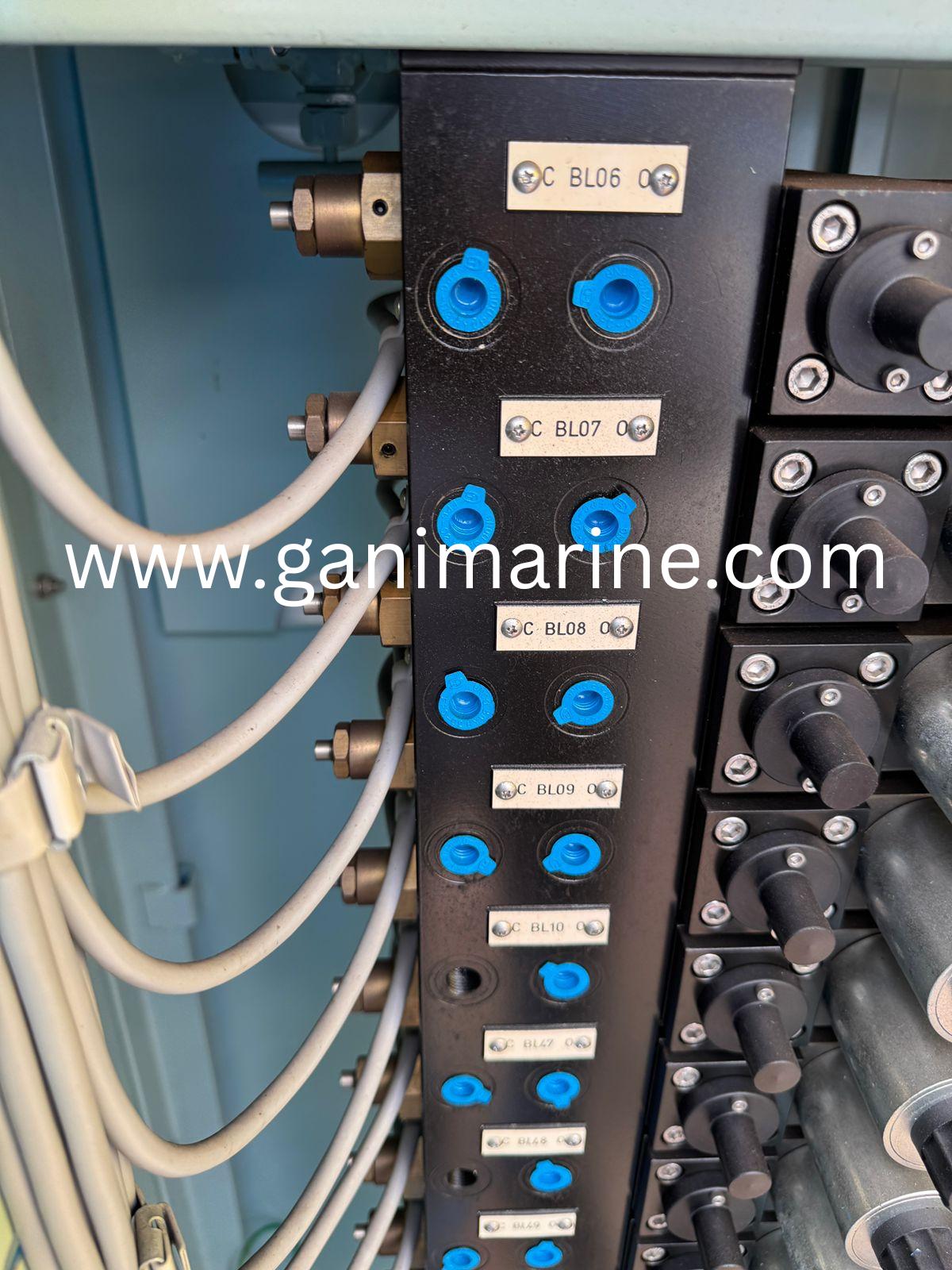

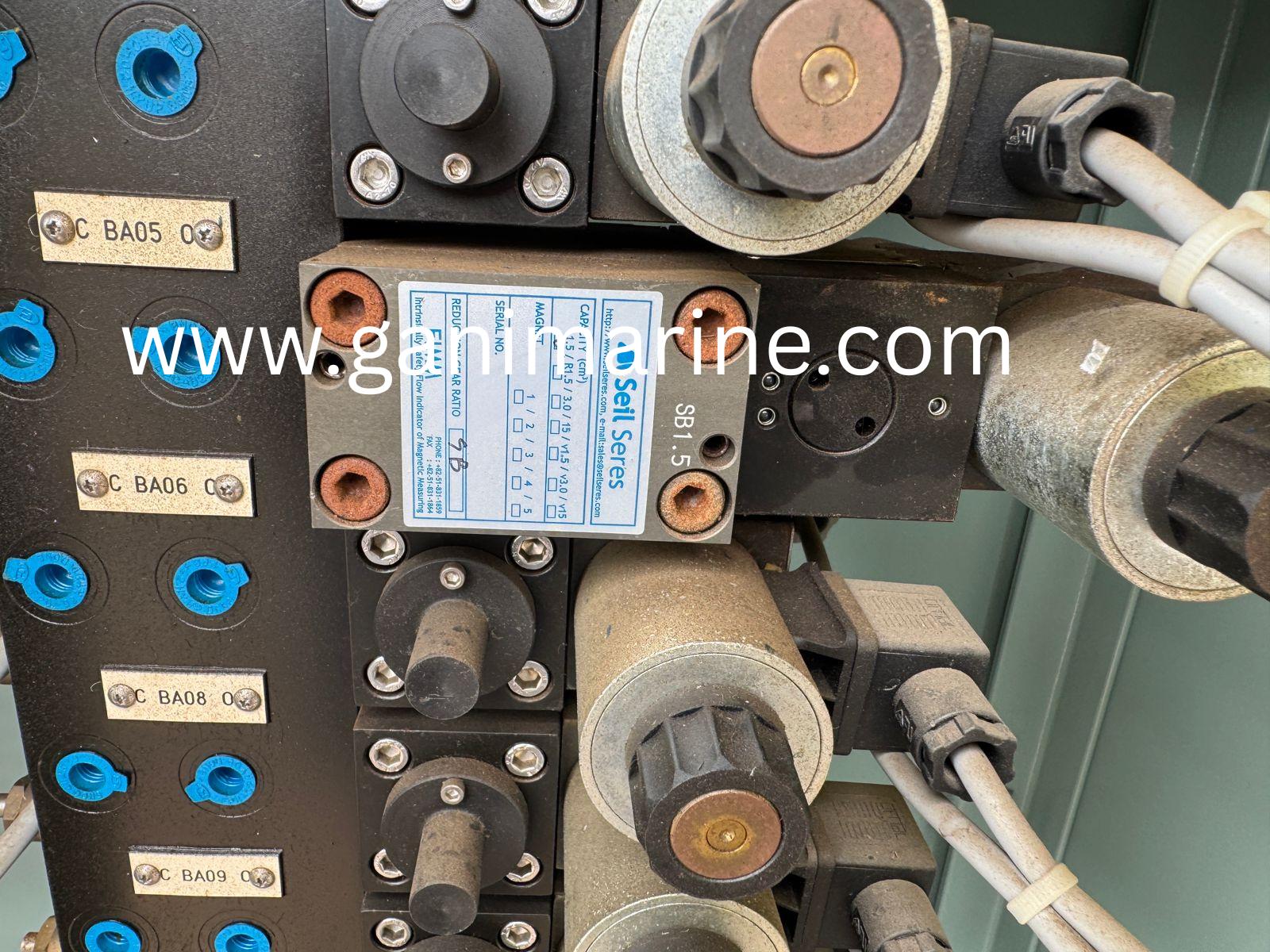

Block/Sub Plate Assembly

Pressure Sub Plate: SEIL-SERES – Qty 4

Return Sub Plate: SEIL-SERES – Qty 4

Base Plate 10 Units: SEIL-SERES – Qty 4

Base Plate 5 Units: SEIL-SERES – Qty 4

Base Plate 3 Units: SEIL-SERES – Qty 3

Mask Block: SEIL-SERES – Qty 1

Distribution Unit

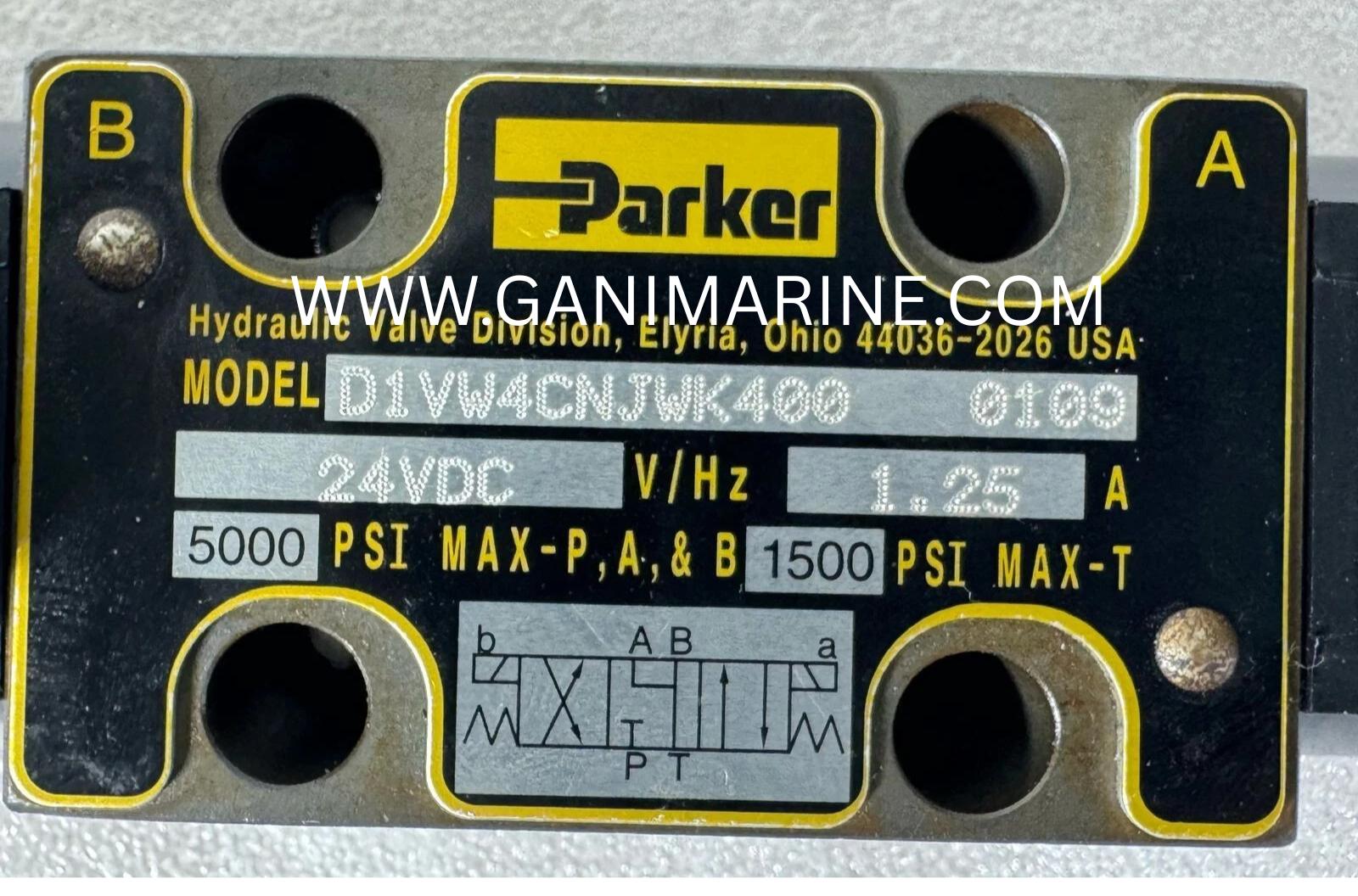

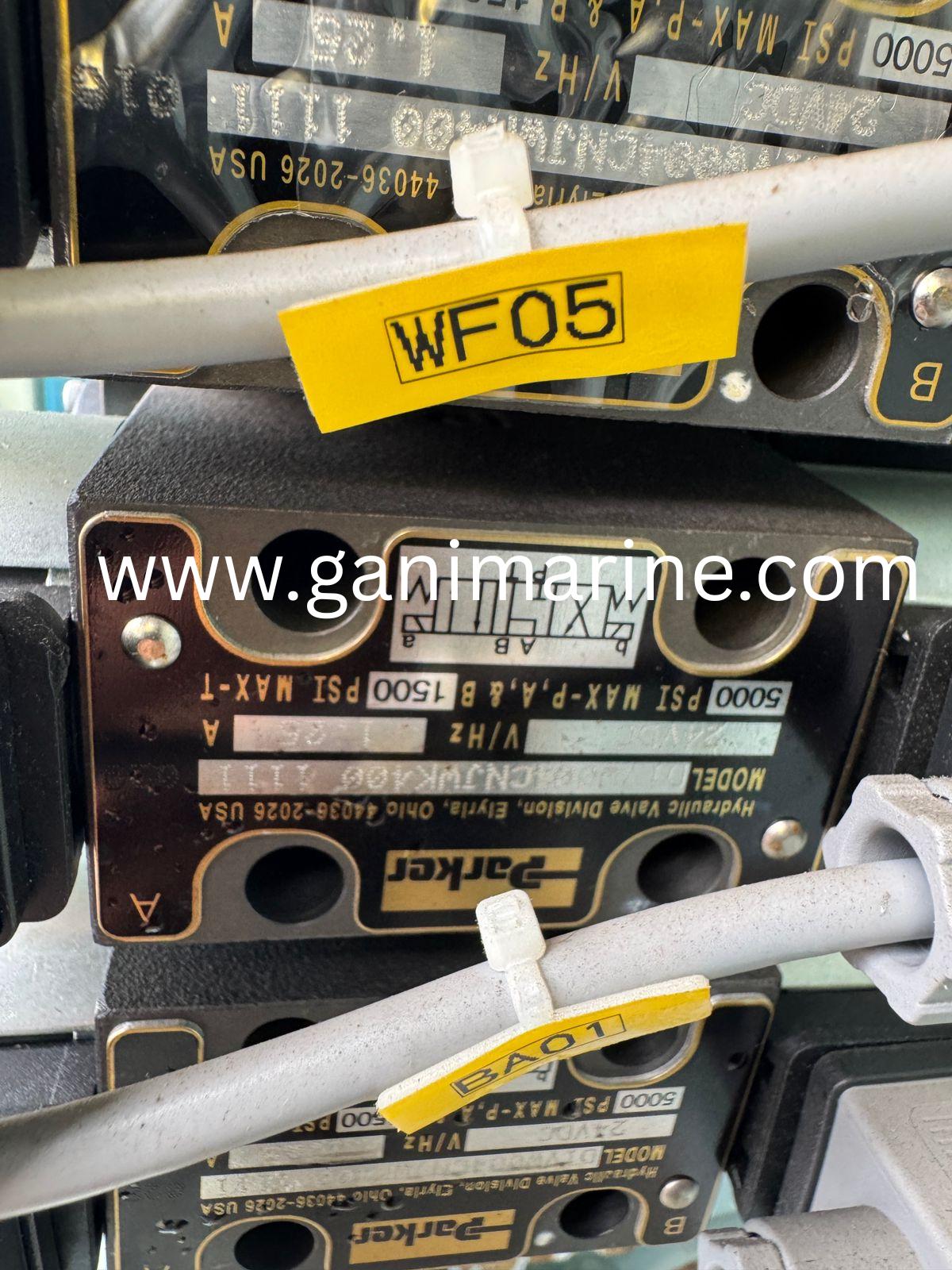

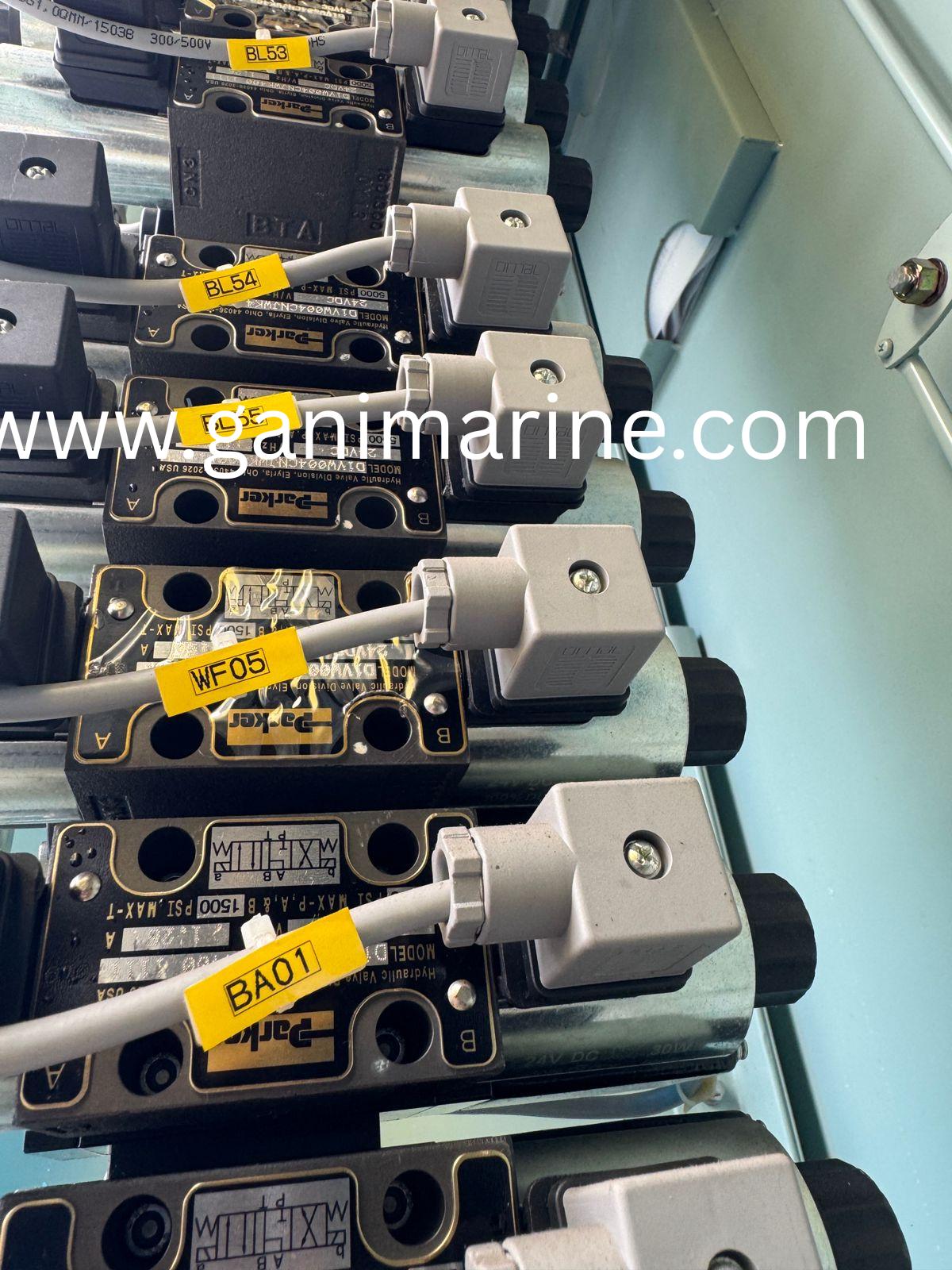

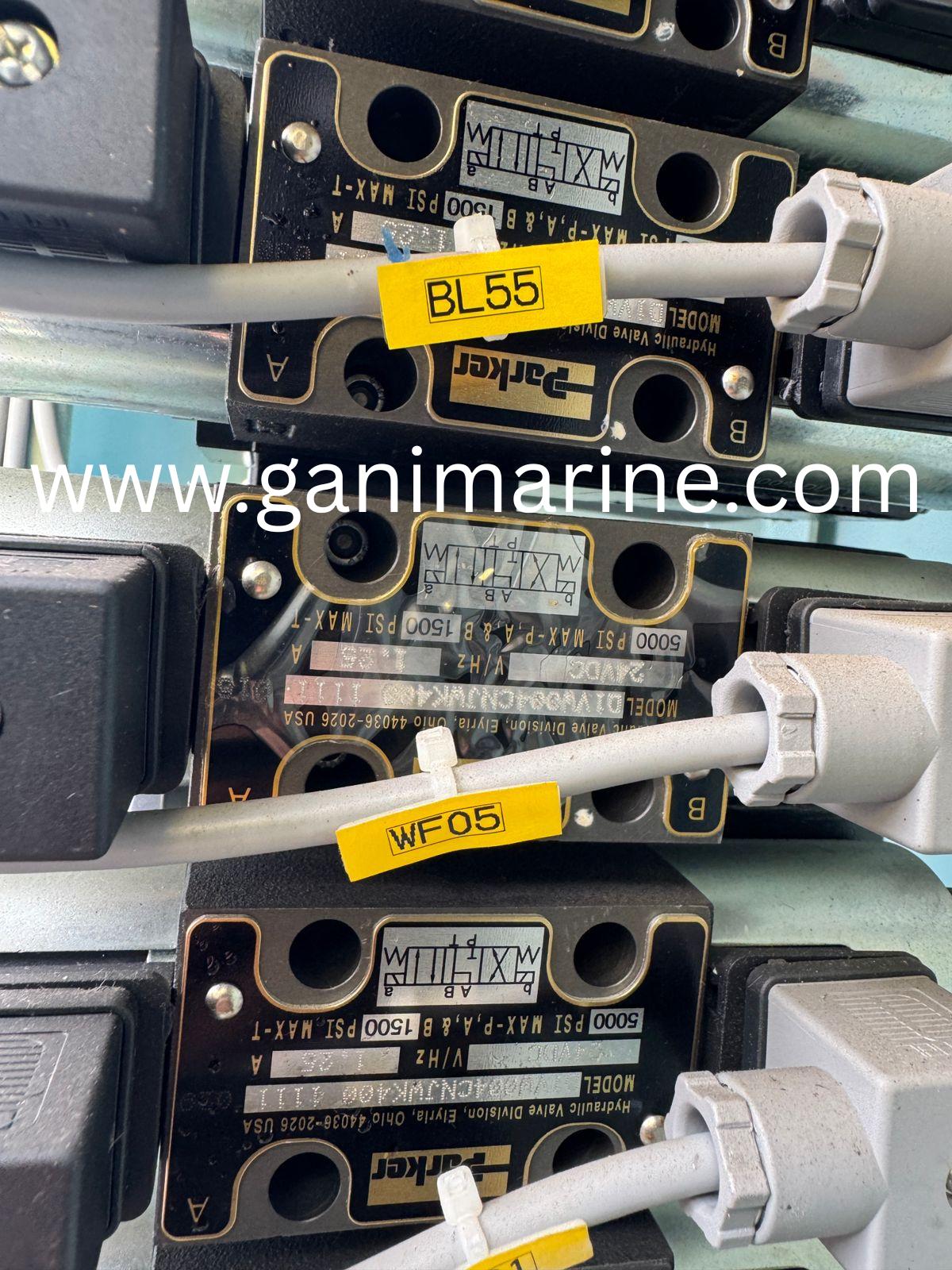

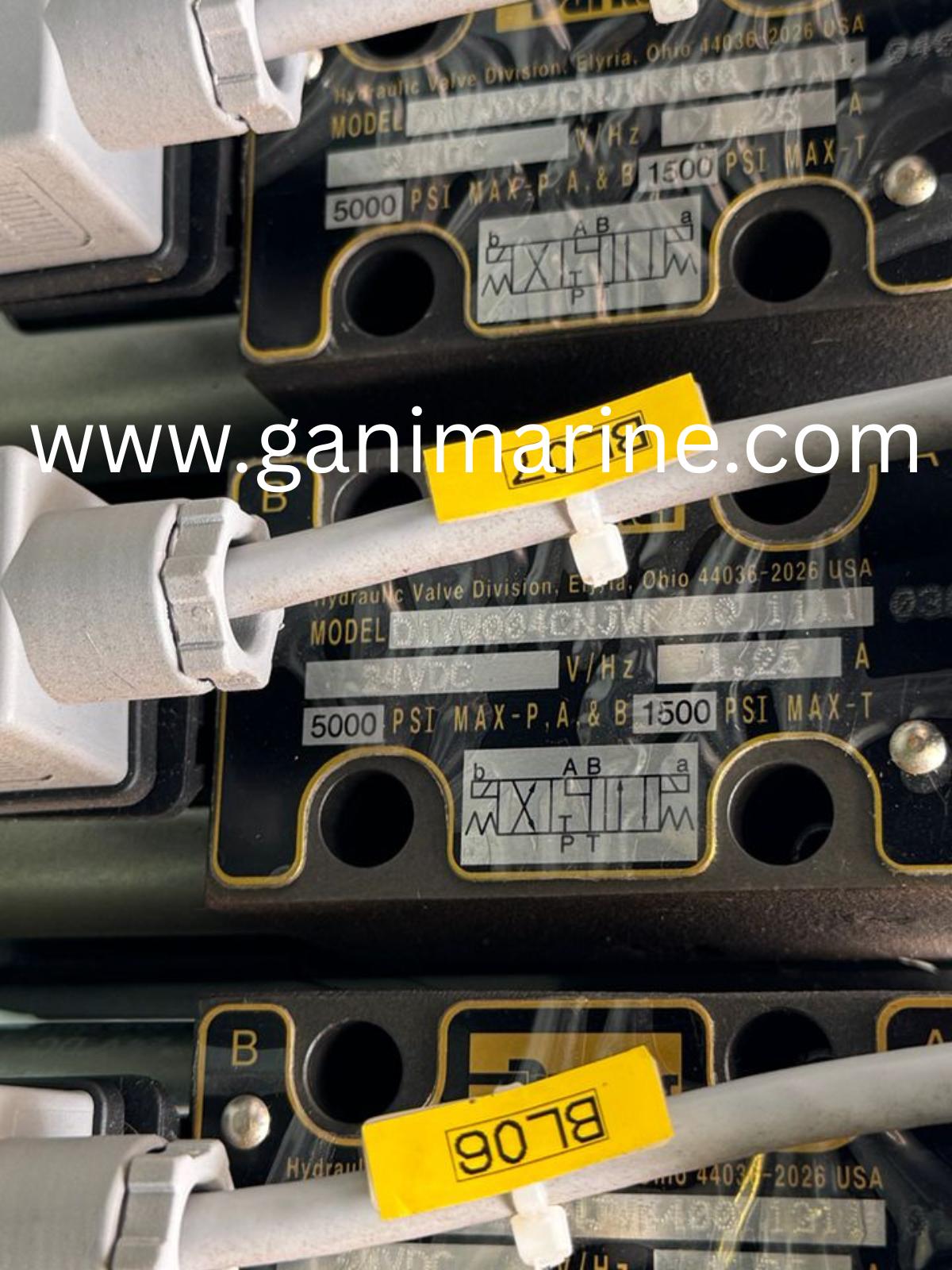

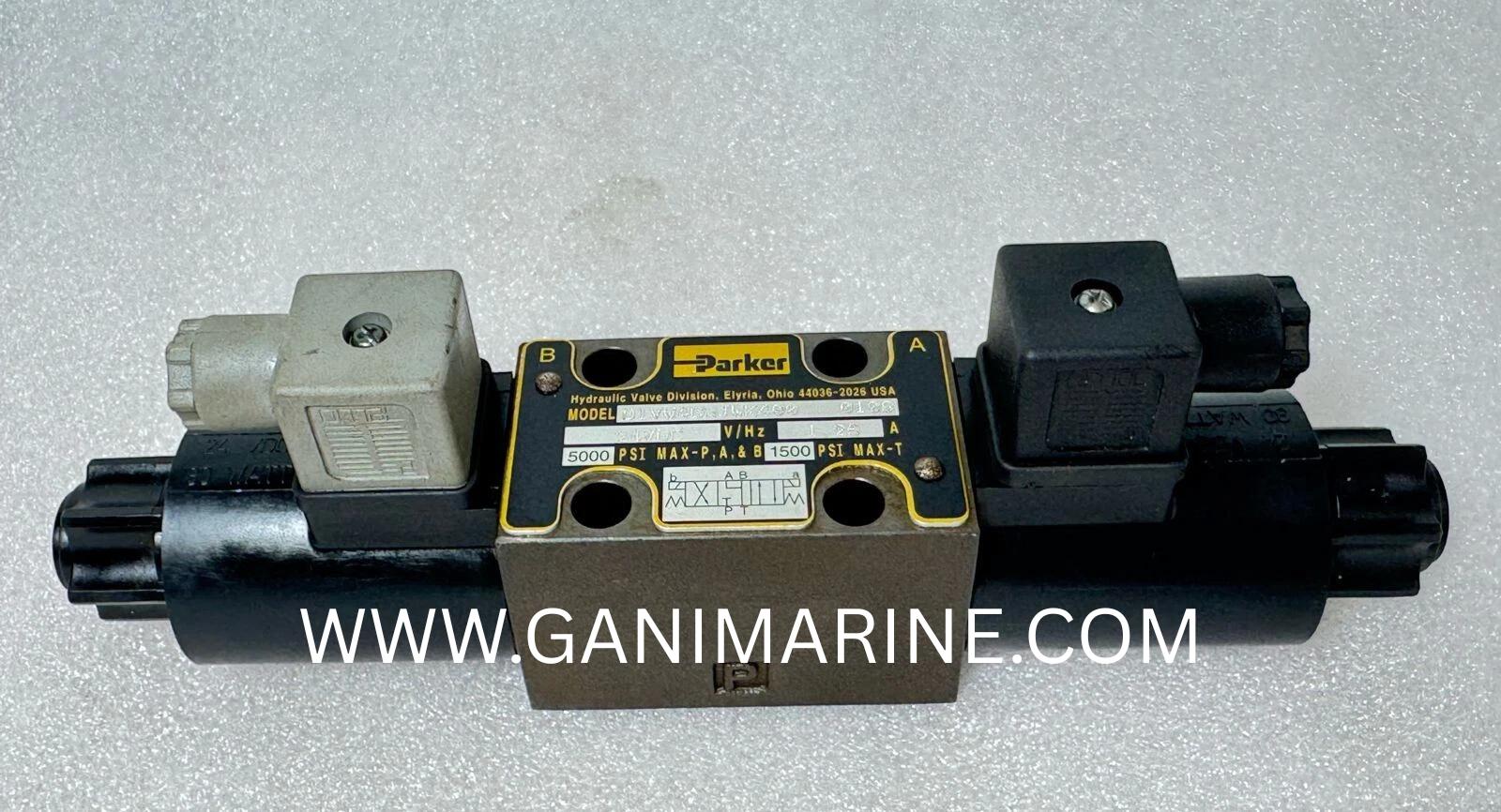

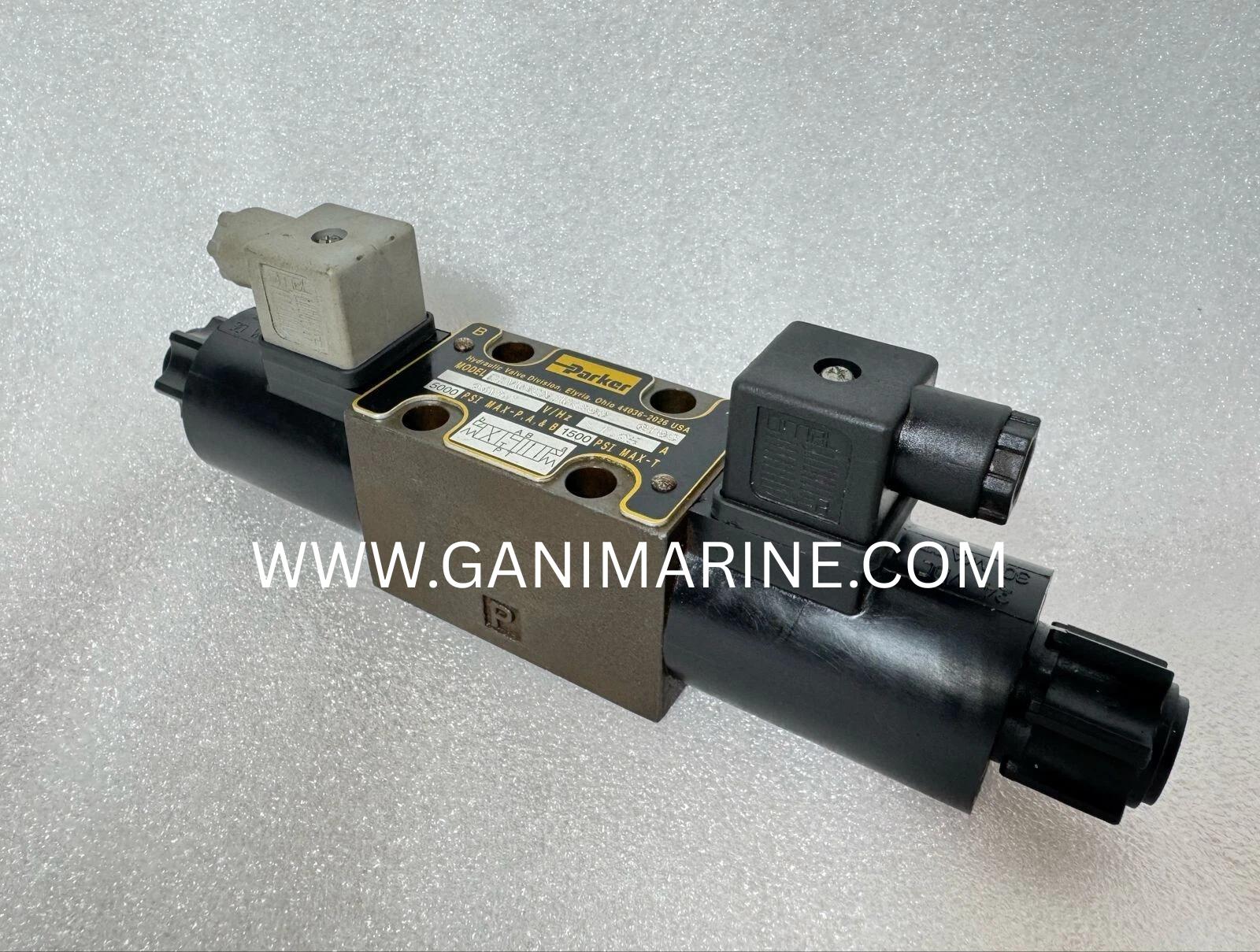

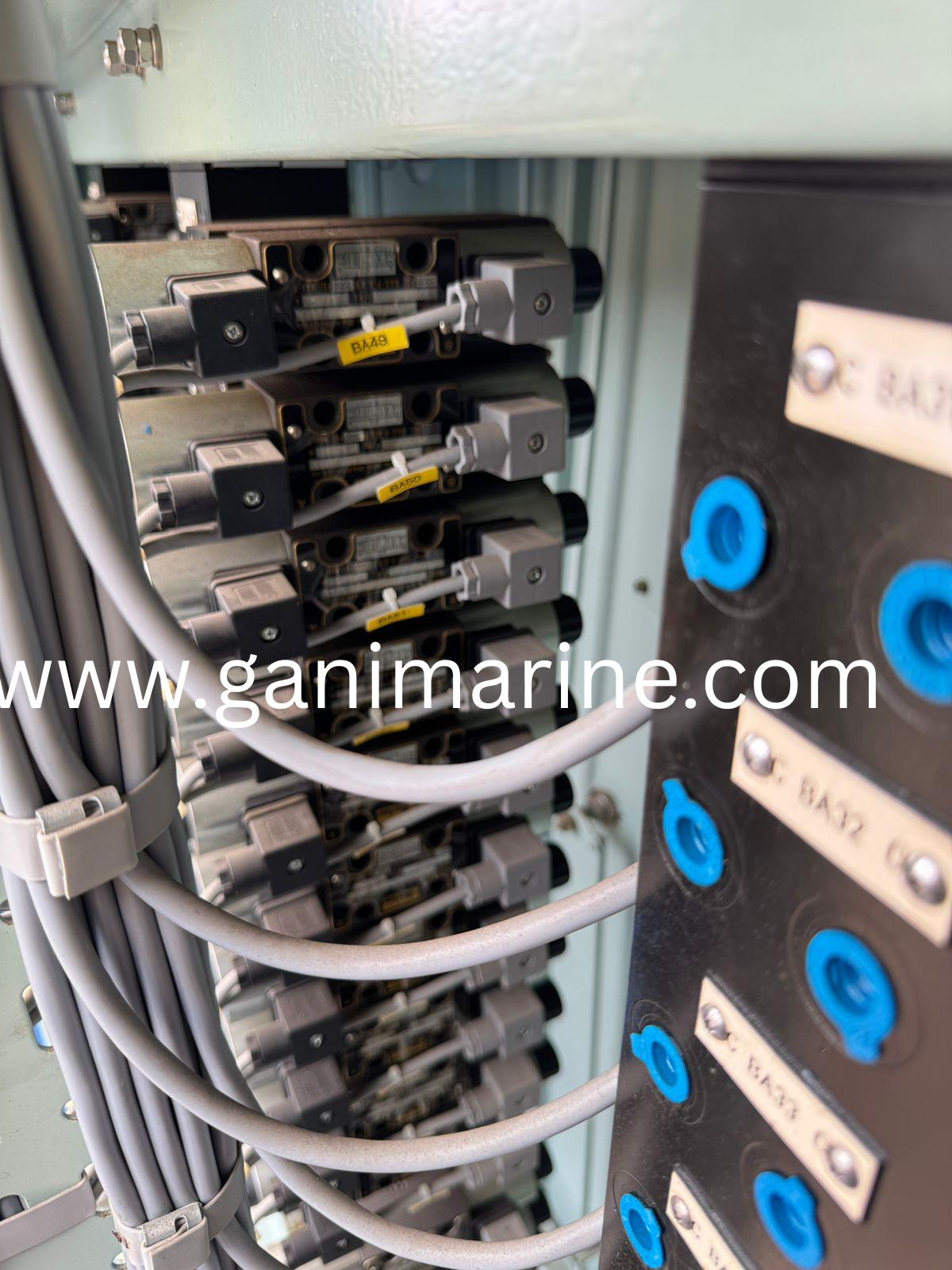

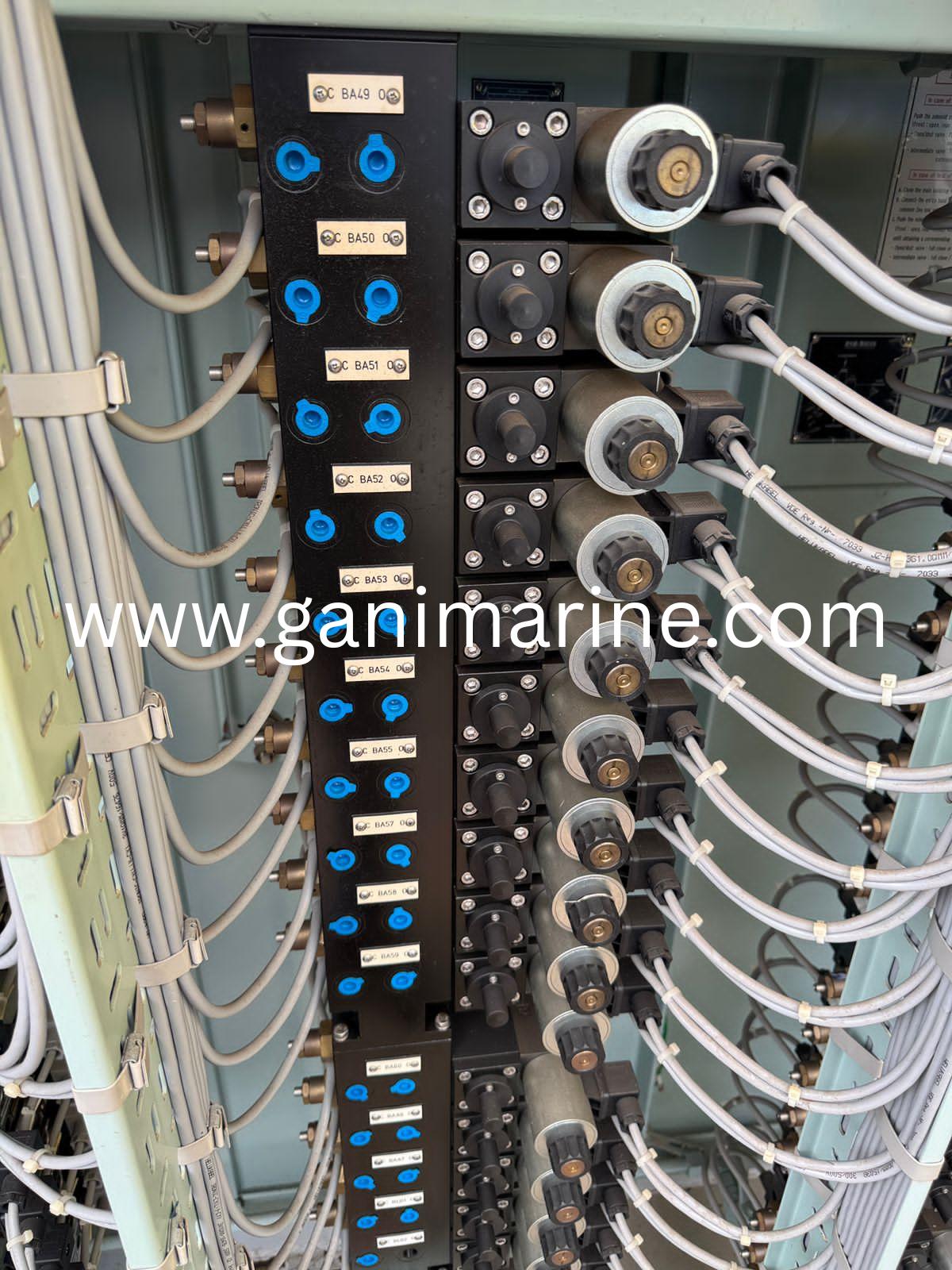

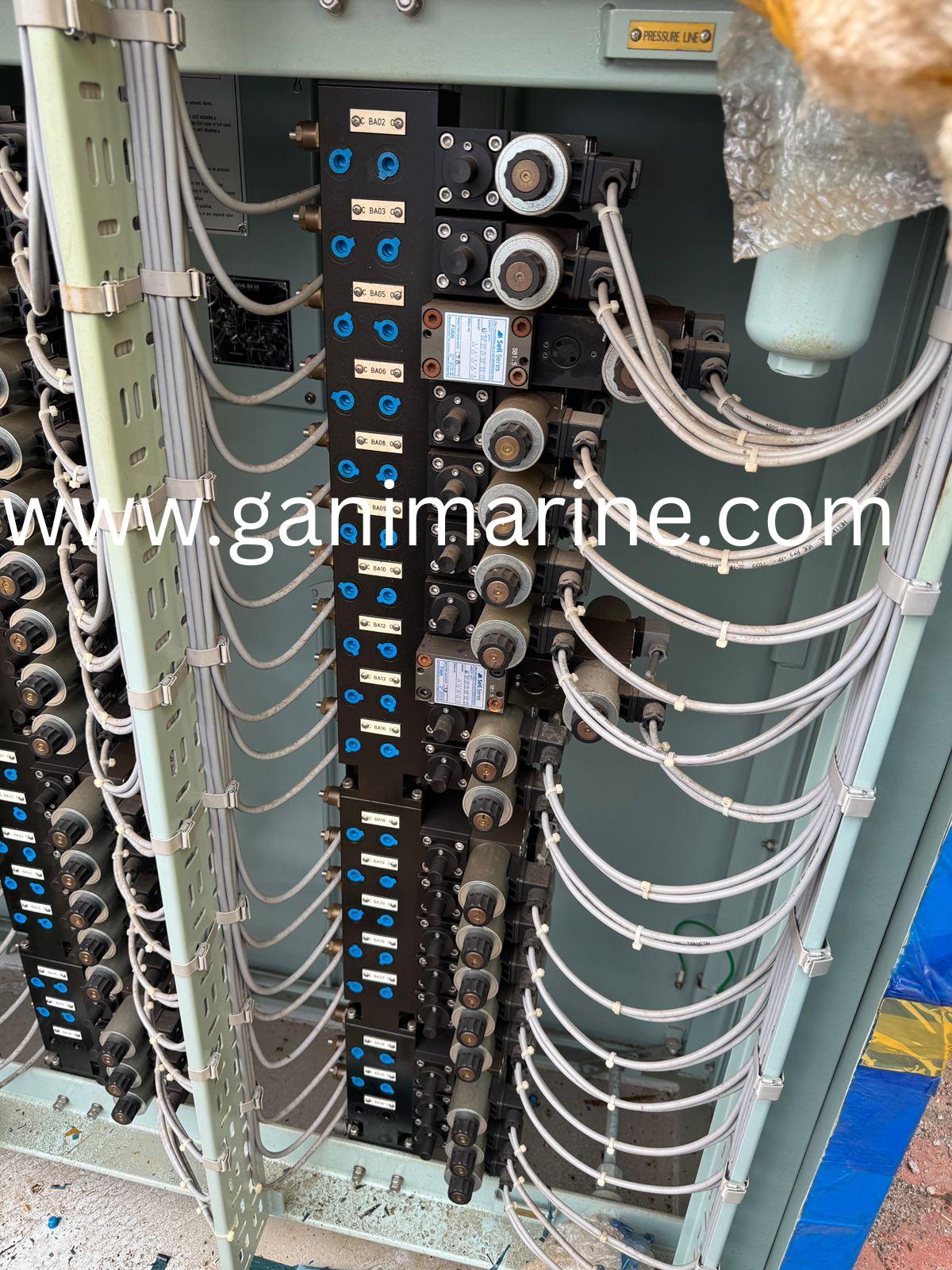

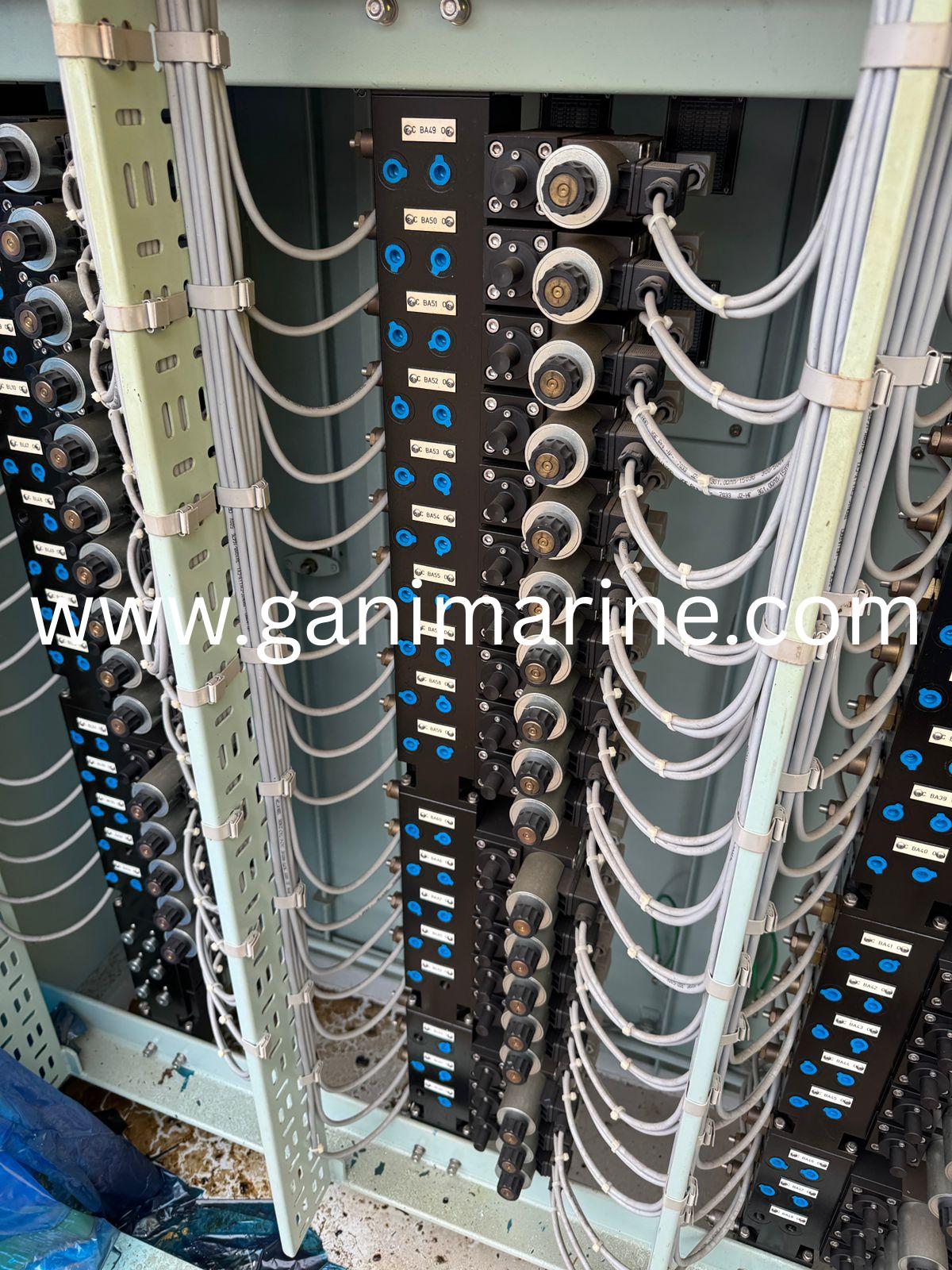

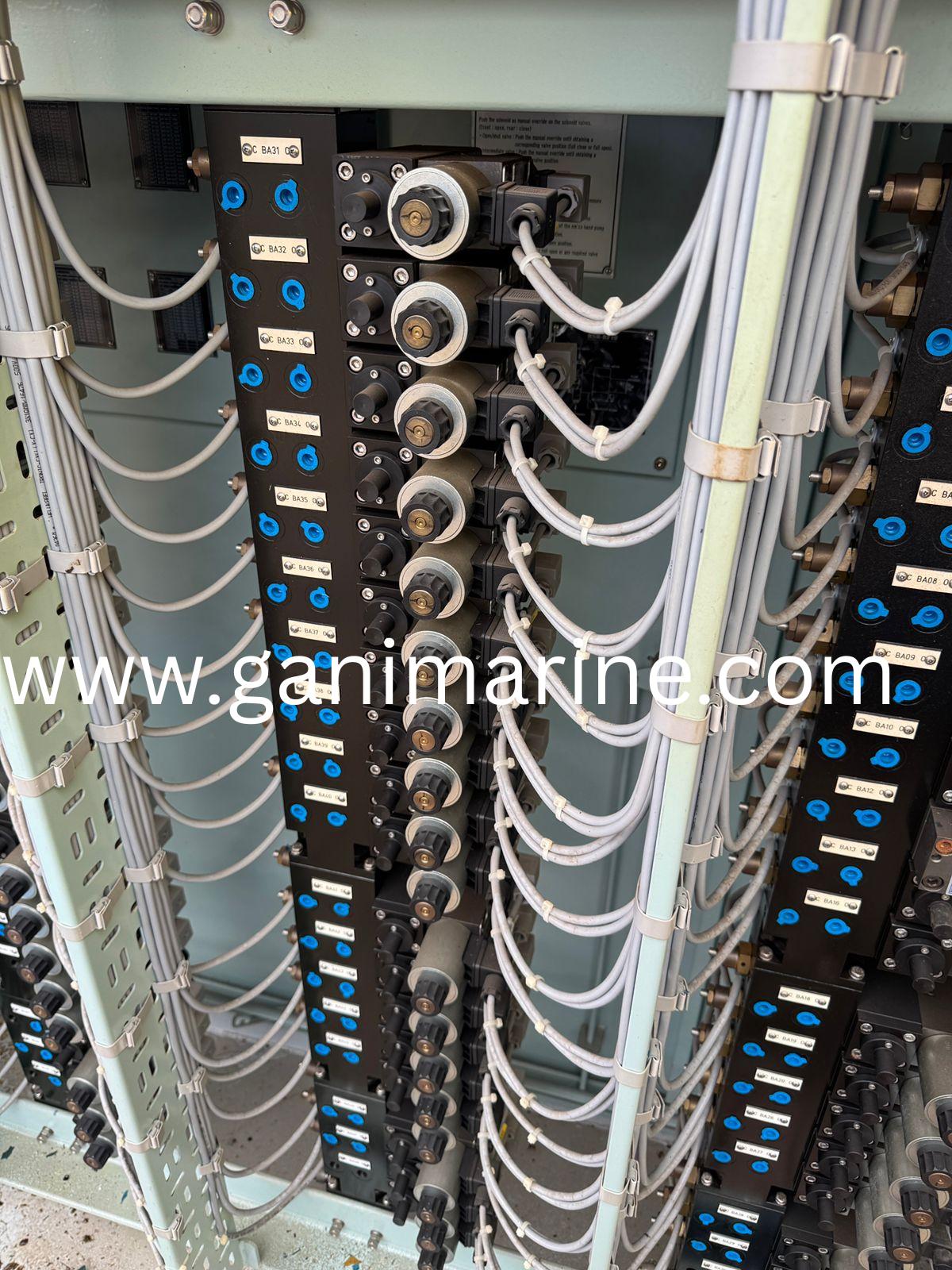

Solenoid Operated Control Valve (Parker Korea – D1VW4CNTWF-DC24V): Qty 69

Flow Meter Body (SEIL-SERES): Qty 2

Flow Meter Head – THR Type (SEIL-SERES): Qty 2

Flow Reducer (SEIL-SERES SS-VM-COMP-001-1): Qty 67

Selector Block (SEIL-SERES): Qty 2

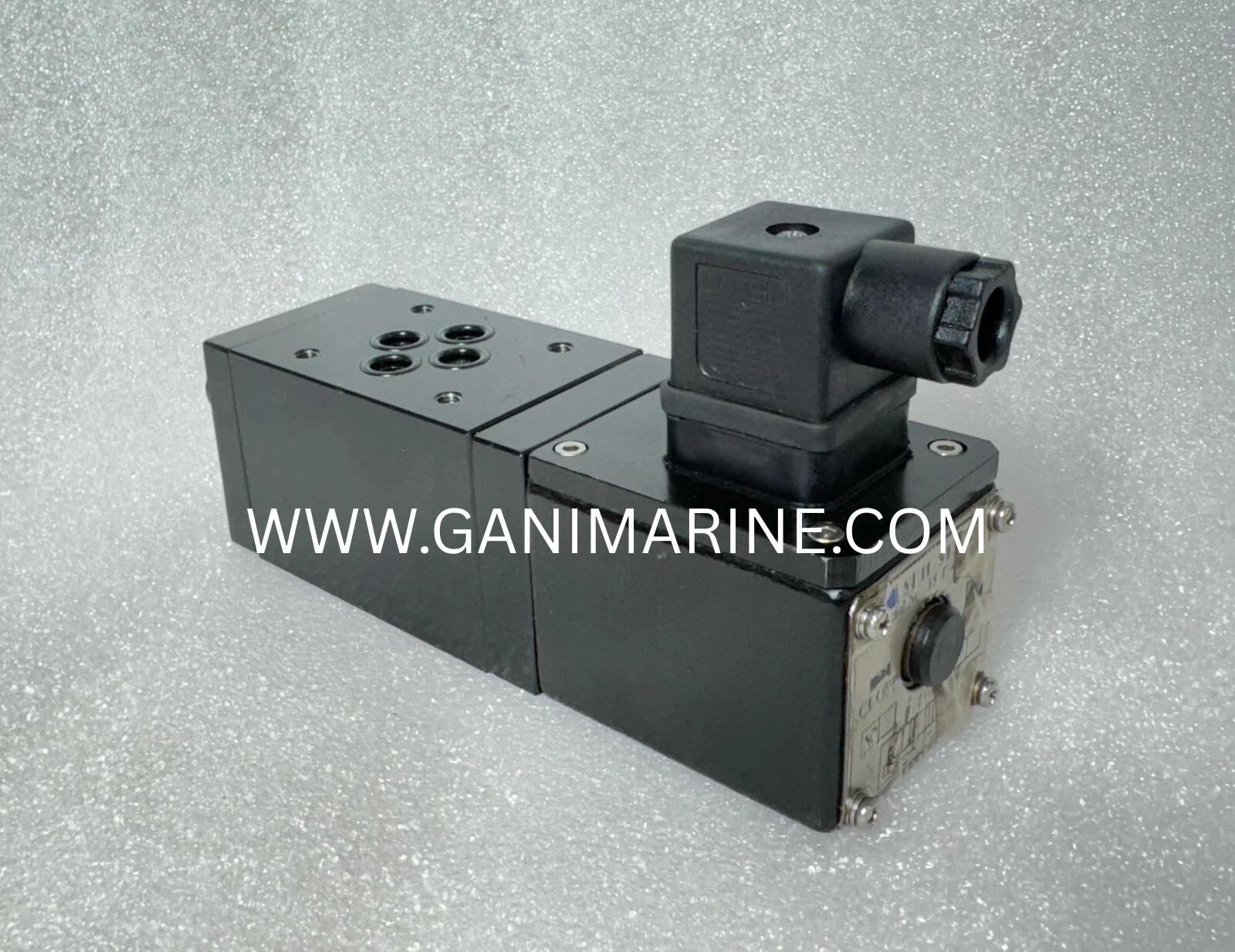

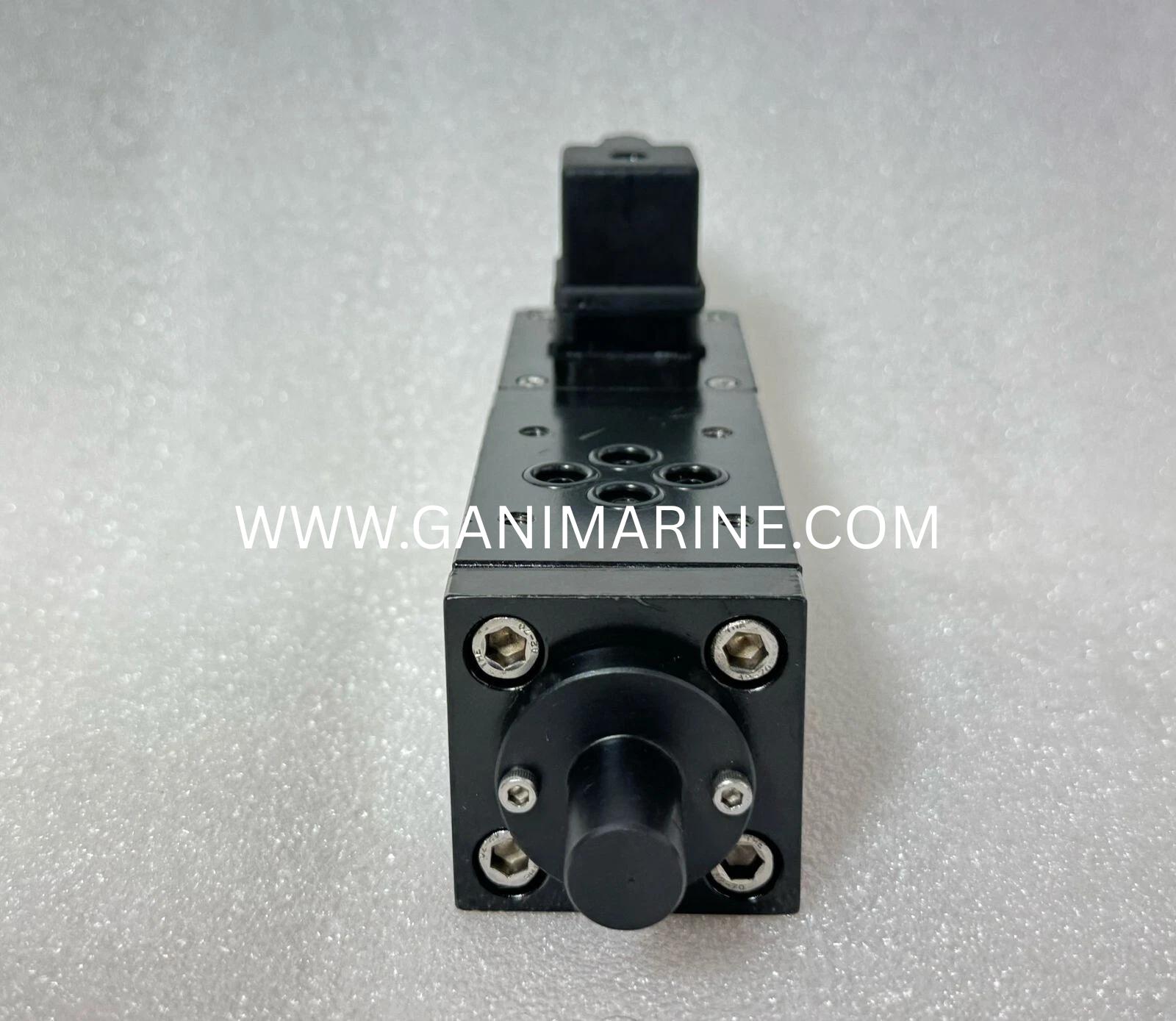

Hydraulic Position Indicator (SEIL-SERES): Qty 67

Double Throttle Check Valve (SEIL-SERES): Qty 1

Cable Box Unit

Cable Box – Qty 1

---

Applications

Marine Ballast & Cargo Valve Control

Tankers, LNG/LPG carriers, Bulk Carriers, Container Ships

Offshore platforms & FPSOs

Shipbuilding Yards & Repair Projects

Hydraulic Valve Remote Control for Industrial Systems

---

Key Features

Genuine SEIL-SERES VRCS package

SEIL-SERES Indicator BL0043 & SS-PI-084663 for precise monitoring

Integrated Parker solenoid valves, WIKA gauges, STAFF filters

Pre-assembled valve rack with cable box for easy installation

Built for marine & offshore harsh environments

Approved for shipyard projects & classification societies

Global supply with fast delivery from Gani Marine Exporter

---
