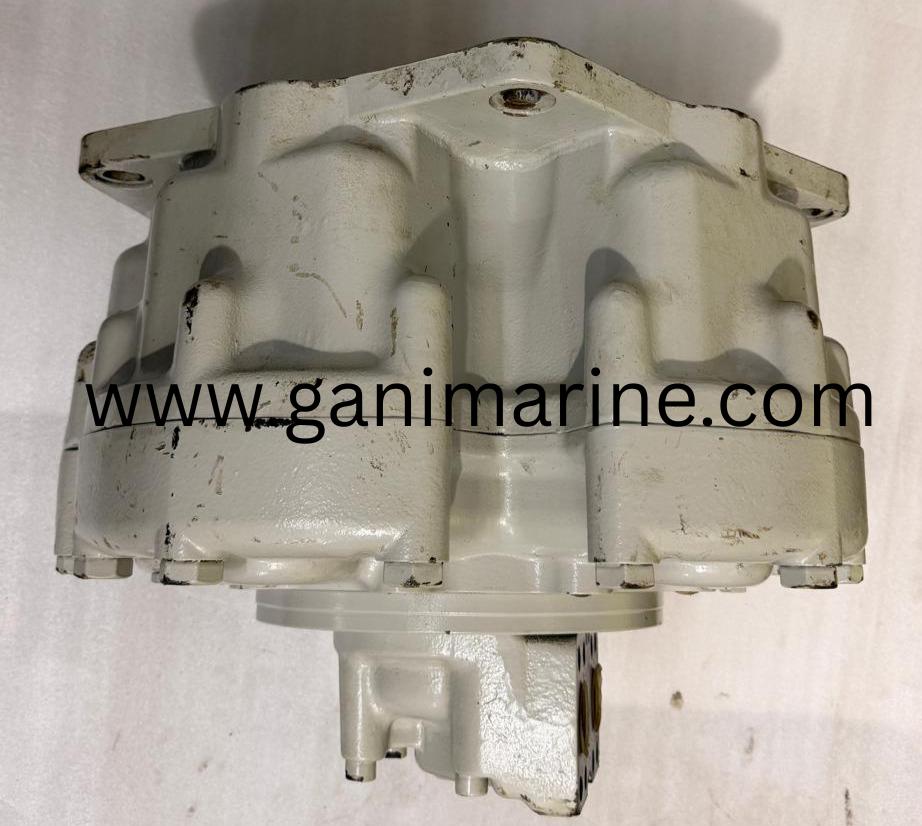

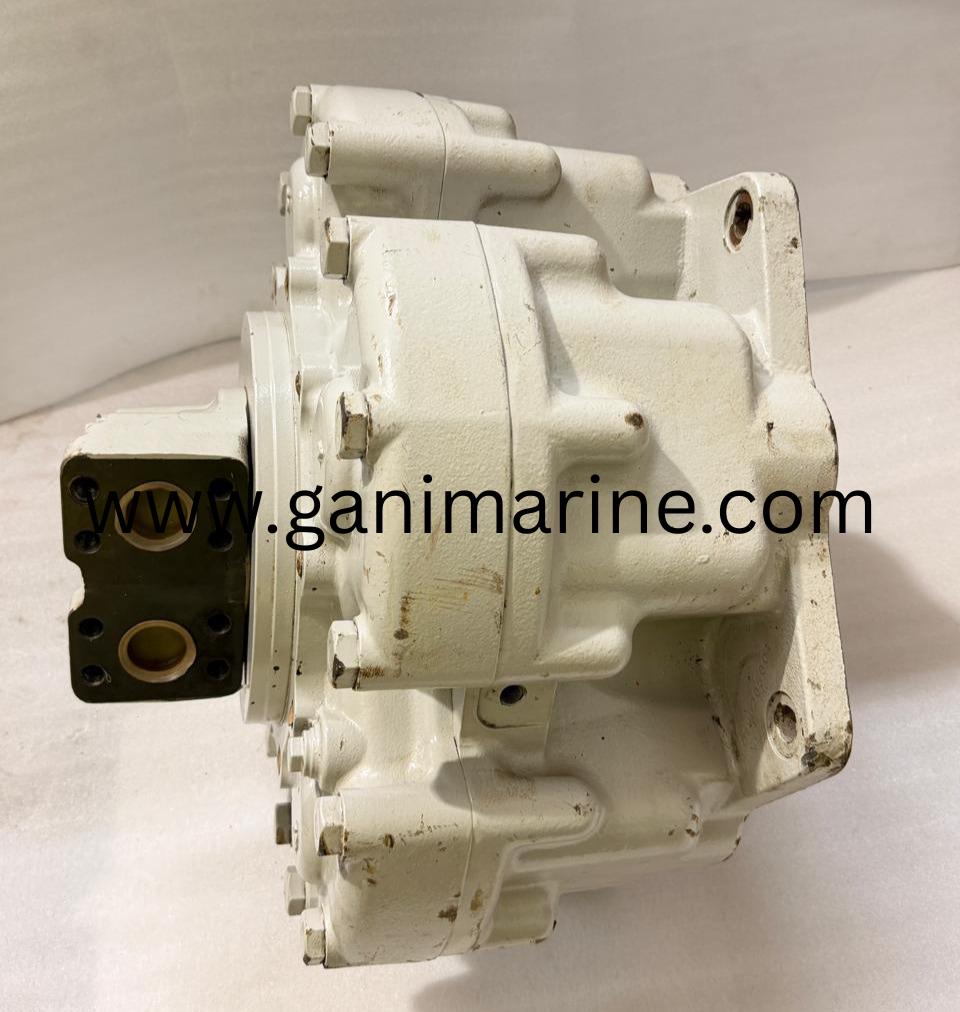

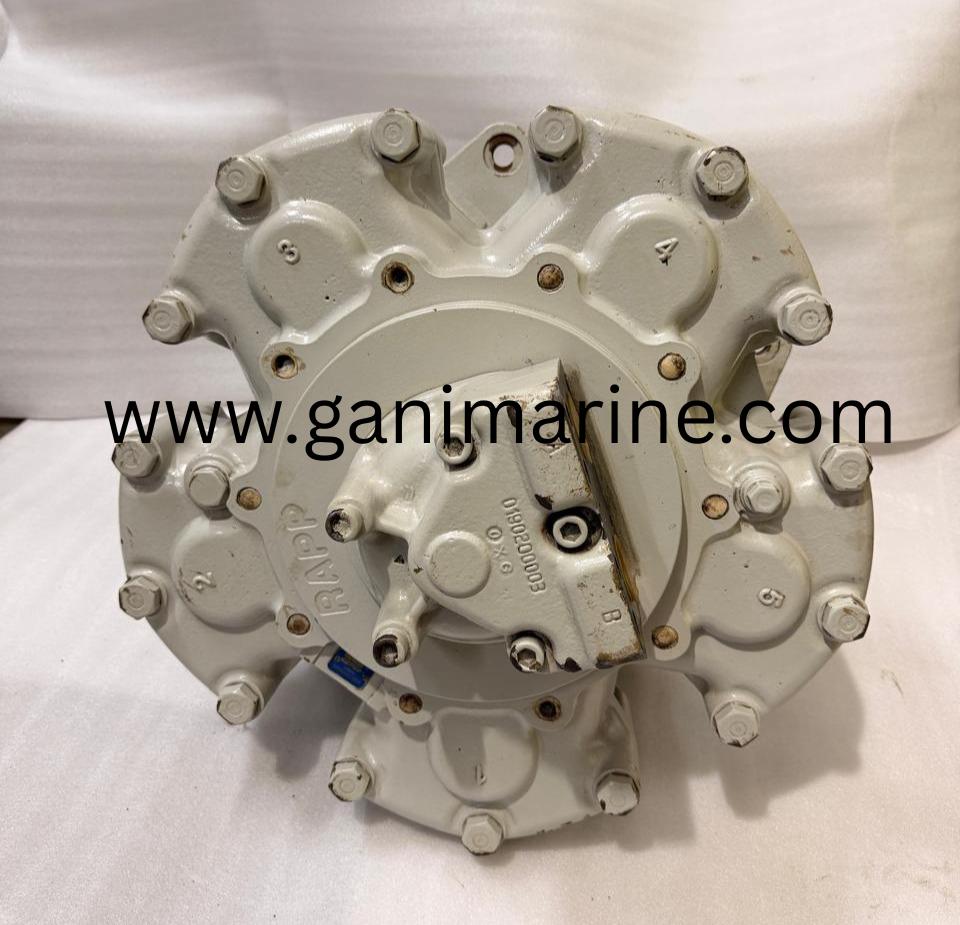

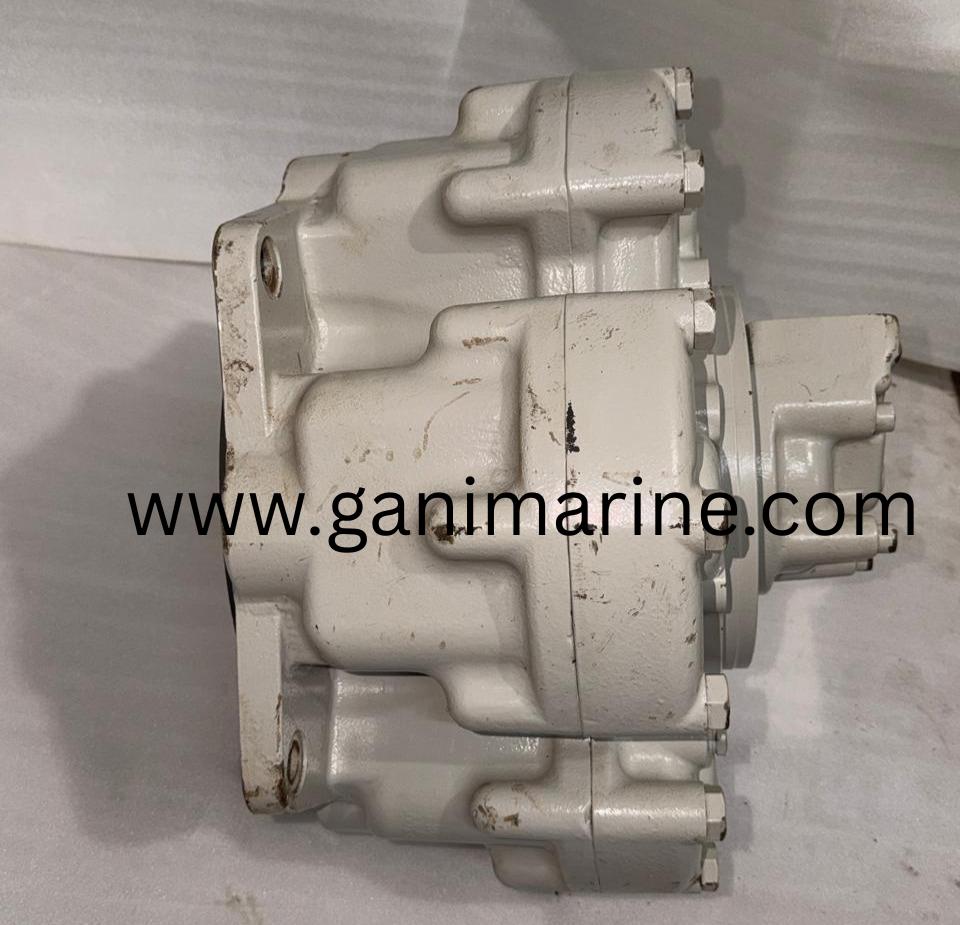

SAI Hydraulic Motors L7B 3600 Radial Piston Hydraulic Motor (High Torque Low Speed – Marine, Mining & Heavy Duty Applications)
Technical Specification
Model : L7B 3600 9 G SV D90 J L
Type : Radial Piston Hydraulic Motor (HTLS – High Torque Low Speed)
Displacement : 3611 cc/rev

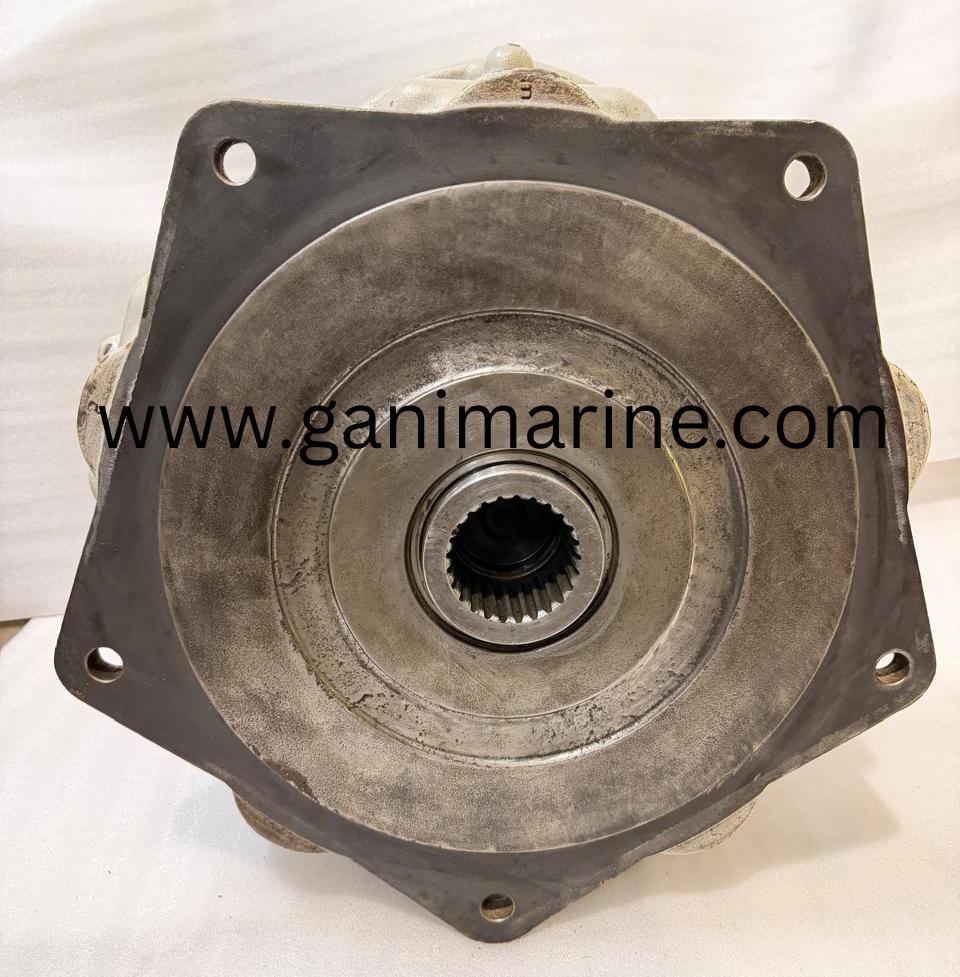

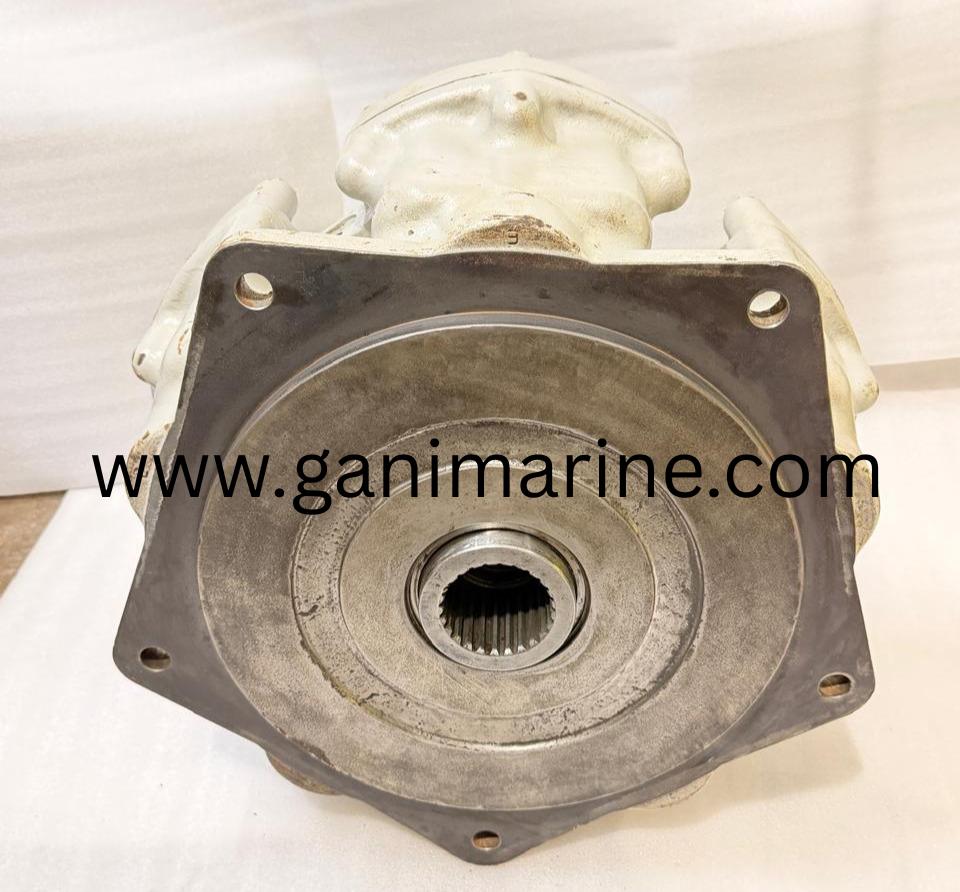

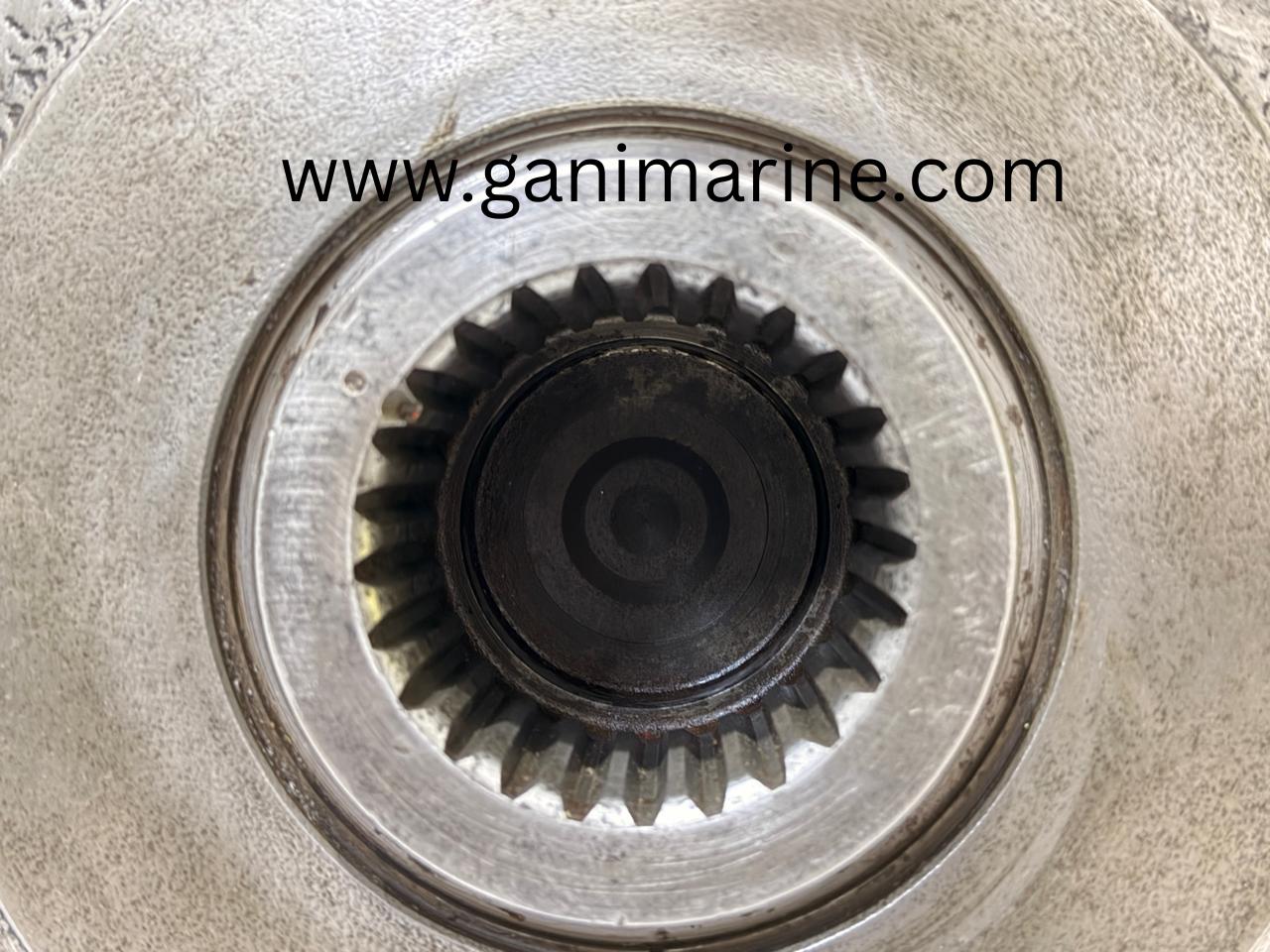

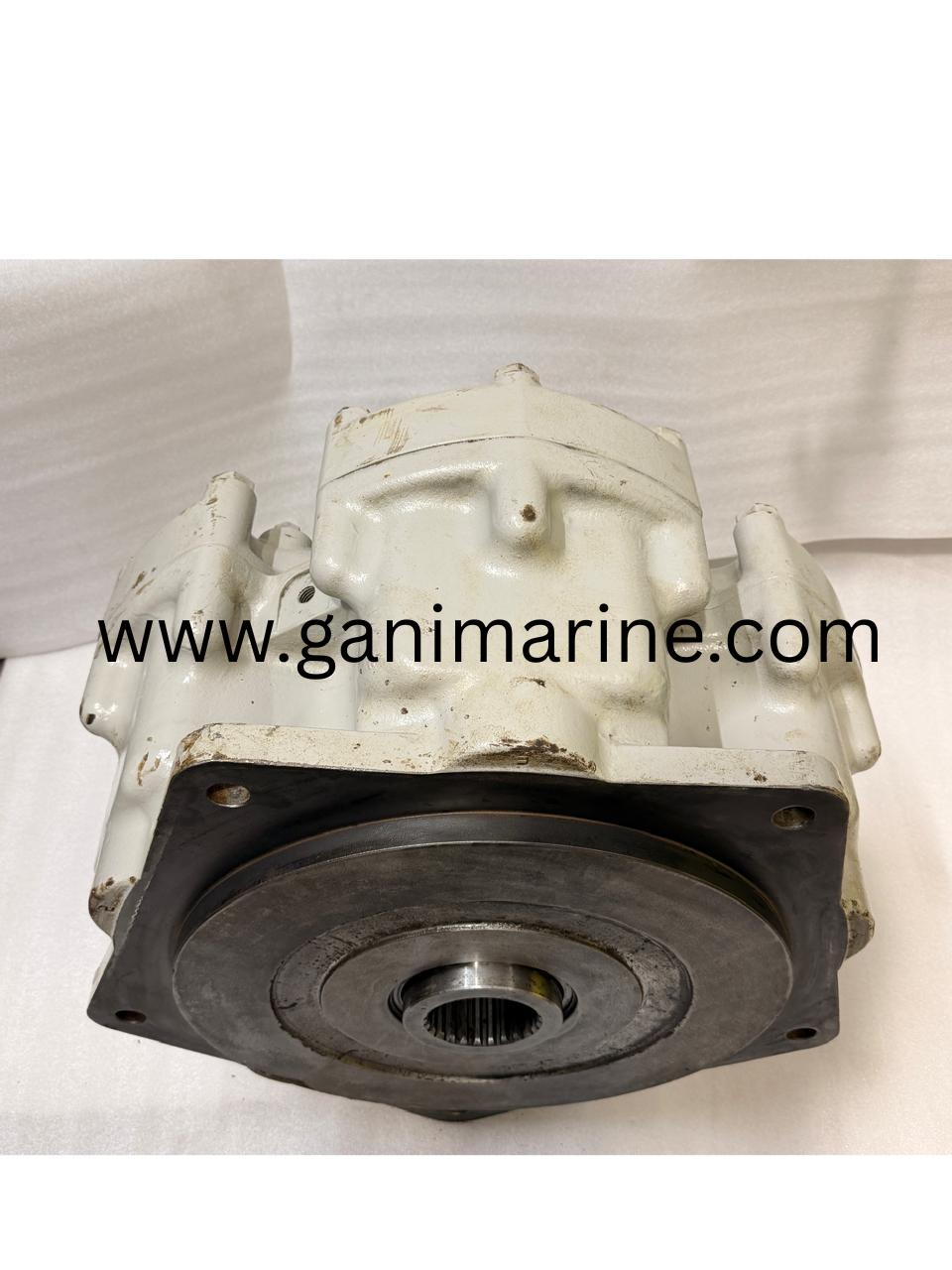

Shaft Type : Internally Splined (80x3x25 DIN 5480)
Bearings : Spherical Roller Bearings (Heavy Duty)
Rotation : Anti-clockwise (Port A ? B flow)
Operating Pressure : 250 bar (Continuous)
Peak Pressure : 300 bar
Torque : 57.5 Nm/bar
Power Output : Up to 190 kW
Speed Range :
Continuous : 100 RPM
Maximum : 220 RPM

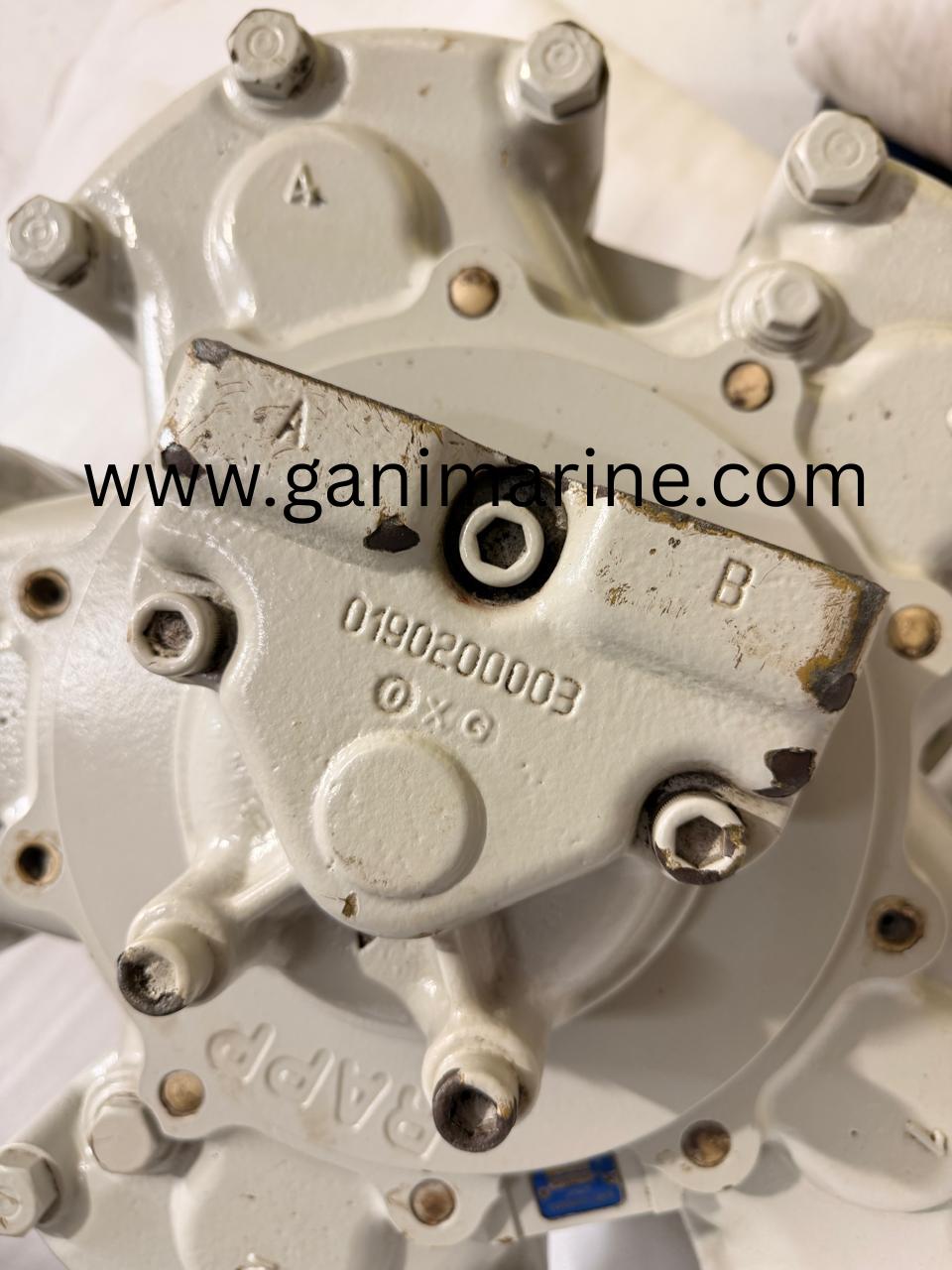

Distributor : D90 Standard Type
Tachometer Option : Available (J option)
Oil Capacity : 21 Liters
Weight : Approx. 291 Kg
Temperature Range : -20°C to +80°C
Installation & Maintenance
Bolt Torque : 561 – 697 Nm (M20, Grade 12.9)
Casing Pressure : Max 3 bar (6 bar peak)

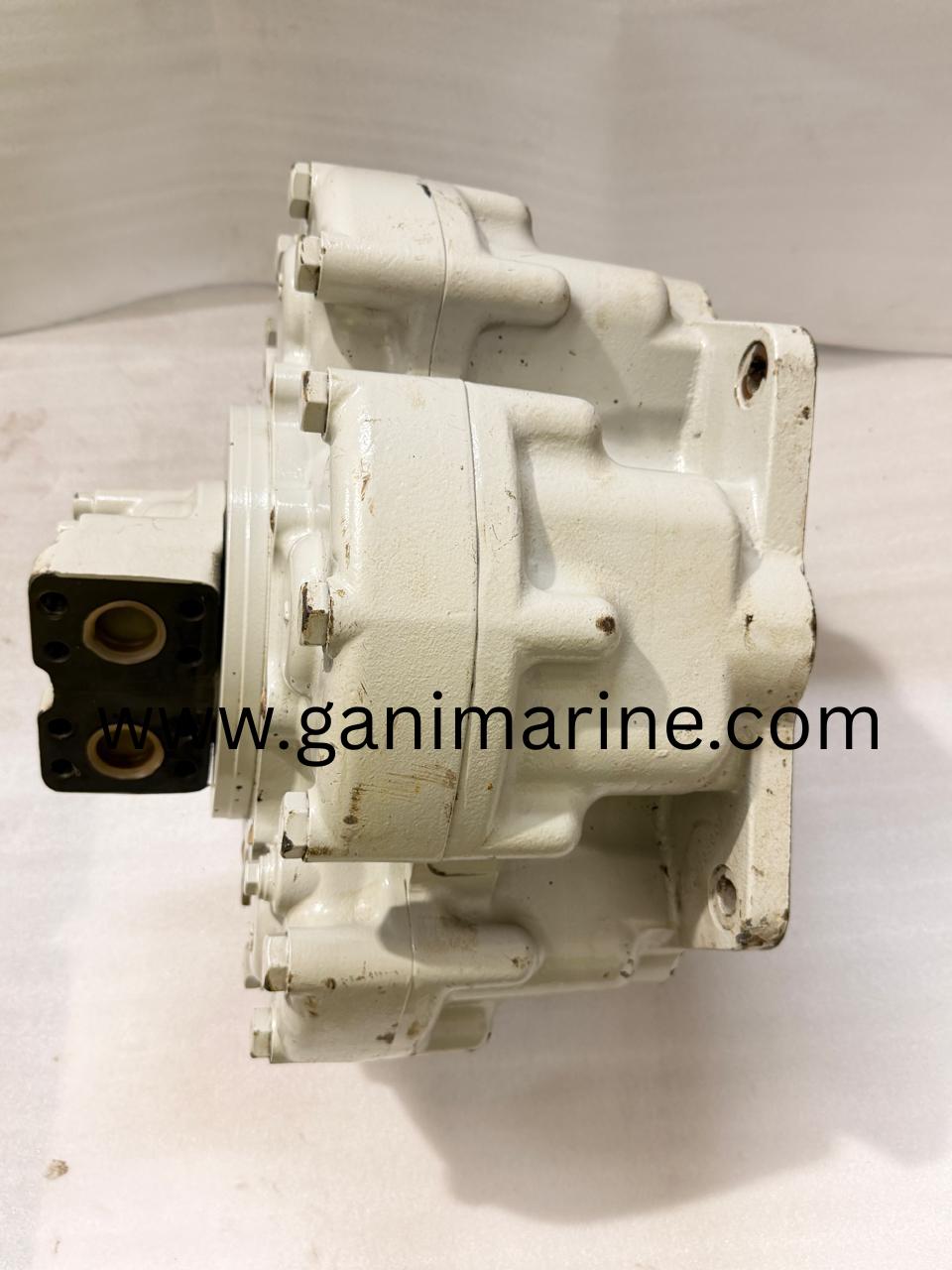

Ports :

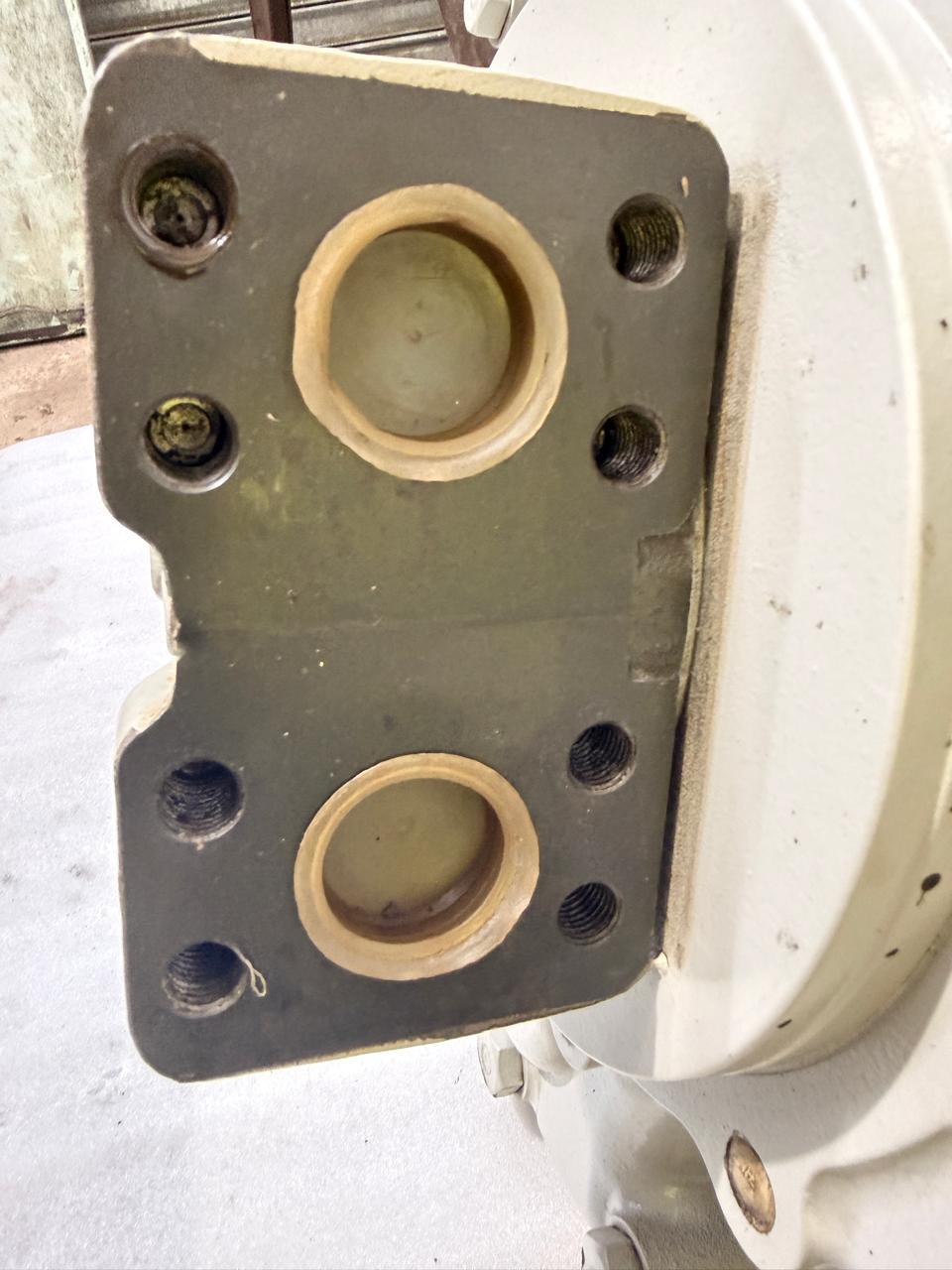

2 x 2” SAE 6000 PSI (Main ports)
2 x 1/2” BSP (Drain ports)
Applications
This SAI L7B 3600 Hydraulic Motor is designed for extreme-duty operations:
Marine winches & anchor handling systems
Offshore cranes & deck machinery
Mining conveyors & drilling rigs
Heavy construction equipment (crawler cranes, excavators)
Industrial shredders & mixers
Agricultural heavy machinery
Key Features
High torque at low speed (ideal for direct drive)
Extremely robust radial piston design
Long service life in harsh environments
High efficiency even at low RPM
Suitable for continuous heavy-duty operation
Marine & offshore proven performance
