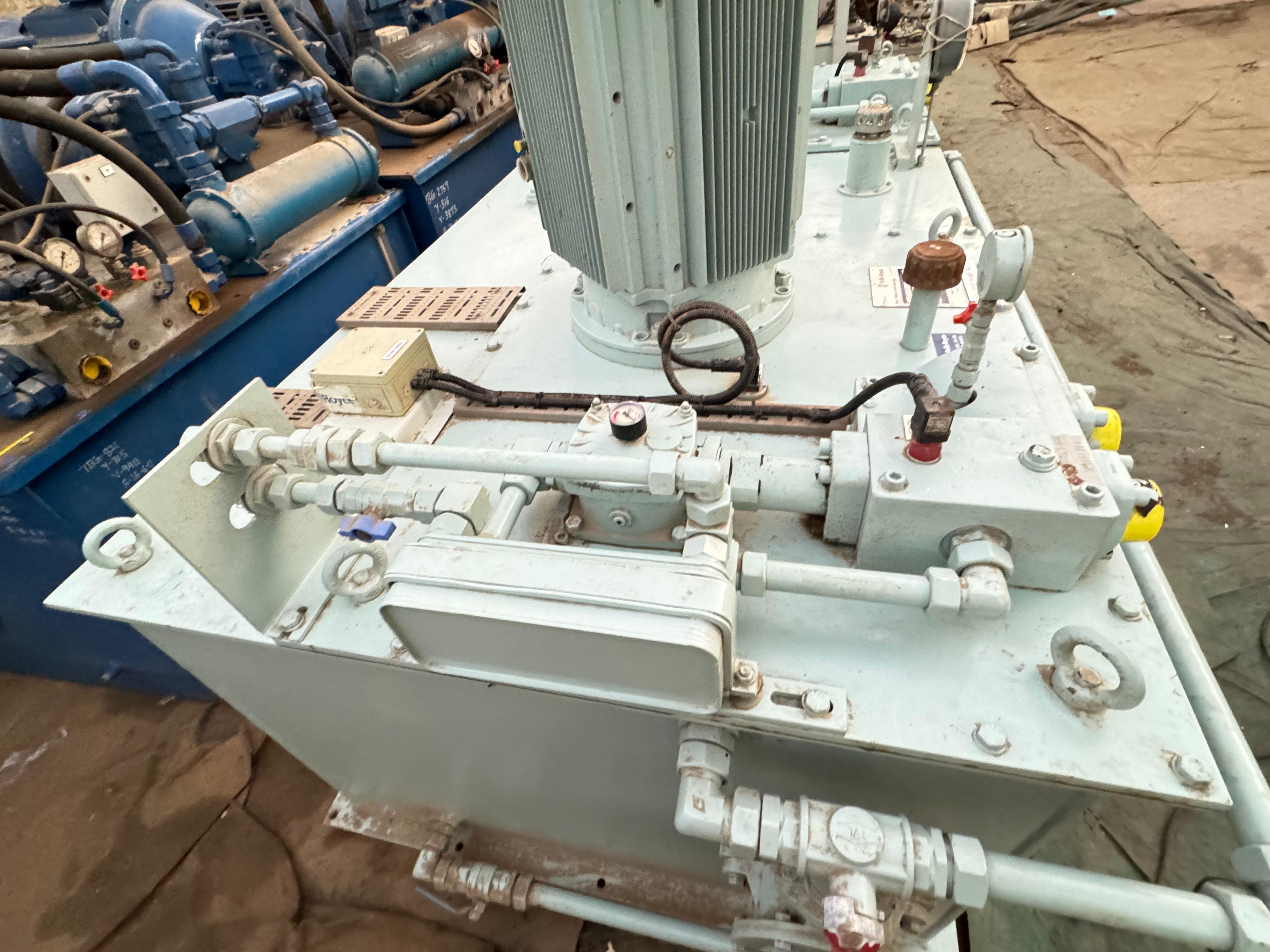

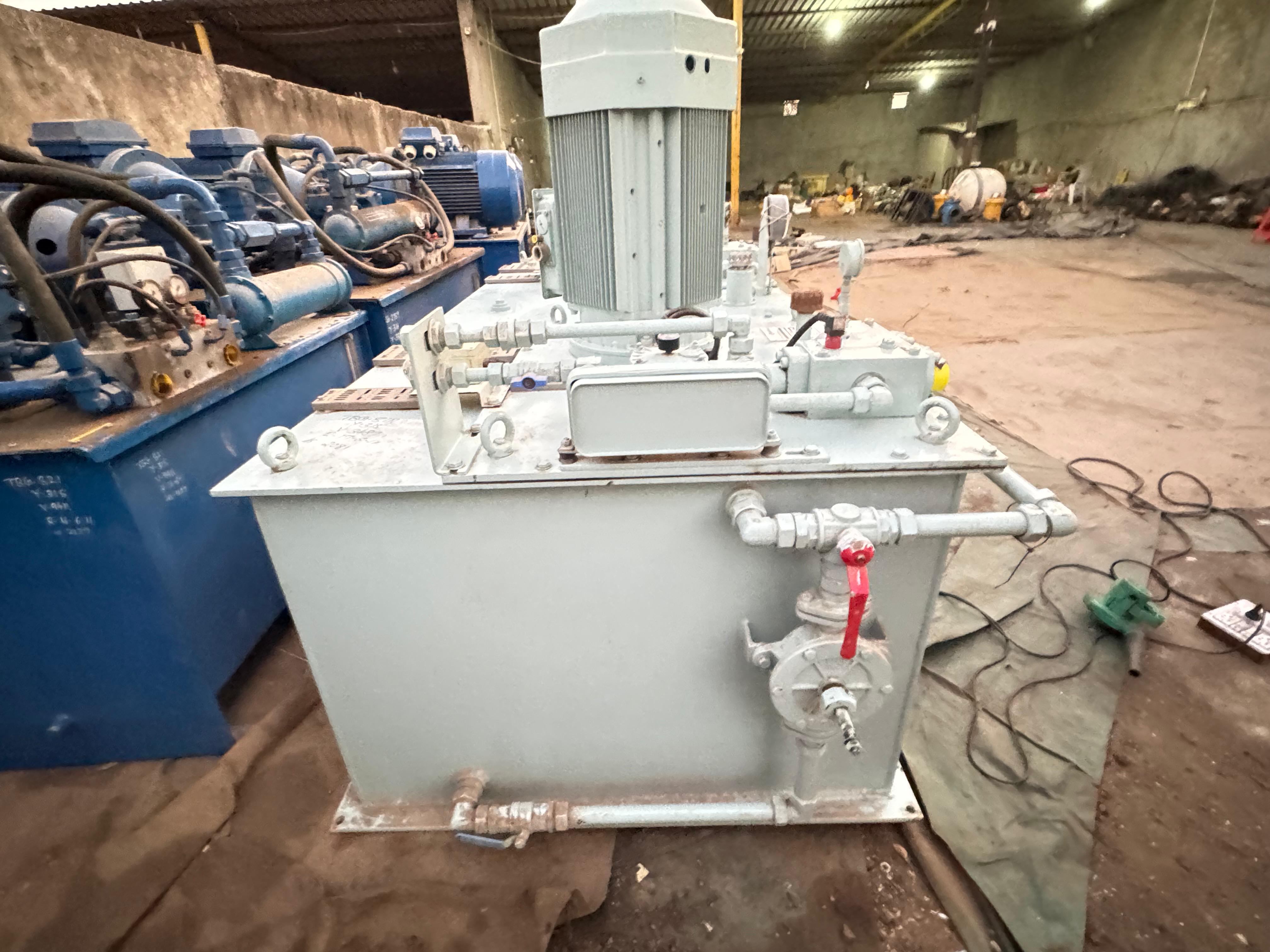

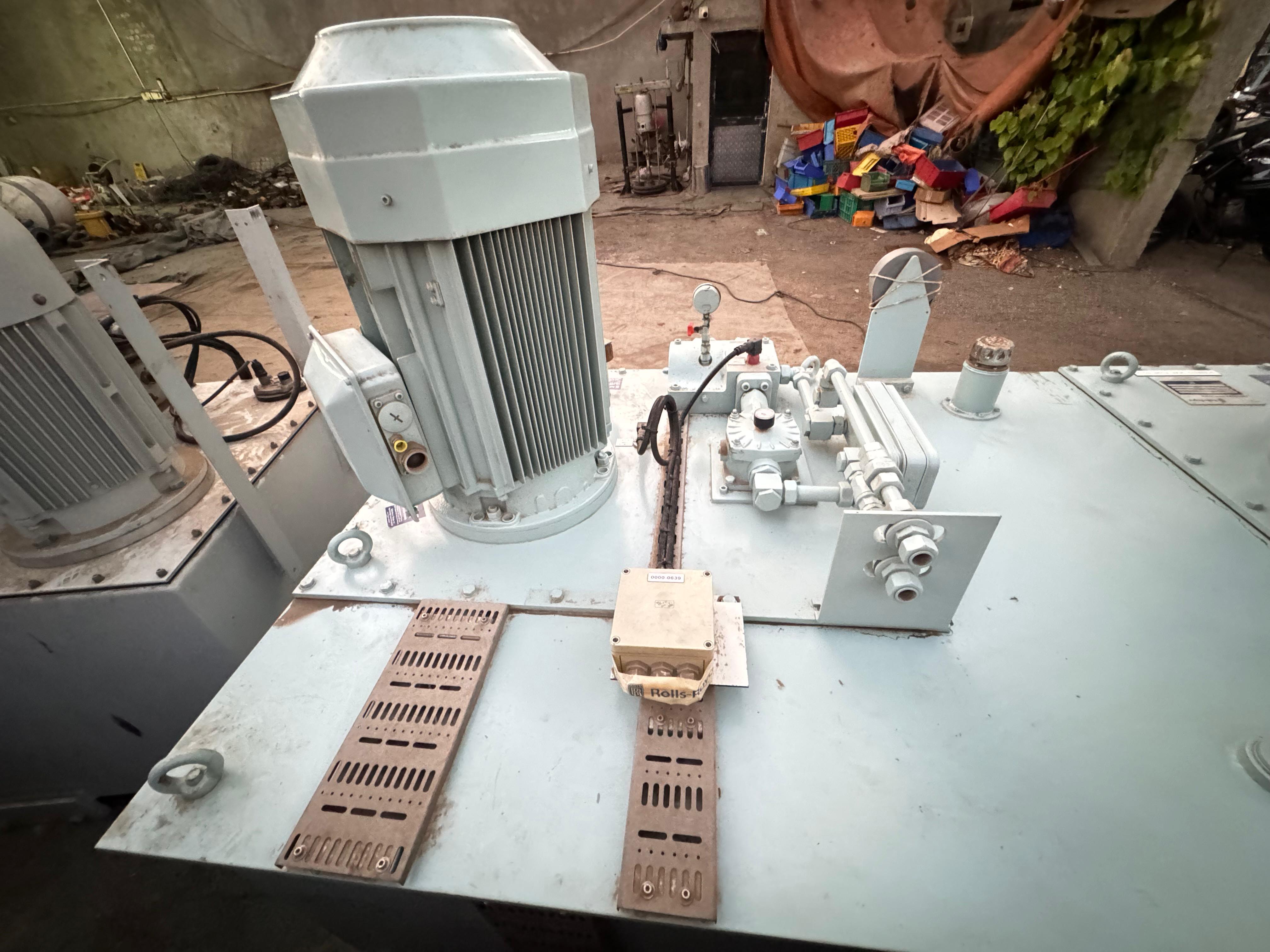

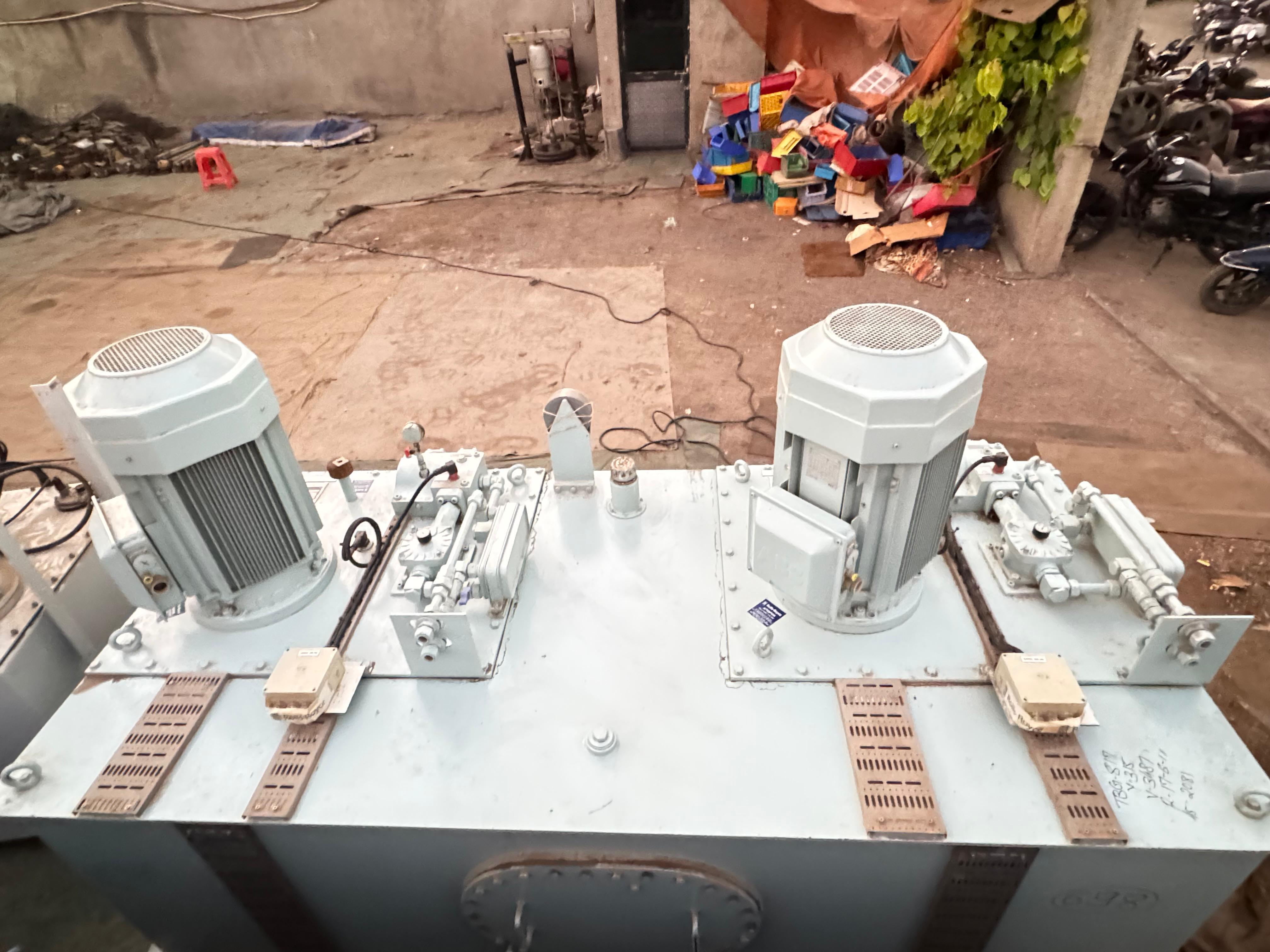

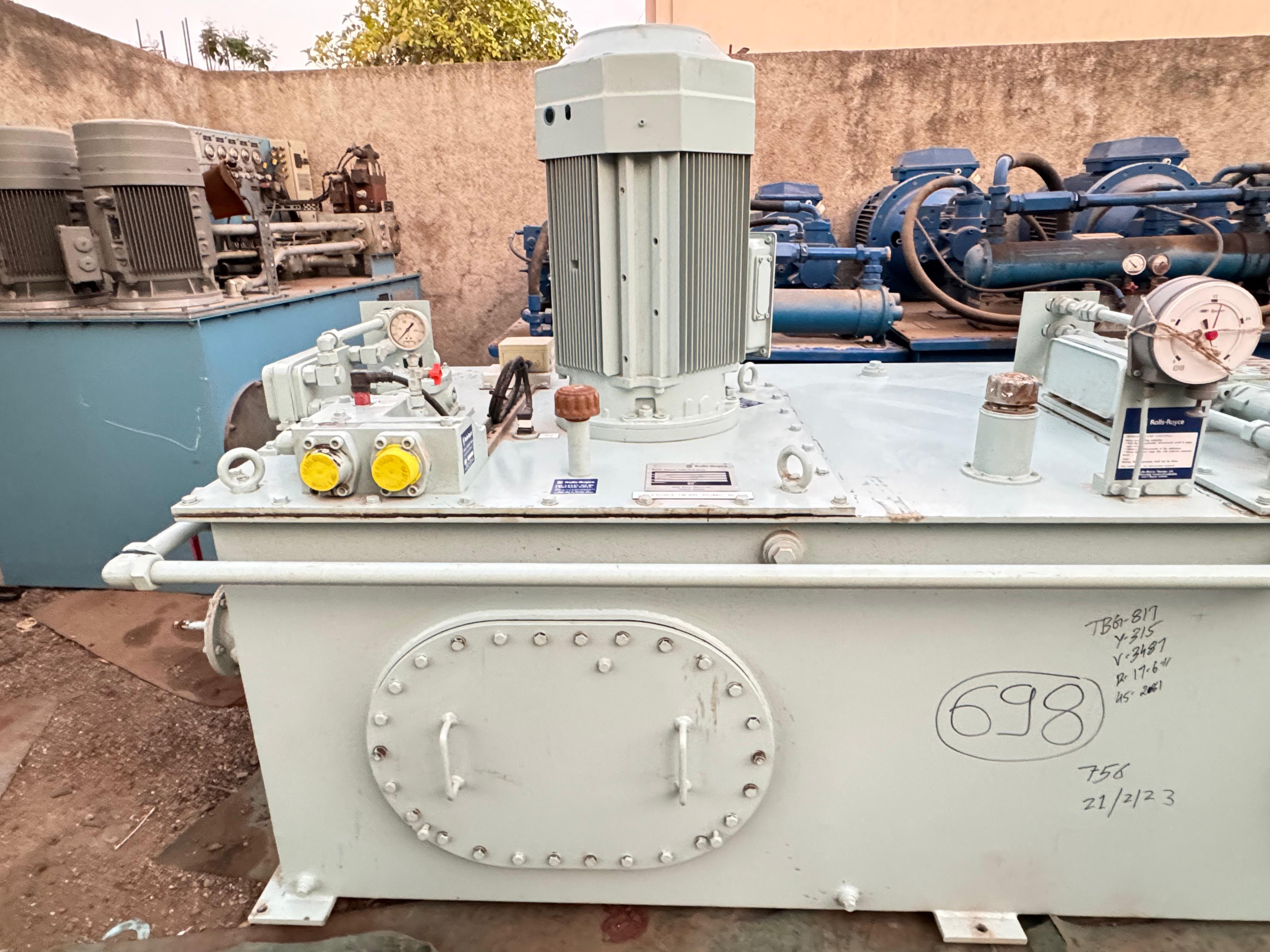

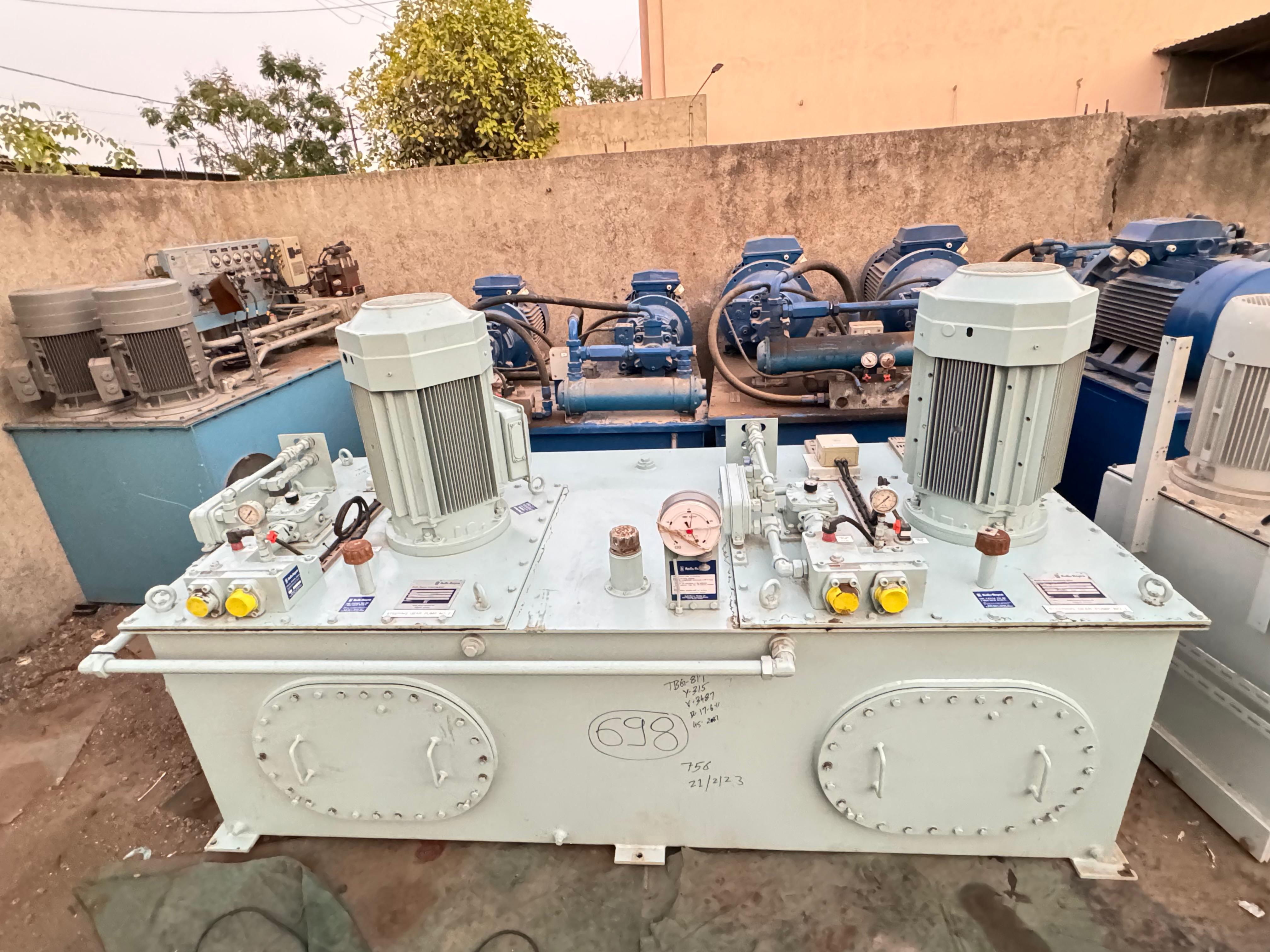

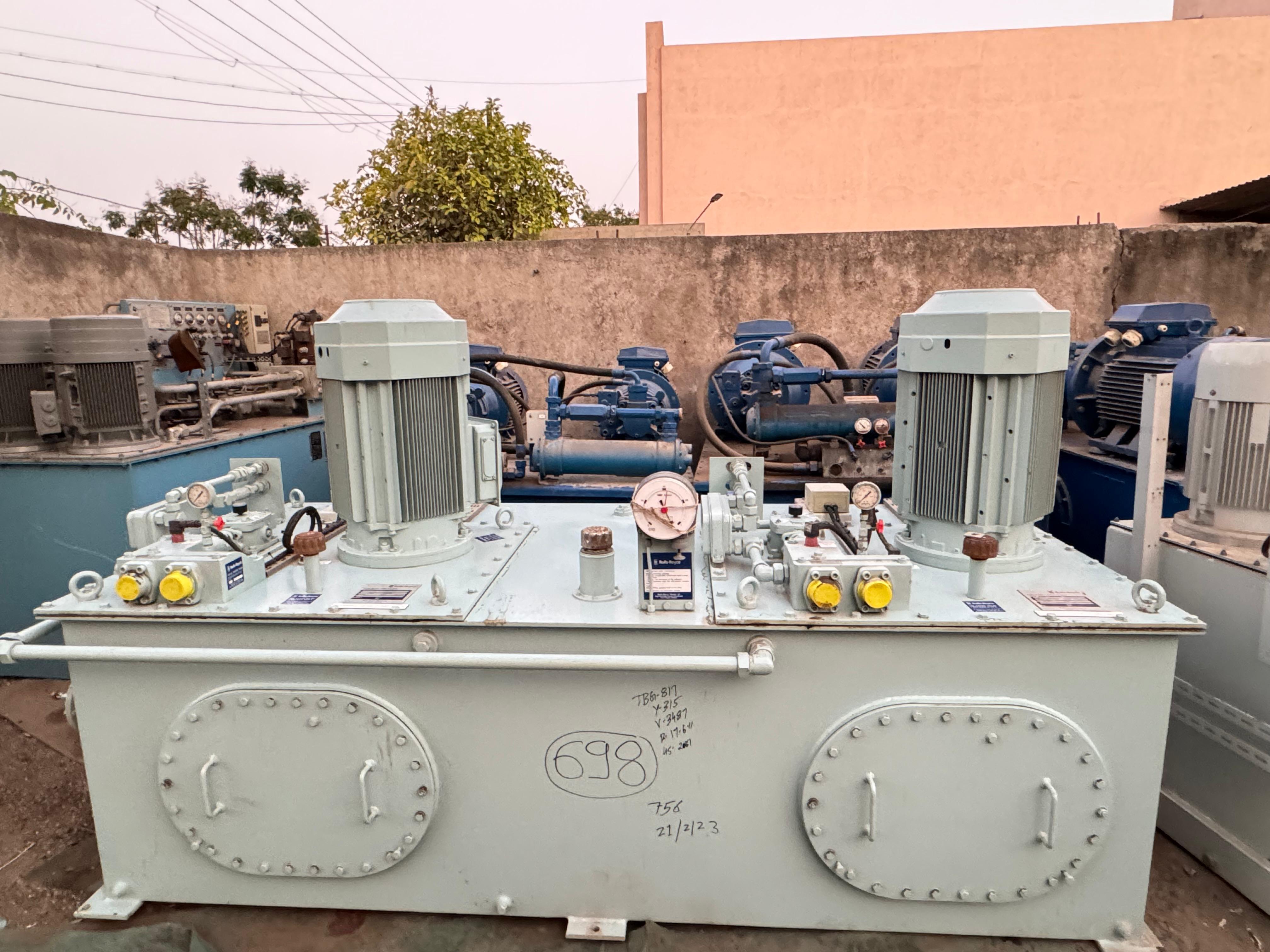

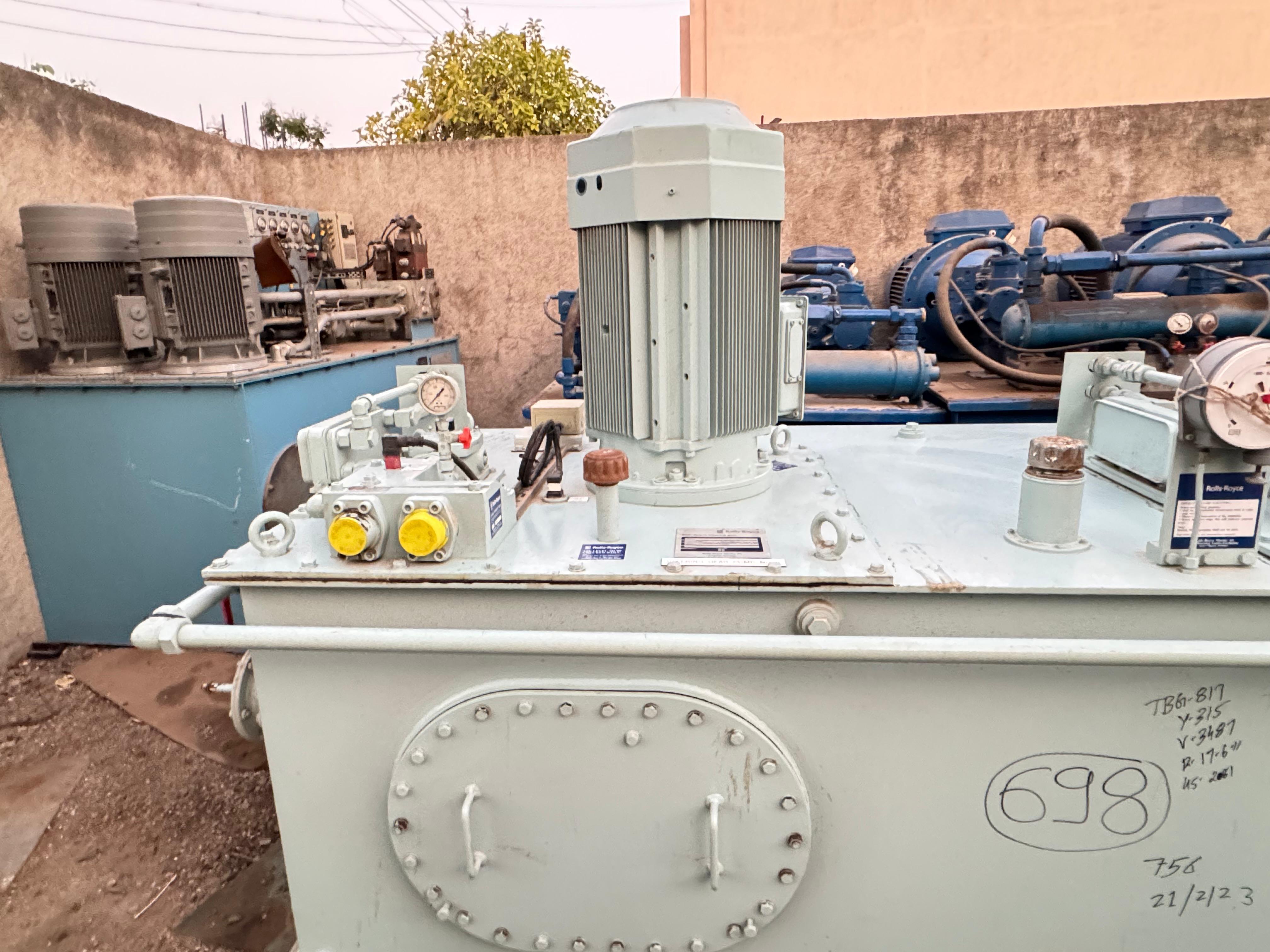

ROLLS ROYCE STEERING GEAR PPMI 2 (2 MOTORS) HYDRAULIC POWER UNIT

The ROLLS ROYCE PPSMI 2 Steering Gear Power Unit is a precision-engineered hydraulic system designed to power the steering mechanism on advanced vessels. Designed for redundancy and high reliability, the unit features dual ABB motors (30–35 kW) and is widely used in commercial ships, defense vessels, offshore platforms, and advanced marine automation systems.

With voltage flexibility, IP55 protection, and constant-speed operation, this steering gear system guarantees optimal helm response and maneuverability in all marine conditions. Gani Marine supplies this globally with ready-to-ship availability.

---

 Technical Specifications

 Steering Gear HPU Details

Model: PPSMI 2

Order Number: 9488

Hull Number: NB315

Serial Number: 6178

---

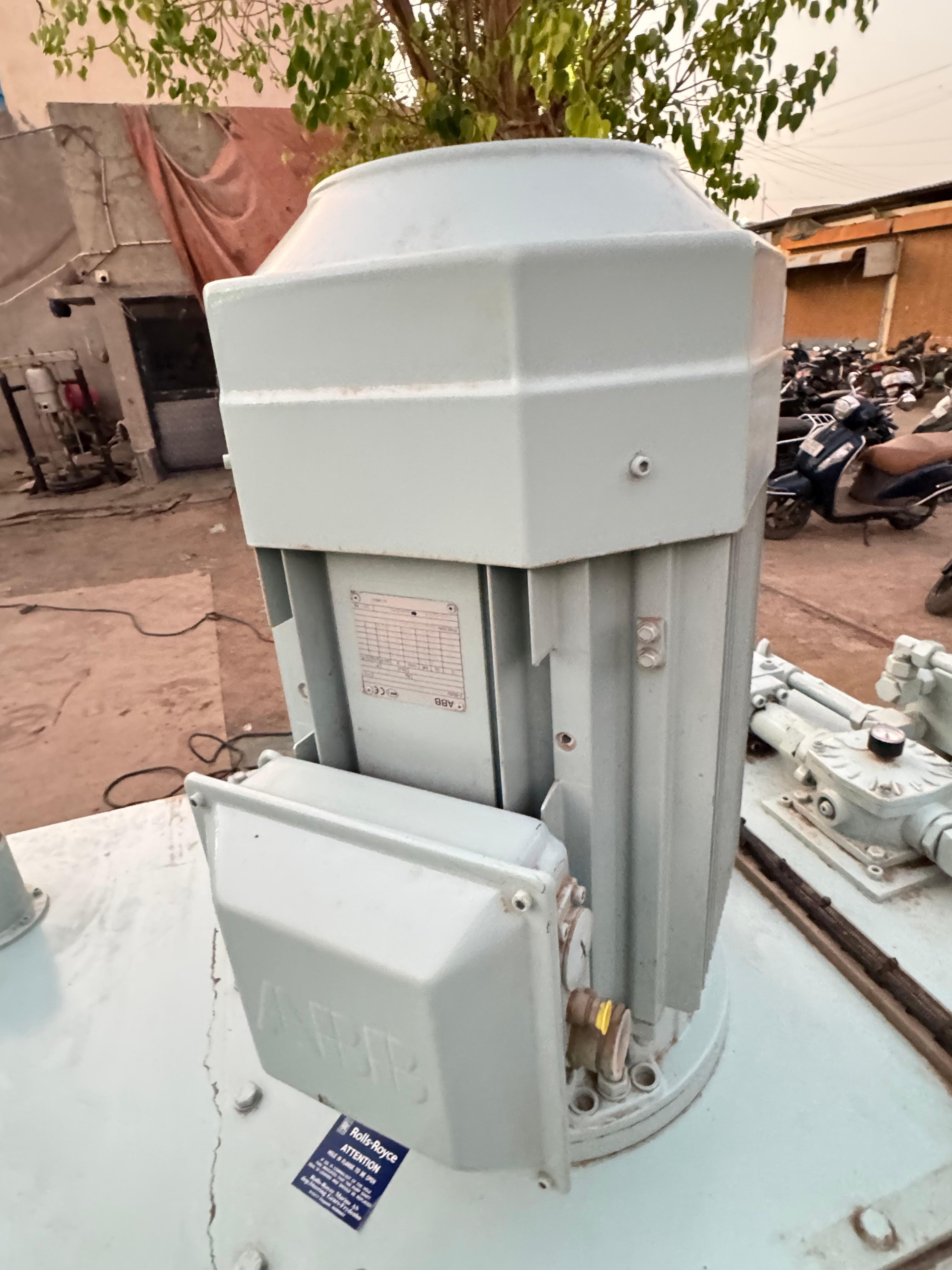

 Electric Motors – ABB (x2)

Type: M3AA 200MLA

Motor No.: CSN10-311648

Product Code: 3GAA201031-BDG, 25, 451

Protection Rating: IP 55

V          HZ     KW     R/MIN    A      COS
400      50     30.0     2952   52.0    0.90
690      50     30.0     2952   30.0    0.90
660      50     30.0     2946   32.0    0.90
380      50     30.0     2946   55.0    0.90
415      50     30.0     2956   50.0    0.89
440      60     35.0     3537   55.0    0.90

---

? Applications

Steering Gear Systems for Commercial Ships

Rudder Control for Naval Vessels

Dynamic Positioning Steering Support

Integrated Marine Automation Systems

Hydraulic Steering for Offshore Rigs

Retrofitting and Class Upgrades

---

 Product Features

 Dual ABB motors for redundancy

 Compatible with 50Hz and 60Hz systems

 Supports multi-voltage configurations

 IP55 motor protection for marine conditions

 High RPM motors for rapid helm response

 Designed for Rolls Royce marine steering gears

 Supplied with full traceability and technical support

 Export Coverage

Gani Marine supplies RAUMA BRATTVAAG Hydraulic Power Units globally, with fast delivery and technical support to:

Asia:

India, UAE, Singapore, Vietnam, South Korea, China, Japan, Saudi Arabia, Qatar, Oman, Kuwait, Indonesia

Europe:

Germany, France, UK, Netherlands, Greece, Italy, Norway

Americas:

USA, Canada, Brazil, Panama

Africa & Oceania:

South Africa, Australia
