Rolls-Royce Marine AS (Kamewa Ulstein) TT 1650 Tunnel Thruster (System Unit)
Rolls-Royce Marine AS (Kamewa Ulstein) TT 1650 Tunnel Thruster (System Unit)

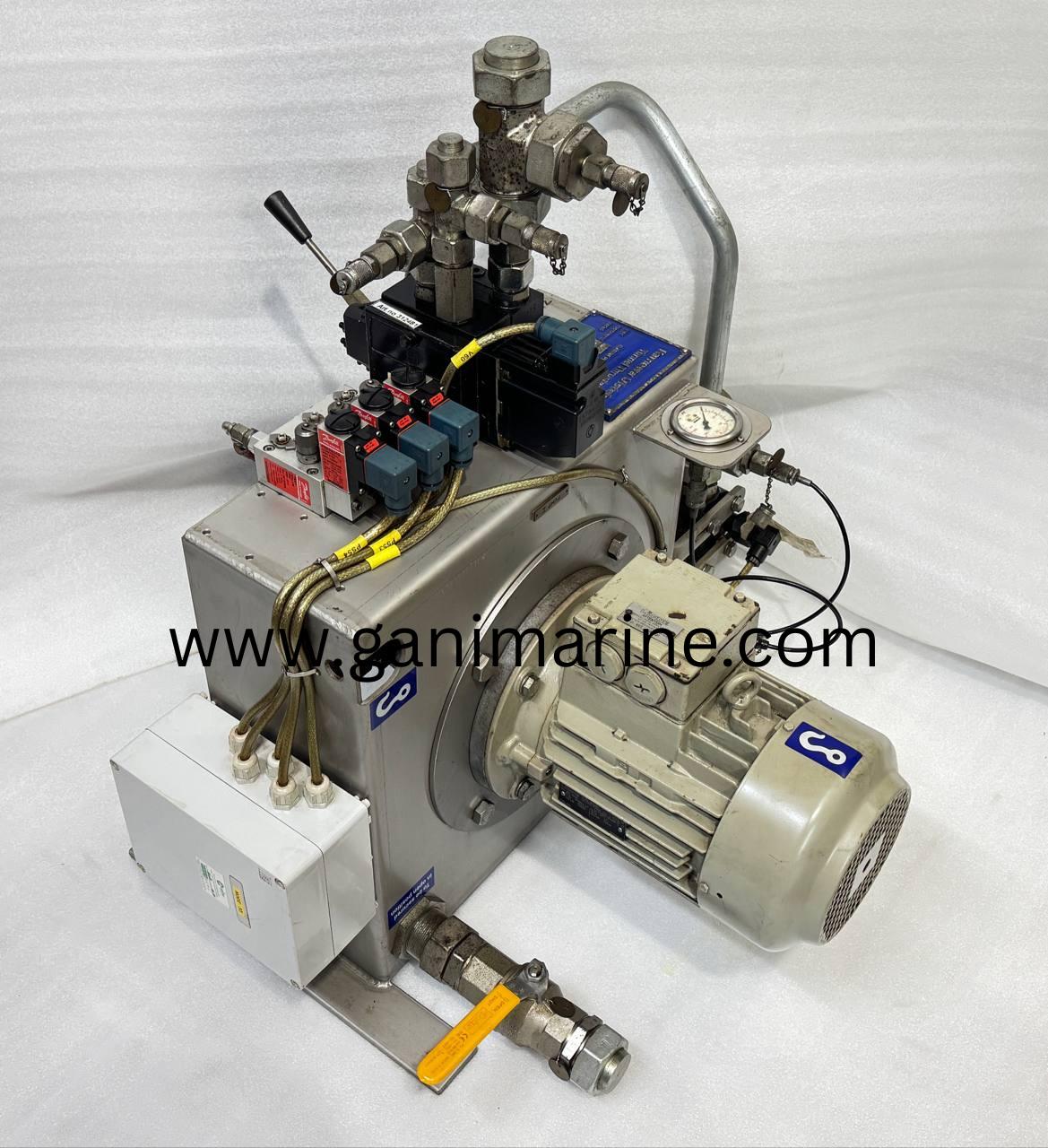

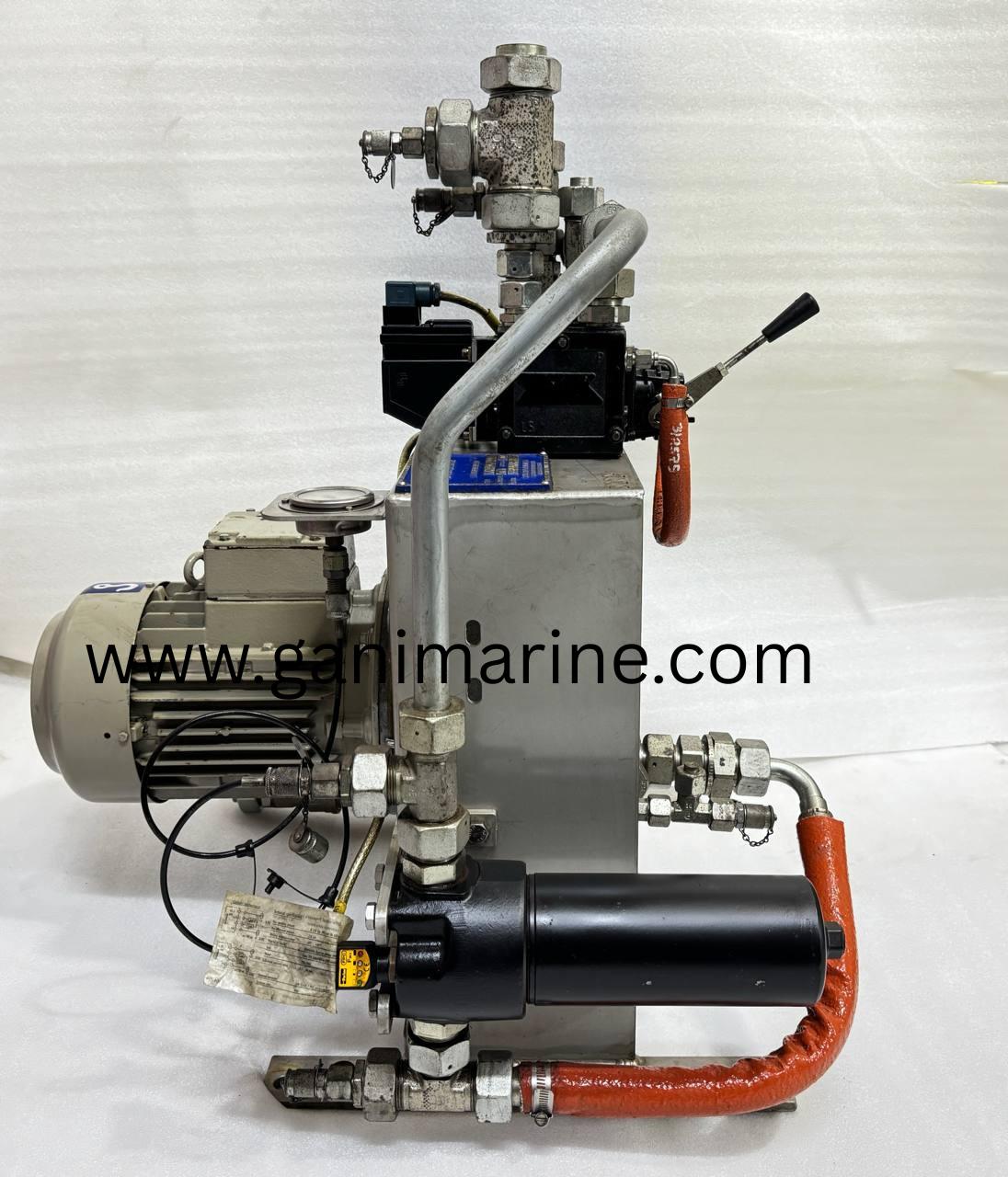

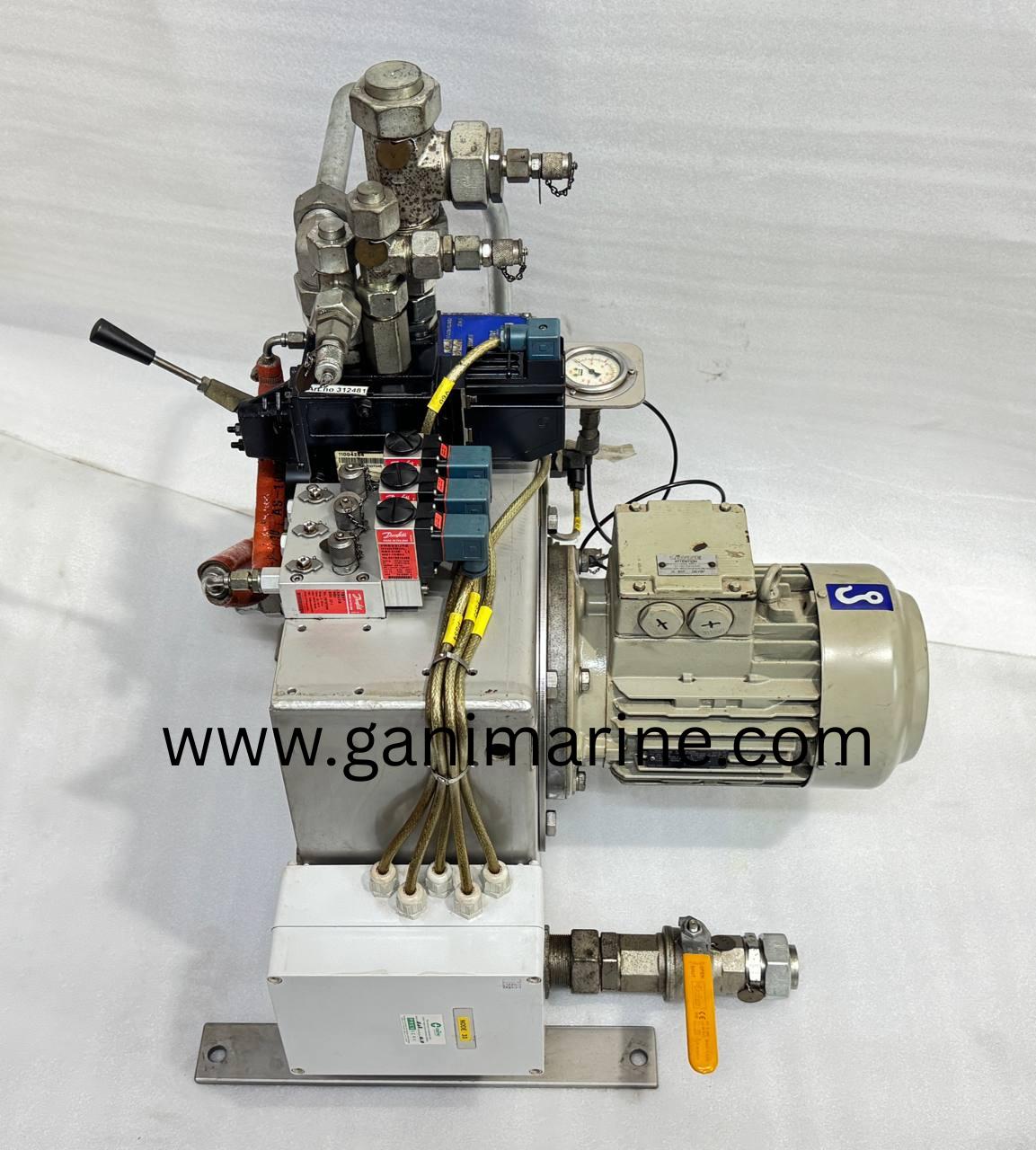

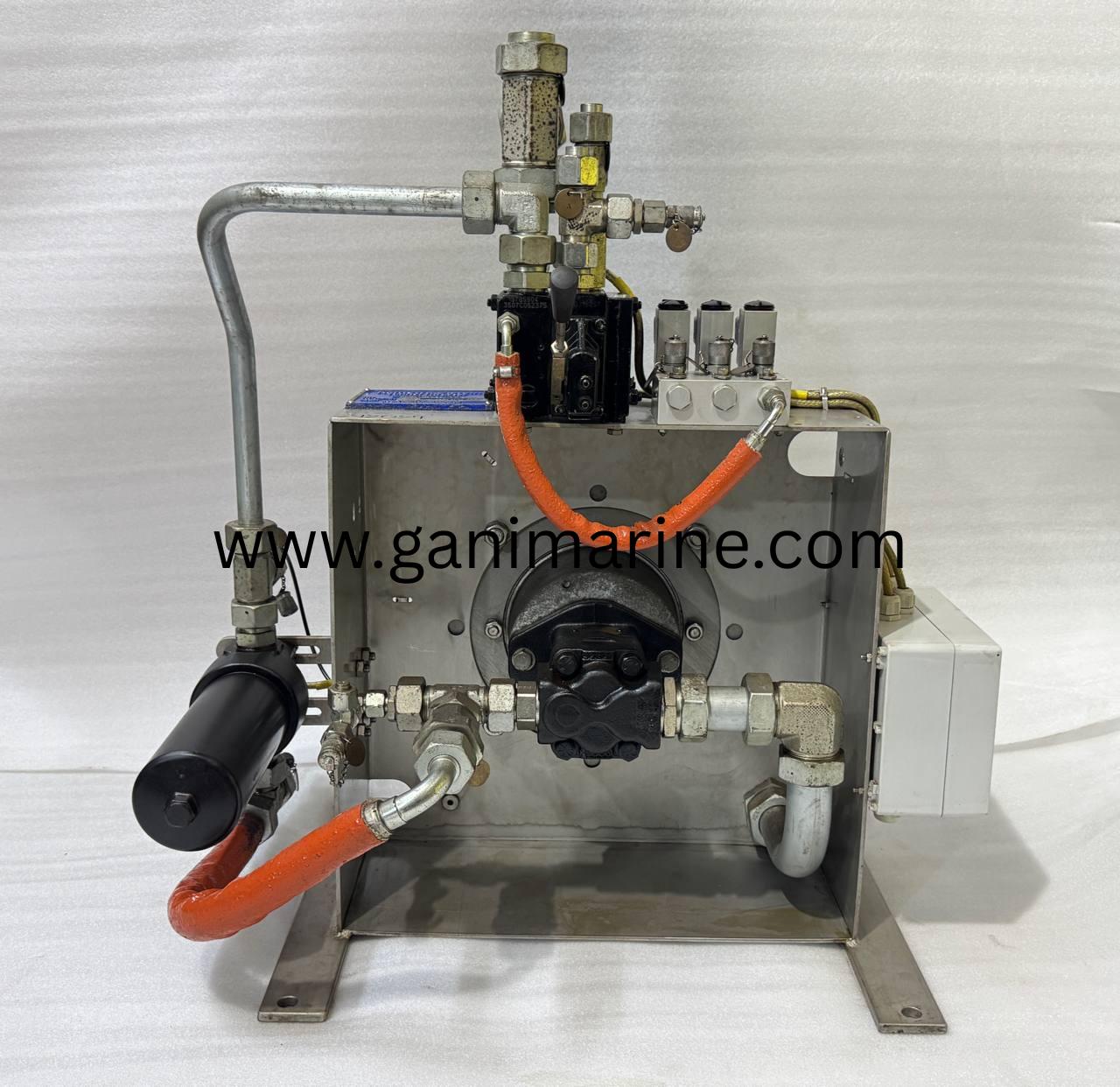

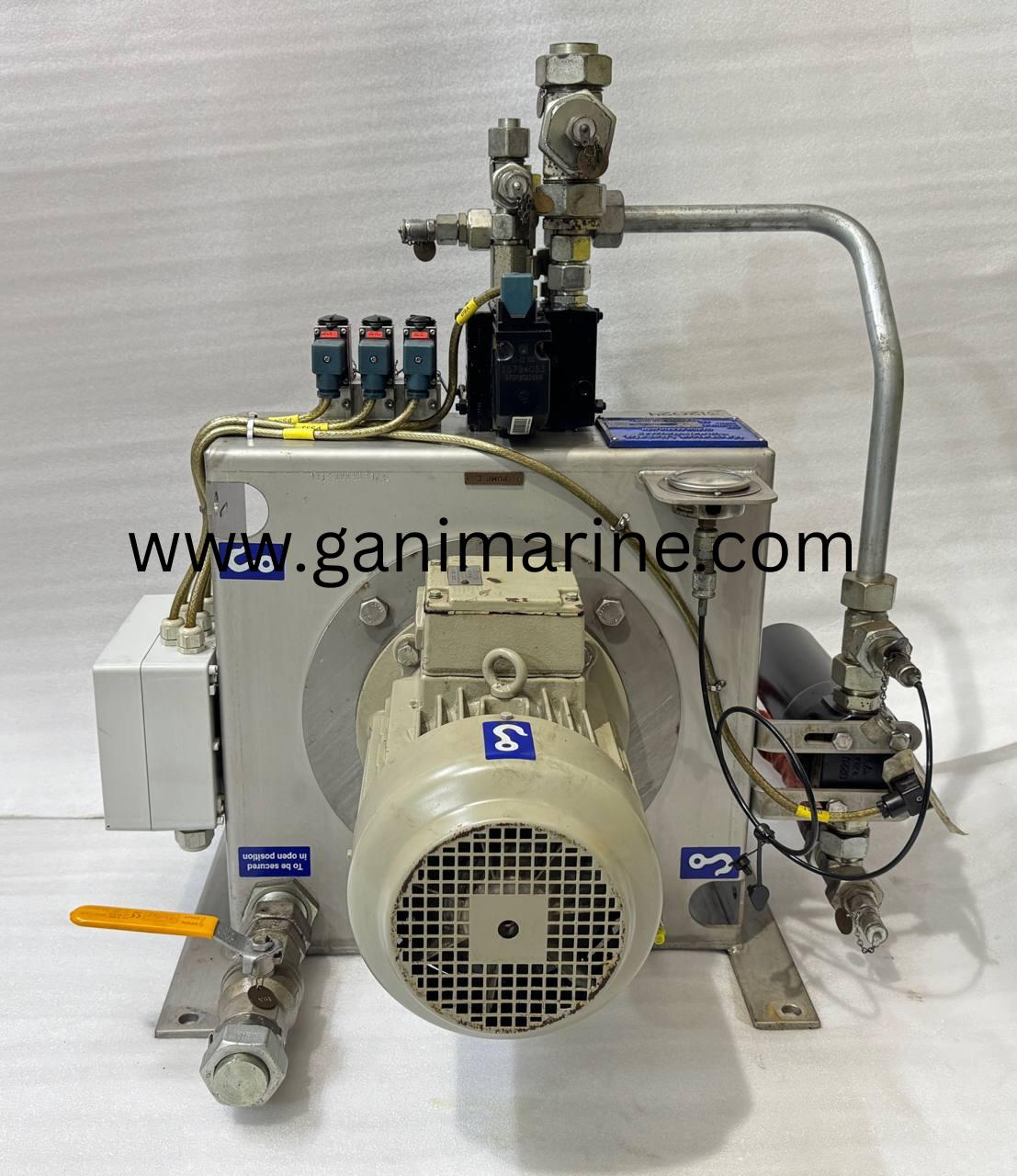

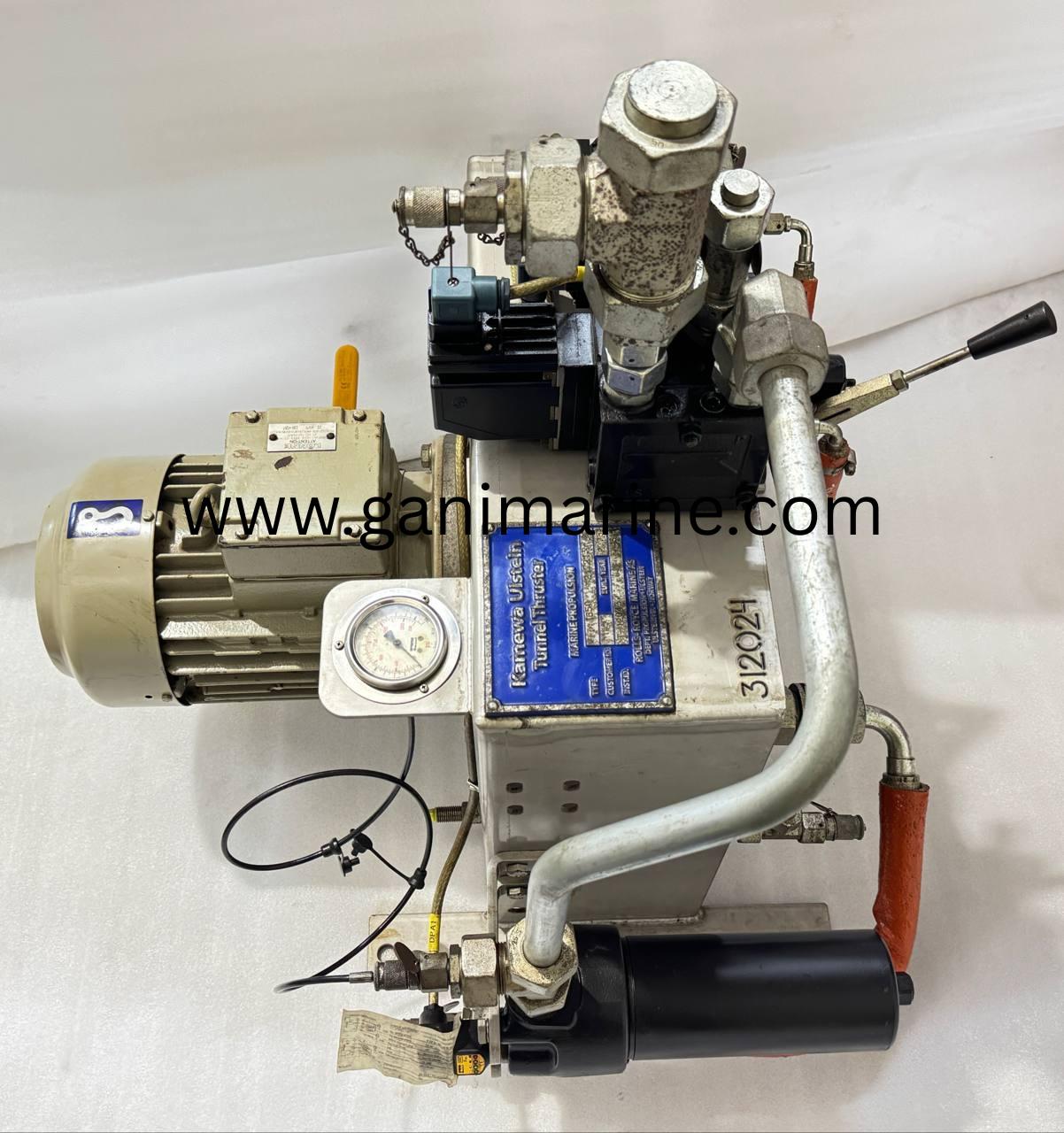

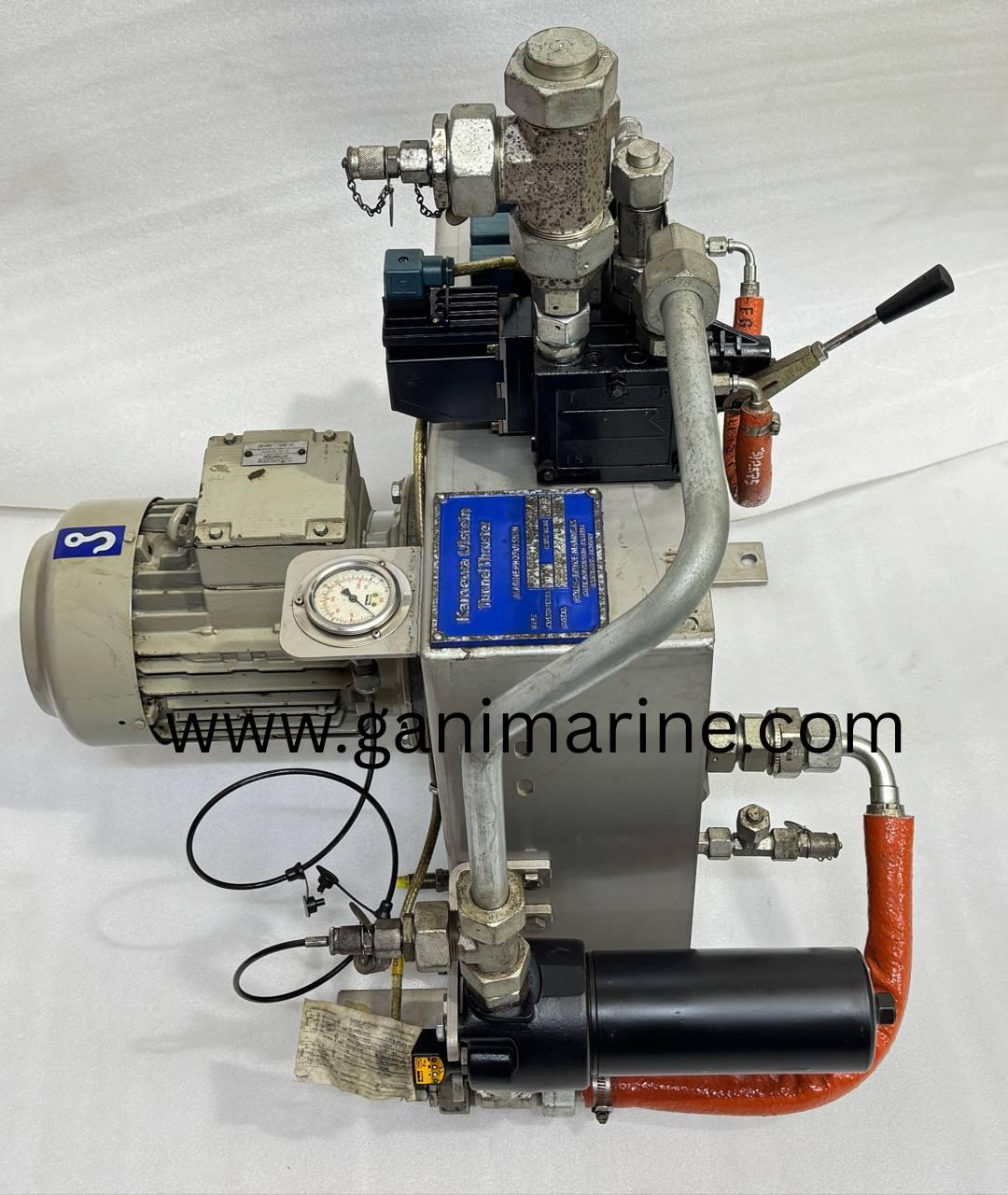

This heavy-duty marine hydraulic package consists of a Rolls-Royce Marine TT 1650 Tunnel Thruster system, integrated with Danfoss electro-hydraulic controls, Parker hydraulic pump, and Lönne electric motor.
Designed for marine docking, dynamic positioning, offshore vessels, tugboats, cargo ships, and heavy marine applications, this system delivers reliable lateral thrust and precise hydraulic control.
Suitable for shipyards, marine contractors, offshore operators, and vessel retrofits.
Tunnel Thruster System Unit
Manufacturer: Rolls-Royce Marine AS (Kamewa Ulstein)
Type: TT 1650
Model Code: 217213
Built Year: 2008
Propeller Diameter: 1650 mm
Power Rating: 750 kW – 1091 kW
Application: Marine lateral propulsion / docking thruster
Features:
• Heavy-duty marine tunnel thruster
• High thrust efficiency
• Designed for offshore & commercial vessels
• Robust marine-grade construction
• Suitable for DP (Dynamic Positioning) systems
Electro-Hydraulic Actuator
Manufacturer: Danfoss (Made in Poland)
Part Number: 157B4033
Series: PVEH32 Series 4
Operating Voltage: 11 – 32 VDC
Control Type: Proportional, ratiometric
Connector: DIN 43650-A
Function:
Used with PVG 32 / PVG 100 valve groups for proportional hydraulic control.
Features:
• Passive fault monitoring
• Marine-compatible actuator
• Precision load-sensing control
• Reliable proportional output

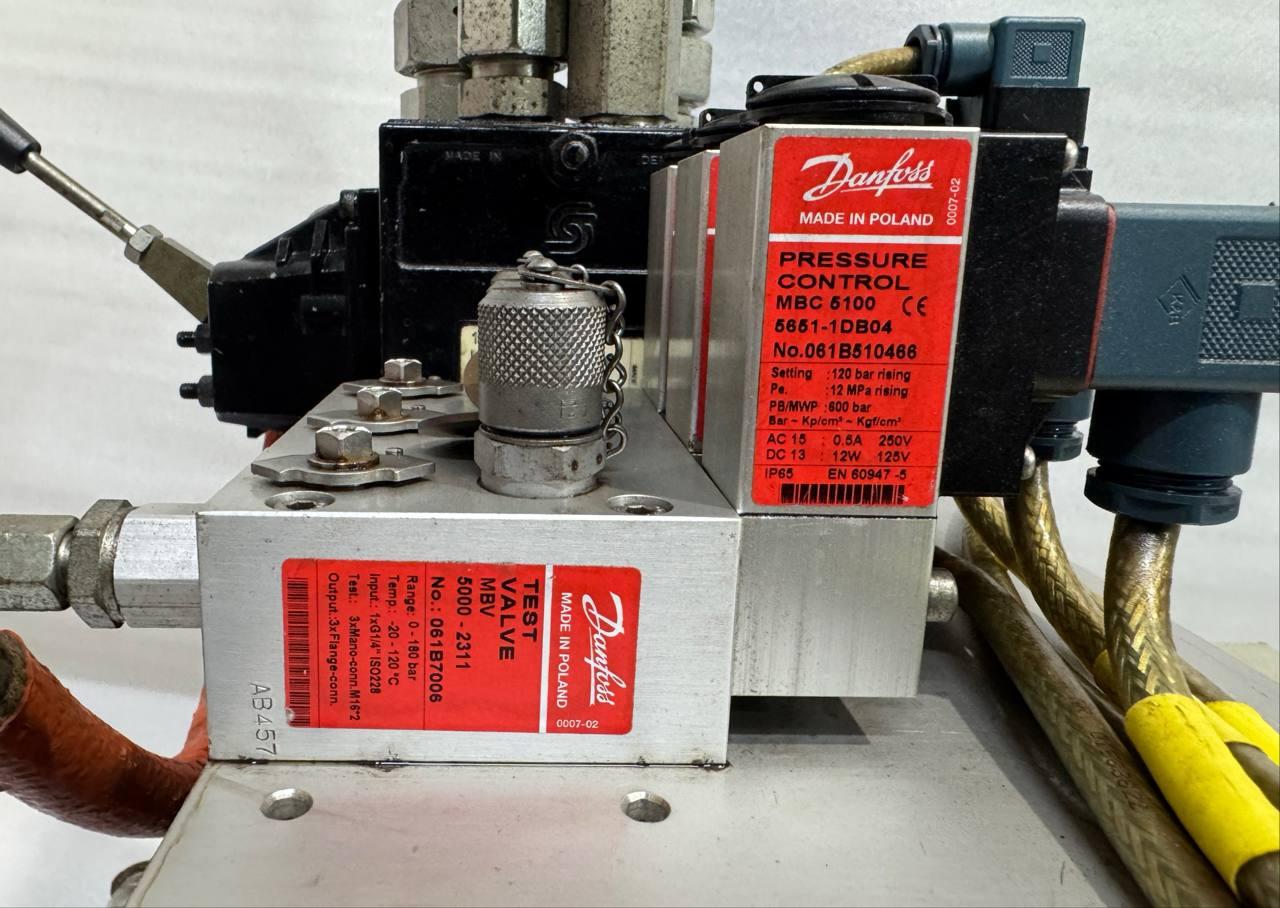

Pressure Control Switch
Manufacturer: Danfoss
Model: MBC 5100
Part Number: 061B510466
Setting Range: 0 – 180 bar
Manual Setpoint: 120 bar rising
Max Working Pressure: 600 bar
Enclosure Rating: IP65
Electrical Rating:
• AC15: 0.5A, 250V
• DC13: 12W, 125V
Features:
• Compact block-type pressure switch
• Marine & hydraulic rated
• High pressure tolerance
• Corrosion resistant design

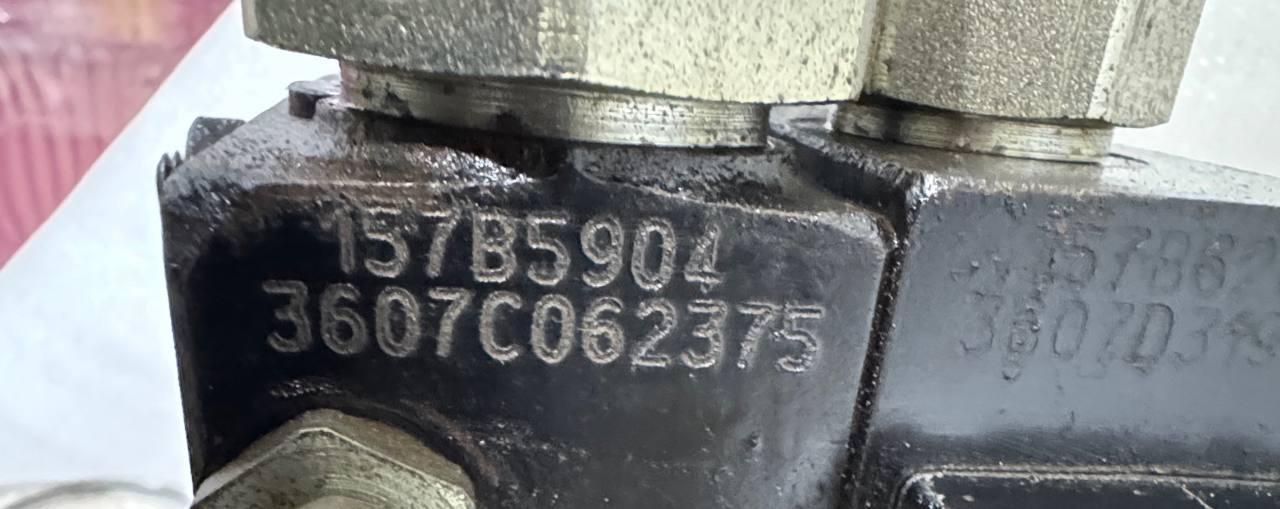

Hydraulic Inlet Module
Manufacturer: Danfoss
Model: PVP 32
Part Number: 157B5904
Configuration: Open Center
Port Sizes:
• P & T: G 3/4
• LS: G 1/4
Pressure Rating: 350 bar continuous
Features:
• Built for PVG 32 valve groups
• Open center hydraulic system
• Marine-grade hydraulic inlet
• Compatible with fixed displacement pumps

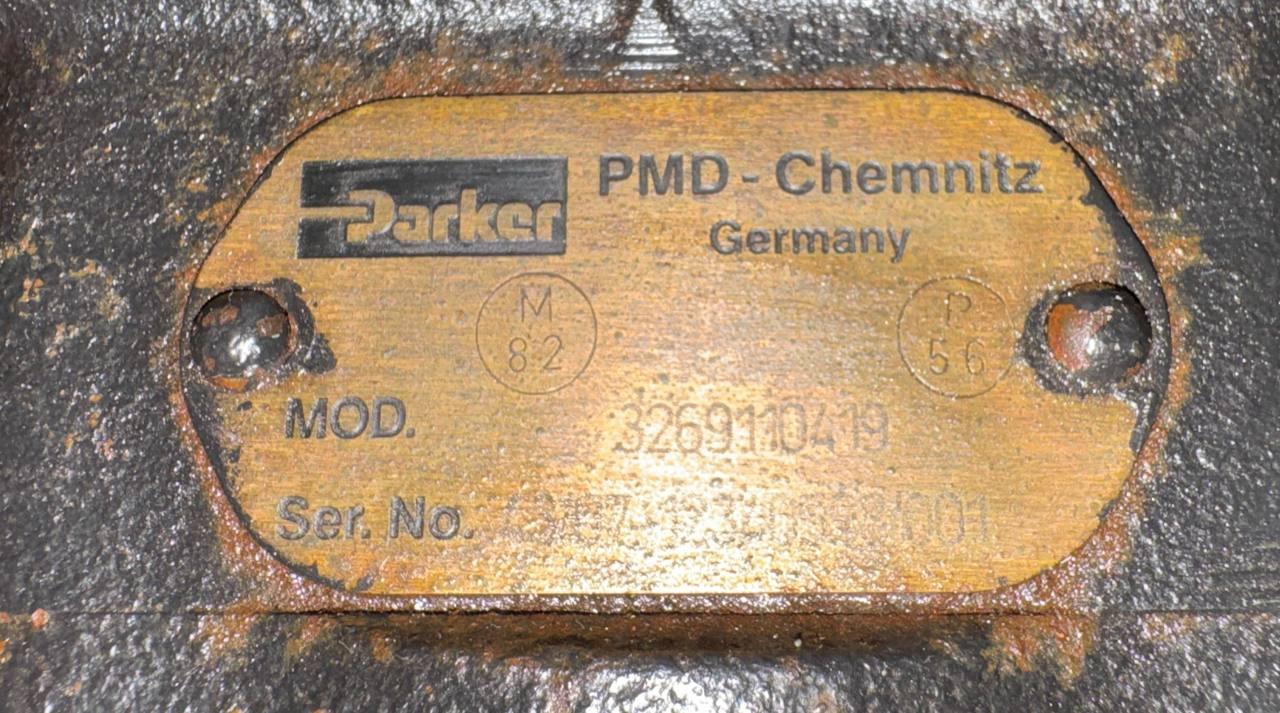

Hydraulic Gear Pump
Manufacturer: Parker Hannifin (PMD – Chemnitz, Germany)
Series: PGP315
Model Code: 3269110419
Design: Fixed displacement gear pump
Max Pressure: 250 bar
Features:
• Industrial heavy-duty pump
• Marine hydraulic compatible
• High reliability
• German engineered precision

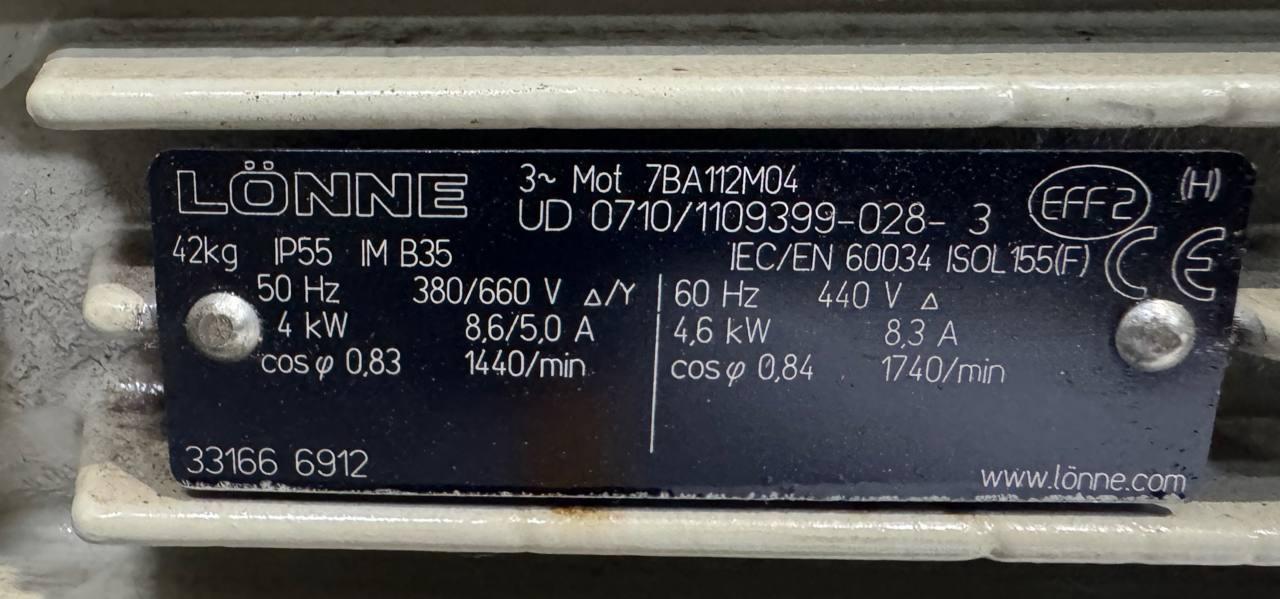

Electric Motor
Manufacturer: Lönne (MEZ Motoren Belgium)
Type: 7BA112M04
Power Output:
• 50 Hz: 4 kW @ 1440 RPM (380/660V ?/Y)
• 60 Hz: 4.6 kW @ 1740 RPM (440V ?)
Protection: IP55
Insulation Class: F (155°C)
Weight: 42 kg
Features:
• Marine duty electric motor
• Corrosion protected
• Continuous rated operation
• Heavy industrial design
System Context & Condition

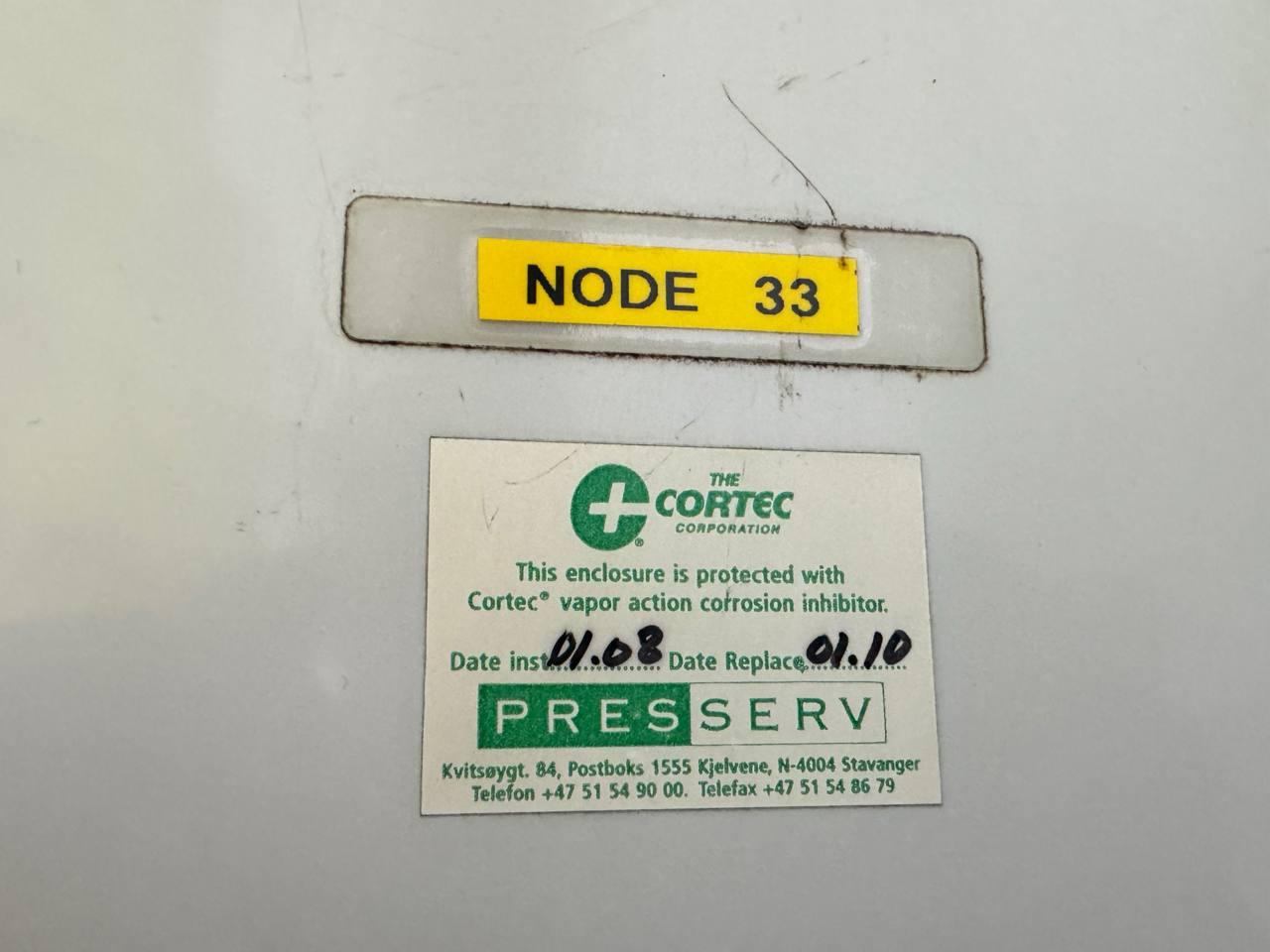

The “NODE 33” tag and Presserv corrosion inhibitor marking indicate this unit was preserved as part of a mothballed marine thruster control skid.
Preservation Date: January 2008
Original Build Year: 2008
Suitable for:
• Ship retrofits
• Offshore vessel refurbishment
• Marine spare parts supply
• Thruster system replacement
