Rexroth HSZ 10 B035-3X/M01 Sandwich Plate R900536135
Rexroth HSZ 10 B035-3X/M01 Sandwich Plate R900536135

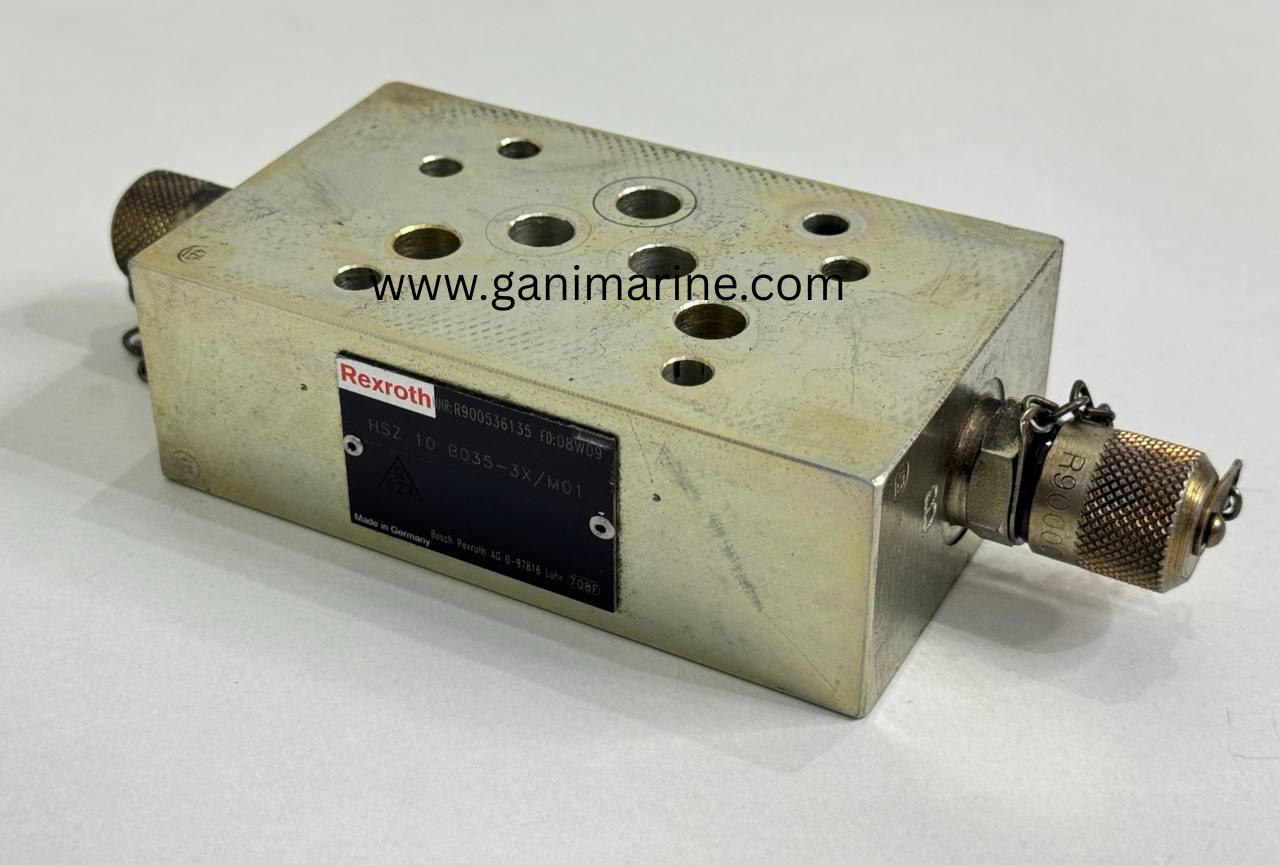

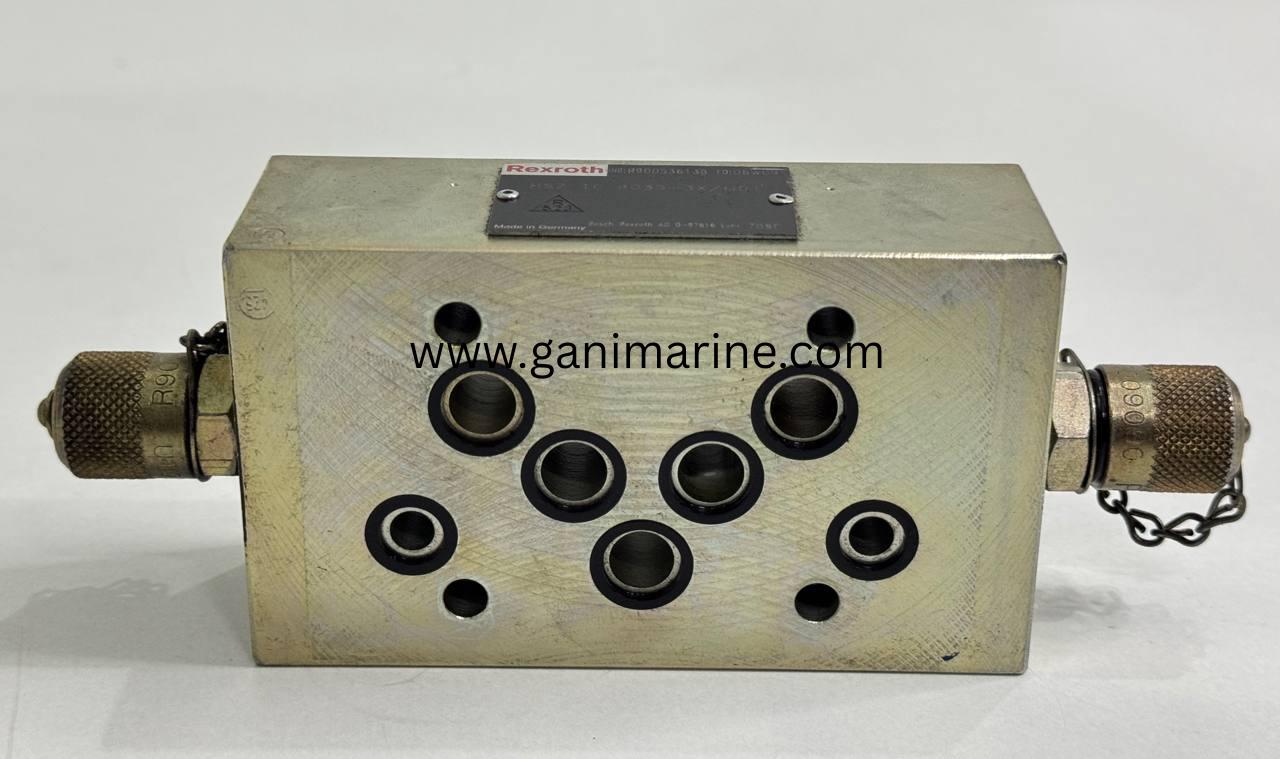

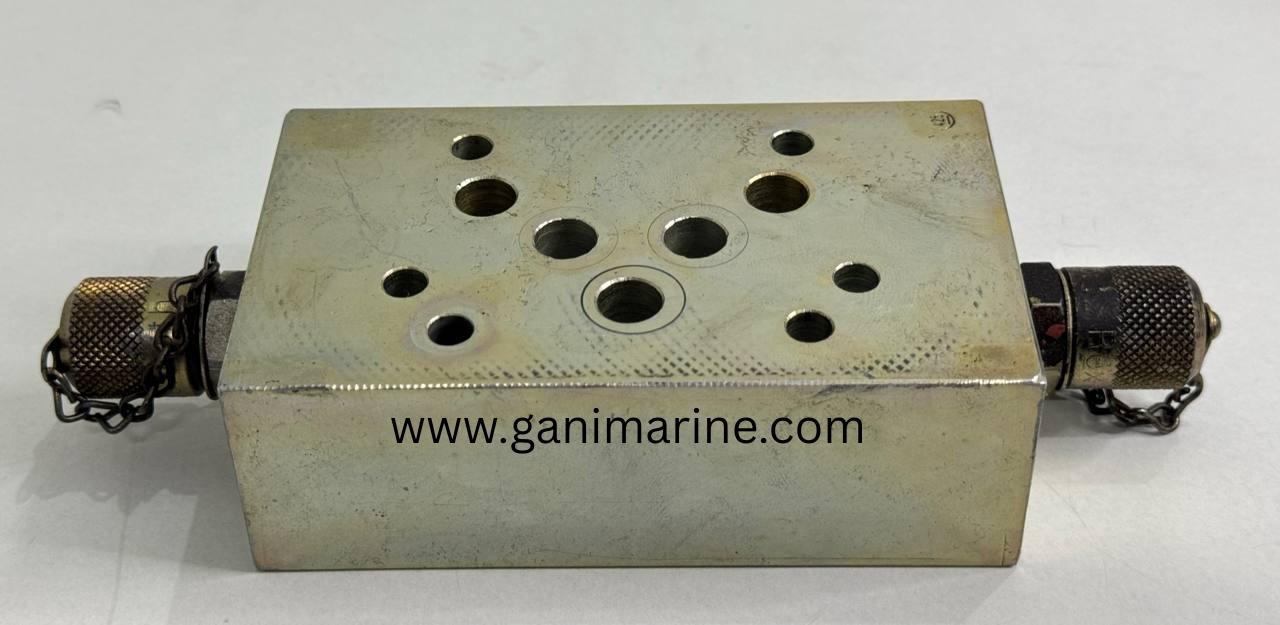

The Bosch Rexroth HSZ 10 is a sandwich (intermediate) plate valve designed for modular hydraulic valve stacks. It is installed between the subplate and the directional control valve to add specific hydraulic logic or pressure-related functions without external piping.
This plate follows the ISO 4401-05 / CETOP 5 / NG10 mounting standard, making it fully compatible with Rexroth and other CETOP-5 directional valves.
Identification Details
• Manufacturer: Bosch Rexroth
• Product Type: Sandwich / Intermediate Plate Valve
• Series: HSZ
• Model Code: HSZ 10 B035-3X/M01
• Material Number (MNR): R900536135
• Nominal Size: 10 (NG10 / CETOP 5)
• Series: 3X (design series 30–39)
• Manufacturing Date (FD): 08W09 (Week 9, 2008)
• Origin: Genuine Rexroth industrial component
Technical Description
HSZ Series
• HSZ plates are logic / function sandwich valves
• Used to create pressure control, logic interlocking, or flow conditioning
• Designed for stacked valve assemblies
Function Code – B035
• “B” configuration indicates logic/pressure-related control on actuator lines (A/B ports)
• Typically used for:
• Pressure reducing or pressure control
• Controlled flow paths
• Safety or interlock functions
• Exact internal logic depends on Rexroth circuit code B035
Mounting & Interface
• Standard: ISO 4401-05
• Size: NG10 / CETOP 5
• Stackable design
• Mounts directly under directional control valves
Ports
• P – Pressure
• T – Tank
• A – Work port
• B – Work port
• Optional internal pilot / drain passages
Pressure & Monitoring Features

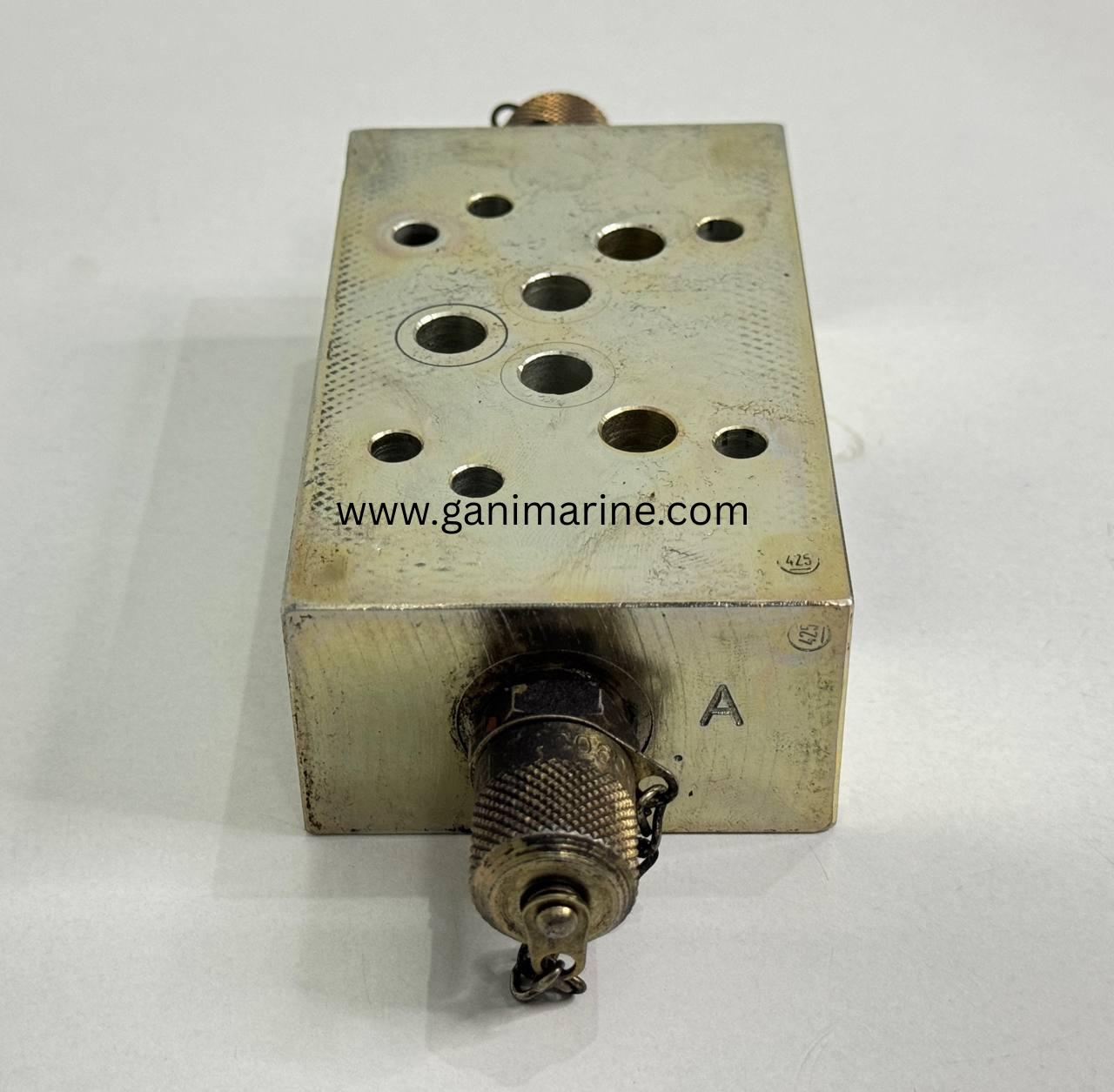

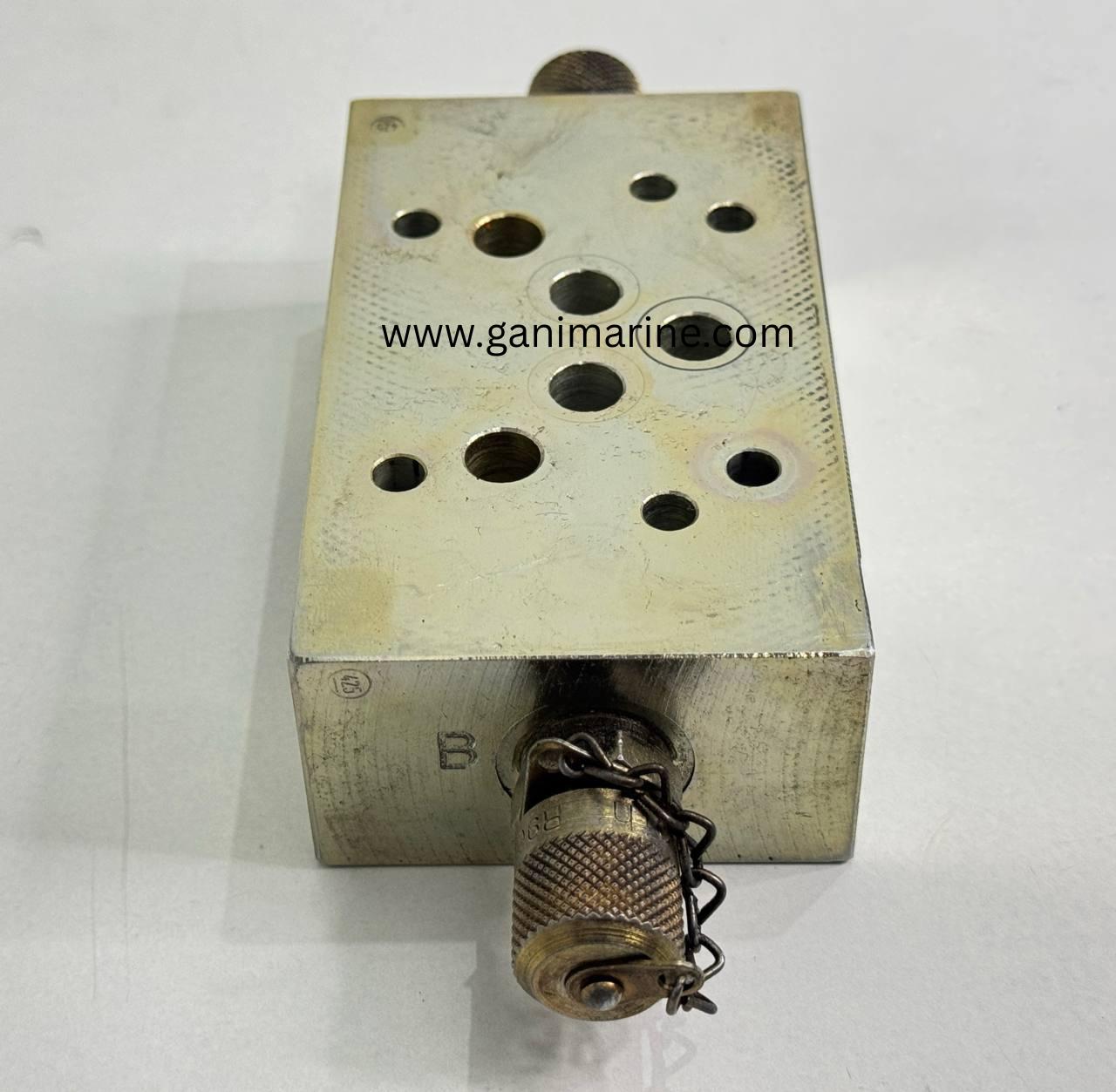

• Equipped with Minimess pressure test couplings
• Brass knurled test points on both sides
• Allows:
• Live pressure measurement
• Commissioning & troubleshooting
• Connection of gauges or sensors
• No system shutdown required
Version Code – M01
• Indicates special execution
• Commonly used for:
• FKM (Viton) seals
• Modified internal orifices
• Special factory configuration
• Suitable for higher temperature or aggressive fluids
Typical Technical Ratings (HSZ 10 family – reference values)
• Max operating pressure: up to 315 bar
• Nominal flow: up to 80–100 L/min
• Hydraulic fluid: Mineral oil (HL, HLP), compatible synthetics
• Temperature range: approx. –20°C to +80°C (higher with FKM)
Key Features
• Modular sandwich design
• CETOP-5 / NG10 compatibility
• No external piping required
• Compact and clean installation
• Integrated pressure test ports
• High reliability and long service life
• Easy maintenance and diagnostics
Common Applications
• Hydraulic power units (HPU)
• Injection molding machines
• Hydraulic presses
• Machine tools
• Steel & rolling mills
• Marine hydraulic systems
• Industrial automation manifolds
Industries Used In
• Industrial manufacturing
• Plastic processing
• Heavy machinery
• Marine & offshore
• Power generation
• Oil & gas hydraulic skids
Condition
• Industrial-grade Rexroth component
• Suitable for refurbishment or direct installation
• Long service life design
Global Export – Gani Marine Exporter
