Rexroth DB 30-2-31/315 Pilot-Operated Pressure Relief Valve
Rexroth DB 30-2-31/315 Pilot-Operated Pressure Relief Valve

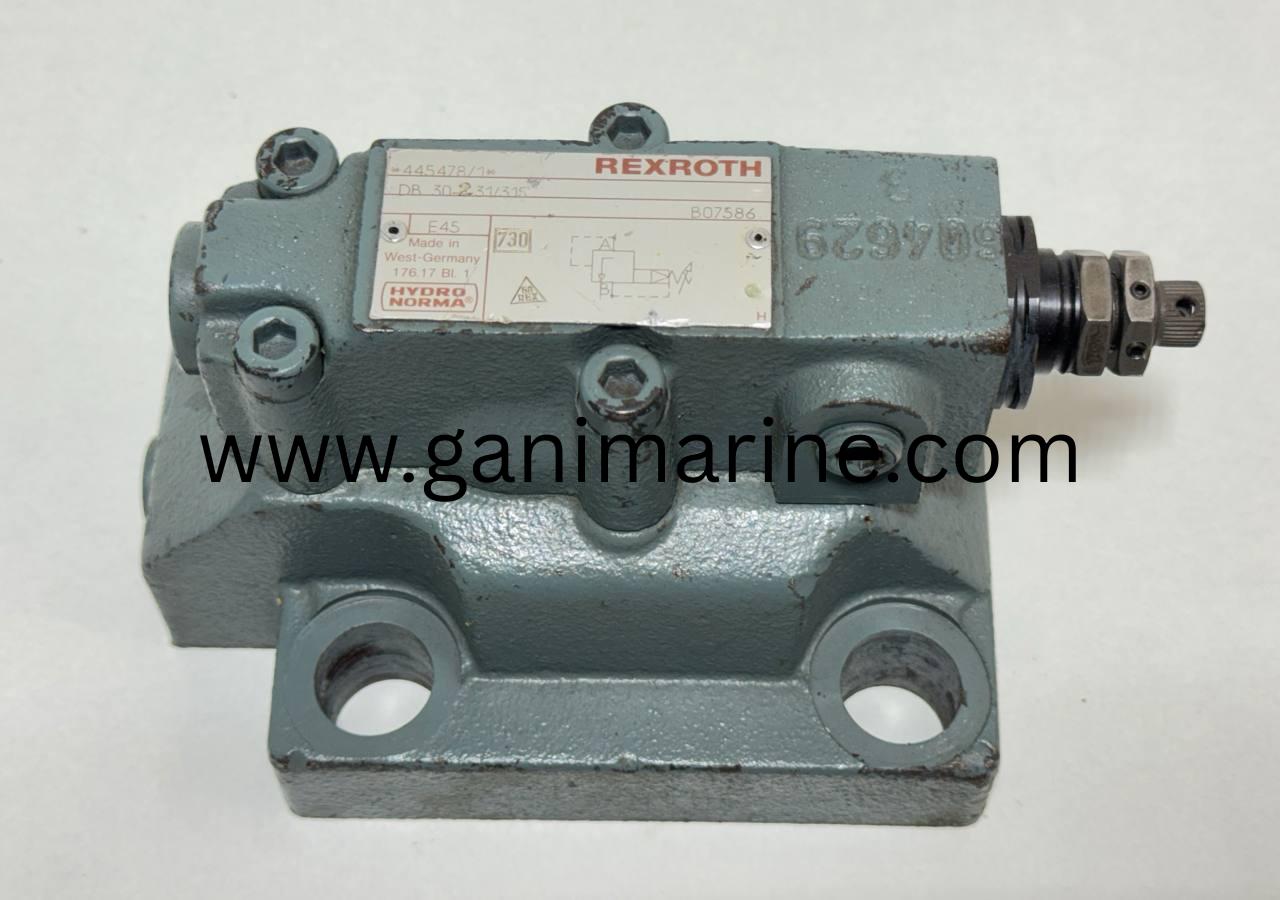

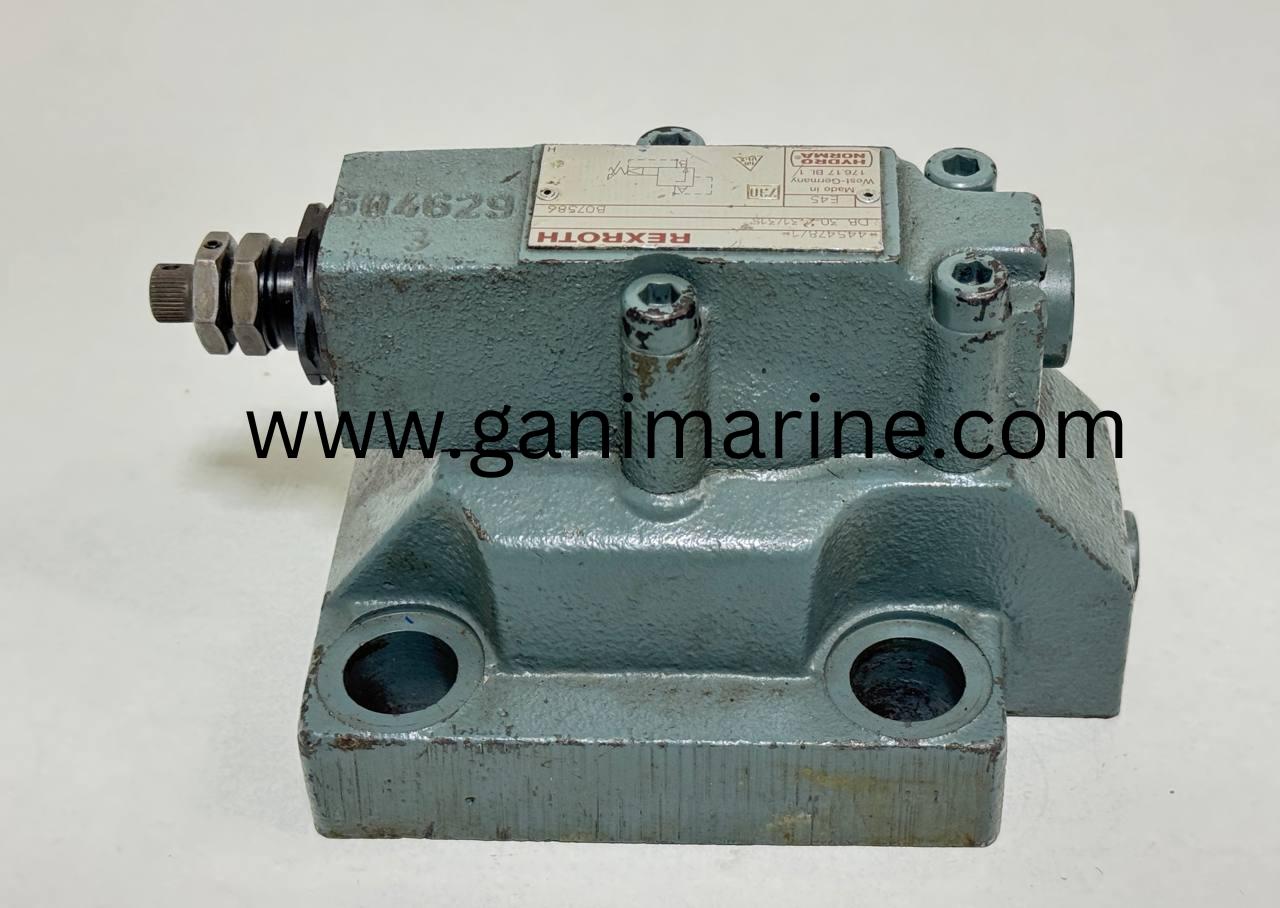

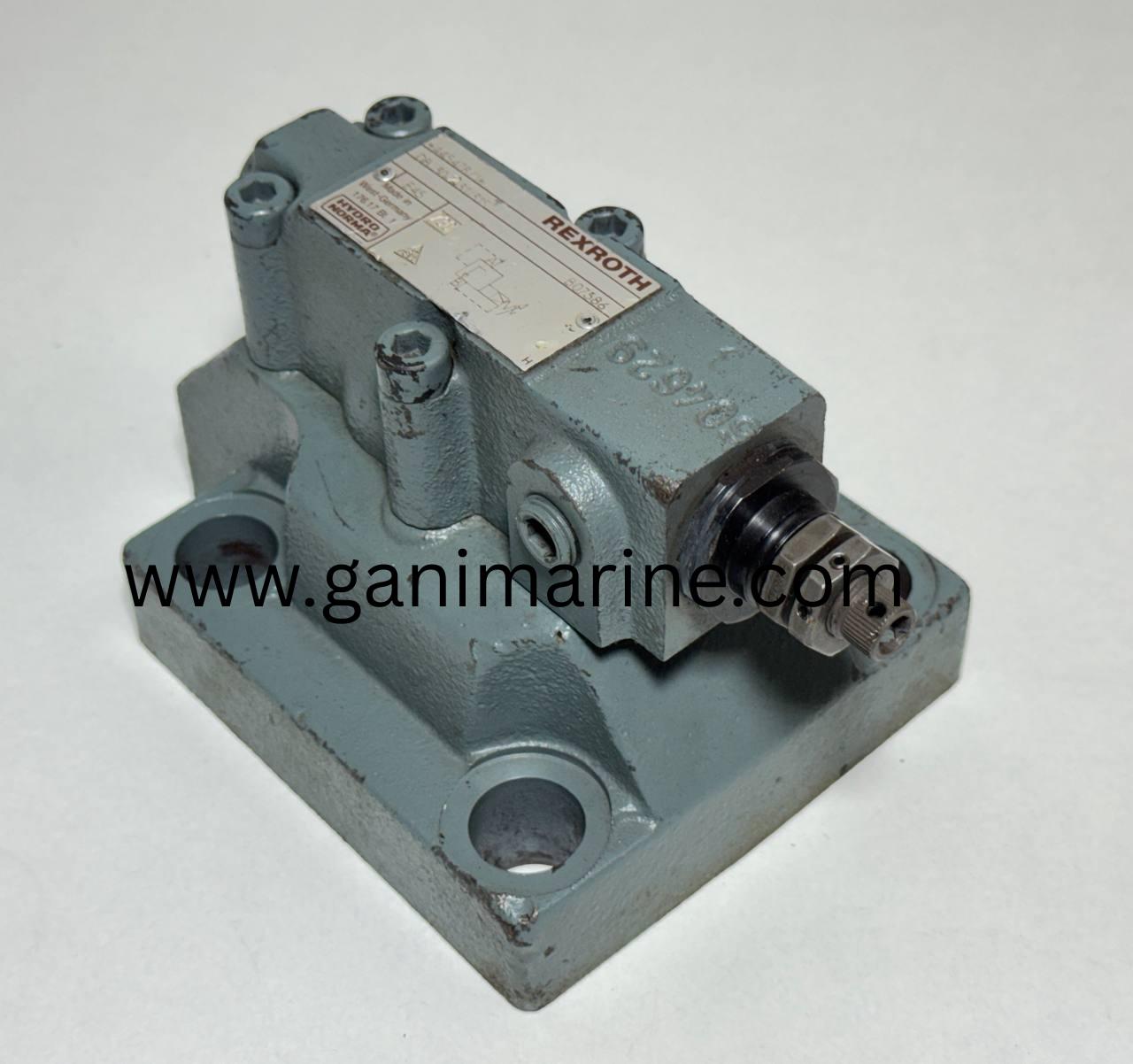

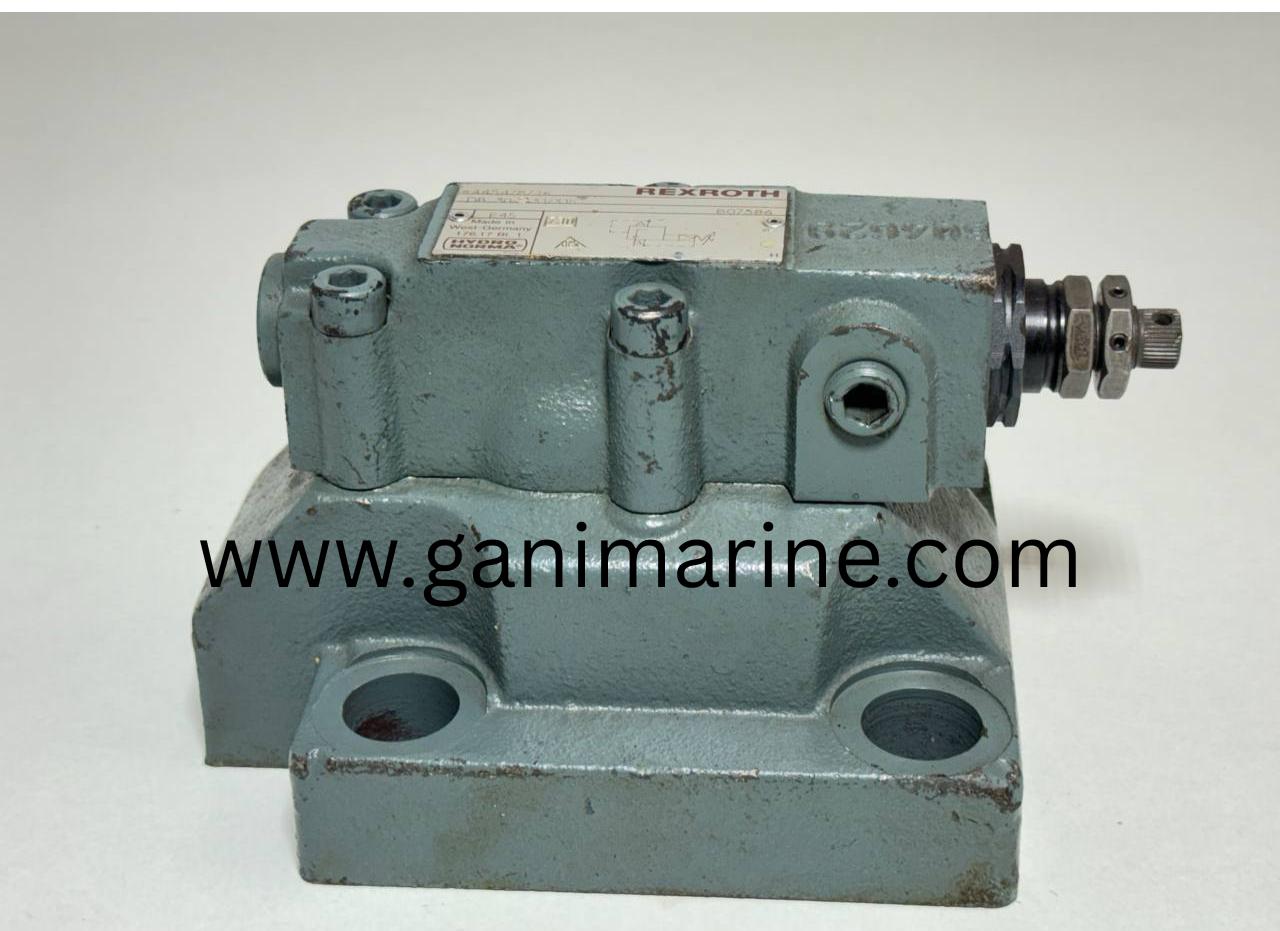

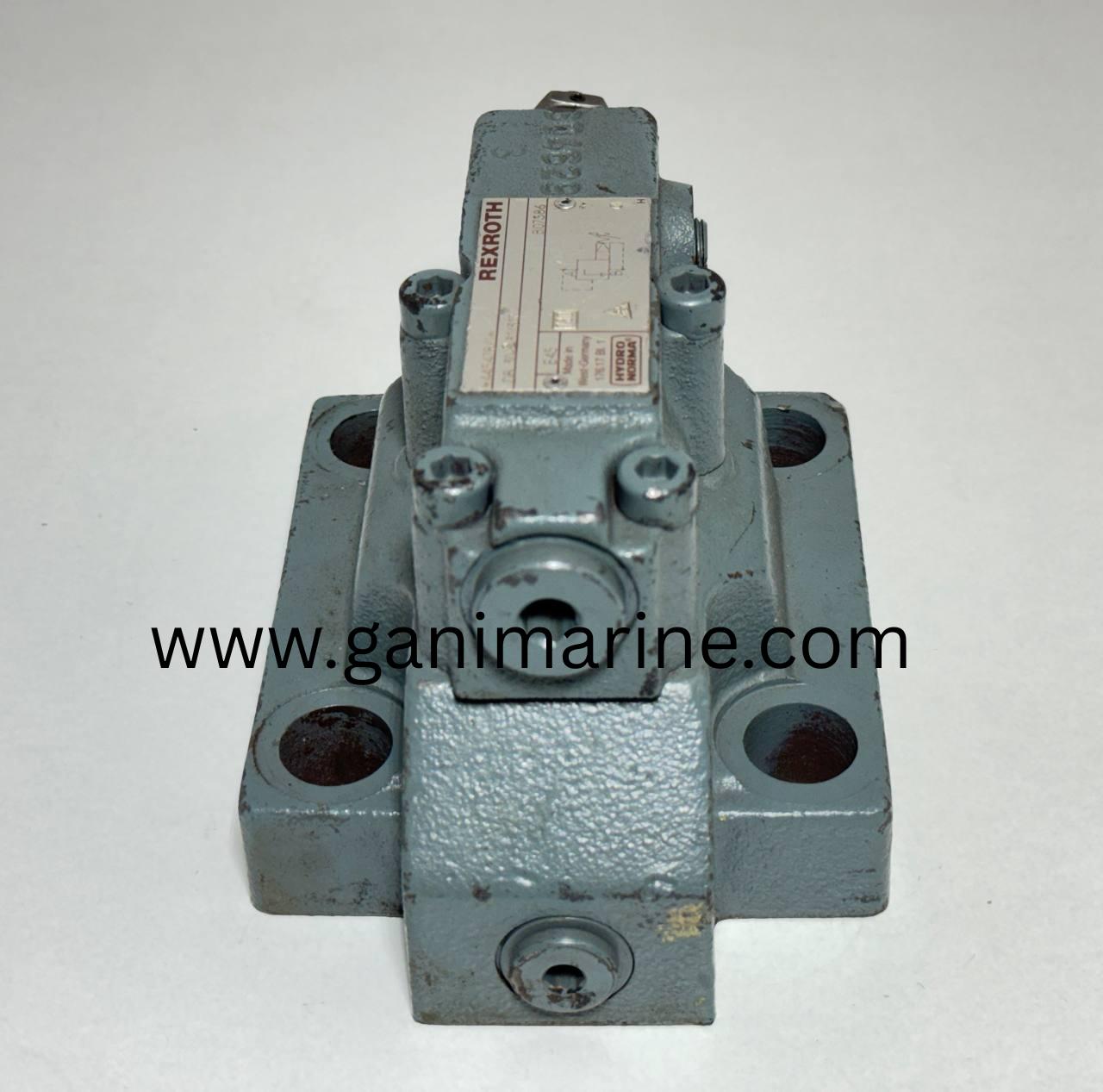

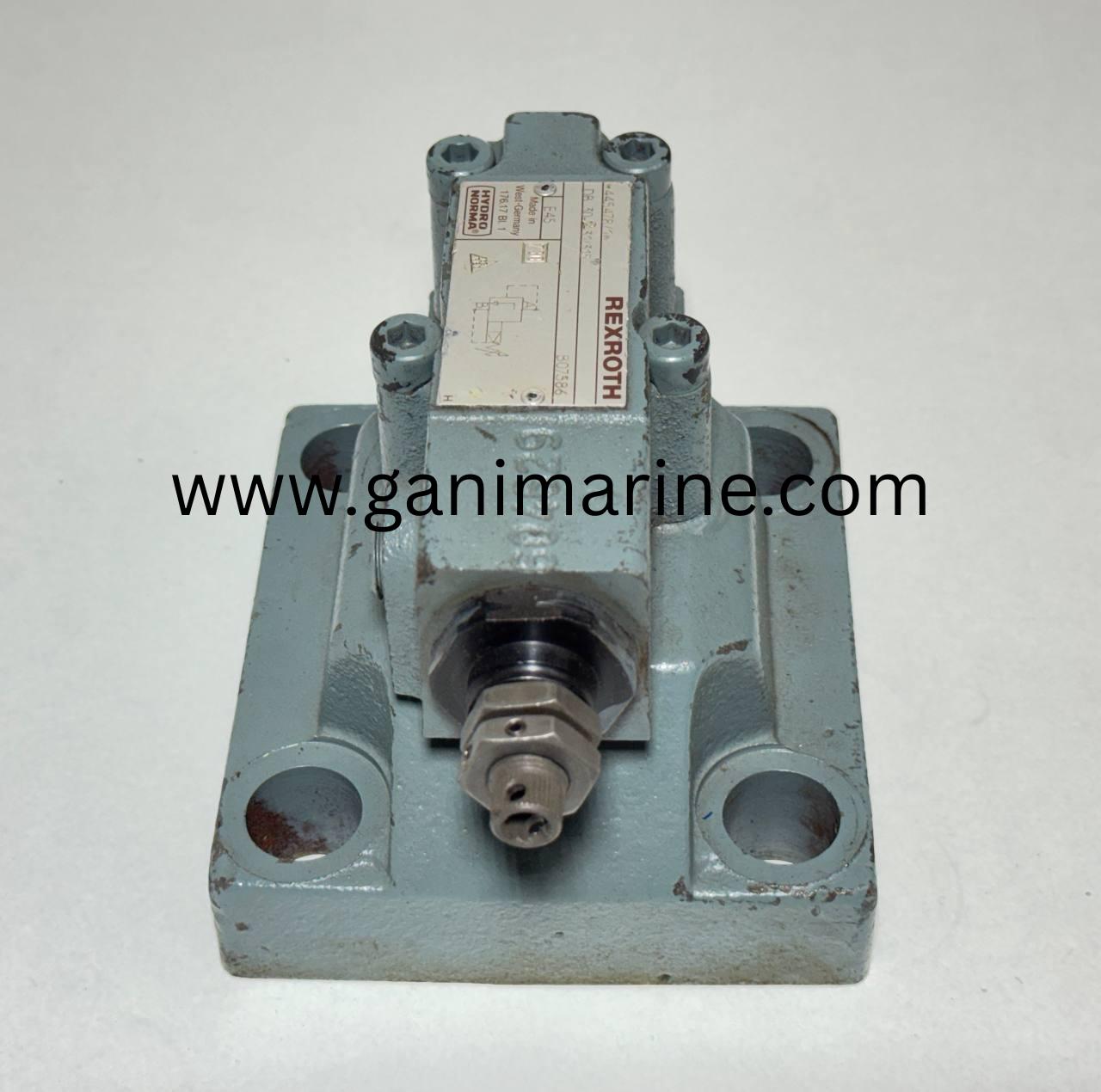

This heavy-duty Rexroth Pilot-Operated Pressure Relief Valve (Model: DB 30-2-31/315) was manufactured by the Hydro-Norma division in West Germany, known for precision hydraulic engineering and long service life.
Designed for high-flow, high-pressure hydraulic systems, this valve provides accurate pressure limitation up to 315 bar (4,500 PSI) and is suitable for industrial, marine, power plant, and heavy machinery applications.

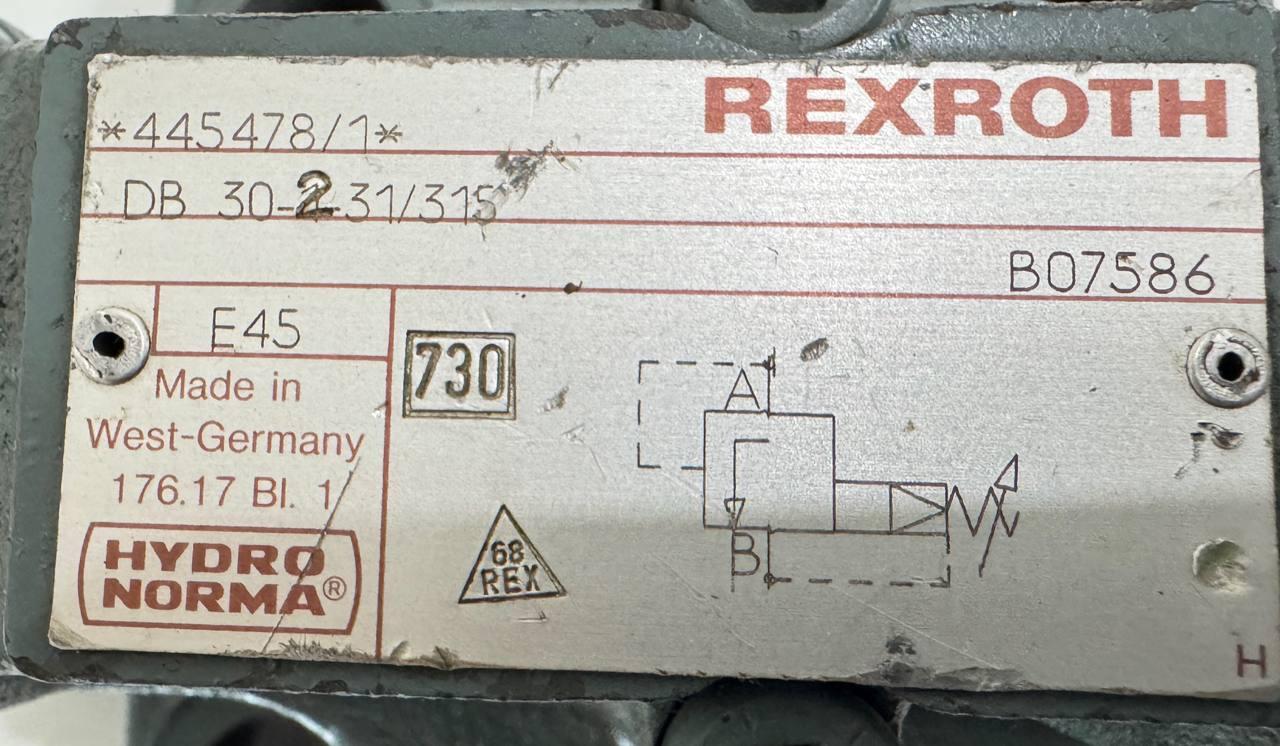

Product Identification
• Manufacturer: Bosch Rexroth (Hydro-Norma Division – West Germany)
• Model Number: DB 30-2-31/315
• Valve Type: Pilot-operated pressure relief valve (Type DB)
• Series: 3X (Component Series 30–39)
• Nominal Size: 30 (Size 32 subplate)
• Pressure Rating: Up to 315 Bar
• Max Flow Rate: Approx. 650 L/min
• Mounting: Subplate mounting – ISO 6264-10-17
Technical Features
Pilot-Operated Design
Unlike direct-acting relief valves, this model uses a two-stage pilot system:
• Small pilot valve controls
• Large main spool stage
Benefits:
Stable pressure control
High flow handling
Reduced pressure override
Suitable for heavy-duty systems
Adjustment Mechanism
Adjustment Type: 2 (Hand wheel / Hex sleeve with protective cap)
To adjust pressure:
• Loosen locknut
• Turn adjustment screw clockwise ? Increase pressure
• Turn counter-clockwise ? Decrease pressure
• Tighten locknut after setting
This sets the cracking pressure of the hydraulic system.
Port Configuration
• Port A ? Pressure inlet (System line)
• Port B ? Tank return
Designed according to ISO subplate mounting standards for industrial hydraulic manifolds.
Applications
• Hydraulic power packs
• Injection molding machines
• Steel plants
• Press machines
• Marine hydraulic systems
• Oil & gas equipment
• Heavy construction machinery
• Industrial hydraulic control systems
Industries Served
• Manufacturing
• Marine engineering
• Offshore oil & gas
• Power generation
• Heavy engineering
• Mining industry
Condition & Service Recommendation
This is a vintage West Germany manufactured valve, known for extreme durability and precision machining.
Important:
If recommissioning after long storage, it is highly recommended to:
• Replace internal NBR seals
• Inspect pilot stage
• Clean internal passages
• Recalibrate pressure setting
Rubber seals may degrade over decades even if external condition appears good.
