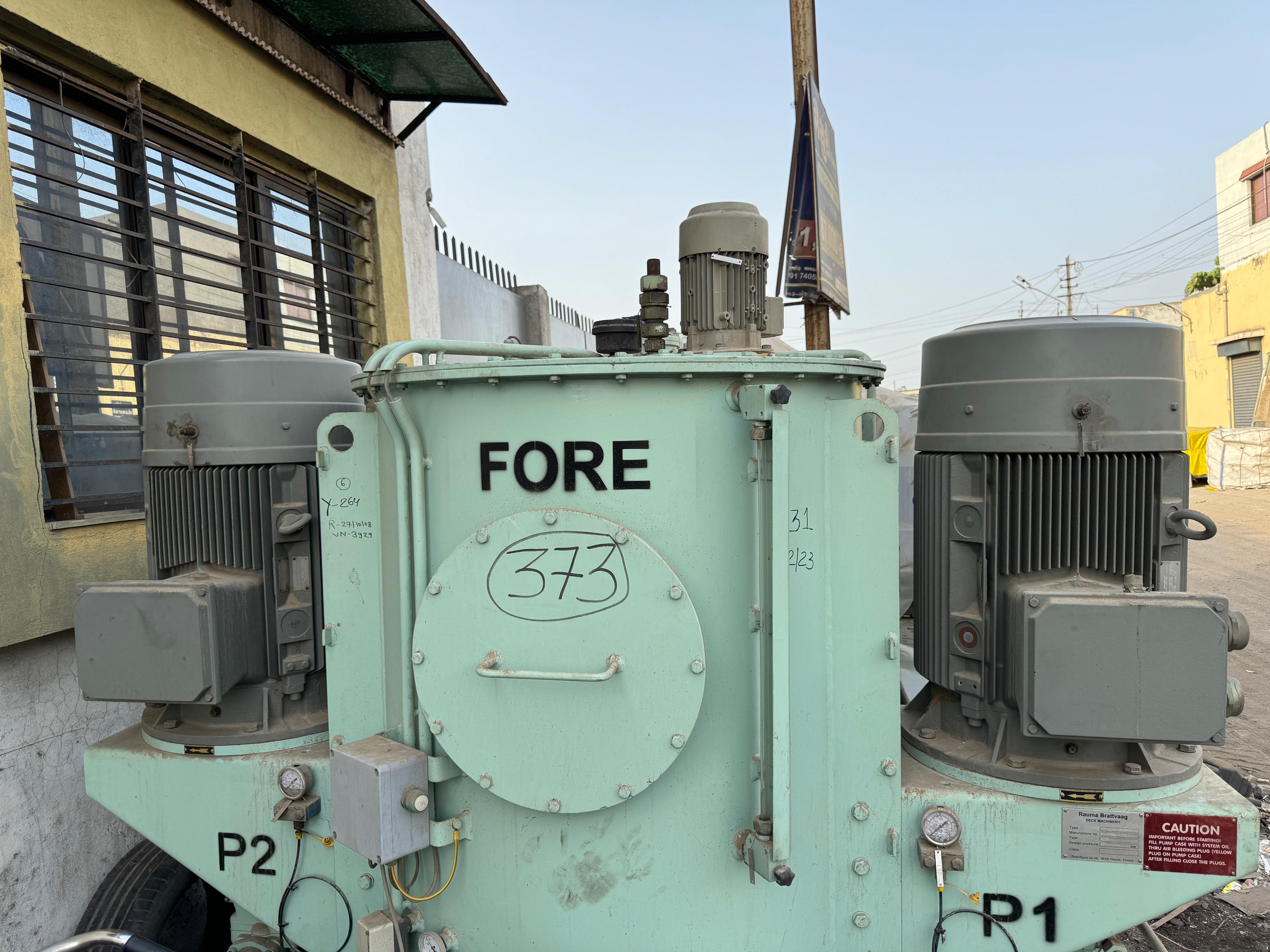

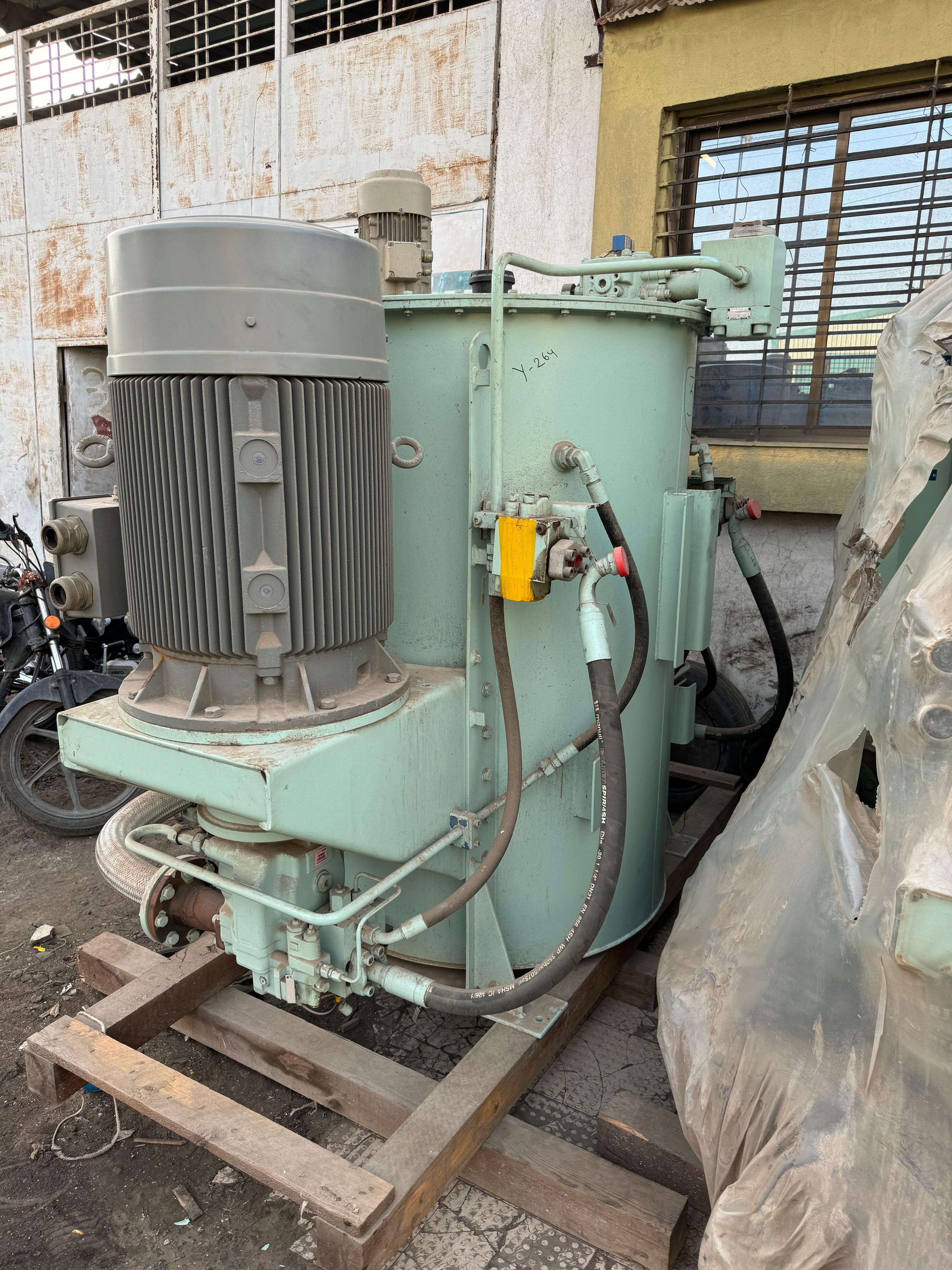

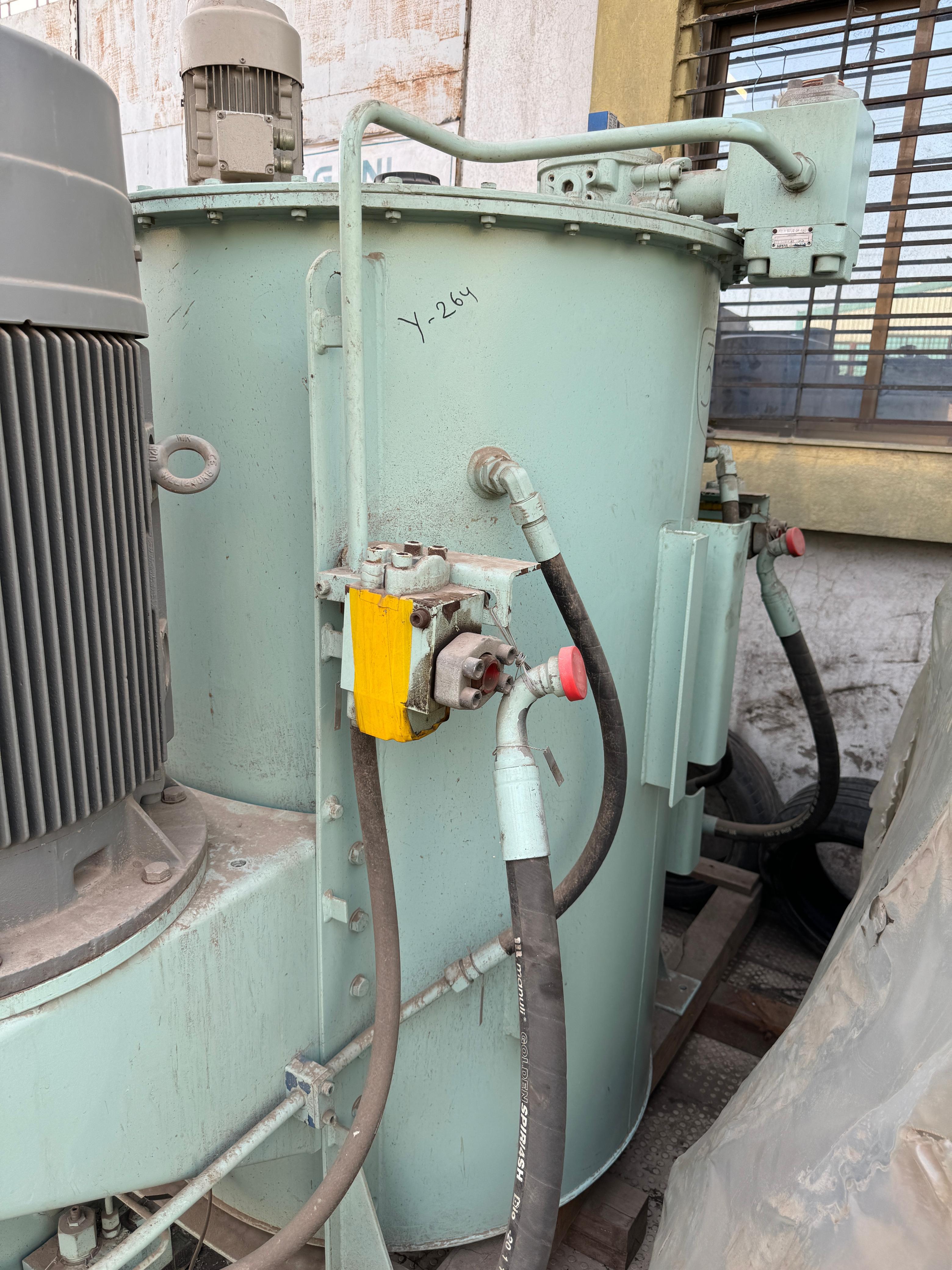

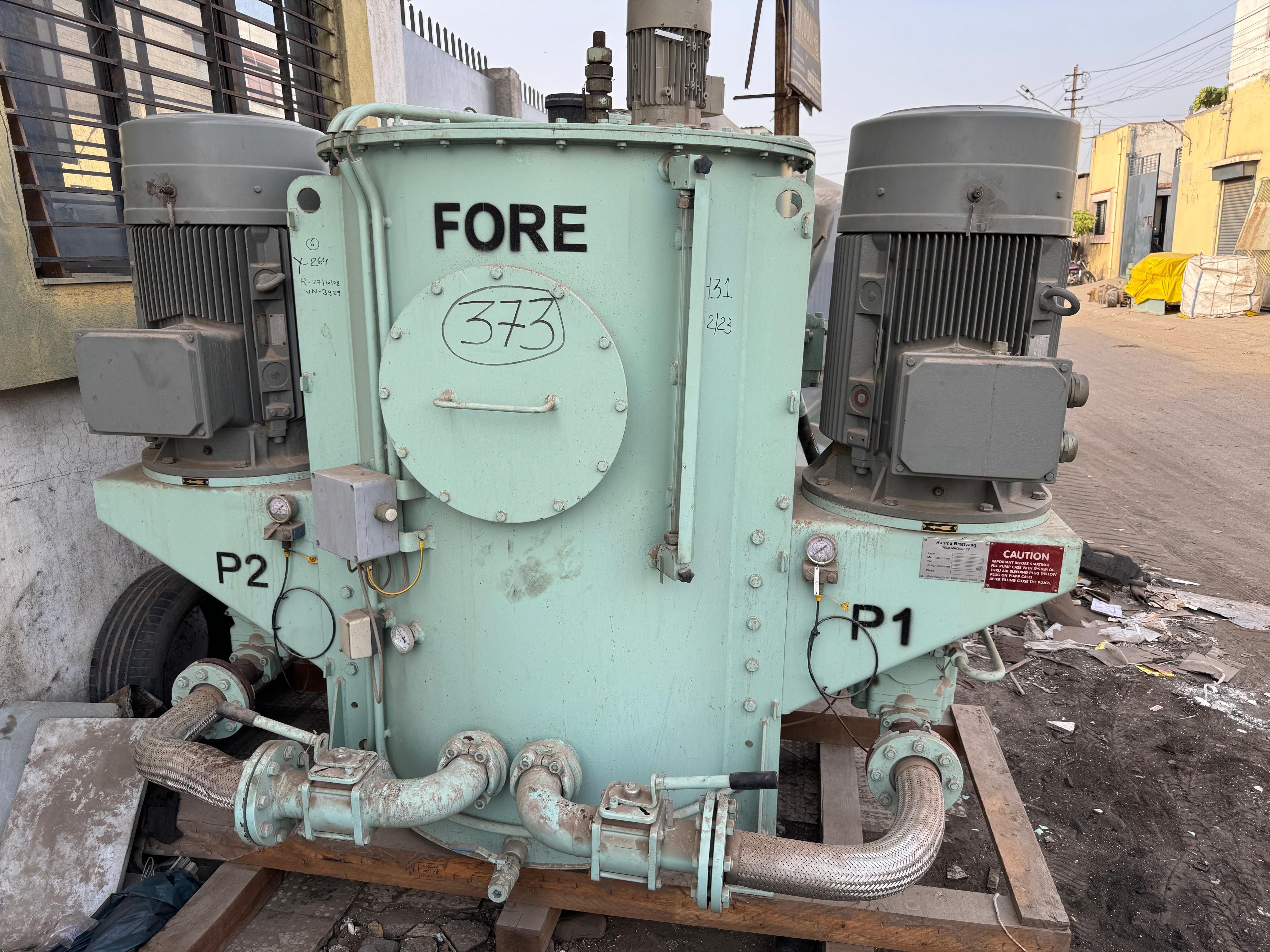

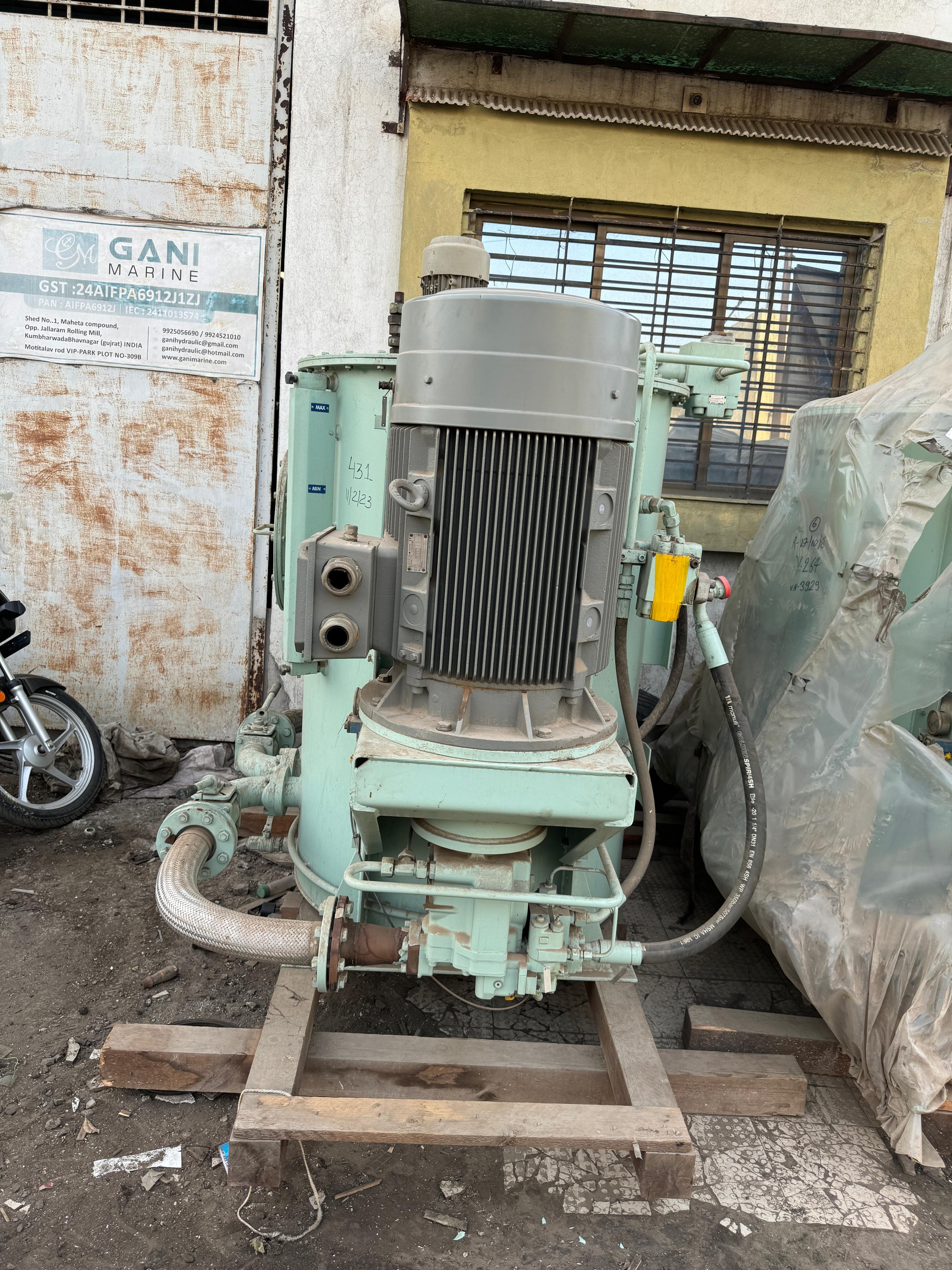

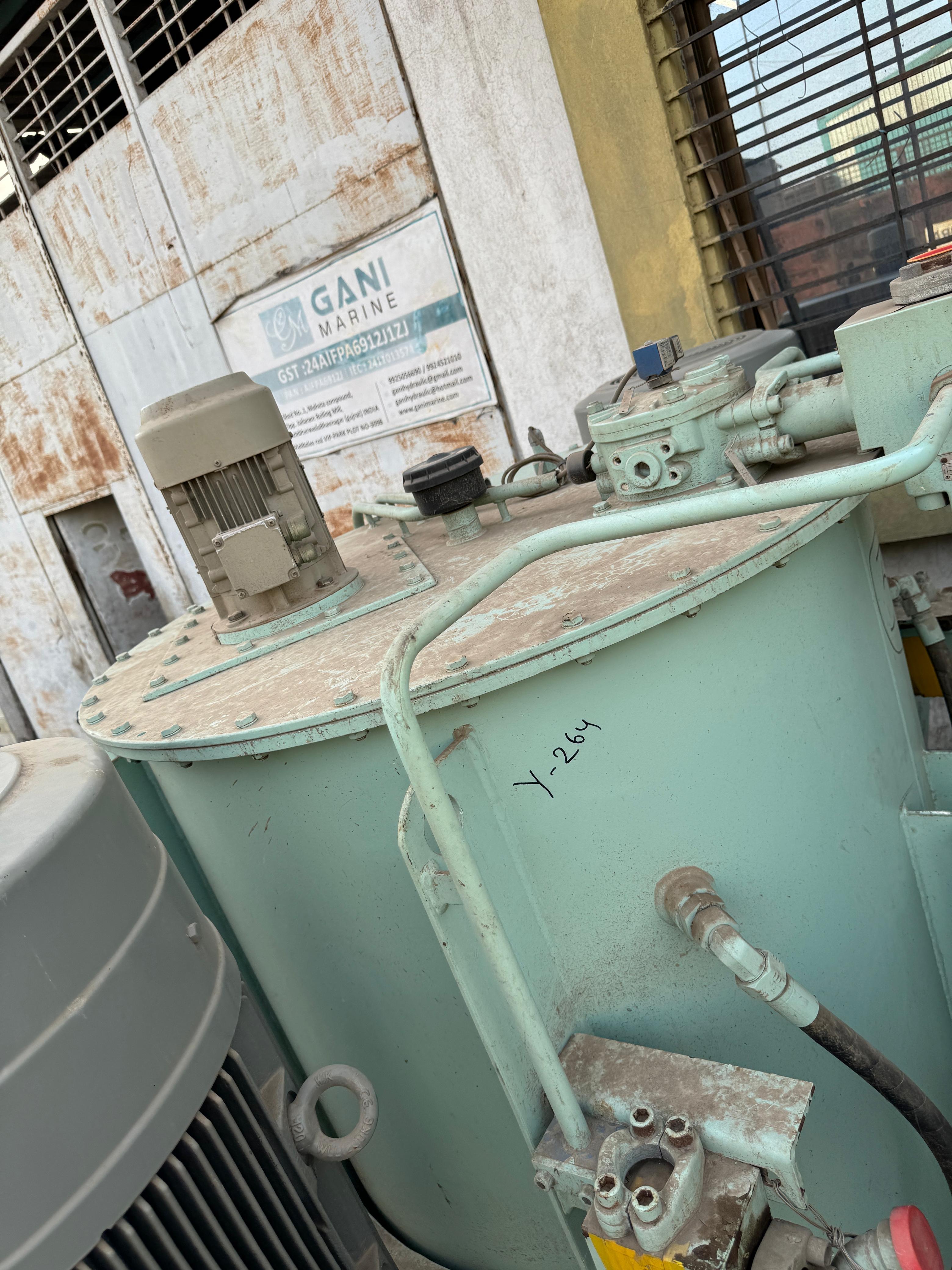

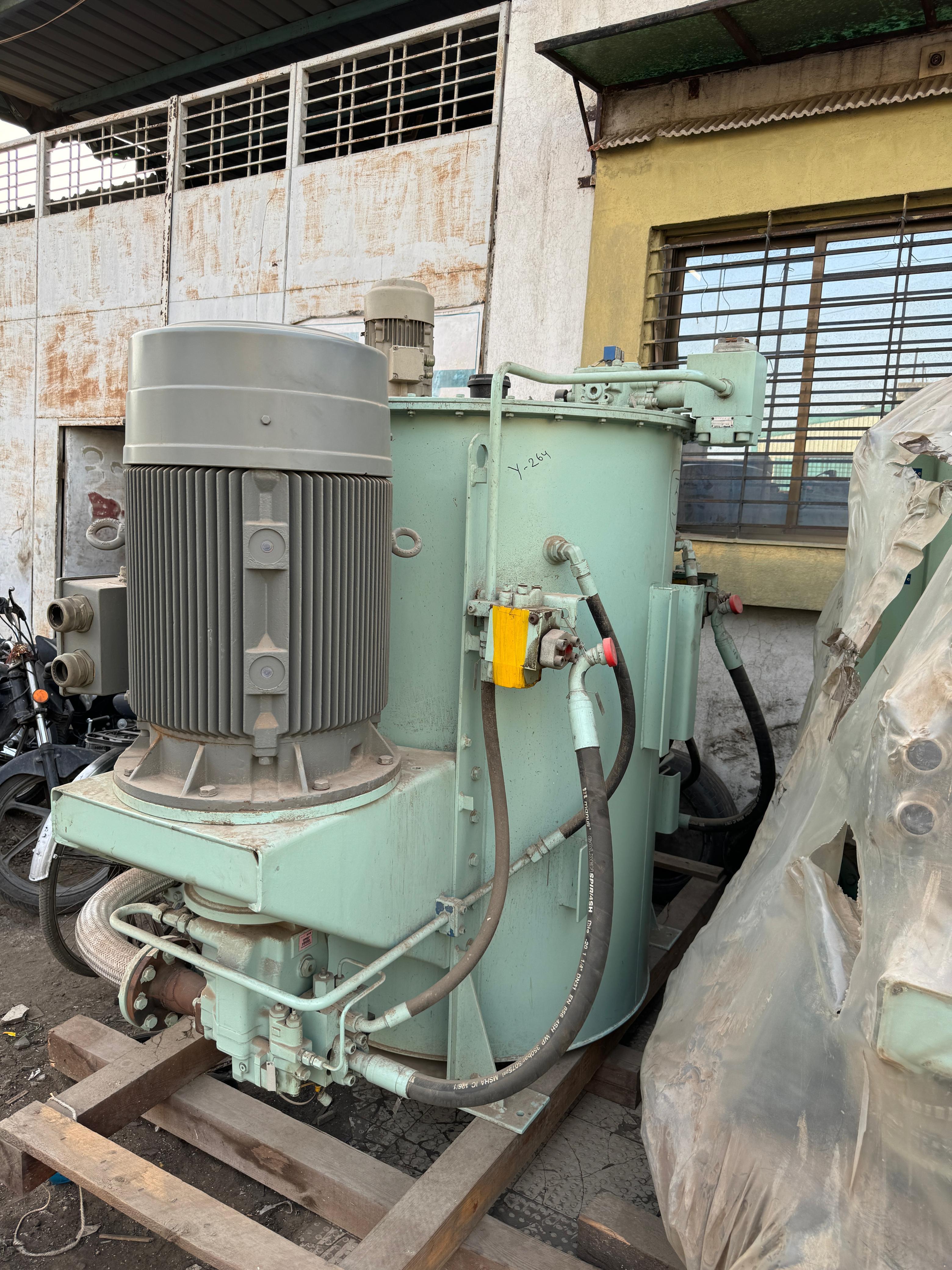

RAUMA BRATTVAAG HP3-2X131-258-X-C0-Y1 HYDRAULIC DECK MACHINERY POWER UNIT

The RAUMA BRATTVAAG HP3-2X131-258-X-C0-Y1 Hydraulic Deck Machinery Power Unit is a high-pressure, heavy-duty HPU used for critical deck operations in marine and offshore vessels. Built to withstand 250 BAR pressure, it integrates dual Lønne 75kW Motors and E.T.N PVH131 Series Pumps to deliver consistent performance in demanding hydraulic applications such as winches, cranes, windlasses, and mooring systems.

Gani Marine supplies genuine RAUMA BRATTVAAG HPUs to shipyards, offshore rigs, and hydraulic integrators globally—with customization and retrofitting support.

---

 Technical Specifications

 Power Unit Type: HP3-2X131-258-X-C0-Y1

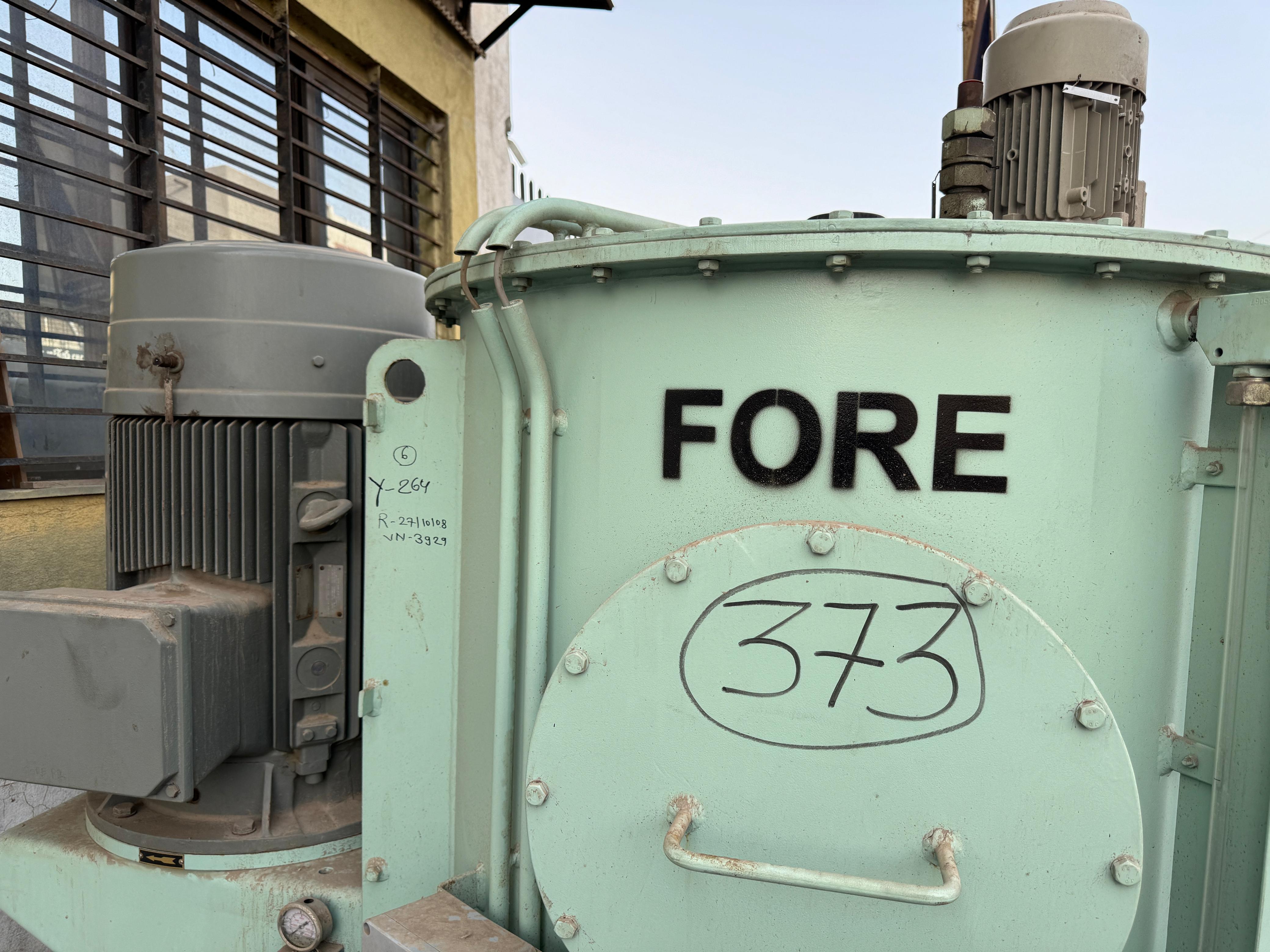

 Manufacturing Number: 514-F832/FORE

 Design Pressure: 250 BAR

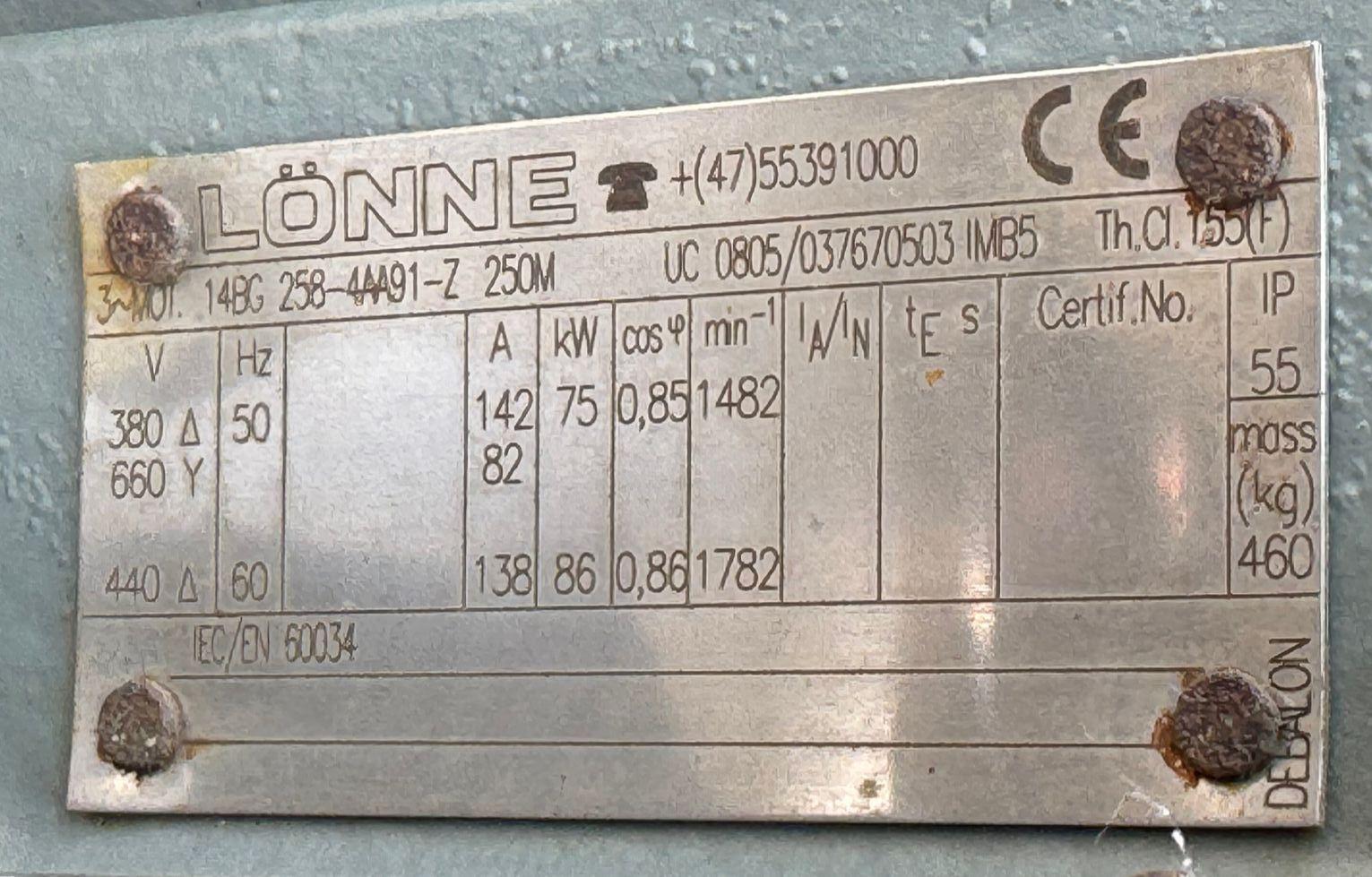

 Electric Motors – Lønne 14BG 258-4AA91-Z 250M (x2)

Voltage/Frequency: 380V 50Hz / 440V 60Hz / 660V

Amps: 142A (380V), 138A (440V), 82A (660V)

Power: 75 kW

RPM: 1482 (50Hz), 1782 (60Hz)

COS?: 0.85 / 0.86

IP Rating: IP55

Mounting: IMB5

Motor Code: UC 0805/037670503

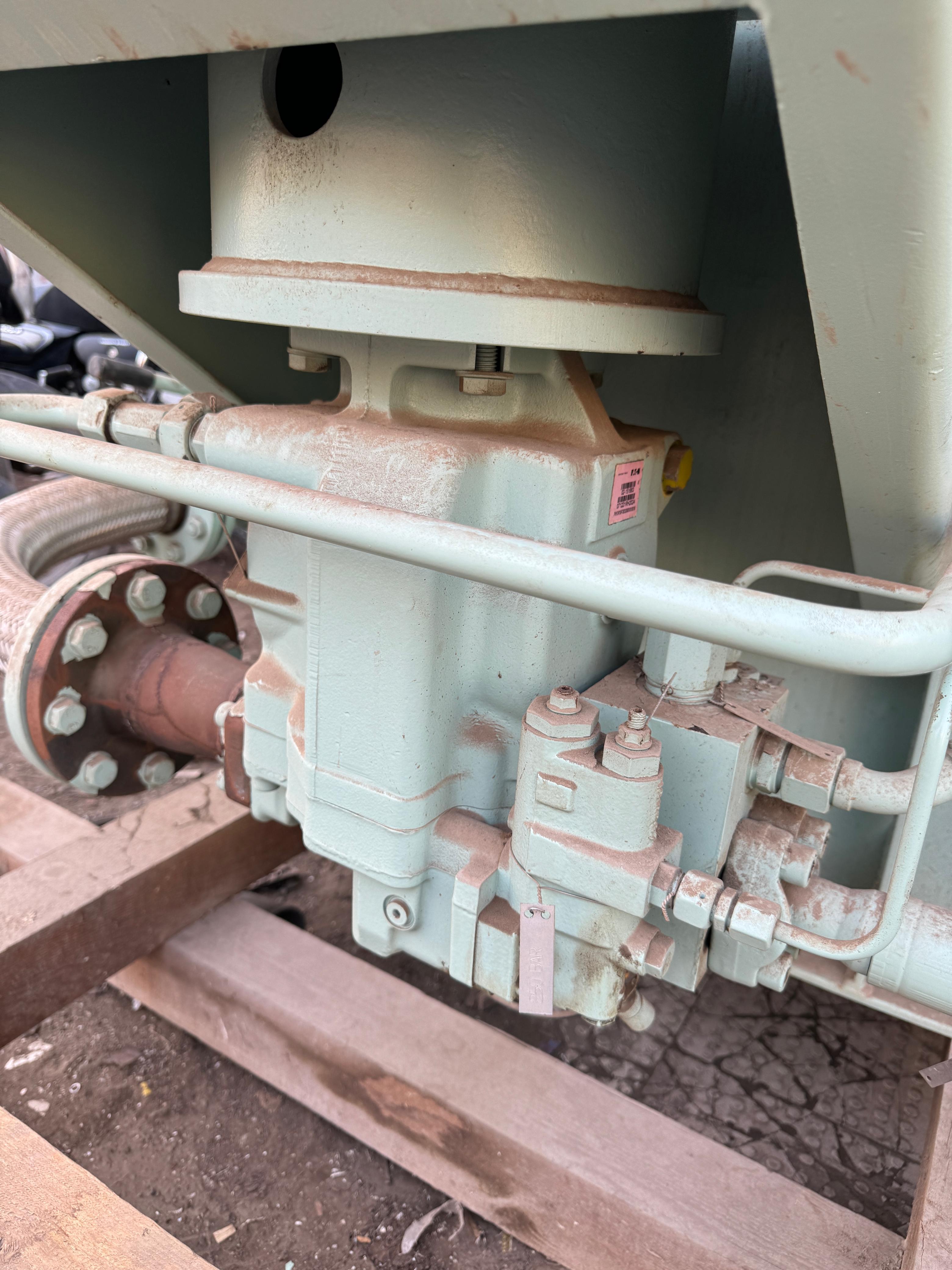

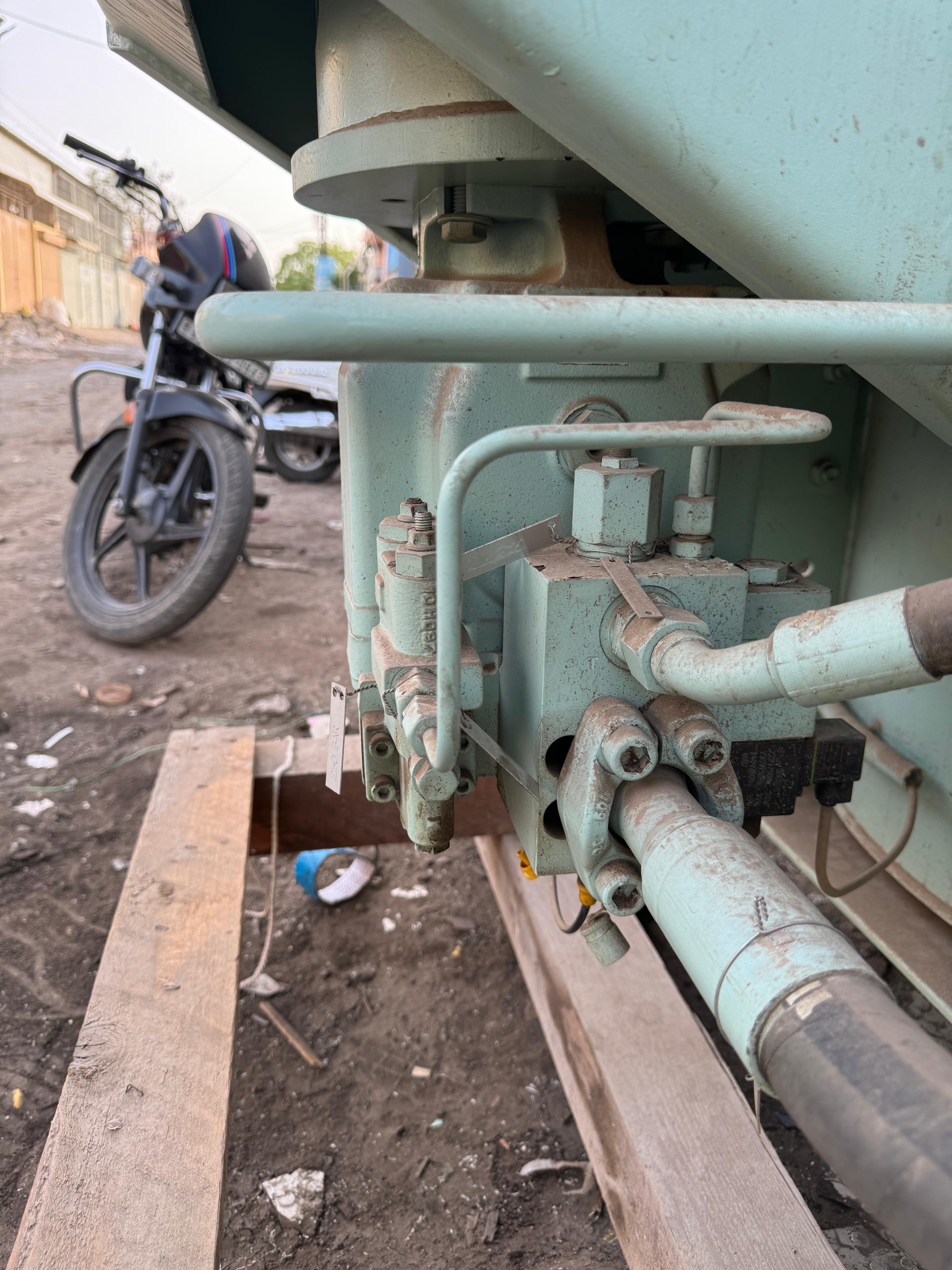

 Hydraulic Pumps – E.T.N PVH131 (x2)

Type: PVH131R13AF70B25200000100100010A

Serial No.: 071221RH2024

Part No.: 02-151683

Design: Axial piston pump for continuous-duty marine use

Application: Deck winches, mooring, cargo handling

---

 Applications

Hydraulic Power for Deck Machinery

Marine Winches & Windlass Systems

Anchor Handling Operations

Cargo Cranes and Davit Systems

Offshore Platform Support Equipment

Shipbuilding and Retrofit Projects

---

 Product Features

 Dual Lønne Motors for Redundancy

 High Efficiency PVH131 Pumps

 250 BAR High-Pressure Design

 IP55 Protection – Marine Safe

 Built for Long Duty Cycles and Harsh Conditions

 Compact Deck-Mounted Configuration

 Suitable for Class Approvals

---
