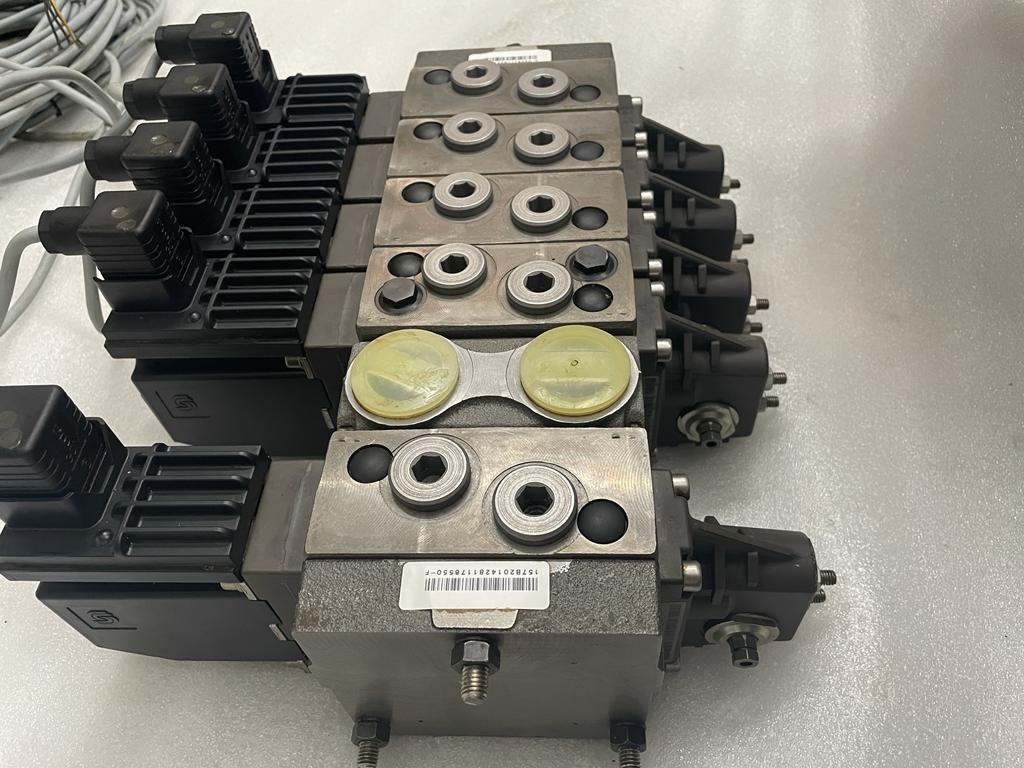

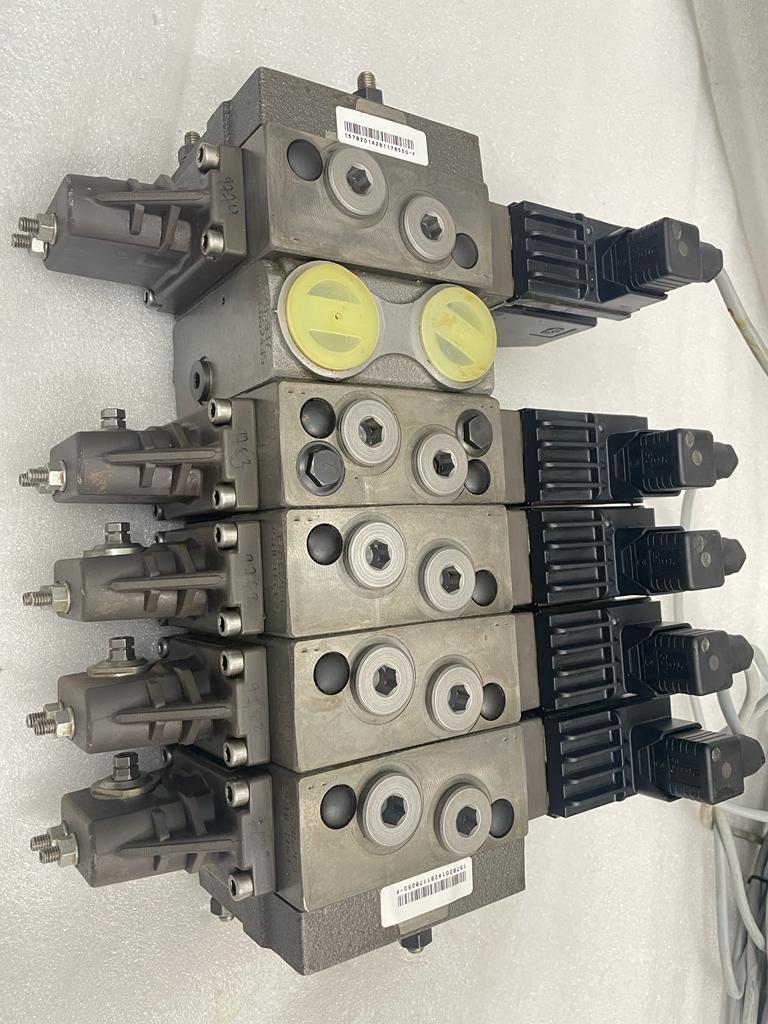

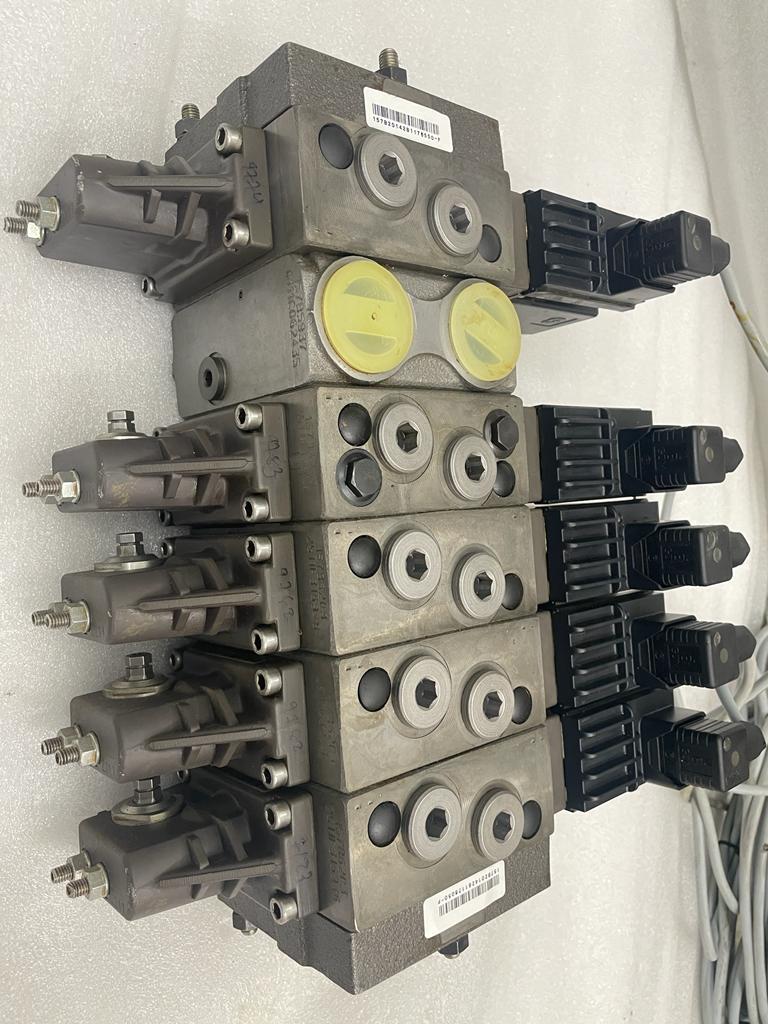

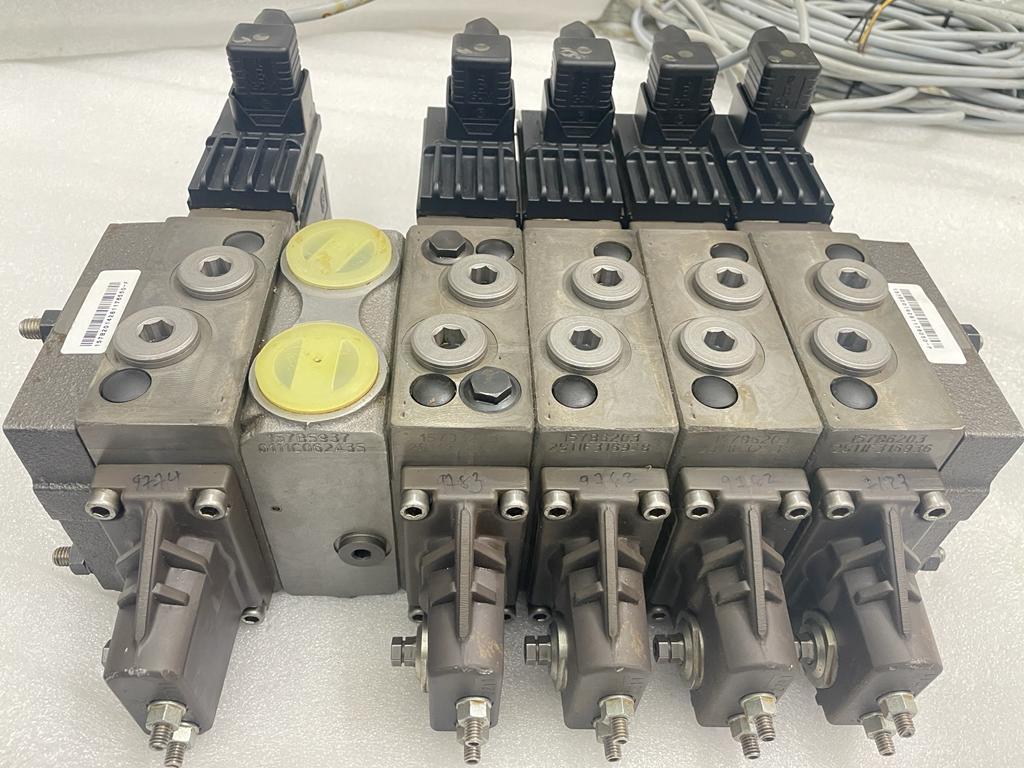

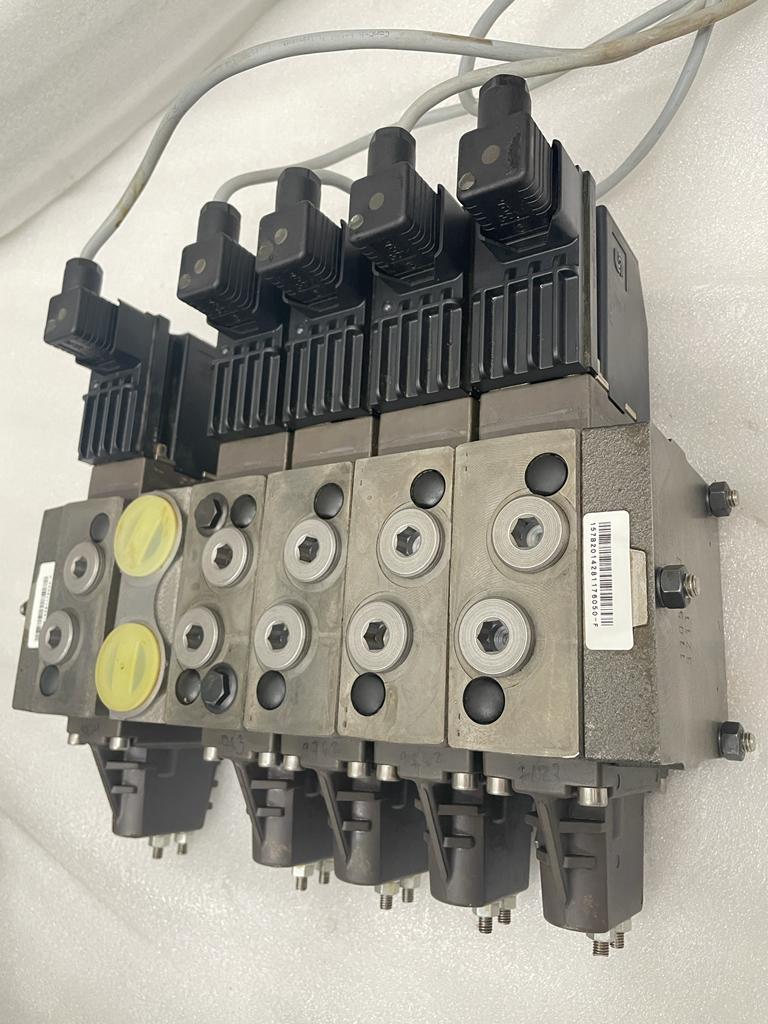

PVG 32 Proportional Valve 11050933

1)157B5937

157B5937 with productname: PVPVM Closed Center 350bar, 230L/min G1

2)157B6203 X 4

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• Without facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

3)157B6233

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• With facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

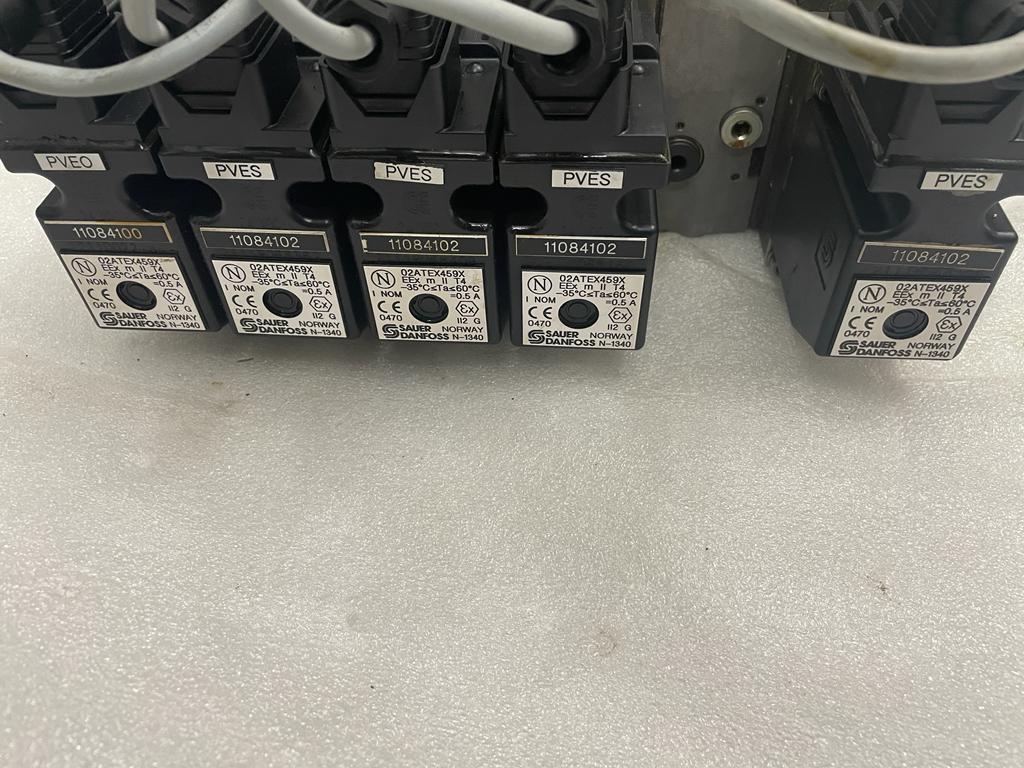

4)11084100

• ATEX PVEO, ON/OFF for PVG32 and PVG100, 24Vdc complete with 5m cable
• DIN/Hirschmann Connector

5)11084102 X 4

^{Danfoss 11084102 PVES Electronic ActuatorDanfoss 11084102 PVES Electronic Actuator}

6)157B9774

Danfoss 157B9774 PVBS spool 100 l/min neutral closed type flow control

7)157B9783

Danfoss PVBS Spool 65Ltr Size D Linear Flow LSAB, Throttled Open Neutral part of the Danfoss PVG32 Proportional Valve Group

8)157B9782 X 2

Danfoss 157B9782 PVBS spool 40 l/min neutral open type flow control

9)157B7123

• 65 l/min Open neutral position
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

10)157B3184

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

11)157B2001

12)157B2014

• PVSI, cast iron end plate
• Common for PVG16 & PVG32

13)157B8025

• PVAS32 for 5 x PVB on a PVPVM assembly
