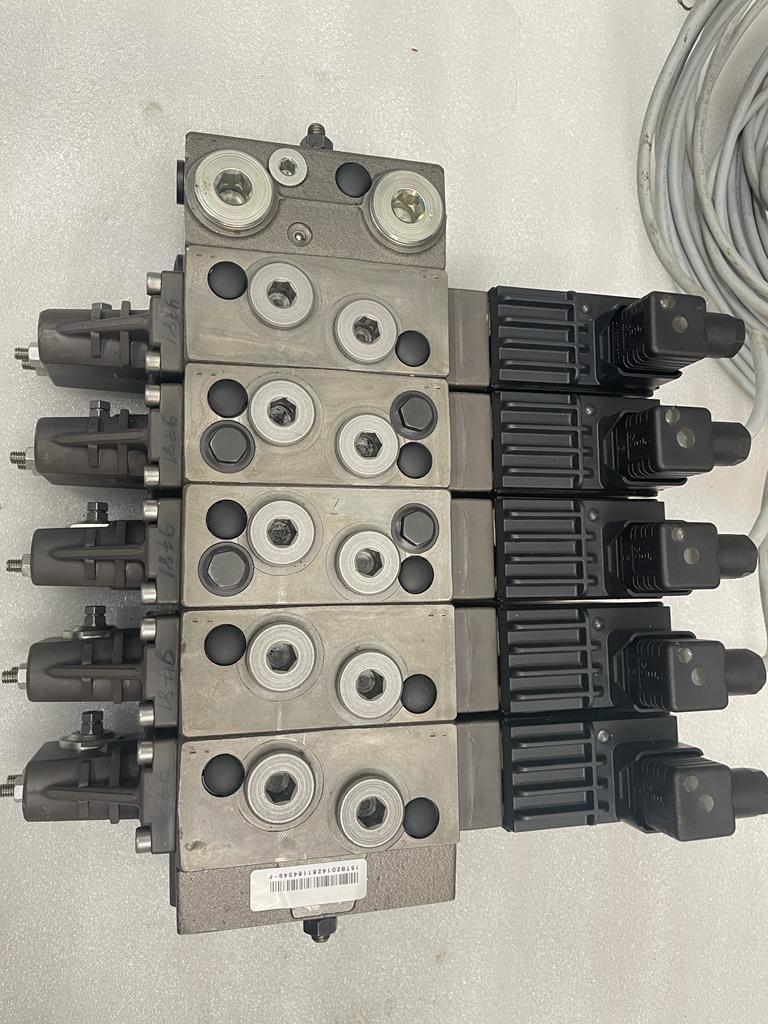

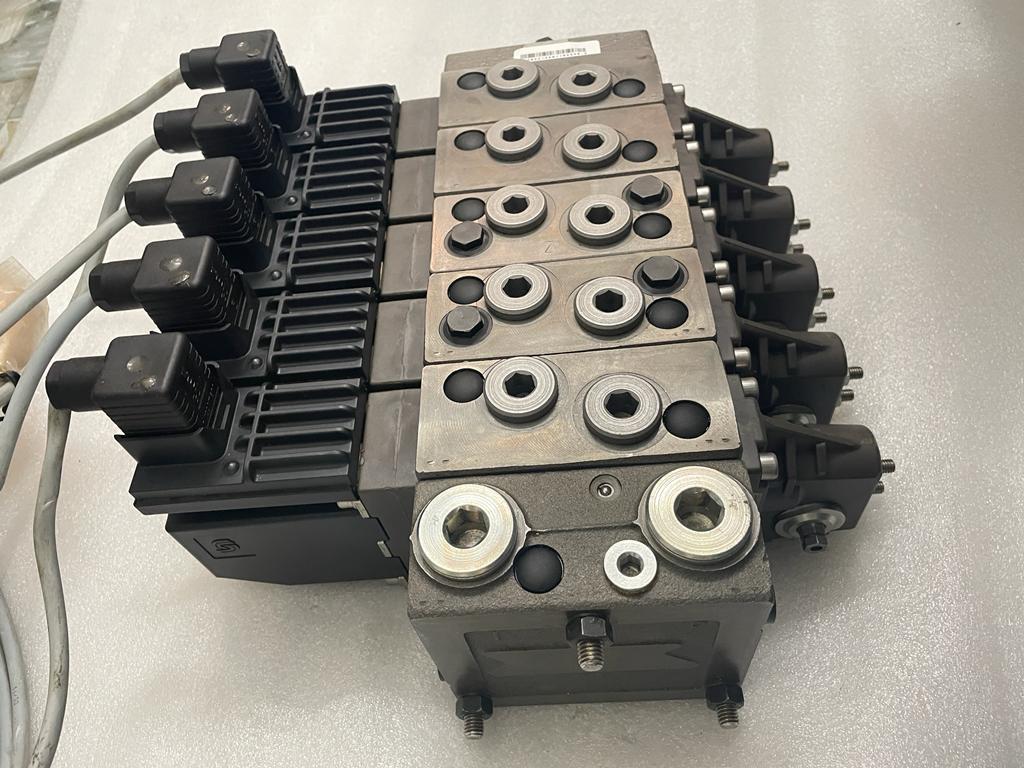

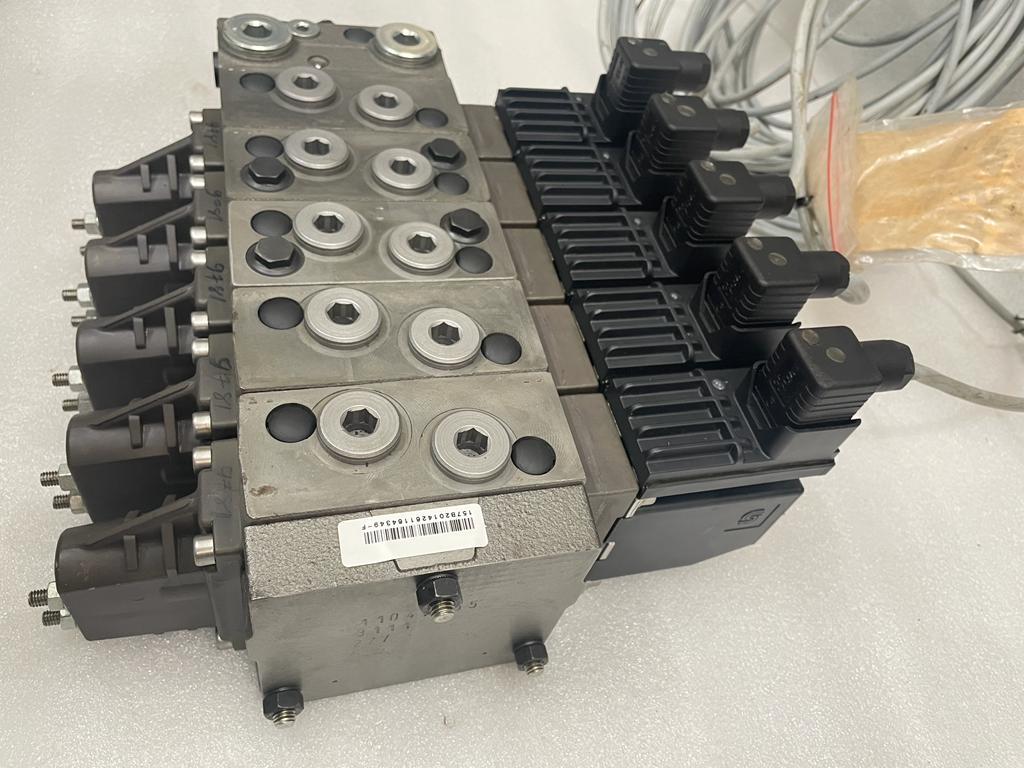

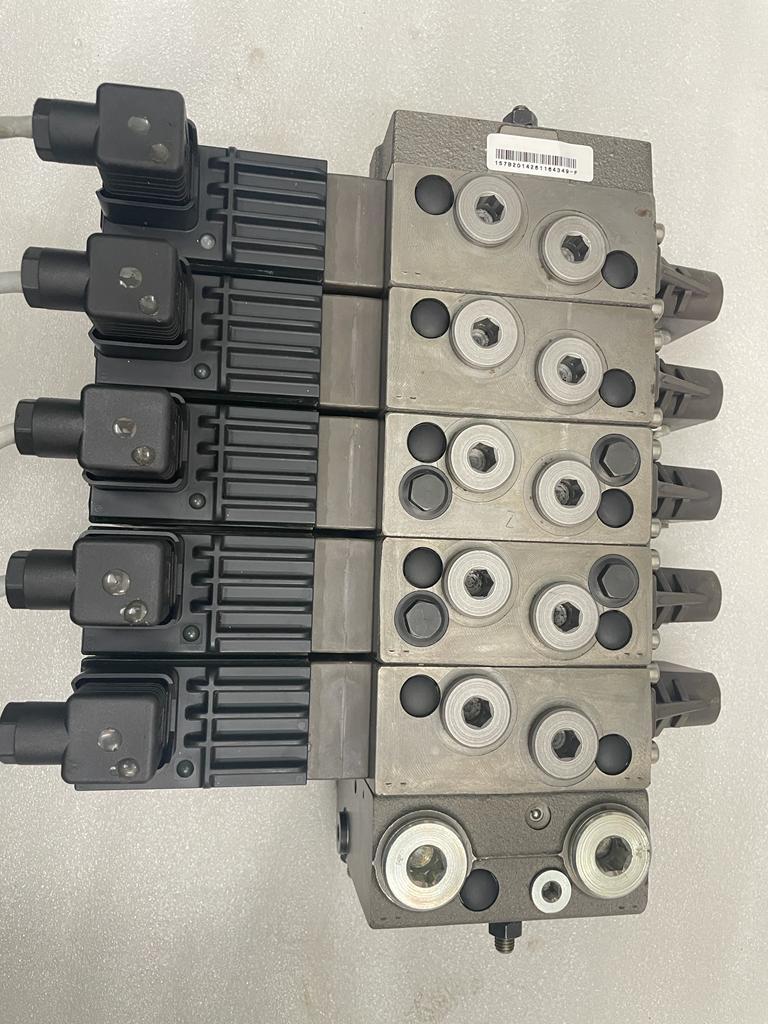

PVG 32 Proportional Valve

1)157B5111

• Closed centre pump side module for pumps with variable displacement
• With pilot oil supply for electrically actuated valves
• Port Size: P=3/4 BSP T=3/4 BSP

2)157B6203

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• Without facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

3)157B6233

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• With facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP
•


4)11084102

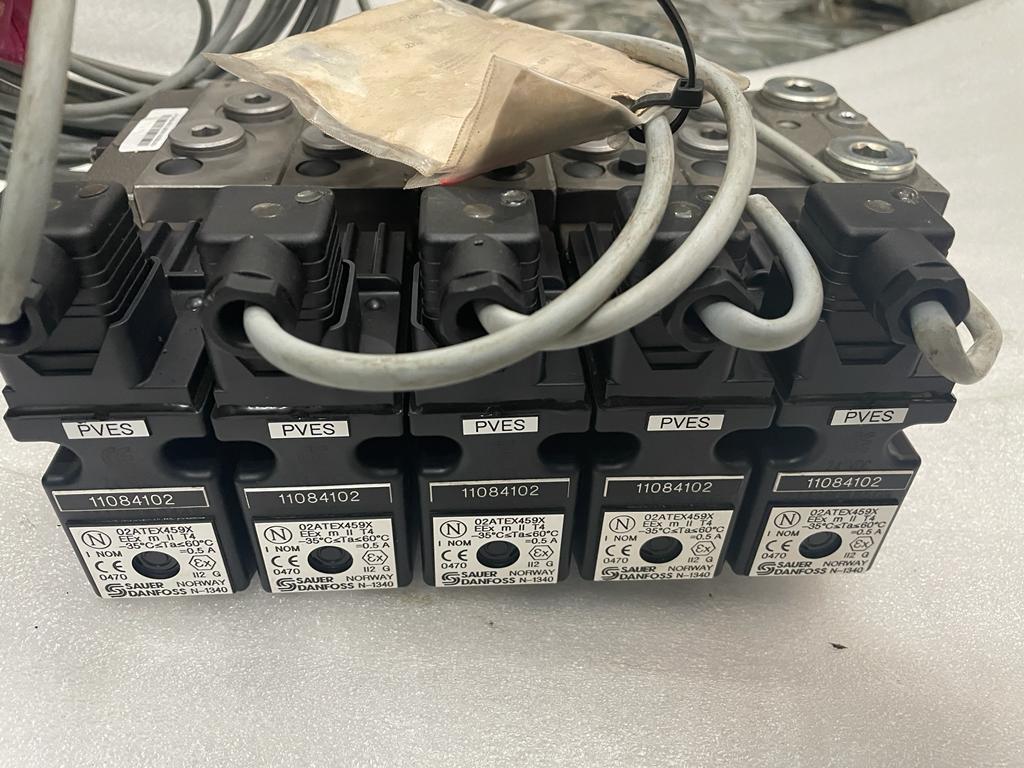

^{Danfoss 11084102 PVES Electronic Actuator}

5)157B9781

Danfoss PVBS Spool 25Ltr Size B Linear Flow LSAB, Throttled Open Neutral part of the Danfoss PVG32 Proportional Valve Group

6)157B3184

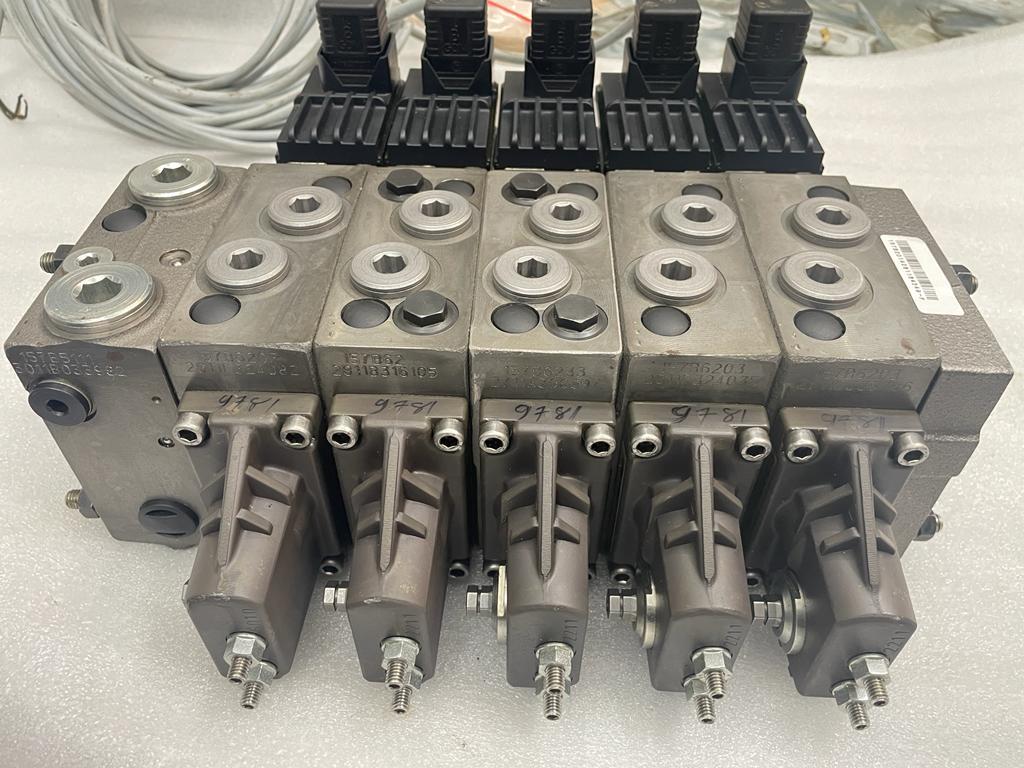

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

7)157B2014

• PVSI, cast iron end plate
• Common for PVG16 & PVG32
