PVG 32 Proportional Valve 157B5111, 157B6203, 157B4218, 157B4853, 157B9782, 157B7125, 157B9781, 157B3184, 157B2014, 157B8004, 11057441

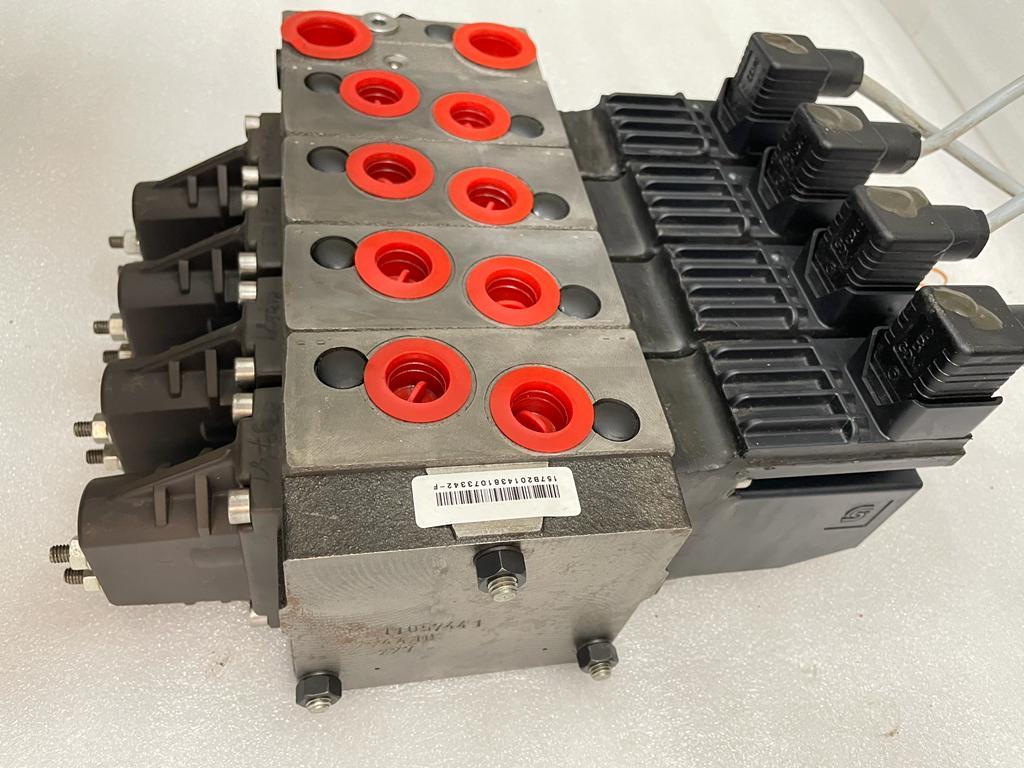

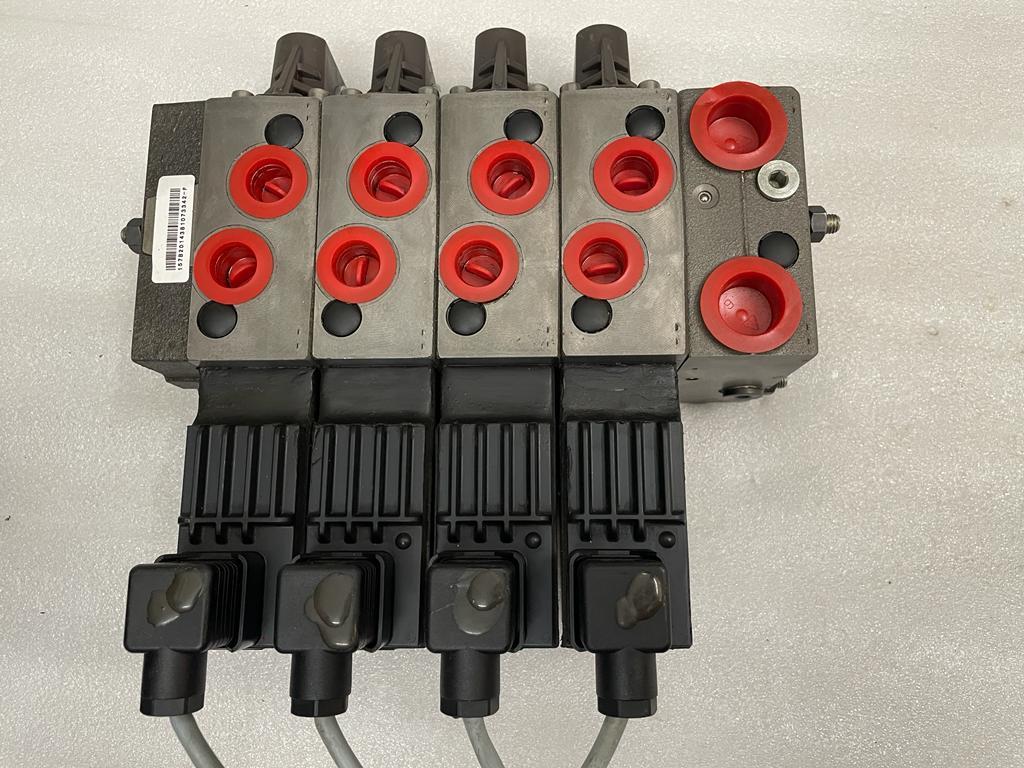

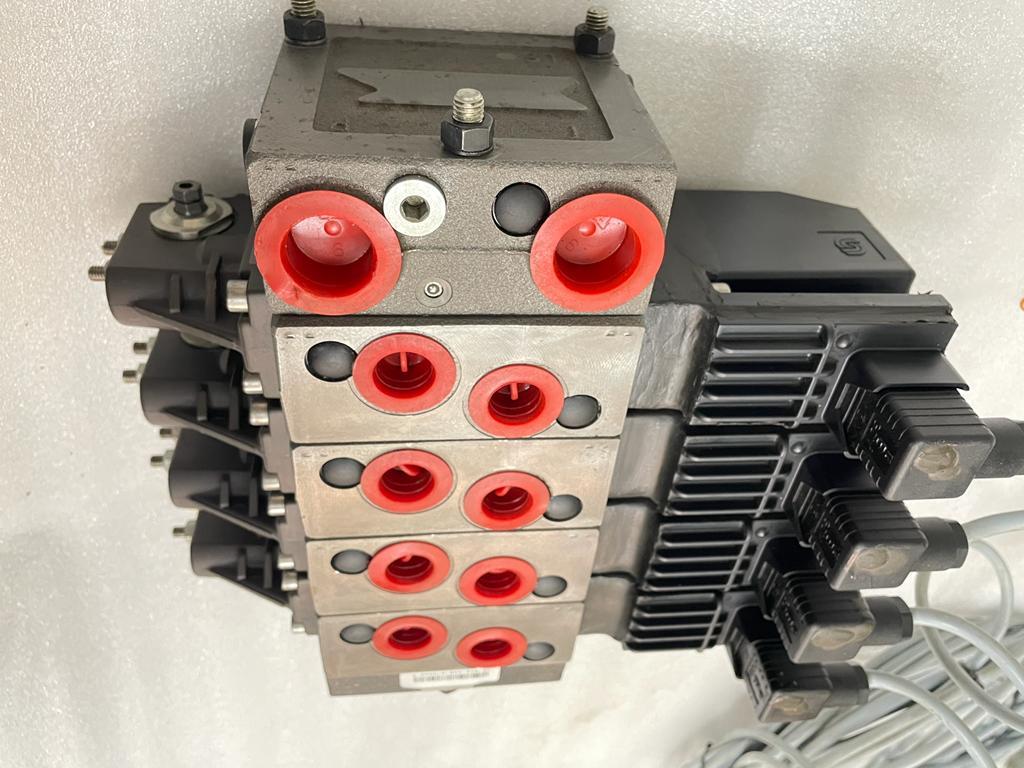

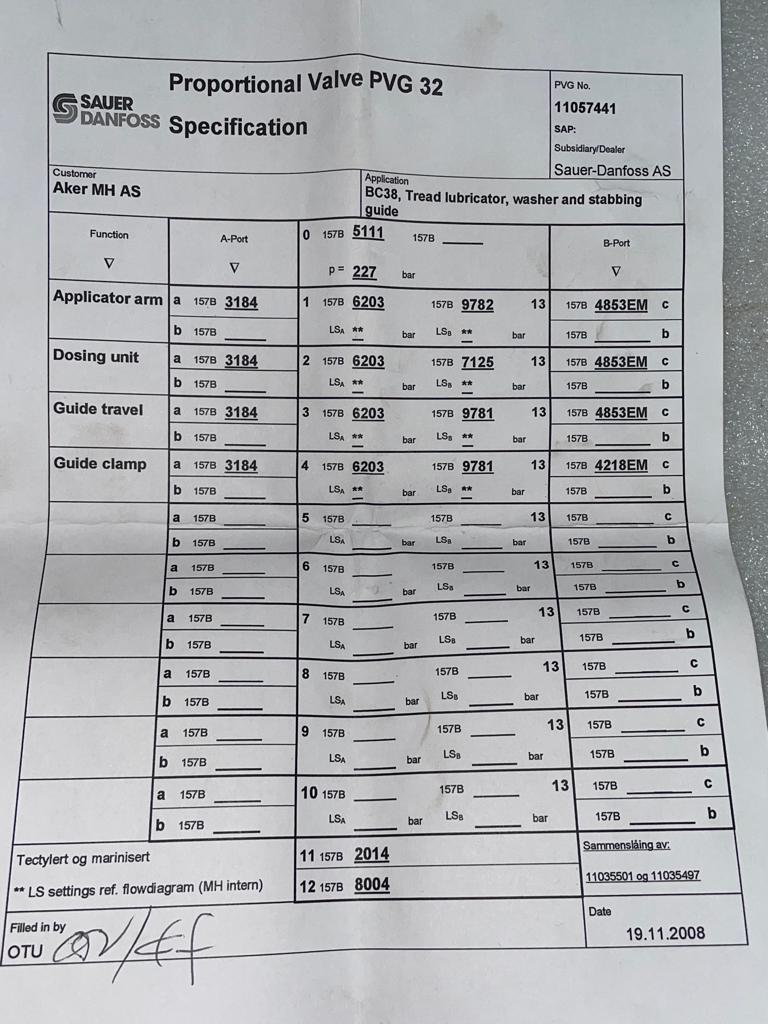

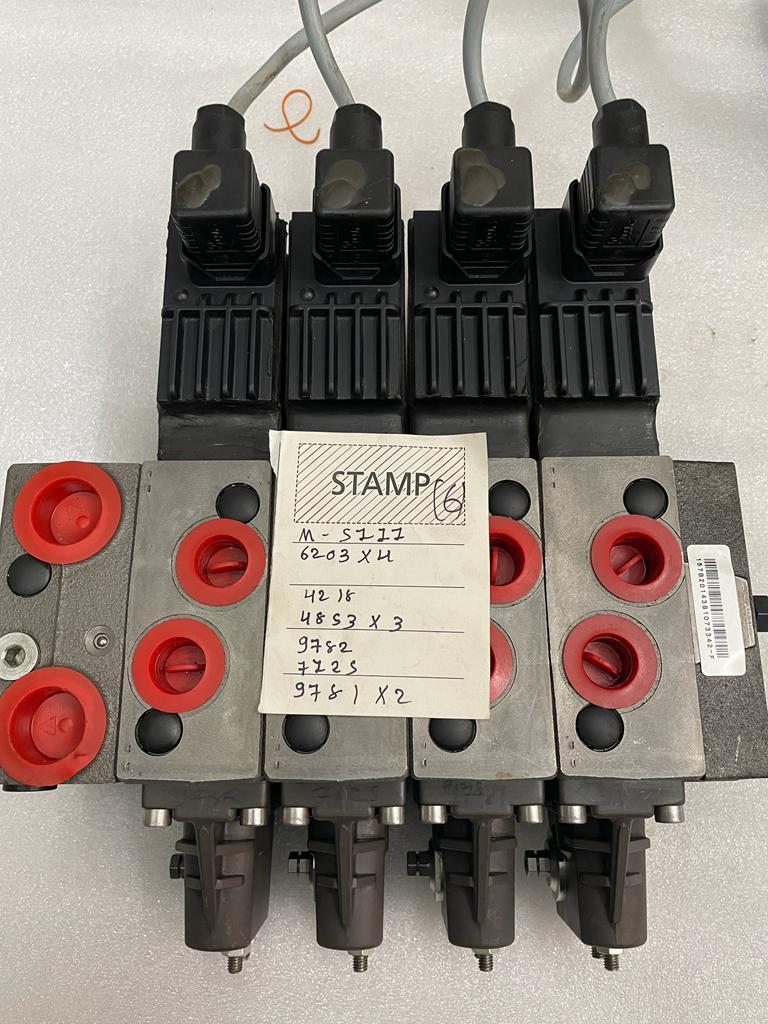

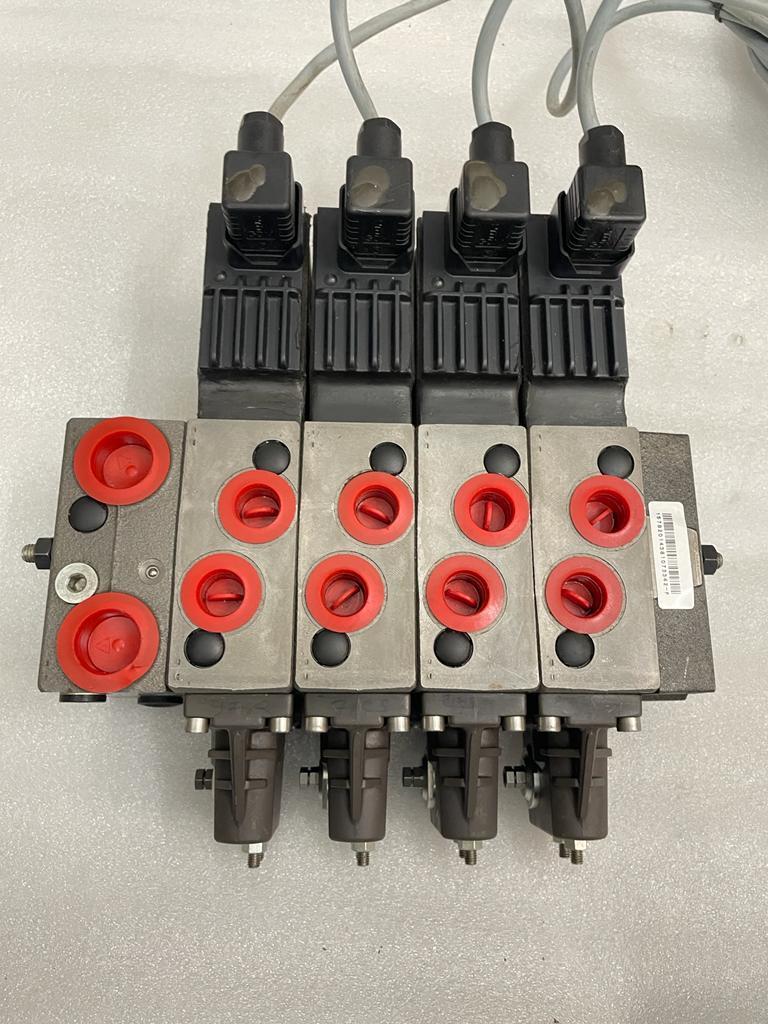

The Danfoss PVG 32 Proportional Valve System (11057441) is a modular electro-hydraulic control solution tailored for marine, offshore, industrial automation, and ship steering systems. Designed for up to 350 BAR working pressure and high flow precision, this assembly integrates:

 Key Components:

1. 157B5111 – Closed Centre Pump Side Module

 For variable displacement pumps

 With pilot oil supply

 Port P & T: 3/4 BSP

2. 157B6203 – PVB32 Basic Module

 Adjustable LS A/B pressure limiting valves

 Compensator valve included

 Without shock or load drop check valve

 Port A/B: 1/2 BSP

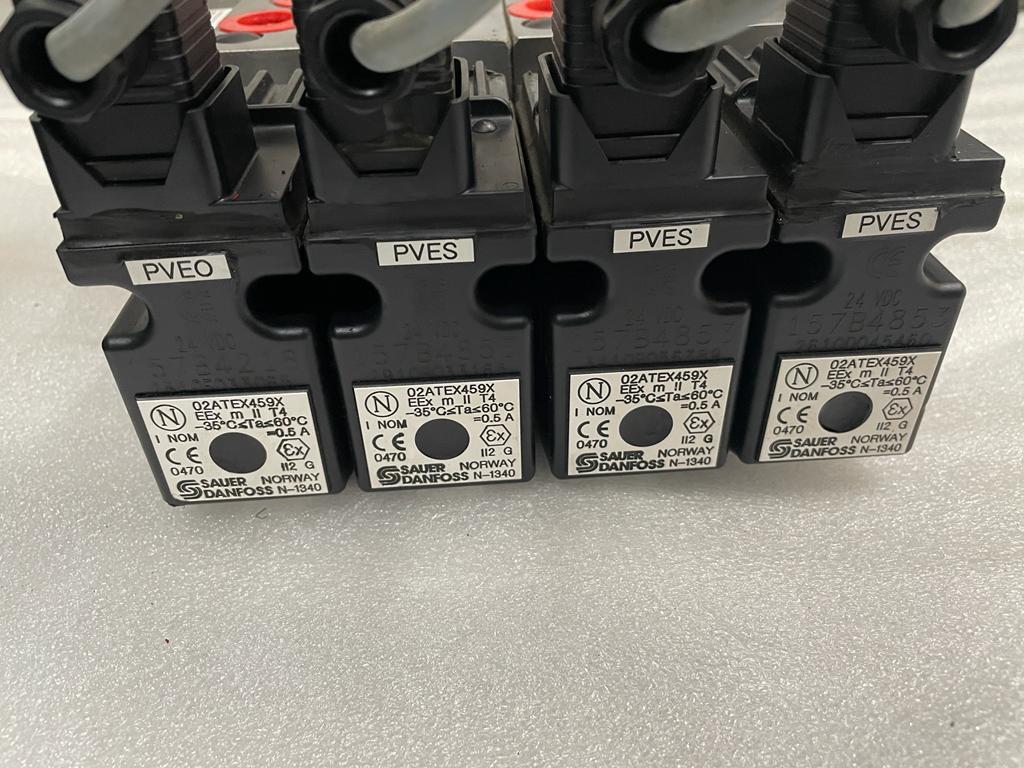

3. 157B4218 – PVEO-Ex Actuator (Explosion Proof Version)

4. 157B4853 – PVES Electronic Actuation (Standard 24VDC)

5. 157B9782 – PVBS Spool 40L/min – Size C, Linear Flow LSAB

6. 157B7125 – 5 L/min Open Neutral Position

 Spring return type

 Used with shuttle valve LS A/B

7. 157B9781 – PVBS Spool 25L/min – Size B, LSAB, Throttled Open Neutral

8. 157B3184 – PVM Mechanical Actuation (Stop Screw Type)

9. 157B2014 – PVSI Cast Iron End Plate for PVG16 & PVG32

10. 157B8004 – PVAS32 Assembly

 For 4 or 5 PVB modules on PVGI or PVPVM

This integrated valve solution is ideal for ship winches, deck machinery, cranes, hatch covers, subsea hydraulic units, and engine room automation.

Gani Marine, as a Global Marine Hydraulic Supplier, offers fast international delivery, technical assistance, and OEM Danfoss PVG 32 solutions worldwide.

---

 Applications:

Ship Steering Gear Units

Deck Cranes & Hatch Cover Systems

Marine Winches & Anchor Handling Units

Hydraulic Control Panels (Engine Room / Bridge)

Offshore FPSOs and Oil Rigs

Subsea Hydraulic Systems

Industrial Hydraulic Flow Management

---

 Product Highlights:

Modular system, 350 BAR capable

Combines electronic (PVES, PVEO-Ex) & mechanical (PVM) controls

Throttle spools up to 40 L/min

ATEX-rated PVEO Ex for hazardous zones

Compatible with PVAS multi-valve assemblies

Built for shipboard, offshore, and heavy industrial use

Trusted by shipbuilders, oil & gas operators, and automation engineers

---
