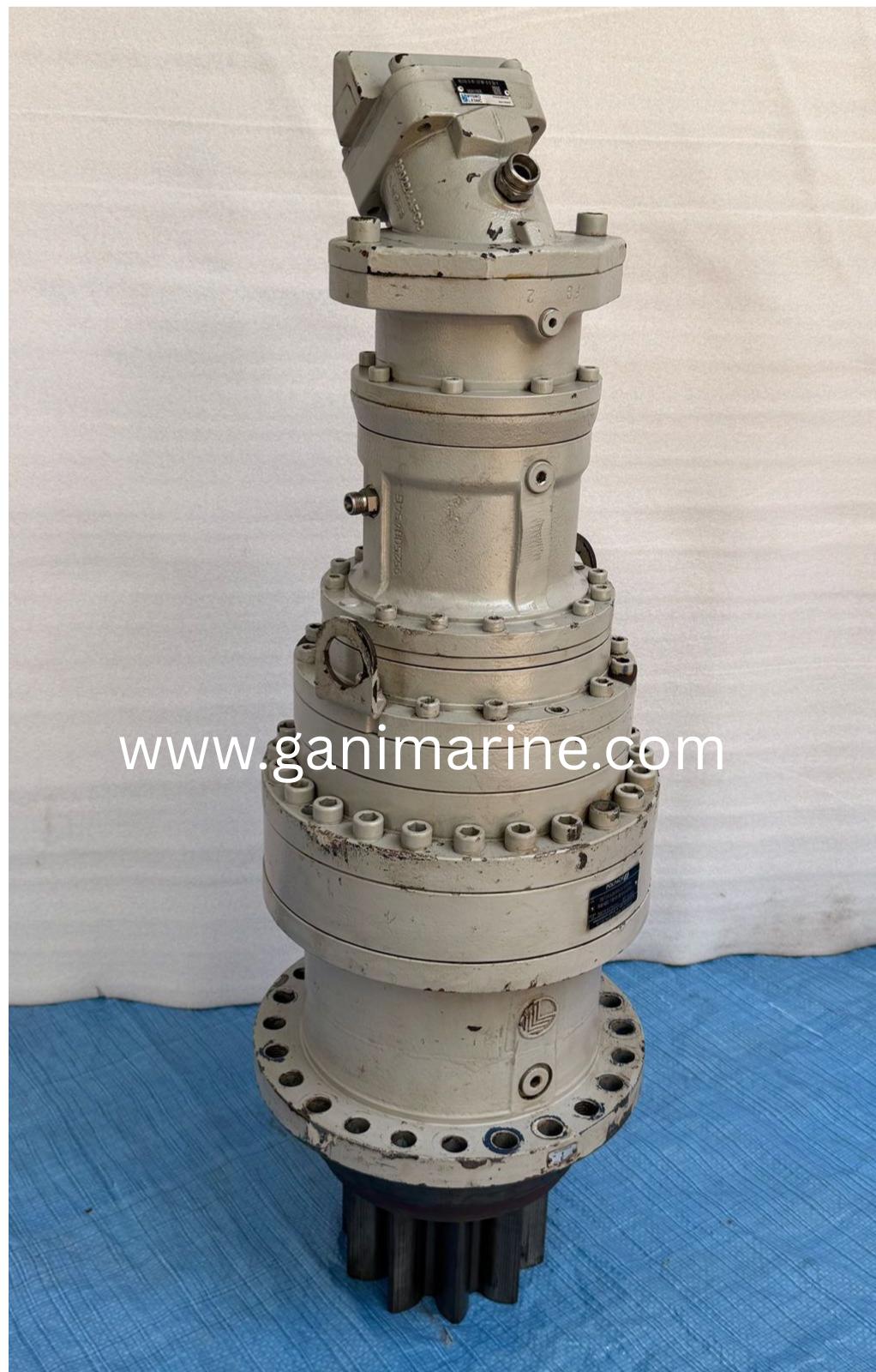

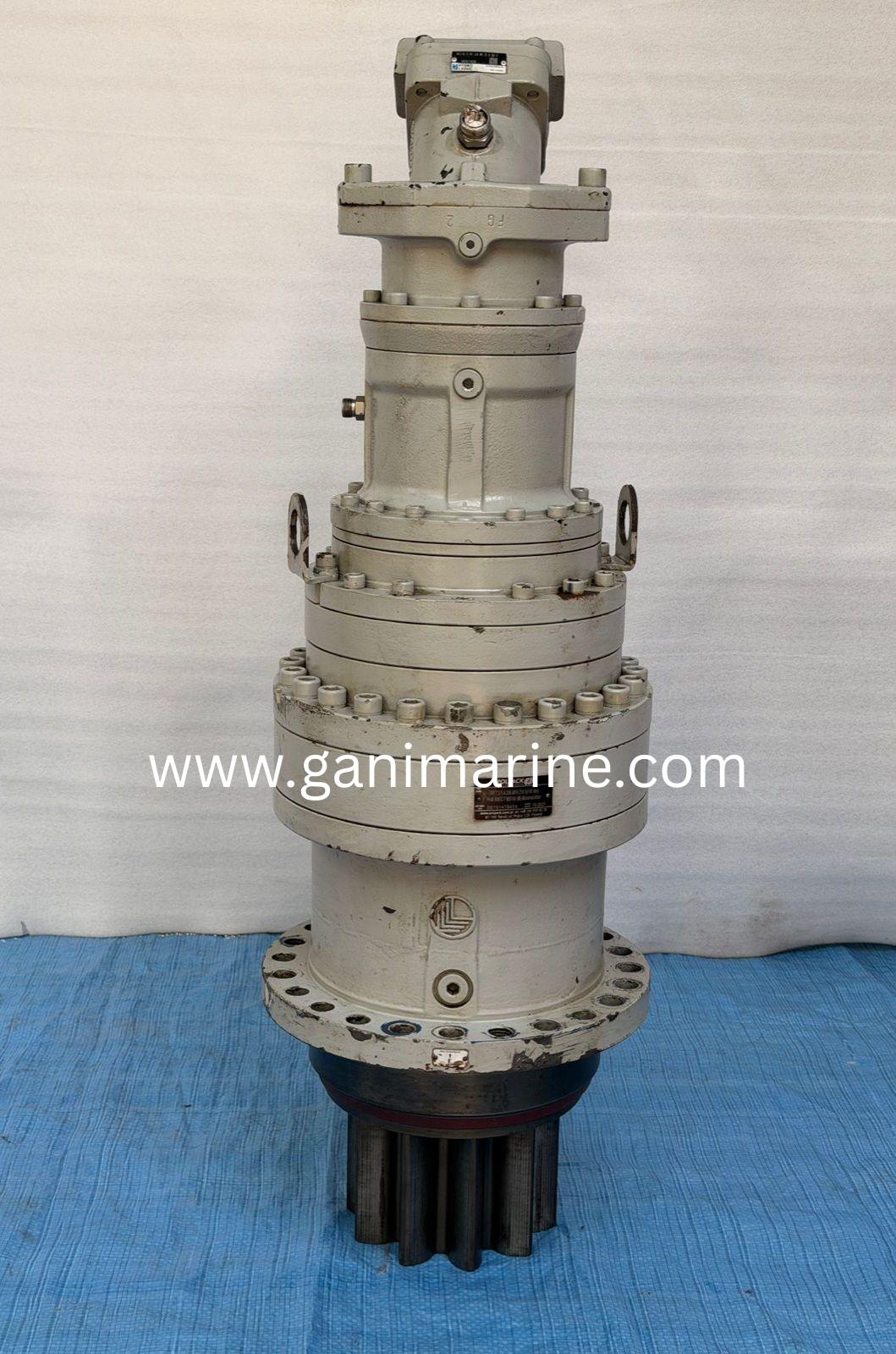

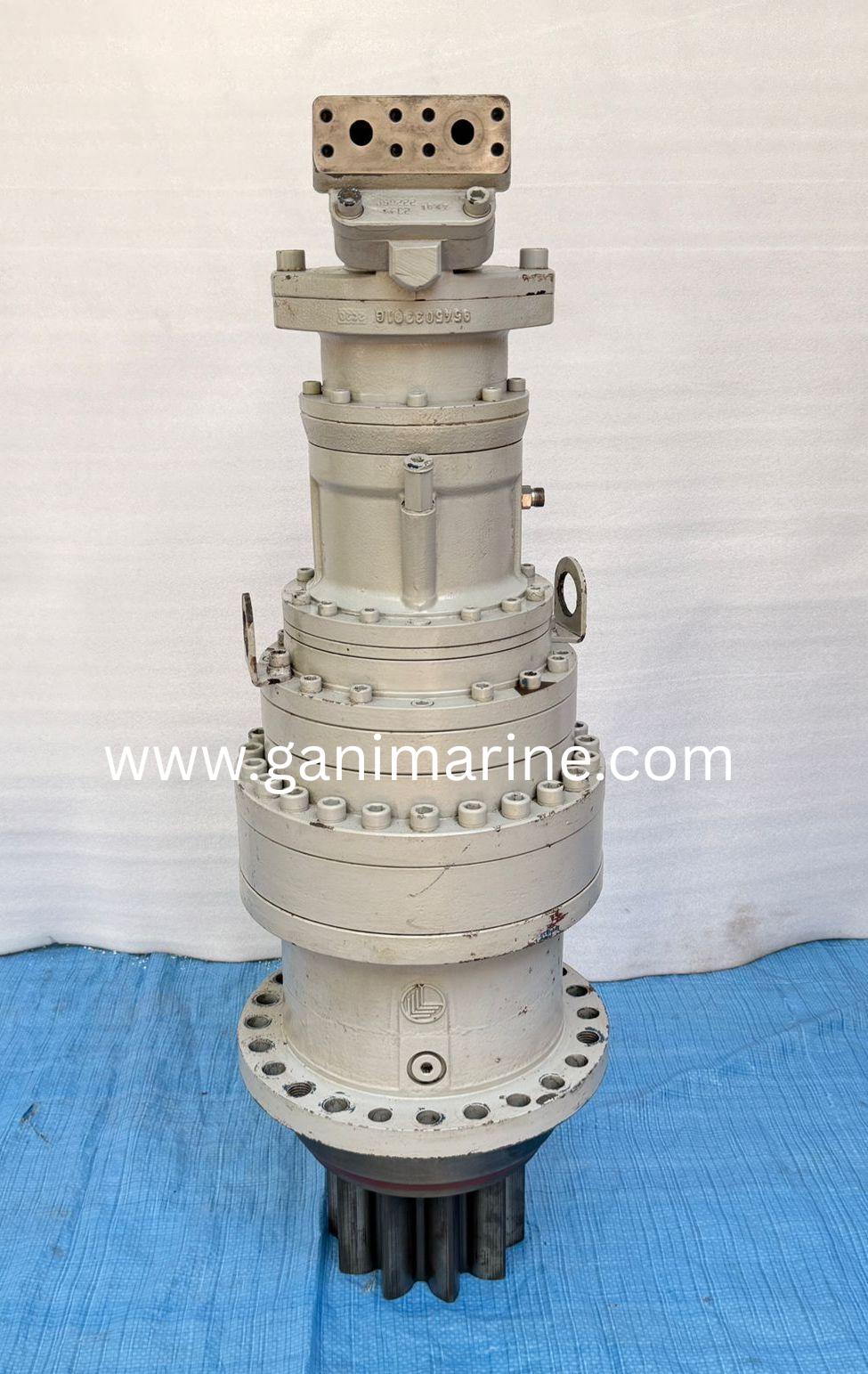

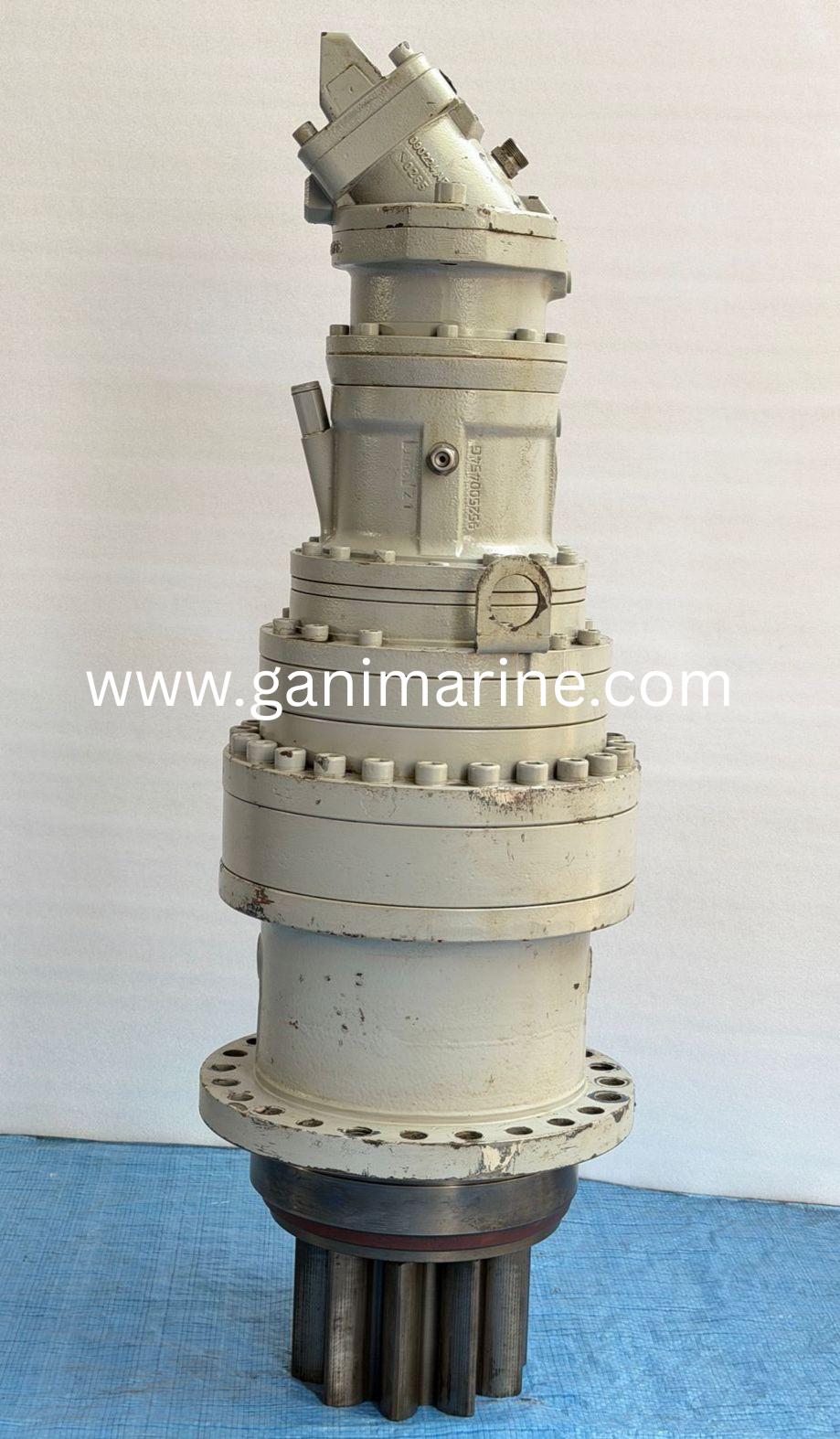

Polpack 709 T 3 F A 205 M16 Z10 5 Planetary Gearbox with Hydro Leduc MS150 B W1 L0 M1 0 0 SV F Hydraulic Motor
Polpack 709 T 3 F A 205 M16 Z10 5 Planetary Gearbox with Hydro Leduc MS150 B W1 L0 M1 0 0 SV F Hydraulic Motor
The Polpack 709 T 3 planetary gearbox with Hydro Leduc MS150 hydraulic motor is a heavy-duty high-torque drive unit designed for demanding industrial, construction, and marine applications. This combination delivers efficient power transmission, compact design, and extremely high torque output, making it ideal for winches, cranes, and rotary drives.
The gearbox is manufactured by Polpack and paired with a high-performance bent-axis motor from Hydro Leduc, ensuring reliability and efficiency in continuous-duty environments.
Technical Specifications

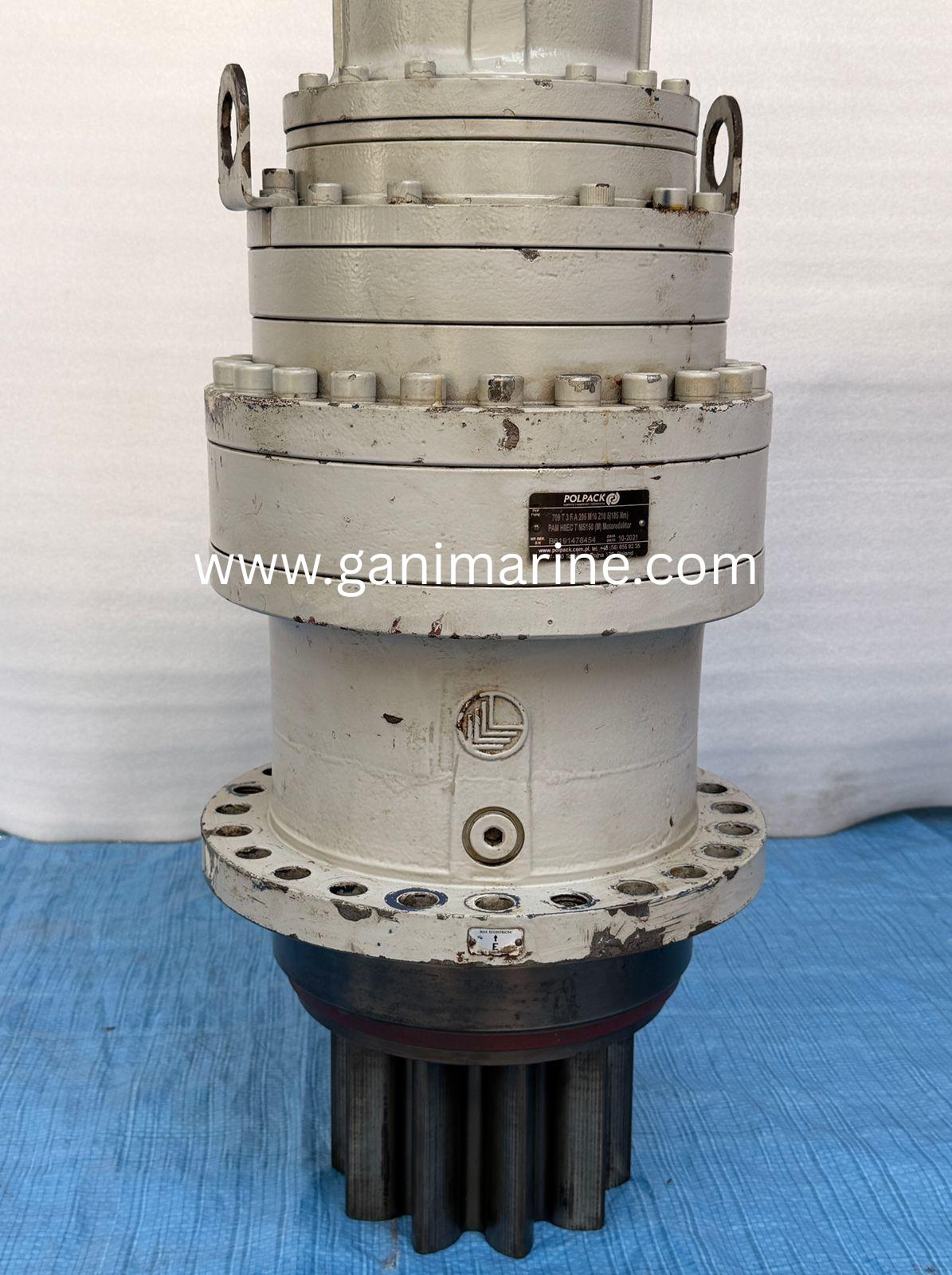

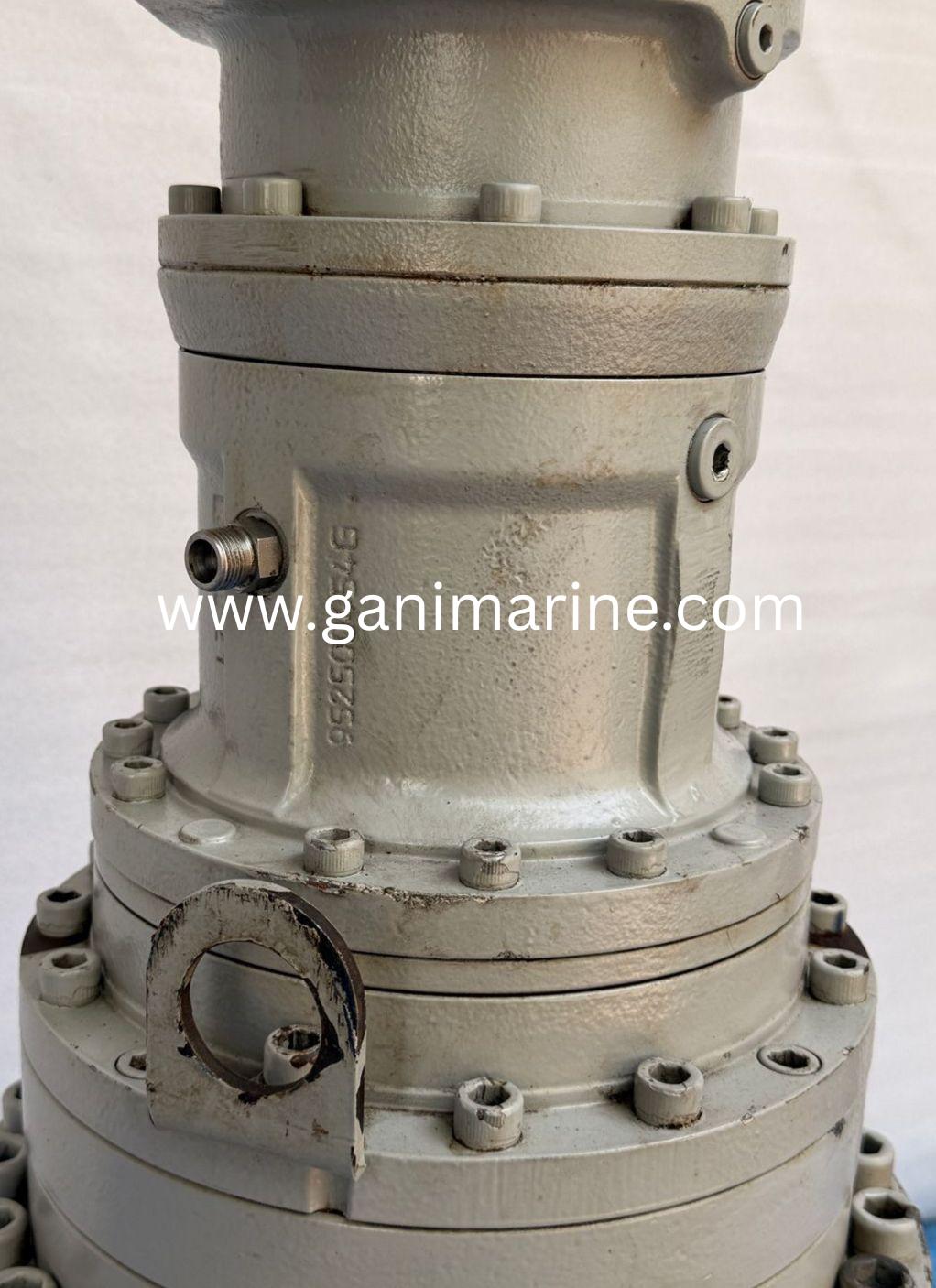

Gearbox (Polpack 709 T 3)
Manufacturer: Polpack

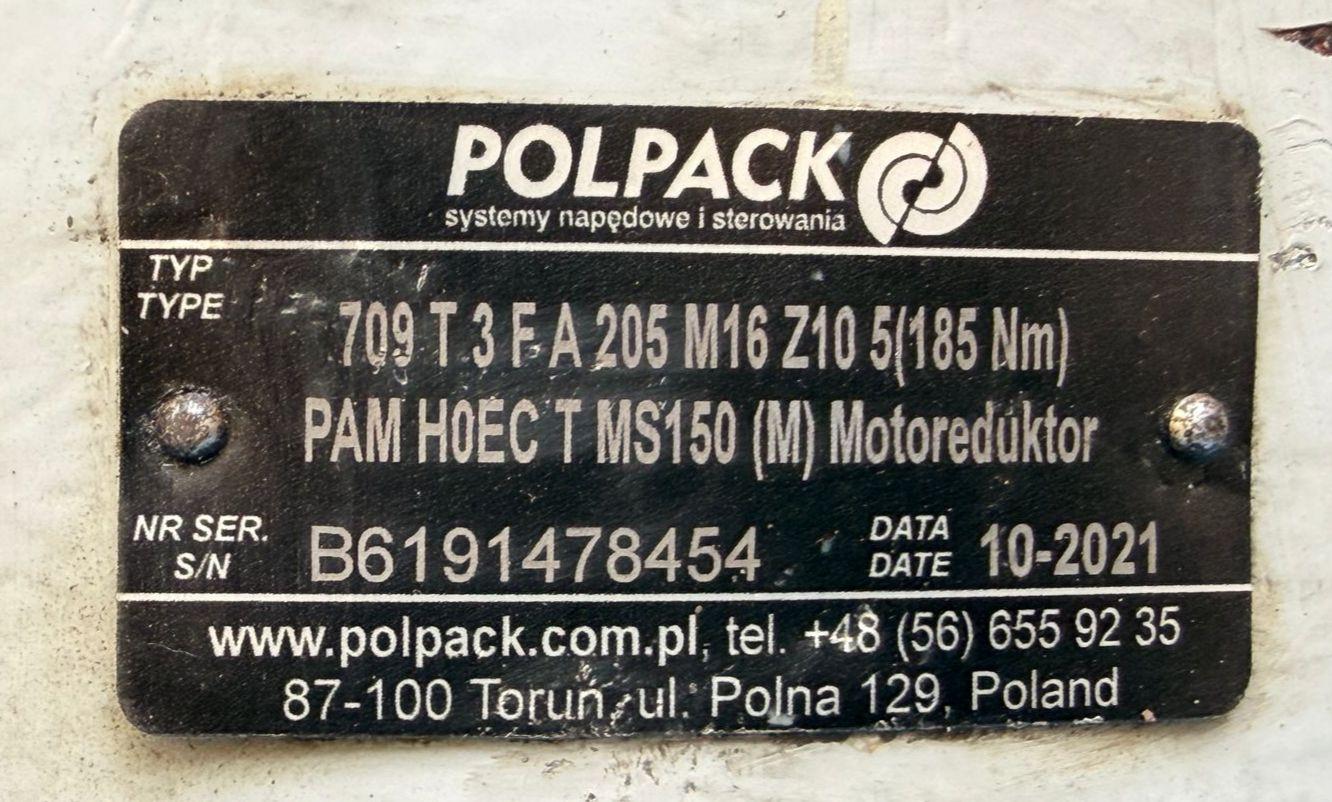

Model / Type: 709 T 3 F A 205 M16 Z10 5 (185 Nm)
Gear Type: Planetary gearbox
Stages: 3-stage reduction
Mounting: Flange-mounted design

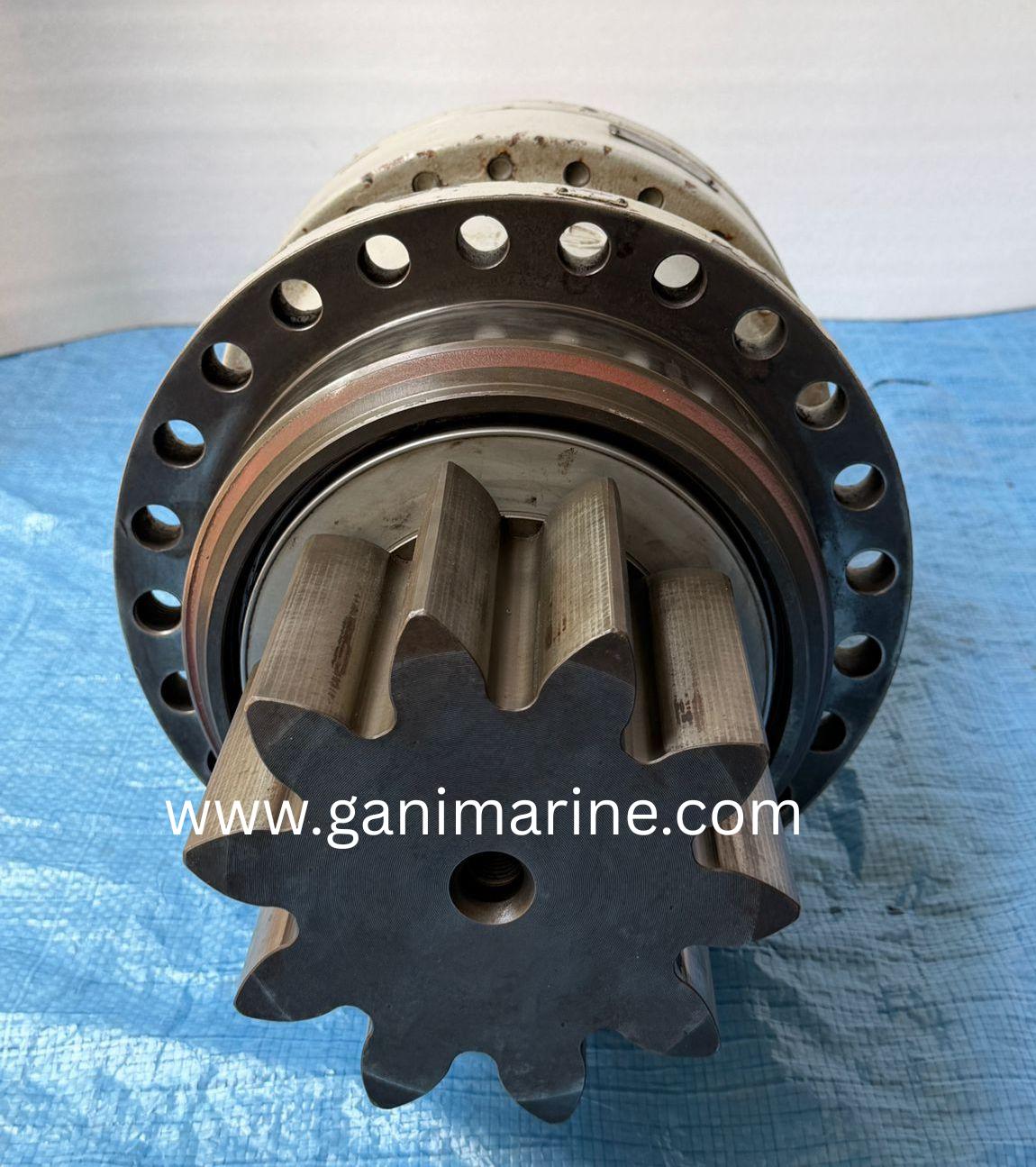

Output Shaft: Splined / keyed (depends on variant)
Gear Ratio: Approx. 1:80 to 1:120
Output Torque Capacity: 12,000 Nm to 18,000 Nm
Application Duty: Heavy-duty continuous operation

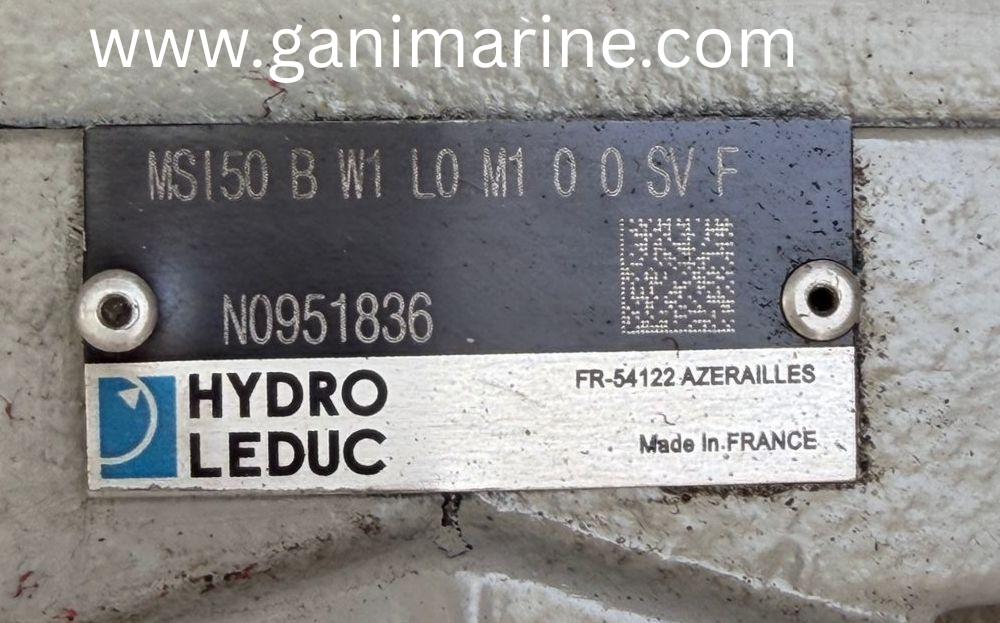

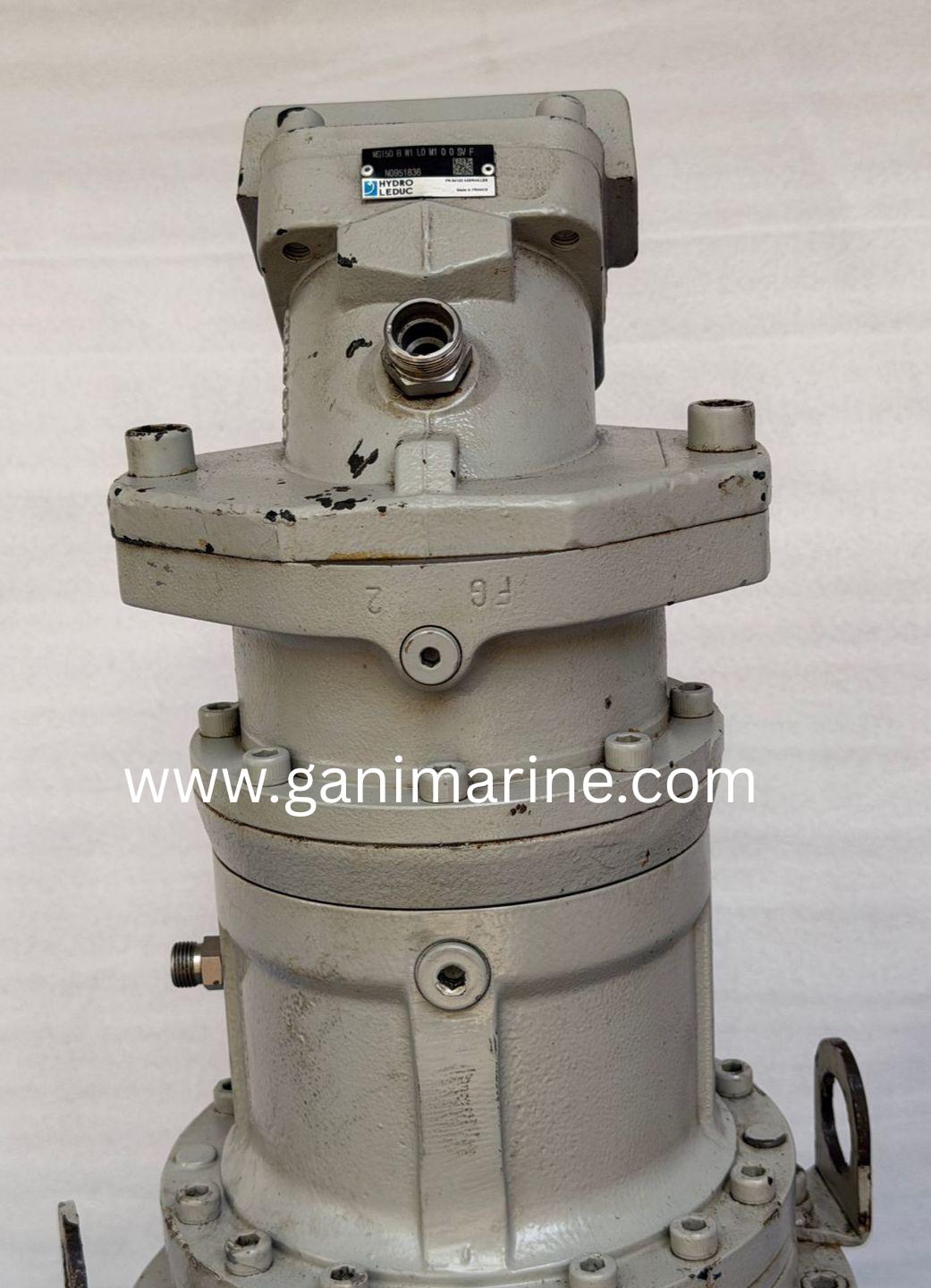

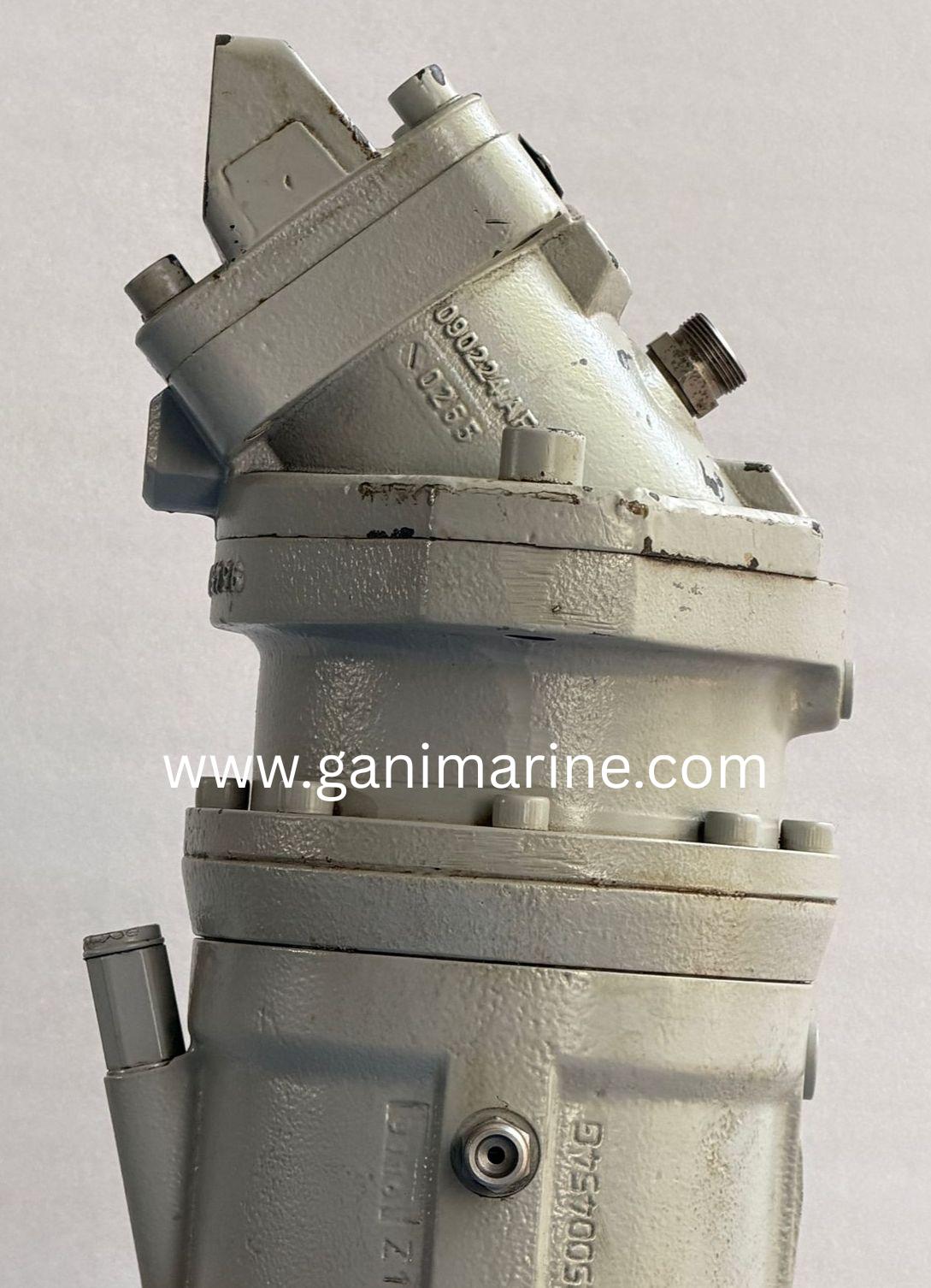

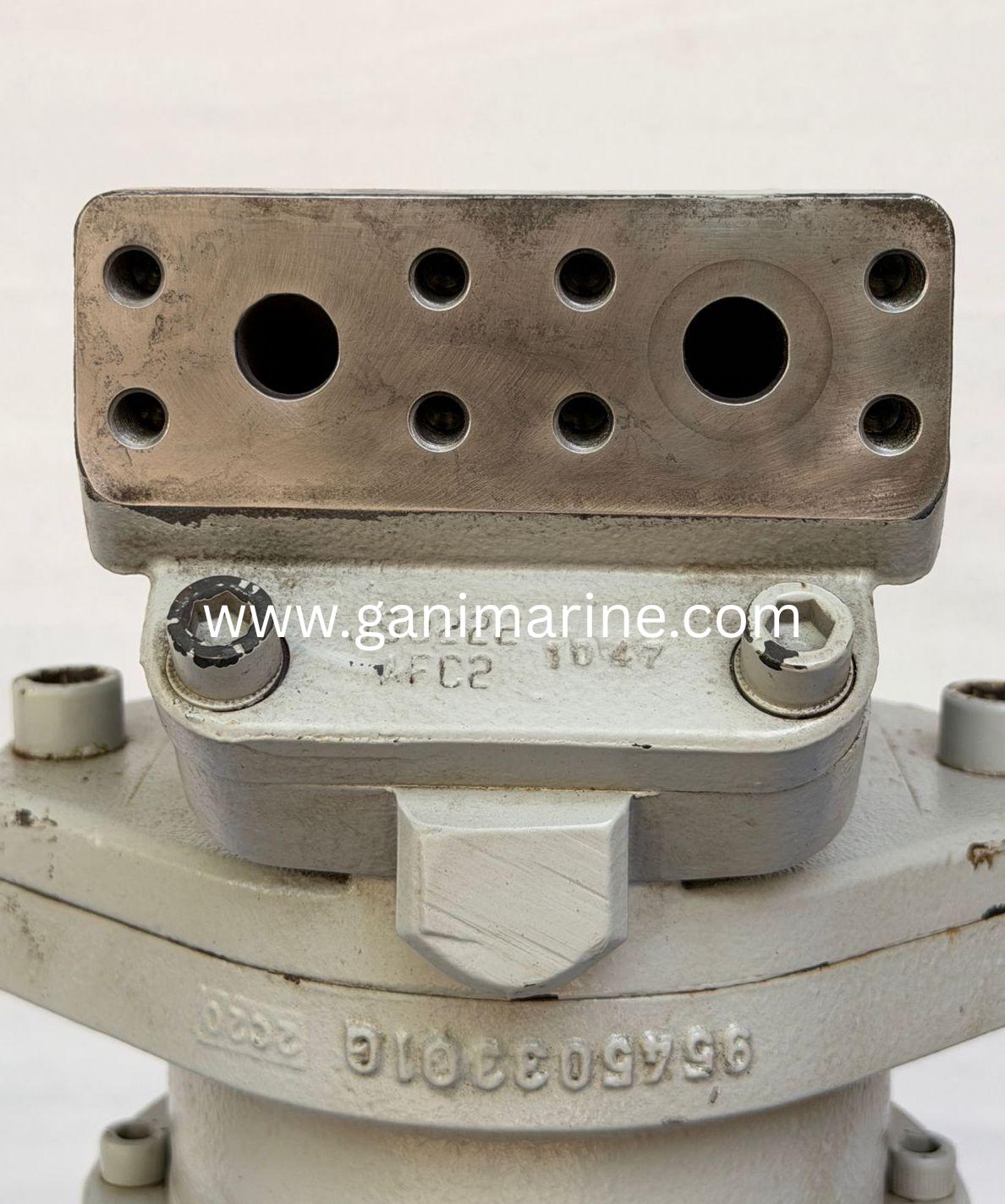

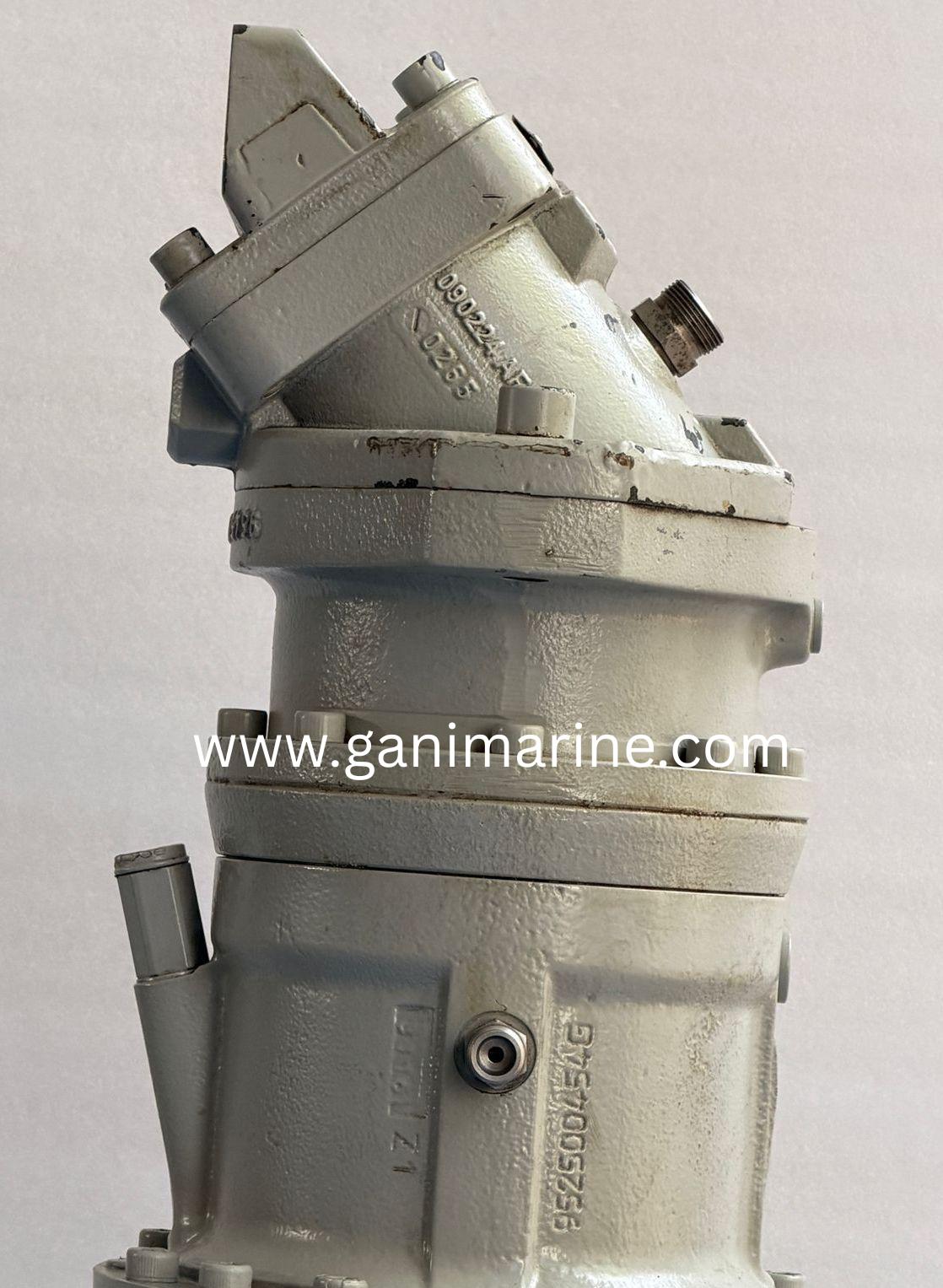

Hydraulic Motor (Hydro Leduc MS150)
Manufacturer: Hydro Leduc
Series: MS / MSI (Bent-axis piston motor)
Model Code: MS150 B W1 L0 M1 0 0 SV F
Displacement: 150 cc/rev
Max Pressure: 400 bar (continuous), 450 bar (peak)
Max Speed: Up to 3,200 RPM (intermittent)
Torque Output: Approx. 1.9–2.1 Nm/bar (? 835 Nm @ 350 bar)
Design: Bent-axis, 7-piston configuration
Efficiency: >90% high mechanical efficiency
System Configuration
This combination creates a compact high-torque drive system:
High-speed motor output ? reduced via planetary gearbox
Result: Low speed + very high torque output
Ideal for heavy load movement and controlled rotation
Key Features
High torque output with compact footprint
3-stage planetary reduction for smooth power transmission
Bent-axis motor for high efficiency and durability
Robust industrial and marine-grade construction
Low noise and smooth operation
Suitable for continuous heavy-duty use
Easy integration with hydraulic systems
Applications
Construction & Heavy Equipment
Crane slewing drives
Winch drive systems
Track drives
Drilling equipment
Industrial Use
Conveyor drives
Mixers and agitators
Rotary machines
Material handling systems
Marine & Offshore
Deck winches
Mooring systems
Crane rotation drives
Hydraulic power transmission systems
Agriculture
Feed mixers
Augers
Heavy-duty farm machinery
Maintenance Guidelines
Gear Oil: Use ISO VG 150 or 220 EP gear oil
Hydraulic Oil: ISO VG 46 recommended
Alignment: Ensure proper spline alignment during installation
Lubrication: Keep splines clean and greased
Bolt Torque: Approx. 185 Nm (as per Polpack standards)
Inspection: Regularly check seals and bearings
Advantages
Reliable performance under high loads
Long service life with proper maintenance
High efficiency reduces energy consumption
Compact solution for high torque requirements
Proven combination in industrial and marine sectors
Global Supply – GANI MARINE EXPORTER
GANI MARINE EXPORTER supplies:
Polpack planetary gearboxes
Hydro Leduc hydraulic motors
Complete hydraulic drive systems
