OVAL VALVE OPEN SHUT INDICATOR NPI45B30 (364cc)
OVAL VALVE OPEN SHUT INDICATOR NPI45B30 (364cc)

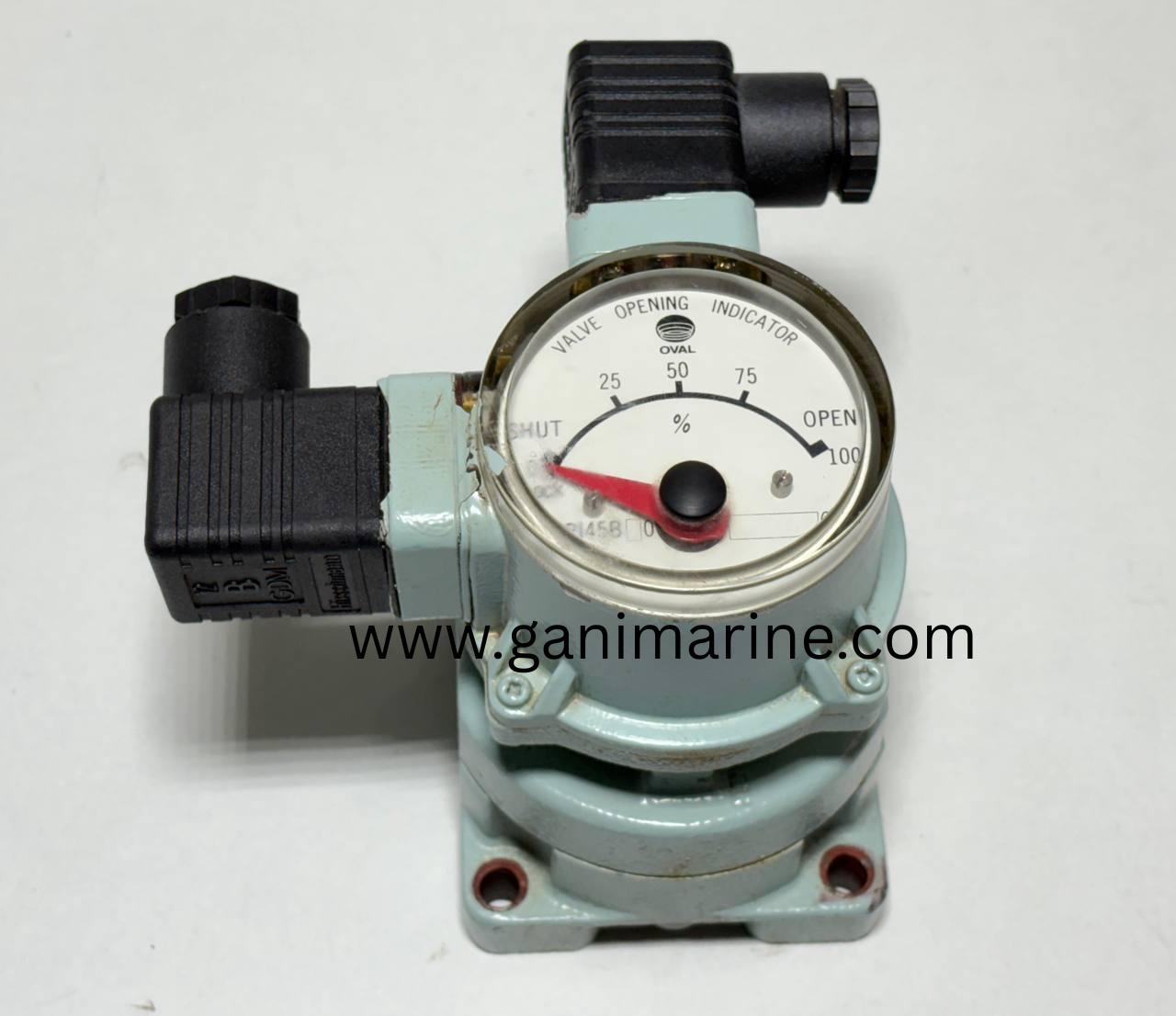

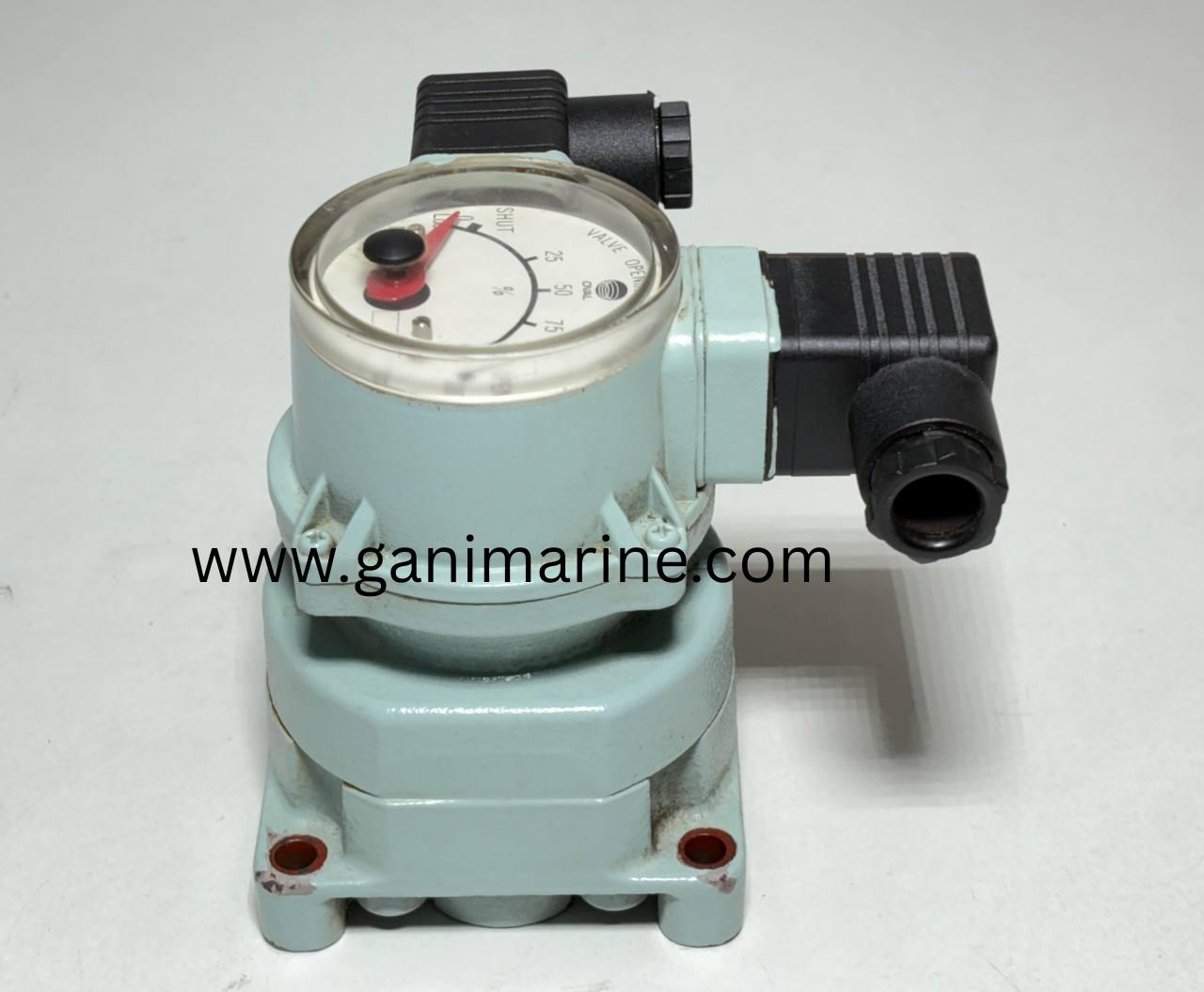

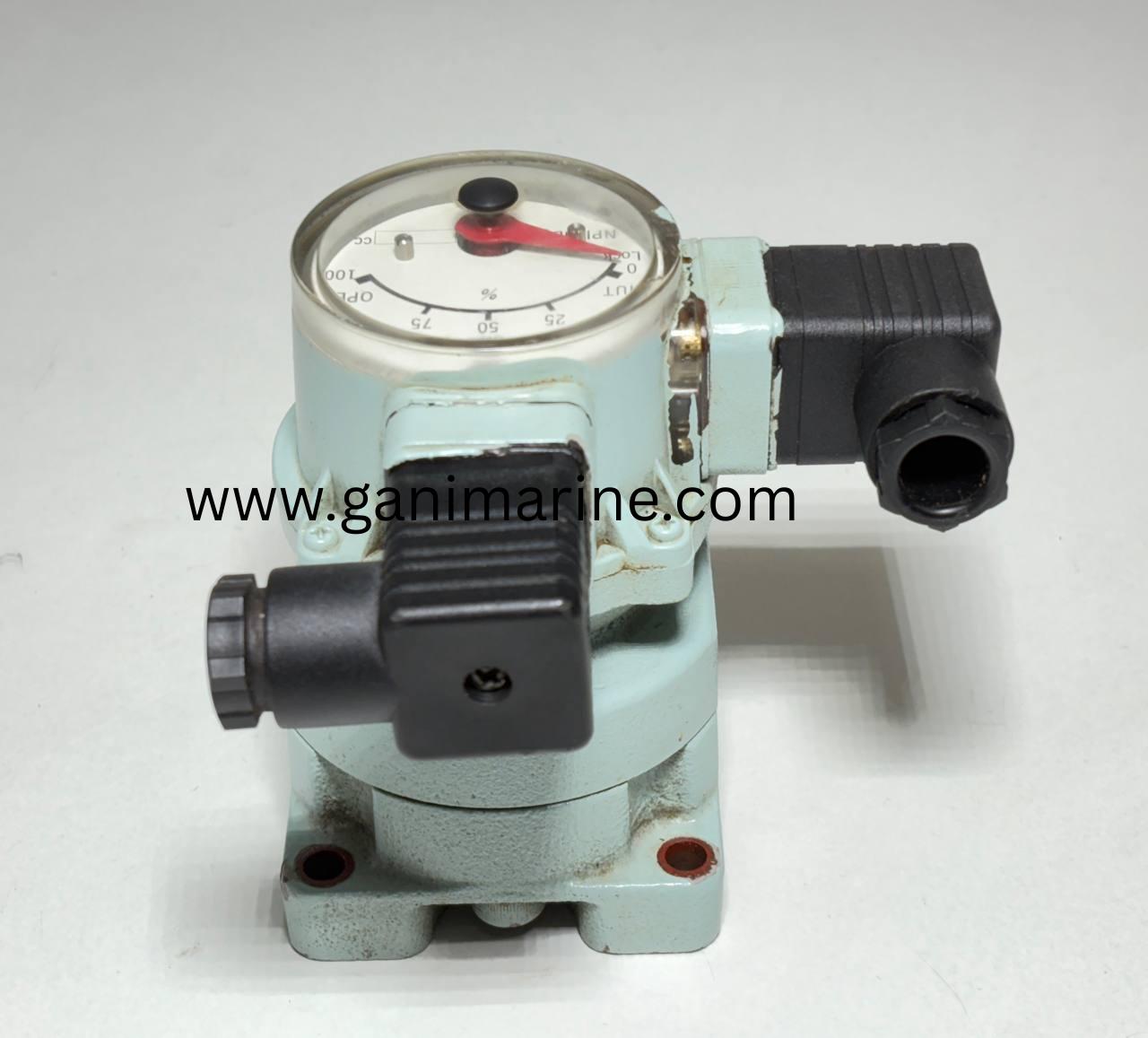

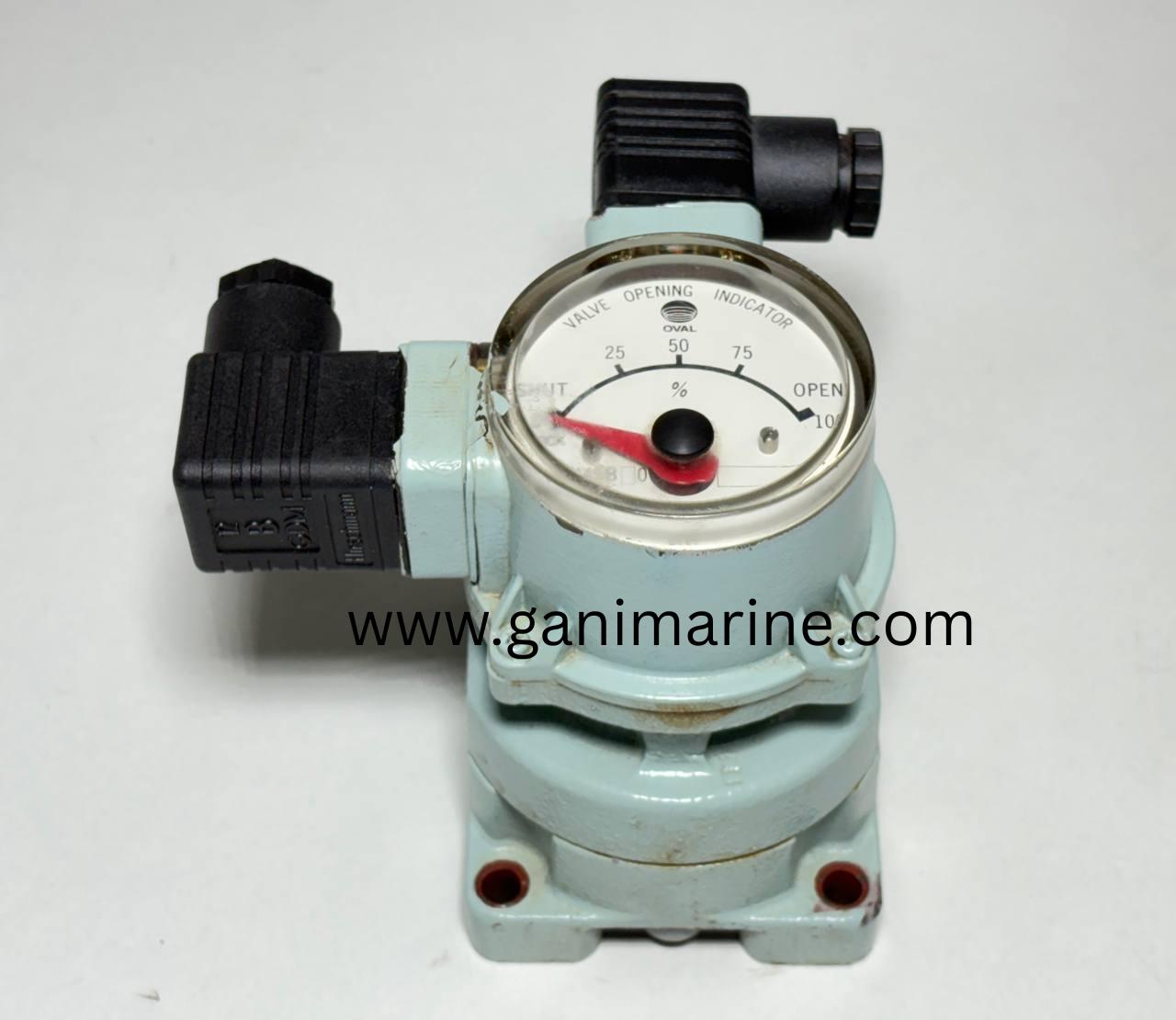

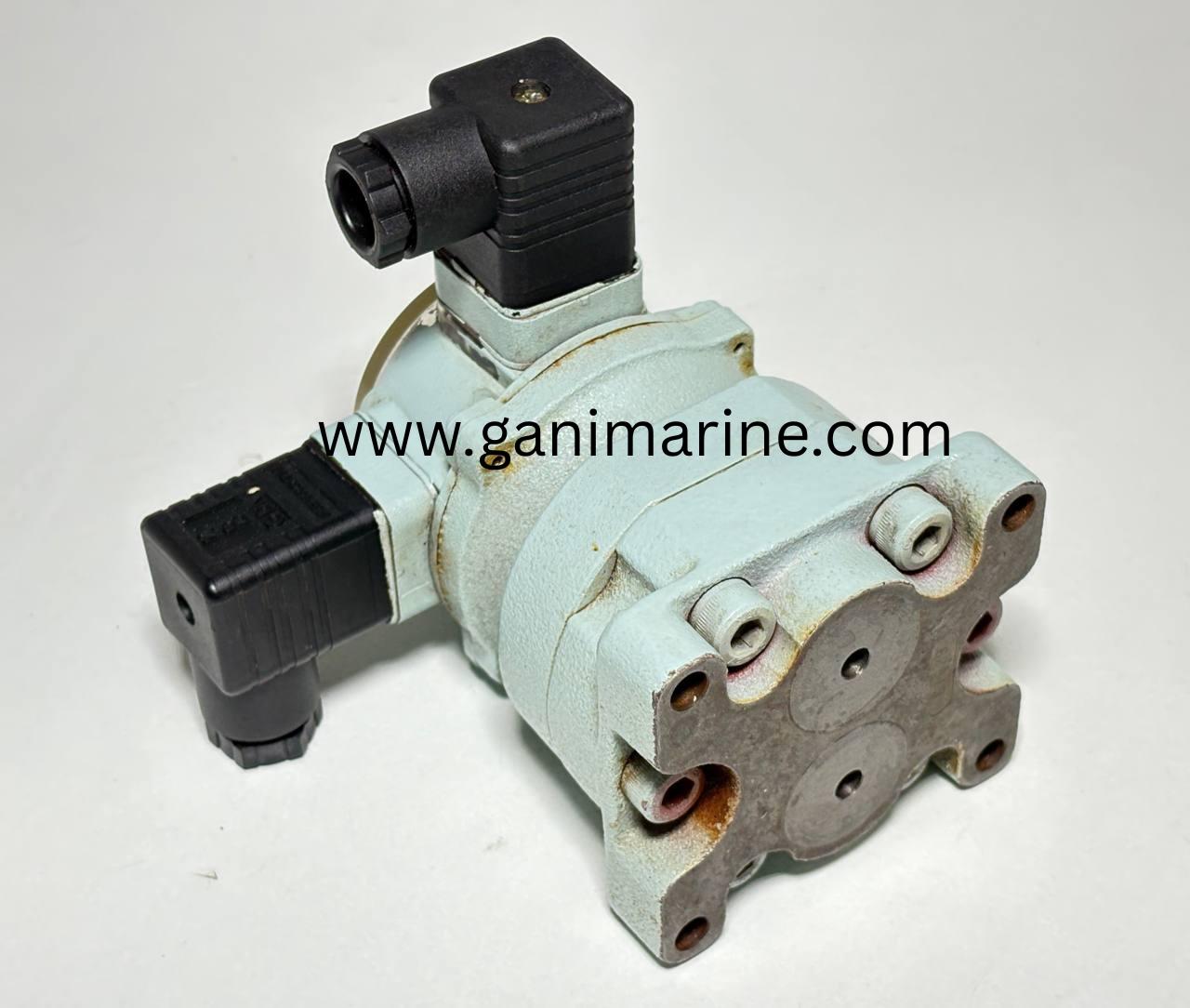

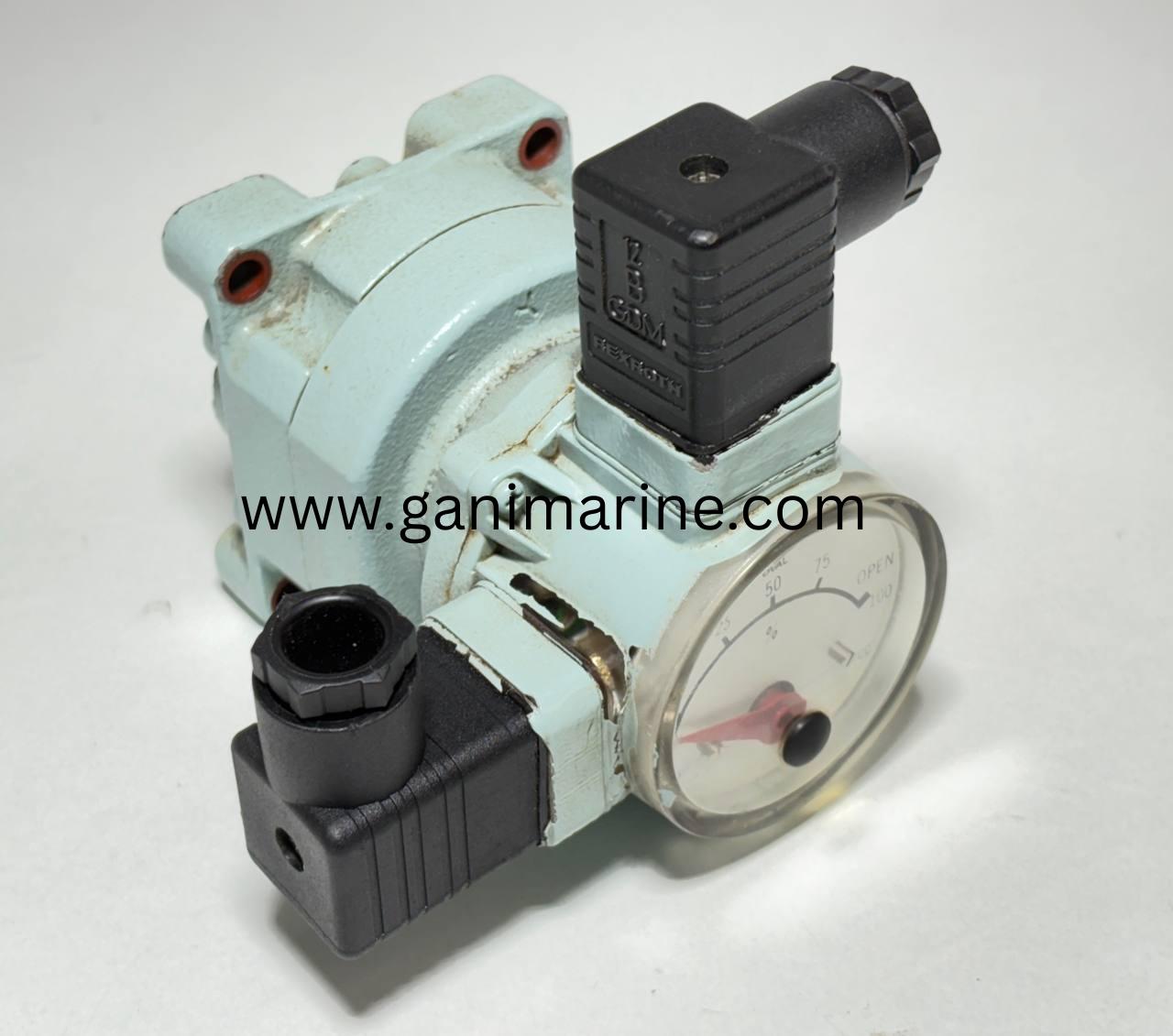

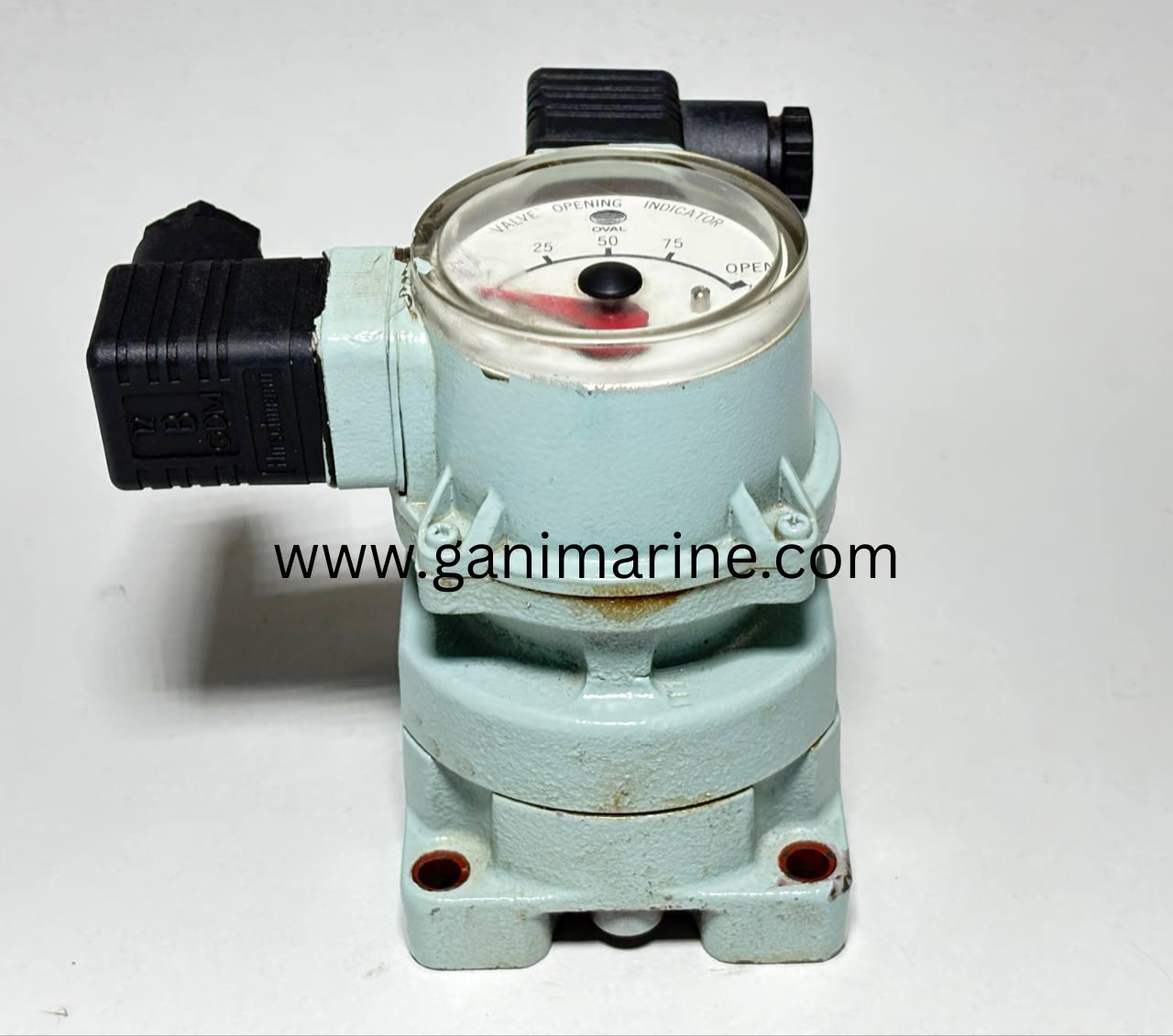

The OVAL NPI45B30 is a high-accuracy hydraulic valve opening indicator used to measure and display the open/close percentage of marine and industrial hydraulic actuators. It belongs to the trusted OVAL NPI45 series widely installed on cargo valves, ballast valves, remote-operated valves (ROVs), and hydraulic actuator lines.
This model uses an internal oval-gear positive displacement meter to track hydraulic oil flow and convert it into precise valve position feedback (0–100%).
Technical Details
Manufacturer: OVAL Corporation, Japan
Model: NPI45B30
Series: NPI45 (Valve Opening Indicator)
Actuator Volume Range: 364 cc

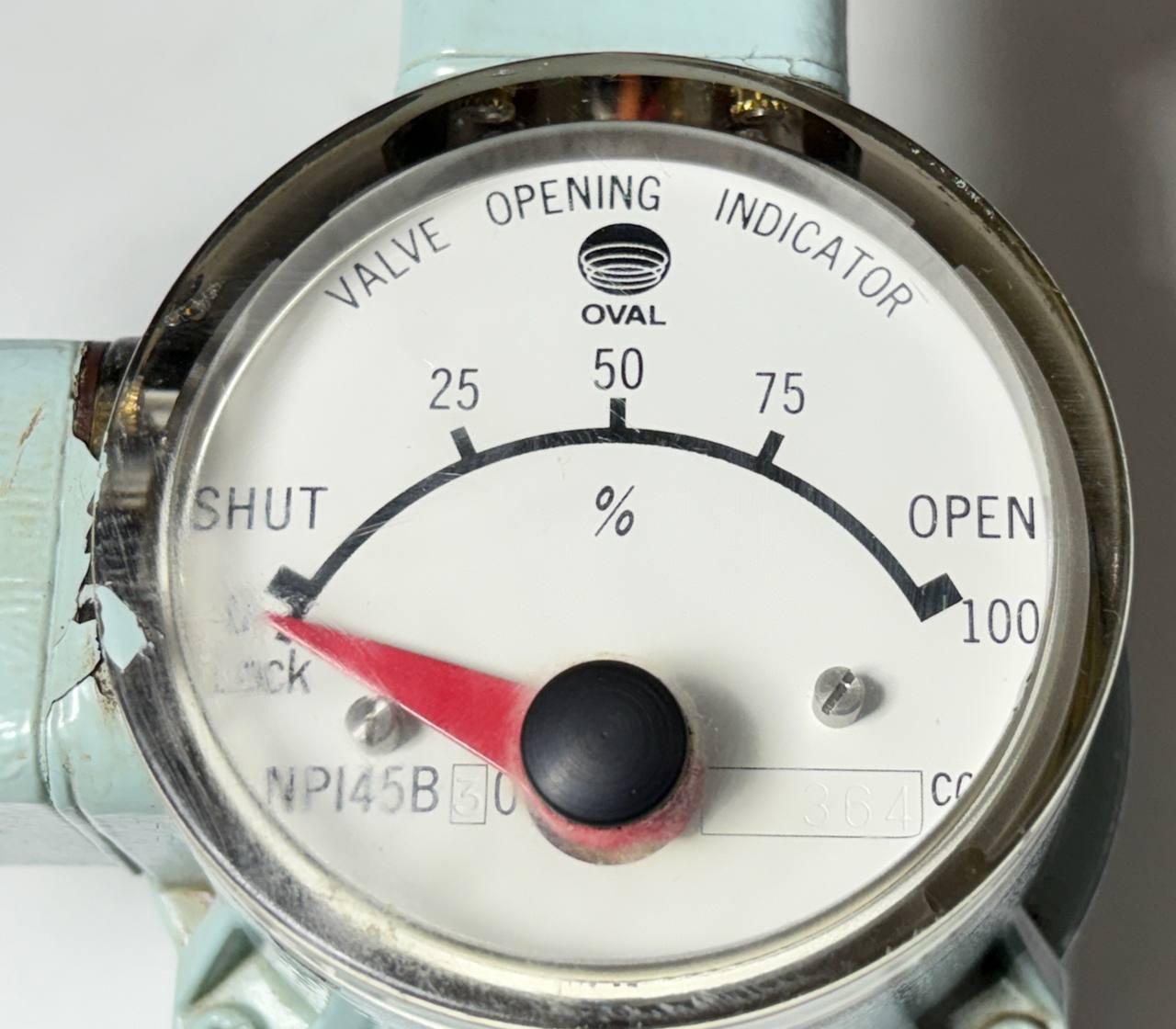

Scale: 0–100% (SHUT to OPEN)
Measurement Method: Oval gear flowmeter with magnetic transmission
Fluid: Hydraulic oil (ISO VG32 / VG46 / VG56)
Operating Pressure: Up to approx. 13.7 MPa
Operating Temperature: ?10°C to +80°C
Flow Range: 0.083 – 8 L/min
Connections: Hydraulic in-line type
Electrical Outputs:
• Microswitch box (Open/Close feedback)
• Optional potentiometer for remote position signal
Functional Description
The OVAL NPI45B30 measures the exact hydraulic oil volume displaced during valve operation. As the actuator moves, oil passes through the internal PD meter. The rotational movement is transferred to the front dial, showing:
• Local mechanical indication (0–100%)
• Electrical feedback from limit switches
• Accurate SHUT ? MID ? OPEN position
It ensures perfect correlation between actuator stroke and valve travel, making it ideal for marine automation and industrial hydraulic control systems.
Applications
• Marine cargo valves
• Ballast system valves
• Fuel oil & diesel oil remote valves
• Hydraulic actuator monitoring
• Remote-operated valve (ROV) panels
• Industrial automation lines
• Tanker and offshore valve systems
• Hydraulic power units (HPU) monitoring
