Oval PI45B00 (715.3CC) Valve Open-Shut Indicator
Oval PI45B00 (715.3CC) Valve Open-Shut Indicator
The OVAL PI45B00 is a hydraulic valve open-shut indicator / valve position indicator designed to provide clear visual indication of hydraulic valve position. The unit is calibrated for a 715.3 cc actuator cylinder volume and indicates whether the connected valve is Full Shut (FS) or Full Open (FO).
OVAL PI45B00 valve position indicators are commonly used with marine cargo valves, ballast valves, oil and gas valves, hydraulic valve actuators and shipboard Valve Remote Control Systems (VRCS).
Product Identification
* Manufacturer: OVAL
* Model: PI45B00
* Product Type: Hydraulic Valve Open-Shut Indicator
* Cylinder Volume: 715.3 cc
* Indication: FS / FO
* Application: Hydraulic Valve Actuator
* Typical Industry: Marine, Offshore, Oil & Gas
Technical Specifications
* Model: PI45B00
* Calibrated Cylinder Volume: 715.3 cc
* Indicator Type: Hydraulic / Mechanical Valve Position Indicator
* FS: Full Shut / Valve Closed
* FO: Full Open / Valve Open
* Pointer: Mechanical valve position indication
* Visual Windows: Two red confirmation windows
* Actuator Compatibility: 715.3 cc hydraulic cylinder volume
The 715.3 cc specification is important when selecting a replacement, because OVAL PI45B00/NPI45B00 indicators are available for different actuator cylinder volumes. The indicator should be matched with the hydraulic actuator installed on the valve.
Valve Position Indication
The dial provides a simple visual indication of valve movement:
* FS: Full Shut
* FO: Full Open
* Intermediate position: Valve partially open/closed

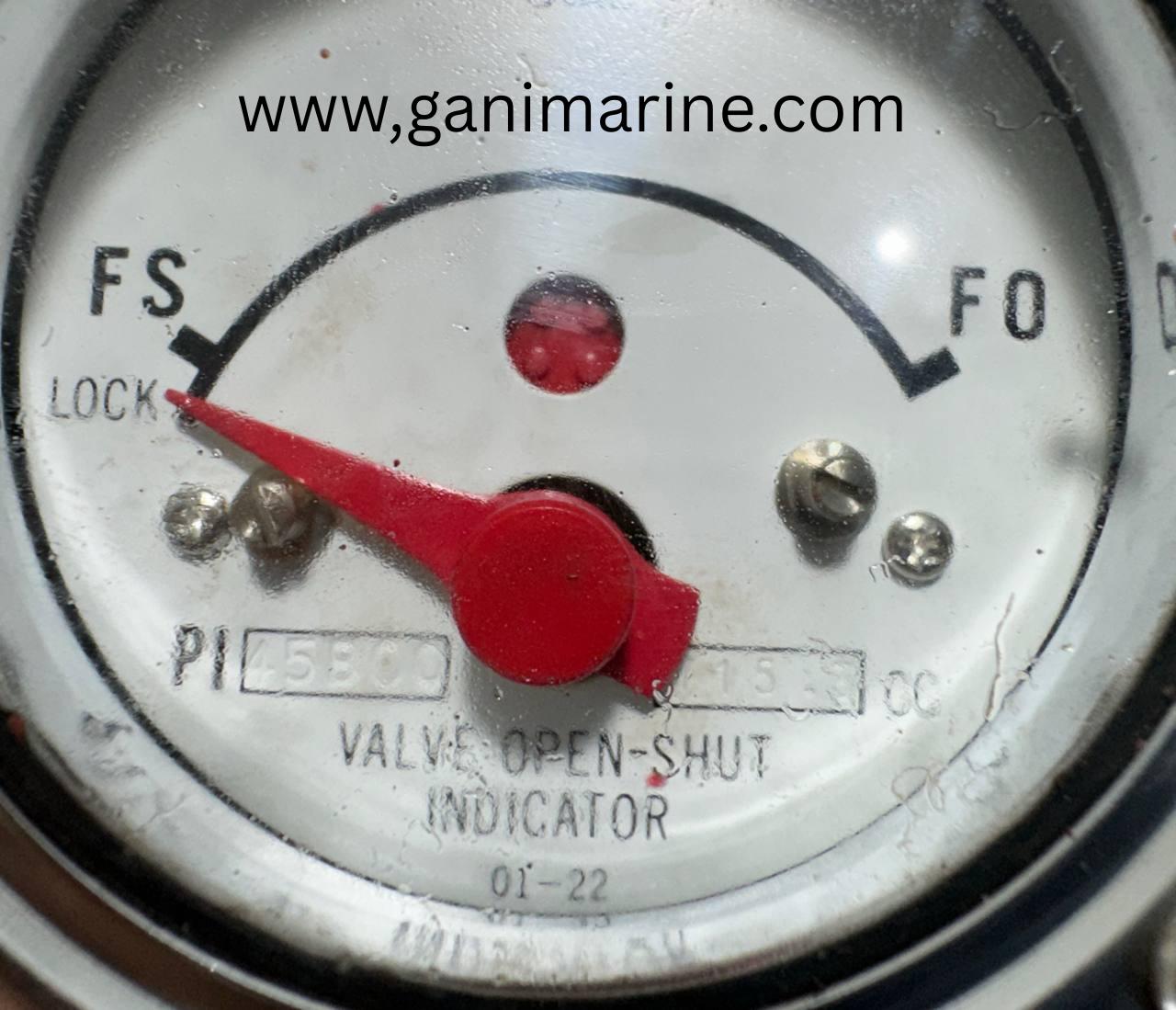

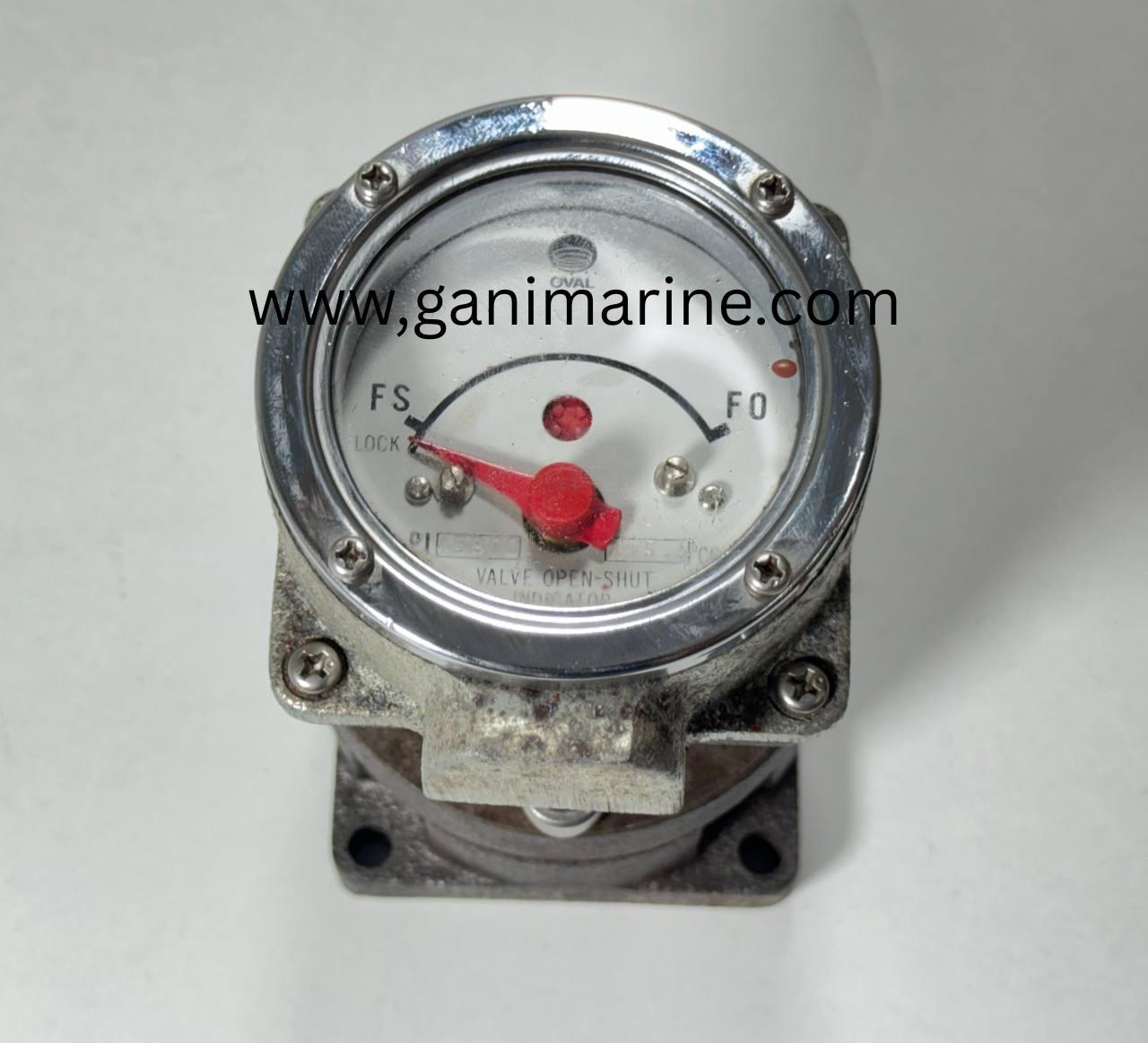

Based on the provided photos, the pointer is positioned close to FS, indicating the valve is in the closed/shut position.
Applications
The OVAL PI45B00 can be used for:
* Marine cargo valves
* Ship ballast valves
* Fuel oil valves
* Hydraulic butterfly valves
* Hydraulic ball valves
* Marine Valve Remote Control Systems
* Ship automation systems
* Oil & gas pipeline valves
* Offshore hydraulic valve systems
* Tanker valve control systems
* Shipboard hydraulic actuators
* Cargo handling systems
* Marine hydraulic equipment
Key Features
* Clear open / shut indication
* FS and FO position markings
* 715.3 cc actuator calibration
* Suitable for marine hydraulic systems
* Mechanical visual indication
* Easy valve position monitoring
* Designed for hydraulic valve actuators
* Suitable for ship and offshore applications
* Useful as a marine valve spare part
