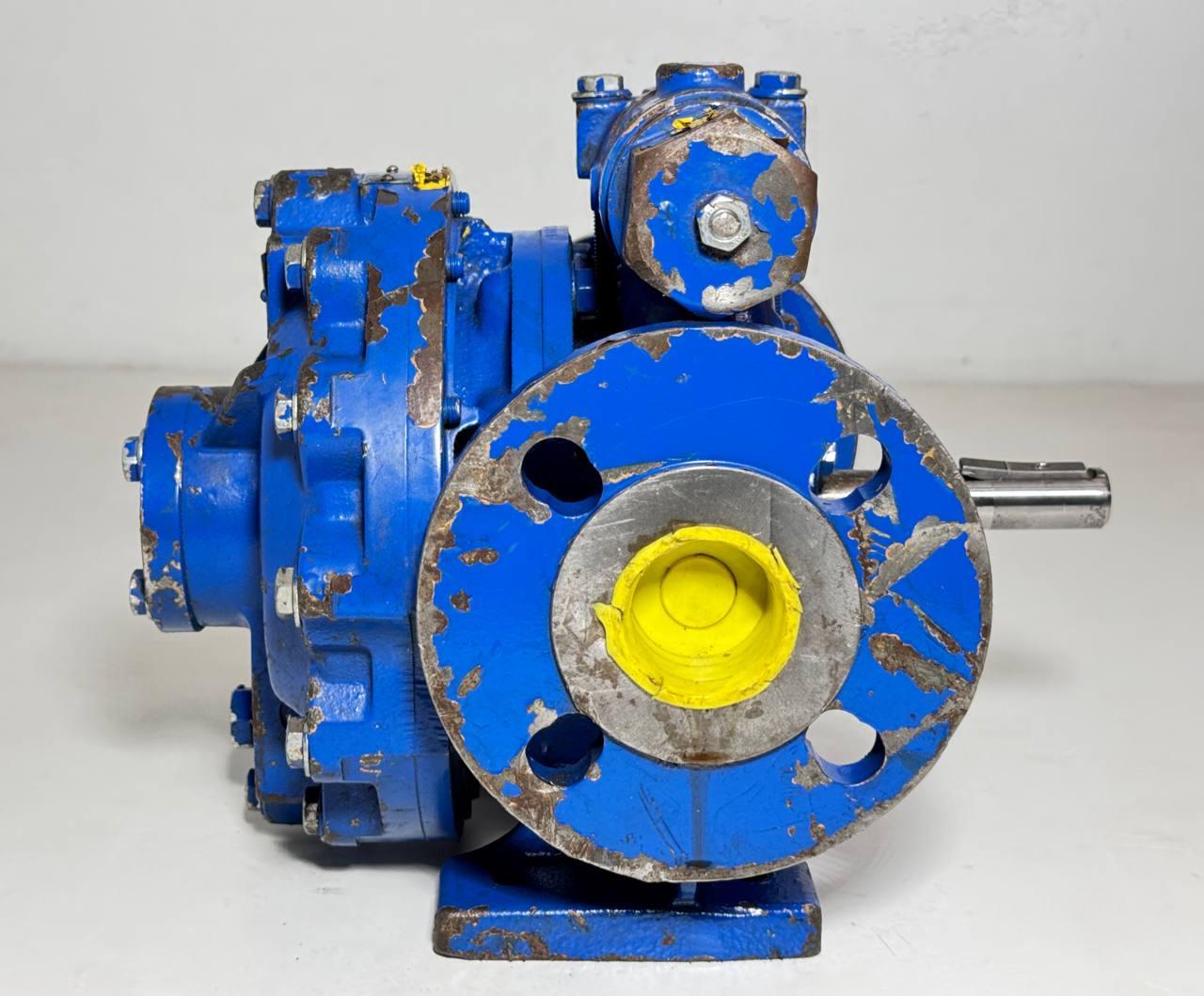

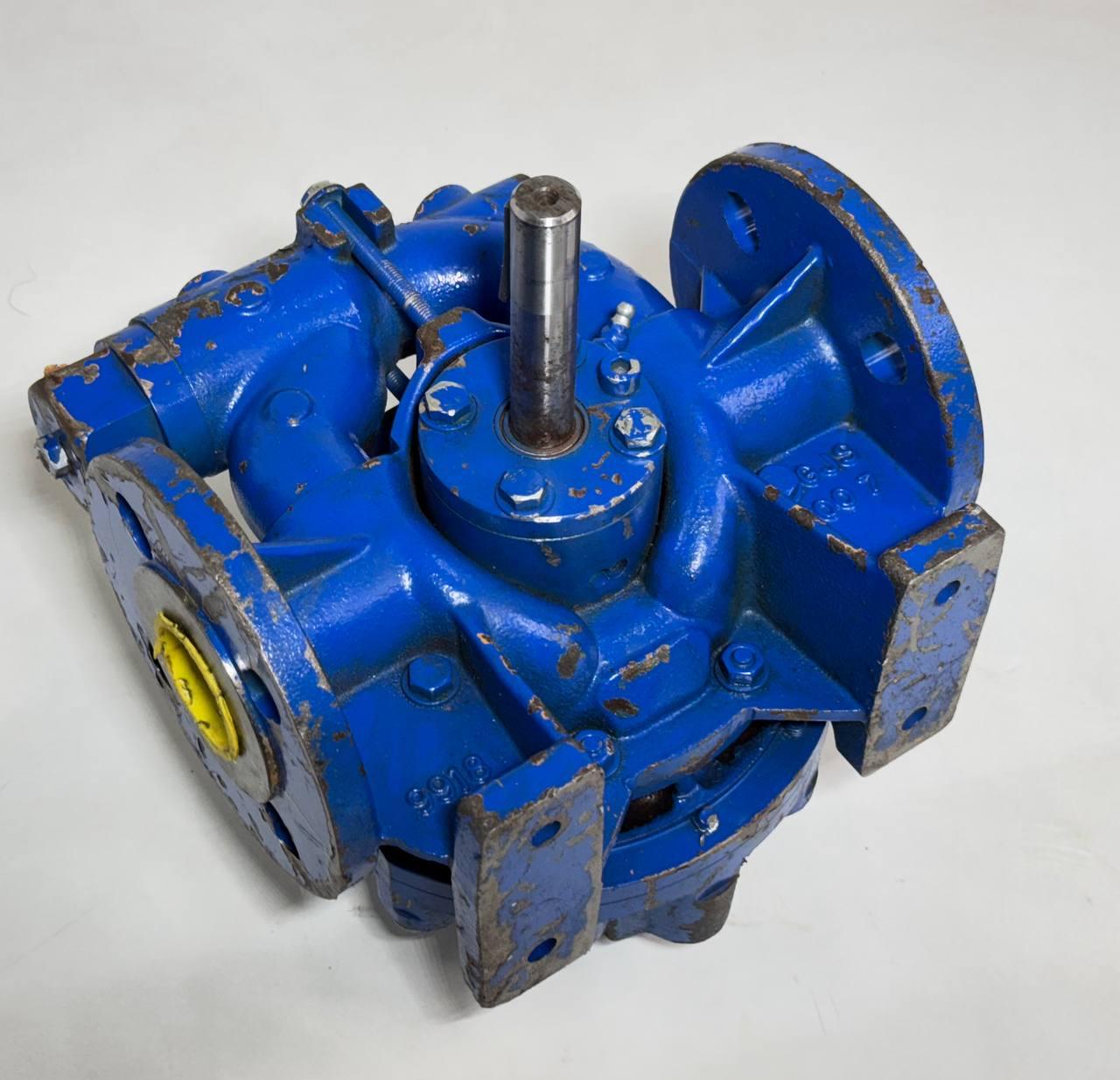

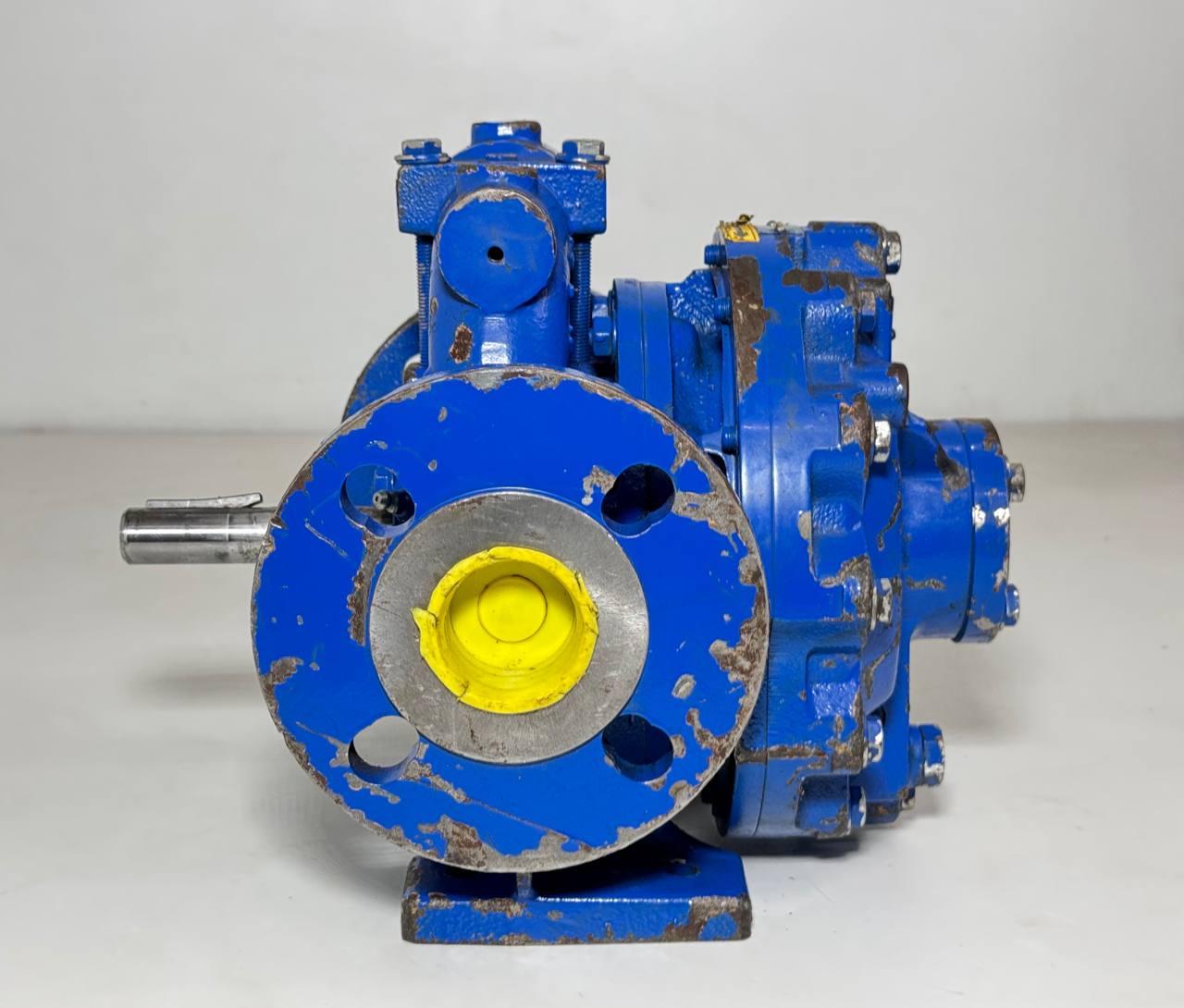

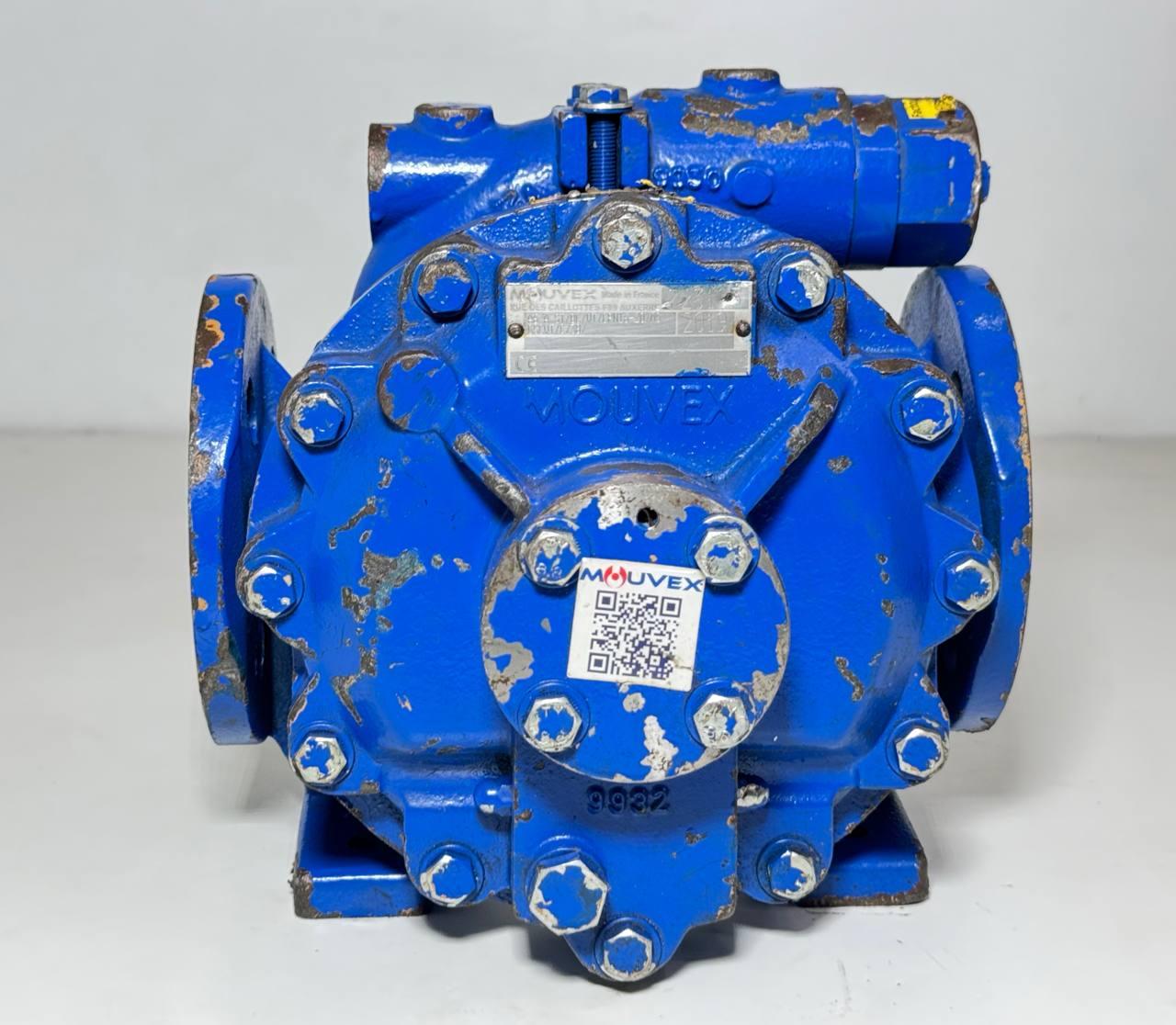

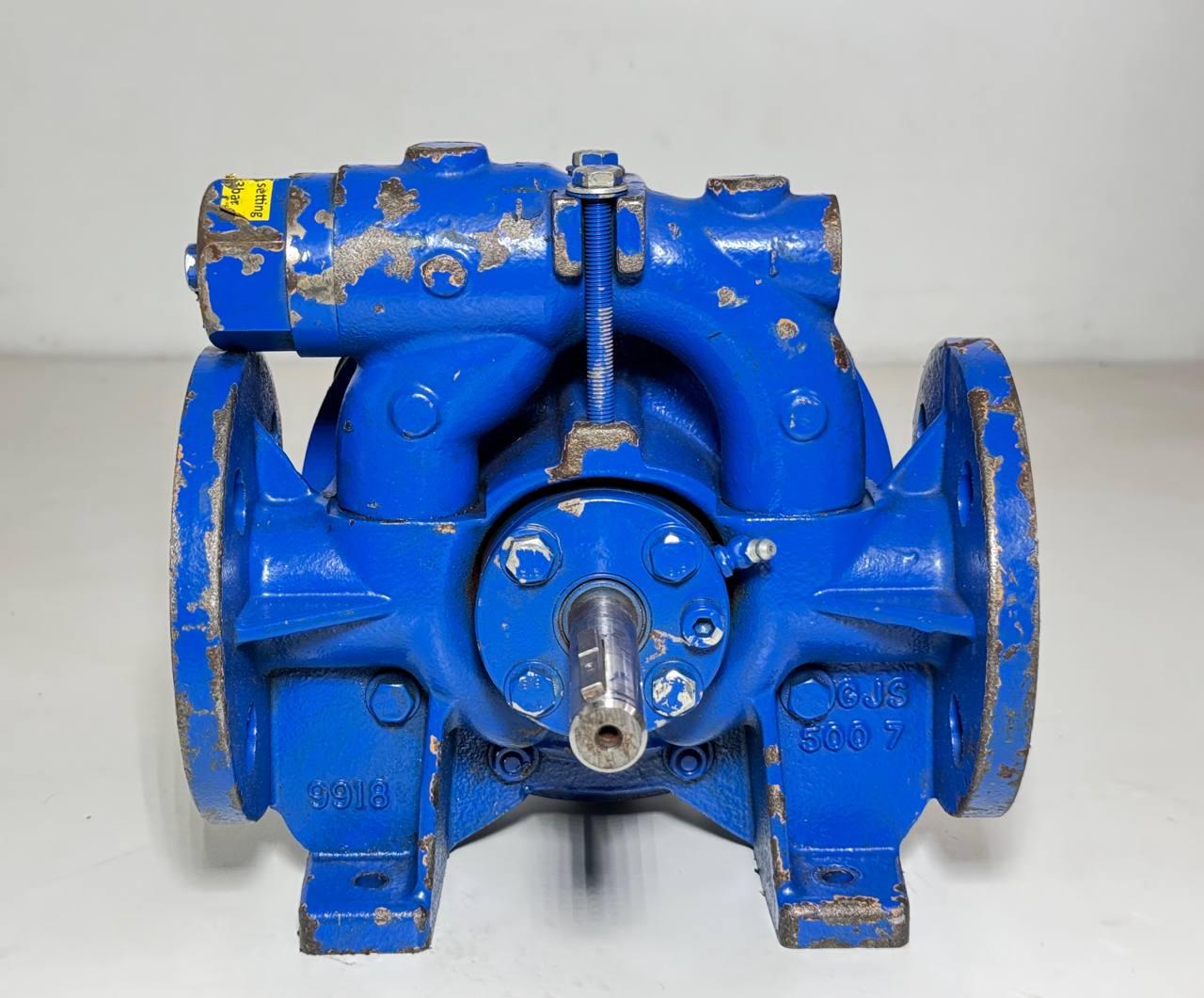

Mouvex® rotary vane pump A6 A ST/BC/VT/CPN16-20/MS

The Mouvex® A6 A ST/BC/VT/CPN16-20/MS is a premium positive displacement rotary vane pump, built for high-precision fluid transfer in marine, offshore, oil & gas, and chemical process applications. Part of the renowned Mouvex A-Series, this model combines stainless steel construction (ST) with bushed internal design (BC) and high-performance vanes (VT) to deliver exceptional durability and efficiency.

Its PN16 DIN flange connection (CPN16) and DN20 port size (20) make it ideal for compact piping systems, while the mechanical seal (MS) ensures zero leakage in critical environments. Engineered for reliability, this Mouvex rotary vane pump offers smooth, pulsation-free flow, low shear handling, and high suction capabilities.

Now available from Gani Marine, your trusted global marine and industrial pump supplier.

---

 Technical Specifications

Brand: Mouvex® (France)

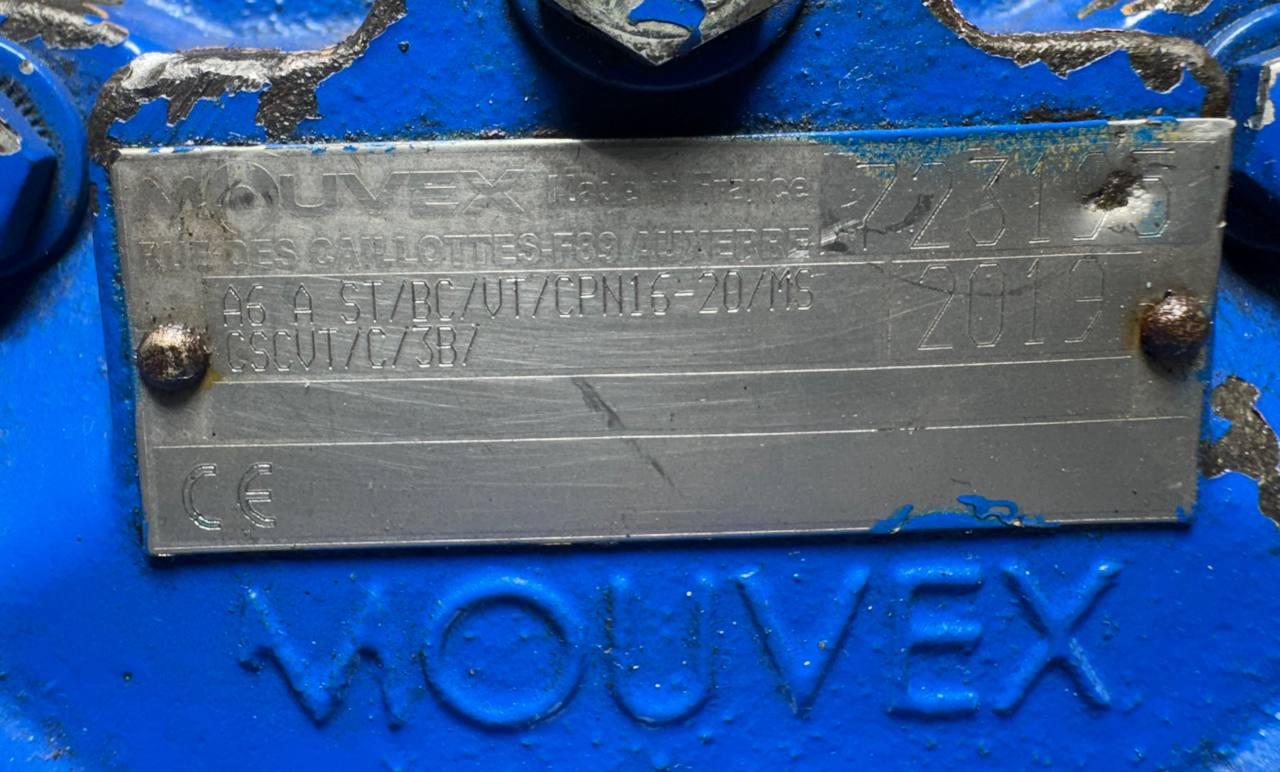

Model: A6 A ST/BC/VT/CPN16-20/MS

Pump Type: Rotary Vane Pump (Positive Displacement)

Series: A-Series

Material Construction:

? ST – Stainless Steel body

? BC – Bushed construction (internal bearing system)

? VT – Vane Type (typically carbon/PTFE)

Connection Type: CPN16 – DIN PN16 Flanged

Port Size: DN20 (20mm)

Seal Type: MS – Mechanical Seal

Flow Mediums: Oil, Fuel, Solvents, Lubricants, Additives, Chemicals

Max Pressure: Up to 16 BAR (PN16 rated)

Use Case: Continuous duty transfer, marine bunkering, fuel skids, chemical feed

---

 Applications

Marine fuel and lube oil transfer

Offshore bunkering systems

Chemical tanker discharge units

Lube oil handling in ship engine rooms

Petroleum-based fluid dispensing

Refinery loading/unloading pumps

Skid-mounted transfer units

Tank-to-tank fluid circulation

---

 Product Highlights

Positive displacement for consistent, pulse-free flow

Self-priming with strong suction lift

Resistant to vapor locking and dry running

PN16 flange connections – DIN standard

Compact & quiet operation

Long service life with low maintenance

Mechanical seal to prevent leakage in hazardous areas

Trusted by marine engineers, OEMs, and ship maintenance contractors globally
