MITSUI MAS-PWR-2 POWER SUPPLY CARD
MITSUI MAS-PWR-2 POWER SUPPLY CARD

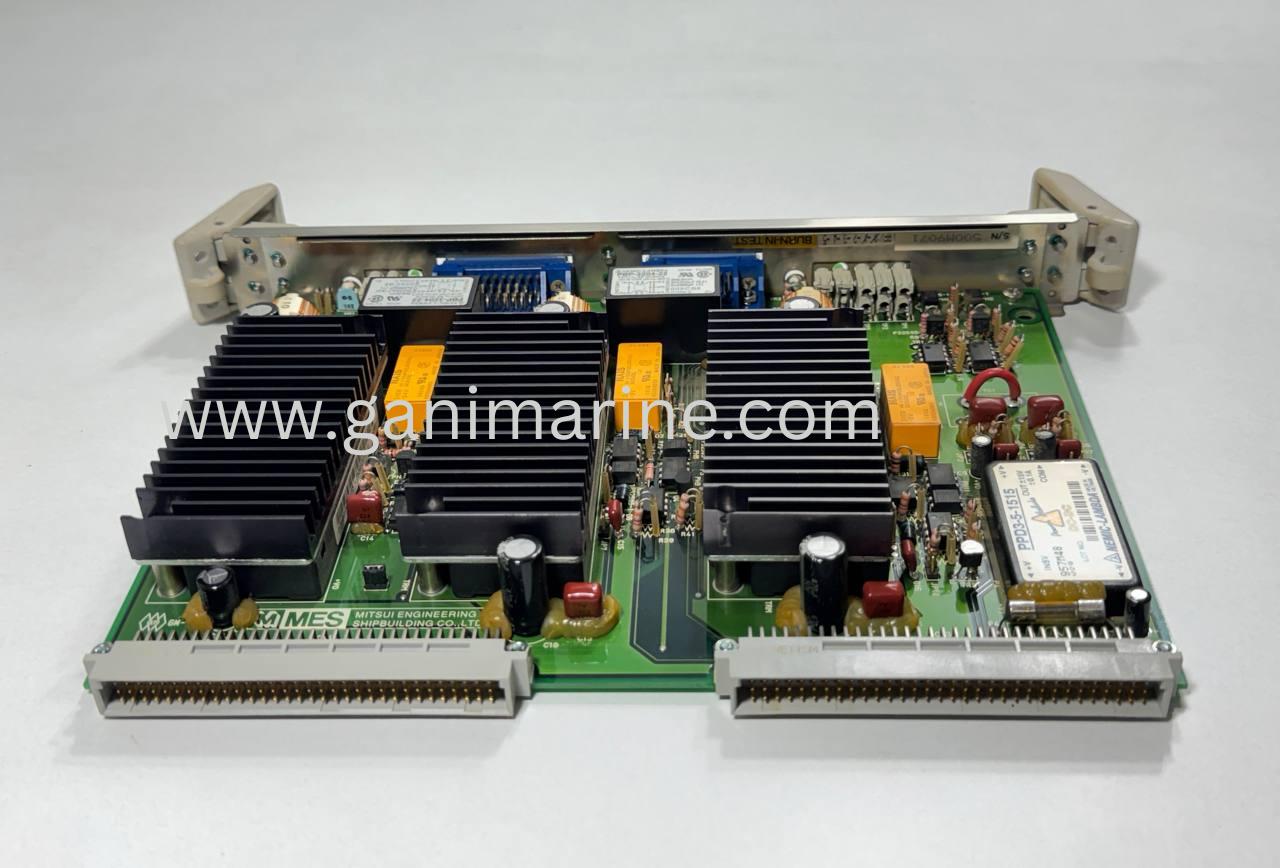

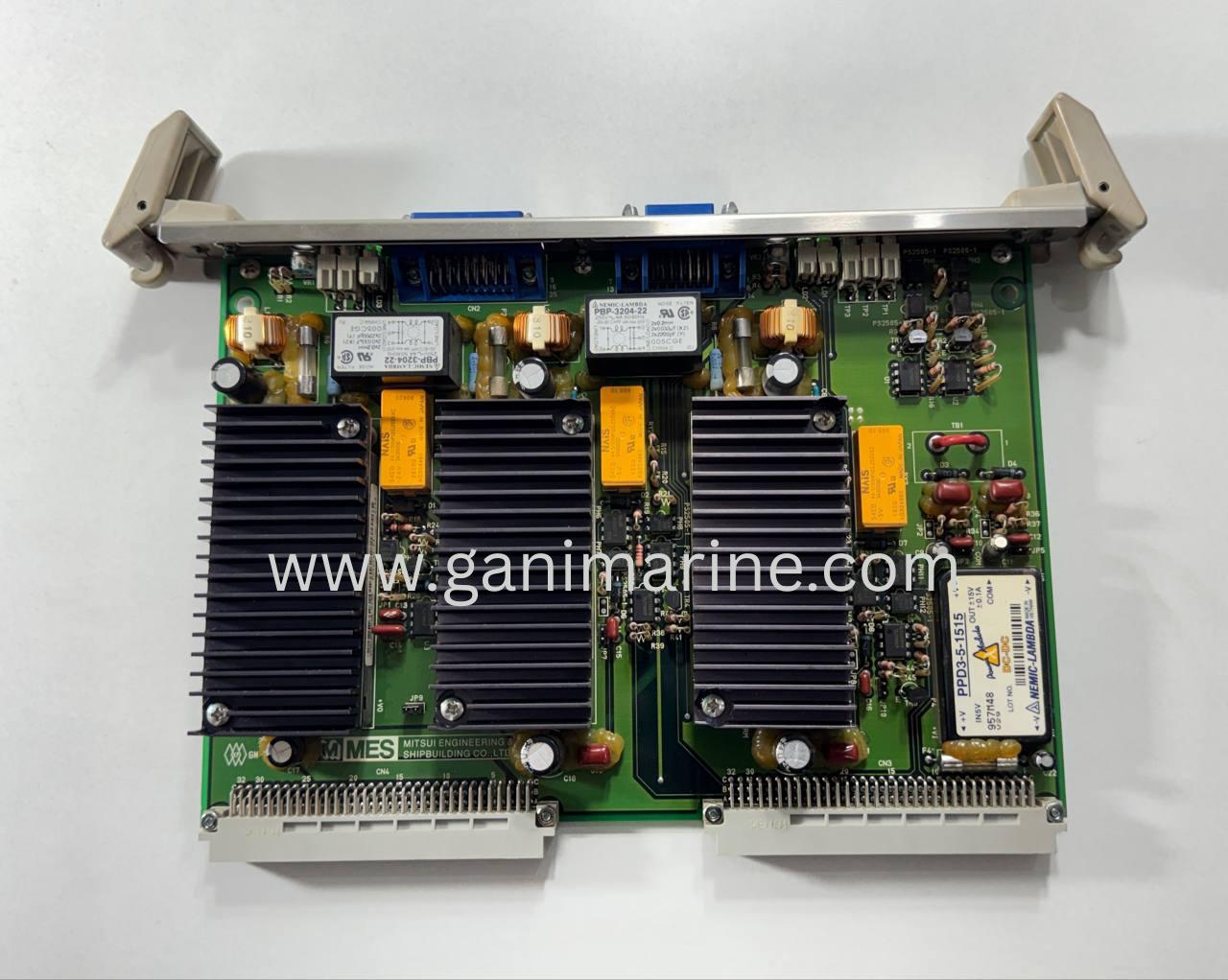

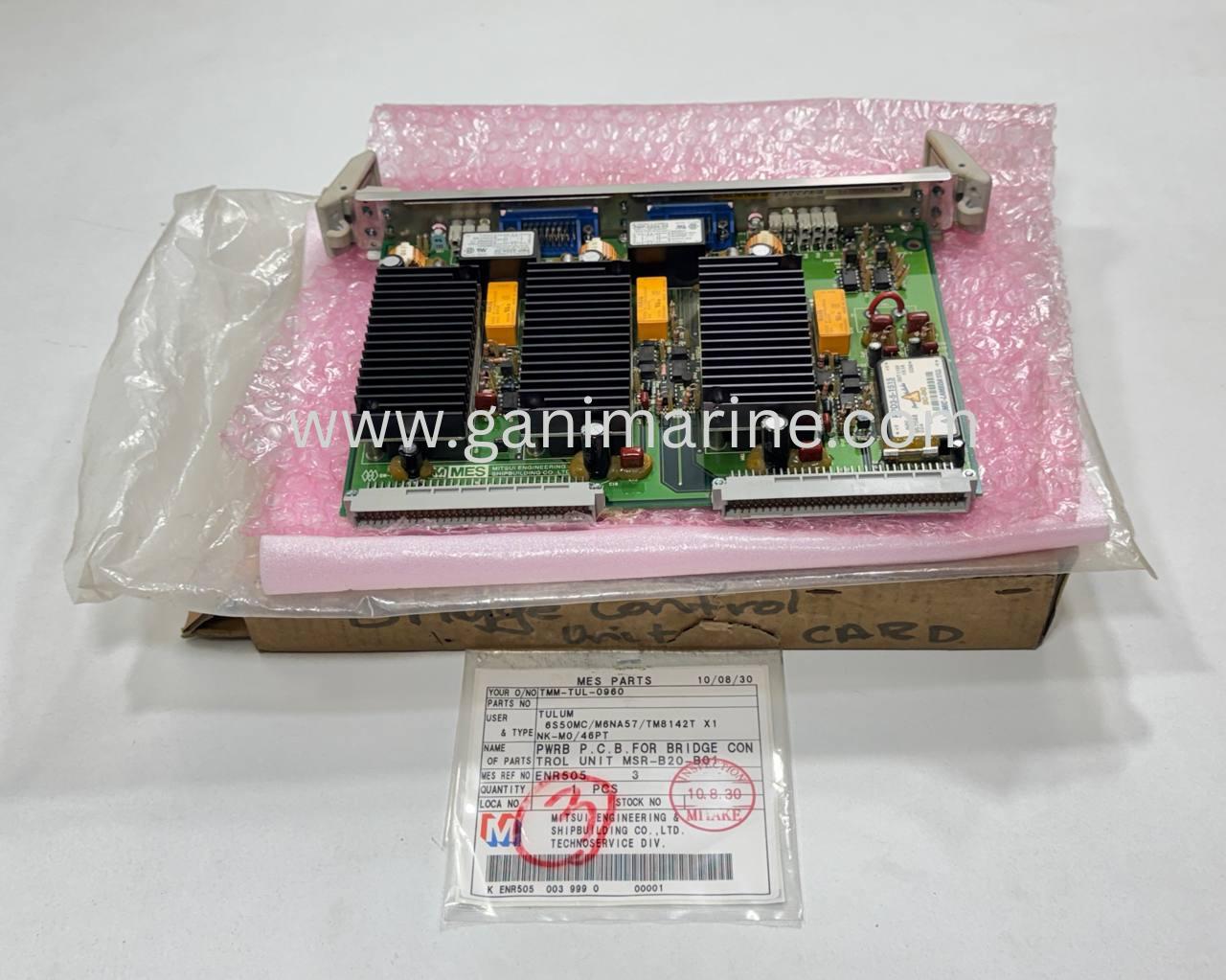

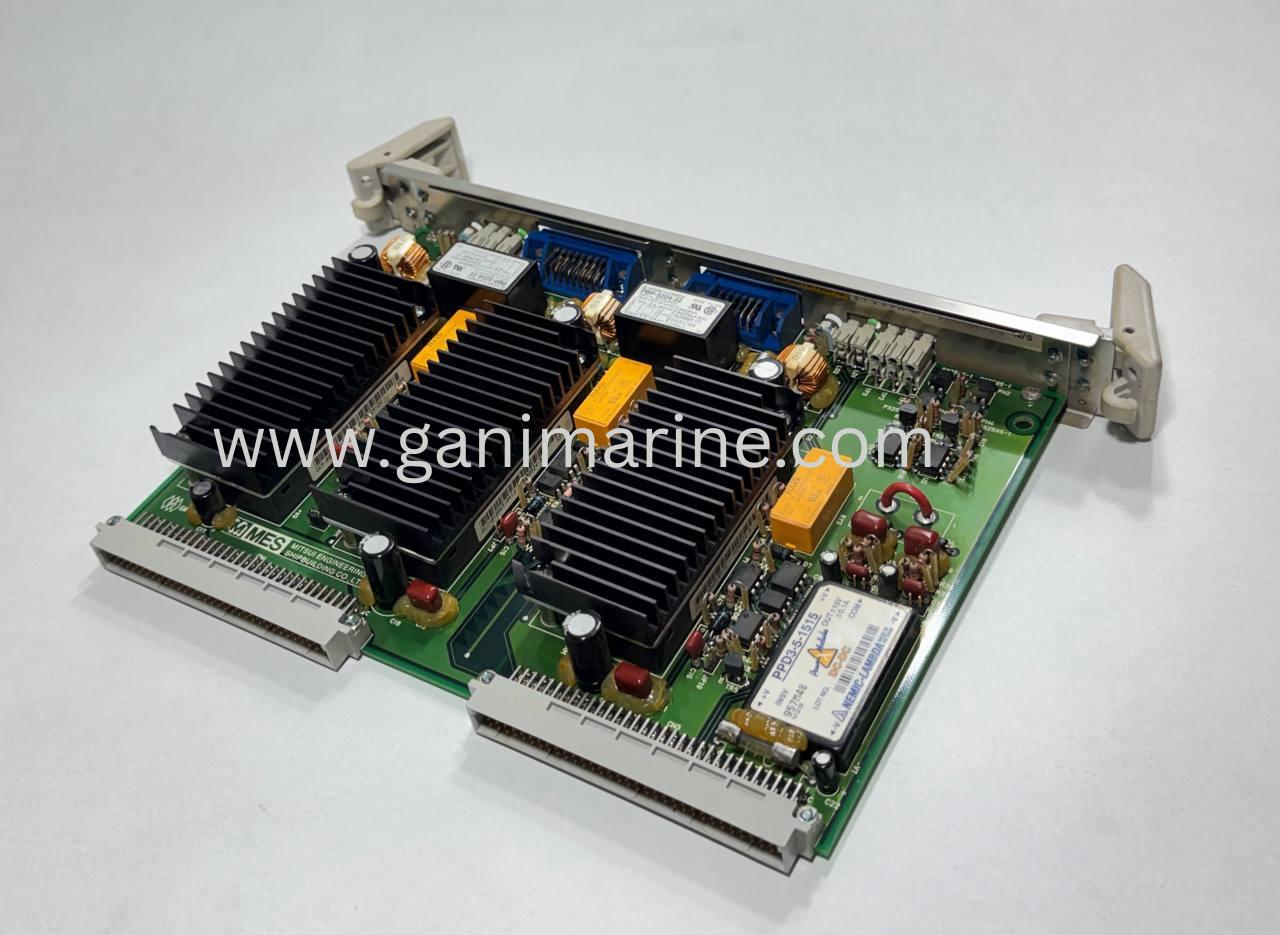

The MAS-PWR-2 PCB incorporates a Nemic-Lambda PPD3-5-1515 DC-DC converter, EMI/noise filtering and large aluminum heatsinks to support stable power distribution for electronic control circuitry, analog sensors and amplifier circuits.
Suitable as a replacement PCB, maintenance spare or ship automation spare part for vessels equipped with compatible MES Mitsui bridge control equipment.
Technical Specifications
Model: MAS-PWR-2
Part Description: PWRB P.C.B. for Bridge Control Unit

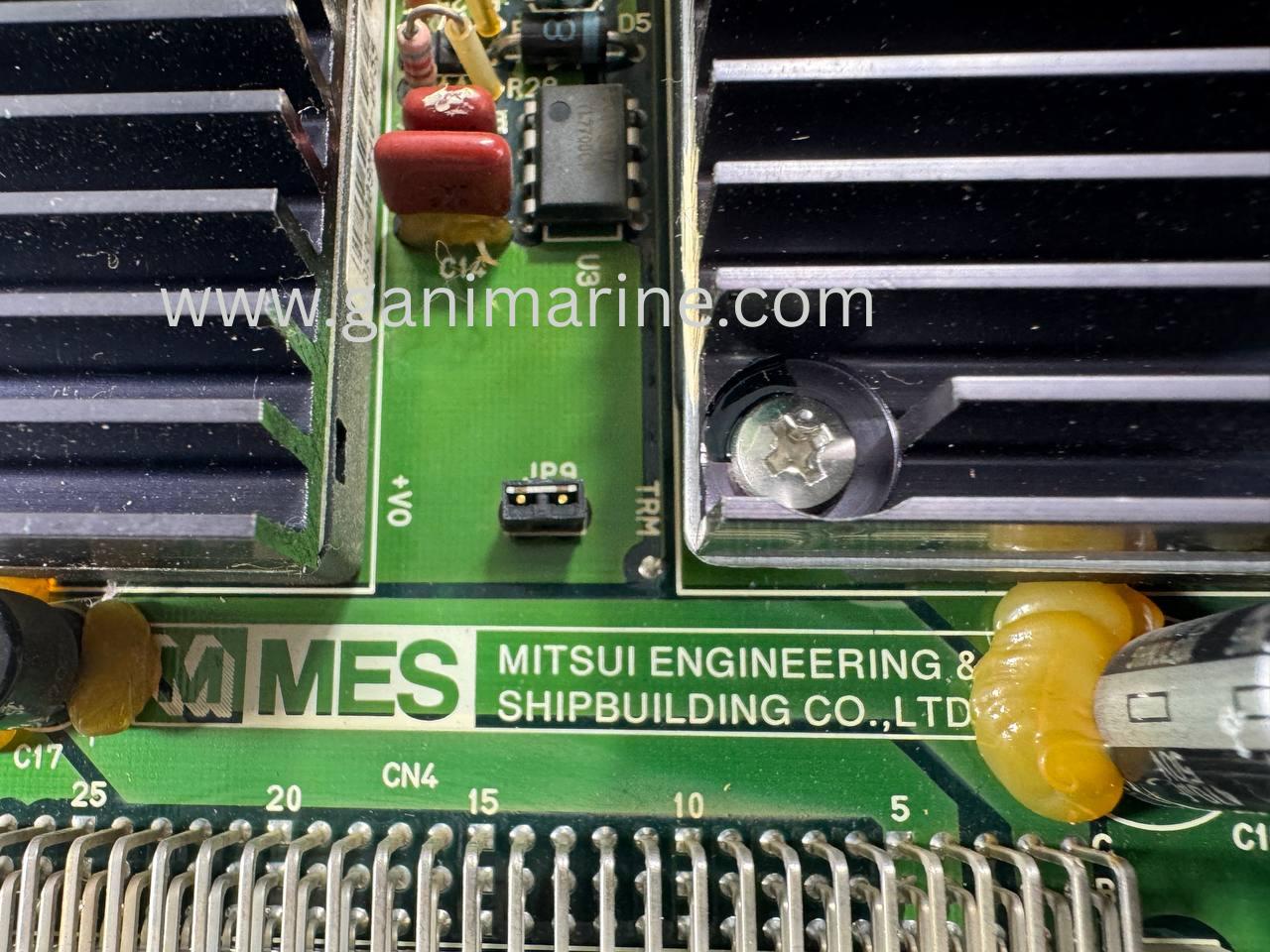

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. (MES)
System: MSR-B20-B01 Control Unit
Equipment: Marine Bridge Control Unit
PCB Type: PWRB Power Supply PCB / Control Circuit Board
DC-DC Converter: Nemic-Lambda PPD3-5-1515
Converter Input: 5V DC
Converter Output: ±15V DC
Output Current: 0.1A
Noise Filter: Nemic-Lambda PBP-3204-22
Filter Rating: 250V / 4A, 50/60Hz
Thermal Management: Dual large-scale black anodized aluminum heatsinks
Connectors: Dual 96-pin JAE backplane connectors
Connector Series: JAE ME03 series
Key Features
* Original MES Mitsui bridge control PCB
* Model MAS-PWR-2
* PWRB PCB for Bridge Control Unit
* Compatible with MSR-B20-B01 control systems
* Integrated Nemic-Lambda DC-DC converter
* ±15V DC power output for electronic circuits
* EMI/noise filtering for marine electrical systems
* Heavy-duty aluminum heatsink construction
* Dual 96-pin JAE backplane connectors
* Designed for marine automation and ship control equipment
* Suitable for replacement and ship repair applications
Typical Applications
* Marine Bridge Control Systems
* Ship Bridge Automation
* MSR-B20-B01 Control Units
* Marine Electrical Control Systems
* Ship Automation Systems
* Bridge Control Units
* Vessel Monitoring & Control
* Marine Engine Control Systems
* Shipyard Maintenance & Repair
* Ship Automation Retrofit
* Marine Electrical Spare Parts
* Replacement of obsolete or damaged bridge control PCBs
* Offshore vessel automation systems
