KSB FIMM HEAD TYPE FD110010 INDICATOR
KSB FIMM HEAD TYPE FD110010 INDICATOR

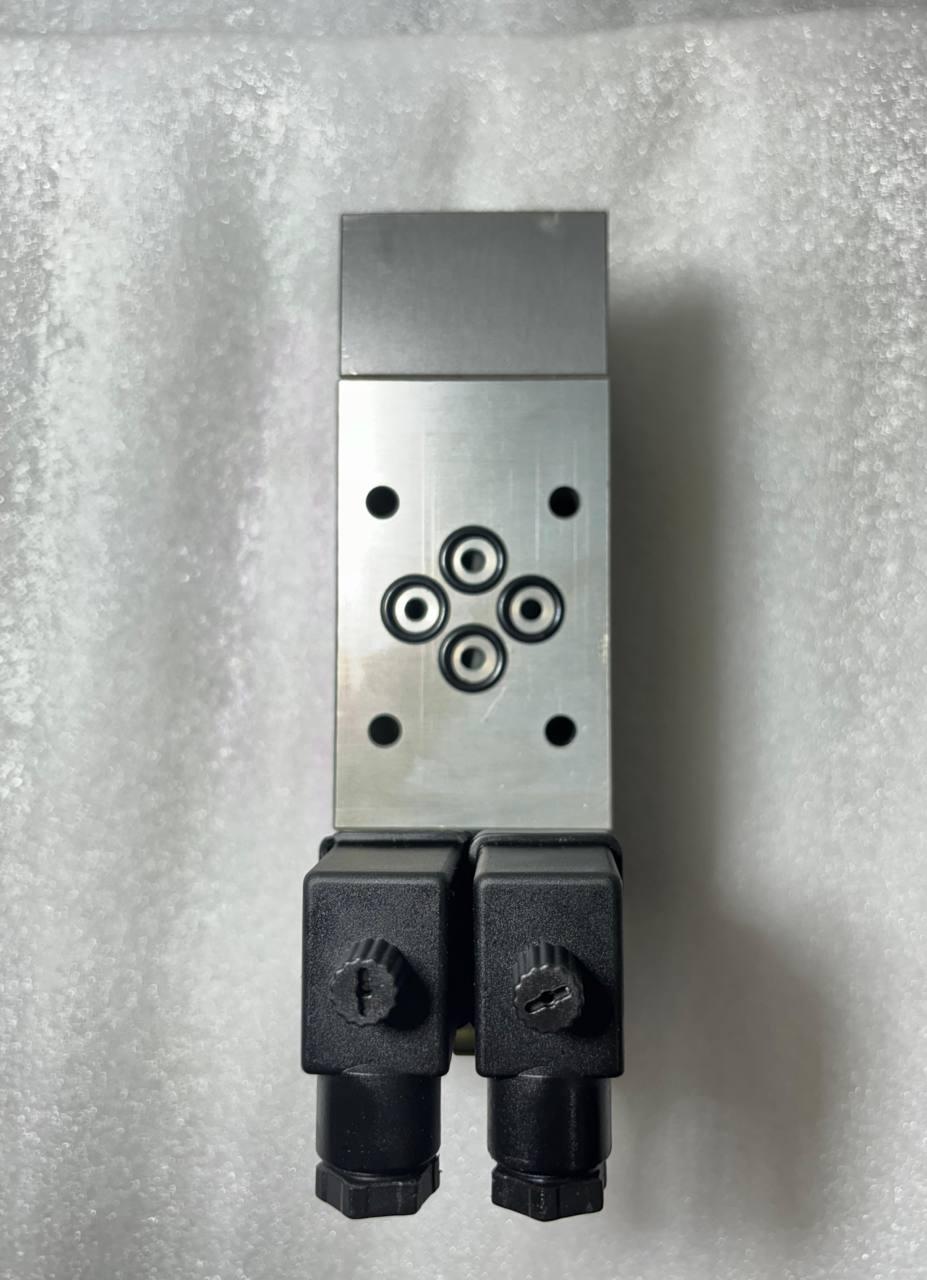

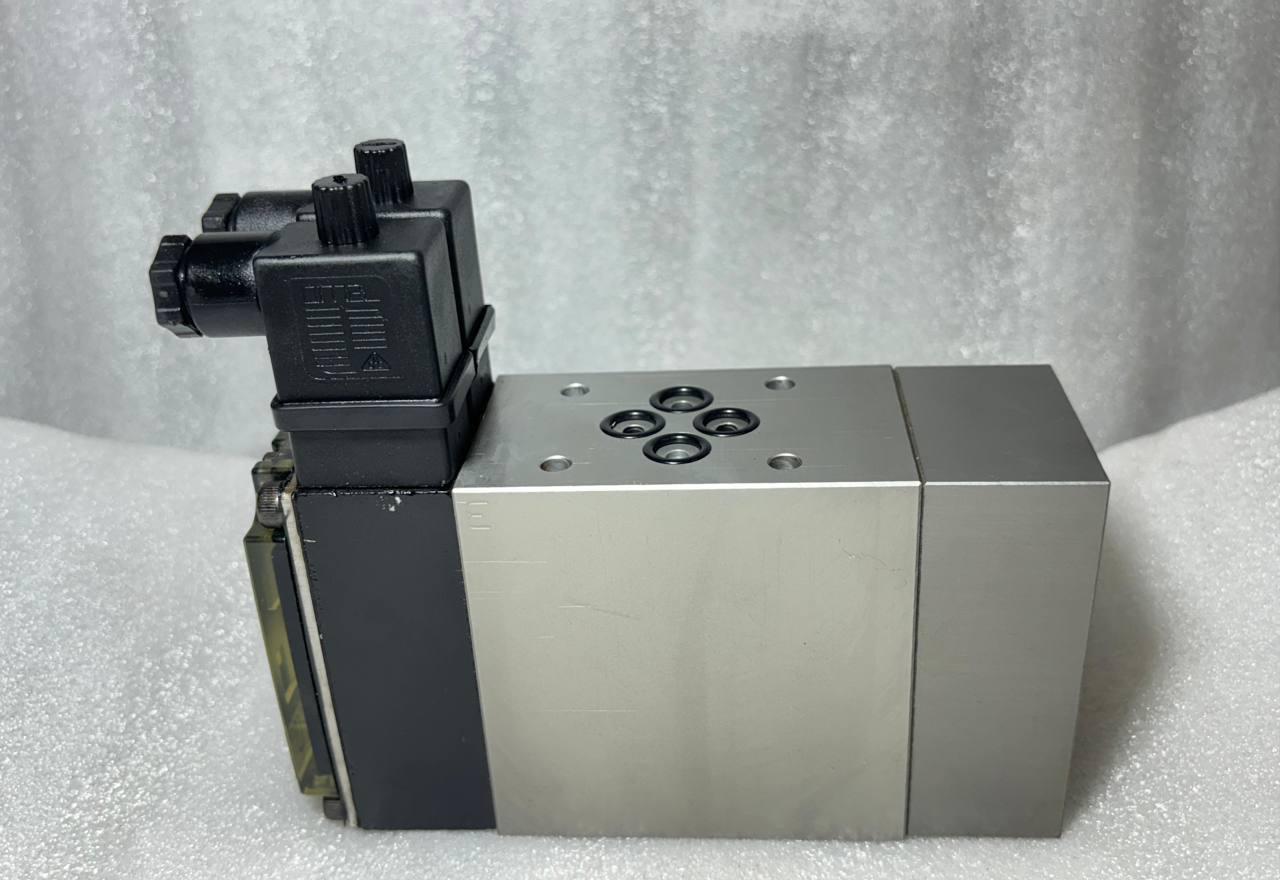

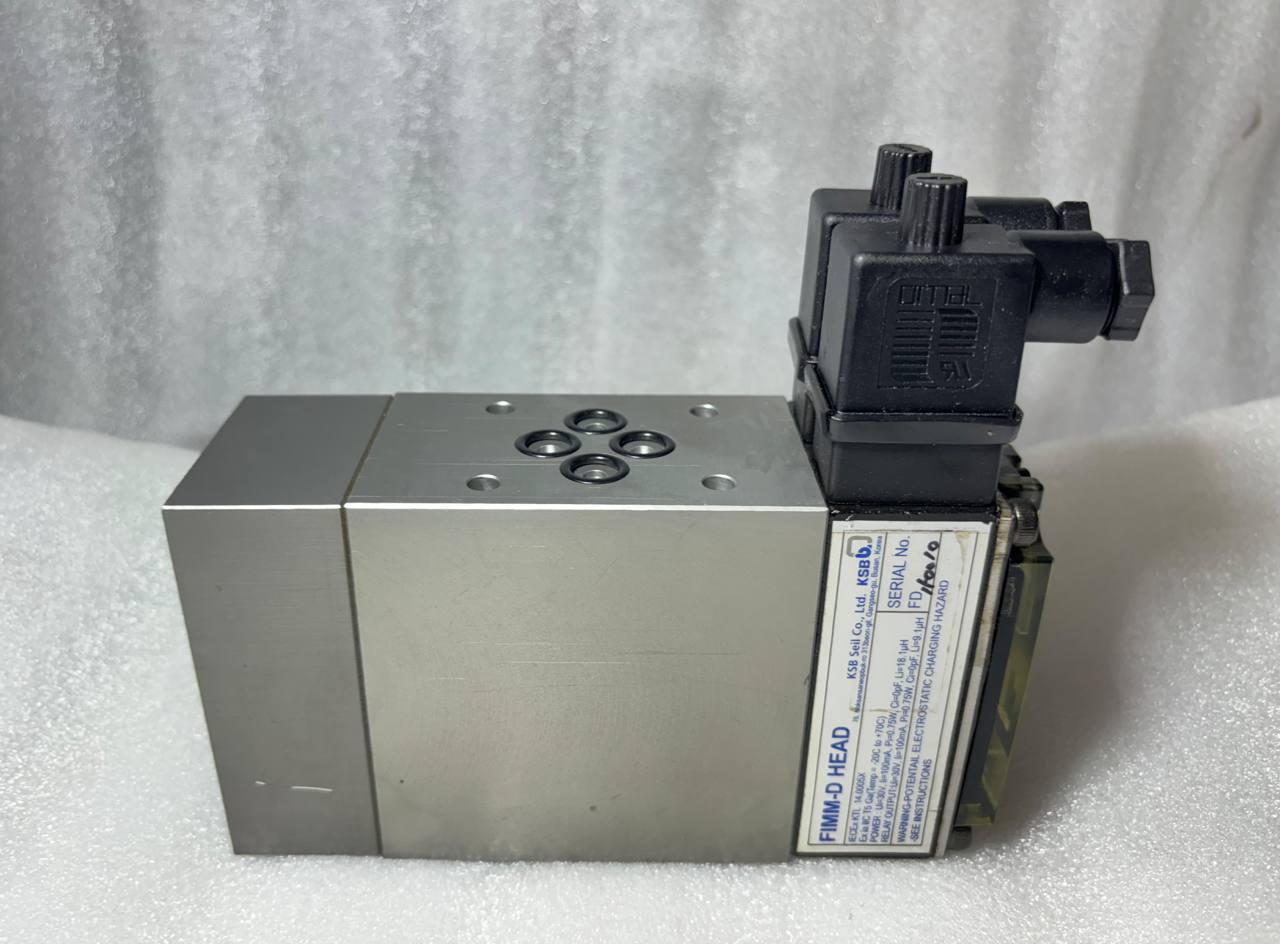

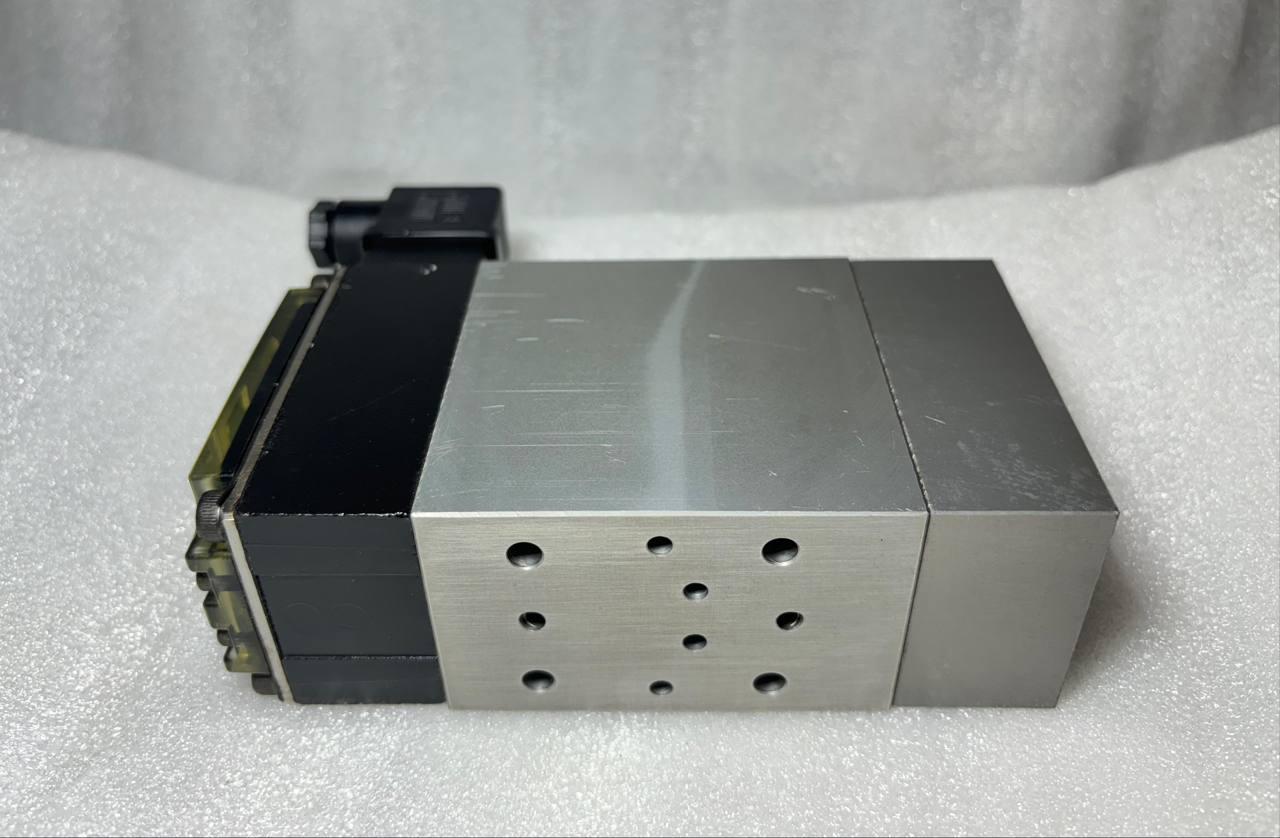

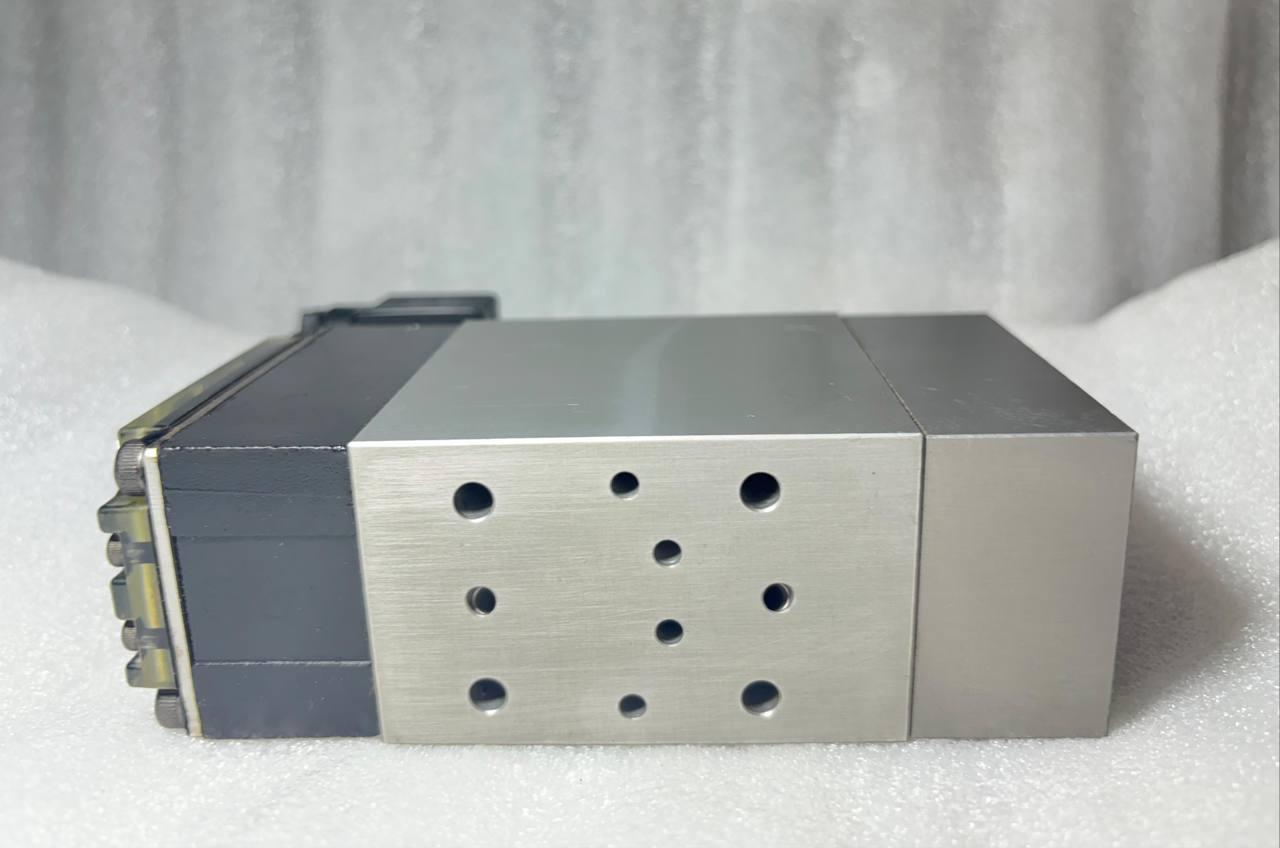

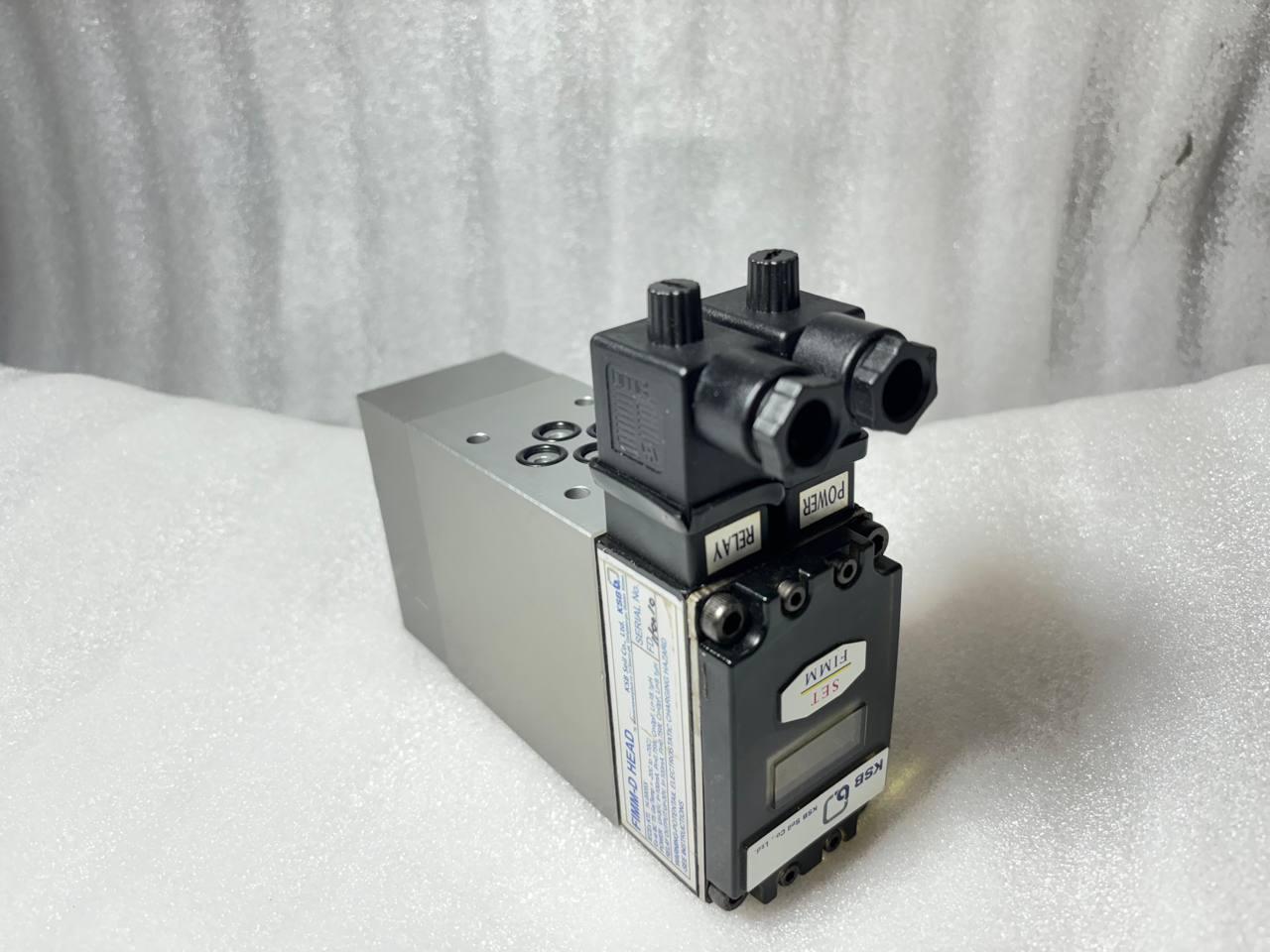

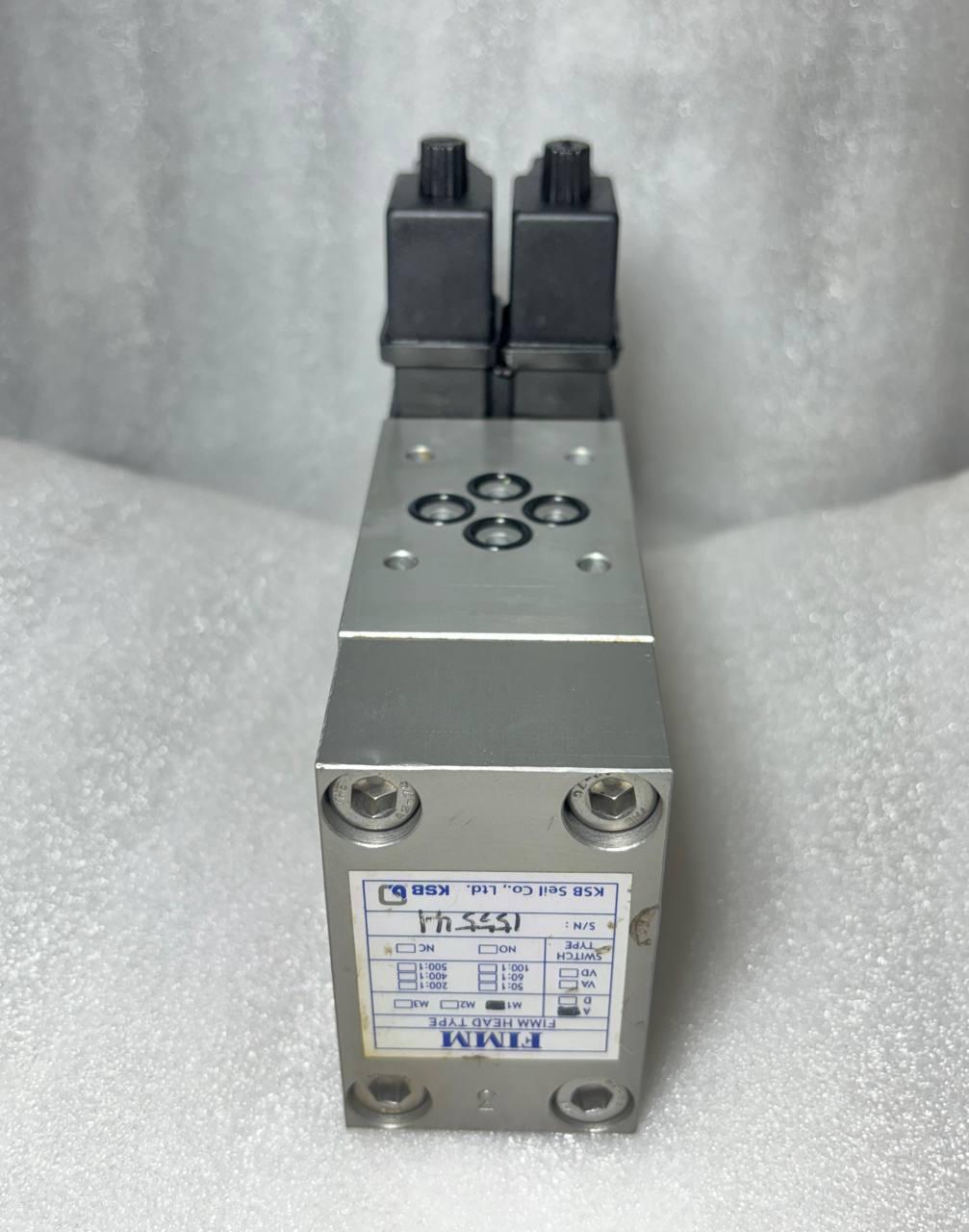

The KSB FIMM Head Type Indicator (FD110010) is a marine-grade intrinsically safe valve position indicator, designed for use in hazardous areas where precision, reliability, and safety are critical.
With IECEx certification (KTL 14.0005X) and Ex ia IIC T5 Ga explosion-proof rating, it provides accurate valve position feedback for hydraulic, pneumatic, and electro-hydraulic systems.
This model features relay output capability, ensuring flexible integration into valve remote control systems (VRCS), automation panels, and marine/offshore monitoring applications.
---
Technical Specifications
• Manufacturer: KSB

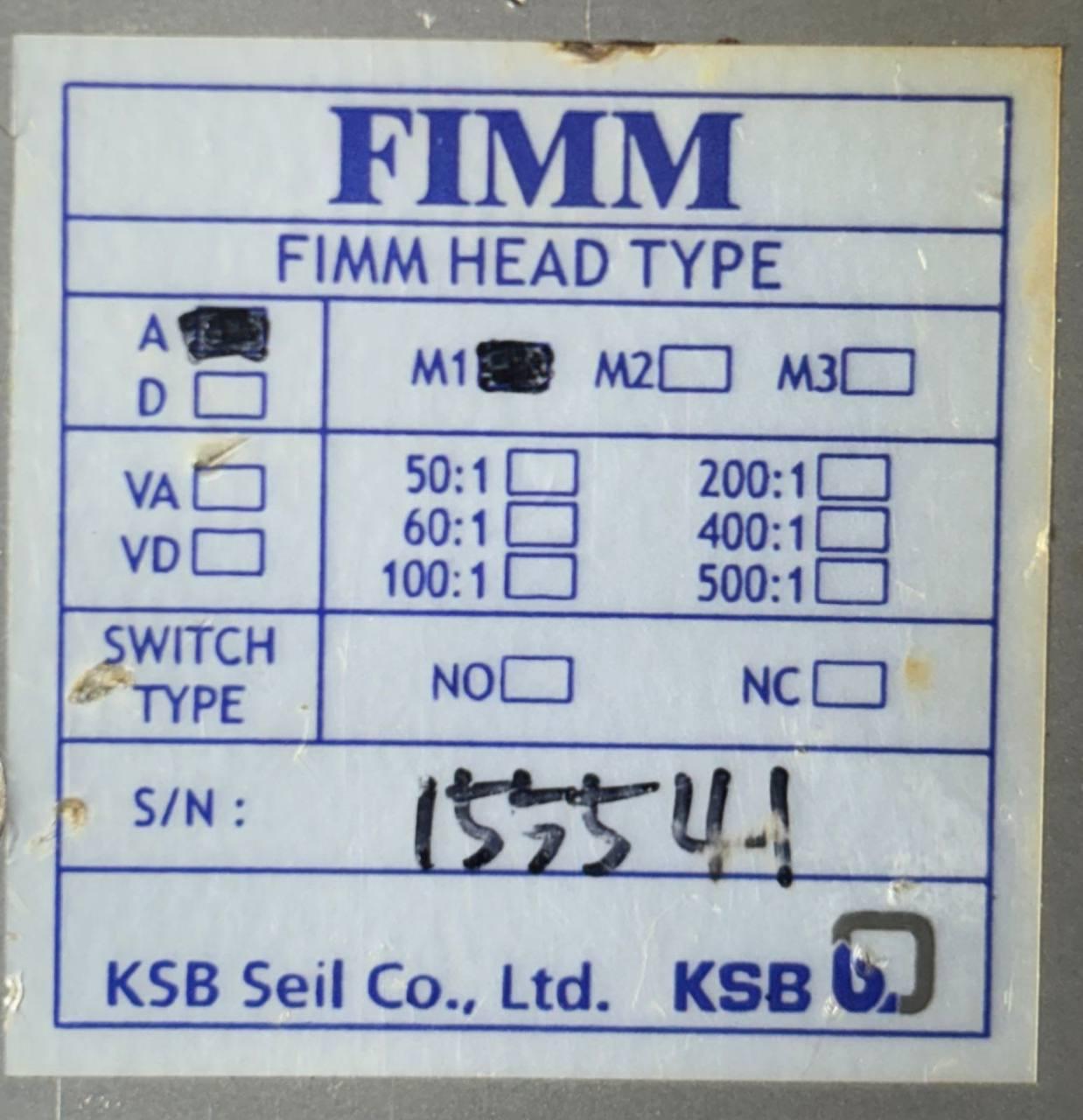

• Model / Type: FIMM Head Type Indicator
• Serial No.: FD110010

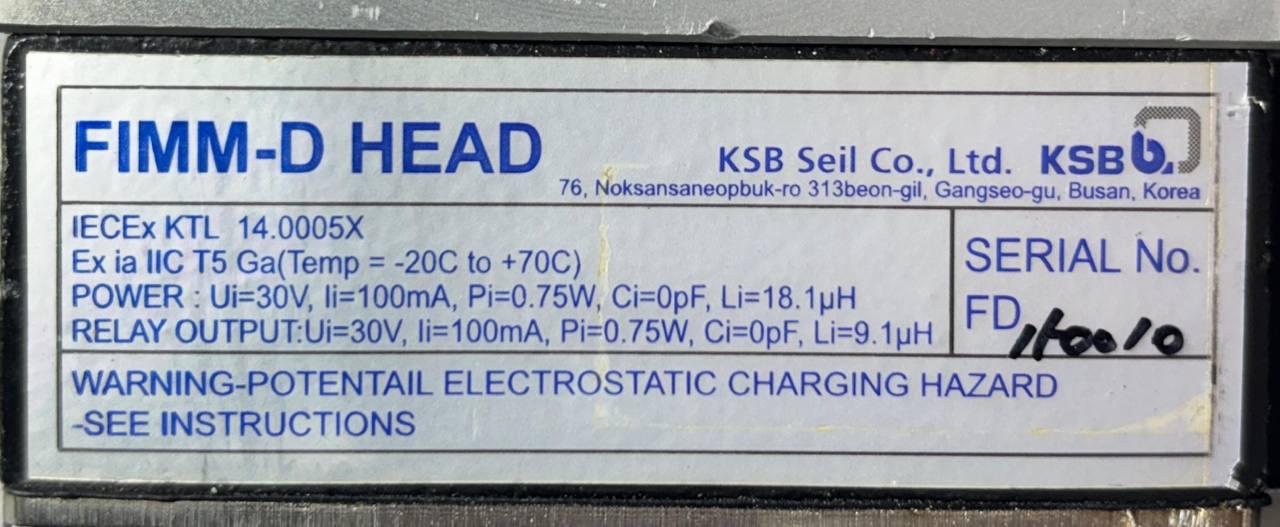

• Certification: IECEx KTL 14.0005X
• Explosion Protection: Ex ia IIC T5 Ga
• Temperature Range: -20°C to +70°C
Electrical Ratings (Main):
• Power Supply: Ui = 30V
• Current: Ii = 100mA
• Power Consumption: Pi = 0.75W
• Capacitance: Ci = 0pF
• Inductance: Li = 18.1µH
Relay Output:
• Voltage: Ui = 30V
• Current: Ii = 100mA
• Power Consumption: Pi = 0.75W
• Capacitance: Ci = 0pF
• Inductance: Li = 9.1µH
---
Key Features
• Intrinsically Safe (Ex ia IIC T5 Ga) – certified for hazardous area installations
• IECEx Certified – meets international explosion-proof standards

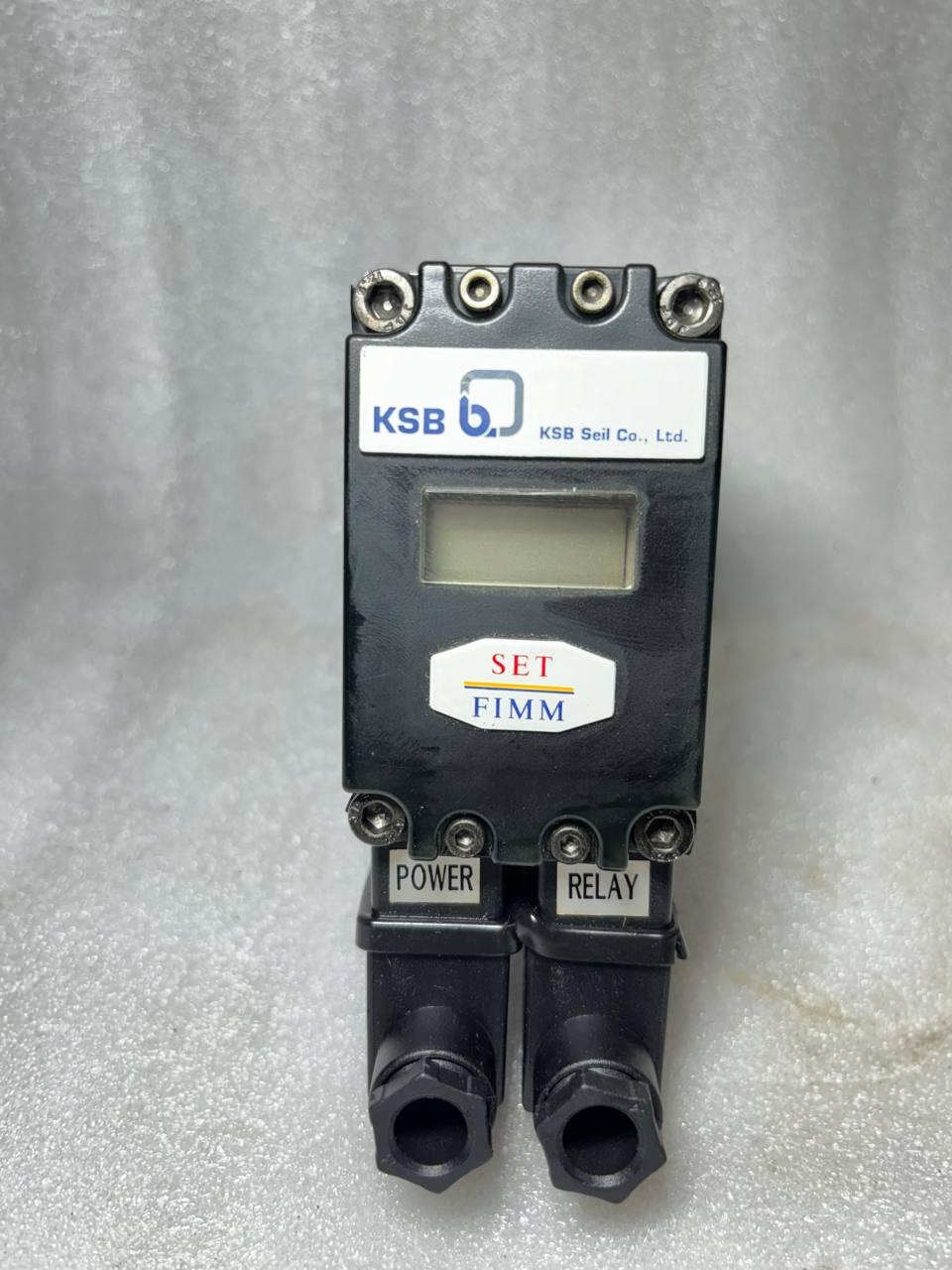

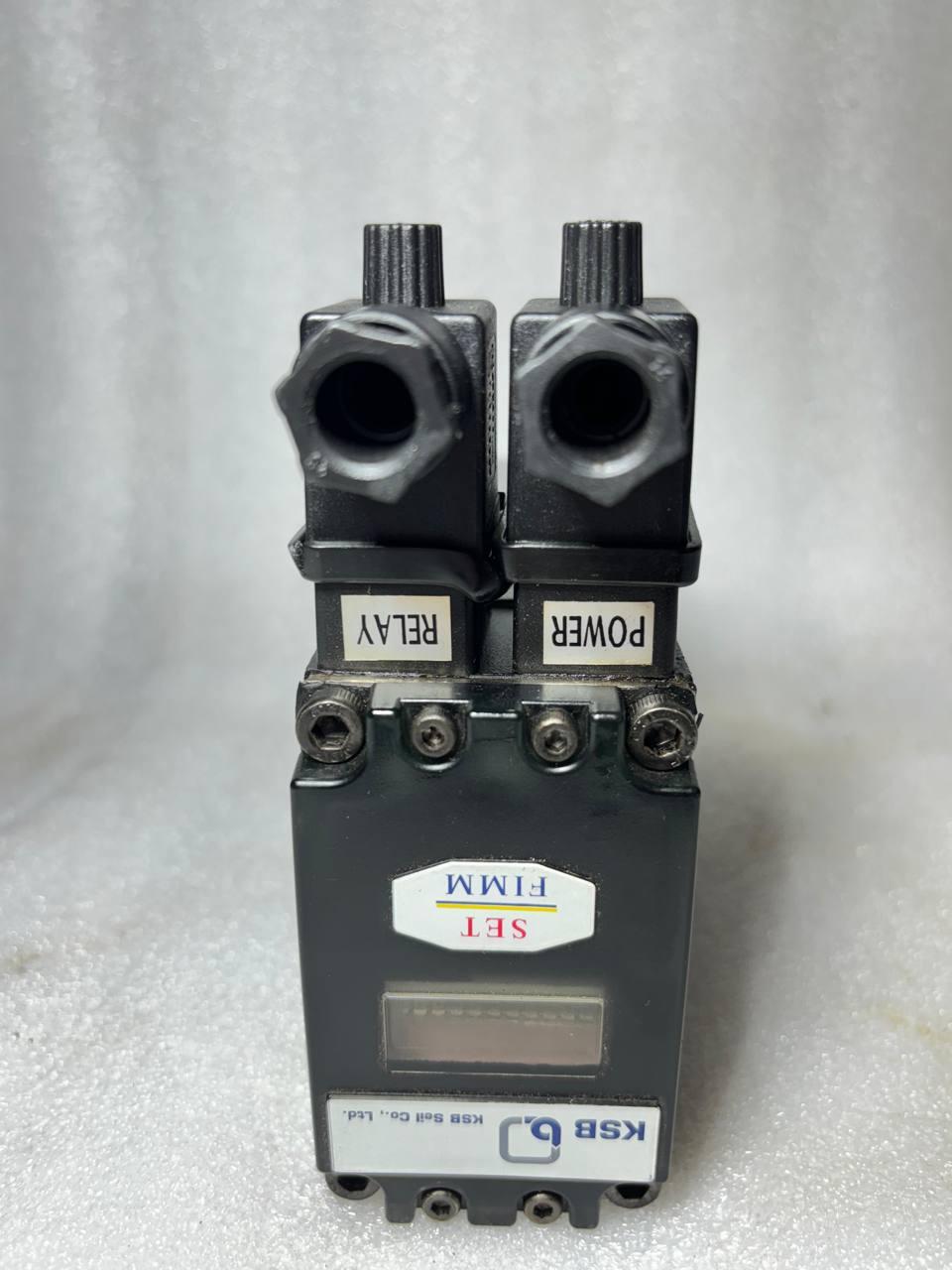

• Relay Output – for reliable switching and control signal integration
• Marine-Grade Design – robust construction for offshore and shipboard use
• Accurate Valve Feedback – ensures open/close position monitoring
• Wide Operating Range – -20°C to +70°C
• Low Power Consumption – only 0.75W
---
Applications
• Marine & Offshore: Valve Remote Control Systems (VRCS), cargo handling, ballast monitoring
• Oil & Gas: Explosion-proof valve indication in refineries, pipelines, and storage terminals
• Industrial Automation: Position monitoring in safety-critical valve networks
• Power Plants: Control and monitoring of high-safety valve operations
• Shipbuilding: Feedback for hydraulic & electro-hydraulic valve actuators
---
