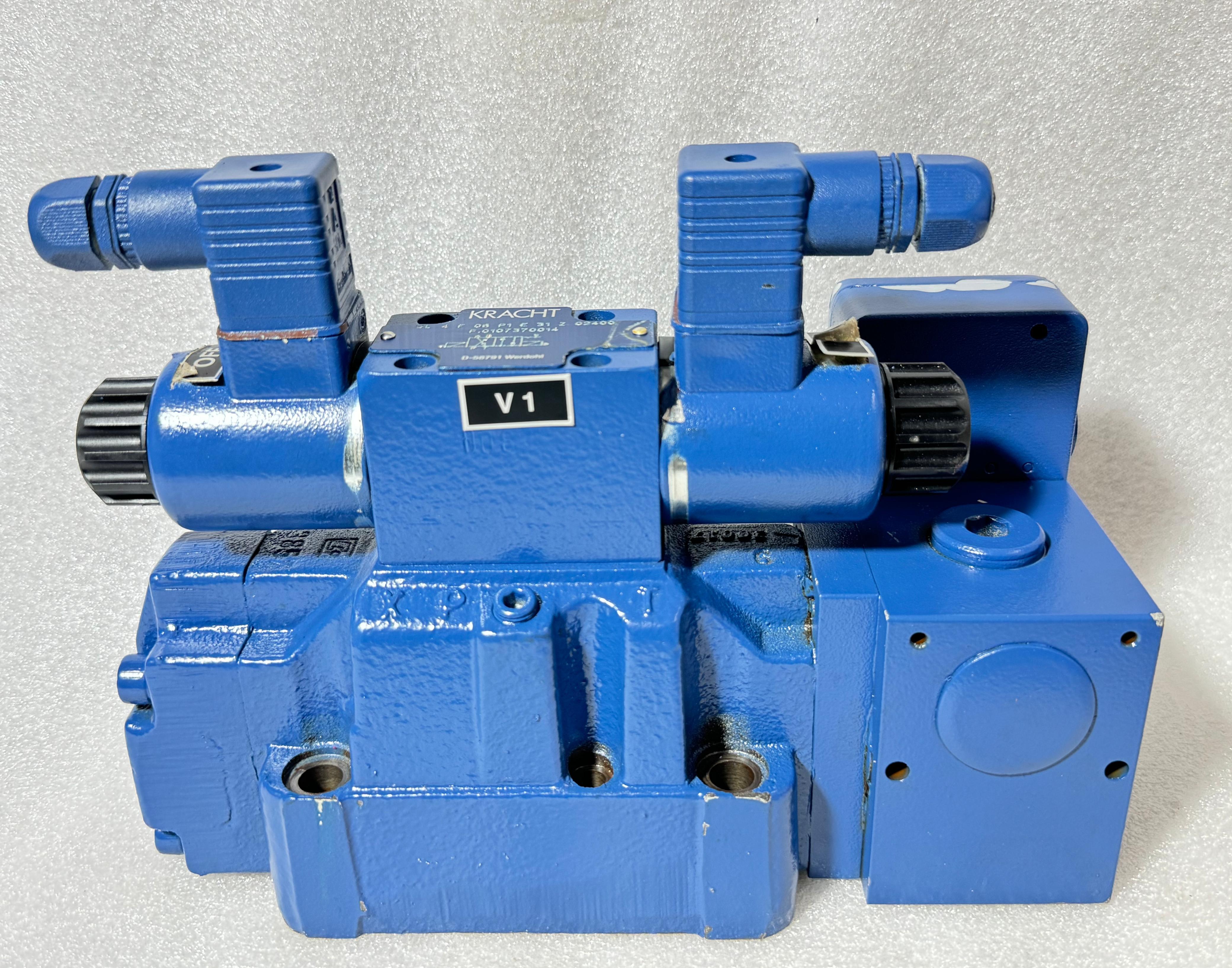

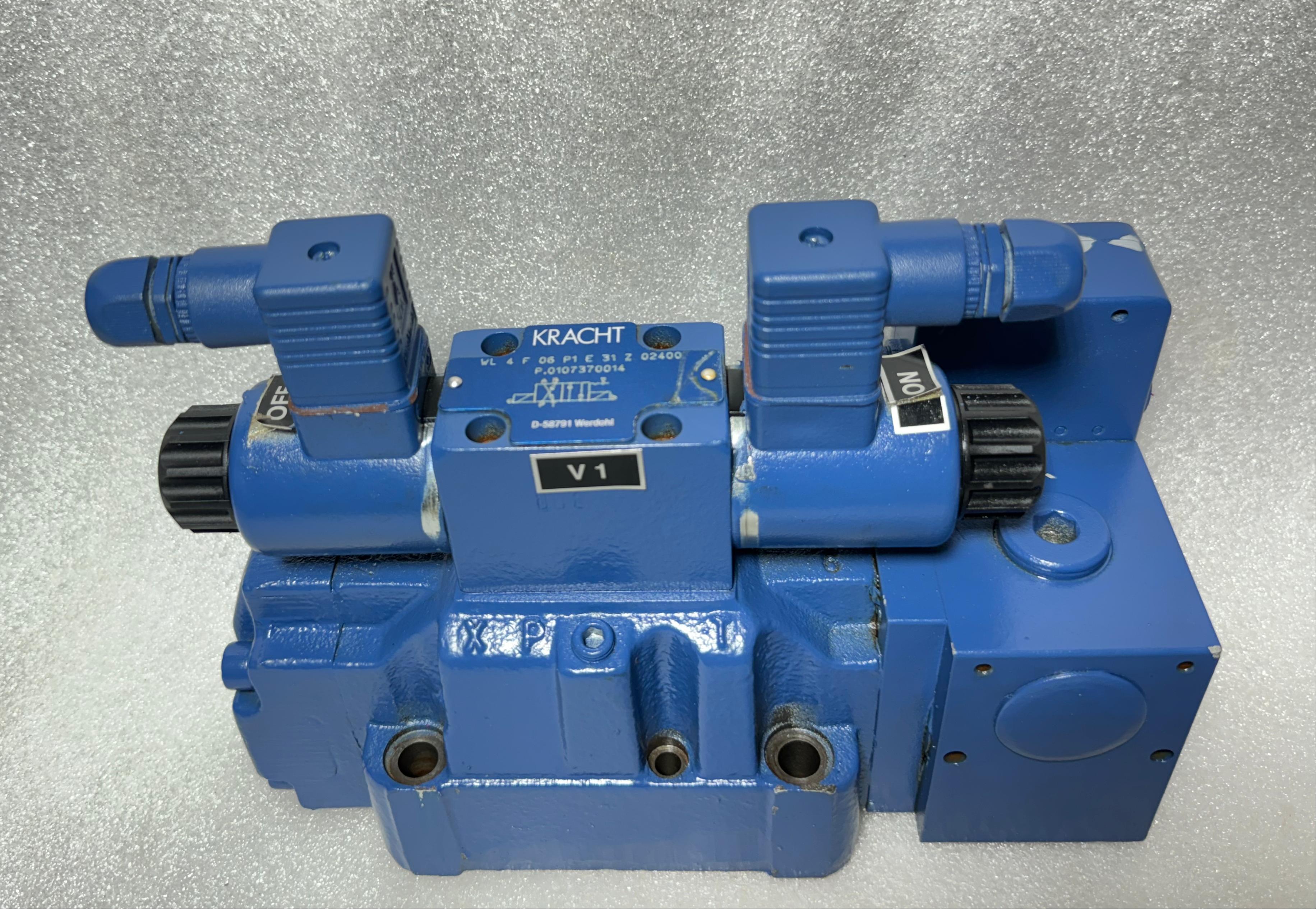

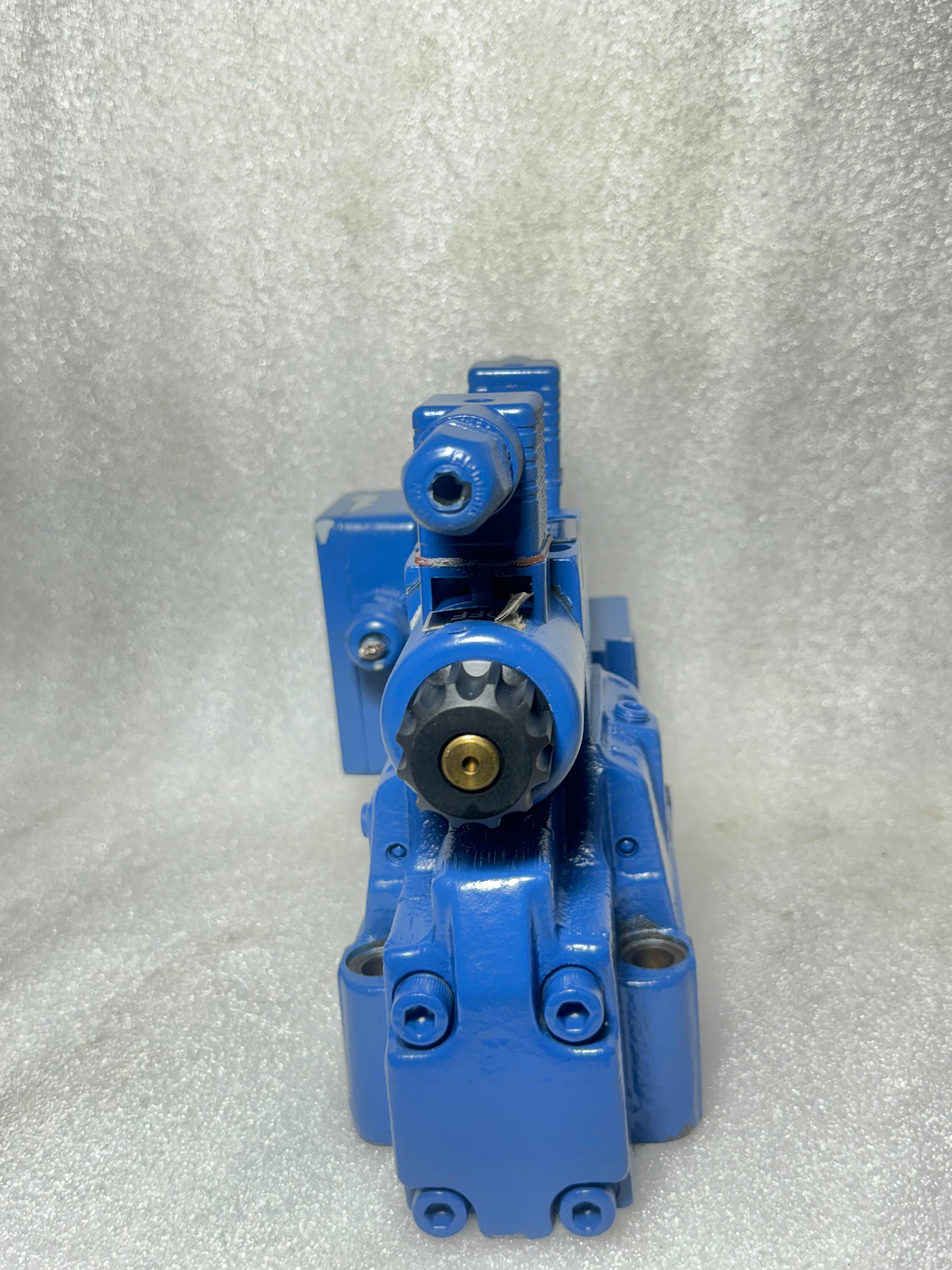

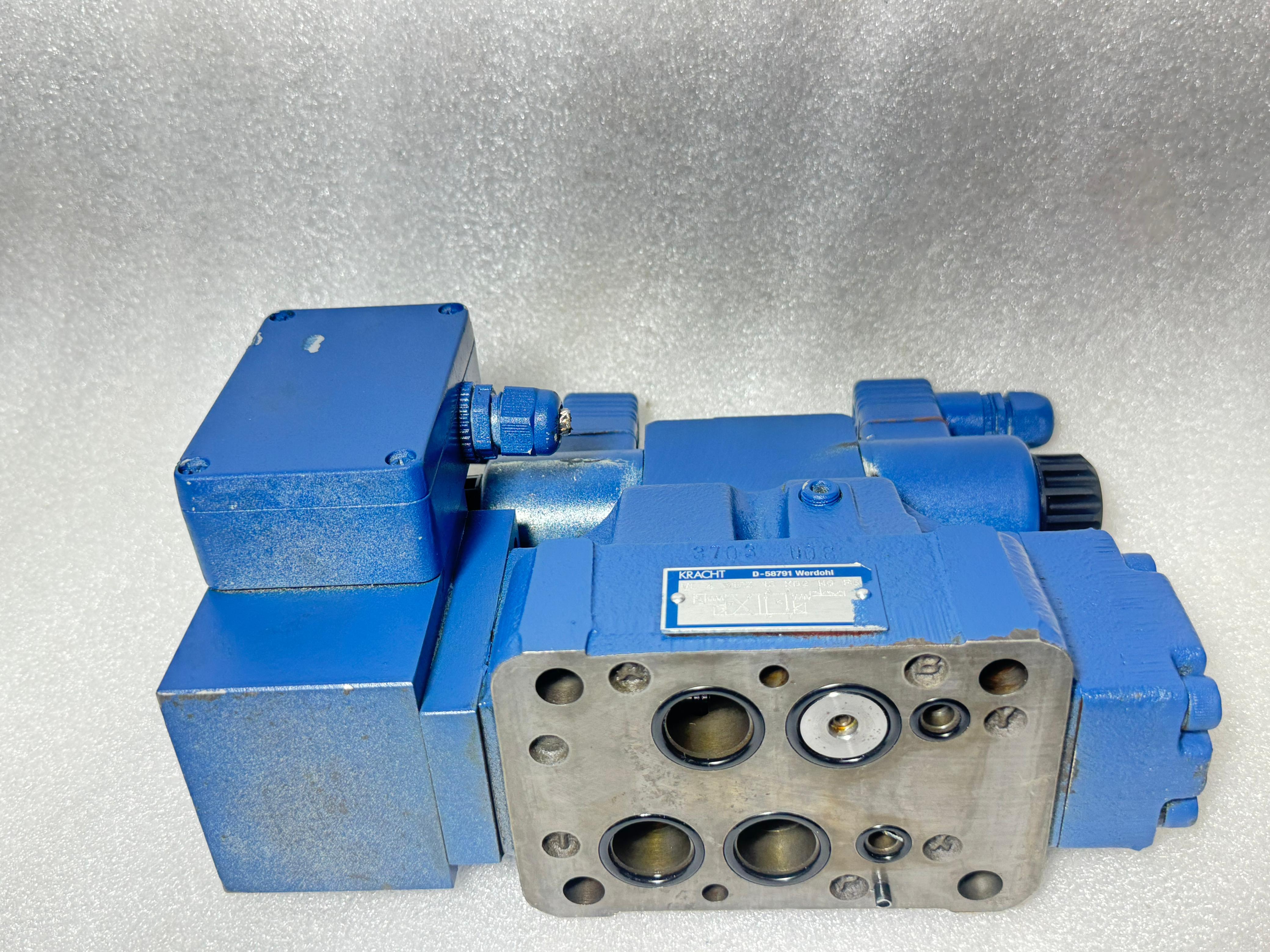

KRACHT WL 4 F 06 P1 E 31 Z 02400 HYDRAULIC VALVE WITH BLOCK

The Kracht WL 4 F 06 P1 E 31 Z 02400 is a 24V DC solenoid-operated directional control valve designed for precise hydraulic flow control in marine, shipbuilding, offshore, and heavy industrial automation systems. It comes complete with the Kracht Hydraulic Block WL 4 S17Z 16 XD2 H0 F6, offering high-pressure compatibility and compact installation for power units, valve manifolds, and lube oil control systems.

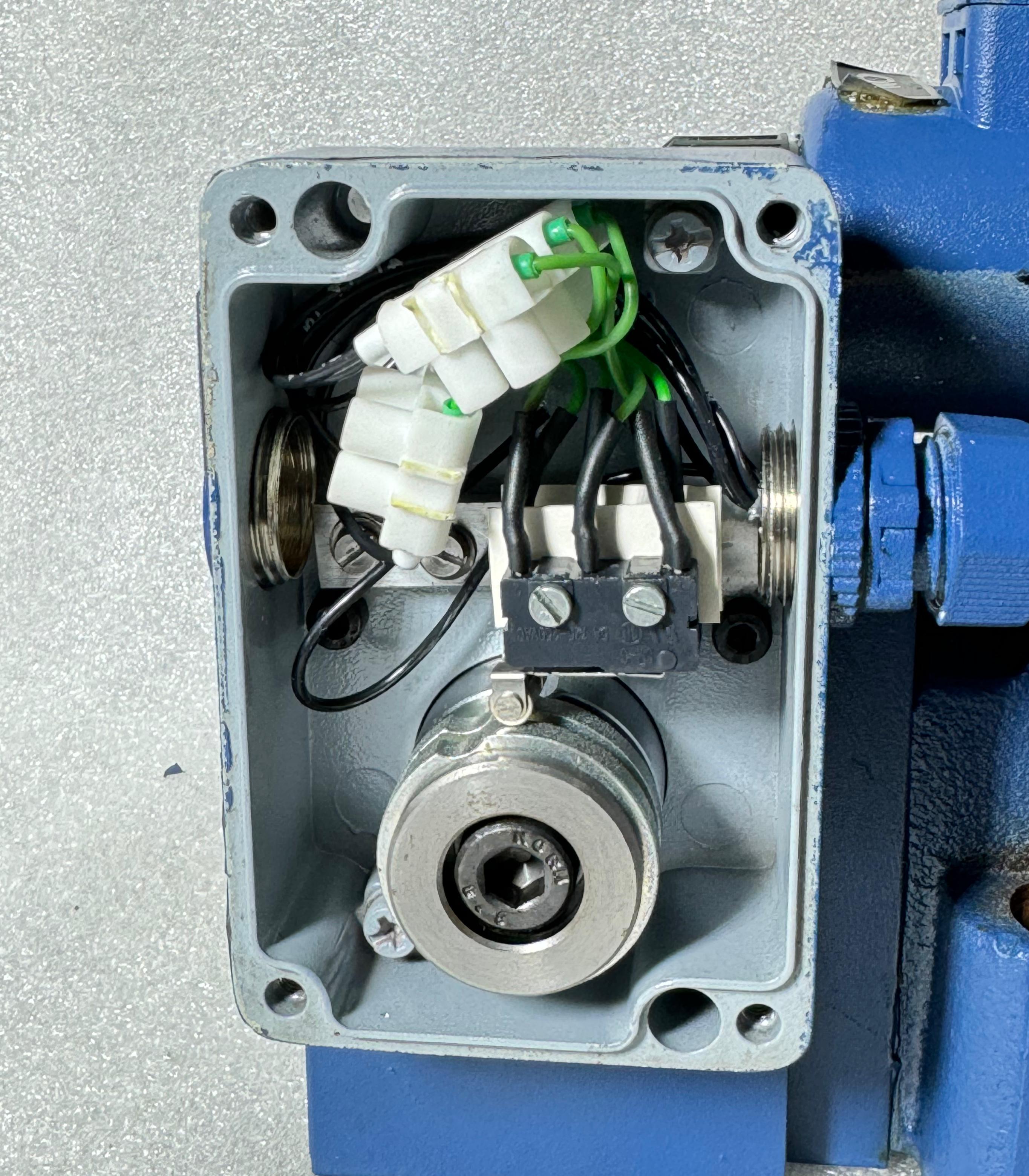

With a max pressure rating of 320 BAR on ports P, A, B and 210 BAR on port T, this unit is engineered to handle tough marine and industrial conditions. The solenoid coil is fitted with a DIN 43 650 standard connector and Pg11 plug, ensuring easy integration in most control systems.

Supplied by Gani Marine Export – Global Marine Hydraulic Supplier, with worldwide ready stock and technical verification.

 Technical Specifications

Brand: Kracht GmbH (Germany)

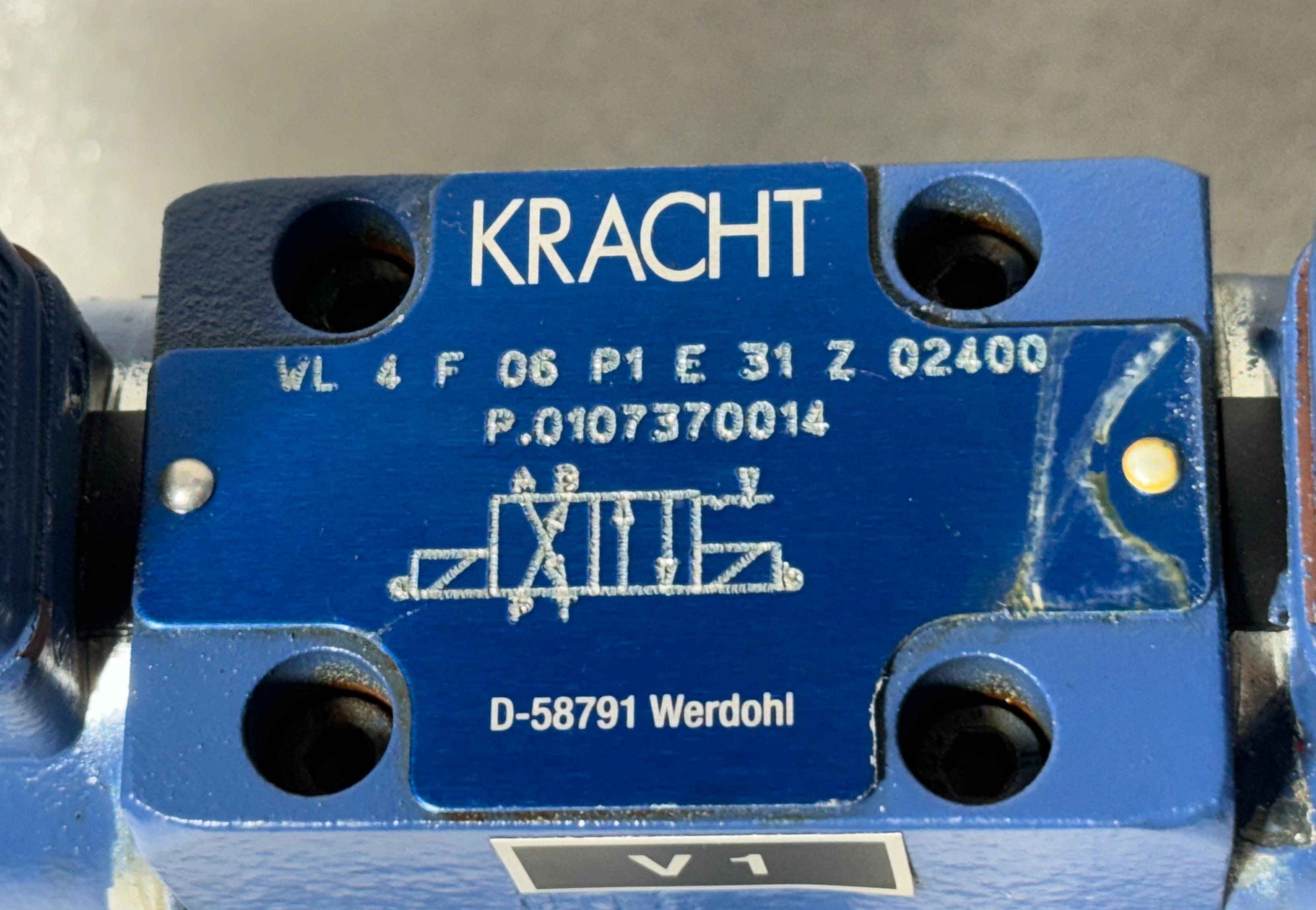

Valve Type: WL 4 F 06 P1 E 31 Z 02400

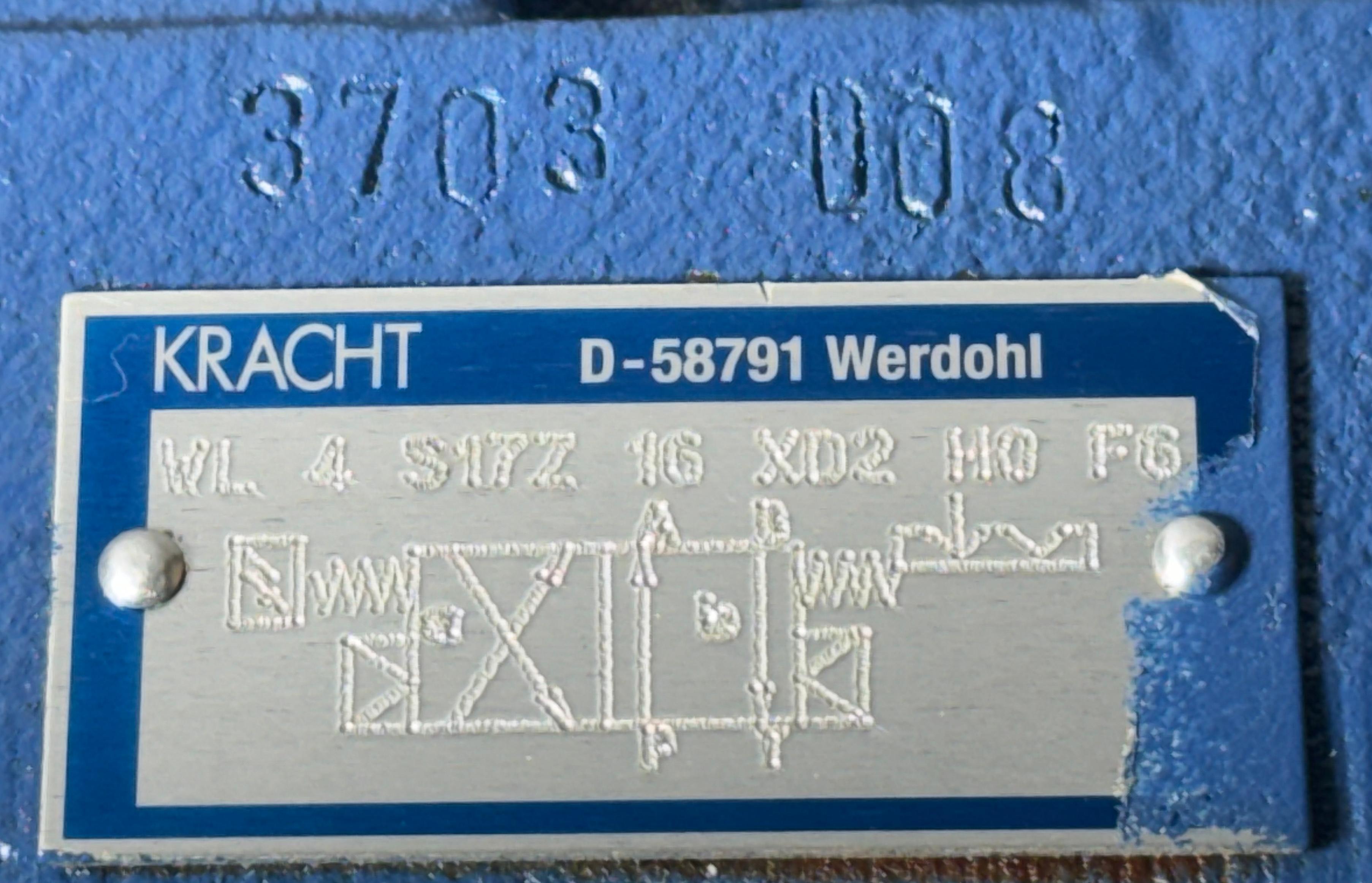

Hydraulic Block Type: WL 4 S17Z 16 XD2 H0 F6

Operating Voltage: 24V DC / 1.29A

Connector: DIN 43 650 with Pg11 plug

Max Pressure (Ports P, A, B): 4641 PSI / 320 BAR

Max Pressure (Port T): 3046 PSI / 210 BAR

Function: Solenoid-operated directional control

Application Medium: Hydraulic Oil (ISO VG 32–68)

Mounting: CETOP/NG6 Subplate

Use Case: On/Off fluid control, directional switching

 Product Features

 High-pressure performance up to 320 BAR

 Includes matched hydraulic block for integrated use

 24V DC low power draw – only 1.29A

 Standard DIN coil with plug – easy to wire & replace

 Built for marine, offshore & heavy-duty hydraulic units

 Supplied worldwide by Gani Marine Export

 Applications

Ship hydraulic control panels

Marine hydraulic power units (HPU)

Offshore oil platform valve systems

Directional oil flow control in winches & cranes

Lube oil control skids in industrial automation
