Kawasaki DM2P-10-107B-A14 Manually Operated Directional Control Valve
Kawasaki DM2P-10-107B-A14 Manually Operated Directional Control Valve

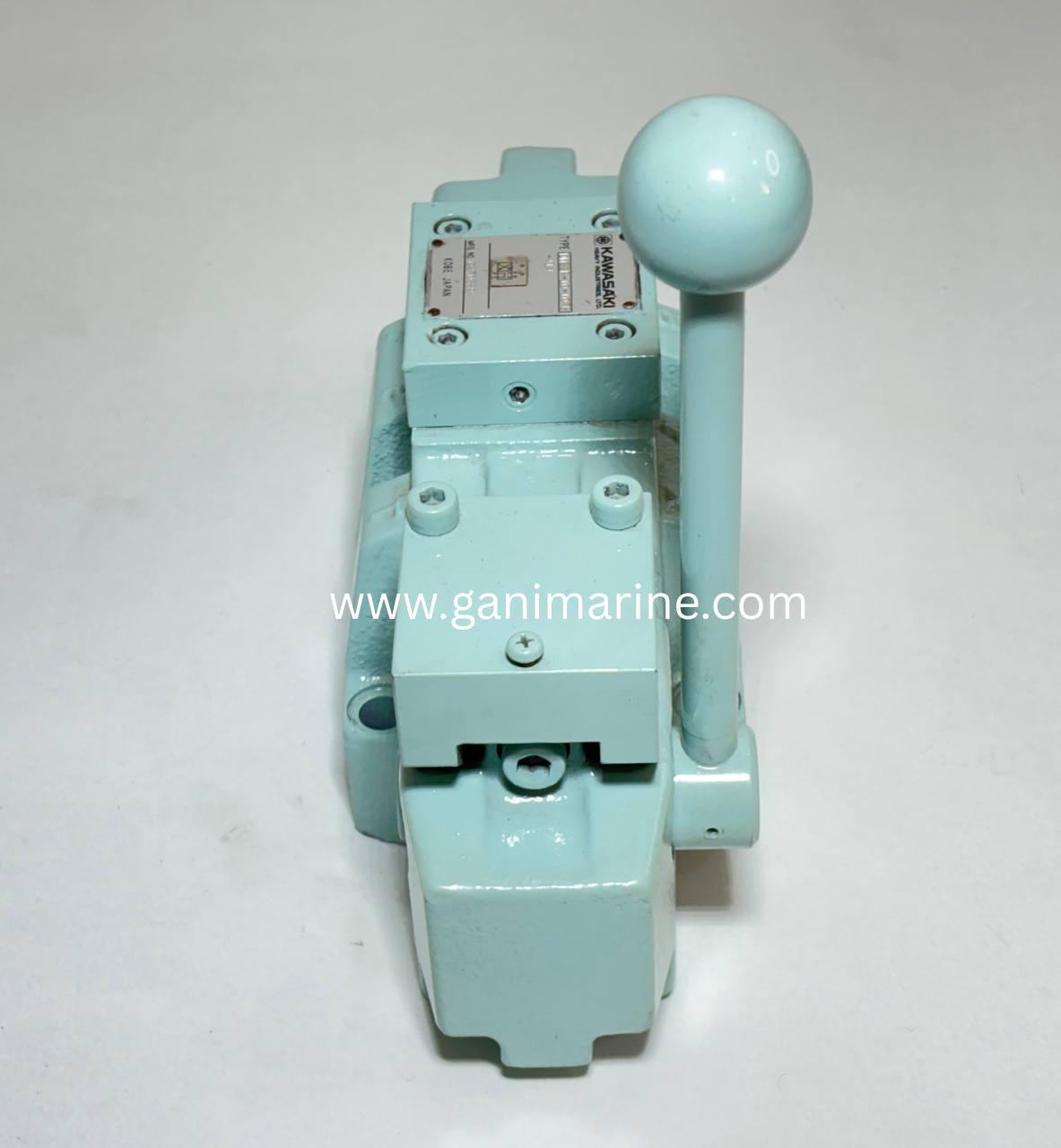

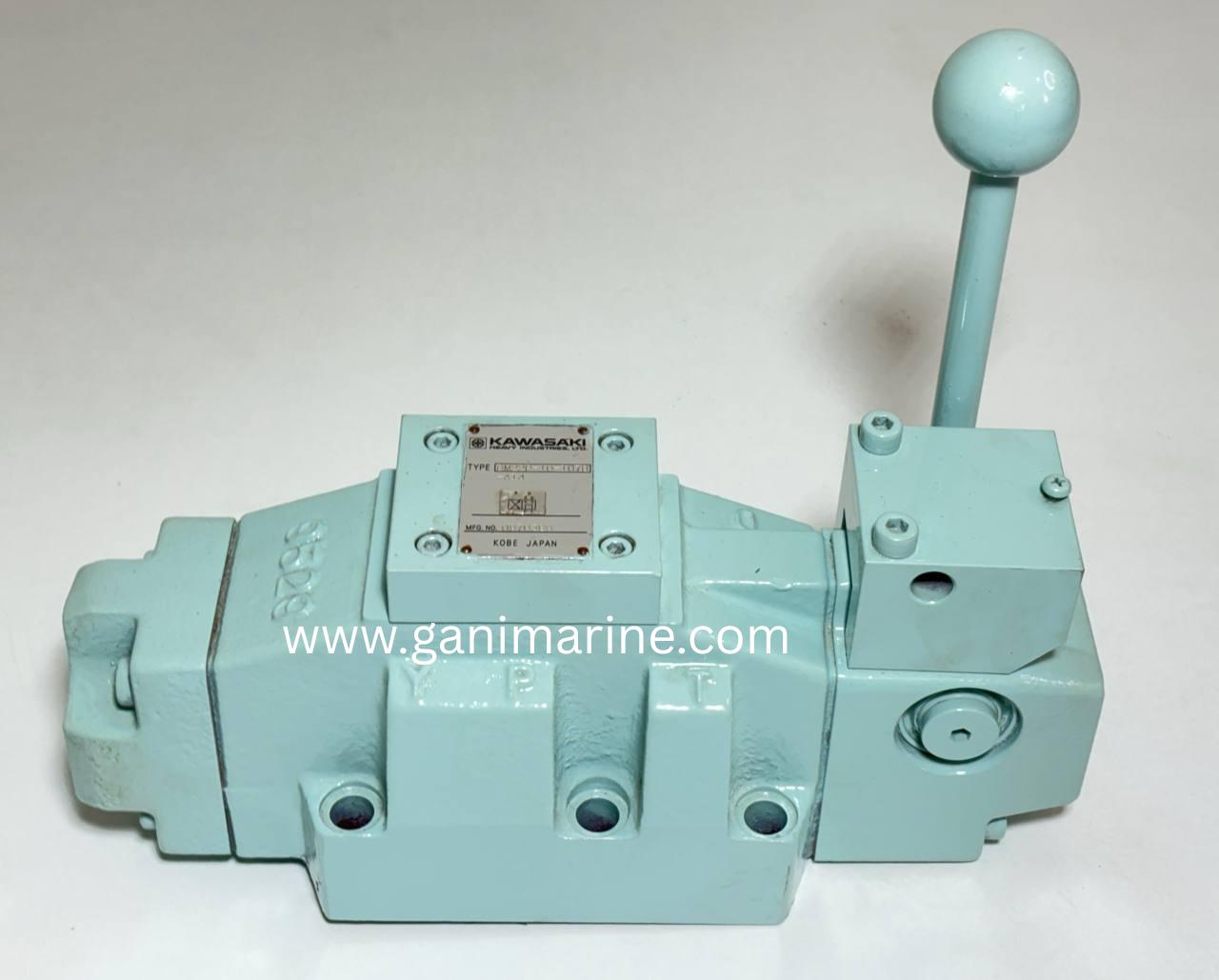

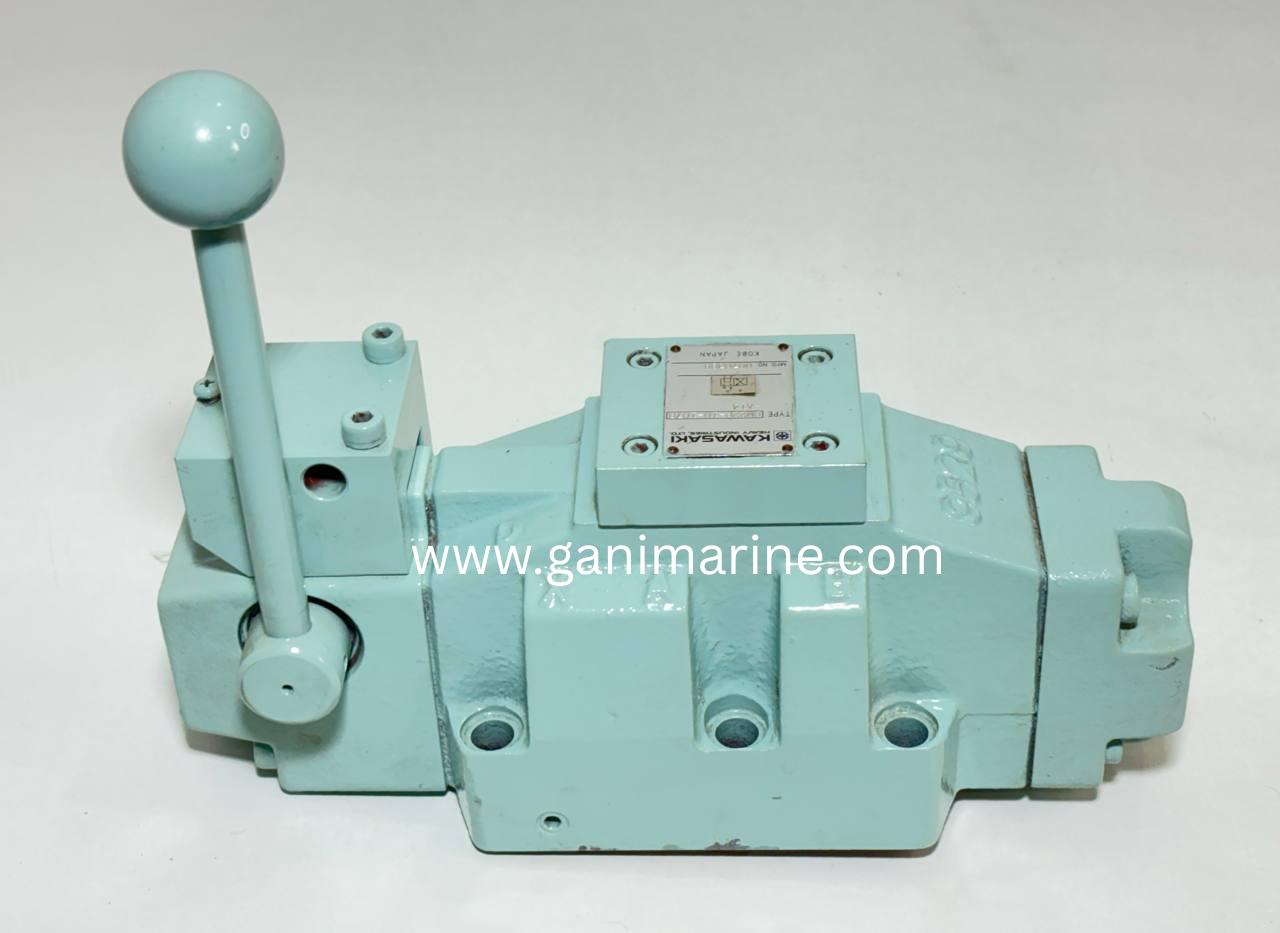

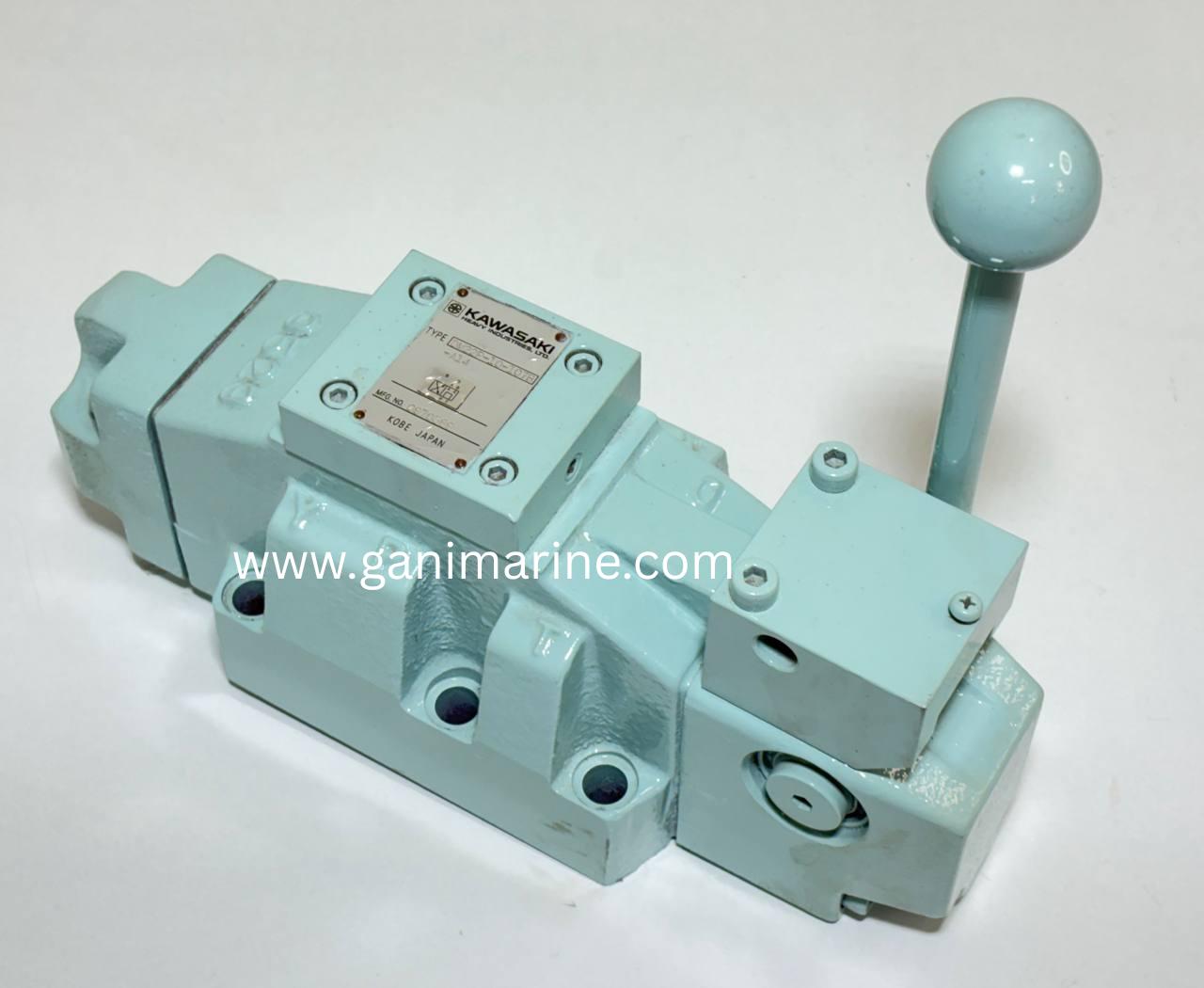

The Kawasaki DM2P-10-107B-A14 is a manually operated directional control valve from Kawasaki Heavy Industries, Kobe Japan, designed for reliable hydraulic flow direction control in demanding marine, offshore, industrial, and heavy-duty hydraulic systems. Built with a robust cast body and corrosion-resistant light blue epoxy coating, this DM-series lever valve ensures dependable manual operation where electrical or proportional control is not required.

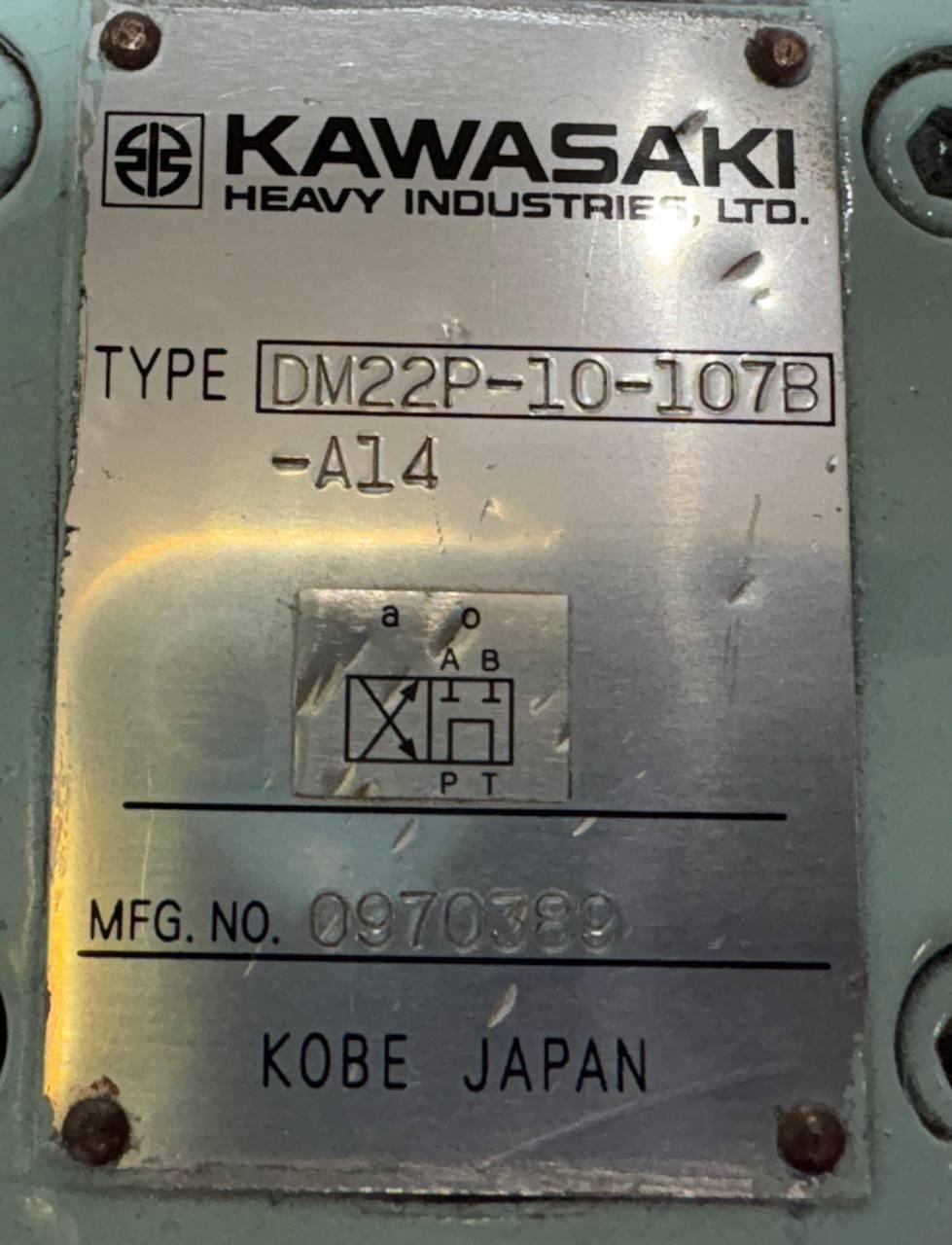

This Kawasaki DM2P valve supports high working pressures up to 35 MPa on ports P, A, B and 21 MPa on T port, with flow ranges typically 10–100 L/min, depending on spool configuration. The size 10 (nominal 10) construction makes it suitable for compact hydraulic systems, marine machines, offshore equipment, cranes, winches, deck machinery, presses, and industrial power units. Ports P, A, B, T are clearly marked, and the nameplate indicates 2-position or 3-position spool functionality, allowing flexible hydraulic flow control such as P to A/B switching and center neutral / cross-center options.
Key Specifications
• Model: Kawasaki DM2P-10-107B-A14
• Manufacturer: Kawasaki Heavy Industries, Kobe, Japan
• Serial No.: 0970389
• Type: Manual directional control valve / hand lever valve
• Nominal Size: 10
• Pressure Ratings:
• Ports P / A / B: Up to 35 MPa (? 350 bar / 357 kgf/cm²)
• Port T: Up to 21 MPa (? 210 bar / 214 kgf/cm²)
• Flow Capacity: Approx. 10–100 L/min depending on spool type and conditions
• Operation: Manual lever / hand-operated spool shifting
• Coating: Light blue epoxy – corrosion resistant for marine/offshore
• Ports: P (Pressure), A/B (Actuator), T (Tank)

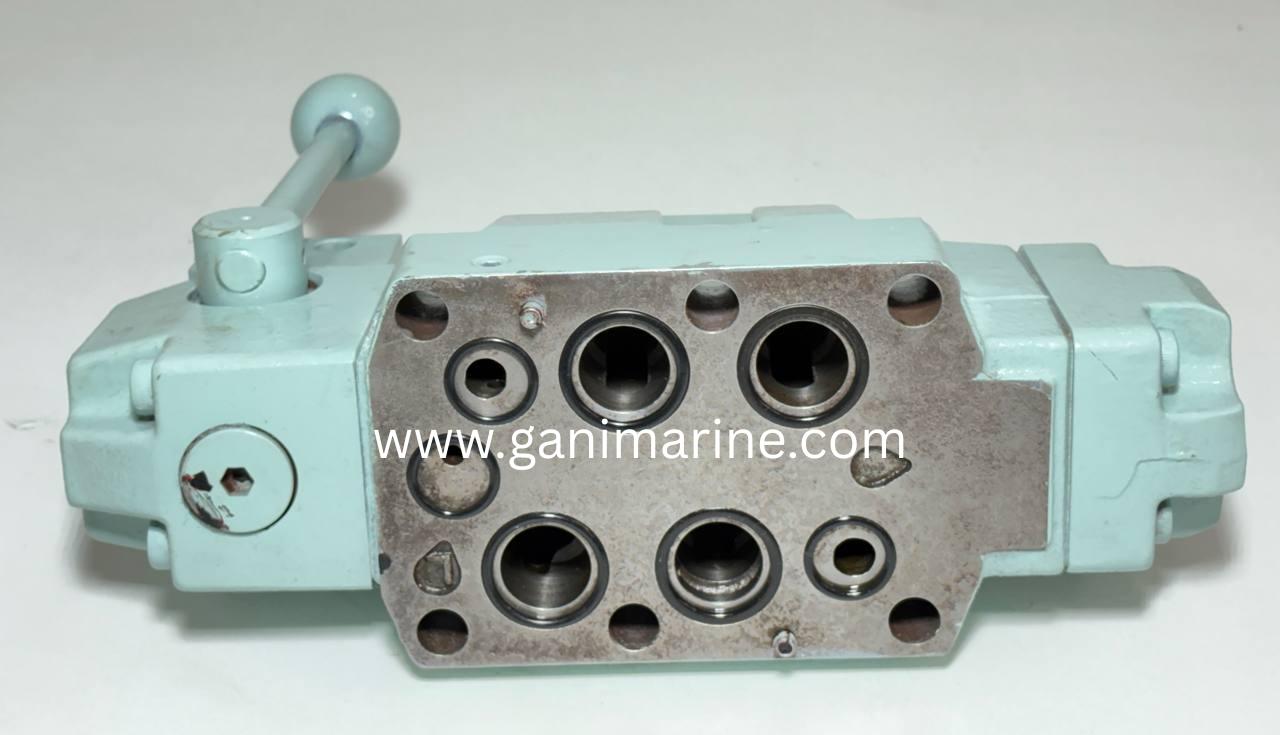

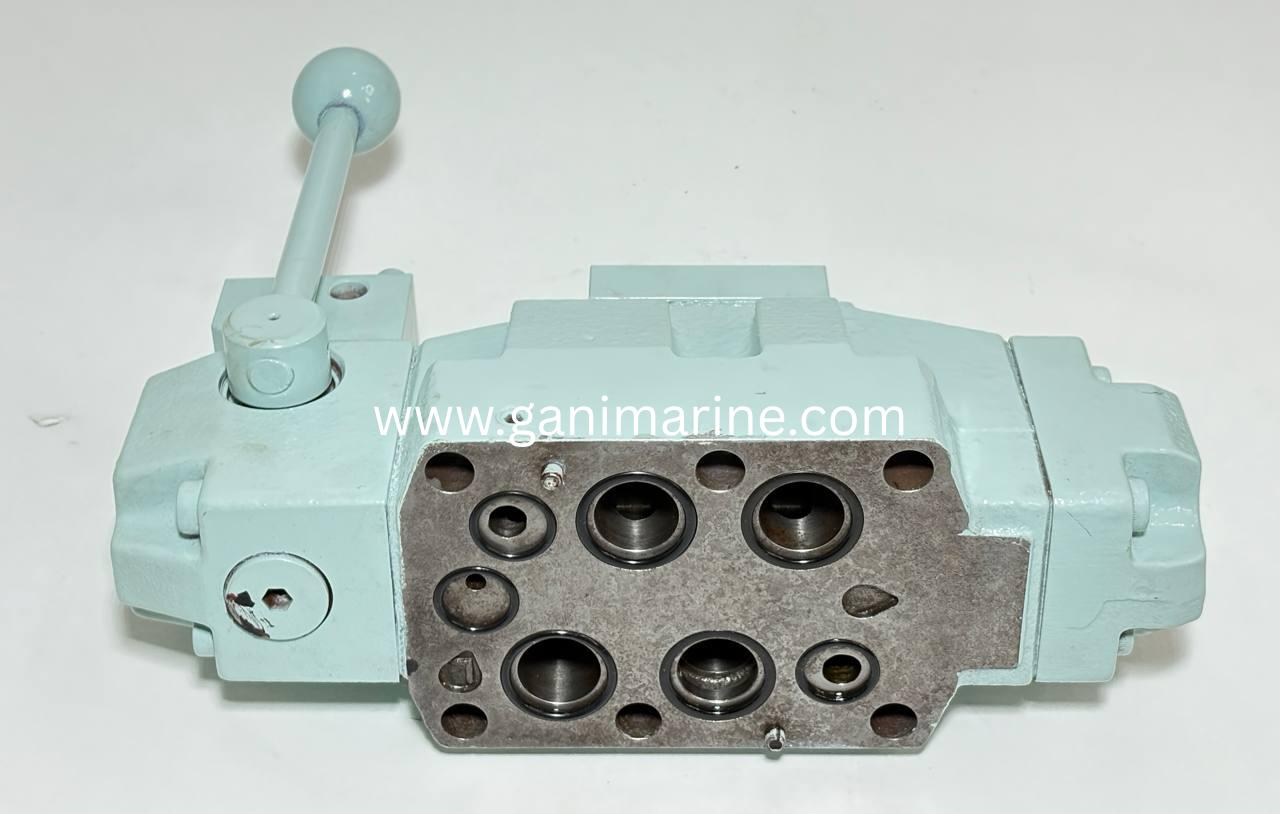

• Mounting: Sub-plate installation, industry standard B2B hydraulic mounting style
Function & Operation
This manual lever directional valve allows the operator to mechanically shift the spool using the blue control knob, directing hydraulic oil between P, A, B, and T ports. It provides:
• Reliable control without solenoids or electronics
• Fail-safe manual operation
• Smooth spool shifting
• High durability in harsh working environments
Applications
• Marine hydraulic systems
• Offshore machinery
• Ship deck machinery
• Cranes, winches, lifting equipment
• Industrial hydraulic power units
• Press machines, heavy machinery
• Oil & gas and process industry equipment
Product Features
• Heavy-duty Kawasaki Japan quality
• High pressure capability up to 35 MPa
• Manual lever for safe, simple, dependable operation
• Corrosion-protected epoxy coating
• Compact size 10 hydraulic installation
• Long-life robust cast body design
• Suitable for harsh marine and offshore environments
