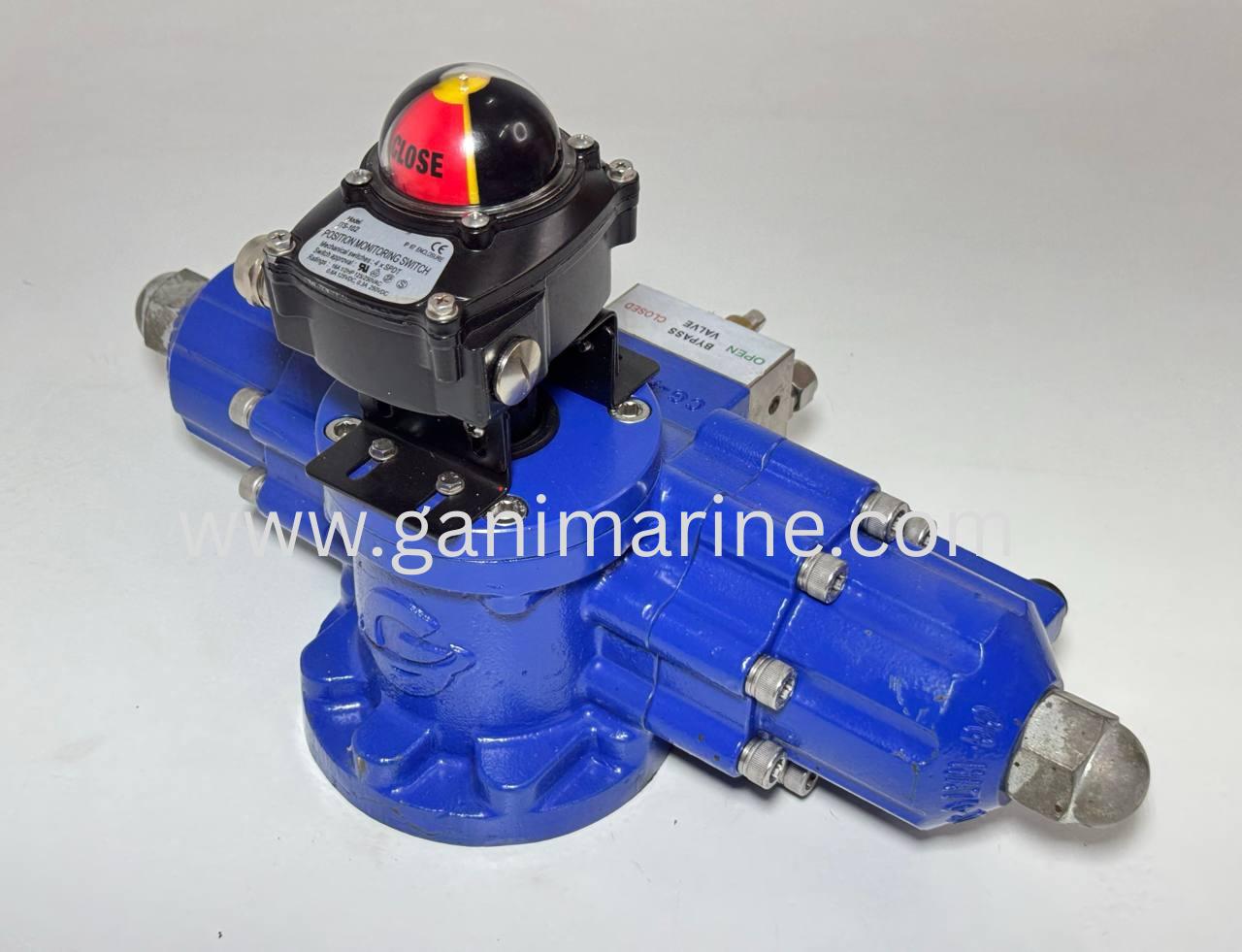

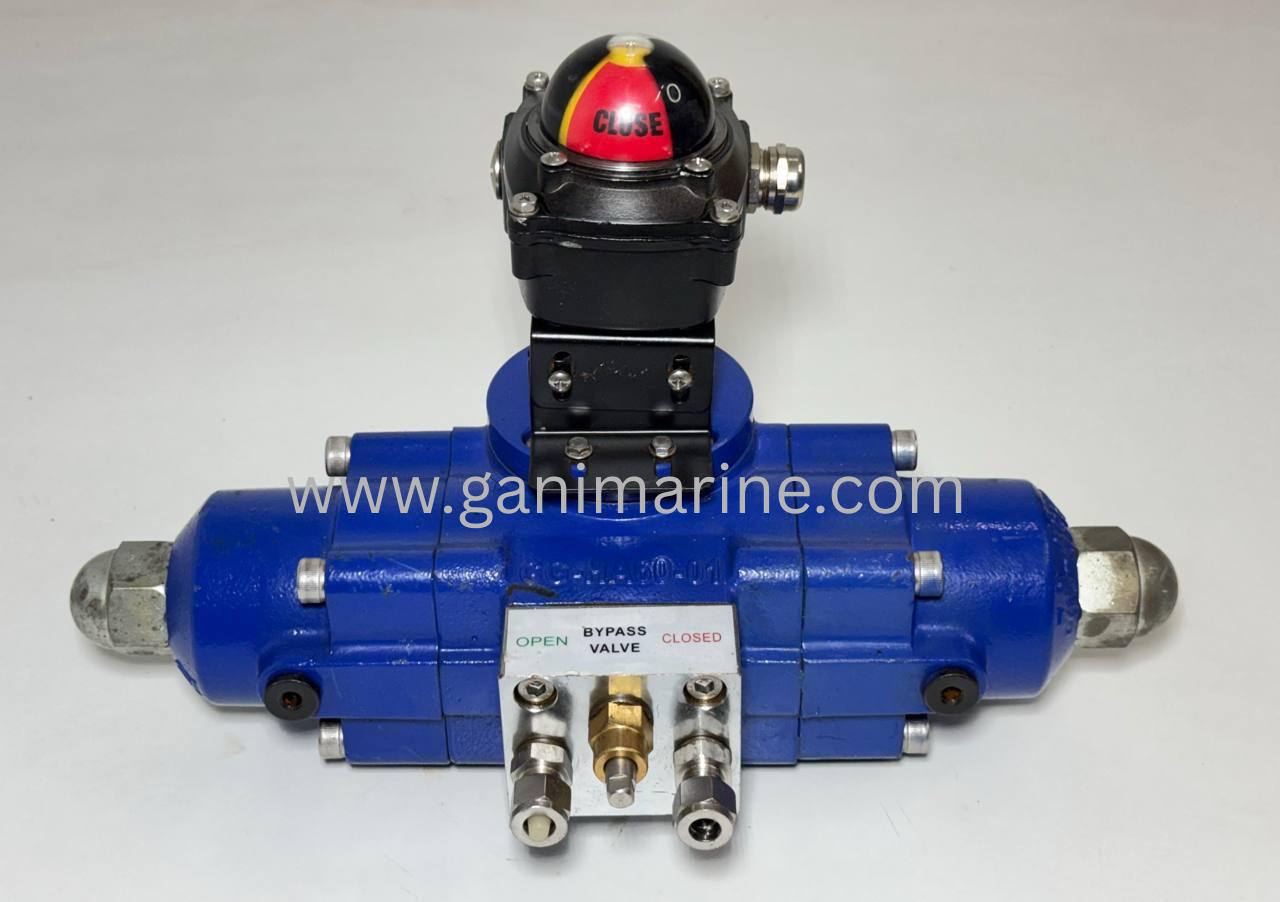

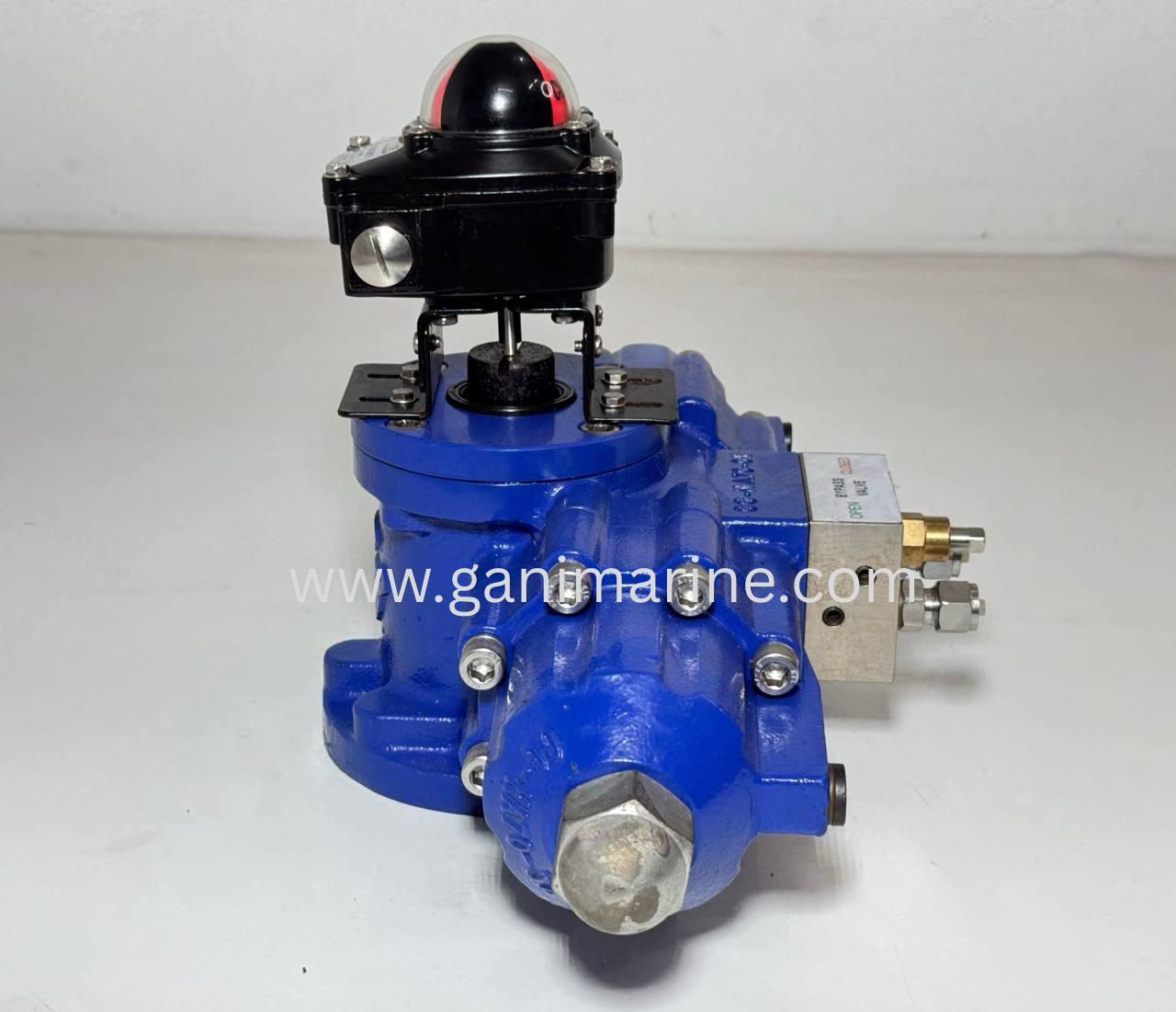

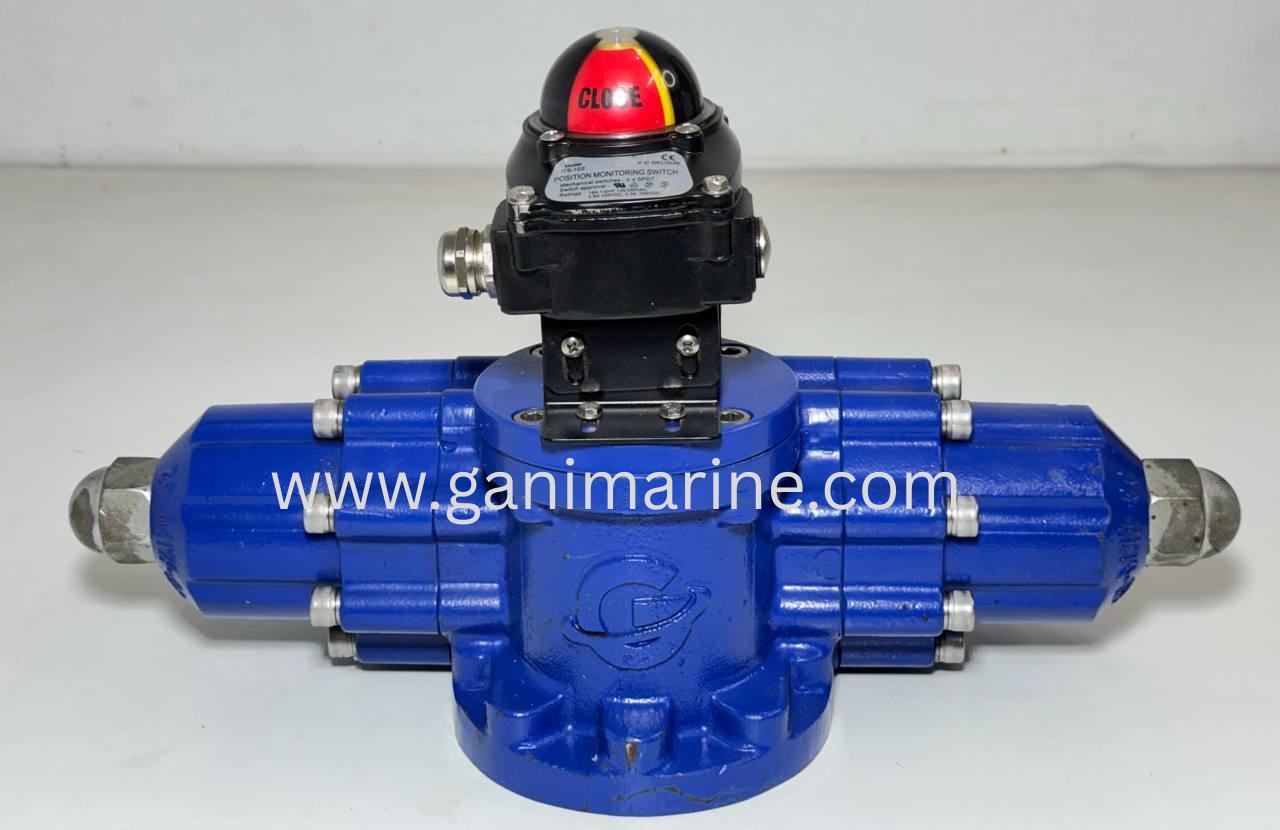

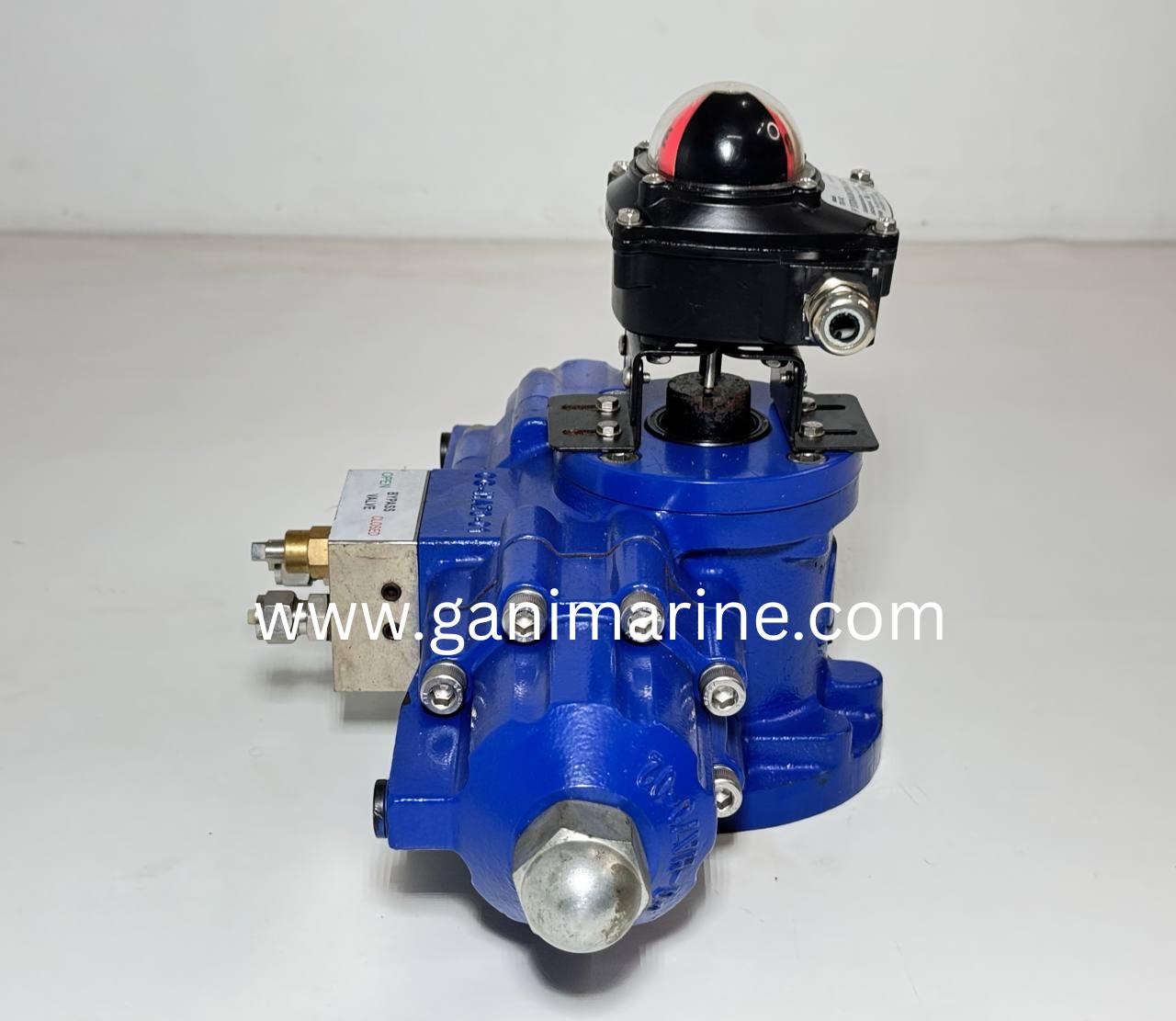

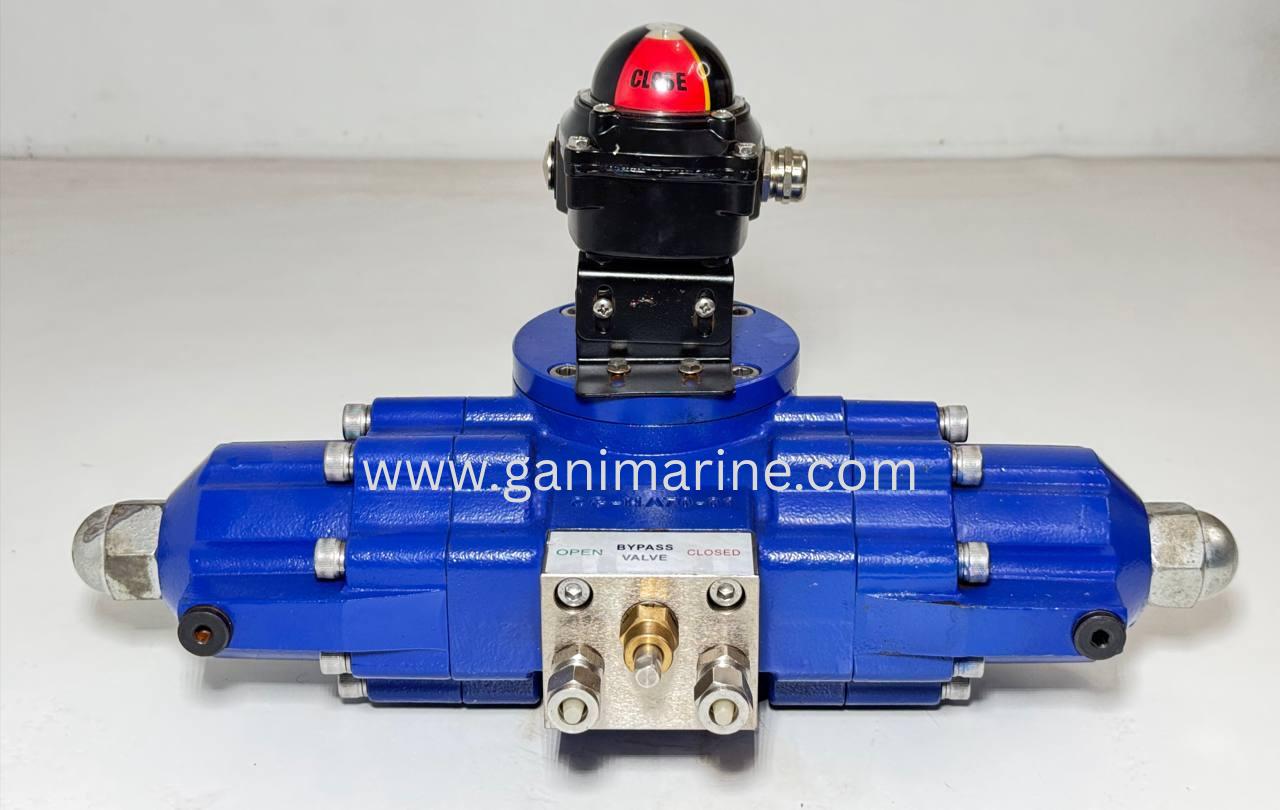

ITS-102 Position Monitoring Switch CG-HA70-01 Actuator

The ITS-102 Position Monitoring Switch combined with the CG-HA70-01 Hydraulic Actuator is a high-performance valve automation solution designed for precision, safety, and reliability. It is widely used in marine, offshore, oil & gas, chemical, power, and water treatment industries for quarter-turn valve automation.

The ITS-102 switch provides both visual dome indication and electrical feedback, while the CG-HA70-01 actuator delivers high torque rotary motion for operating butterfly, ball, and plug valves. Together, they ensure robust valve control and reliable process monitoring in critical environments.

---

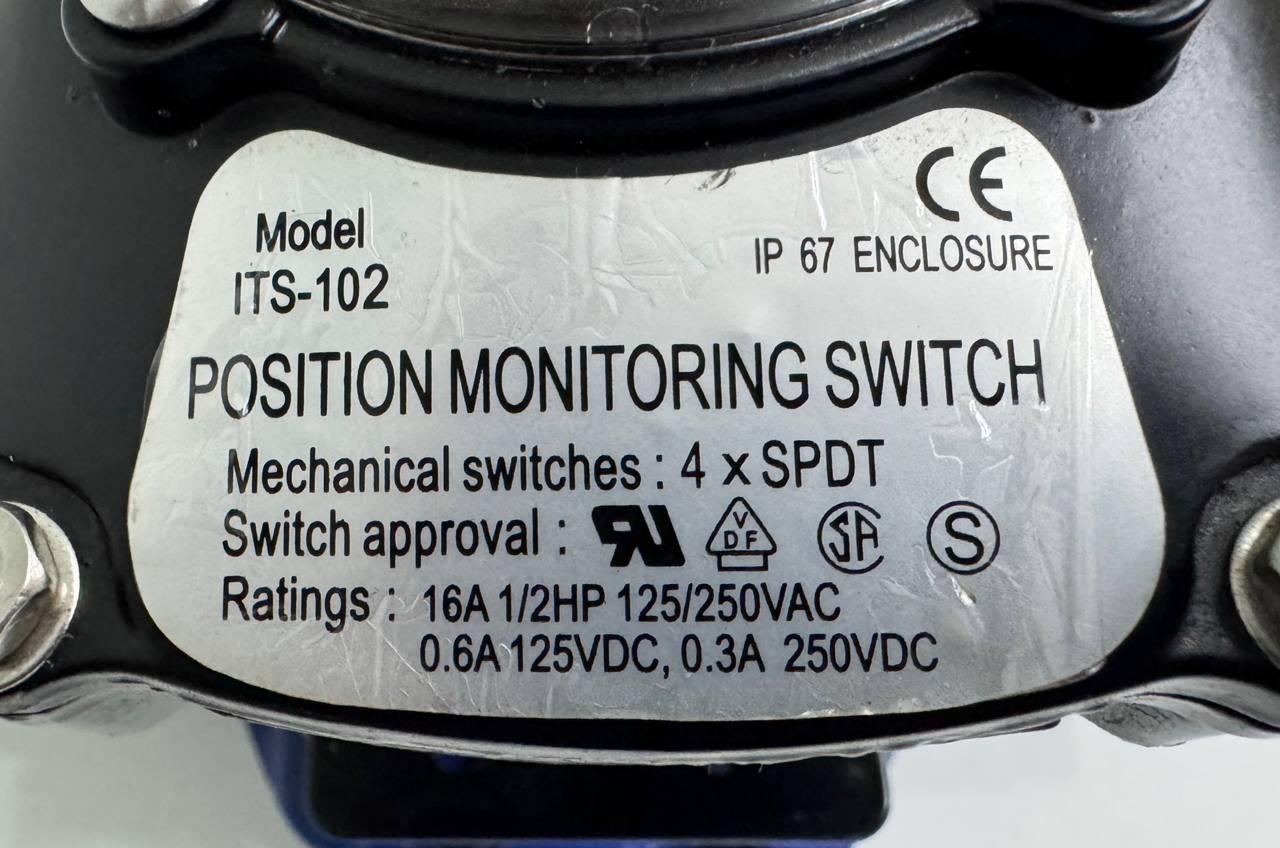

ITS-102 Position Monitoring Switch – Specifications

• Model: ITS-102

• Switch Configuration: 4 × SPDT (Single-Pole Double-Throw)

• Electrical Ratings: 16A / 1?2 HP at 125/250 VAC; 0.6A at 125 VDC; 0.3A at 250 VDC

• Indicator: Dome-type, 0–90° rotation

• Protection: IP67 (dust-tight and weatherproof)

• Mounting: NAMUR/VDI/VDE3845 standard interface

• Application: Provides visual and electrical valve/actuator position feedback

---

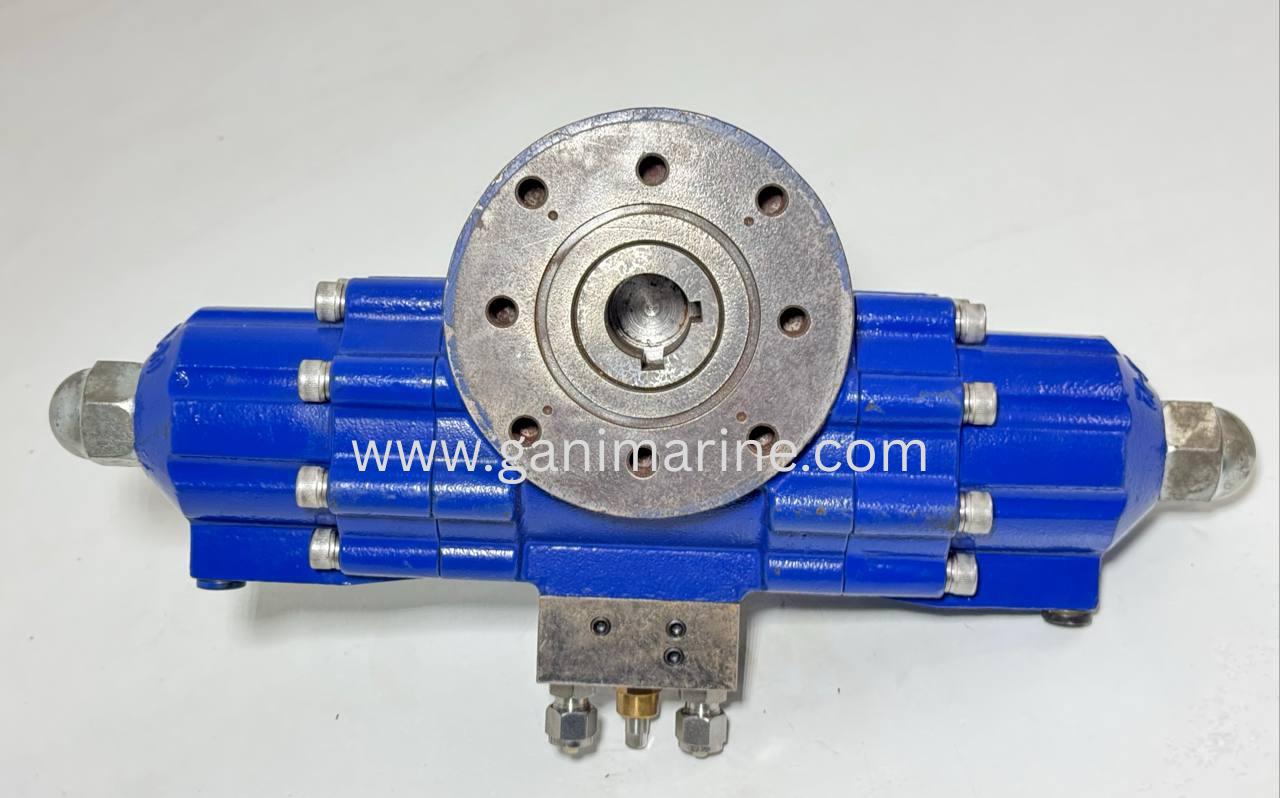

CG-HA70-01 Hydraulic Actuator – Specifications

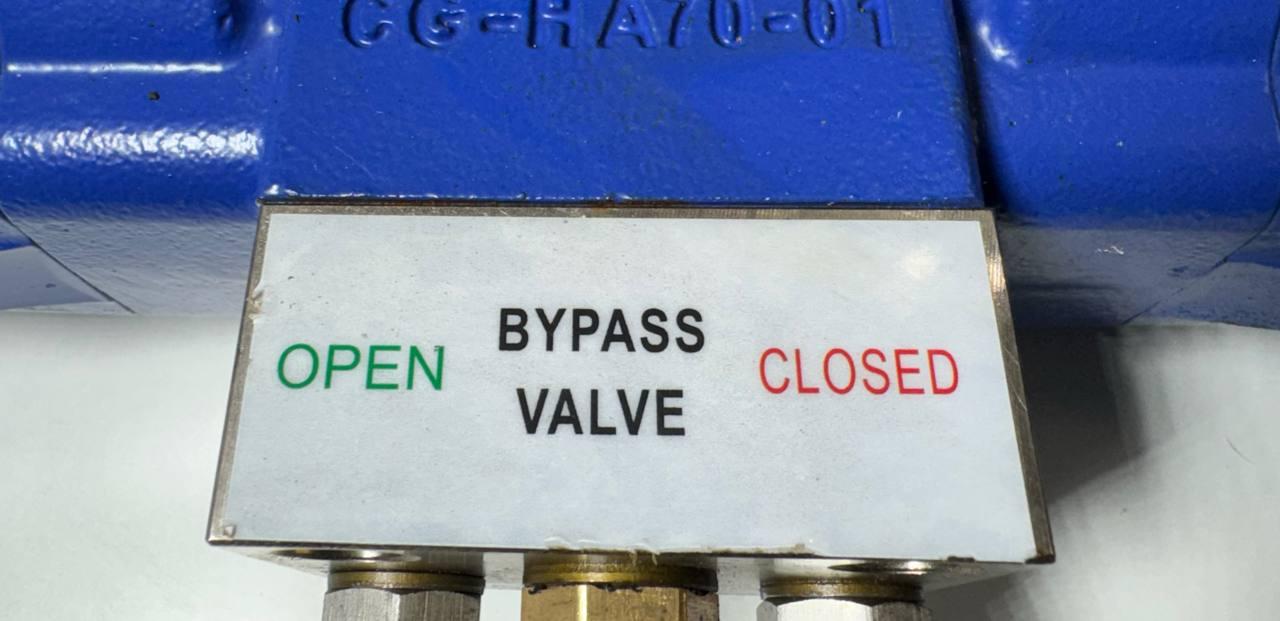

• Model: CG-HA70-01

• Type: Hydraulic quarter-turn rotary actuator

• Rotation: 90° (±5°)

• Maximum Torque: 1130 Nm

• Working Pressure: Up to 11 MPa (typical)

• Mounting: ISO/NAMUR standard

• Temperature Range: -20°C to +80°C

• Application: Heavy-duty valve actuation in marine, oil & gas, chemical, and power industries

--

Key Features

• High torque actuator with reliable performance in harsh environments

• ITS-102 provides visual dome indication and electrical position feedback

• IP67 protection for both actuator and switch assembly

• Standard NAMUR/ISO mounting interface for universal valve compatibility

• Designed for quarter-turn valves such as butterfly, ball, and plug valves

• Suitable for continuous duty and critical automation processes

---

Applications

• Marine & Offshore – remote hydraulic valve control systems

• Oil & Gas – pipeline and refinery valve automation

• Water Treatment – filtration and distribution valve control

• Chemical Plants – safe operation of hazardous fluid valves

• Power Plants – automation of cooling and fuel supply valves

 ---
