HYDAC DF ON 30 Q E 3 D 1.0/-L24-A8 Pressure Filter
HYDAC DF ON 30 Q E 3 D 1.0/-L24-A8 Pressure Filter

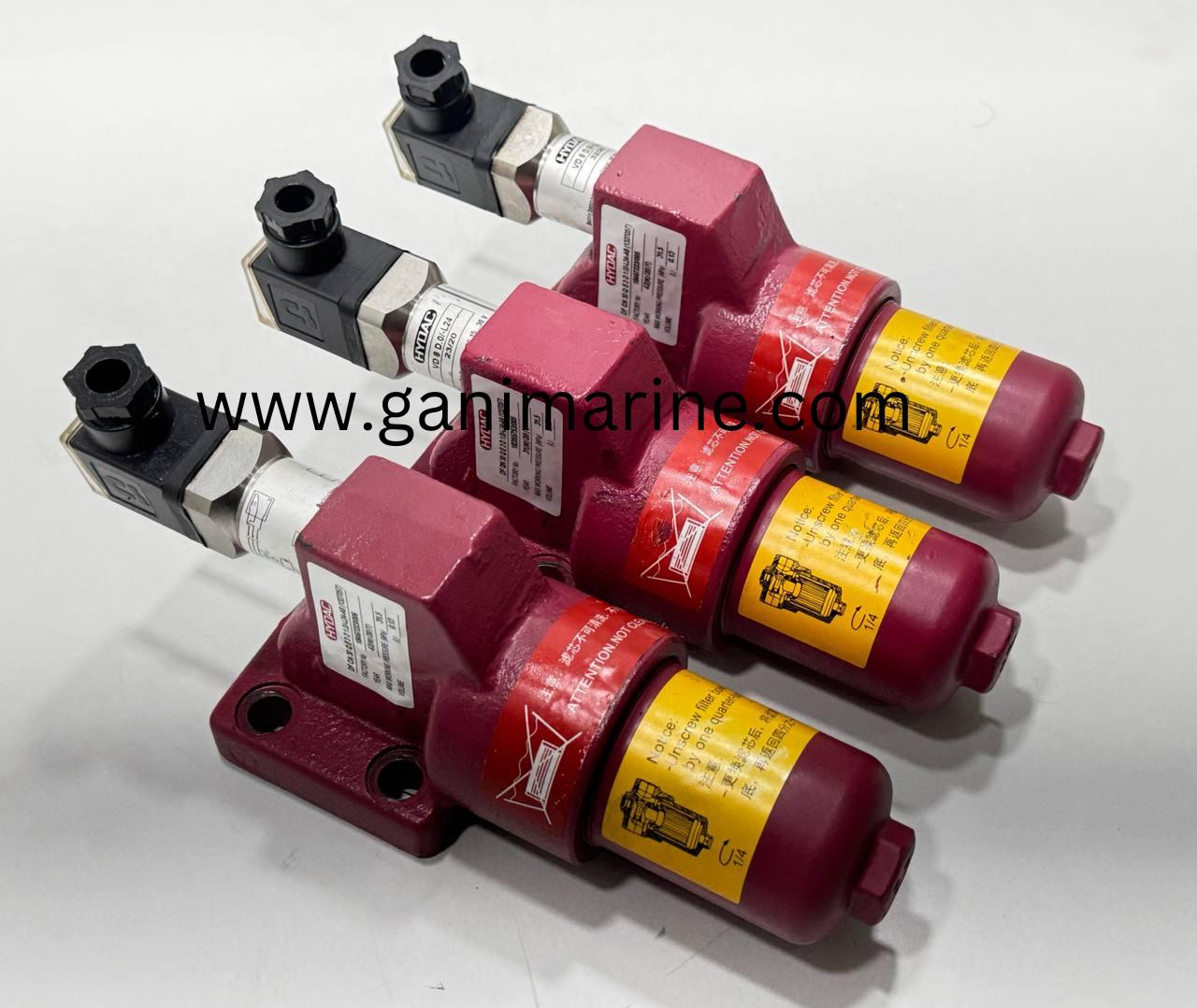

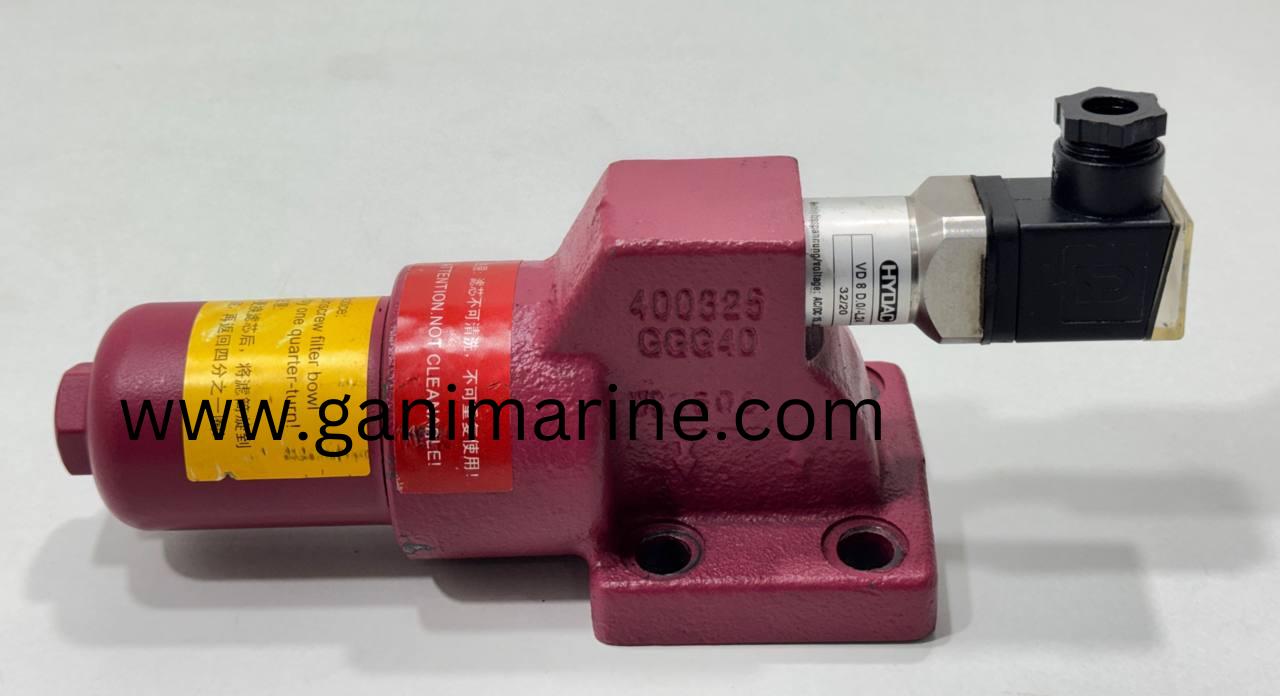

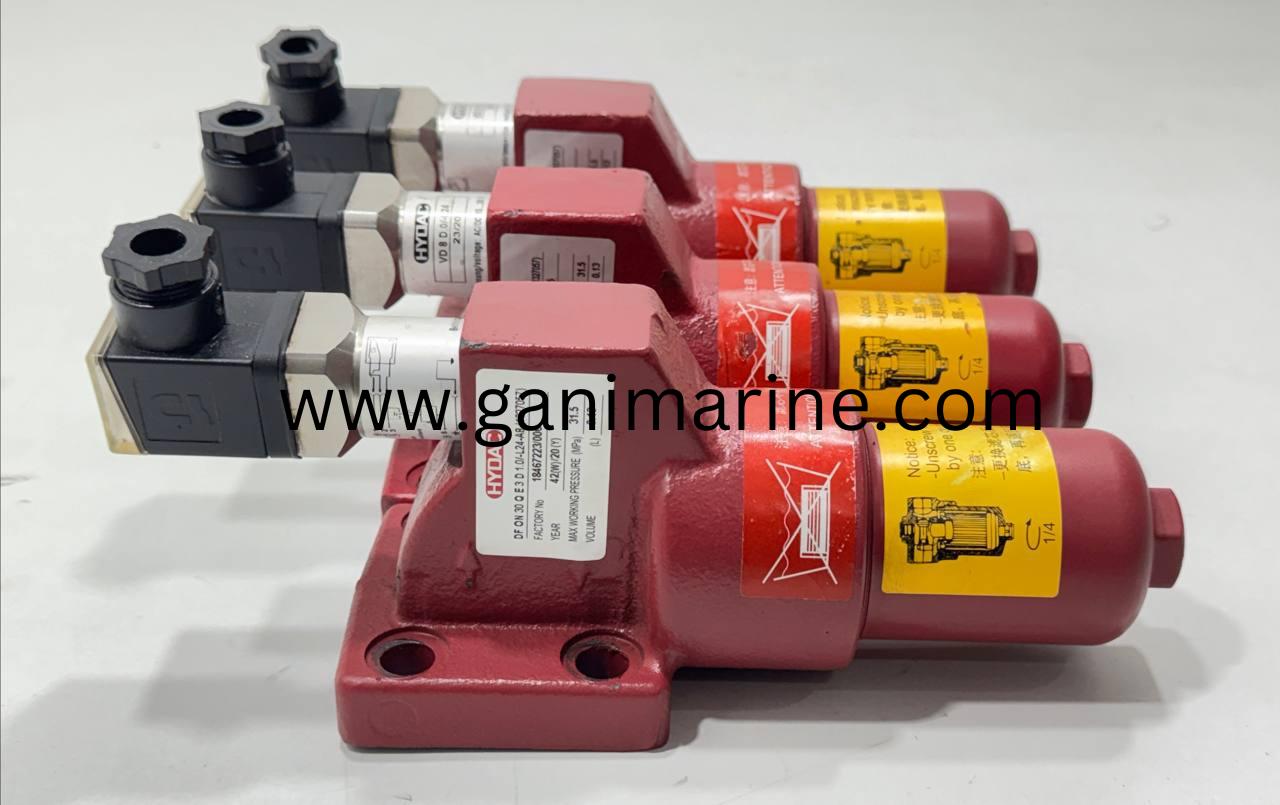

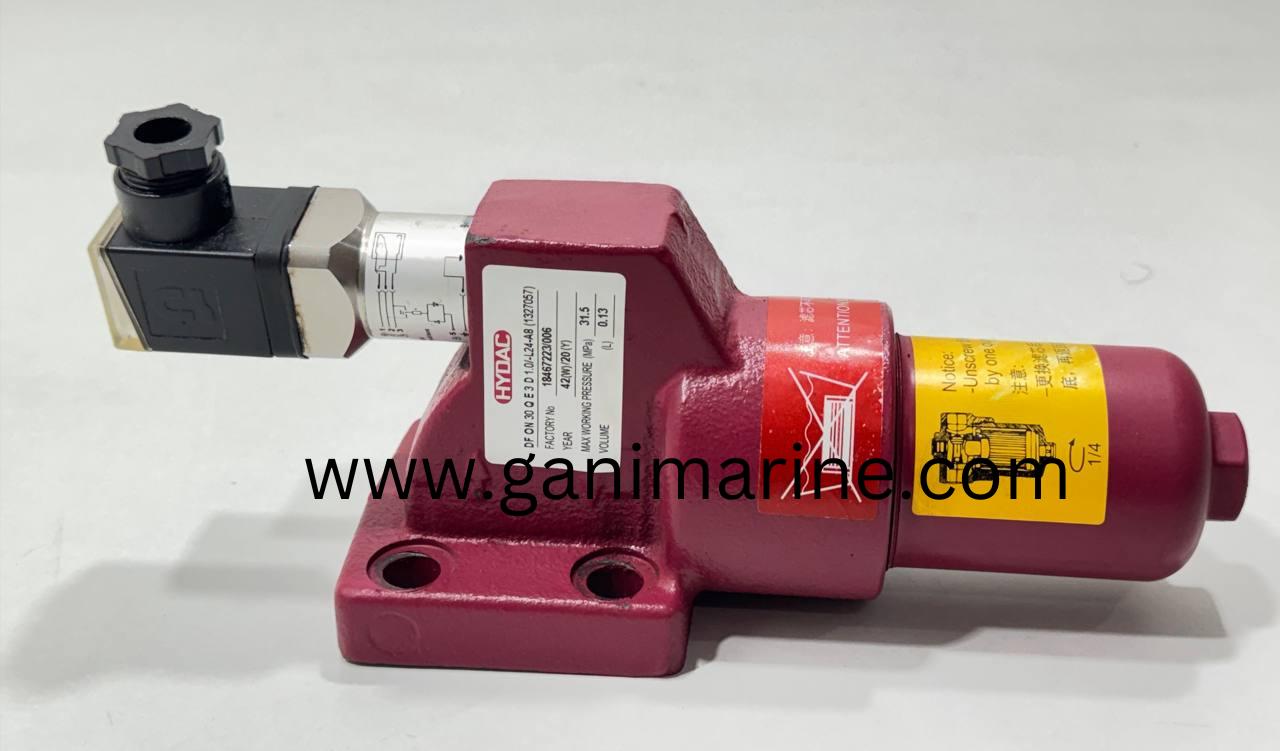

The HYDAC DF ON 30 Pressure Filter is a high-pressure hydraulic pressure line filter designed to protect sensitive downstream hydraulic components such as valves, pumps, and actuators from contamination.
This filter is suitable for continuous operation in high-pressure industrial, marine, offshore, and mobile hydraulic systems.
It features a robust steel housing, manifold mounting, and an integrated clogging indicator for reliable condition monitoring.
Manufacturer & Identification
• Manufacturer: HYDAC
• Filter Series: DF ON
• Model Code: DF ON 30 Q E 3 D 1.0/-L24-A8
• Part Number: 1327057
• Manufacturing Date: Week 42 / 2020
Technical Specifications – Filter Housing
• Filter Type: Pressure Line Filter
• Nominal Size: 30
• Maximum Working Pressure: 31.5 MPa / 315 bar
• Internal Volume: 0.13 Liters

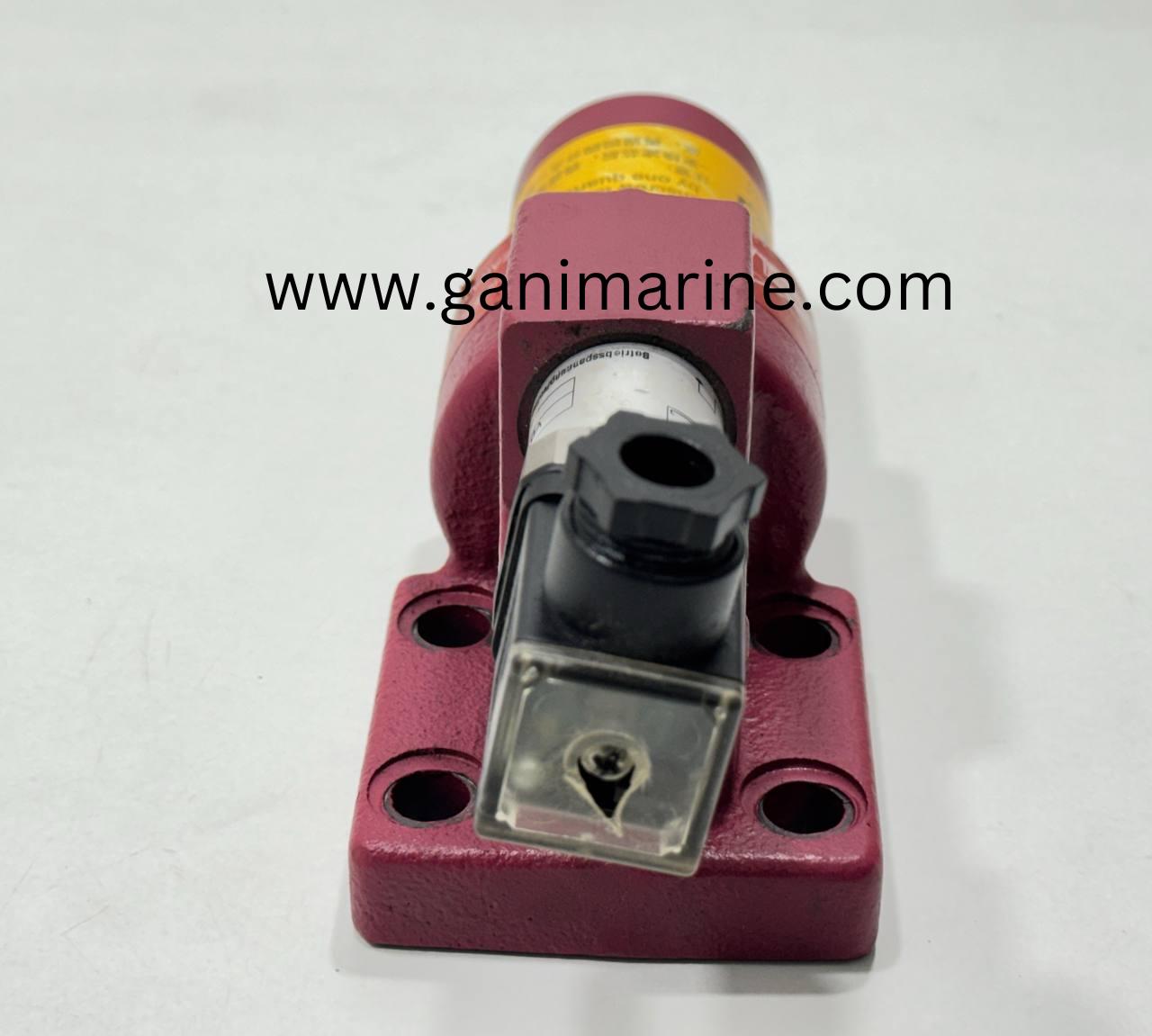

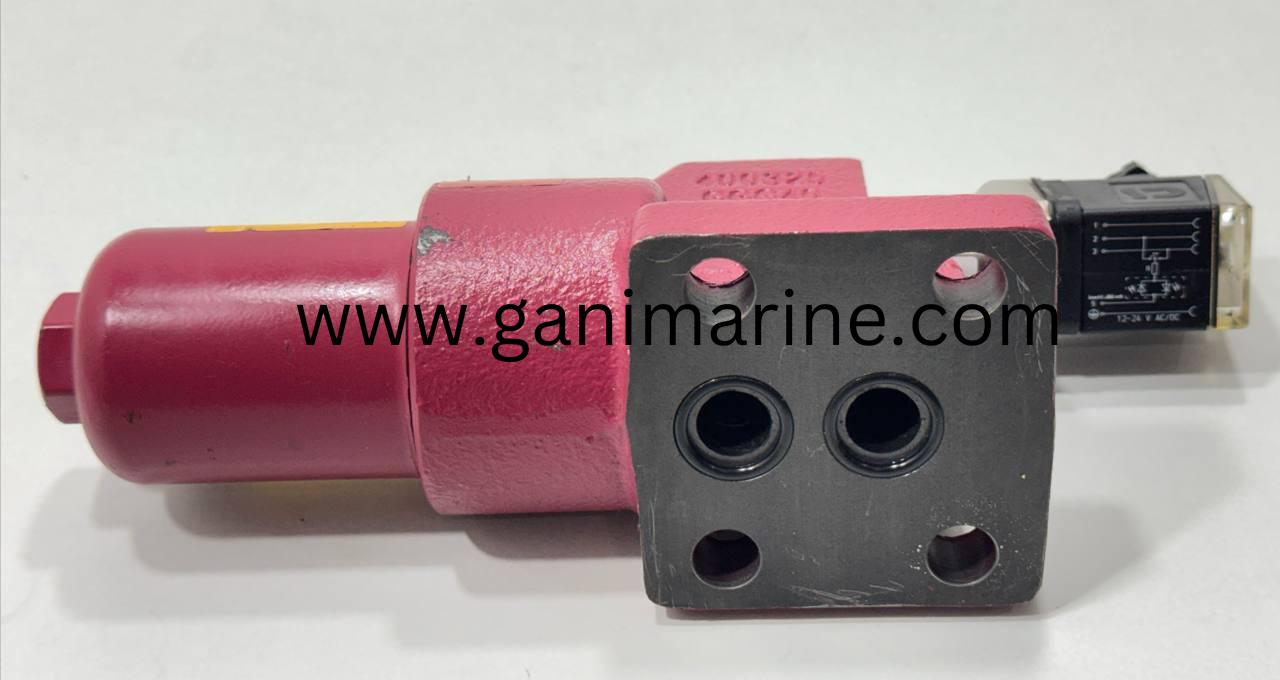

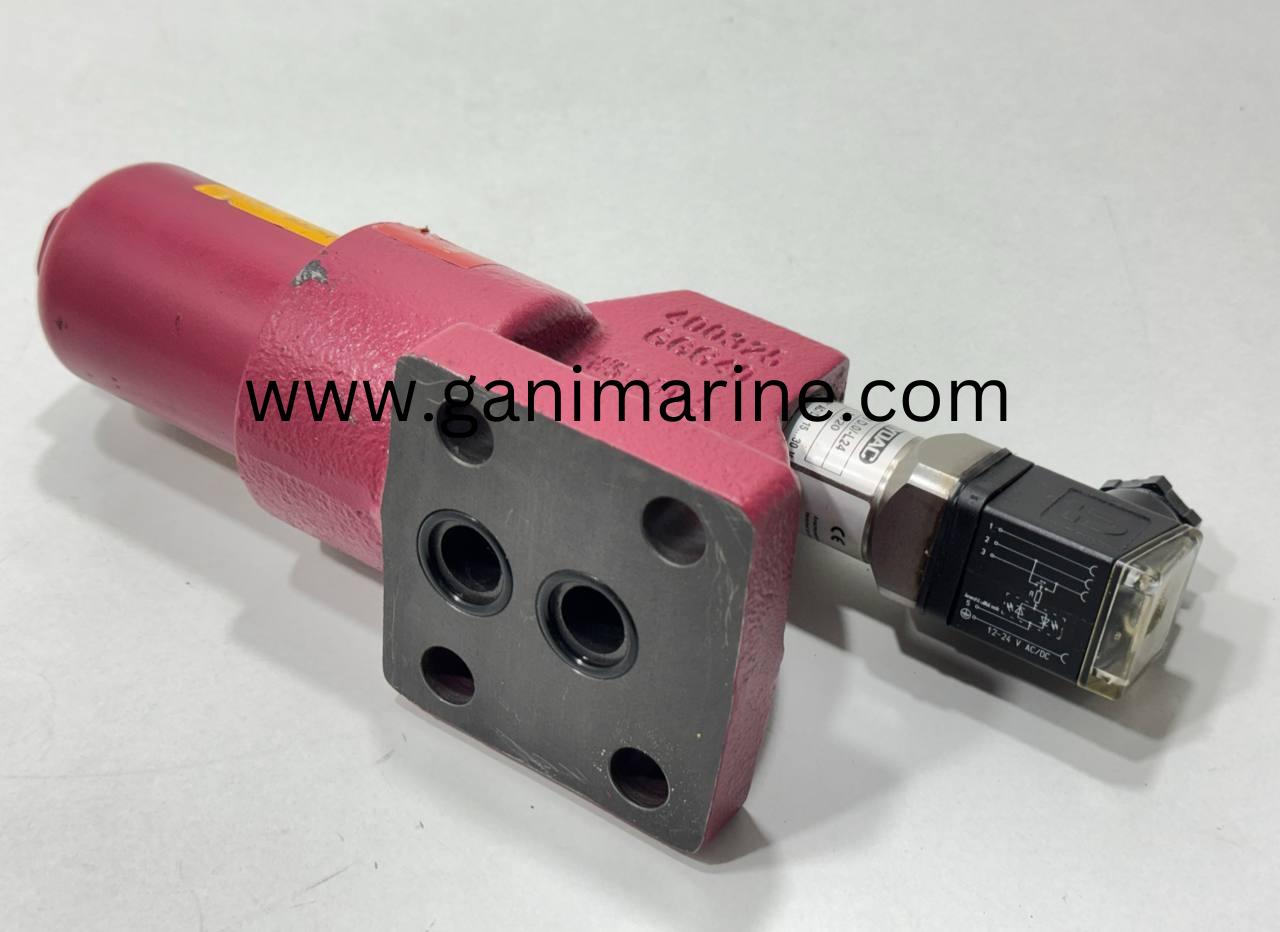

• Mounting Type: Manifold mounted (4-bolt flange)
• Flow Direction: Pressure line / inline filtration
• Housing Material: High-strength steel or ductile iron
• Surface Finish: HYDAC corrosion-resistant coating
Filter Element Details
• Filtration Rating: As per Q-series element (micron rating depends on installed element)
• Replacement Type: HYDAC DF ON compatible filter element
• Sealing System: O-ring sealed
• Service Access: Replaceable element without removing housing
Installation Note:

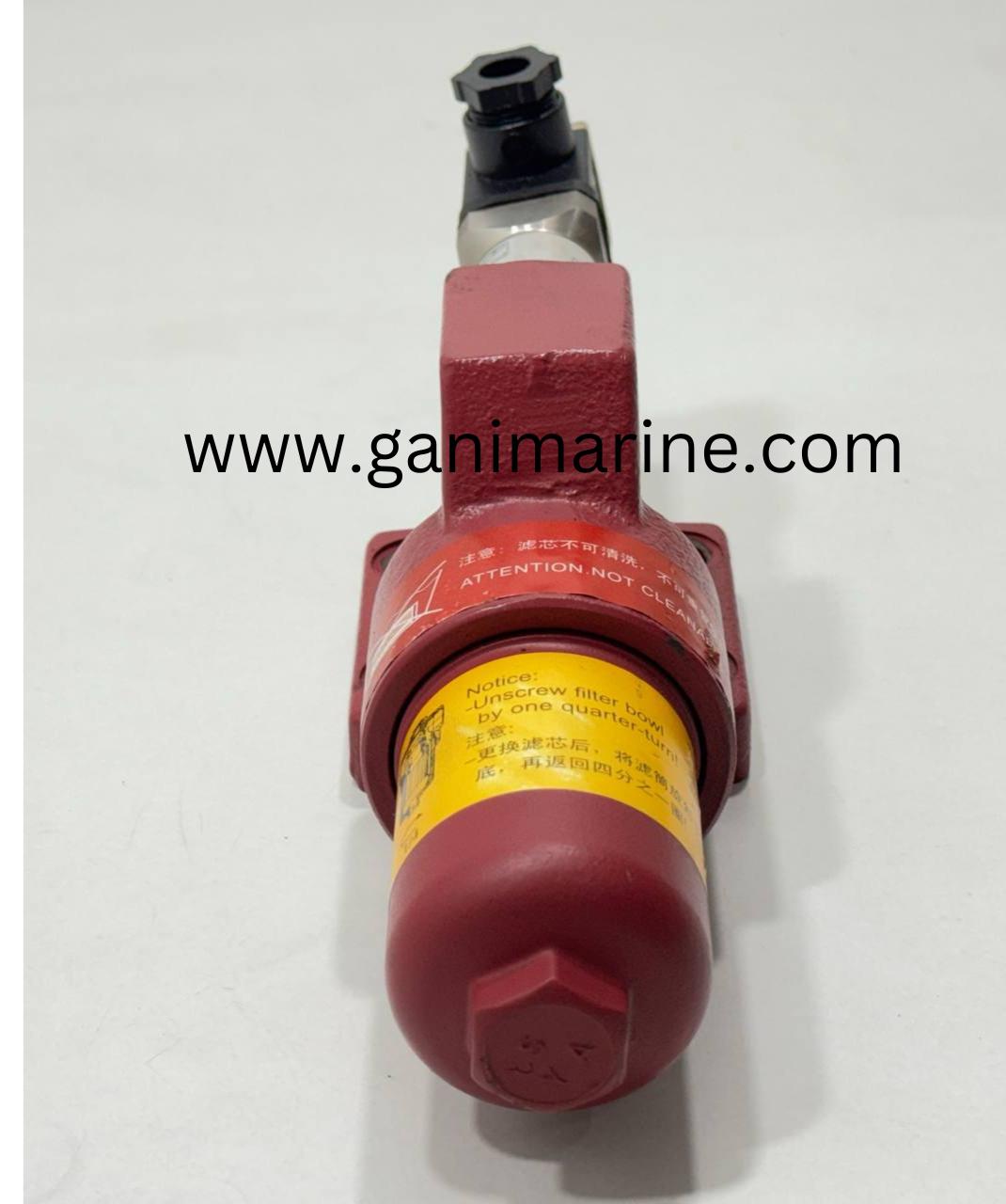

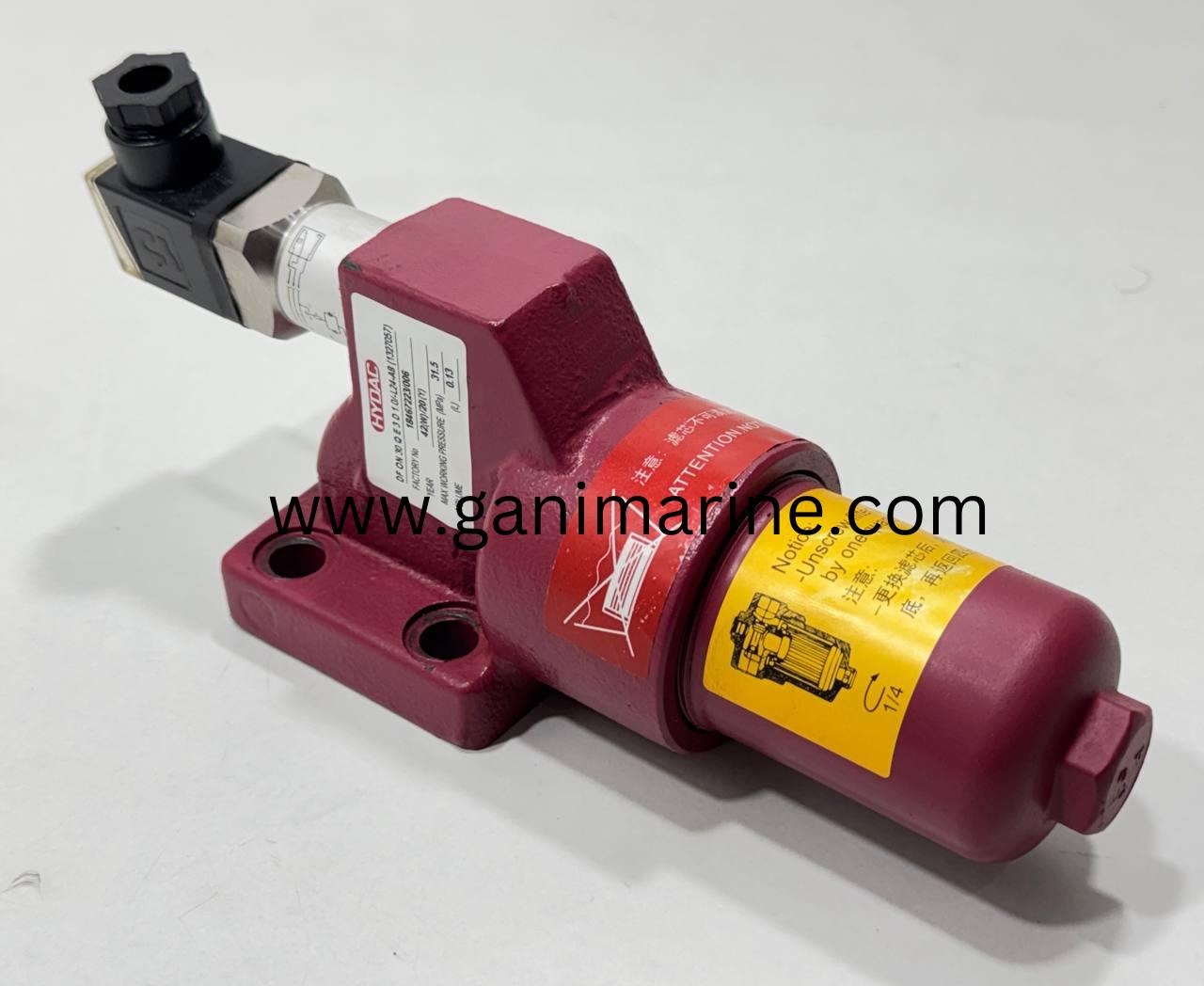

As per the yellow instruction label, after the filter bowl contacts the seal, follow the specified quarter-turn / torque tightening procedure to ensure correct sealing and prevent O-ring damage.
Clogging Indicator Specifications

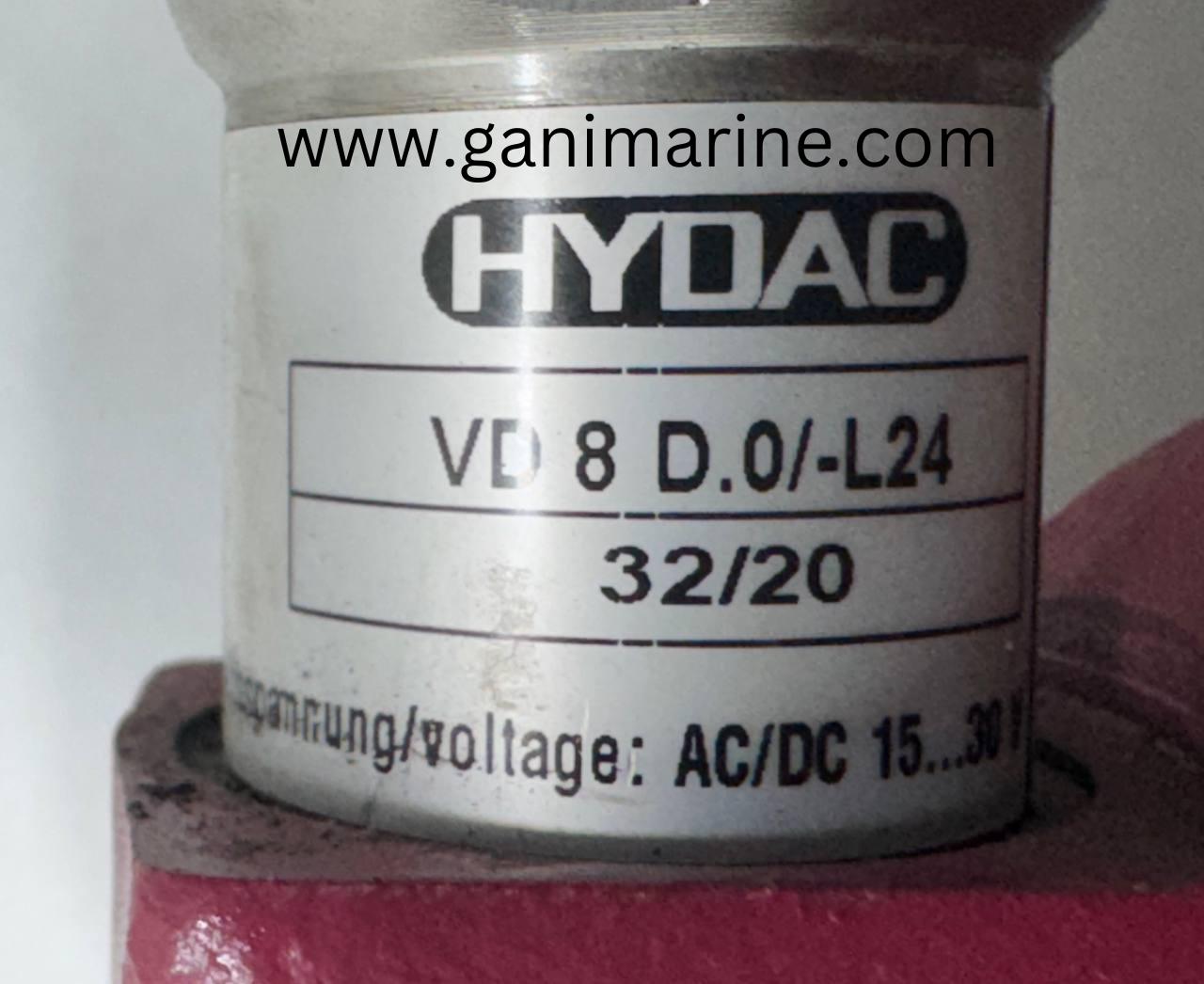

• Indicator Model: VD 8 D.0/-L24
• Indicator Type: Differential pressure indicator (visual + electrical)
• Operating Voltage: 15–30V AC/DC
• Switching Pressure: Approx. 8 bar ?P
• Function: Signals when filter element is contaminated and requires replacement
Key Features
• High pressure rating up to 315 bar
• Manifold / sandwich mounting design
• Reliable contamination control
• Integrated clogging indicator
• Compact, space-saving construction
• Long service life
• Suitable for harsh industrial environments
• Easy maintenance and element replacement
Typical Applications
• Hydraulic power packs
• Industrial machinery
• Mobile hydraulics
• Marine hydraulic systems
• Offshore platforms
• Injection molding machines
• Presses and heavy equipment
• Oil & gas hydraulic systems
Industries Served
• Industrial hydraulics
• Marine & offshore
• Oil & gas
• Power generation
• Construction equipment
• Manufacturing plants
Condition
• Original HYDAC pressure filter
• Industrial-grade construction
• Ready for installation
