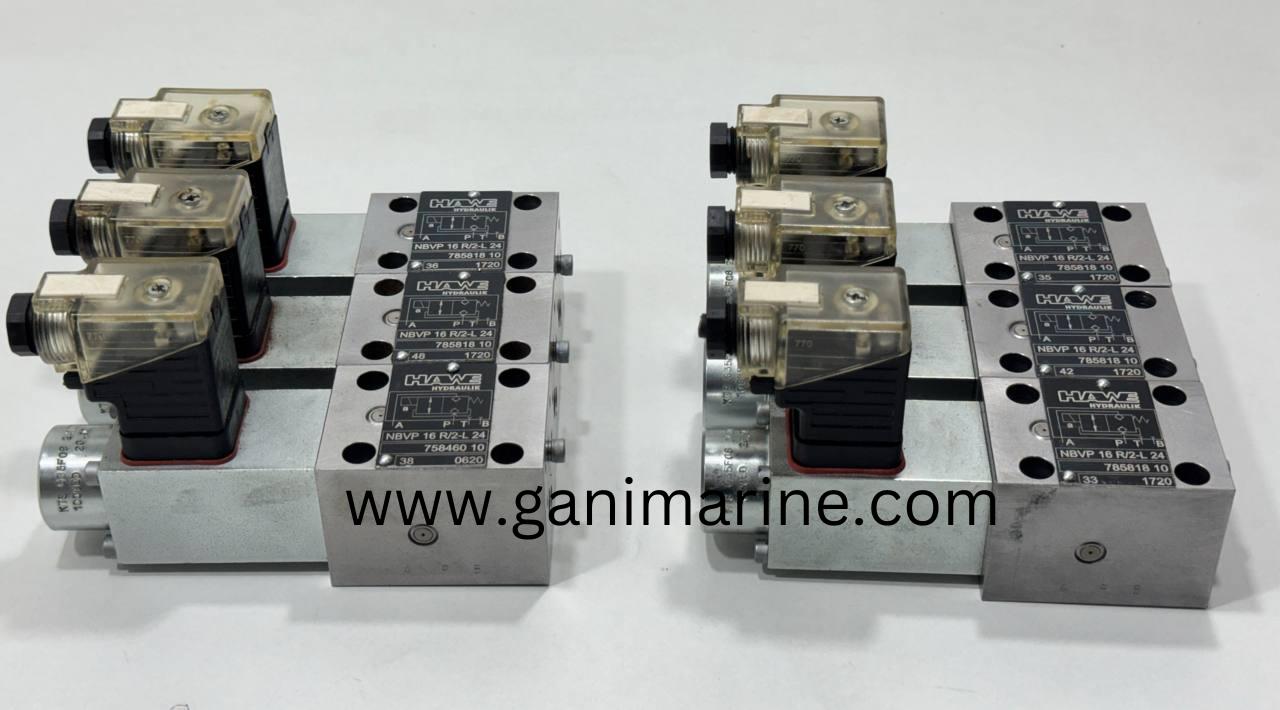

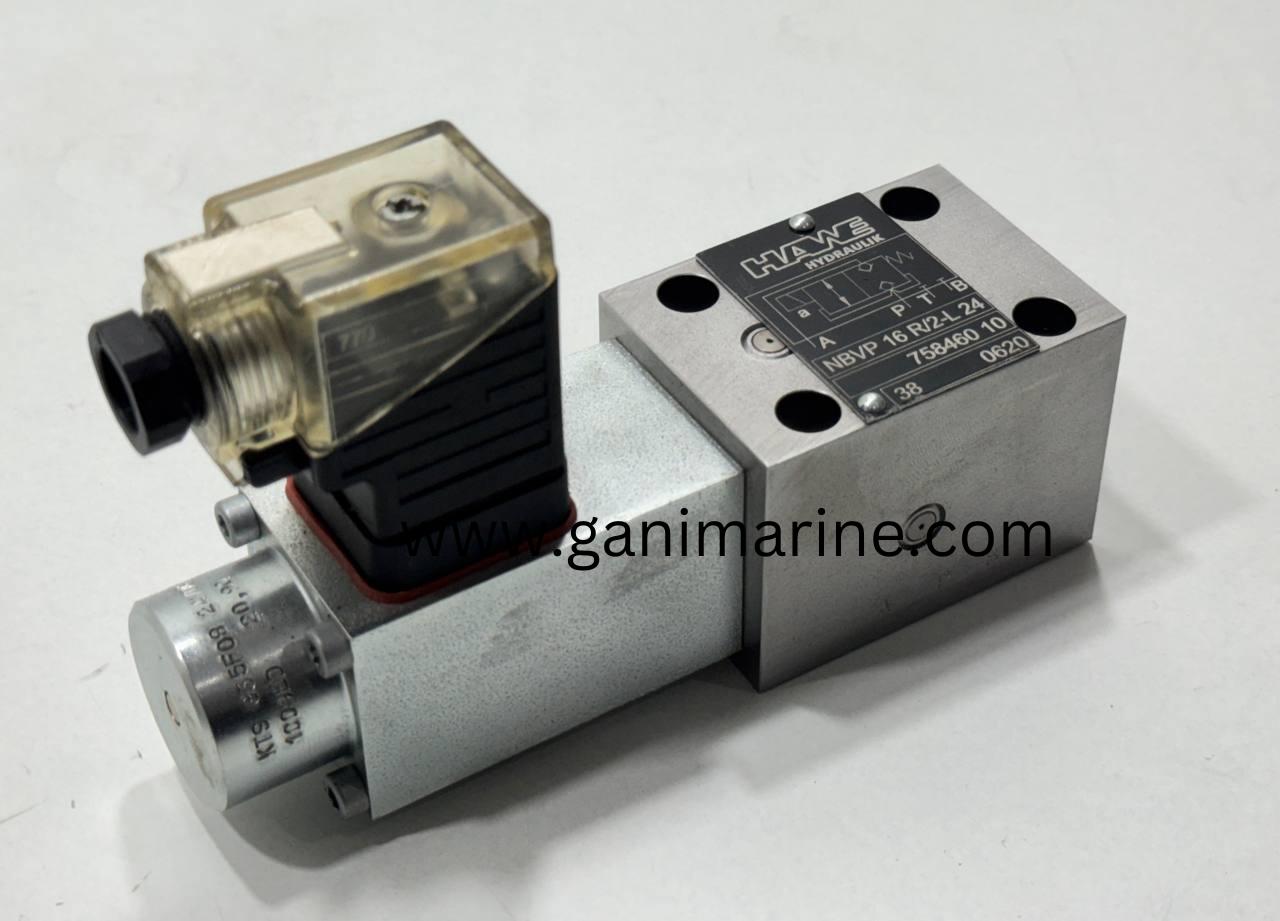

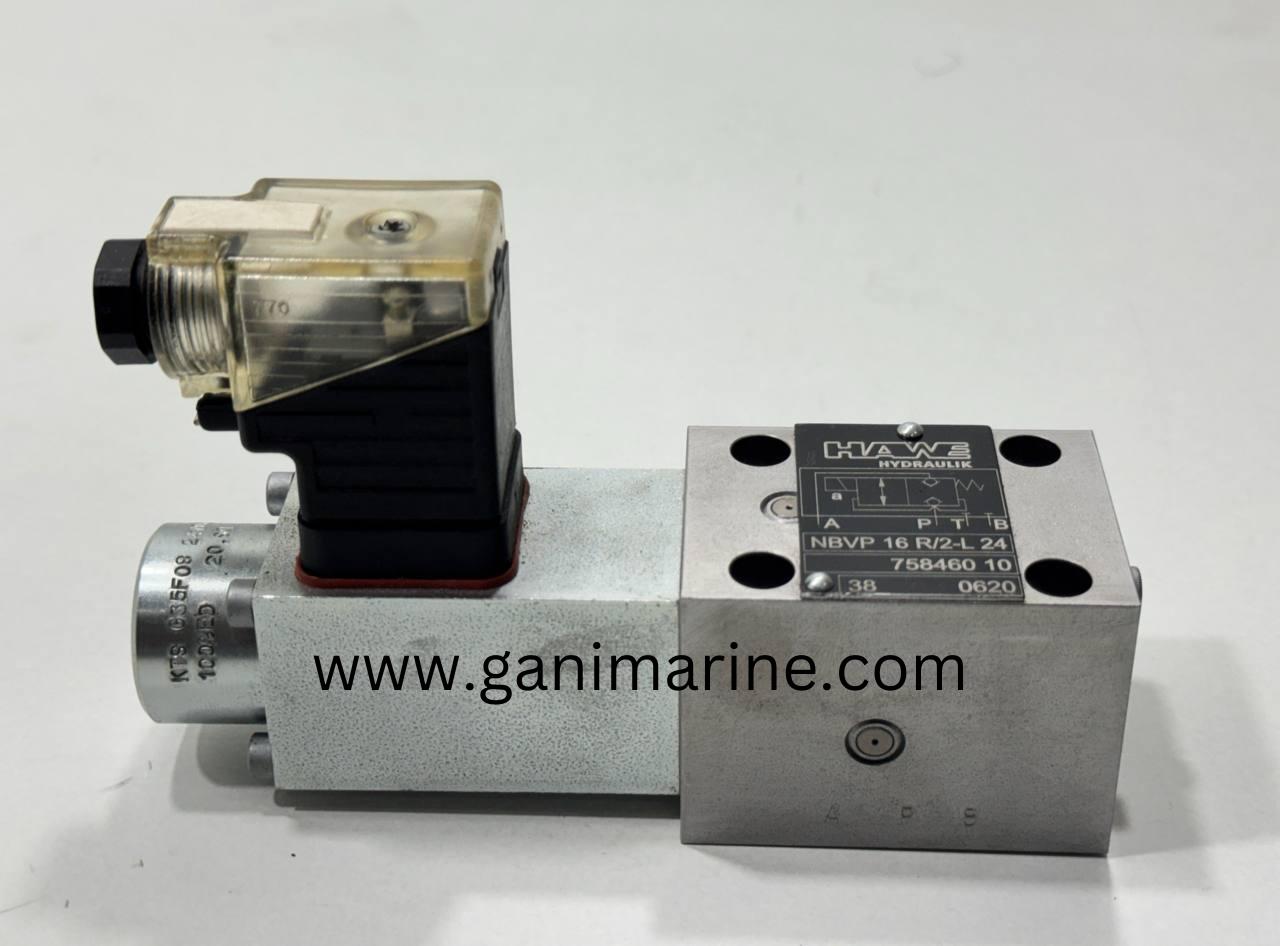

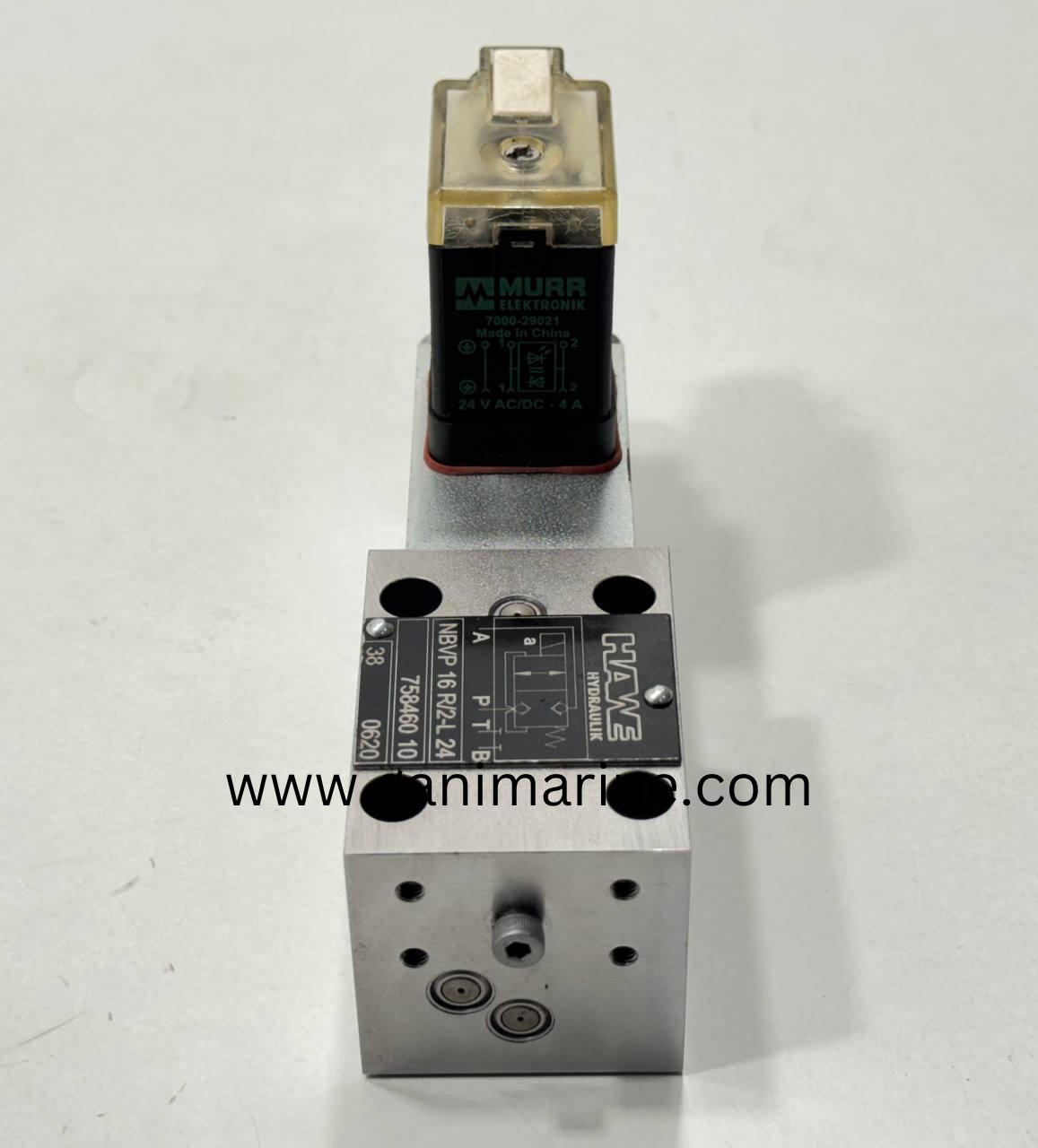

HAWE NBVP 16 R/2-L 24, 2/2-way solenoid-operated directional seated valve
HAWE NBVP 16 R/2-L 24, 2/2-way solenoid-operated directional seated valve
The HAWE NBVP 16 R/2-L 24 is a 2/2-way solenoid operated seated (poppet) directional valve designed for zero leakage, high-pressure hydraulic applications.
Manufactured by HAWE Hydraulik SE (Germany), this valve delivers reliable shut-off up to 400 bar, making it ideal for clamping systems, machine tools, and pressure holding circuits.
Unlike spool valves, this cone-seated design provides hermetic sealing, preventing cylinder creep or pressure drop during long standstill periods.
Model Identification
• Manufacturer: HAWE Hydraulik SE
• Series: NBVP 16

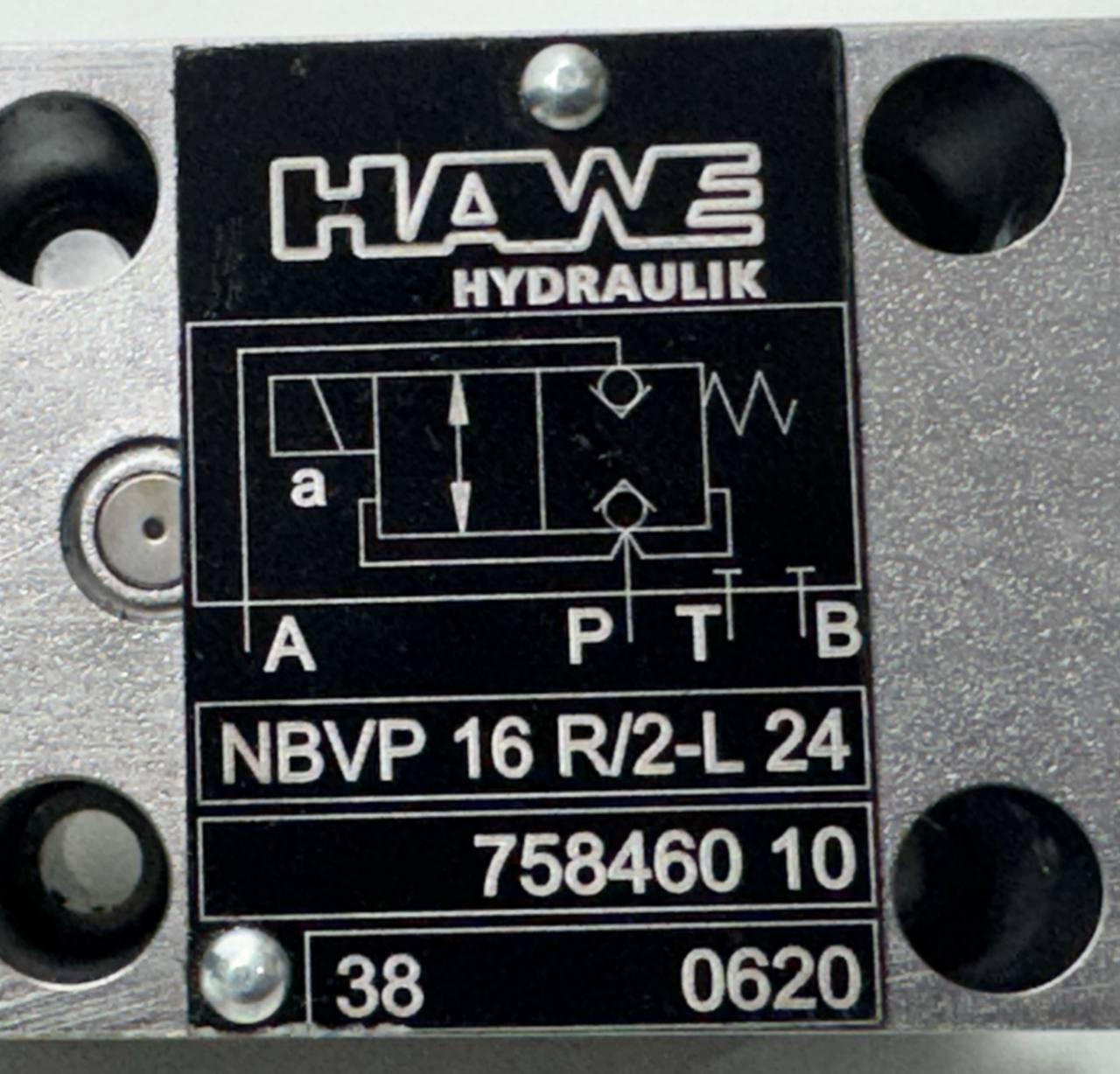

• Ordering Code: NBVP 16 R/2-L 24
• Part Number: 758460 10
• Nominal Size: NG6 (Size 6 / D03 pattern)
• Valve Type: 2/2-way seated poppet valve
• Function: Normally Closed (NC)
• Actuation: Solenoid operated with spring return
Circuit Function (2/2-Way Normally Closed)
De-energized (Power OFF)
• Port P blocked
• No flow to actuator
• System pressure held securely
Energized (24V DC Applied)
• Port P ? A opens
• Hydraulic flow allowed to actuator
This function makes the valve ideal for pressure locking and safety holding applications.
Key Features
Zero internal leakage (metal-to-metal seat sealing)
High pressure rating up to 400 bar

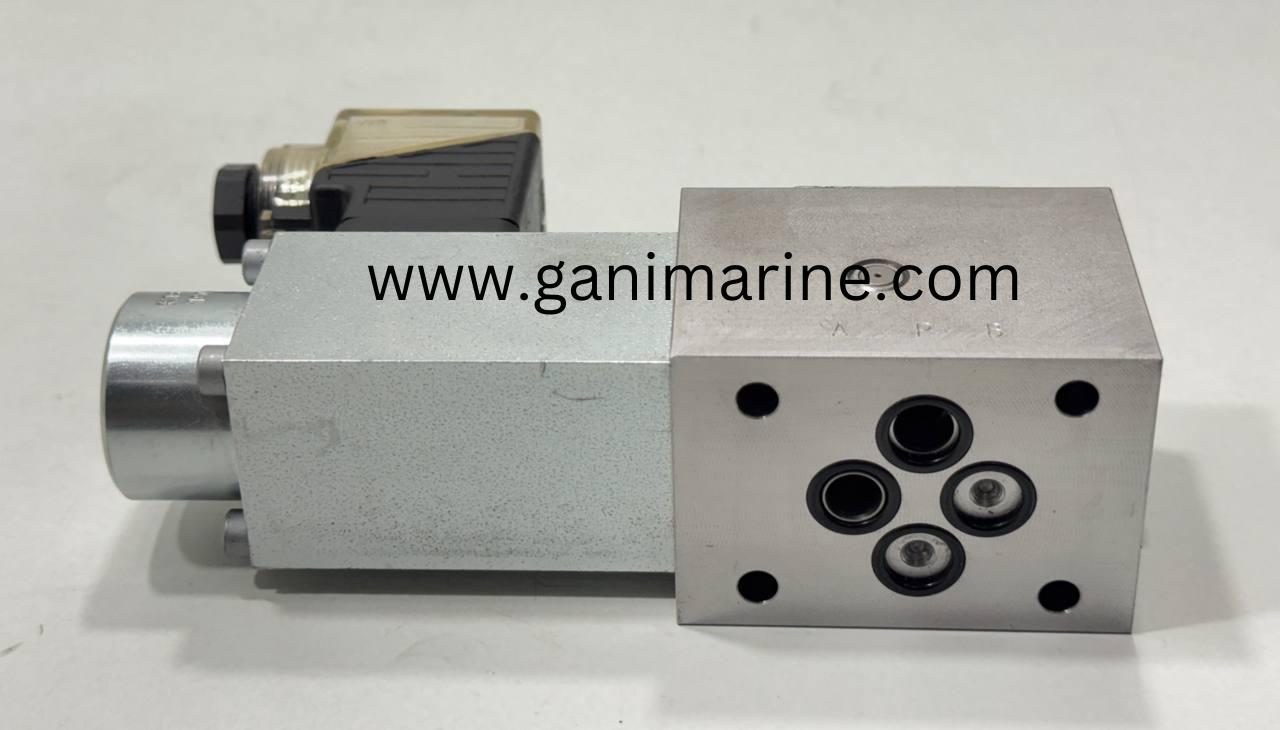

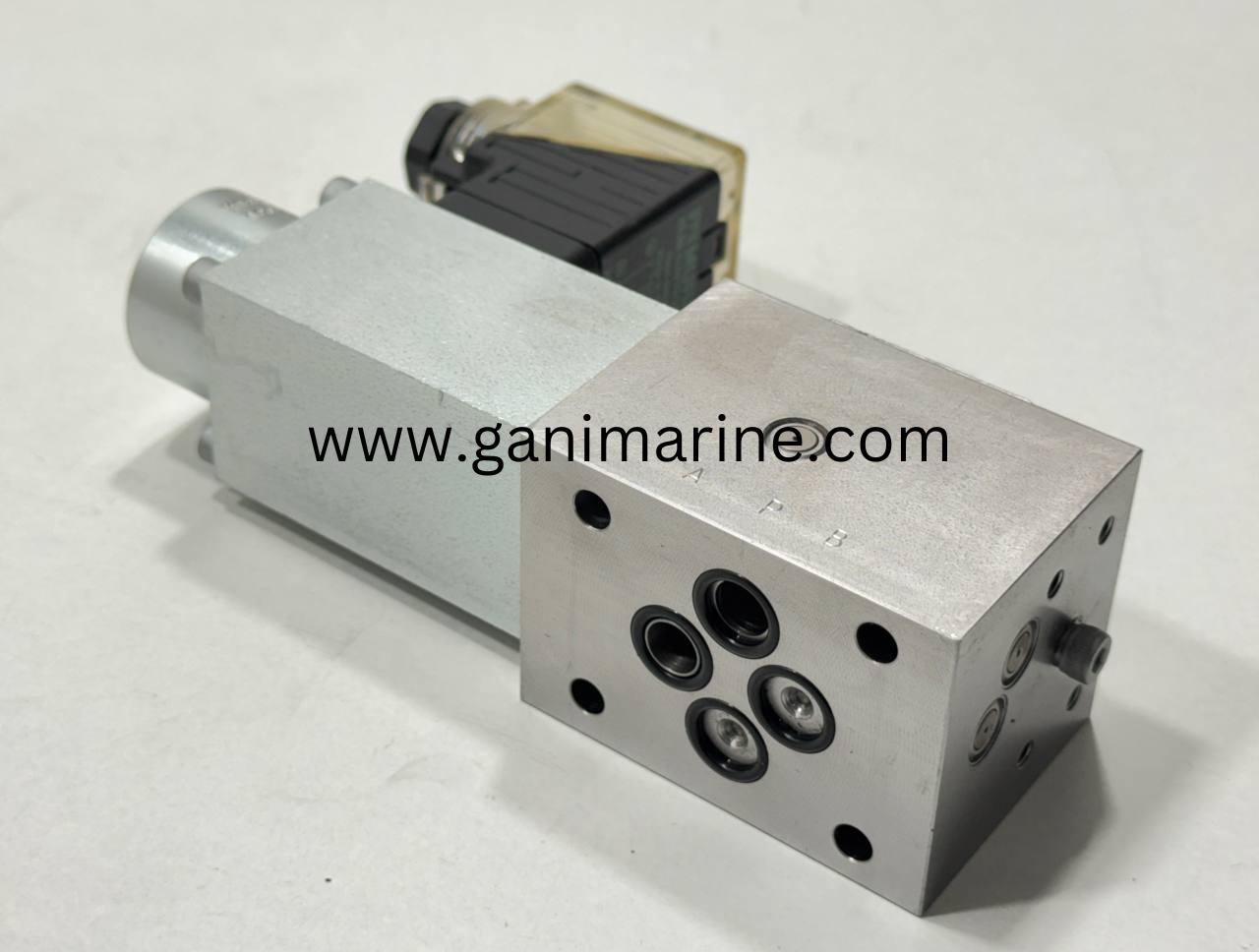

Compact NG6 manifold mounting
LED indicator plug (visual energization status)
Manual override for emergency operation
Long service life
Made in Germany quality
Solenoid & Electrical Details
• Voltage: 24V DC

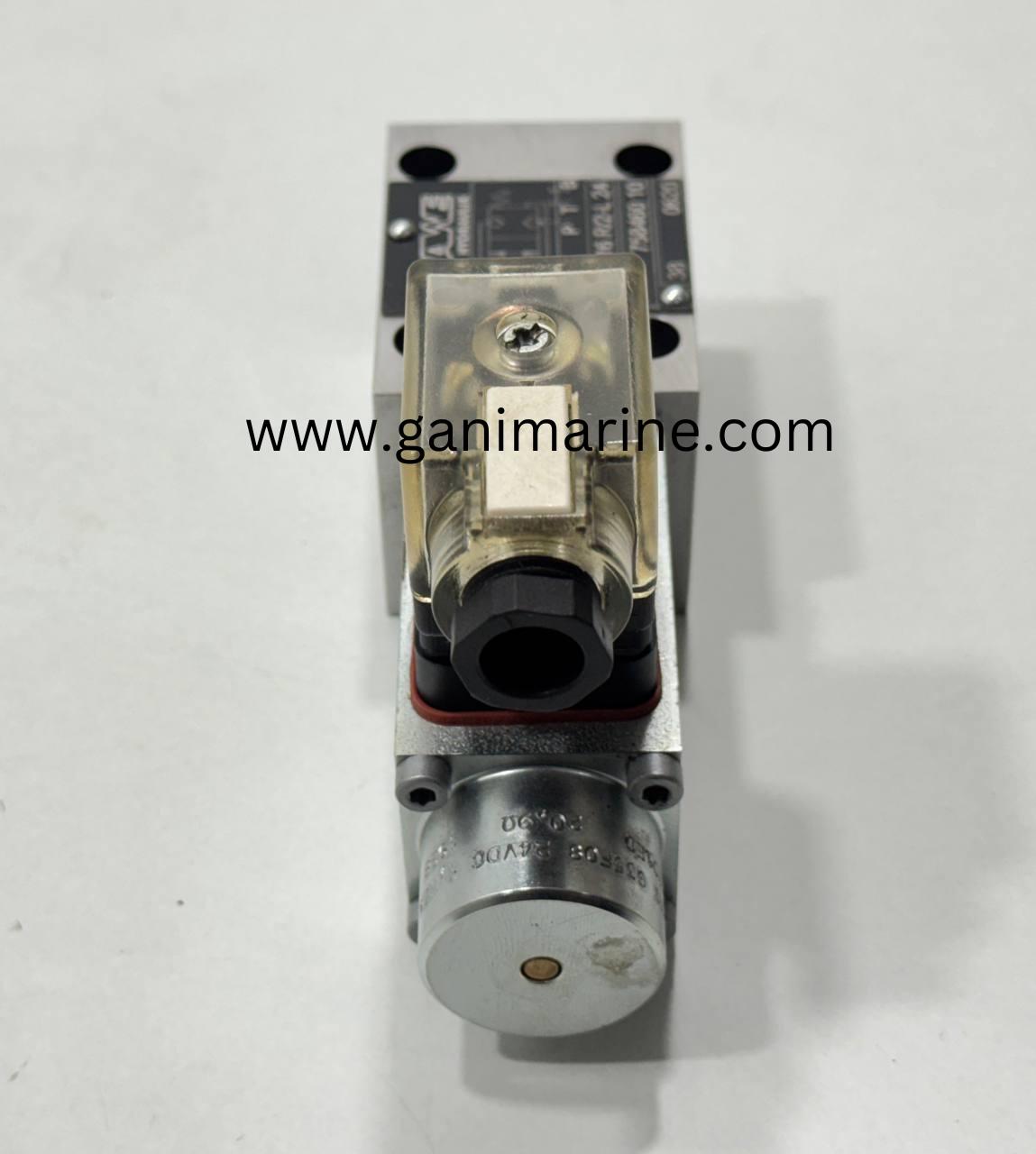

• Connector: DIN 43650 with LED indicator

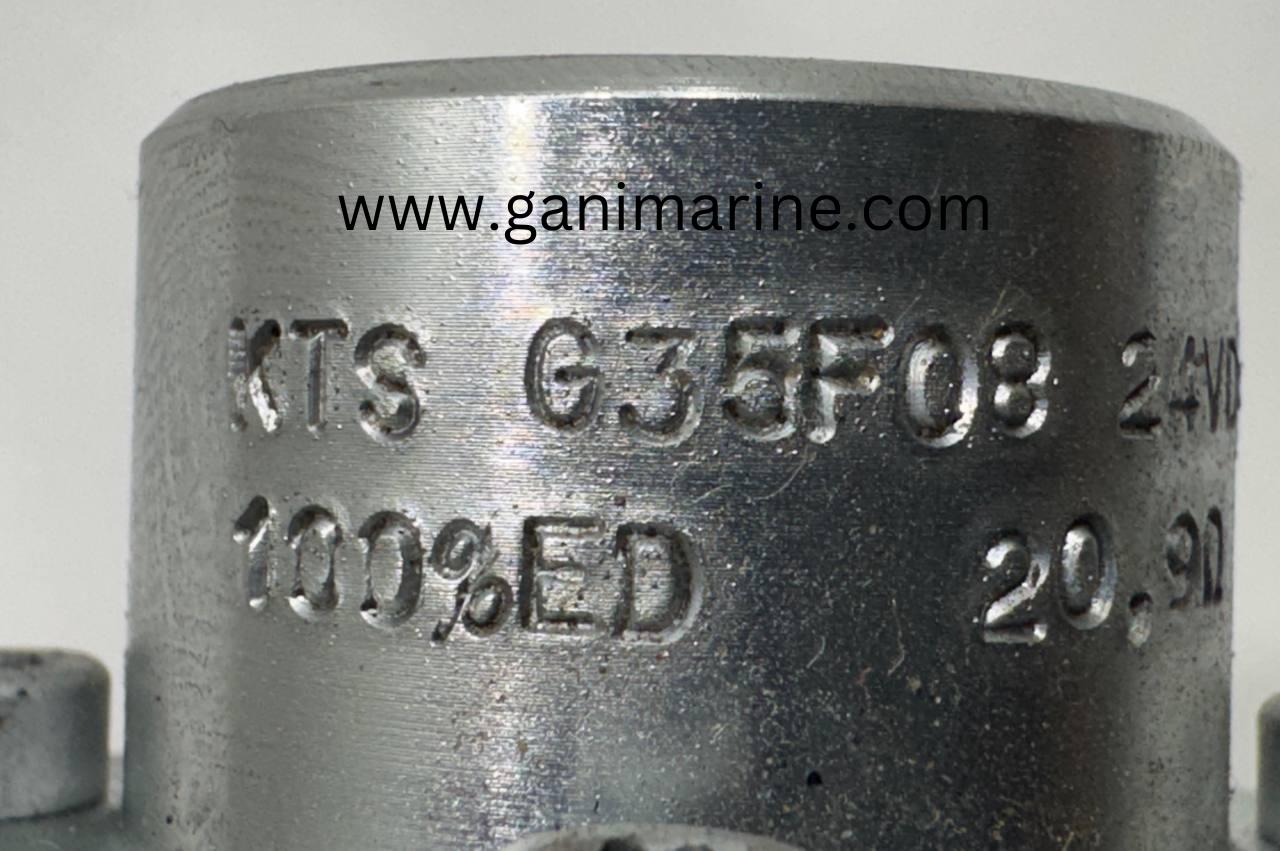

• Manual Override: Brass push-pin on solenoid housing
• Continuous Duty: 100% ED
The integrated LED makes troubleshooting easier by showing the energized state instantly.
Advantages Over Spool Valves
• No internal bypass leakage
• No actuator drift
• Better clamping reliability
• Higher safety in load holding circuits
• Ideal for static pressure applications
Typical Applications
• Machine tool clamping systems
• Hydraulic presses
• Industrial automation
• Test benches
• Fixture & jig construction
• Locking and positioning circuits
• Mobile auxiliary hydraulics
Industries Served
• Manufacturing
• CNC machining
• Automotive production
• Heavy machinery
• Industrial hydraulics
• Engineering plants
