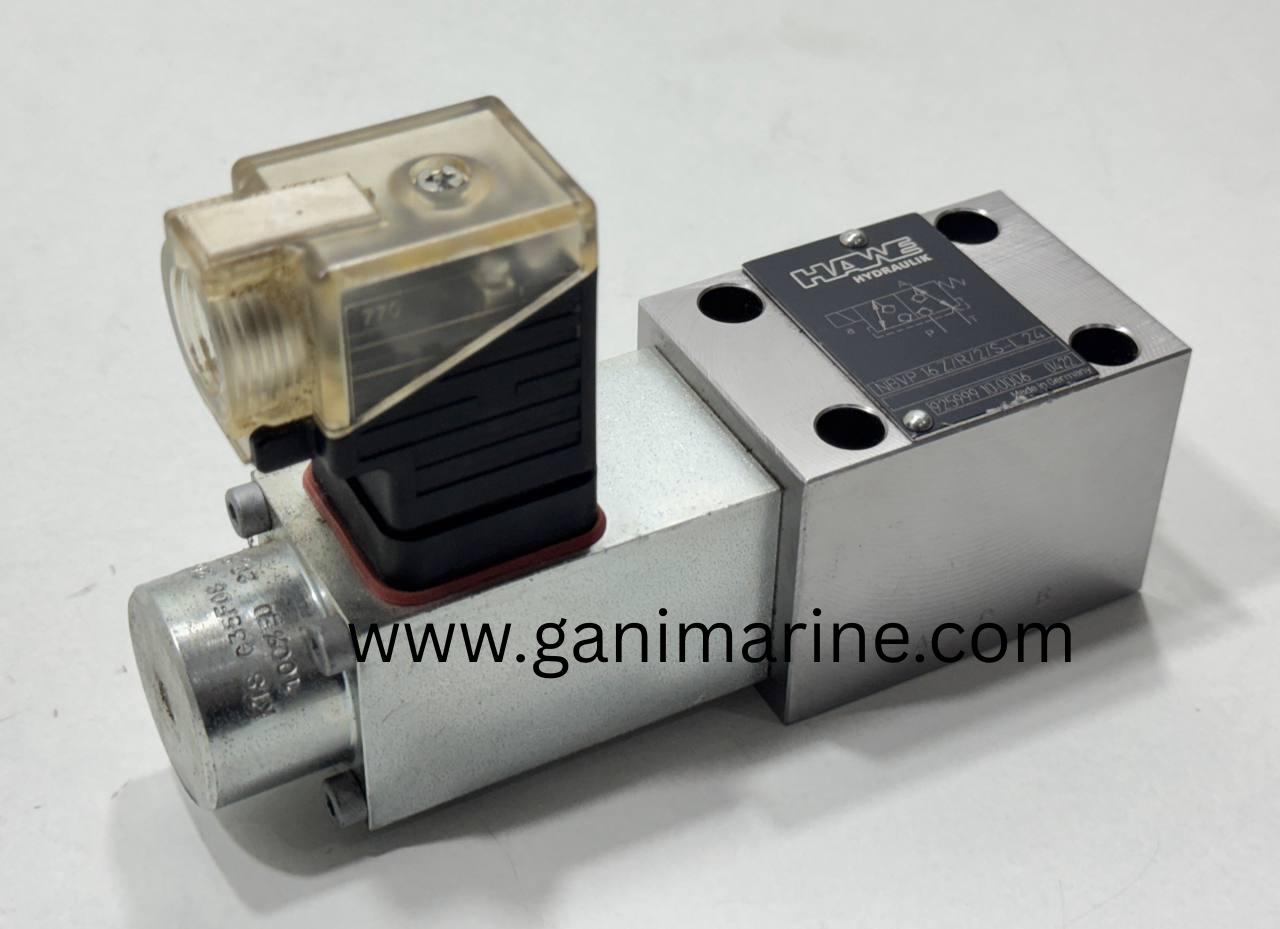

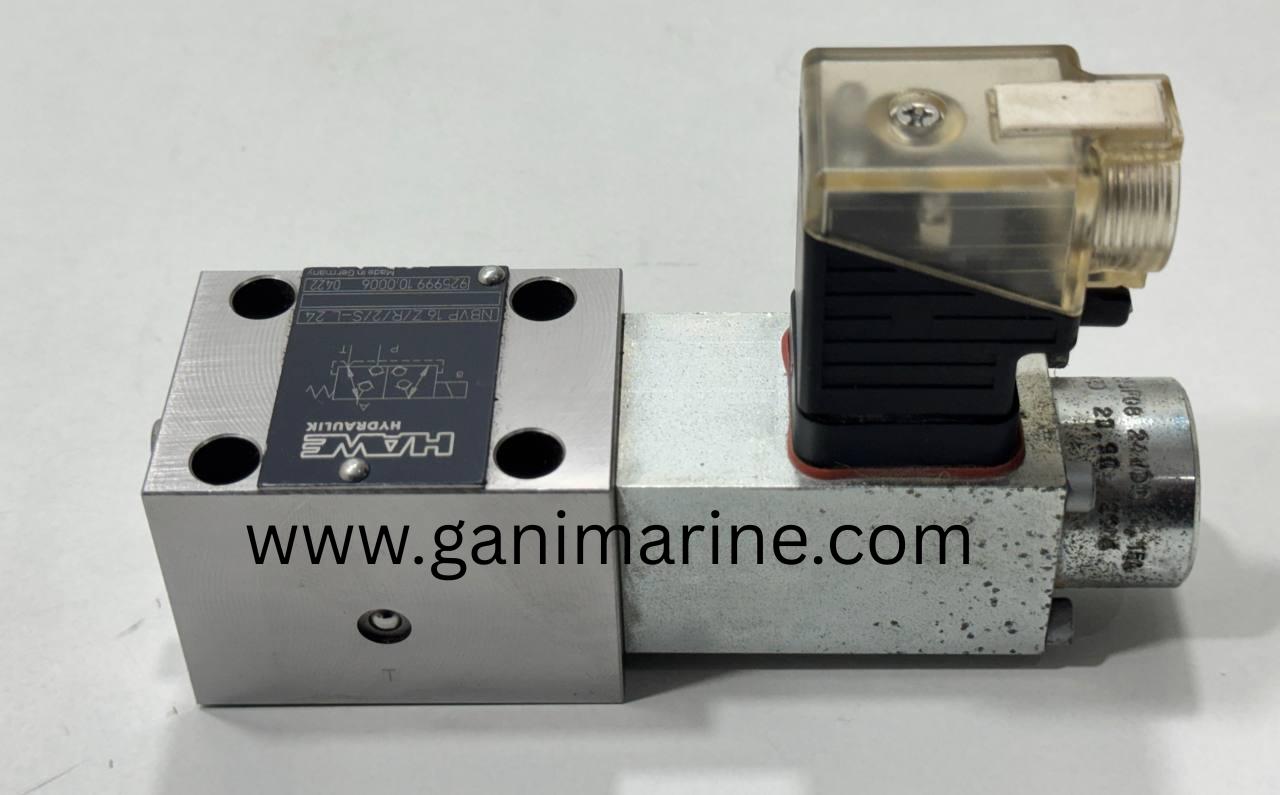

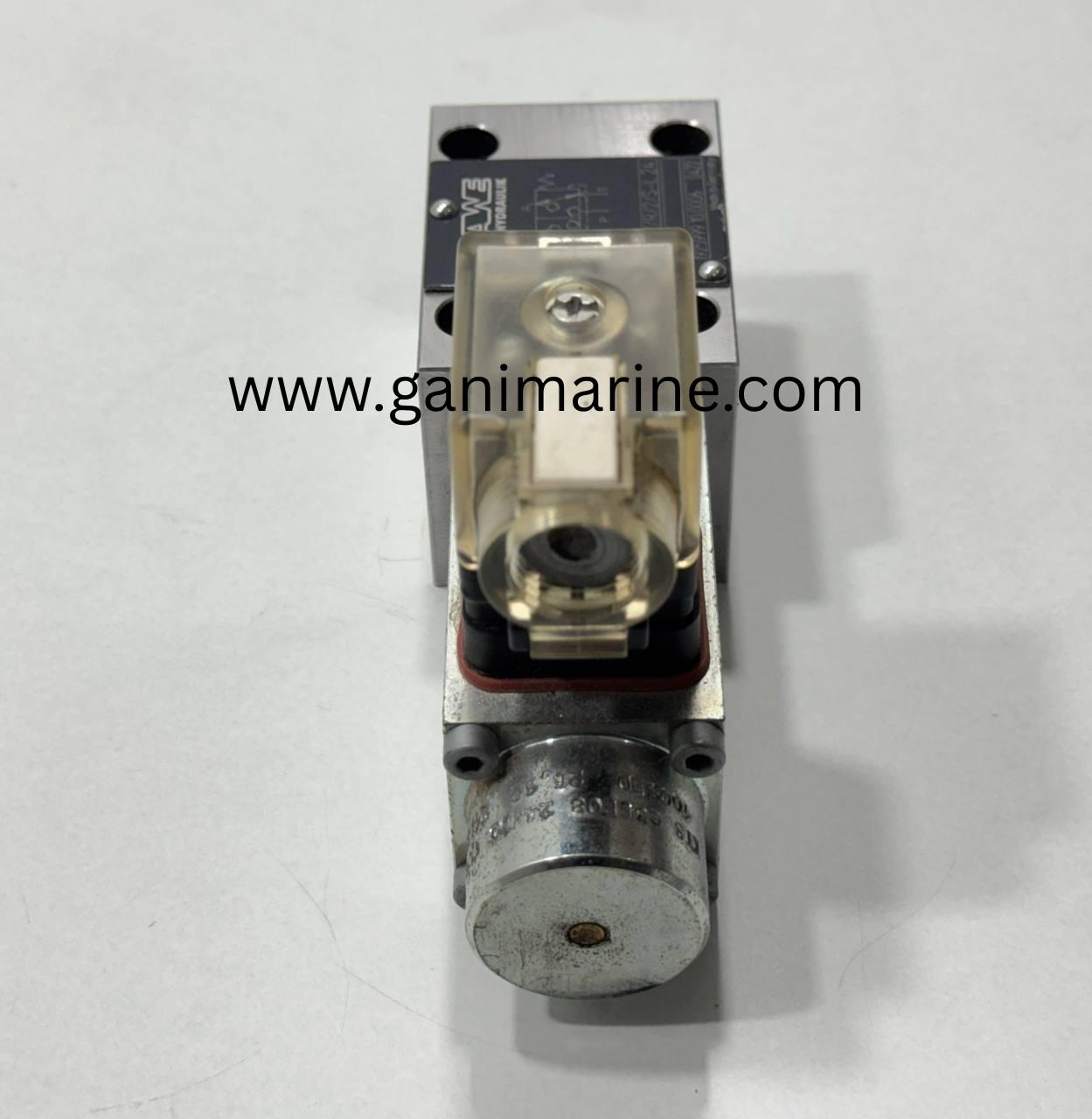

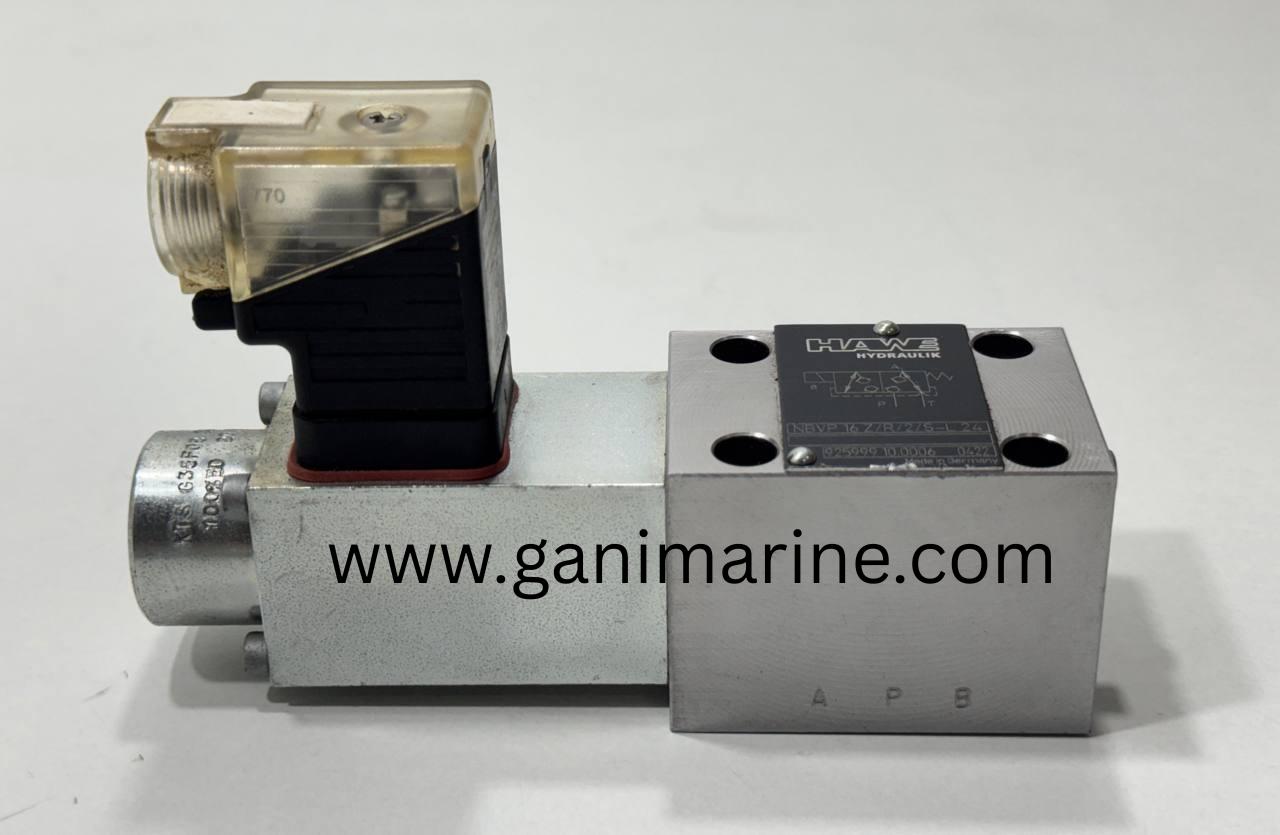

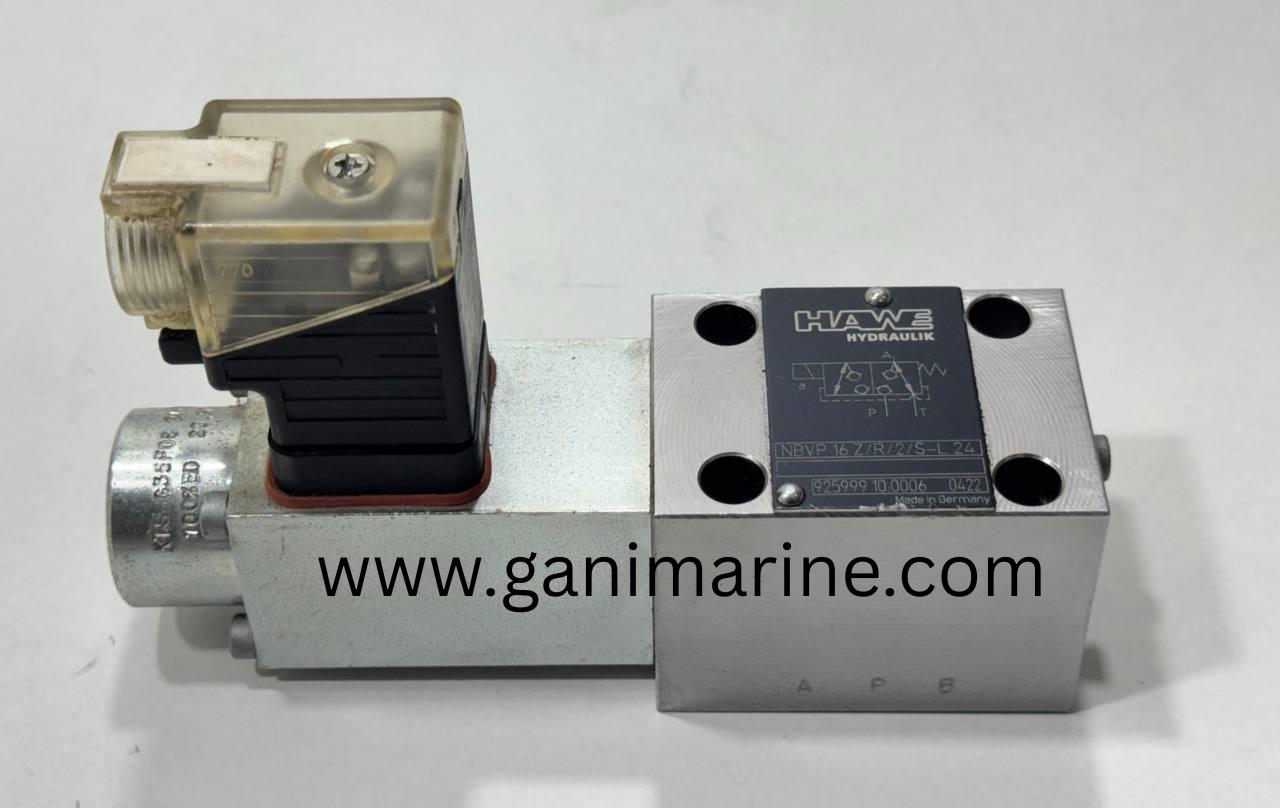

HAWE Hydraulik NBVP 16 Z /R /2 /S-L 24 seated directional valve
HAWE Hydraulik NBVP 16 Z /R /2 /S-L 24 seated directional valve
The HAWE Hydraulik NBVP 16 series is a high-pressure, leak-free seated directional control valve, specially designed for precision hydraulic systems where zero internal leakage and pressure holding are critical.
This valve uses a cone-seated design, making it ideal for clamping, machine tools, test rigs, and high-pressure industrial applications.
Manufacturer & Identification
• Manufacturer: HAWE Hydraulik
• Country of Origin: Germany
• Series: NBVP 16

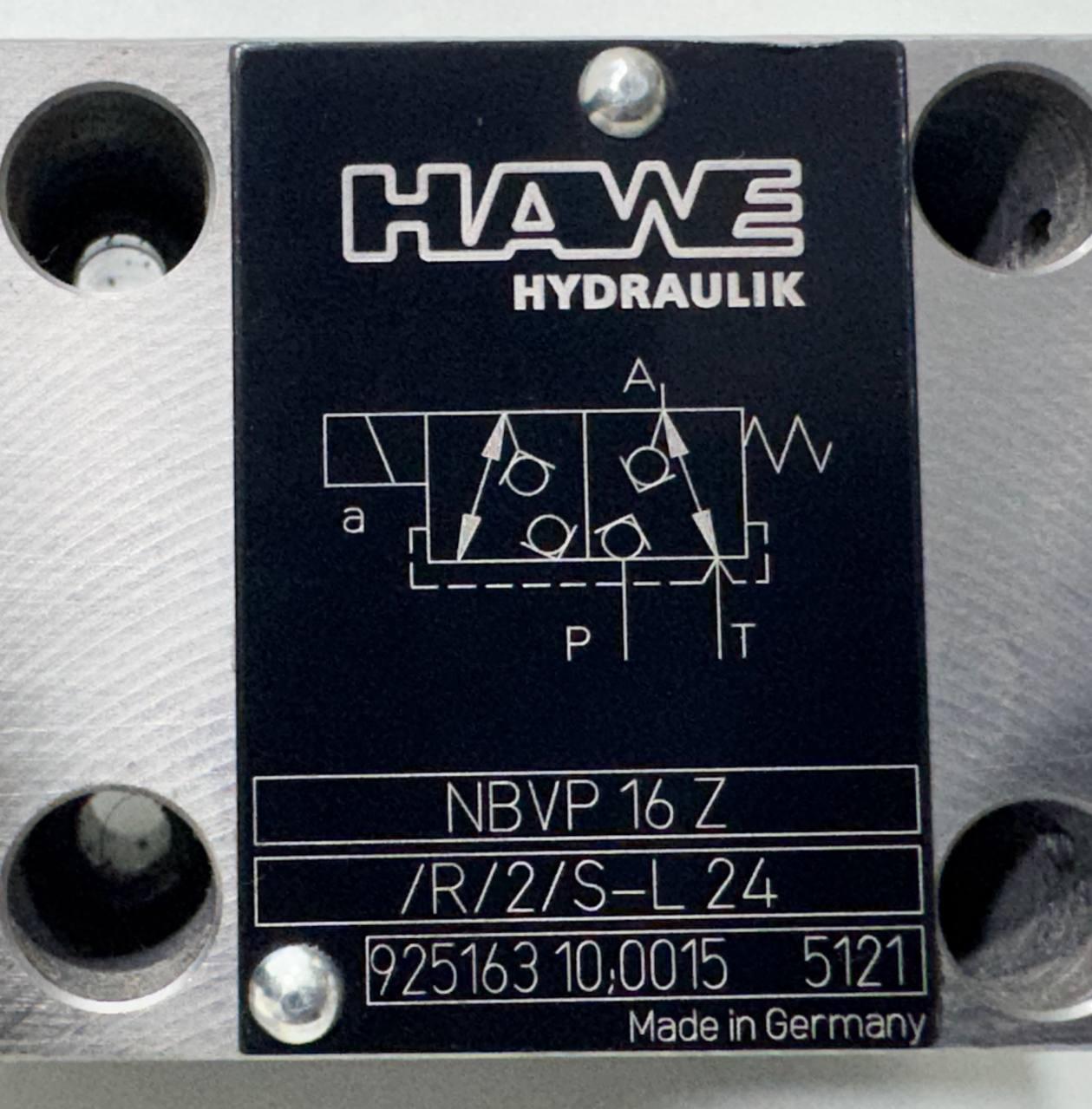

• Model Code: NBVP 16 Z /R /2 /S-L 24
• Part Number: 925163 10-0015
Valve Technical Specifications
• Valve Type: Seated directional control valve
• Function: 3/2-way (pressure, actuator, tank)
• Design Principle: Cone-seated (zero leakage in closed position)
• Nominal Size: 16

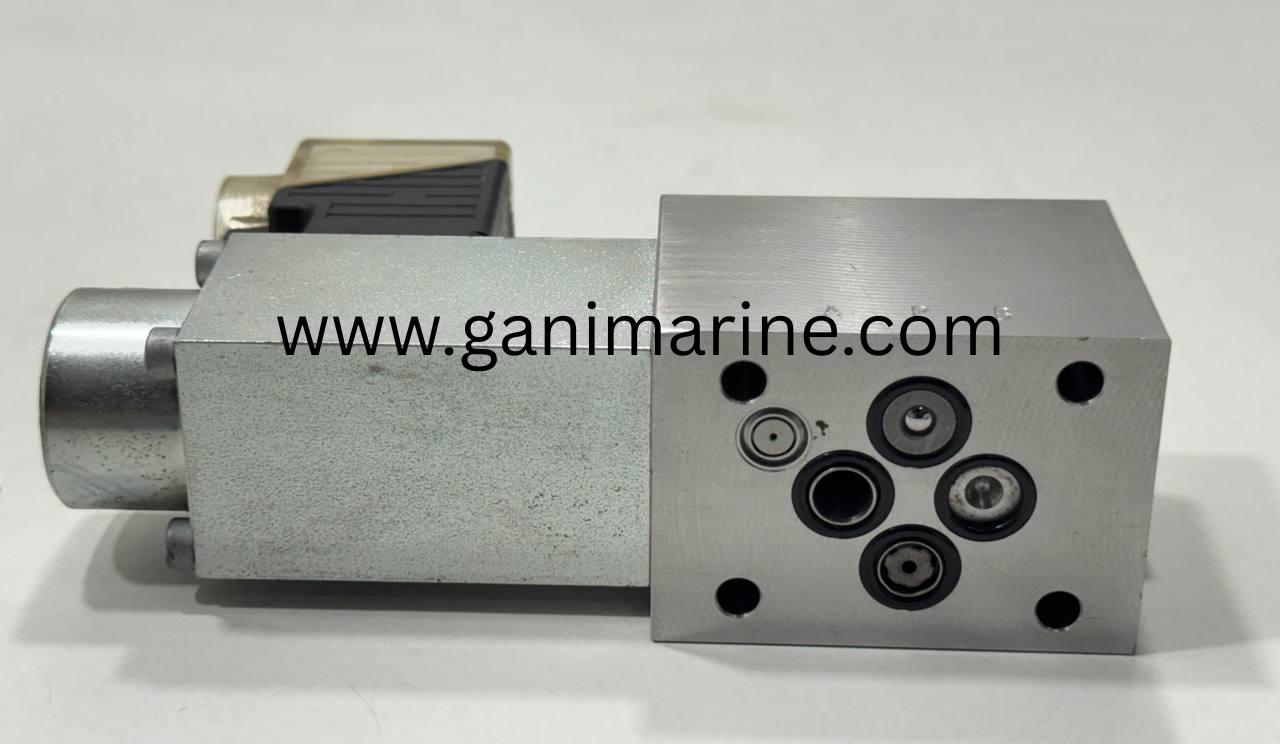

• Mounting Type: Subplate / Manifold mounting
• Operation: Solenoid actuated with spring return
• Switching Type: On / Off
Pressure & Flow Ratings
• Maximum Operating Pressure: Up to 400 bar (5,800 psi)
• Maximum Flow Rate (Qmax): Approx. 20 l/min
• Leakage: Practically zero (seat valve design)

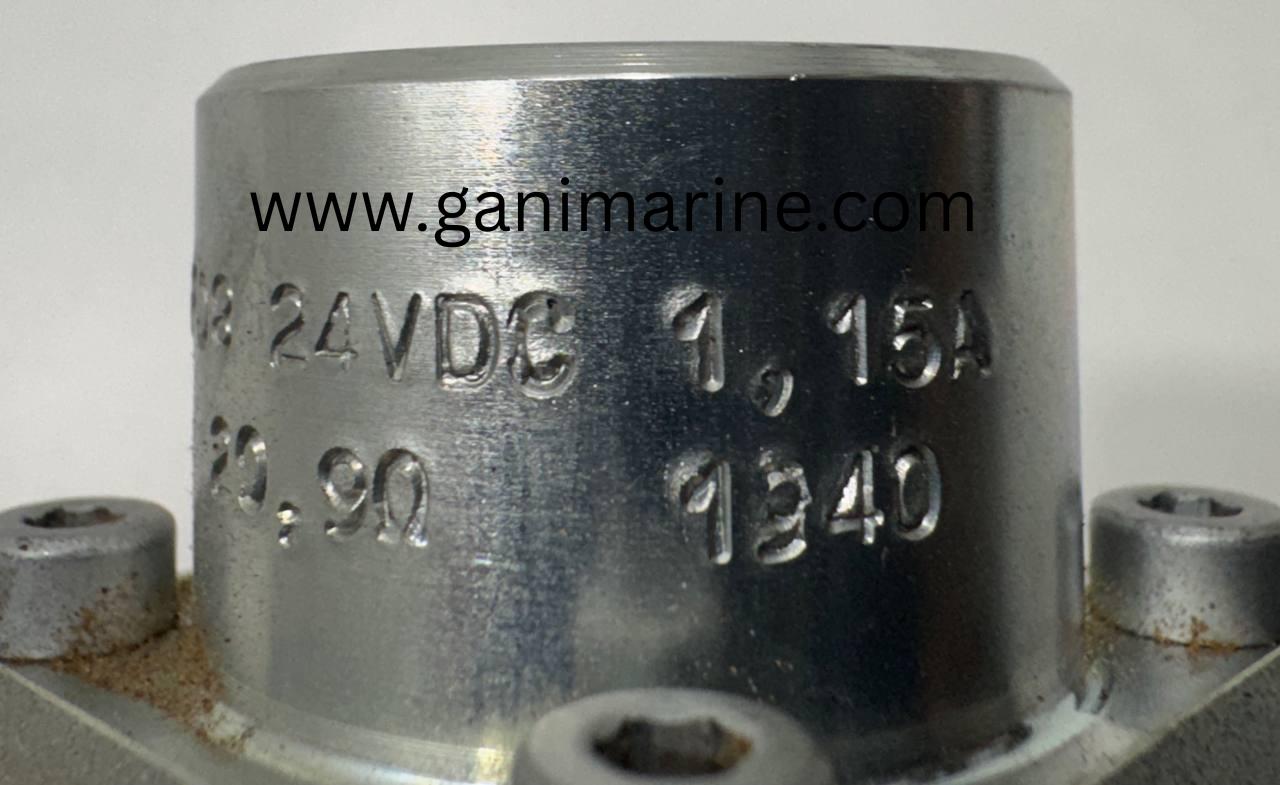

Solenoid Coil Specifications

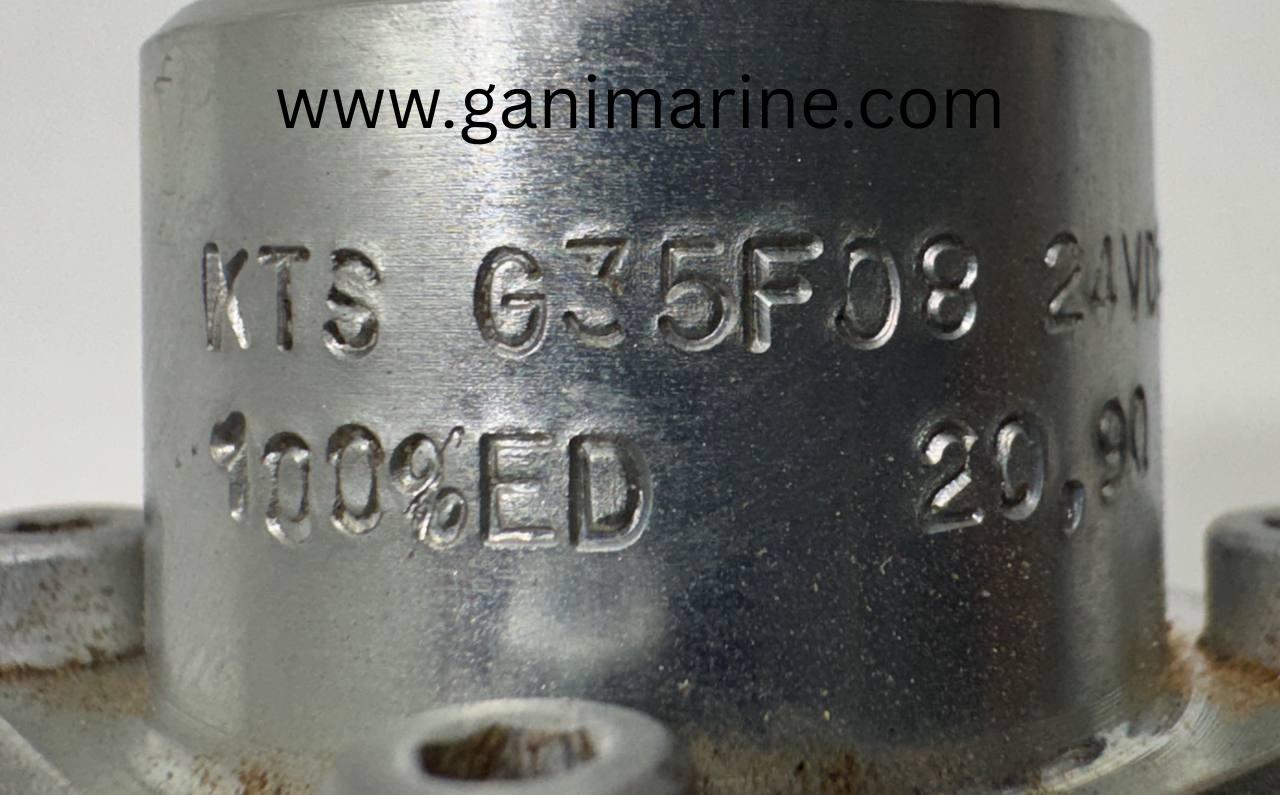

• Coil Model: KTS G35F08
• Voltage: 24V DC
• Current: 1.15 A
• Duty Cycle: 100% ED (continuous operation)
• Electrical Connection: DIN 43650 / ISO 4400
• Connector Type: Transparent plug (often with LED indication)
Functional Description
• In the de-energized state, the spring returns the valve to its default position, blocking pressure securely.
• When 24V DC is applied, the solenoid shifts the valve, directing pressure (P) to port (A) or venting A to tank (T).
• The seat-type construction ensures absolute tight shut-off, even under long standstill conditions.
Key Features
• Zero internal leakage (seat valve technology)
• Extremely high pressure capability
• Compact, robust German engineering
• Long service life
• Reliable pressure holding
• Suitable for continuous duty
• Ideal for safety-critical applications
Typical Applications
• Hydraulic clamping systems
• Machine tools & machining centers
• Fixture and jig construction
• Hydraulic presses
• Test benches
• Industrial automation
• Pressure holding circuits
Industries Served
• Manufacturing
• Tooling & automation
• Automotive production
• Heavy engineering
• Industrial hydraulics
Condition
• Original HAWE Hydraulik valve
• Industrial-grade quality
• Ready for installation
