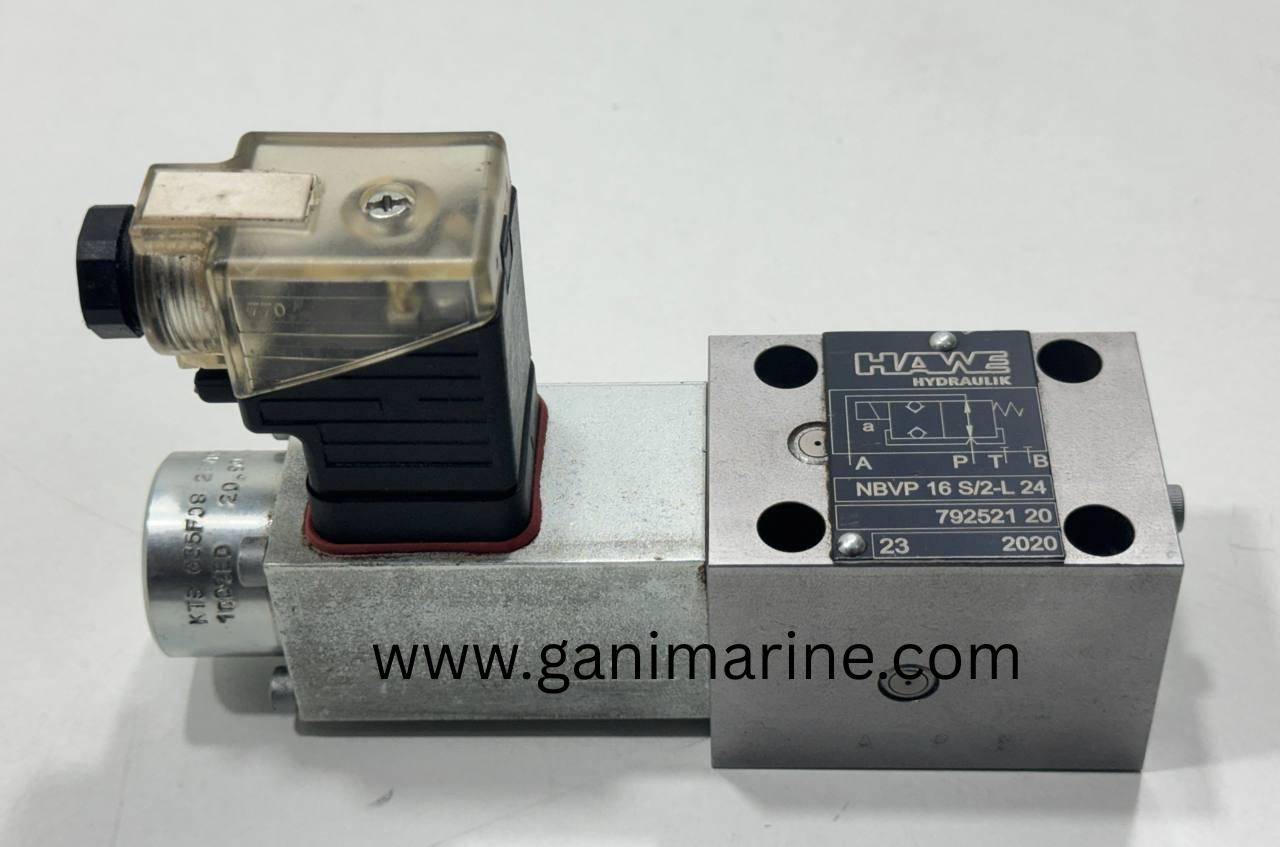

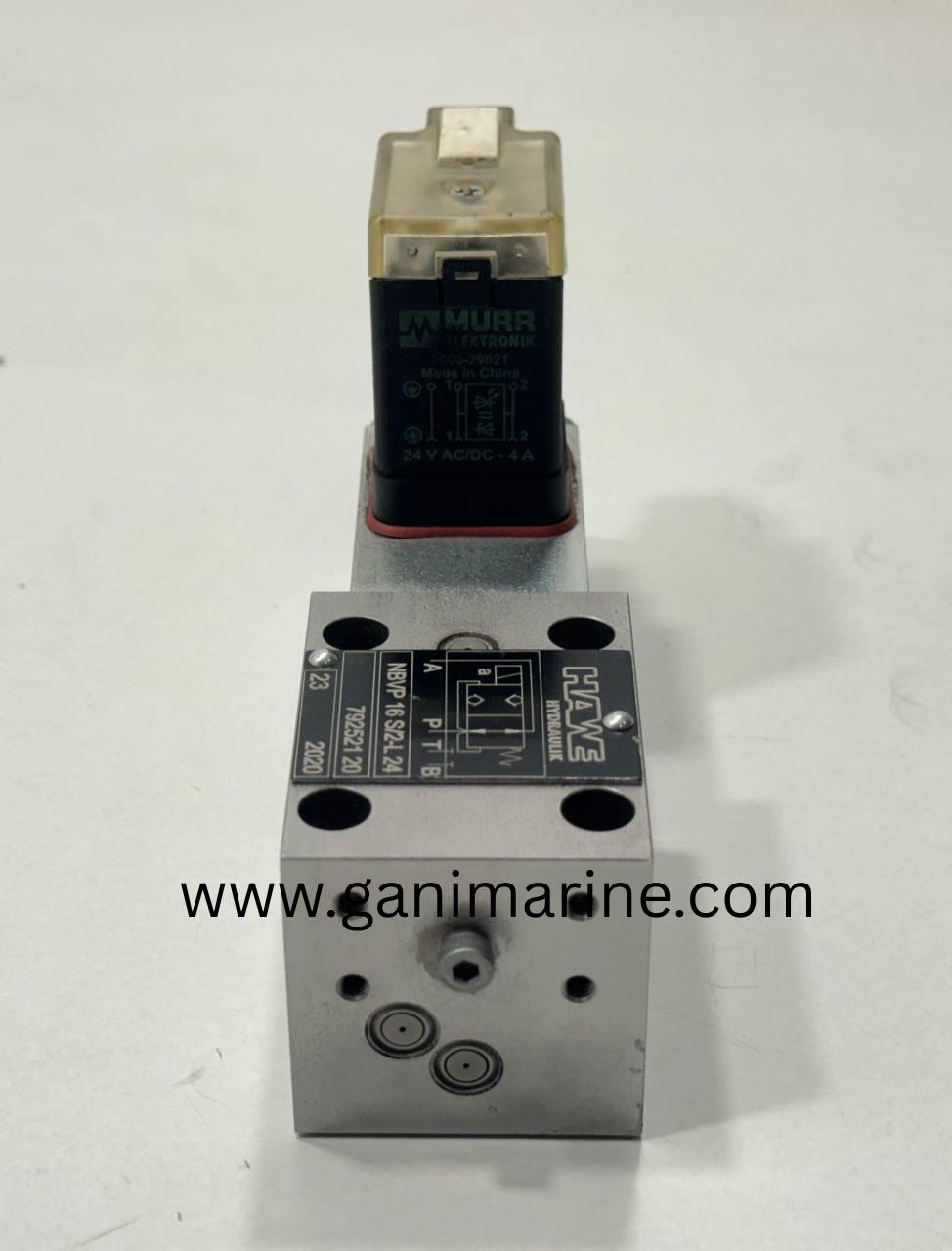

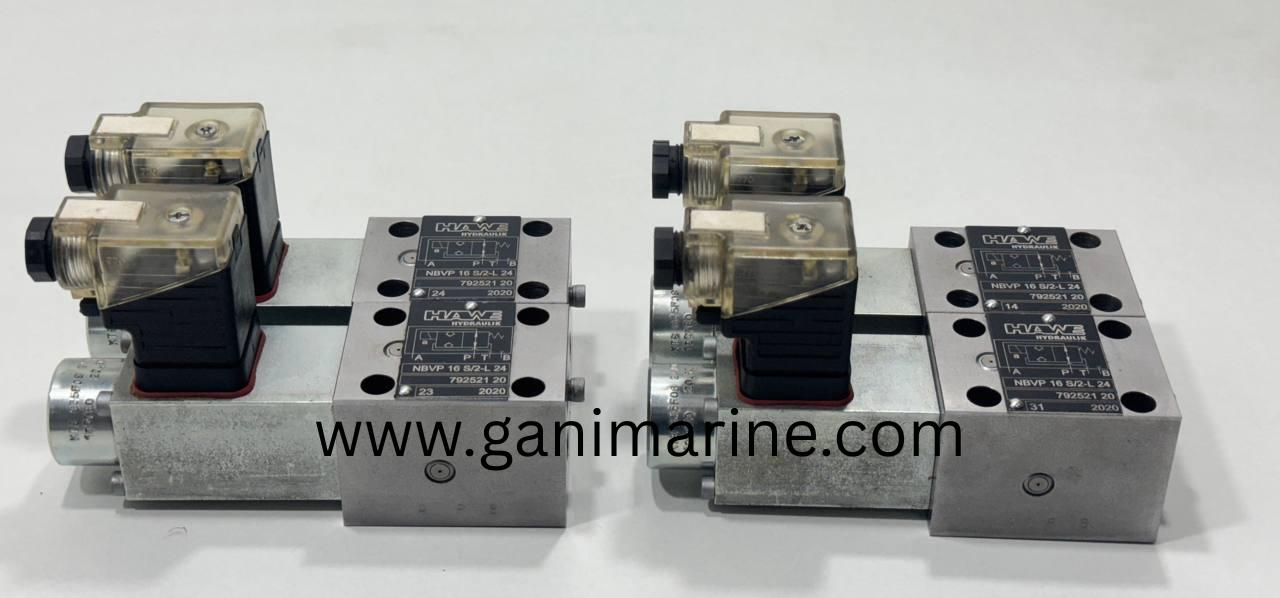

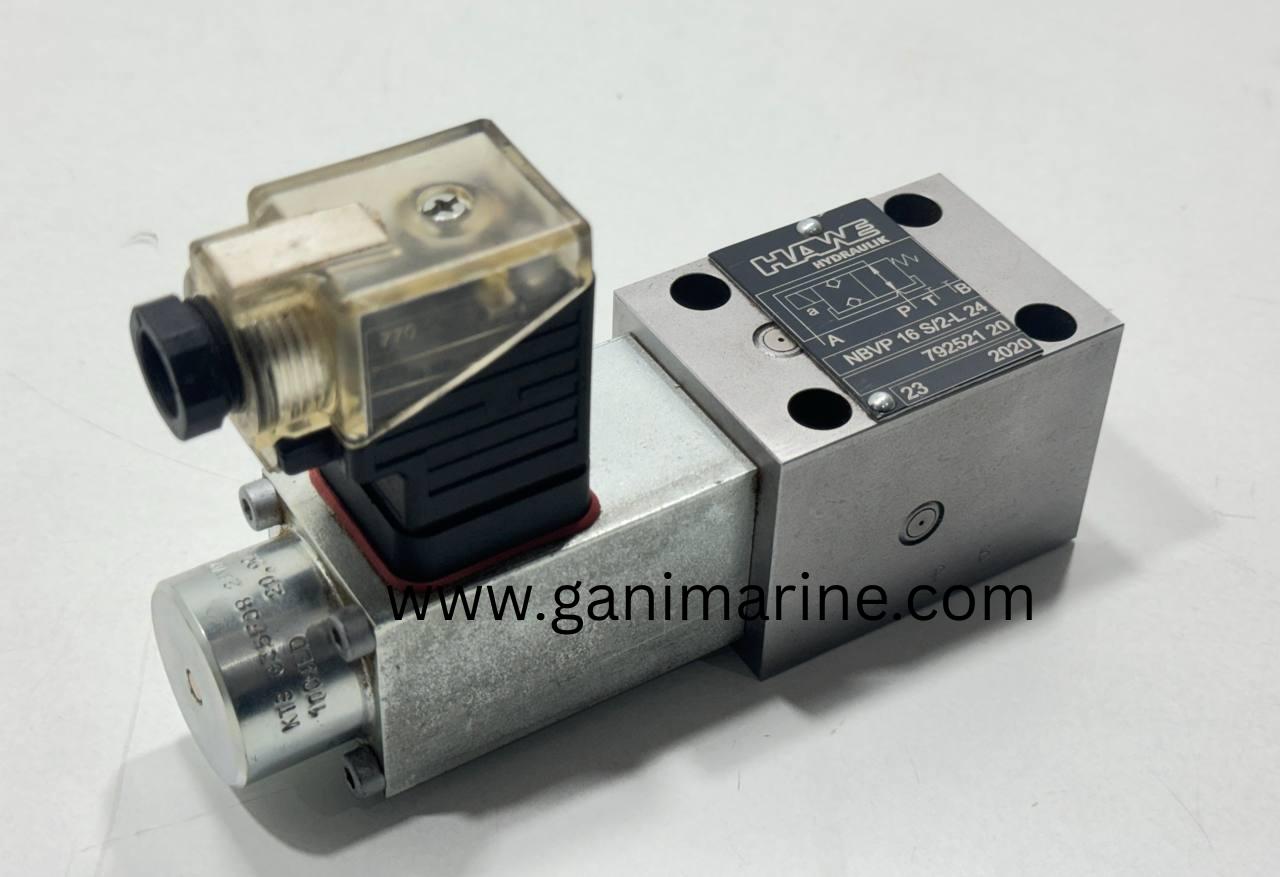

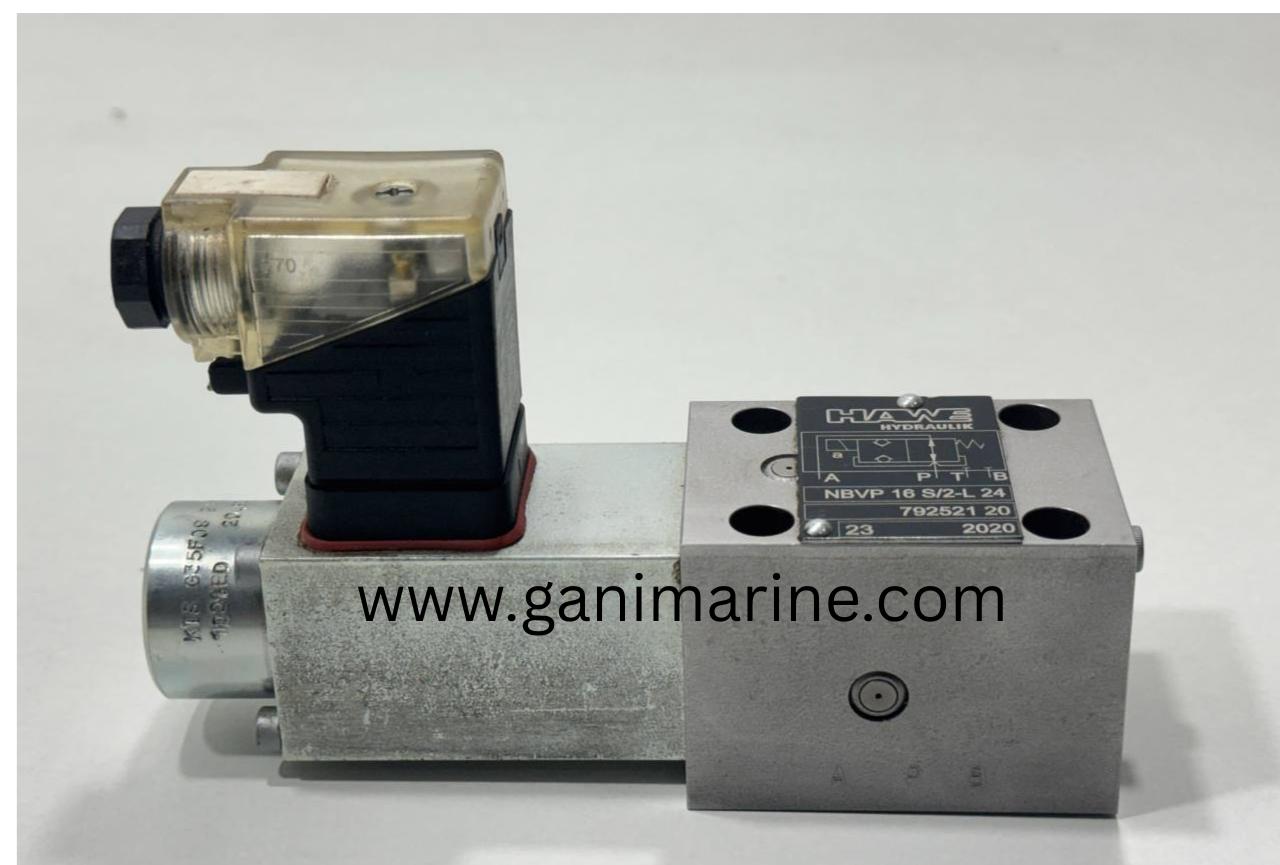

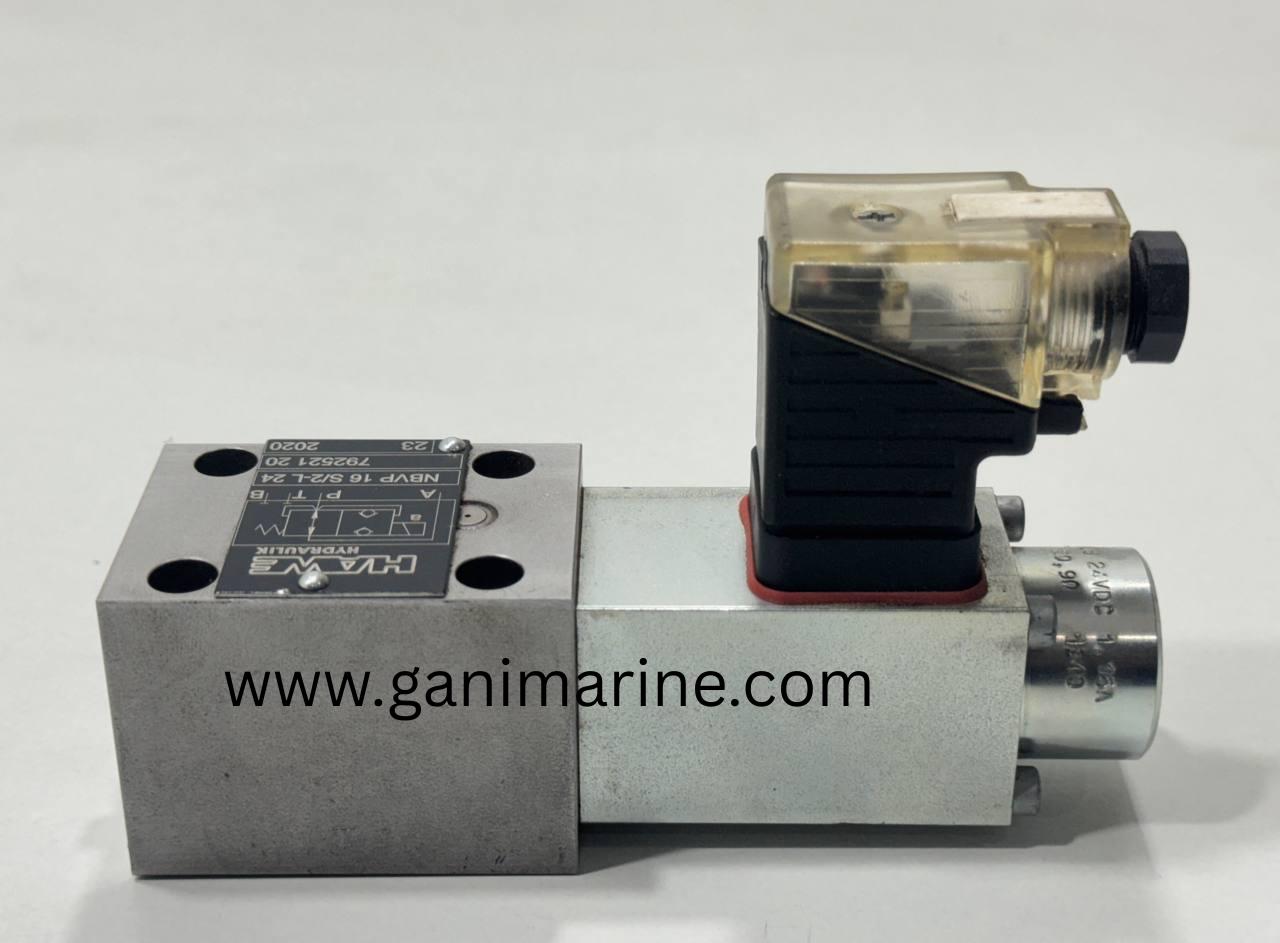

HAWE Hydraulik NBVP 16 S/2-L 24 seated directional spool valve
HAWE Hydraulik NBVP 16 S/2-L 24 seated directional spool valve
The HAWE NBVP 16 S/2-L 24 is a high-pressure 3/2-way seated directional control valve designed for zero-leakage hydraulic applications.
Unlike spool valves, this cone-seated valve design ensures absolute tight shut-off, making it ideal for clamping systems, pressure holding circuits, and industrial automation.
Manufactured in Germany by HAWE Hydraulik, this valve is engineered for reliability, durability, and high-pressure performance up to 400 bar.
Model Identification
• Manufacturer: HAWE Hydraulik

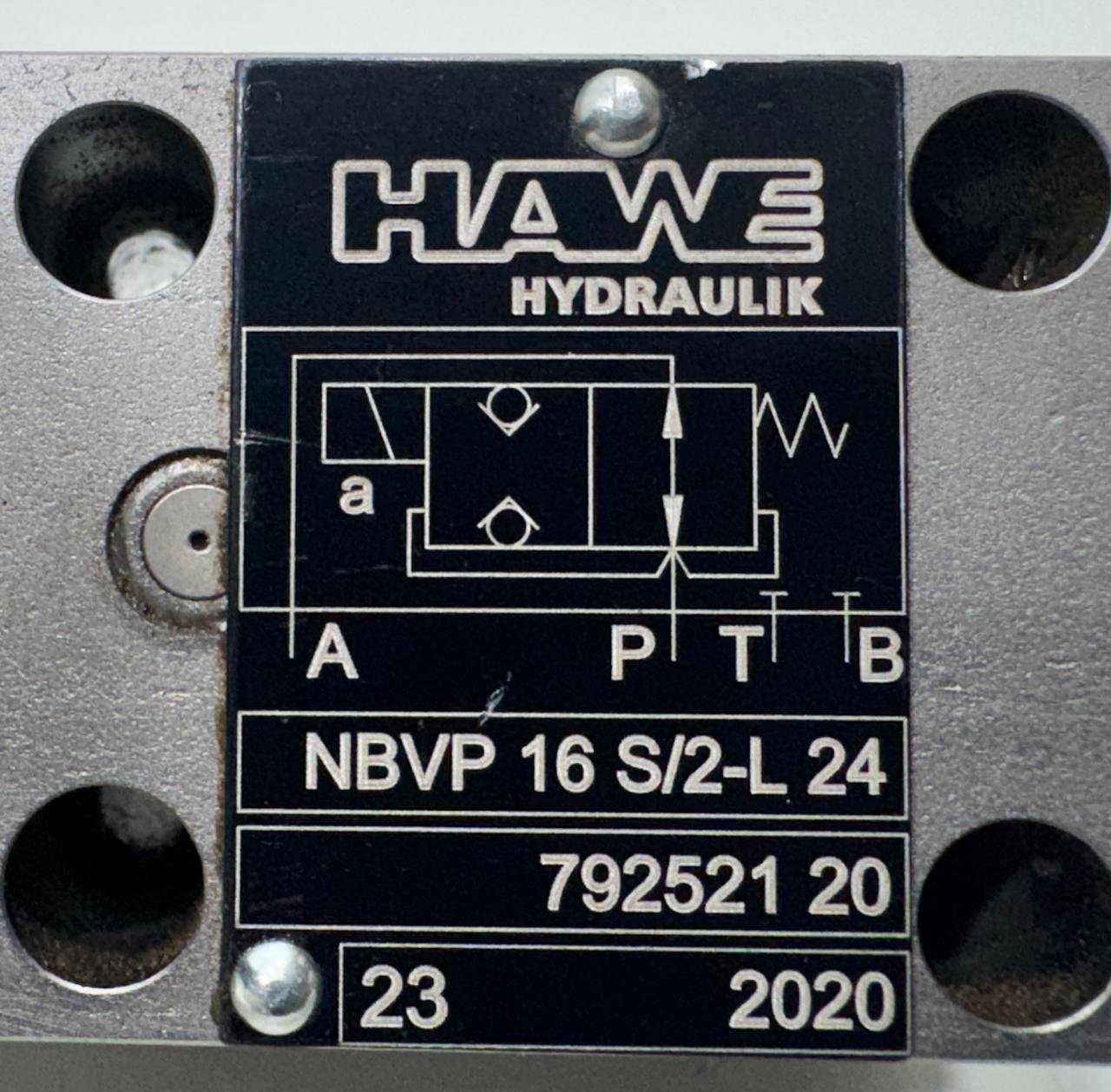

• Model Code: NBVP 16 S/2-L 24
• Part Number: 792521 20
• Valve Type: 3/2-way seated directional valve
• Actuation: Solenoid operated
• Return Mechanism: Spring return

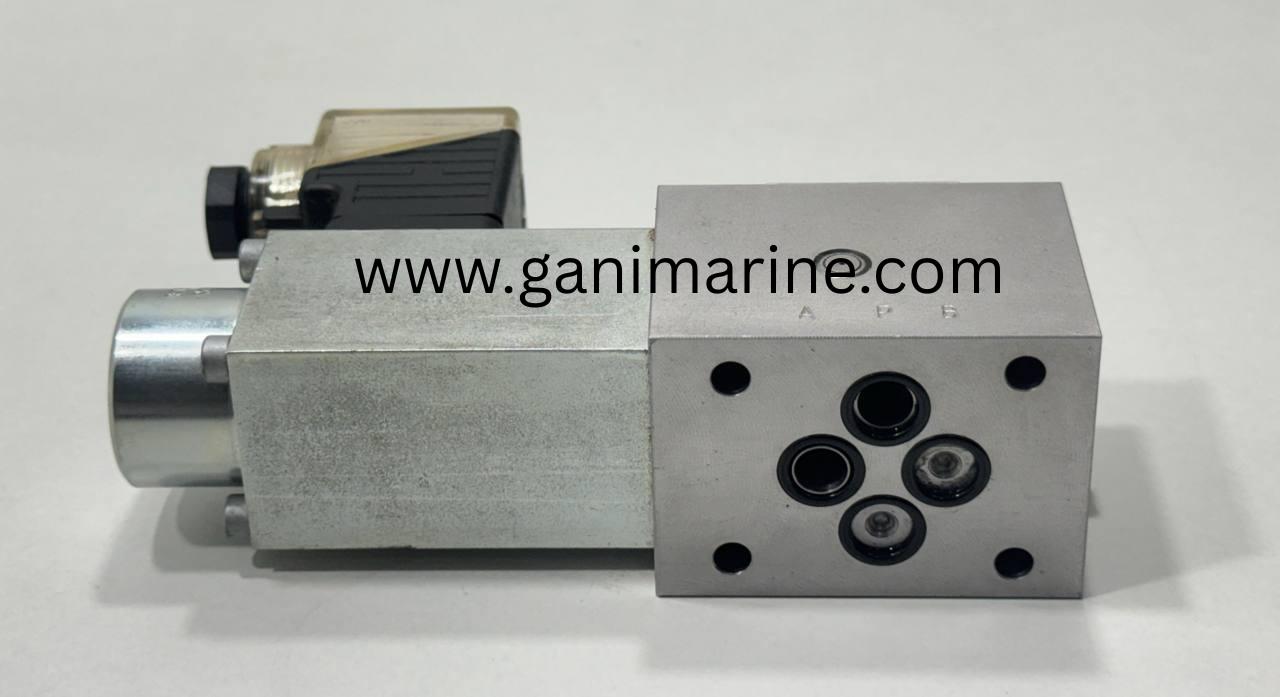

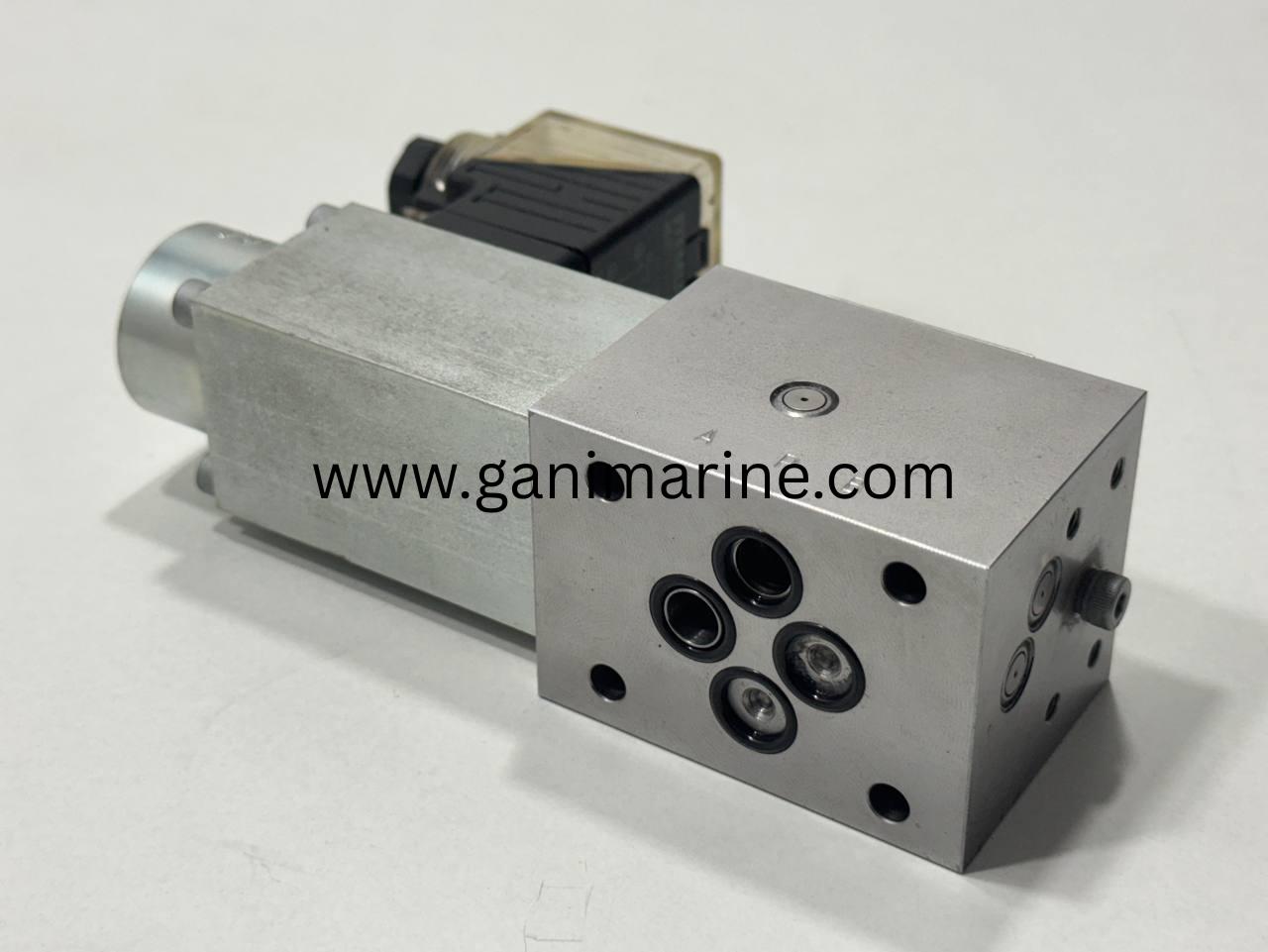

• Mounting Type: Manifold / Subplate mounting
Circuit Function Explanation
• Energized State (24V DC applied):
Port P ? A (Pressure to actuator)
• De-energized State (Spring return):
Port P blocked, A ? T (Actuator connected to tank)
This configuration is ideal for pressure clamping and safe load release applications.

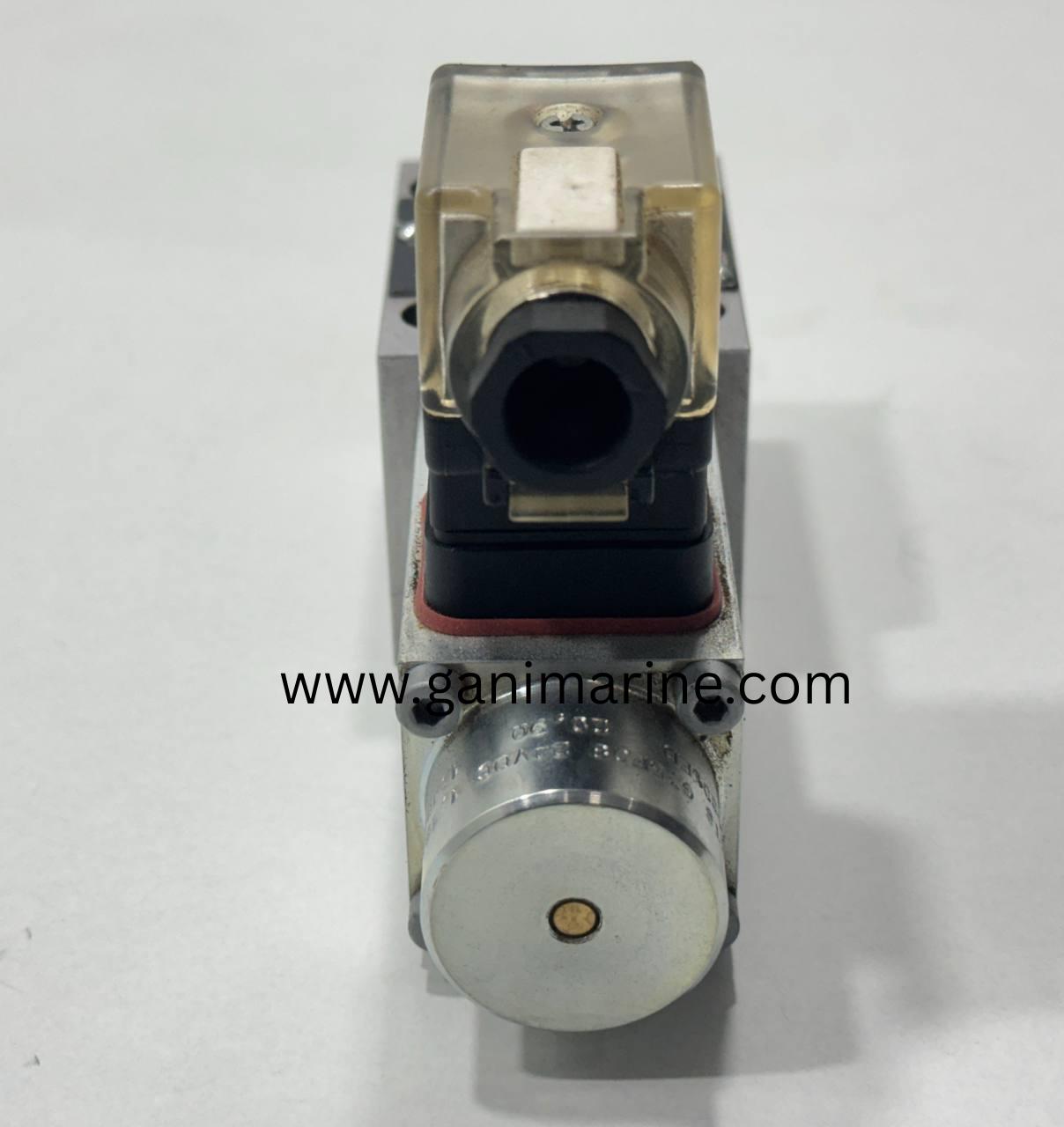

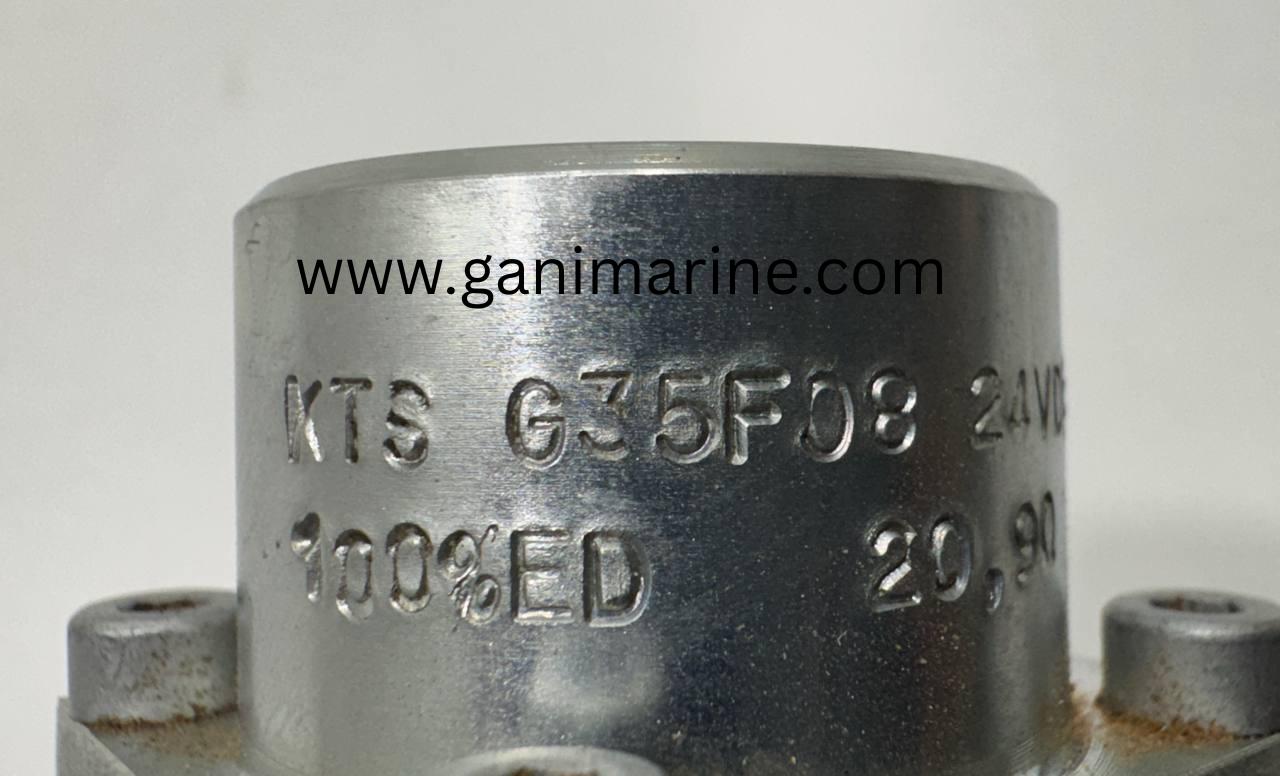

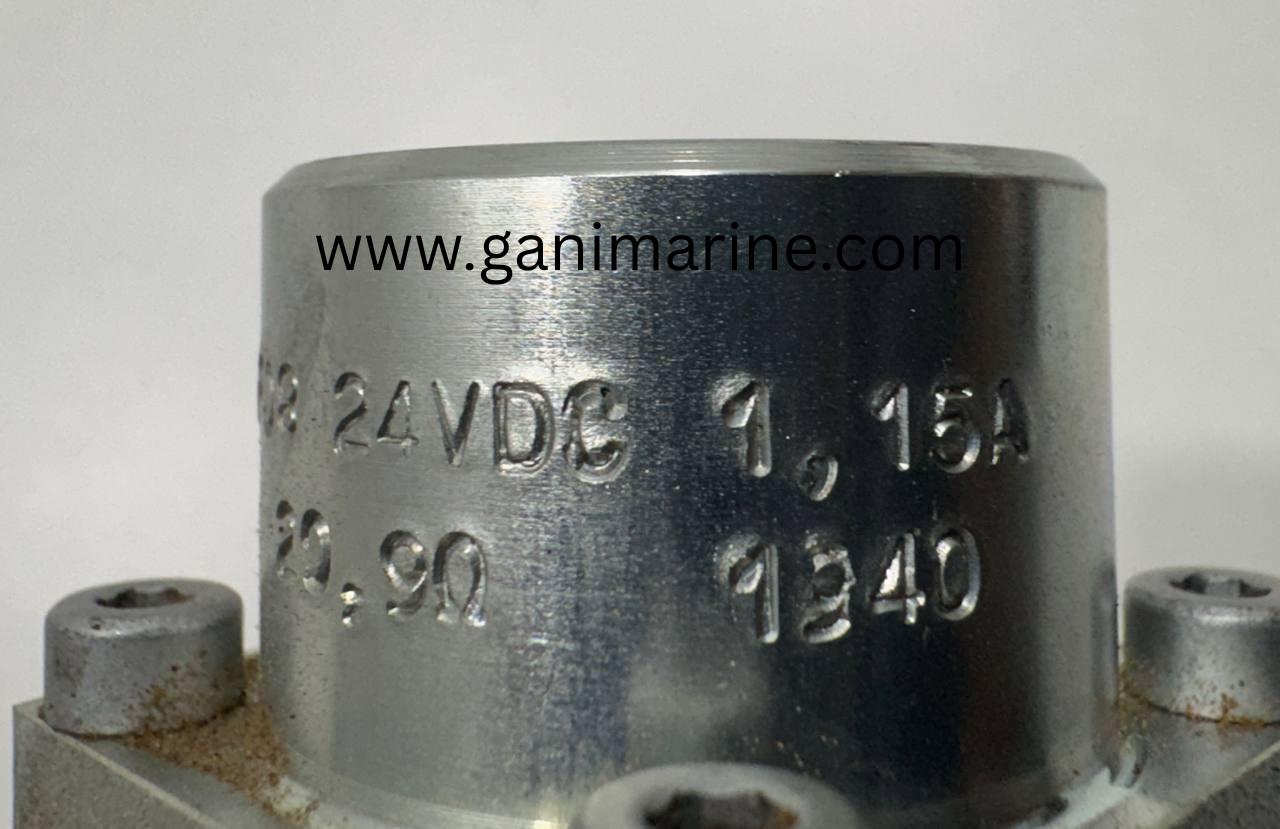

Solenoid Specifications – KTS G35F08
• Voltage: 24V DC
• Current: 1.15 A
• Duty Cycle: 100% ED (continuous operation)
• Protection Class: IP65 (with proper DIN connector installed)
• Connector Type: DIN 43650 / ISO 4400
Key Features
• Zero internal leakage (metal-to-metal seat sealing)
• High pressure capability up to 400 bar
• Continuous duty solenoid (100% ED)
• Compact and robust German design
• Reliable pressure holding without cylinder creep
• Long service life
• Suitable for industrial hydraulic systems
Advantages Over Spool Valves
• No internal leakage
• No actuator drifting
• Better load holding
• Higher safety in clamping circuits
• More reliable in high-pressure applications
Typical Applications
• Hydraulic clamping systems
• Machine tools & CNC machinery
• Industrial presses
• Test benches
• Fixture & jig construction
• Pilot control circuits
• Automation systems
Industries Served
• Manufacturing
• Automotive production
• Heavy machinery
• Tooling industry
• Industrial hydraulics
• Engineering plants
