FRAMO SB 200 SUBMERGED BALLAST PUMP
FRAMO SB 200 SUBMERGED BALLAST PUMP

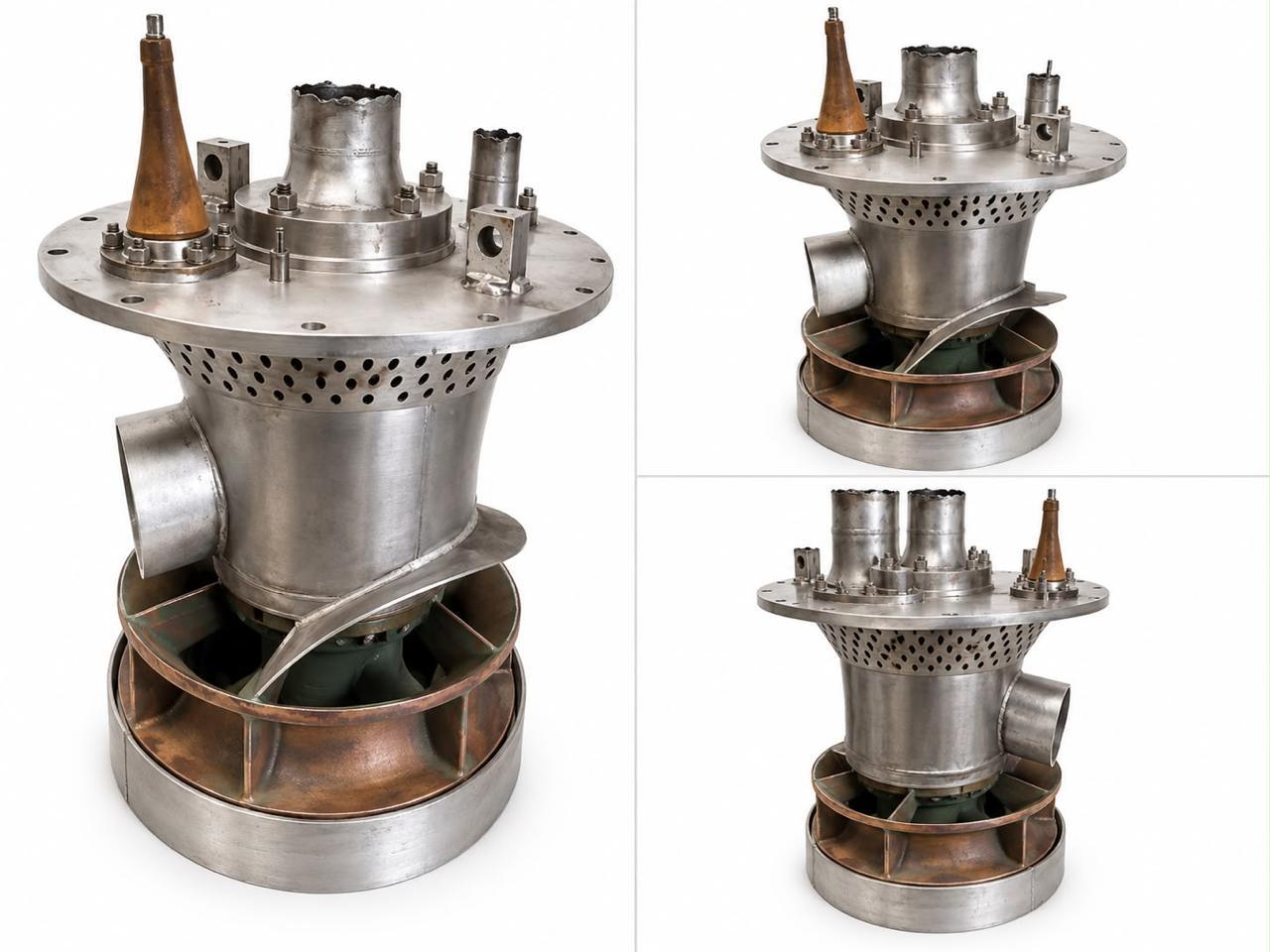

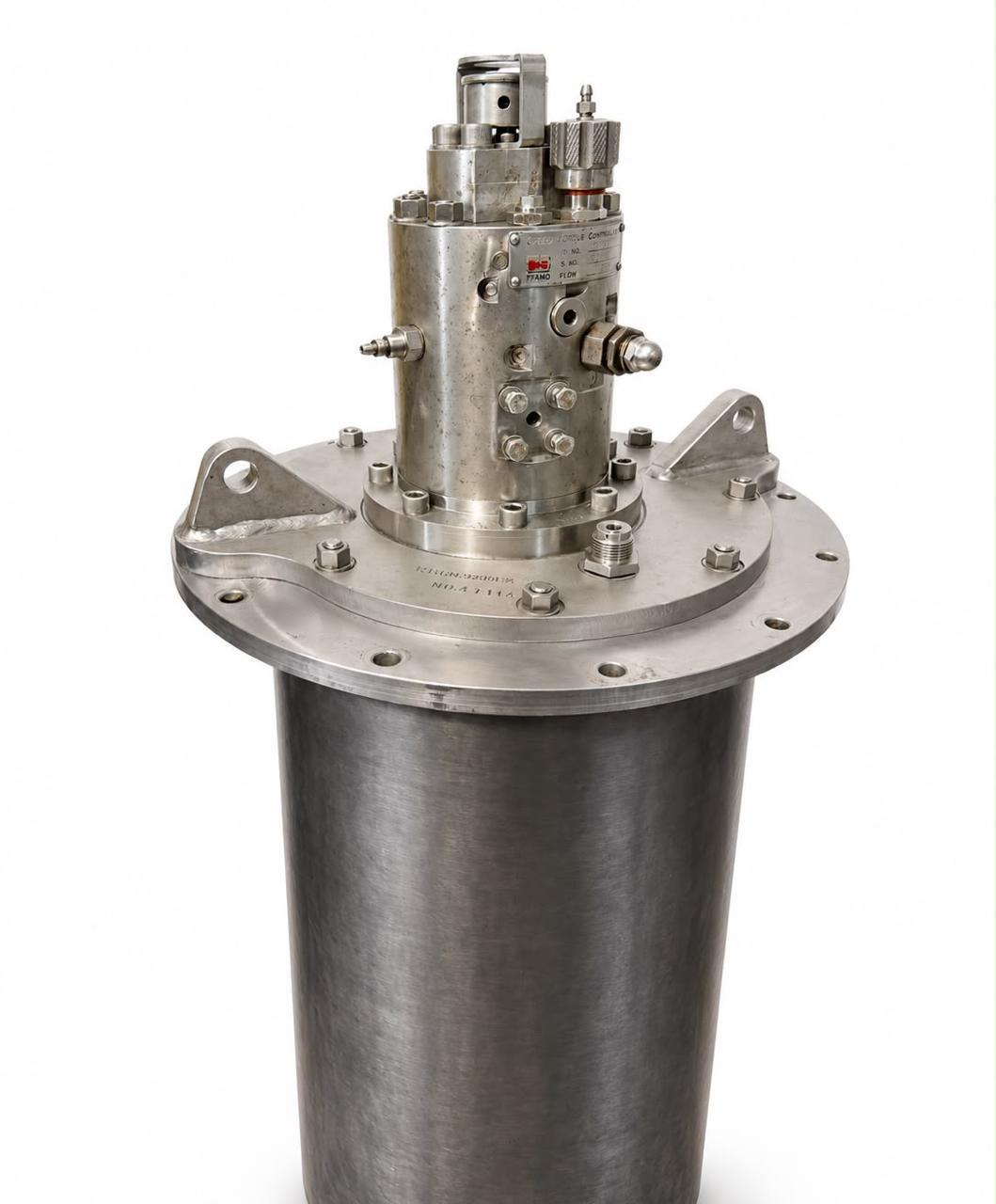

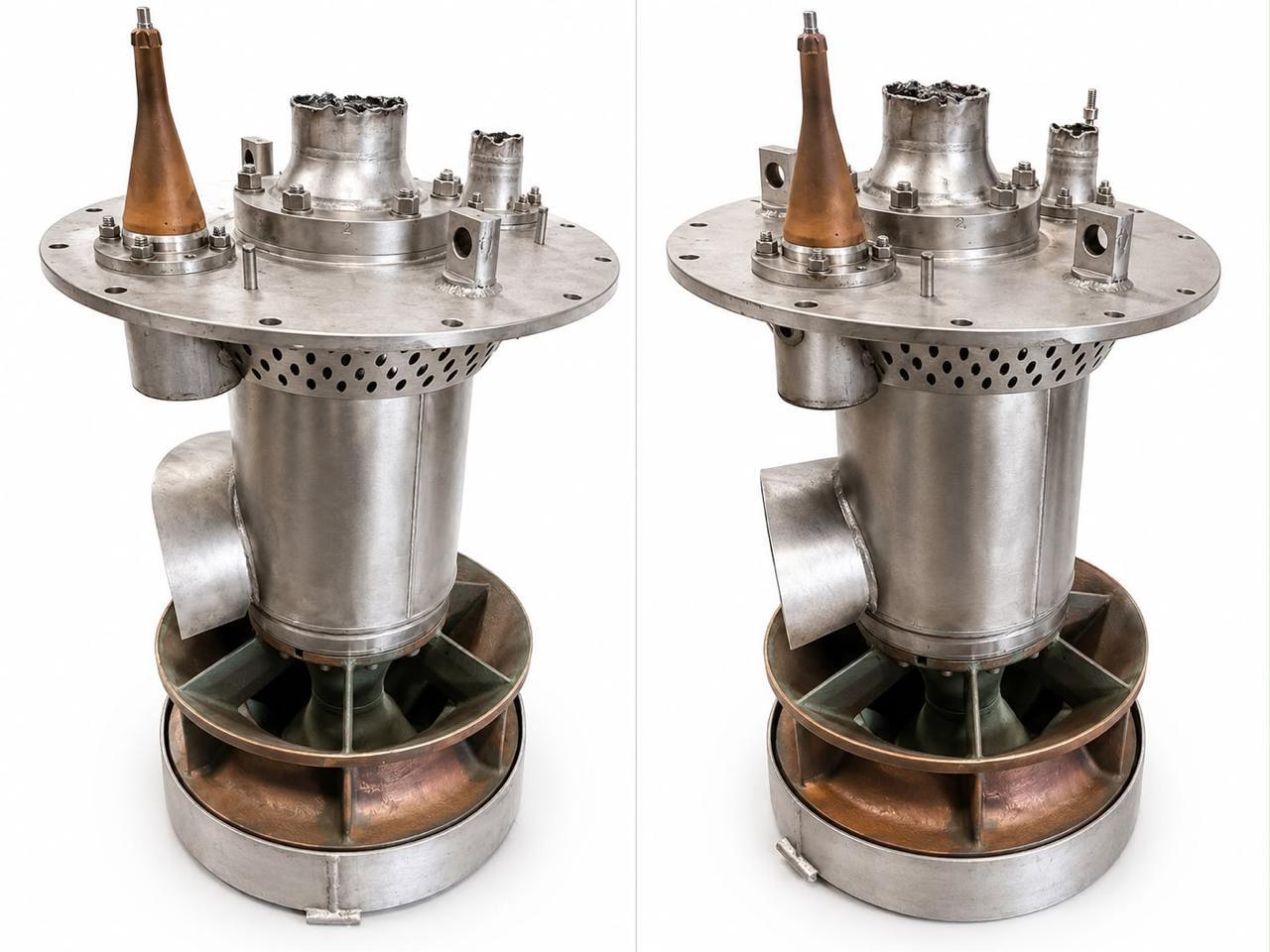

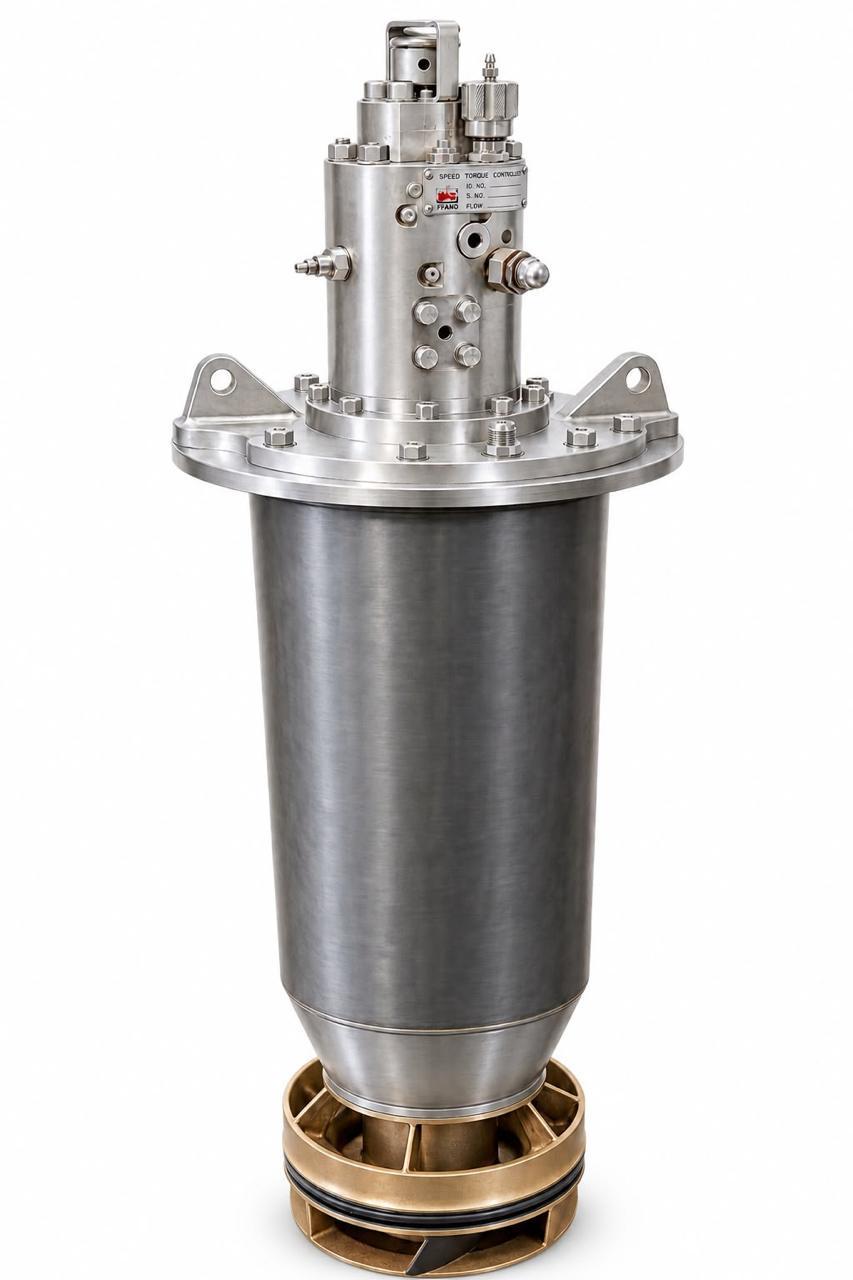

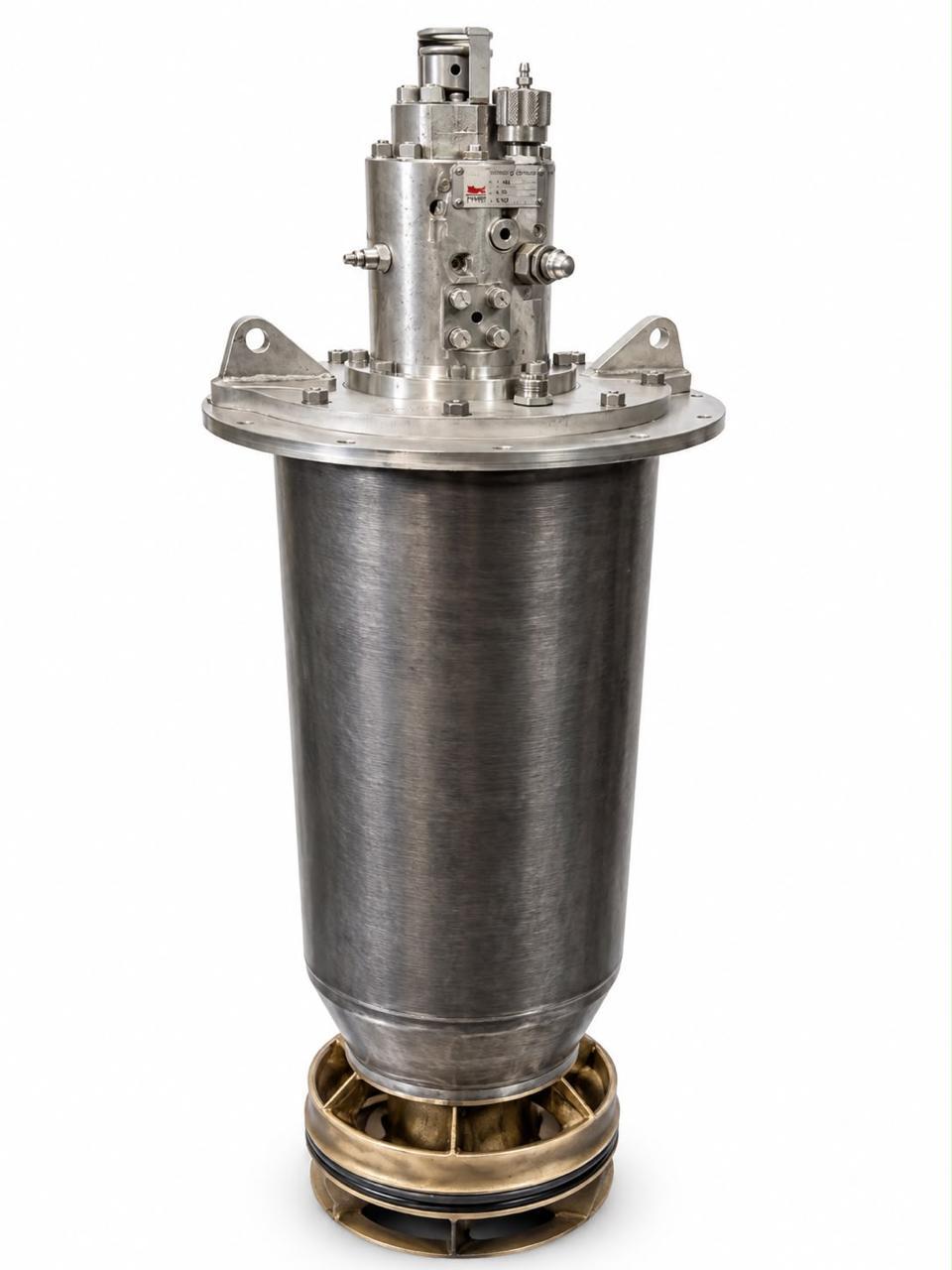

The Framo SB 200 Submerged Ballast Pump is a hydraulically driven vertical centrifugal marine ballast pump designed for ballast water pumping applications on ships, tankers and offshore vessels.
The SB 200 is installed directly inside the ballast tank and uses a hydraulic motor to drive the centrifugal pump. The Framo submerged pump design allows efficient ballast water handling while the hydraulic drive arrangement provides a compact solution for marine cargo and ballast systems.
The pump incorporates a built-in air-ejector/self-priming system to assist pump priming and reliable operation. The Framo design also uses a cofferdam arrangement to help separate and protect the pump/drive section from direct exposure to ballast water.
With a nominal capacity of approximately 500 m³/h, the Framo SB 200 is suitable for high-capacity ballast water transfer and marine vessel ballast operations.
Technical Specifications
Model: SB 200
Pump Type: Submerged Ballast Pump
Application: Ballast Water Pumping
Pump Design: Vertical Centrifugal Pump
Drive: Hydraulic Motor
Nominal Capacity: Approx. 500 m³/h
Pump Connection / D: 200 mm
Dimension A: 790 mm
Dimension B: 596 mm
Dimension C: 250 mm
10 m Pump Weight: Approx. 550 kg
Additional Weight: Approx. 18 kg/m
Priming System: Built-in air-ejector / self-priming system
Installation: Submerged installation inside ballast tank
Drive Arrangement: Hydraulic drive
Marine System: Vessel Ballast Water System
Key Features
* Framo SB 200 submerged ballast pump
* High-capacity marine ballast water pump
* Approx. 500 m³/h nominal capacity
* Vertical centrifugal pump design
* Hydraulic motor driven
* Designed for submerged ballast tank installation
* Built-in air-ejector/self-priming arrangement
* Cofferdam arrangement for pump and drive protection
* Compact marine ballast pumping solution
* Suitable for ships and tankers
* Designed for demanding marine operating conditions
* Suitable for ballast water transfer and tank stripping applications
* Useful for ship repair, maintenance and replacement projects
Typical Applications
* Ship Ballast Water Systems
* Tanker Ballast Systems
* Marine Ballast Water Transfer
* Submerged Ballast Tank Pumping
* Cargo Ship Ballast Operations
* Oil Tanker Ballast Systems
* Offshore Vessel Ballast Systems
* Marine Tank Pumping
* Shipboard Hydraulic Pumping Systems
* Ballast Tank Stripping
* Shipyard Maintenance
* Marine Pump Replacement
* Vessel Repair & Retrofit
* Marine Hydraulic Systems
