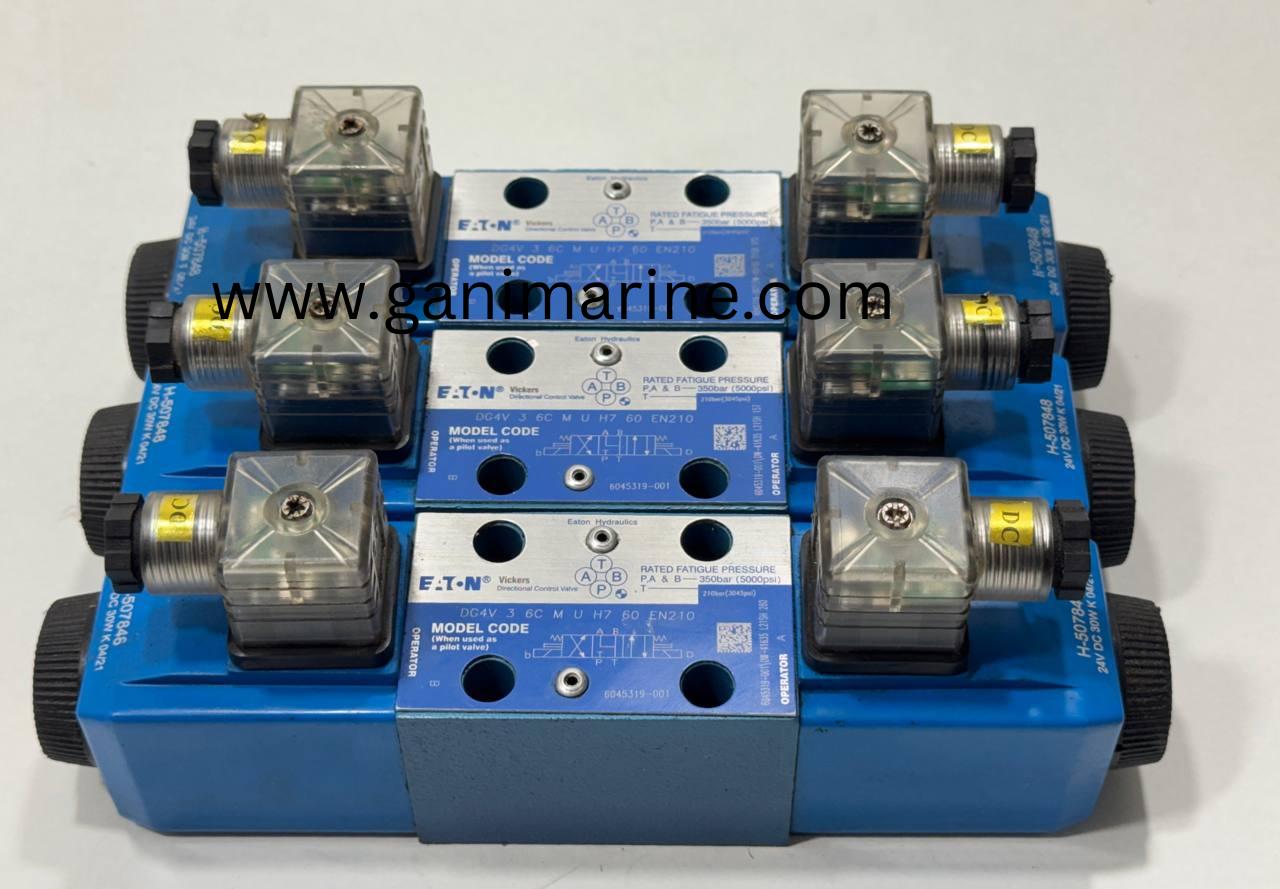

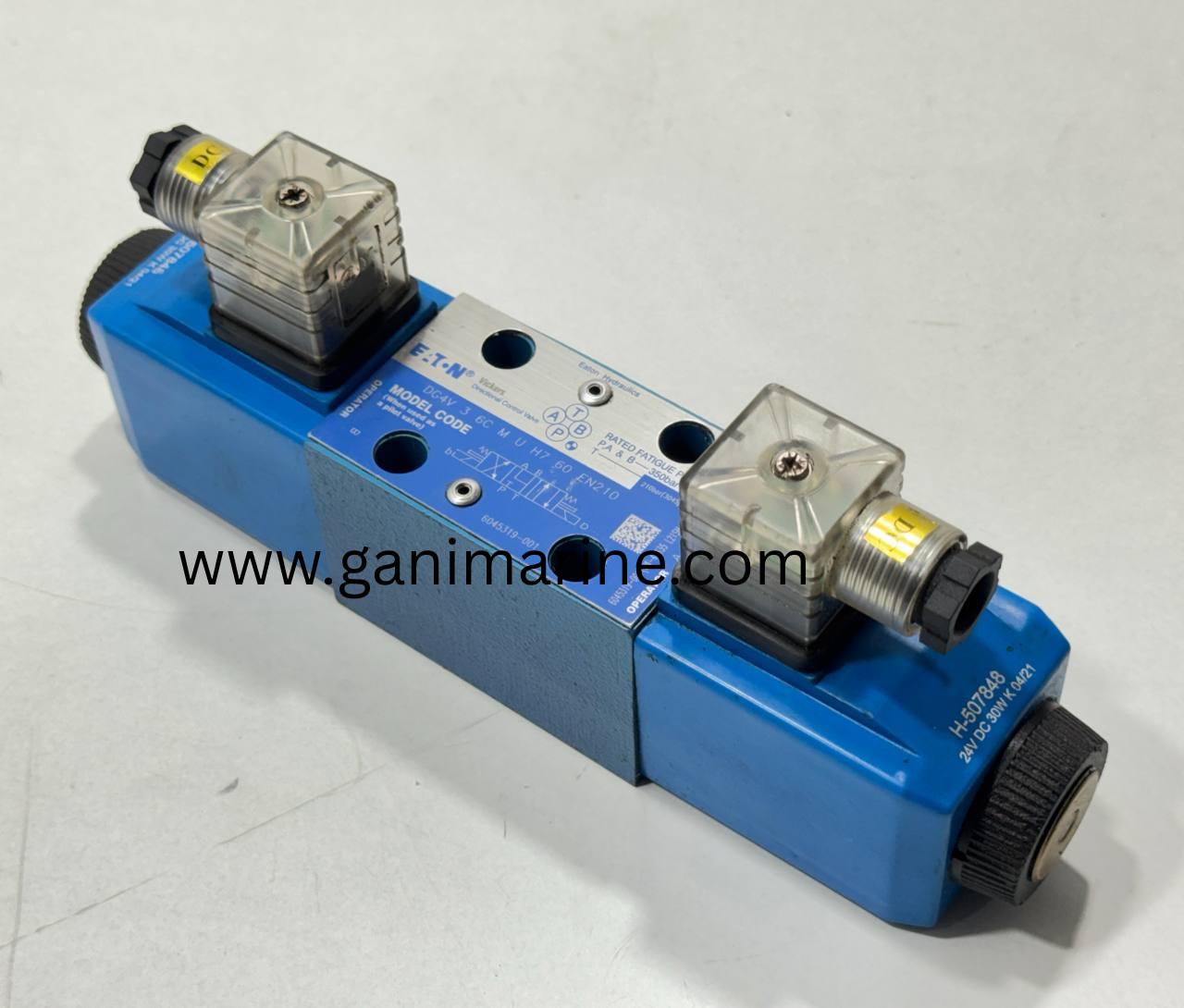

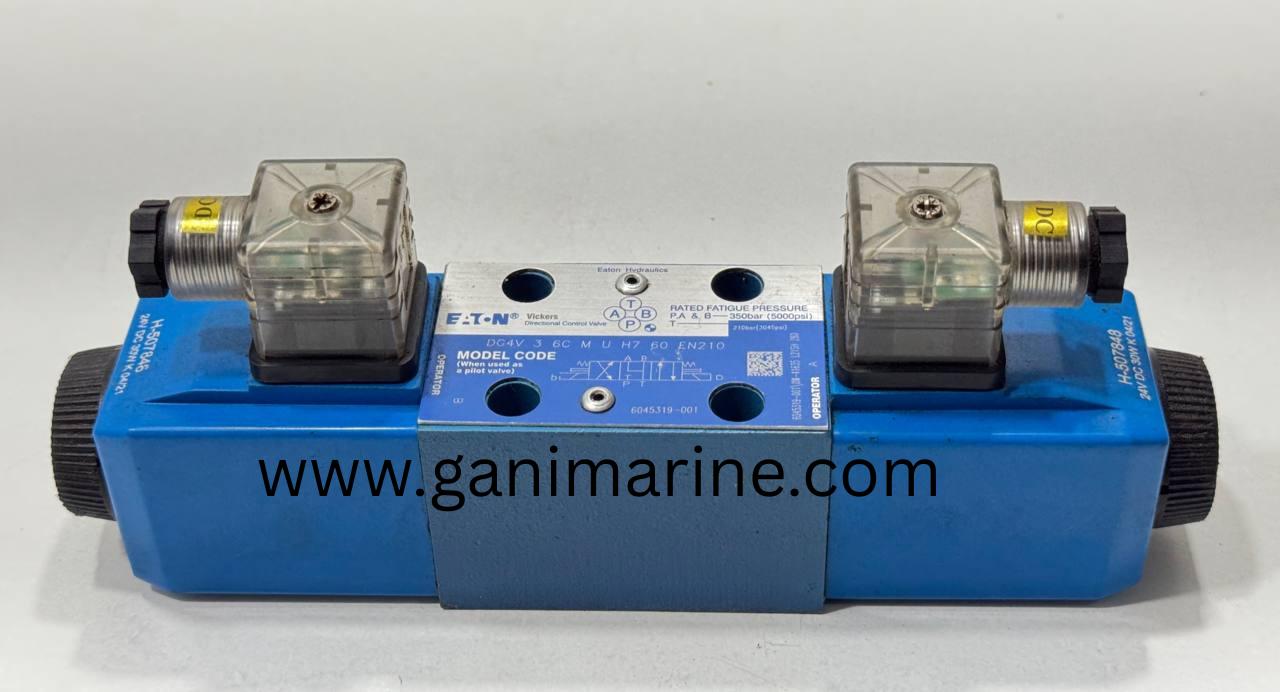

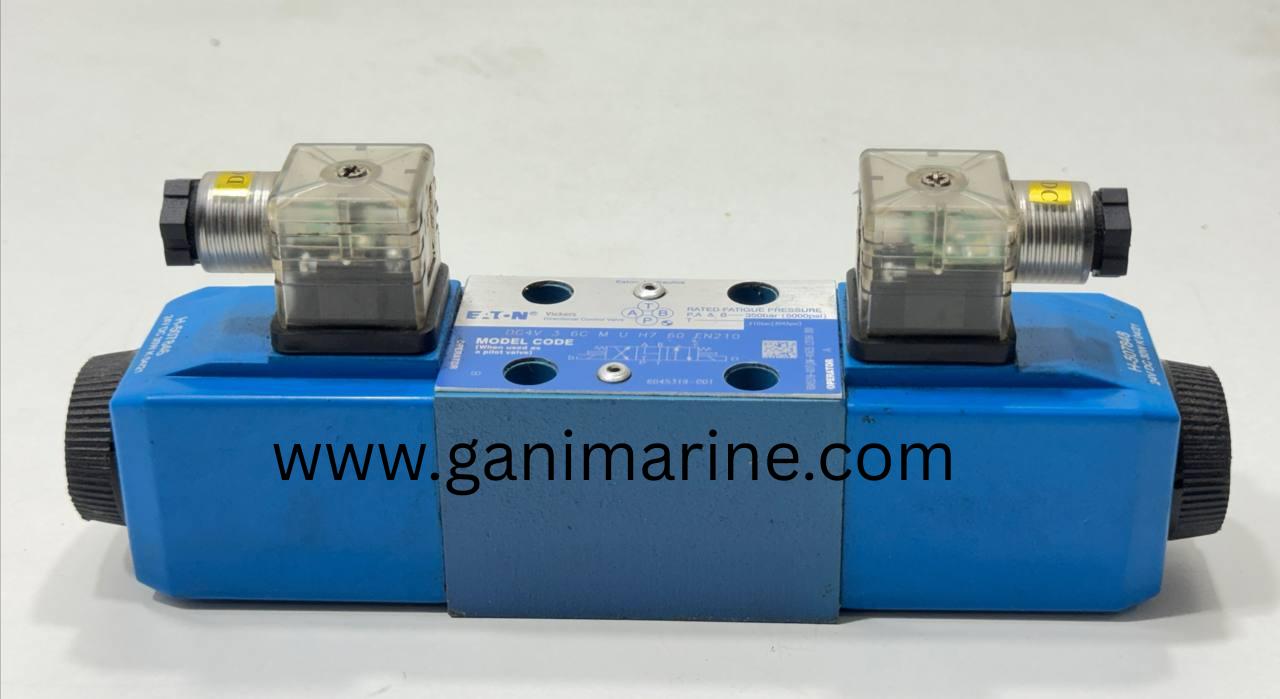

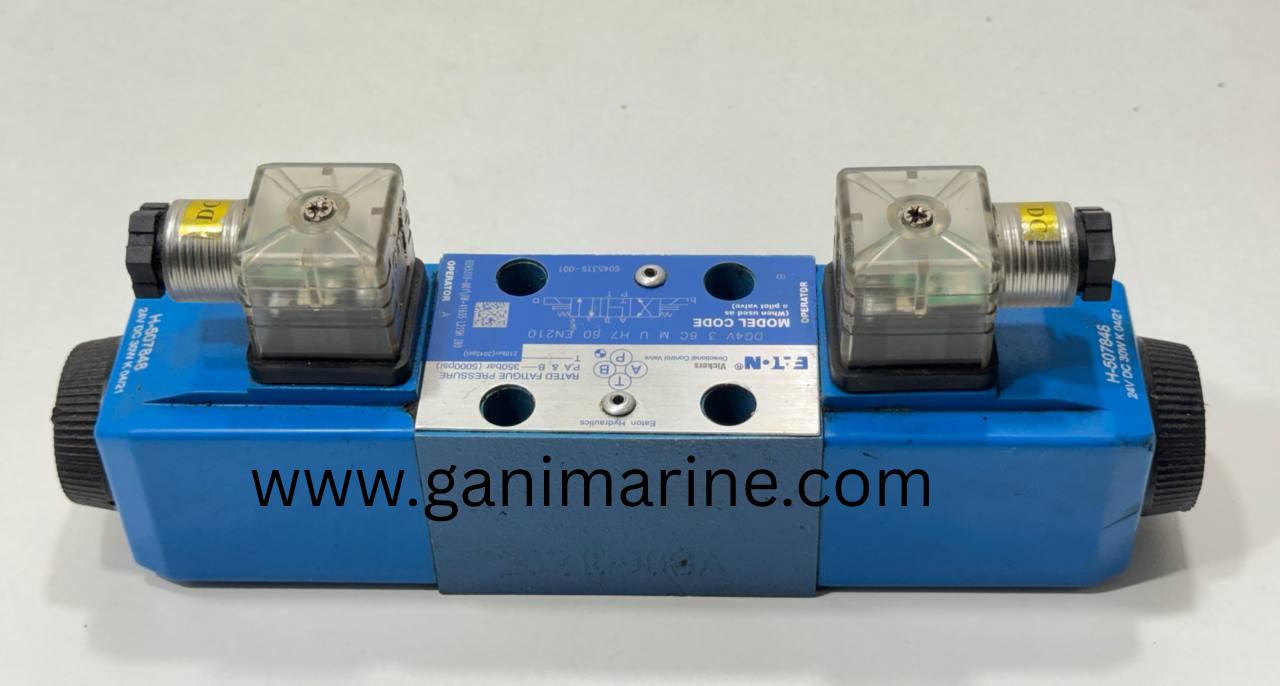

Eaton Vickers DG4V 3 6C M U H7 60 EN Solenoid Operated Directional Control Valve
Eaton Vickers DG4V 3 6C M U H7 60 EN Solenoid Operated Directional Control Valve
The Eaton Vickers DG4V-3 is a high-performance solenoid operated directional spool valve designed to control the start, stop, and direction of hydraulic fluid flow. It is widely used in industrial machinery, mobile hydraulics, marine equipment, and heavy-duty systems where reliability and precise control are required.
This valve uses wet-armature solenoids, ensuring quiet operation, long service life, and fast response.
Manufacturer & Identification
• Brand: Eaton Vickers
• Valve Type: Solenoid Operated Directional Control Valve

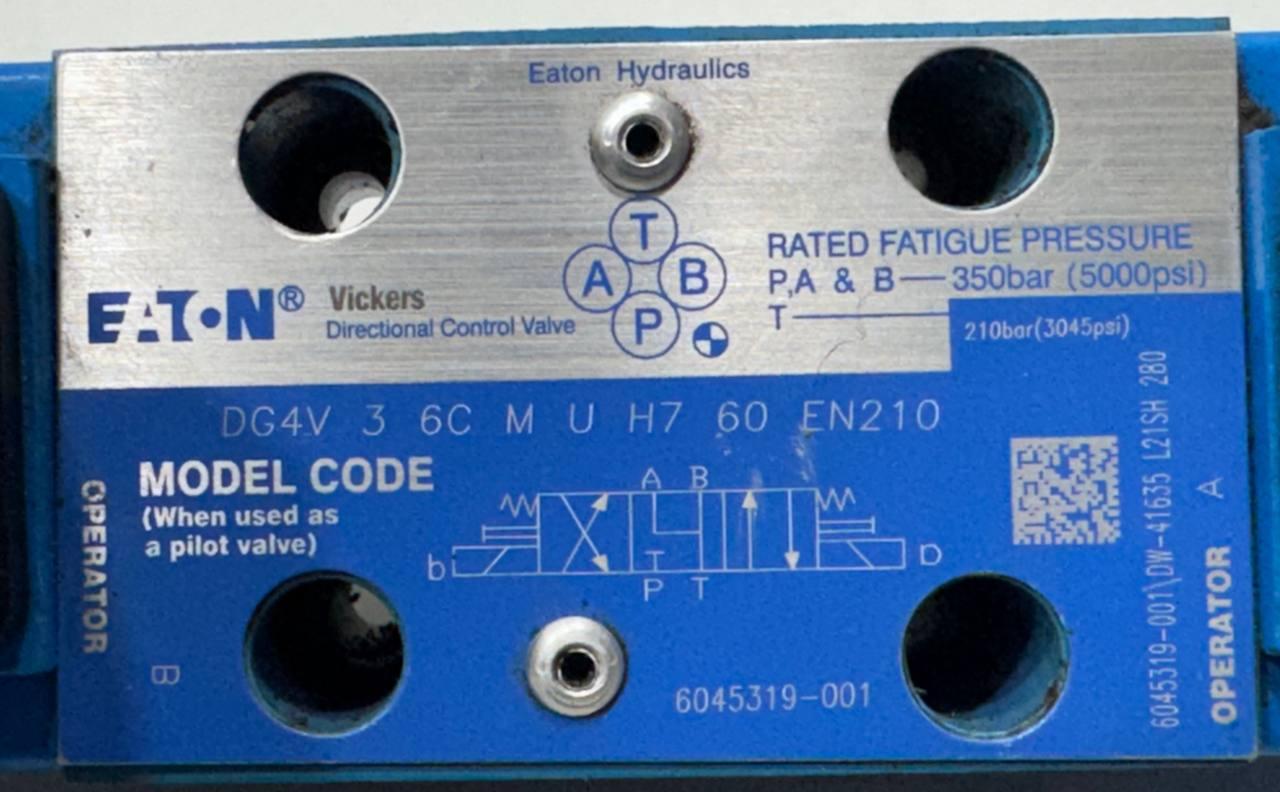

• Model Code: DG4V-3-6C-M-U-H7-60-EN210
• Part Number: 6045319-001

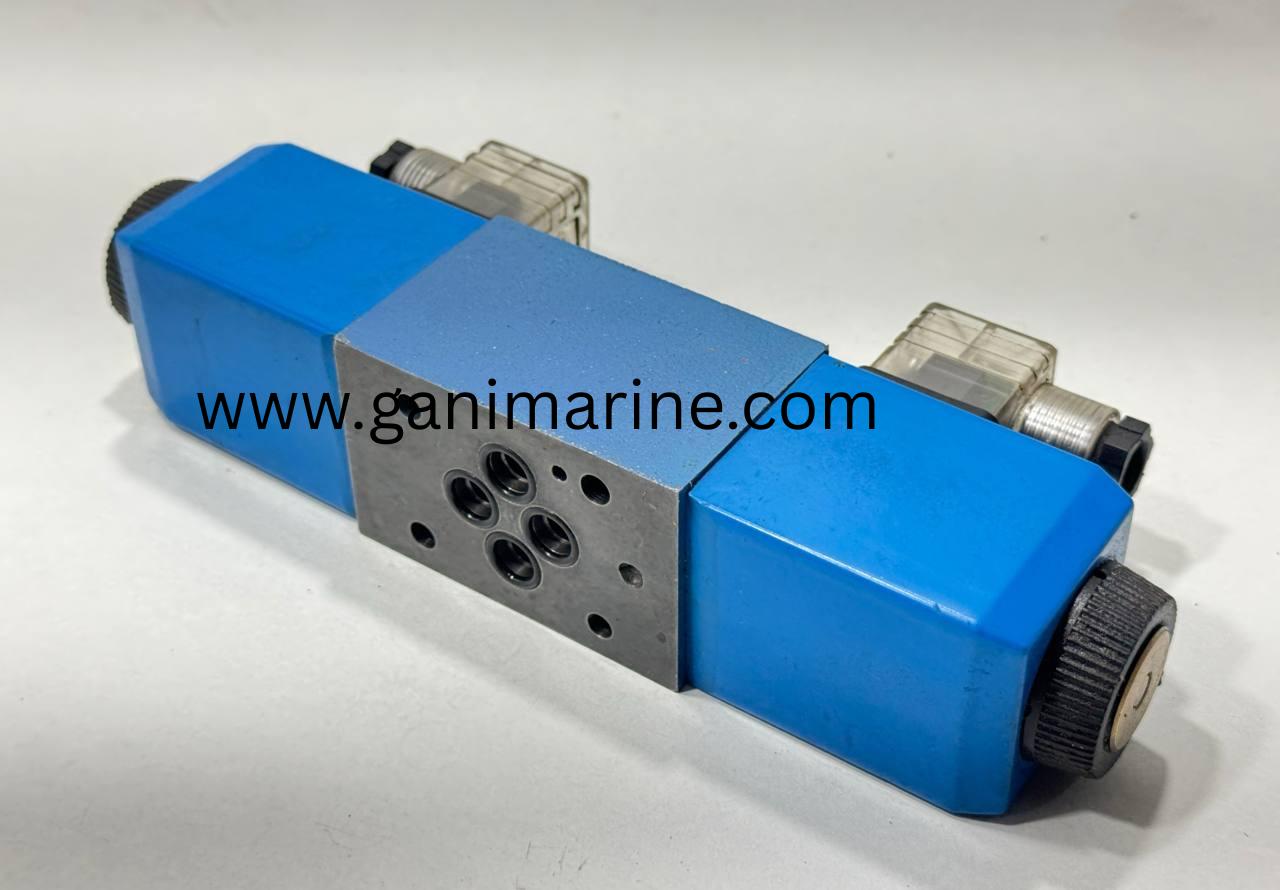

• Mounting Standard: ISO 4401-03 / CETOP 3 / NG6
Technical Specifications
Pressure Ratings
• Ports P, A, B: 350 bar (5000 psi)
• Tank Port T: 210 bar (3045 psi)
Electrical Data
• Solenoid Voltage: 24V DC
• Power Consumption: 30 W

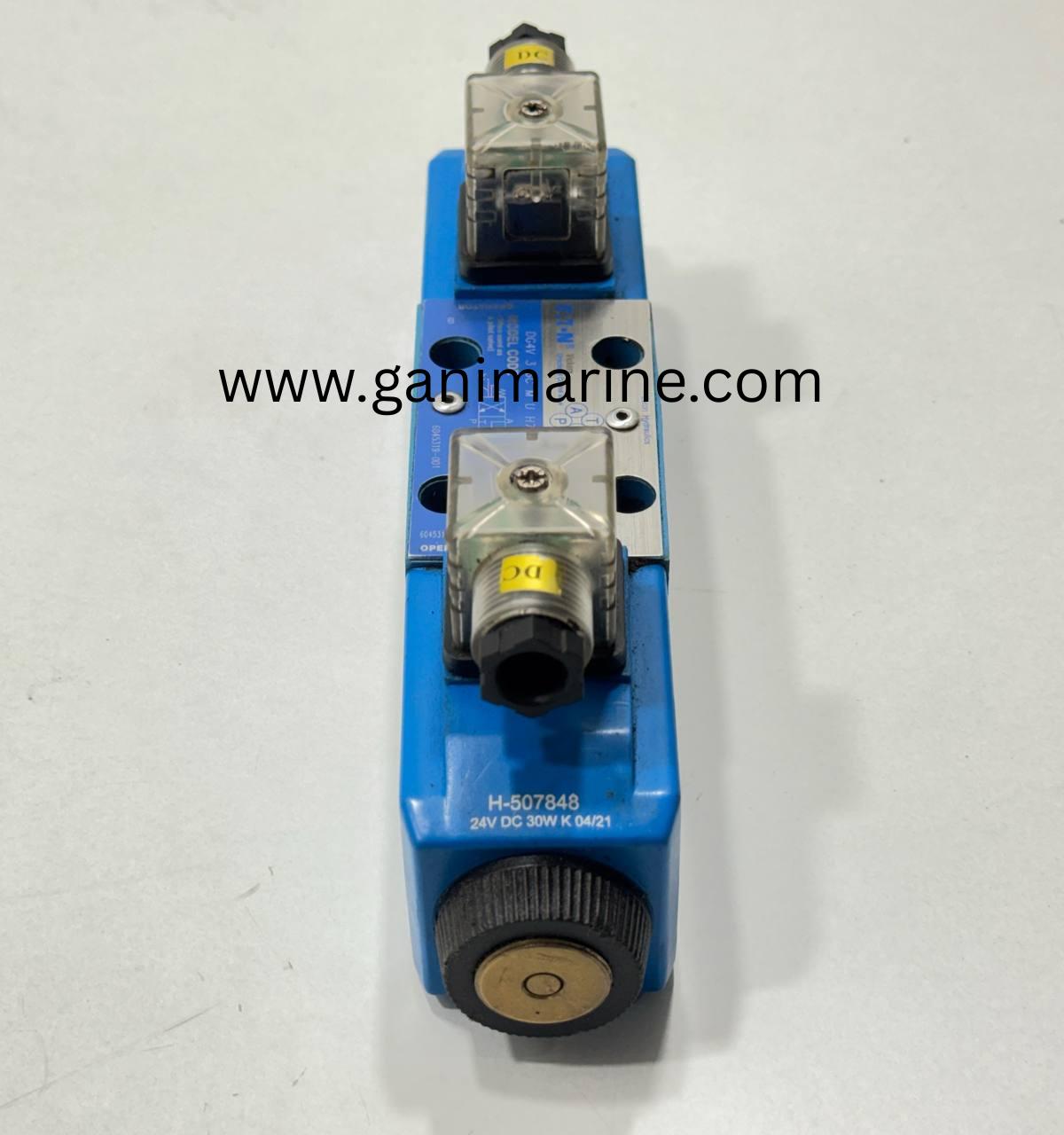

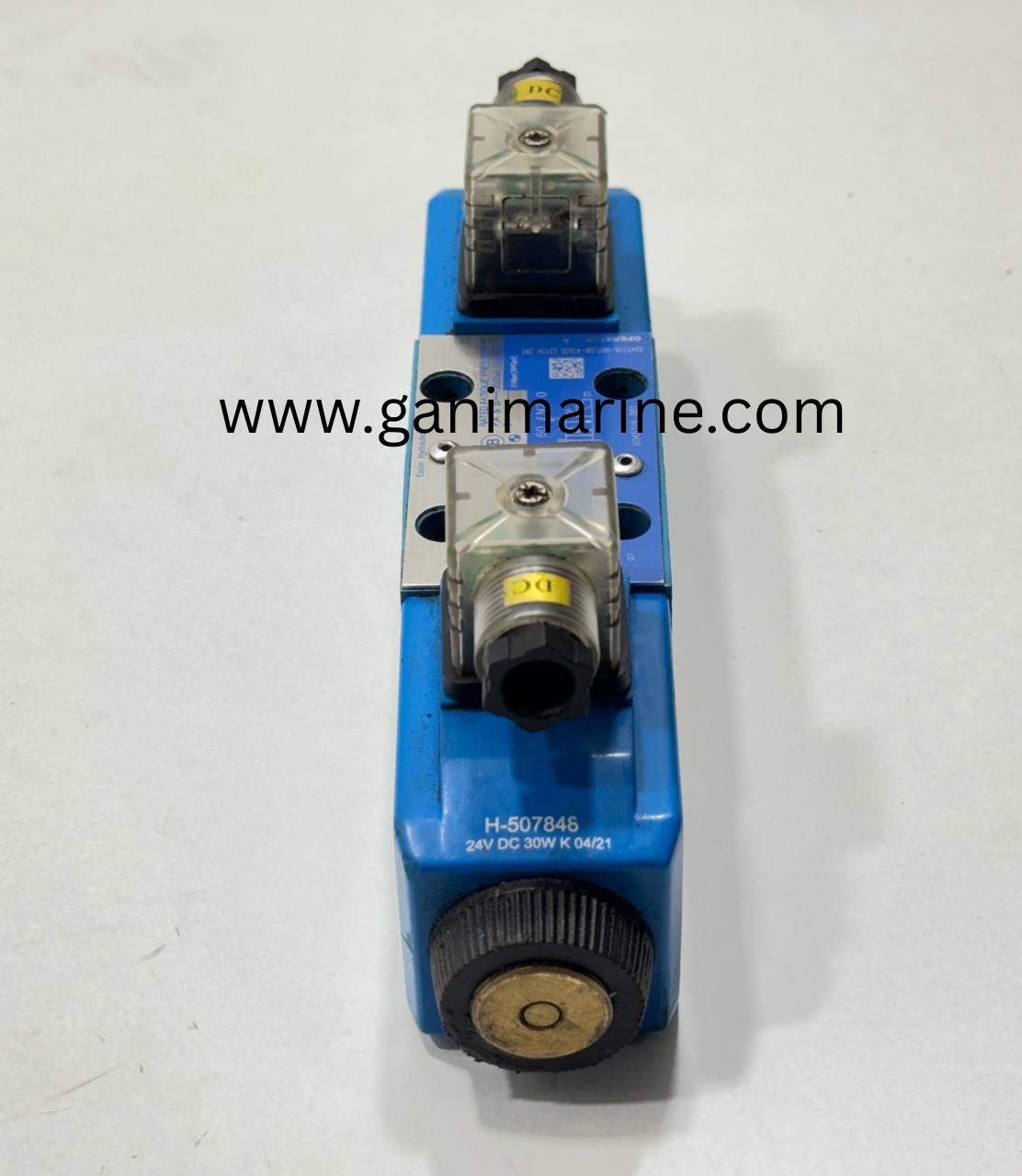

• Coil Part Number: H-507846
• Electrical Connector: DIN 43650 / ISO 4400
• Date Code (Coil): 04/21
Spool & Function Details
• Spool Type: 6C – Closed Center
• Neutral Position: All ports blocked
• Operation: 4-way, 3-position
• Spring Centered: Yes
• Manual Override: Yes (push-pin type)
Model Code Breakdown
• DG4V – Solenoid operated directional valve
• 3 – Size 03 / CETOP 3
• 6C – Closed center spool
• M – Manual override
• U – DIN 43650 electrical connector
• H7 – 24V DC coil
• 60 – Design series
• EN210 – Special modification code
Solenoid & Coil Features
• Dual Solenoids: Operator A and Operator B
• Wet Armature Design: Internal parts lubricated by hydraulic oil
• Low Noise Operation
• Transparent DIN Plug: Easy LED or wiring inspection
• Manual Push Pins: Emergency or testing operation without power
Construction & Design
• Robust Cast Body
• High-precision spool
• Industrial-grade sealing
• Compact CETOP 3 footprint
• Manifold or subplate mounting
Applications
• Hydraulic power units (HPU)
• Industrial machinery
• Presses and molding machines
• Mobile hydraulics
• Marine hydraulic systems
• Offshore equipment
• Automation systems
• Construction equipment
Industries Served
• Manufacturing
• Marine & offshore
• Oil & gas
• Steel plants
• Power generation
• Heavy engineering
• Automation & material handling
Key Advantages
• High pressure capability
• Reliable Eaton Vickers quality
• Long service life
• Fast response time
• Easy installation (NG6)
• Low maintenance
• Emergency manual control
