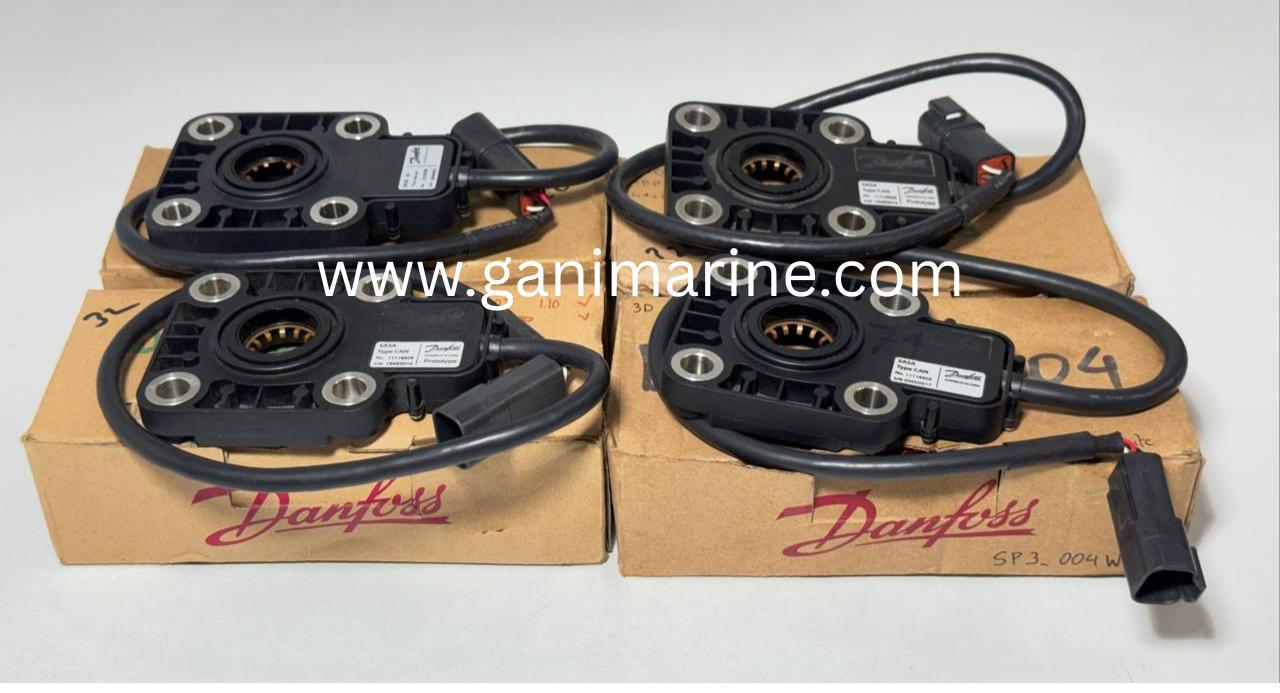

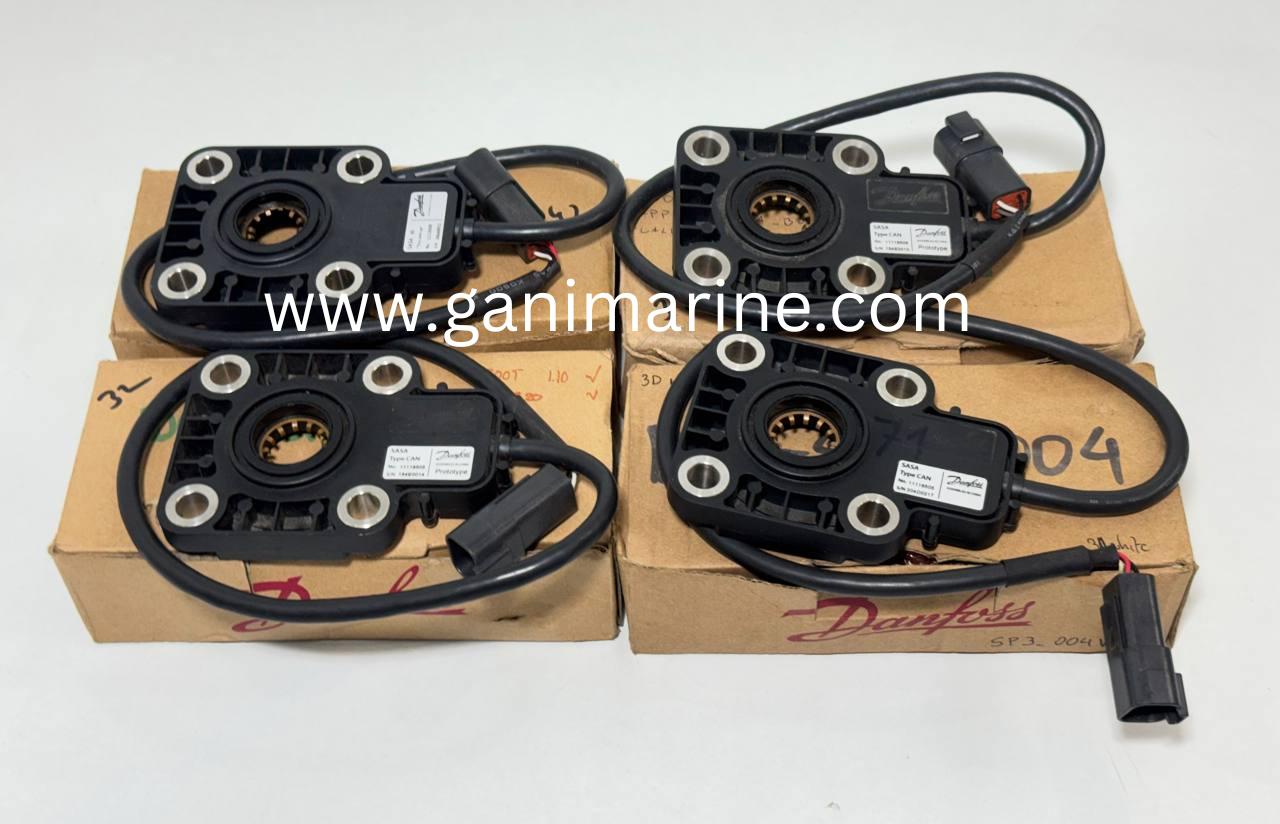

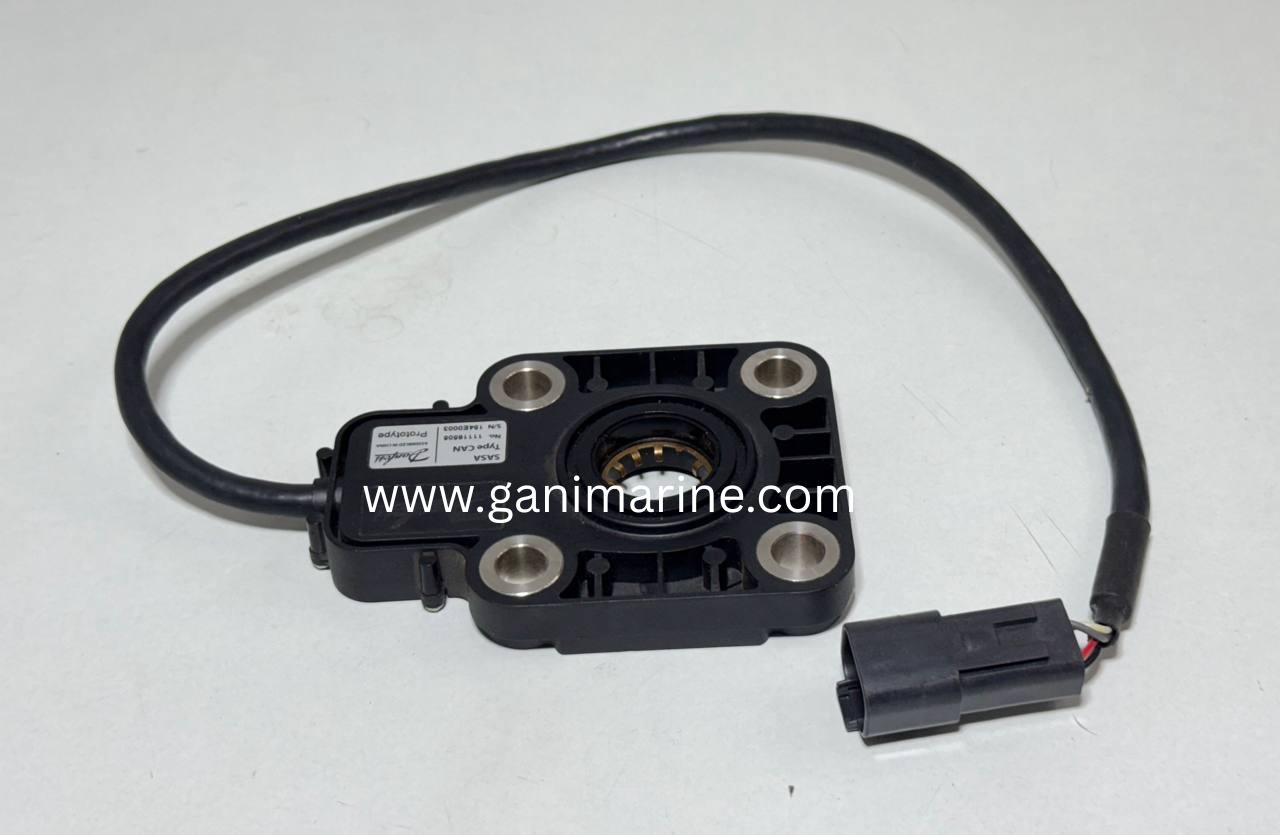

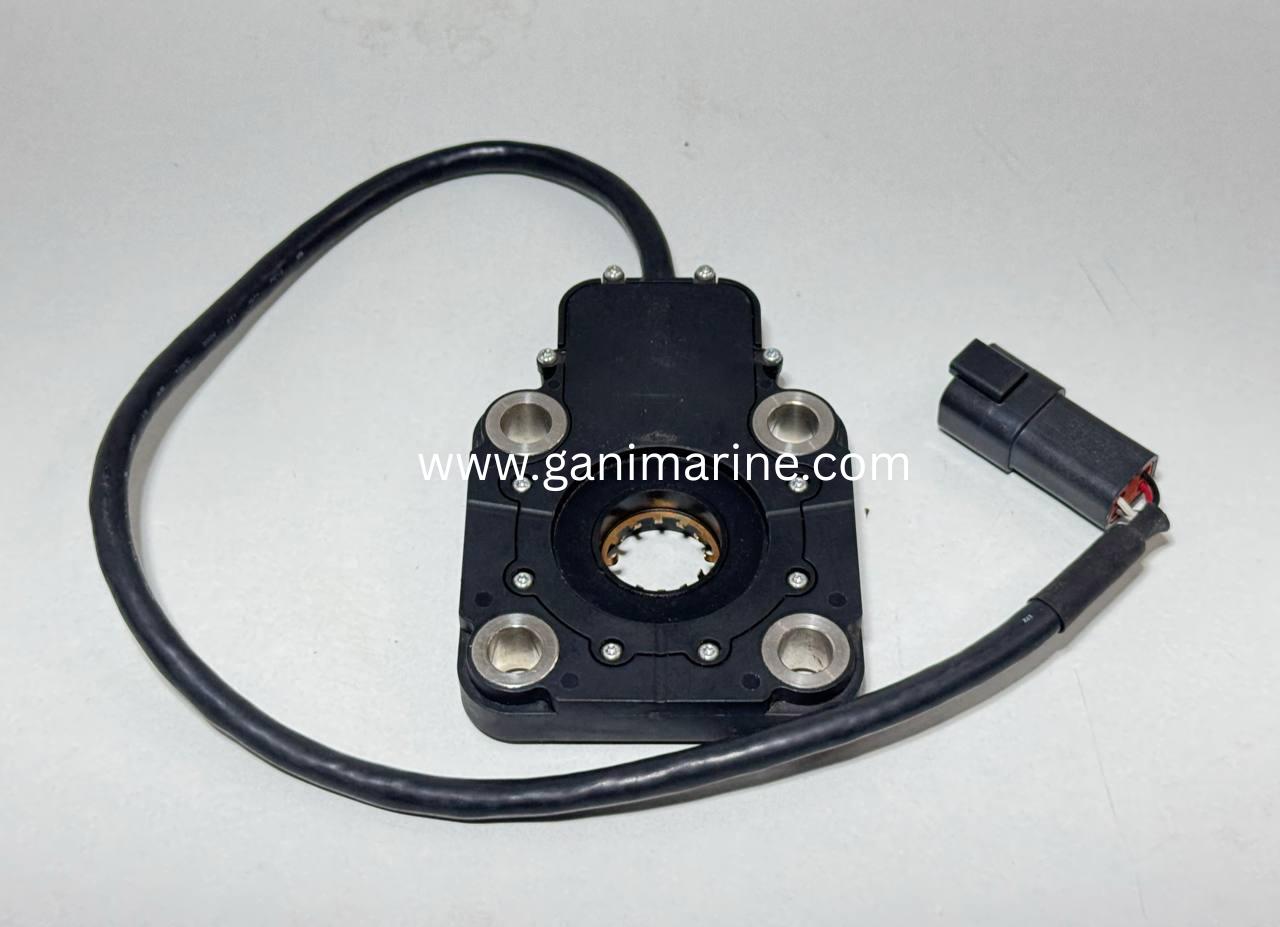

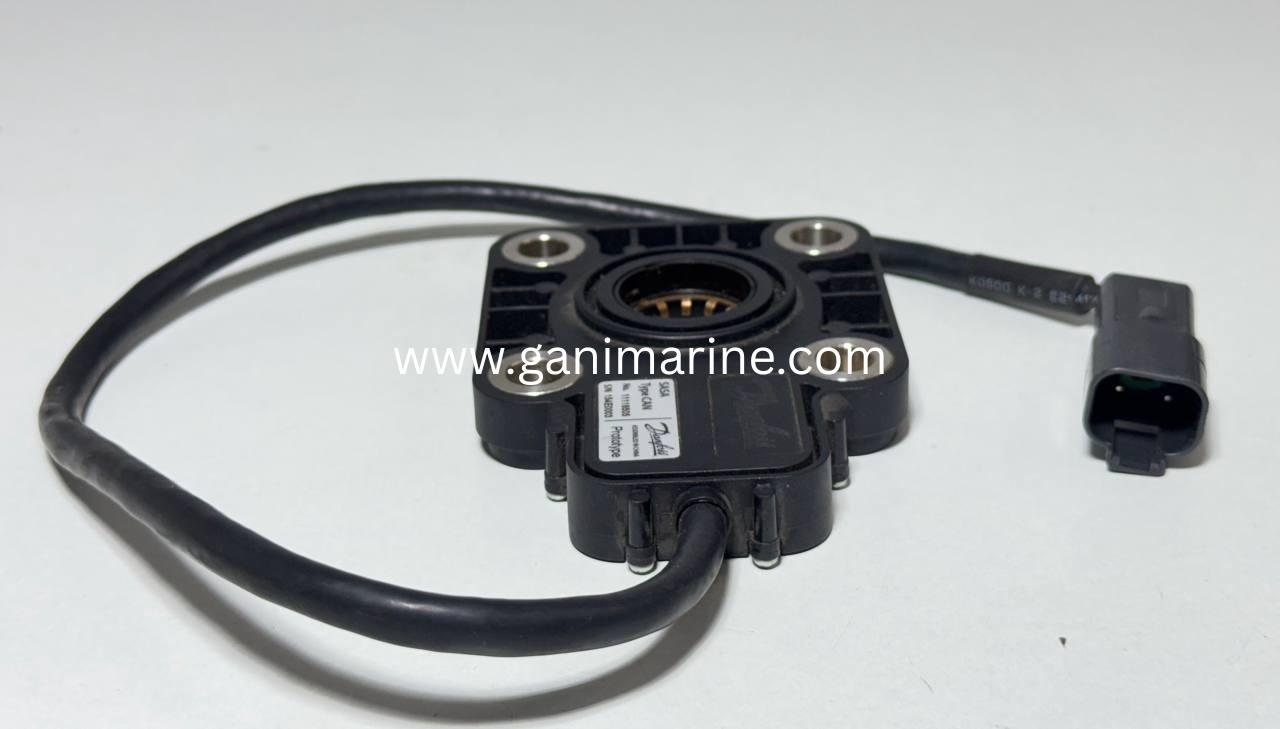

Danfoss SASA IID Sensor 11116505

The Danfoss SASA IID Steering Wheel Sensor (Part No. 11116505) is a high-precision non-contact inductive sensor designed to measure the absolute steering angle and speed with CAN bus output (V2.0B, J1939 compatible).

It provides dual CAN outputs for redundancy, ensuring enhanced safety and reliability in electrohydraulic steering systems. The SASA IID sensor is installed between the steering unit and steering column, making it essential for advanced steering solutions in agricultural, construction, marine, and mobile machinery.

---

Technical Specifications

• Model / Type: SASA IID Steering Wheel Sensor (CAN output)

• Part Number: 11116505

• Detection Principle: Non-contact inductive technology

• Output: CAN V2.0B (J1939 compatible)

• Resolution: <0.1°

• Input Range: Continuous 360° rotation

• Supply Voltage: 6–36 VDC

• Power Consumption: <2 W

• Operating Temperature: –40°C to +105°C

• Ingress Protection: IP65 (dust and water resistant)

• Safety Features: Dual CAN outputs for redundancy; built-in diagnostics and self-monitoring

• Installation: Mounted between steering column and hydraulic steering unit (flange mount with supplied cable)

---

Applications

• Electrohydraulic steering systems in agricultural, construction, and mobile machinery

• Closed-loop steering control systems requiring precise steering feedback

• Automated and manual steering switch-over (driver override priority)

• Variable steering ratio systems in advanced vehicles

• Integration with Danfoss OSPE, EHI, and EHPS steering valves

---

Features

• High-resolution measurement (<0.1°)

• Dual CAN outputs for redundant signal safety

• Advanced self-diagnostics and monitoring

• Robust design rated for –40°C to +105°C operation

• IP65 sealing against dust and water ingress

• Compact flange mounting for easy integration

• Designed for over 10 million operational cycles

---

Packaging & Design

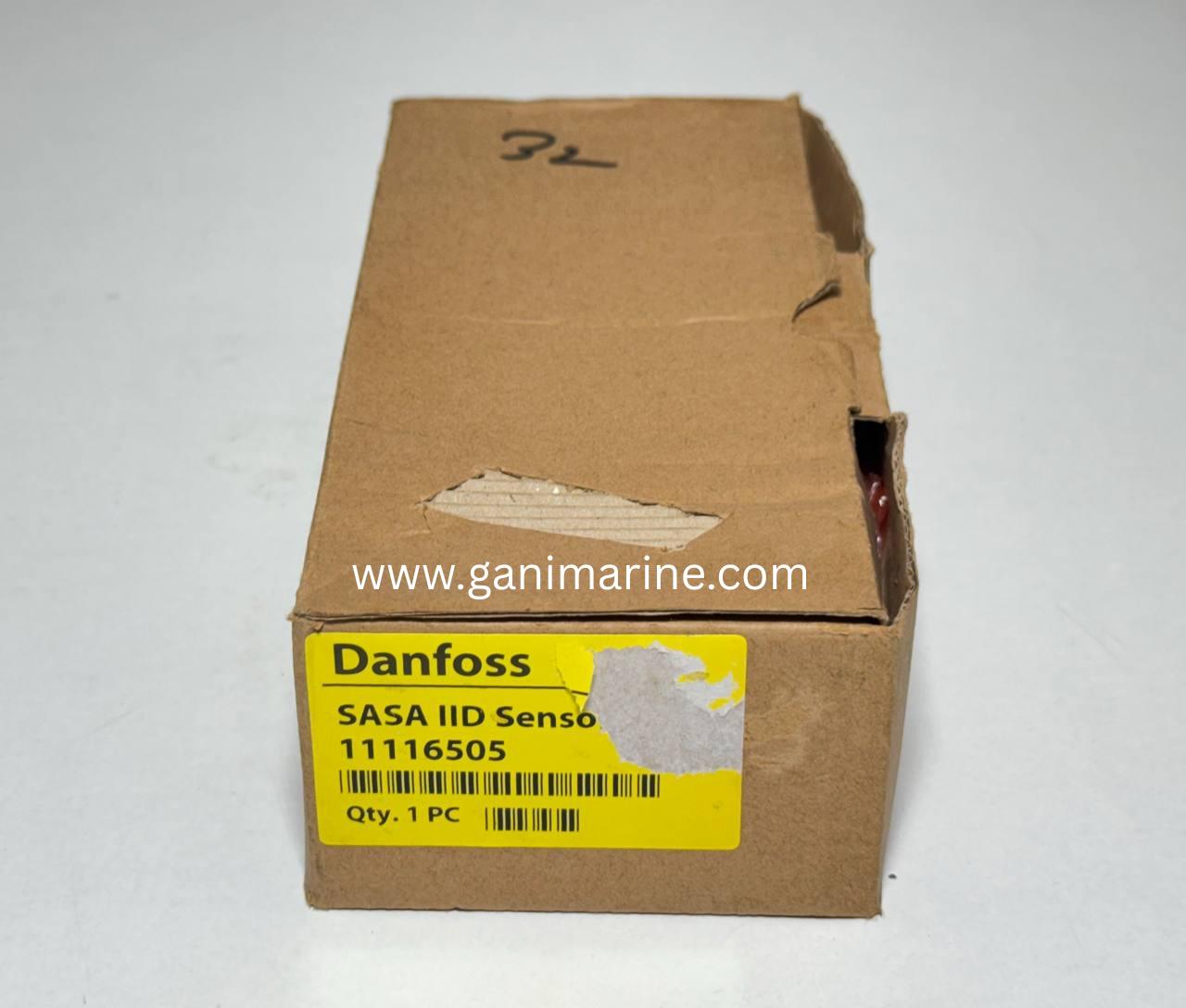

• Supplied in Danfoss-branded packaging with part number label: “Danfoss SASA IID Sensor 11116505 Qty: 1 PC”

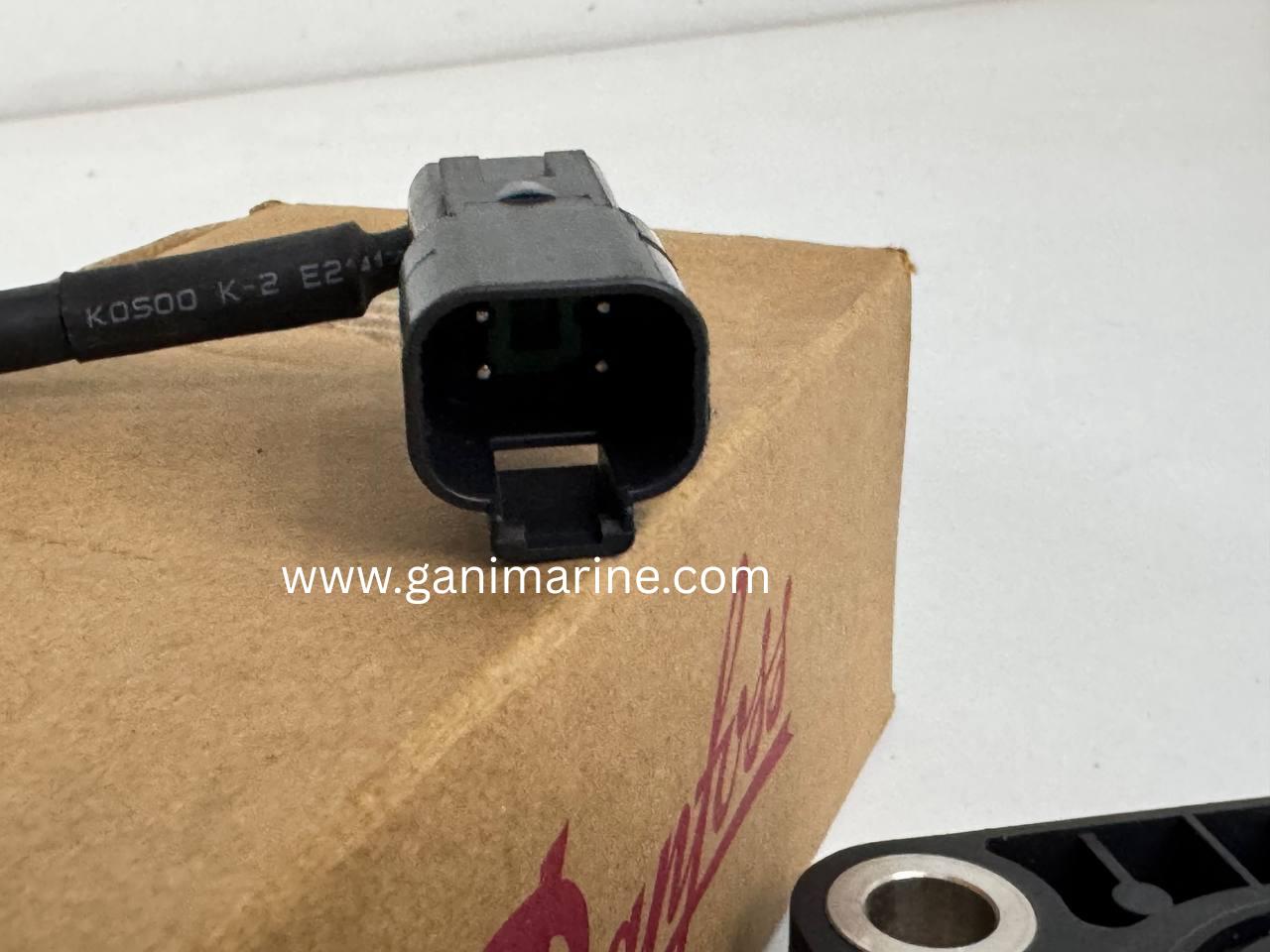

• Box contains one sensor with interface connector and mounting flange

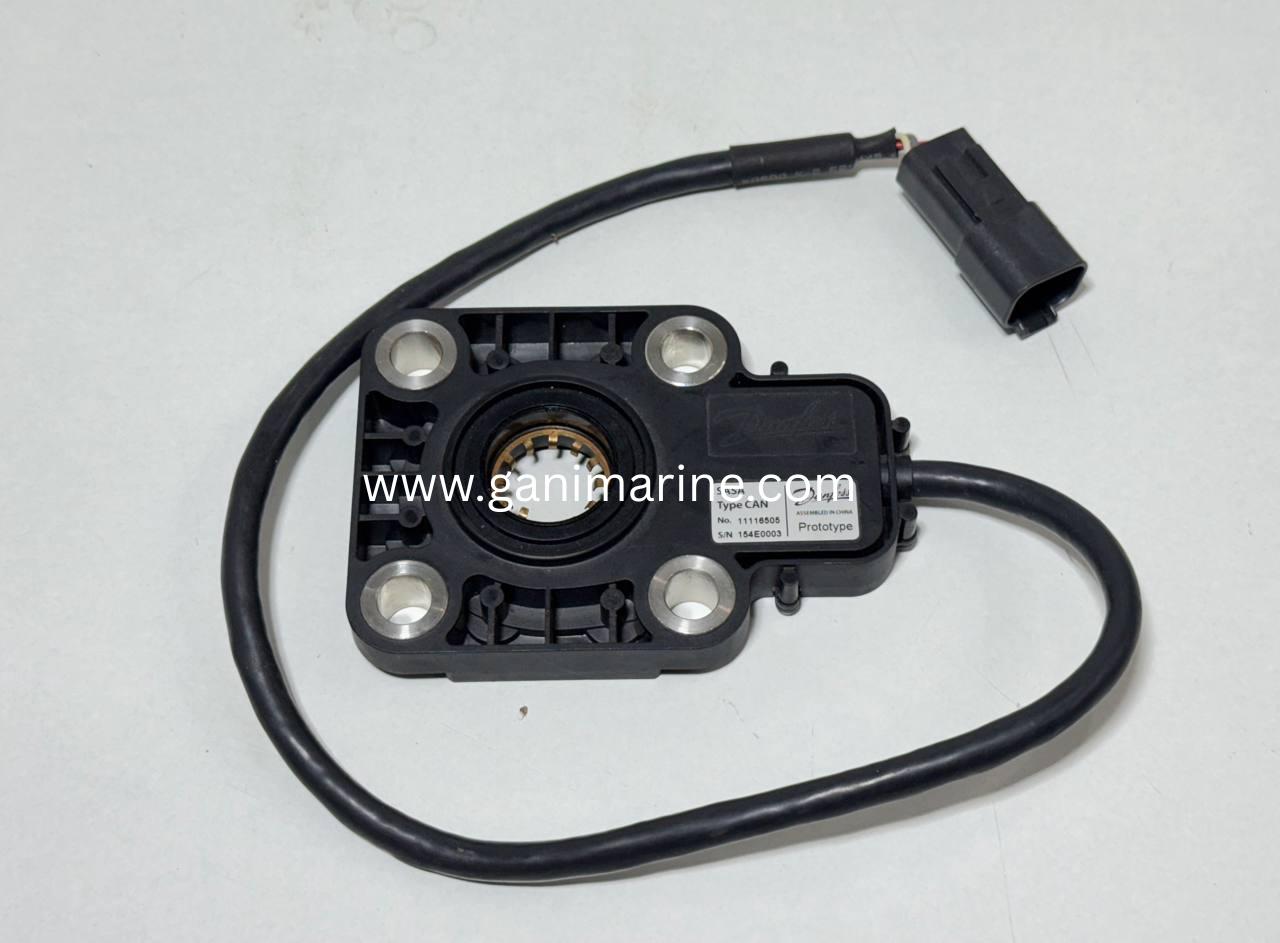

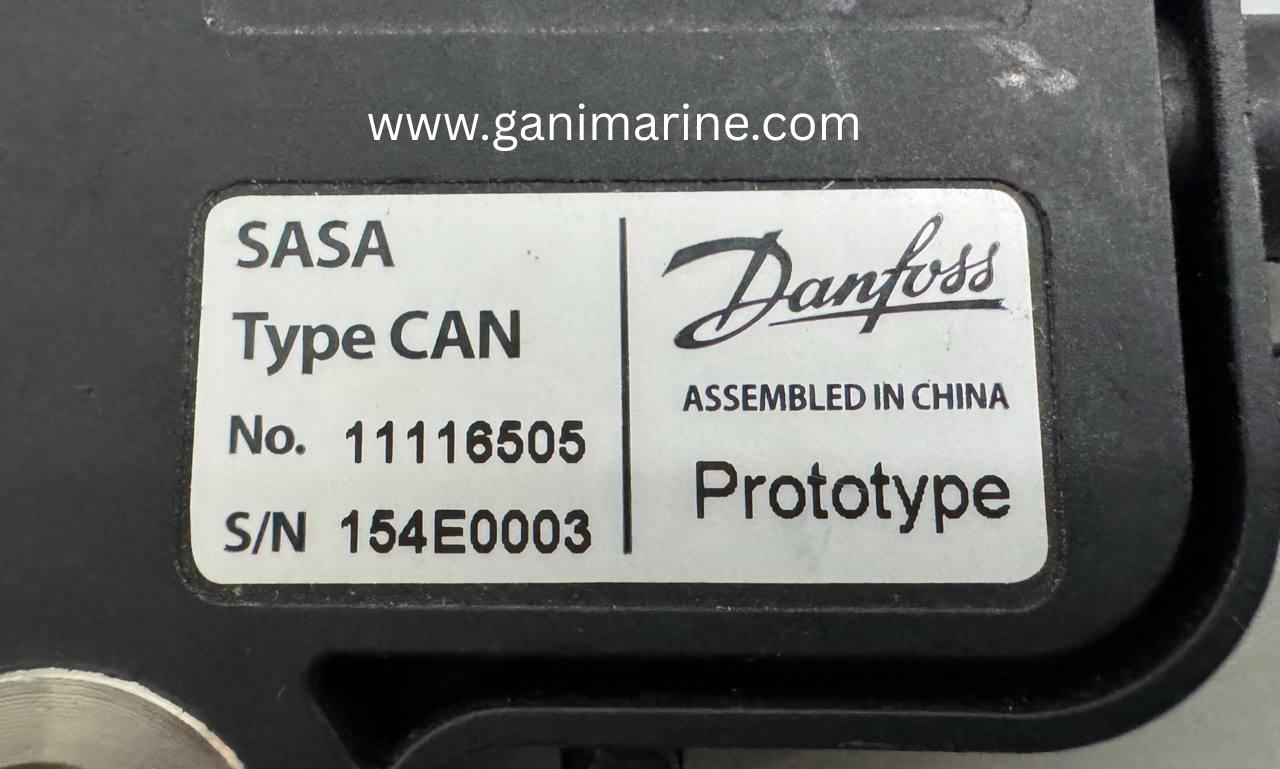

• Prototype and pre-production units may carry additional marking for testing/development use

---
