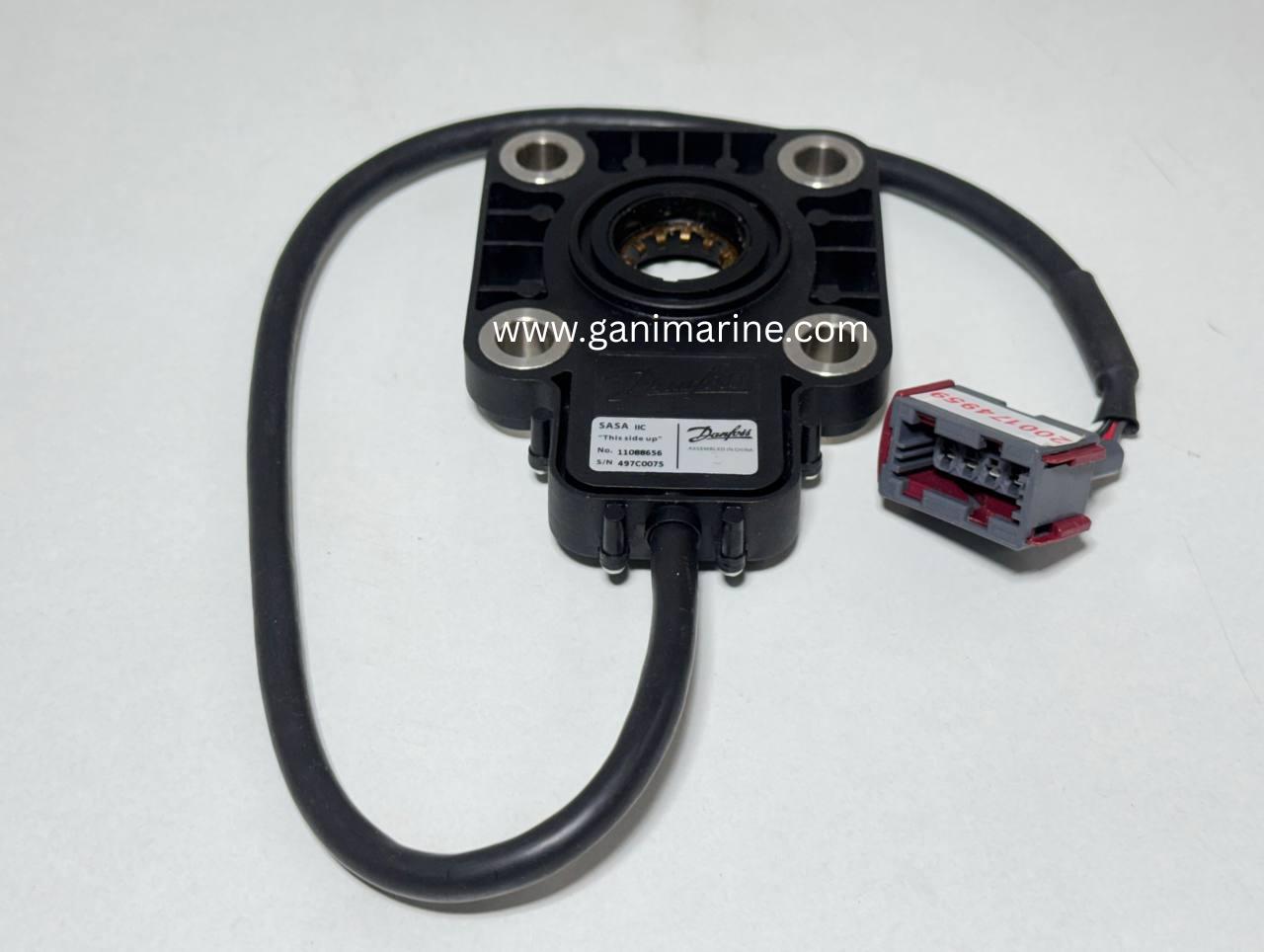

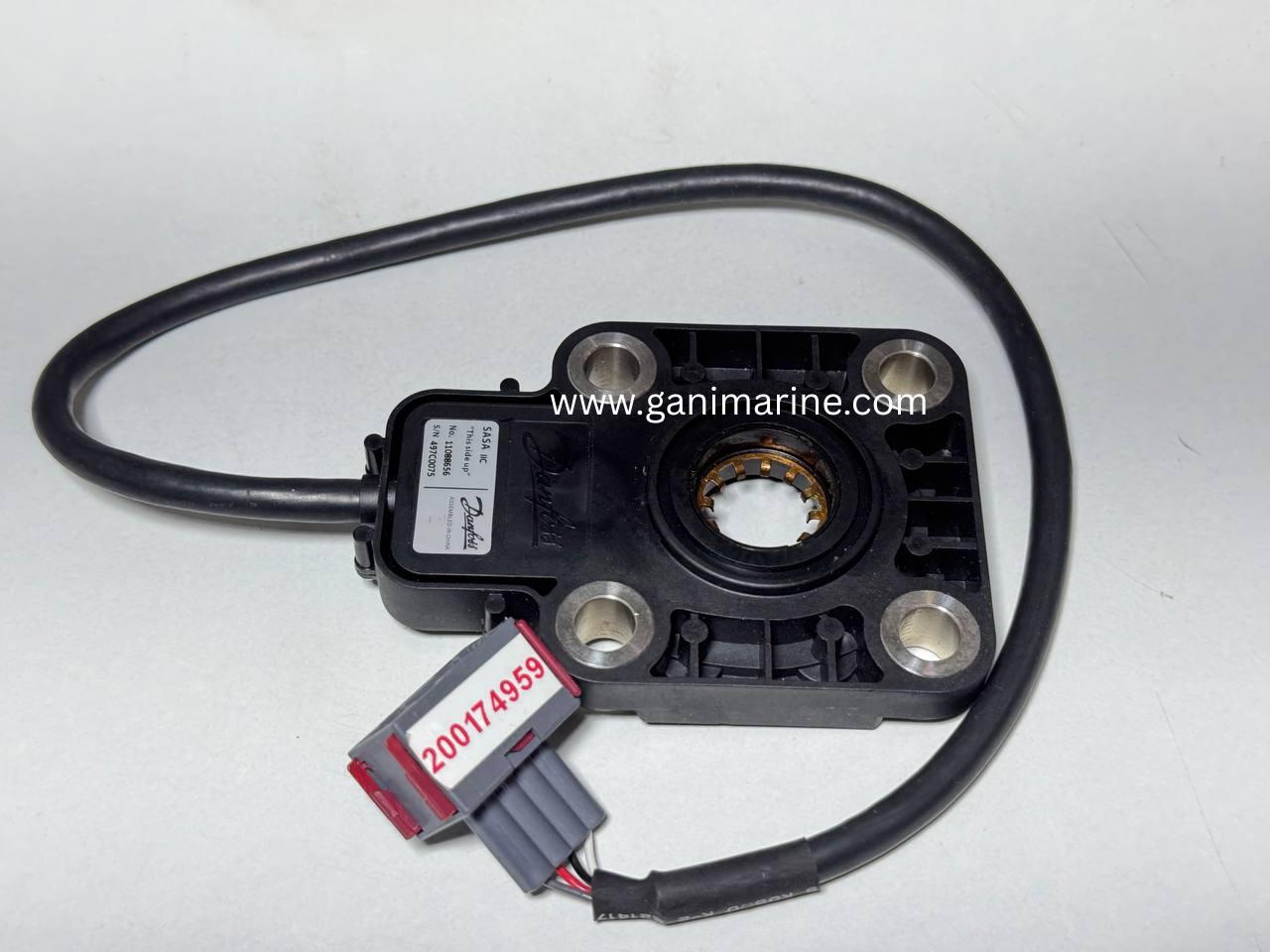

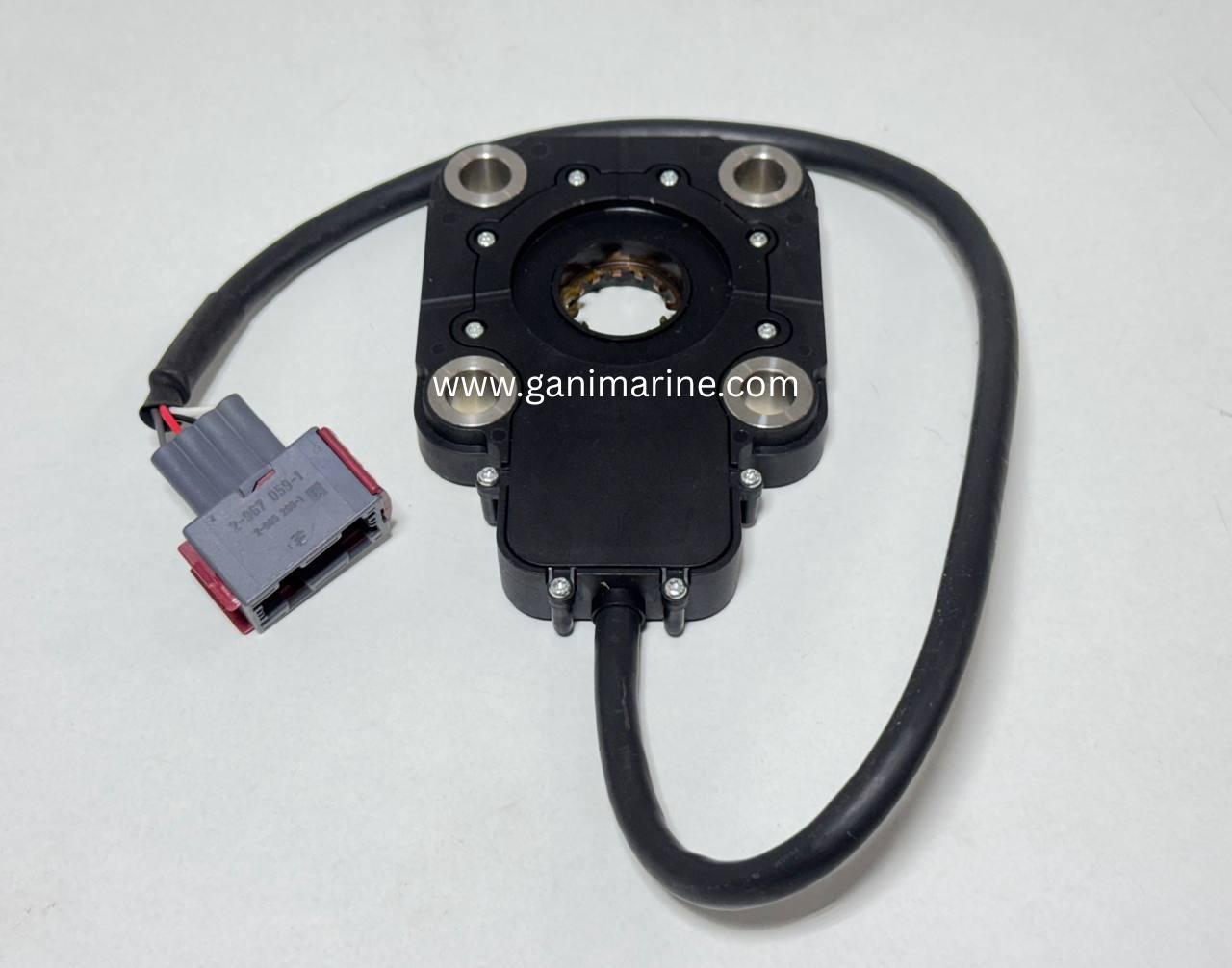

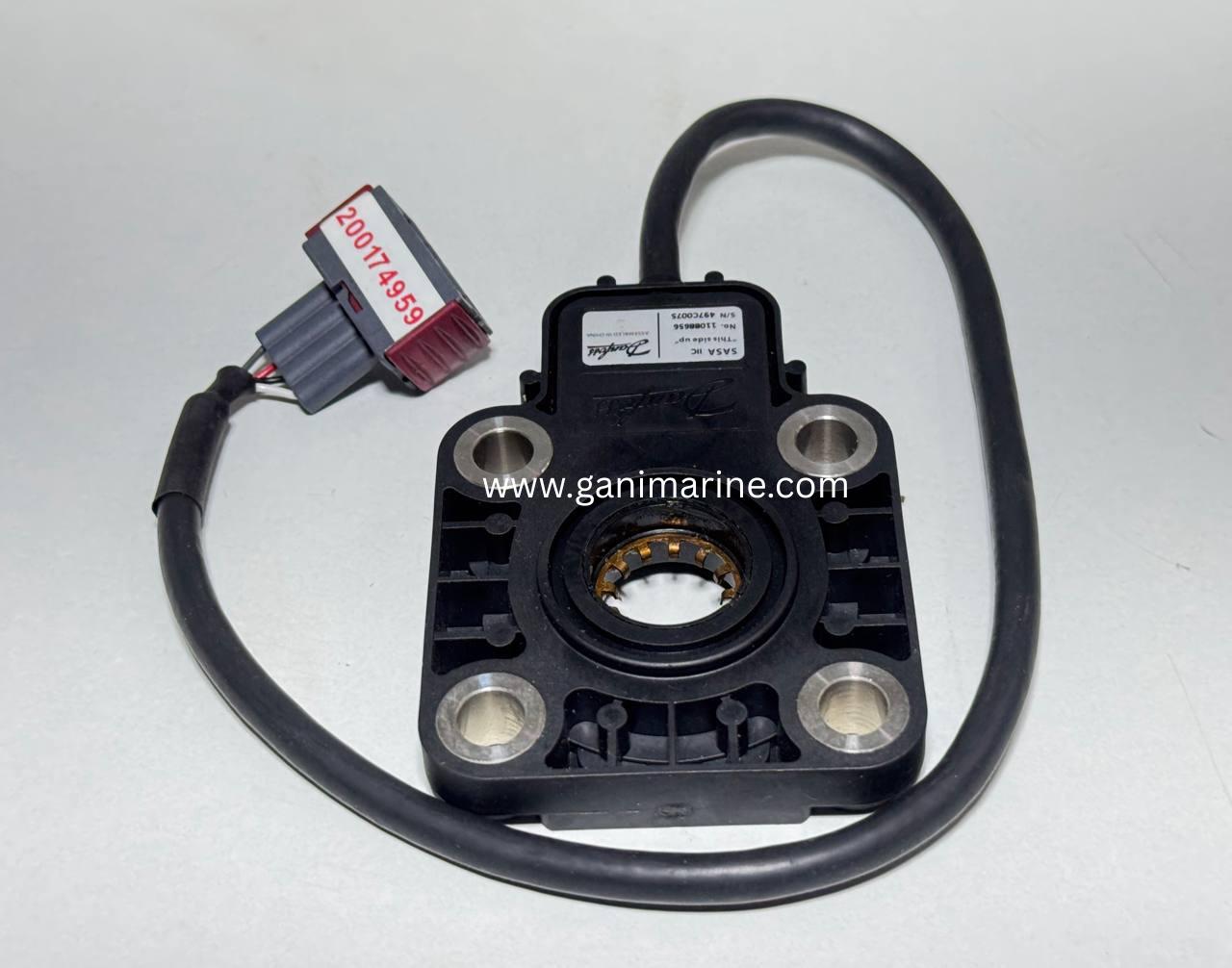

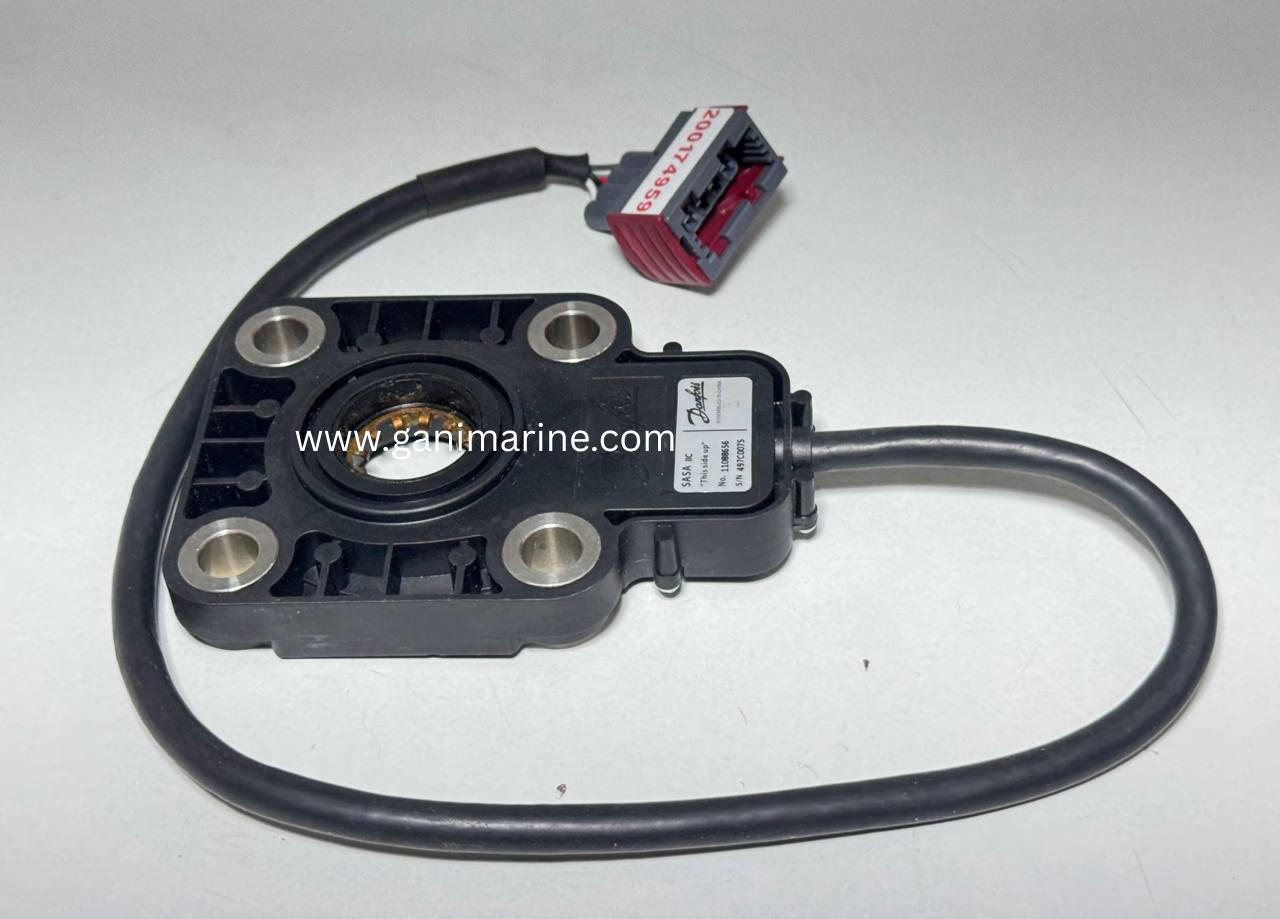

Danfoss SASA IIC Sensor 11088656
Danfoss SASA IIC Sensor 11088656
The Danfoss SASA IIC Steering Angle Sensor (Part No. 11088656) is an advanced non-contact inductive sensor designed to measure absolute steering wheel position and speed. It provides a CAN V2.0B (J1939 compatible) output signal, enabling precise vehicle control and automated steering functionality.
Mounted between the steering column and hydraulic steering unit, the SASA IIC sensor ensures safe and accurate steering feedback for heavy-duty vehicles such as tractors, harvesters, construction equipment, and off-highway machinery.
Its “fail silent” safety feature disables CAN output in case of malfunction, prioritizing safety and reliability in demanding environments.
---
Technical Specifications
• Model: SASA IIC
• Part Number: 11088656
• Manufacturer / Supplier: Danfoss
• Measurement Technology: Non-contact inductive
• Output Signal: CAN V2.0B, J1939 compatible
• Resolution: <0.1°
• Mechanical Input Range: Continuous 360° rotation
• Linearity: ±1% Full Scale
• Supply Voltage: 9–32 VDC
• Power Consumption: <1 W
• Operating Temperature: –30°C to +85°C
• Storage Temperature: Up to +105°C
• Ingress Protection: IP65 (dustproof and water-resistant)
• Expected Life: >10 million cycles

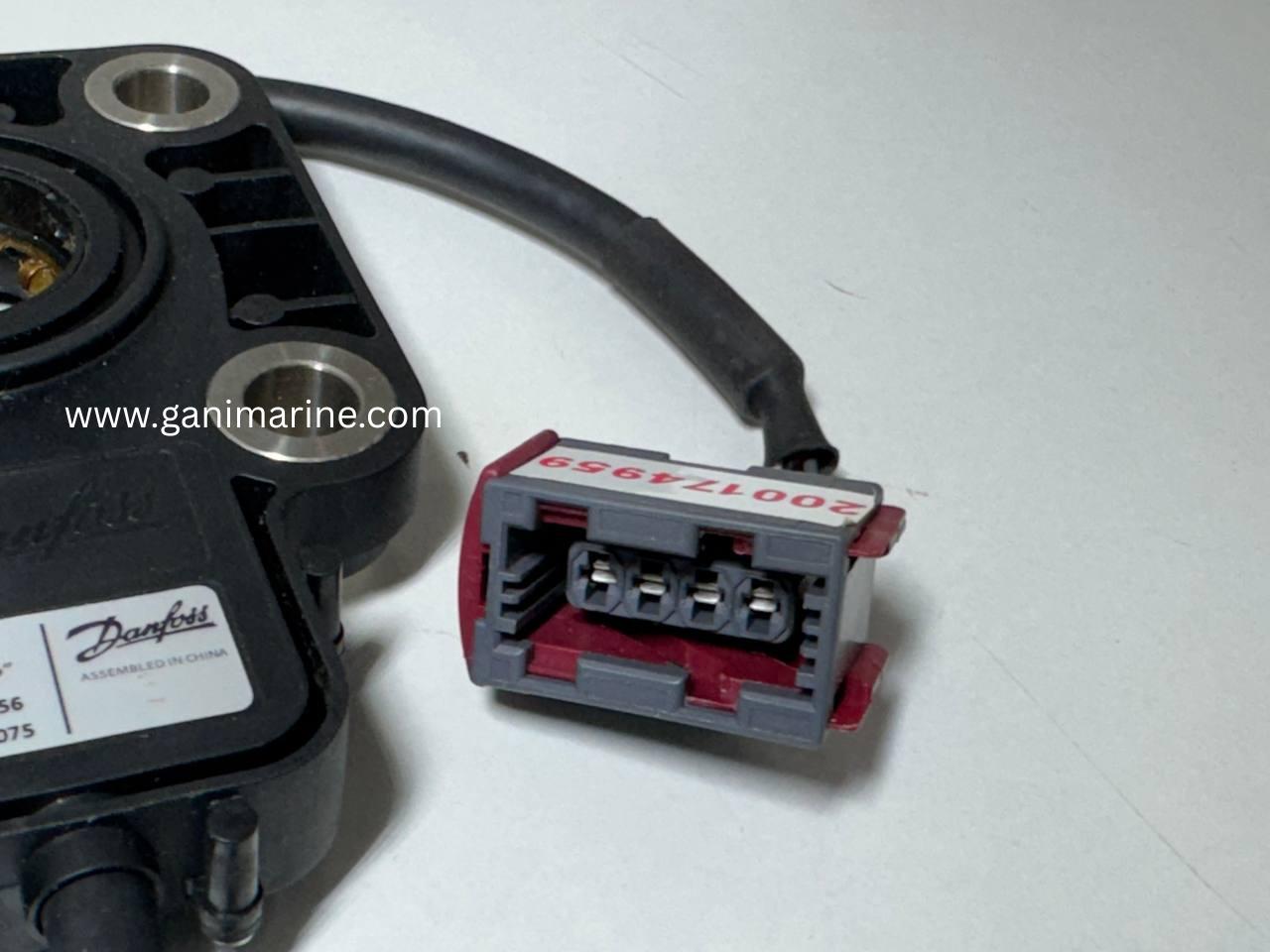

• Mounting: 4-bolt flange, typically with AMP connector termination
• Safety Concept: “Fail Silent” (CAN output disabled in failure mode)
---
Applications
• Automated and semi-automated steering systems
• Variable steering ratio and closed-loop feedback control
• Precision agriculture machinery (tractors, harvesters)
• Construction and heavy-duty off-road vehicles
• Integration with Danfoss PVED-CL actuators and steering control systems
• Auto-steering systems with manual override ("kick-out") functionality
---
Features
• High-resolution measurement (<0.1°)
• Robust non-contact inductive design for durability
• Designed for over 10 million operational cycles
• Fail-safe operation with “fail silent” CAN signal cut-off
• Compact flange-mount design for easy integration
• IP65-rated for harsh working environments
• Compatible with Danfoss hydraulic and electro-hydraulic systems
---
Packaging & Identification

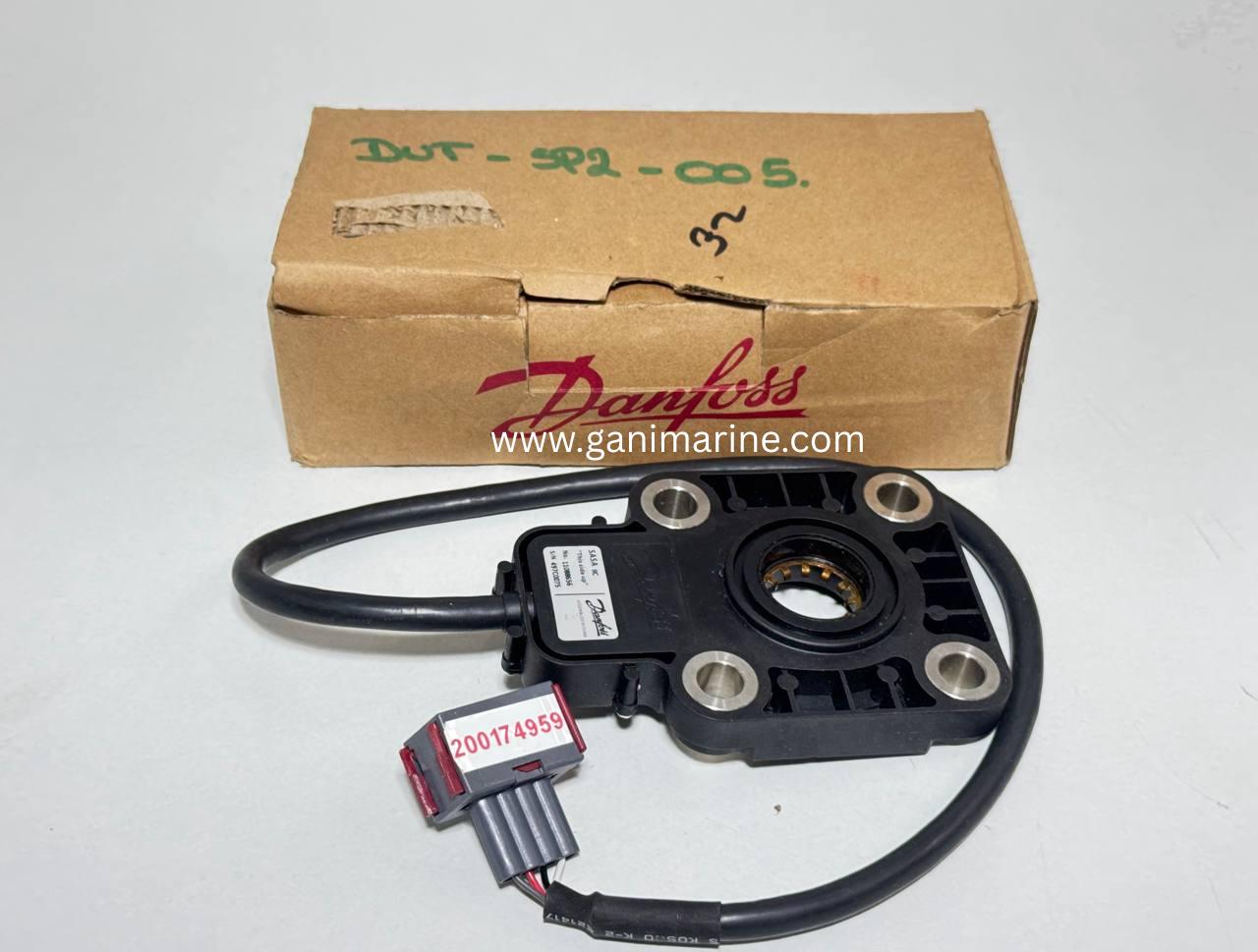

• Delivered in Danfoss-branded packaging with clear labeling of model and part number

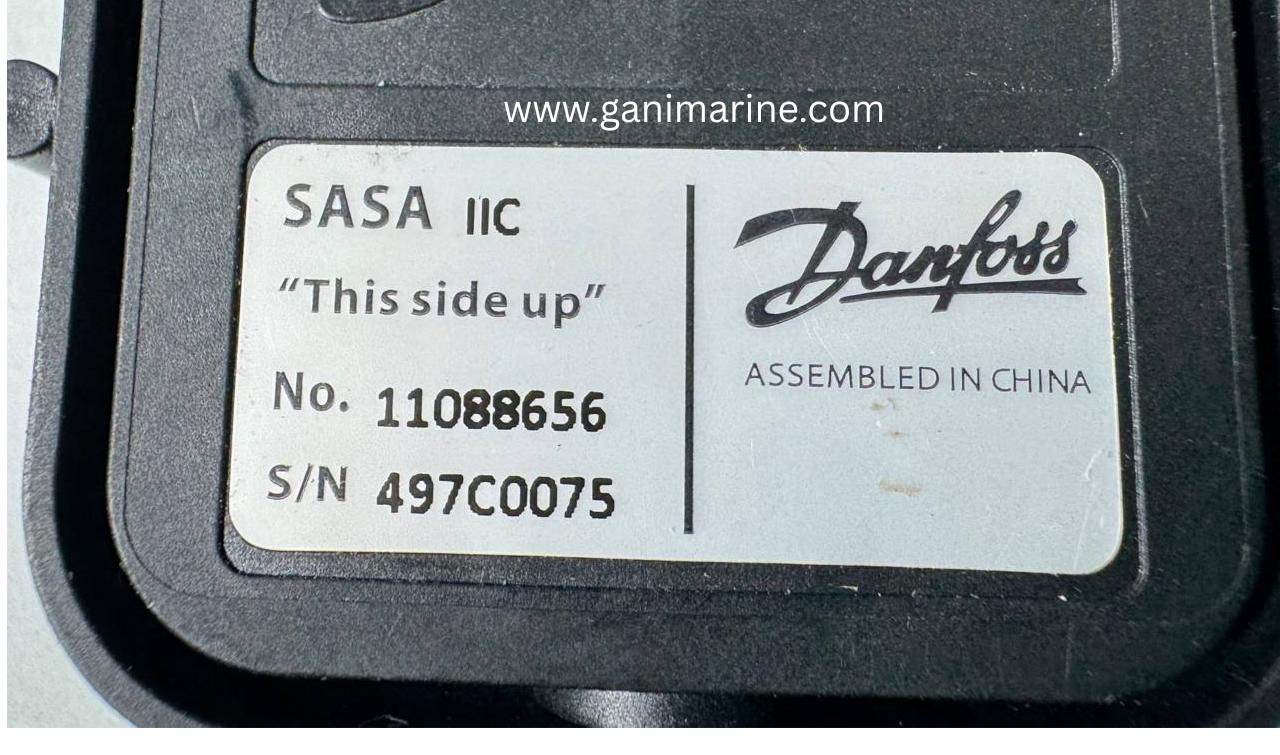

• Sensor marked with orientation labels (“This side up”) and part identifiers
• Typically supplied without connector termination (AMP connector type)
---
