Danfoss PVG 32 Proportional Valve 11079173
Danfoss PVG 32 Proportional Valve 11079173
The Danfoss PVG 32 Proportional Valve Group is a modular electro-hydraulic directional control valve system designed for precise, smooth, and reliable control of hydraulic functions in heavy-duty mobile and industrial machineryz
This valve group is widely used in cranes, excavators, forestry machines, material handling equipment, marine hydraulics, and construction machinery, where accurate flow and pressure control is essential.

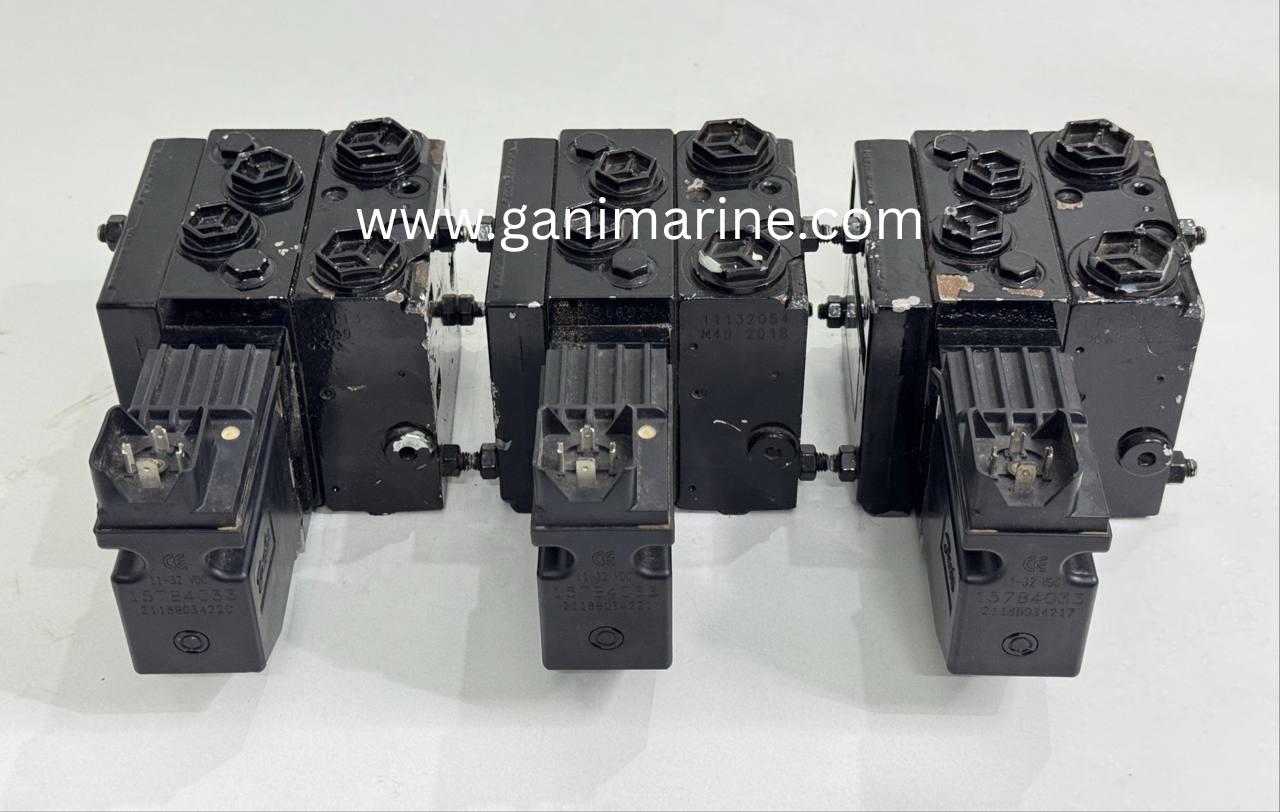

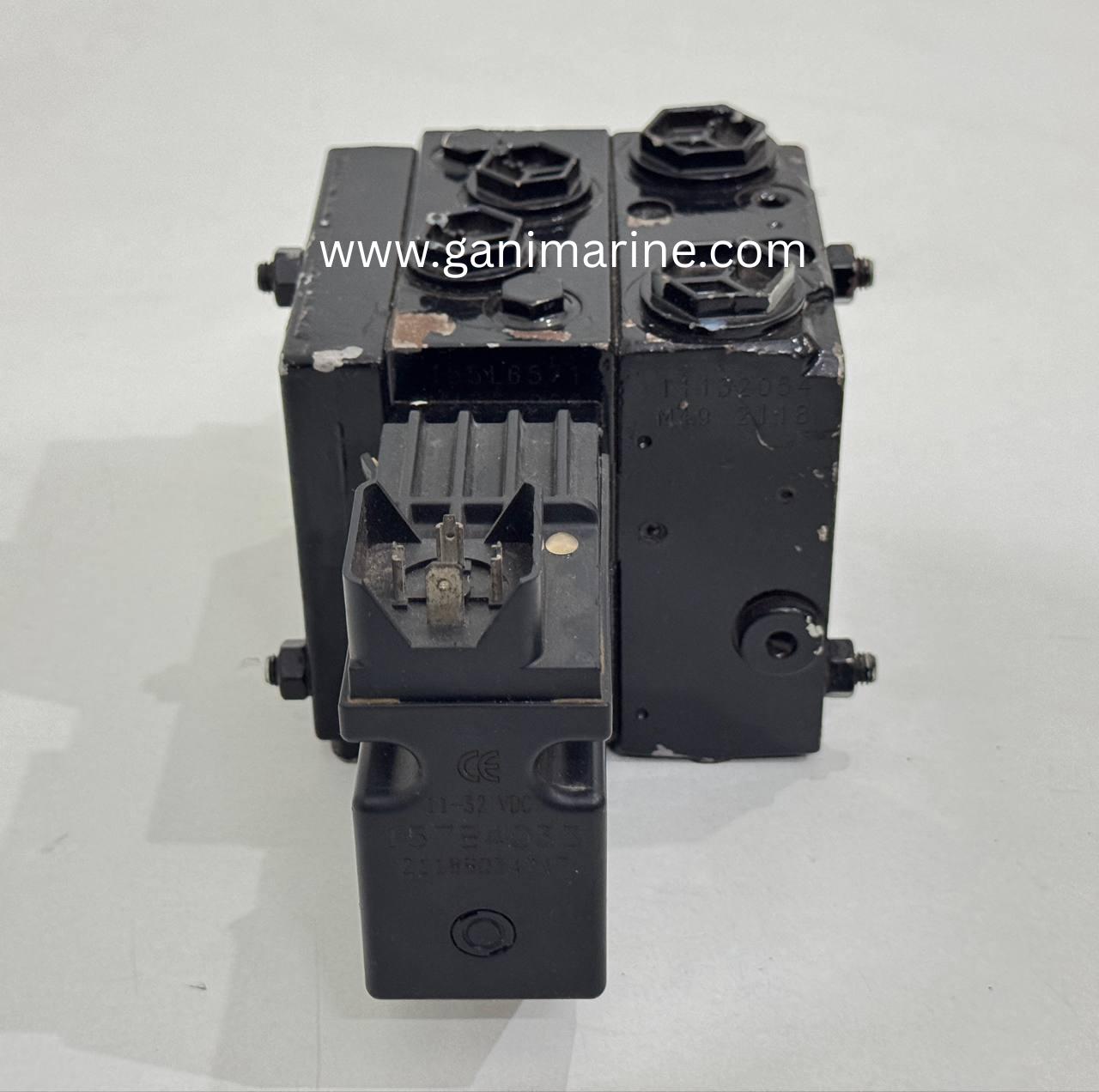

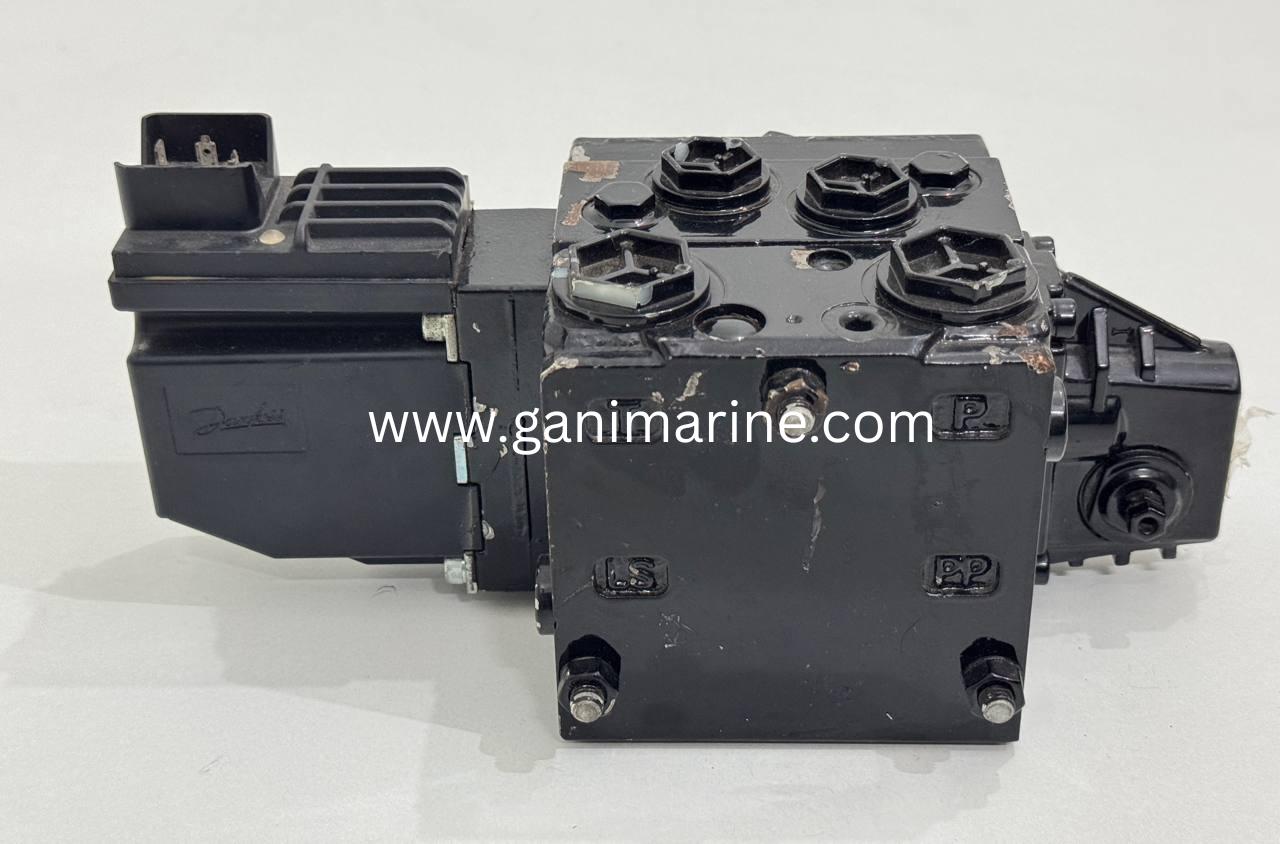

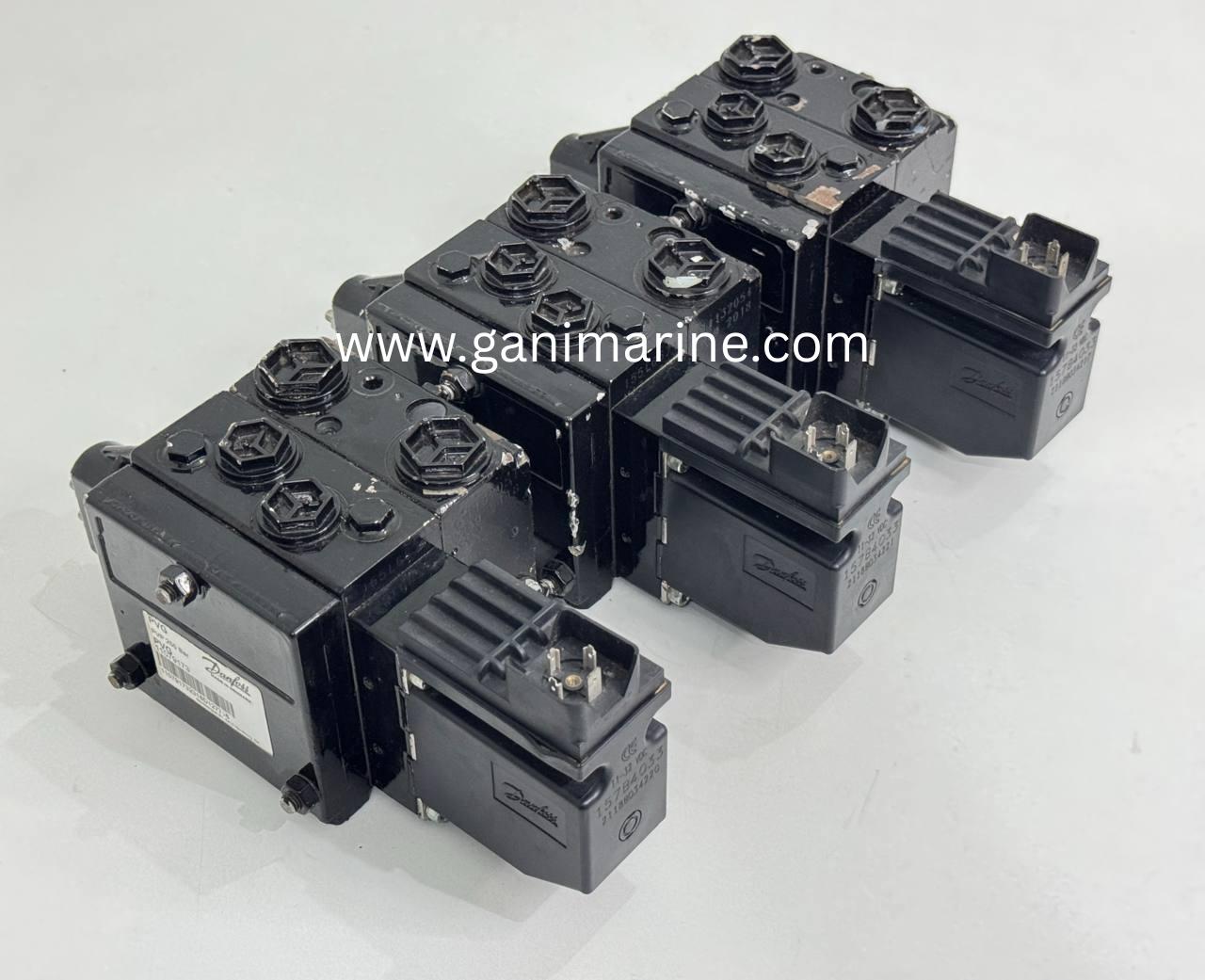

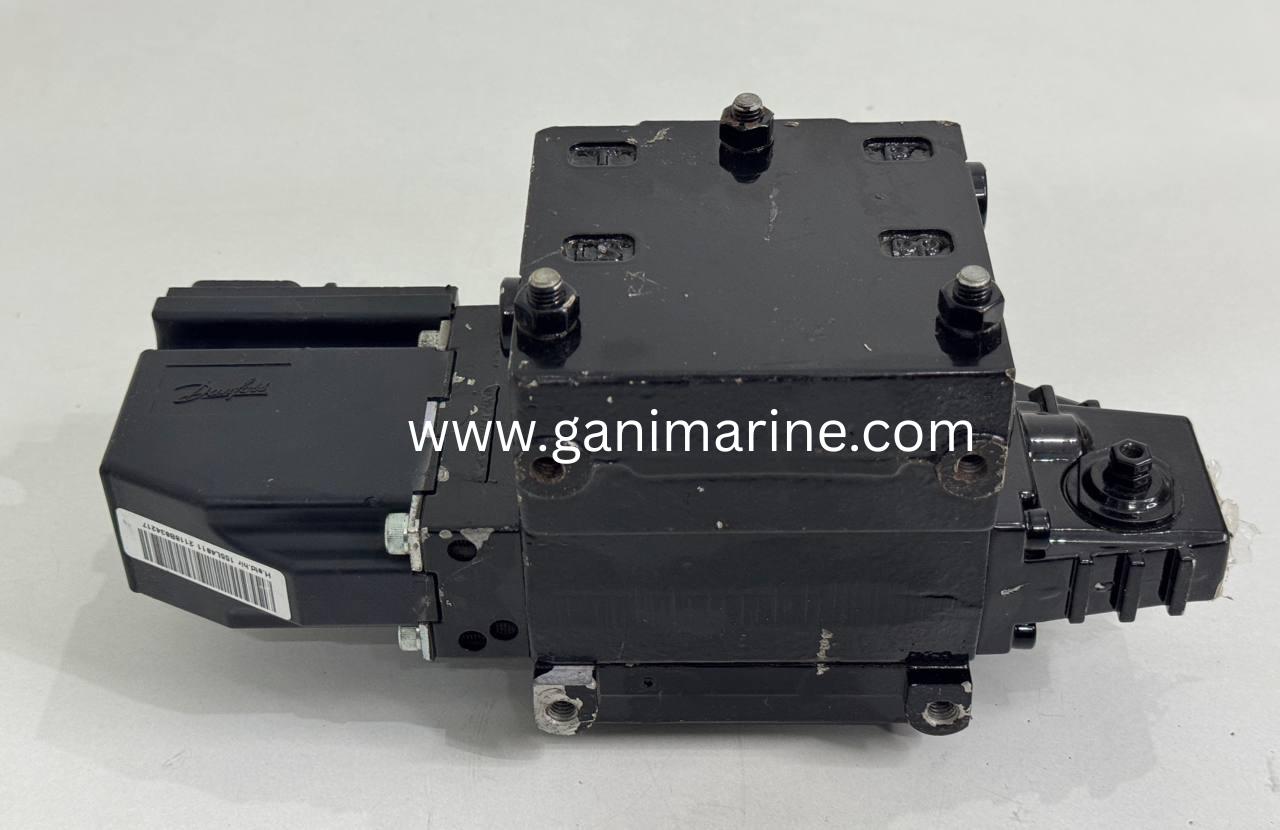

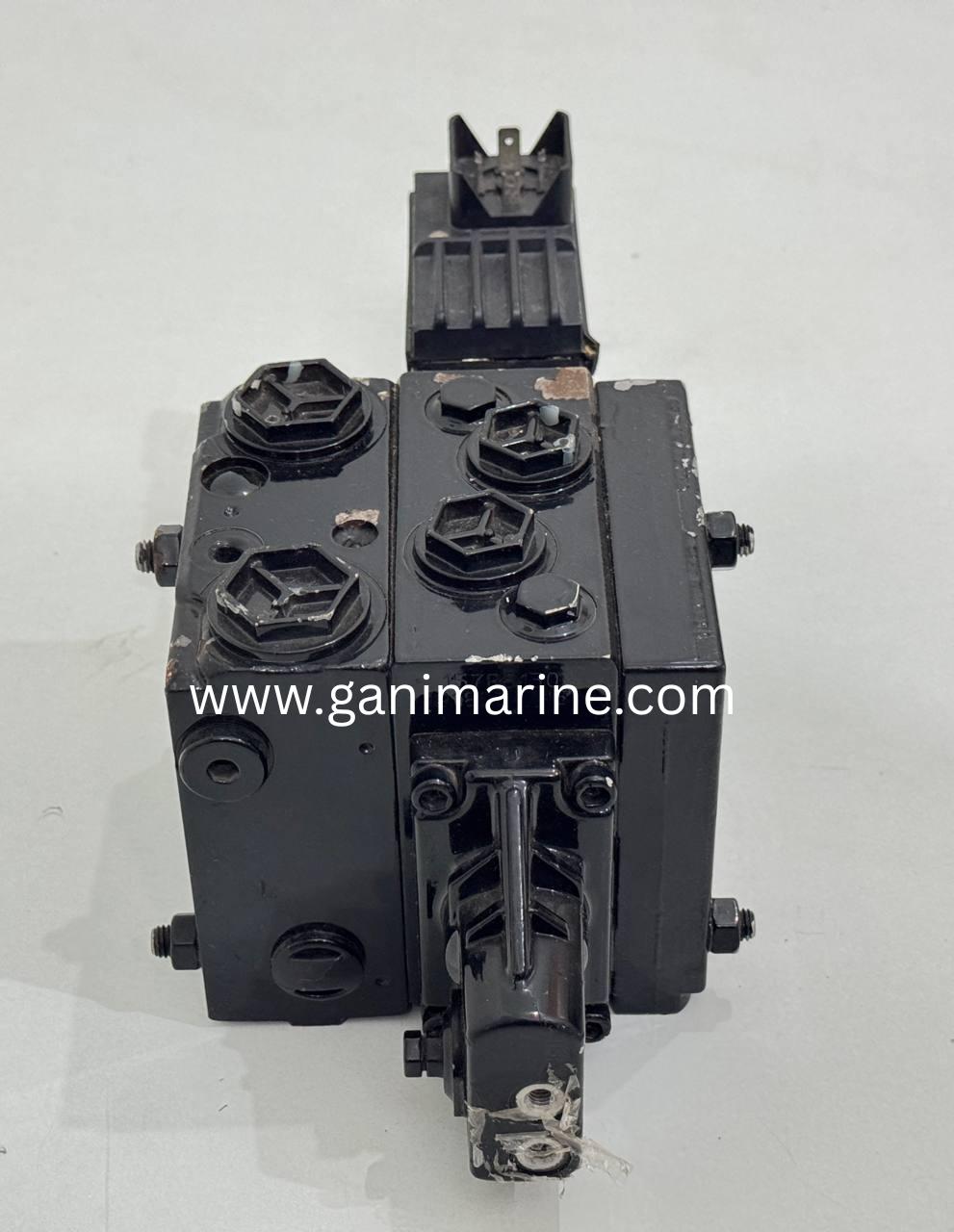

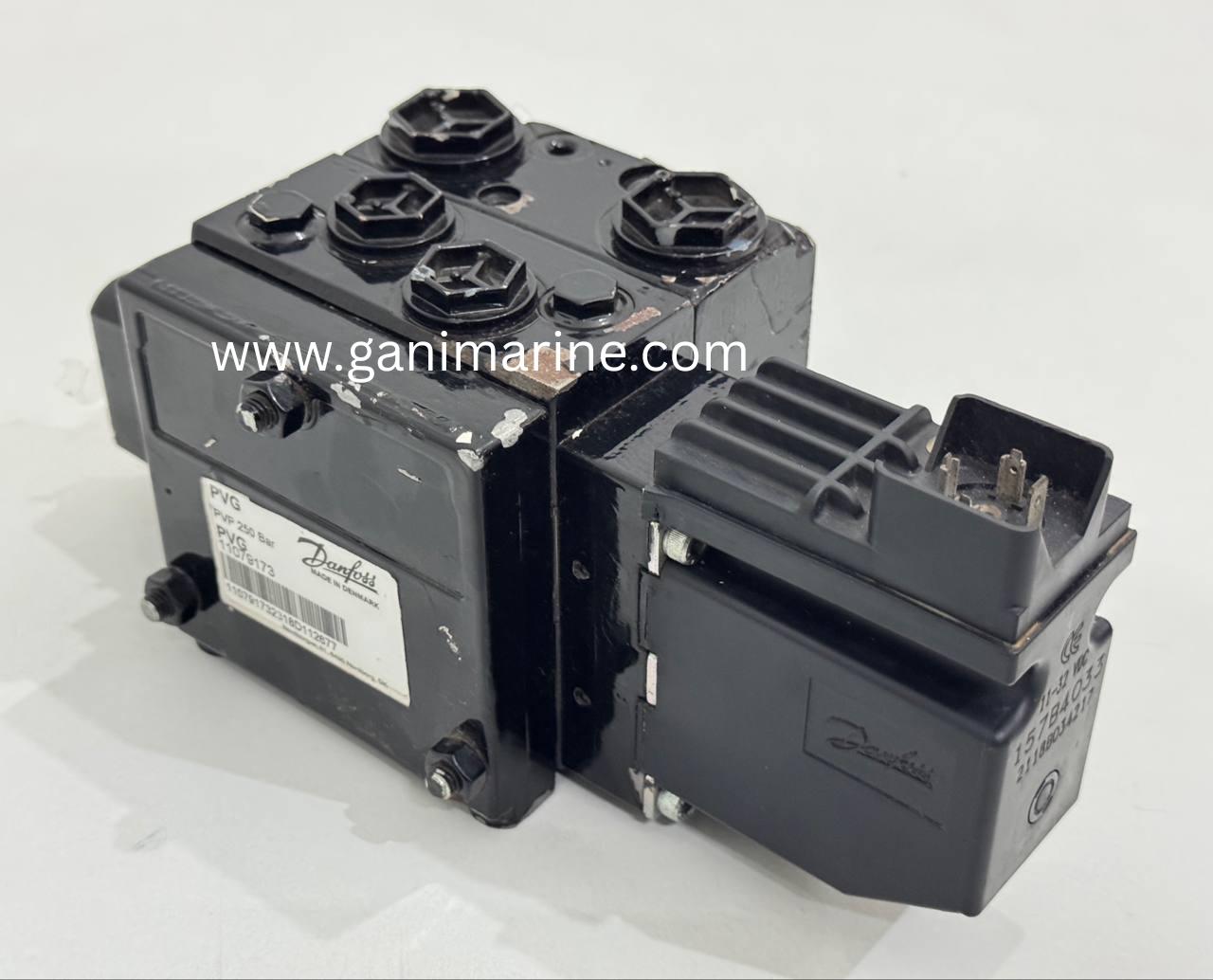

The assembly shown includes the PVP inlet module, PVEH electro-hydraulic actuator, and PVB basic valve section, forming a complete and expandable valve stack.
Manufacturer Details
• Brand: Danfoss Power Solutions
• Series: PVG 32
• Valve Type: Proportional Directional Control Valve
• Design: Modular / Stackable
• Origin: Genuine Danfoss
Detailed Technical Specifications

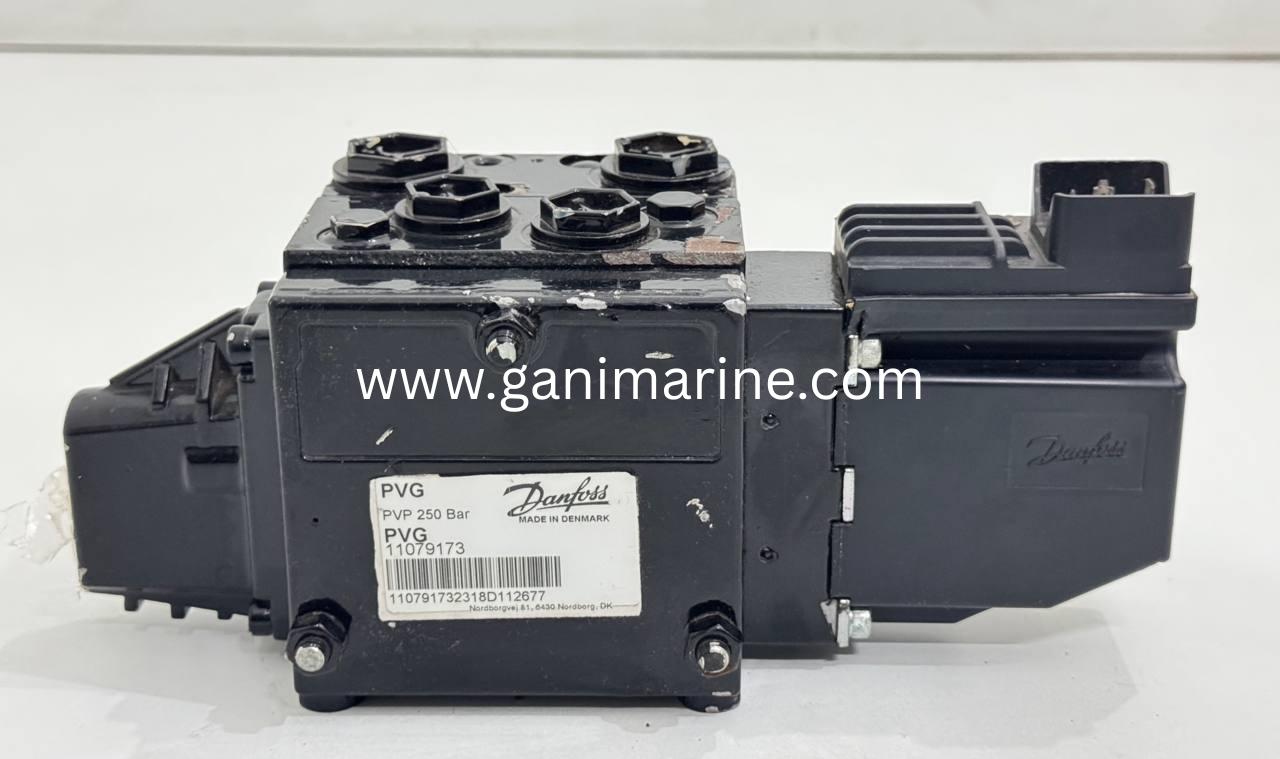

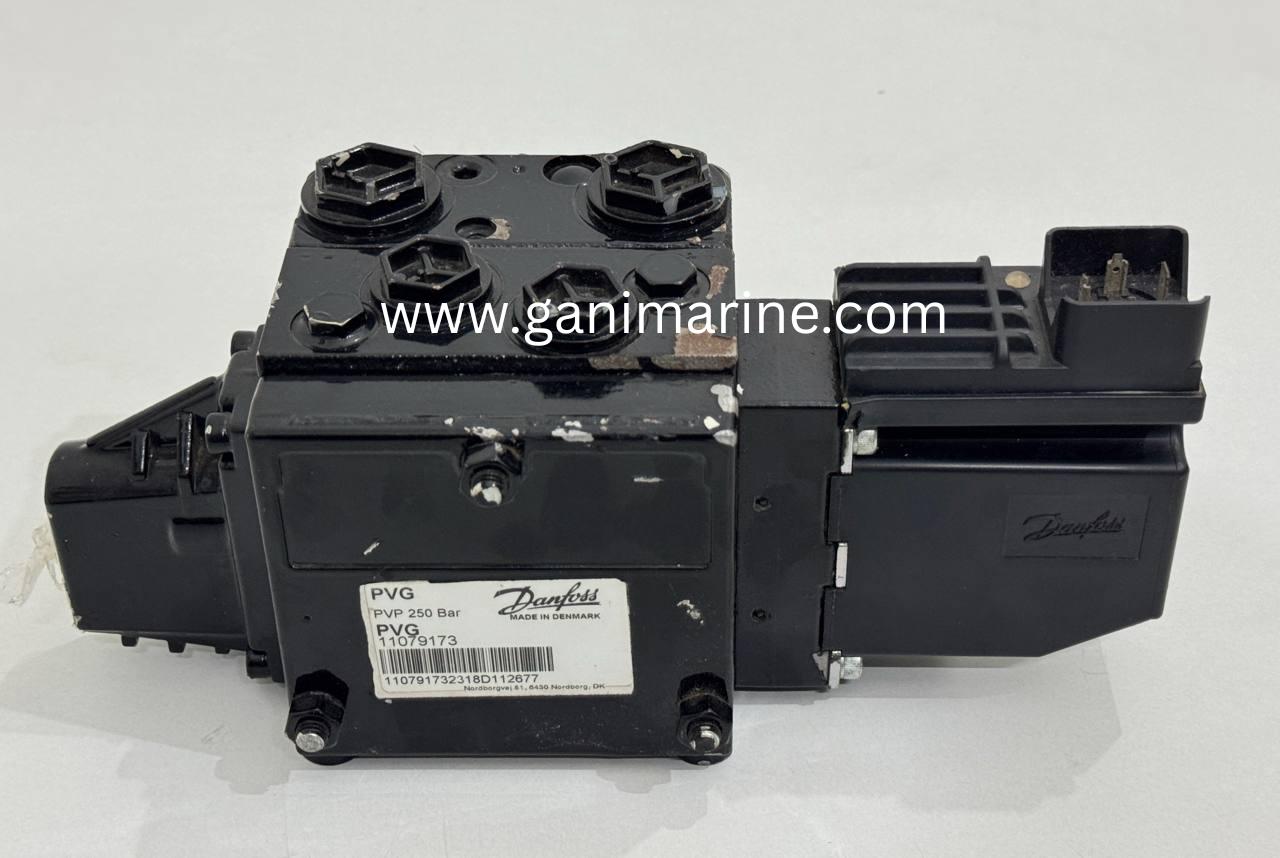

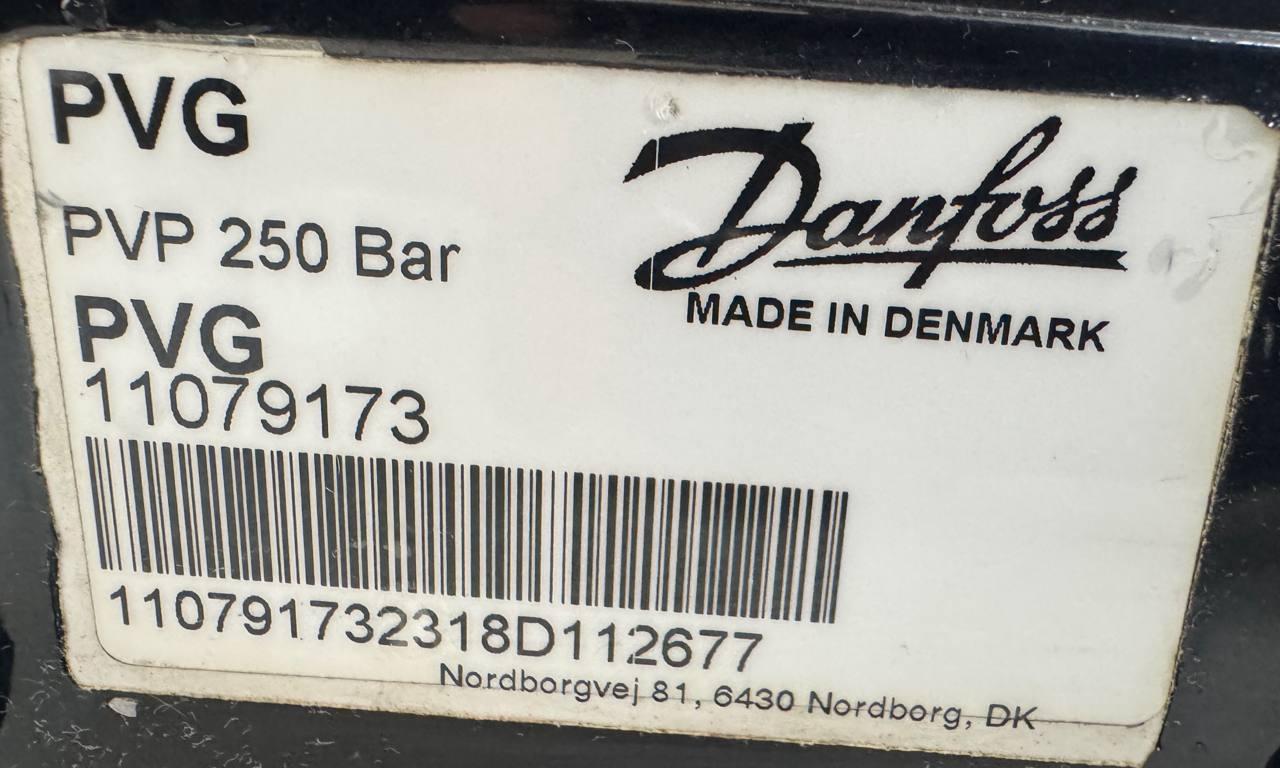

PVP Inlet Module – 11079173 / 157B5110
• Valve Type: Open Center (OC)
• System Compatibility: Fixed displacement pumps
• Rated Pressure: 250 bar continuous
• Peak Pressure Capability: Up to 400 bar (series dependent)
• Port Size: G 3/4” BSP
• Pilot Oil Supply: Integrated pressure-reducing valve
• Pilot Pressure: Approx. 13.5 bar
• Function: Controls oil entry, system pressure, and pilot supply for actuators
Key Advantage: Acts as the central control unit (“brain”) of the PVG valve stack.

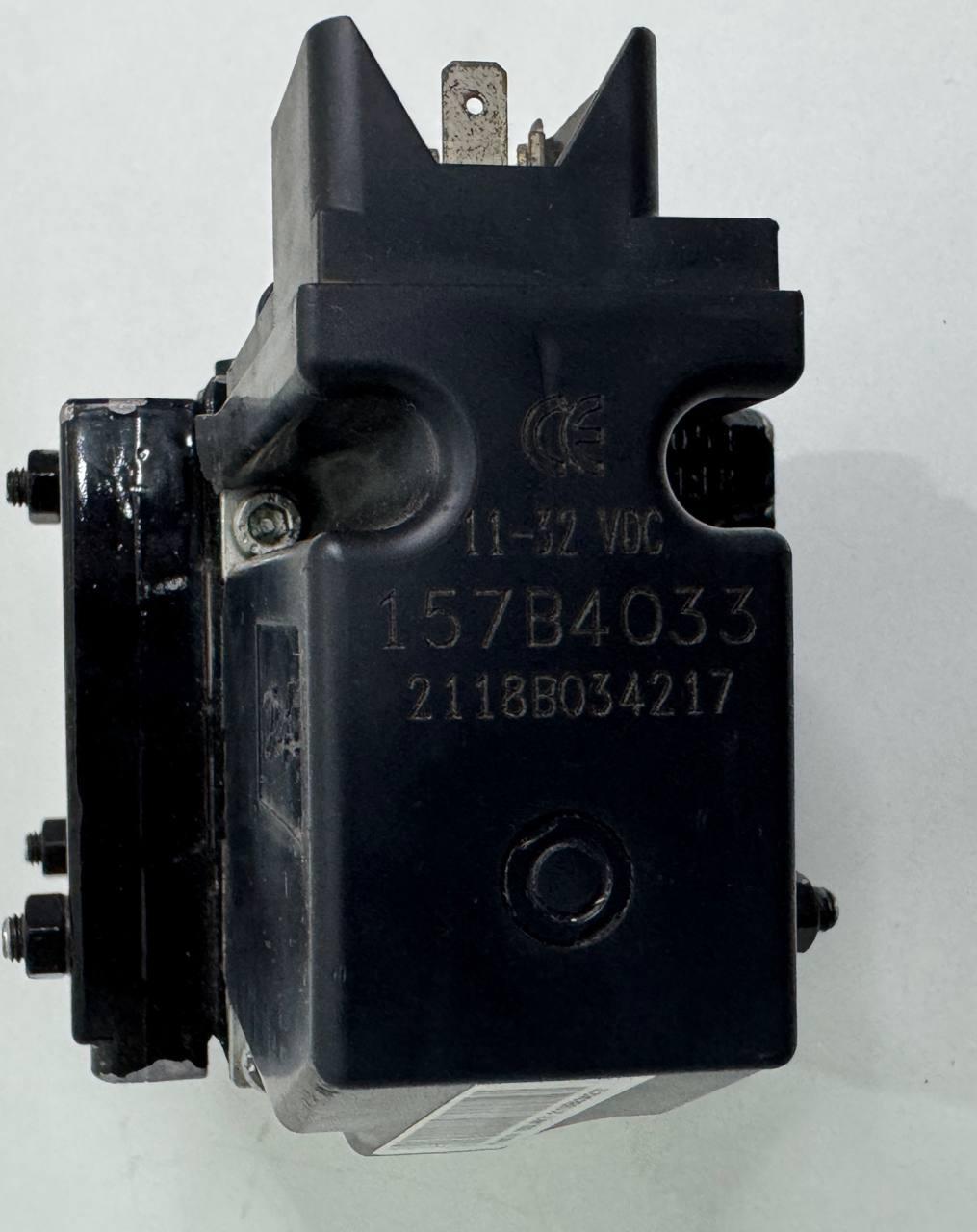

PVEH Electro-Hydraulic Actuator – 157B4033
• Type: PVEH (High Proportional)
• Voltage Range: 11–32 VDC
• Compatibility: 12V & 24V vehicle systems
• Control: Electronic proportional control
• Connector: Hirschmann / DIN
• Response Time: Fast & precise
• Safety Feature: Passive Fault Monitoring (PFM)
Safety Function: Automatically disables the valve section if spool position does not match command signal.
PVB Basic Valve Module – 157B6130
• Valve Body: Cast iron
• Work Ports: G 1/2” BSP (A & B)
• Integrated Feature: Load-holding check valve
• Shock Valve Capability: Prepared for anti-shock valves
• Function: Controls flow direction to cylinders or motors
Benefit: Prevents load drop and allows installation of cartridge shock valves for cylinder protection.
Functional Characteristics
• Smooth proportional control
• Modular & expandable design
• High flow capacity
• Excellent load holding
• Reliable under vibration and shock
• Precise electronic control
• Long service life
• Suitable for harsh environments
Typical Applications
Mobile Hydraulics
• Truck-mounted cranes
• Excavators
• Loaders
• Aerial work platforms
Forestry Equipment
• Harvesters
• Forwarders
• Log loaders
Marine & Offshore
• Deck cranes
• Winches
• Hydraulic steering systems
Industrial Machinery
• Material handling equipment
• Special purpose machines
• Automated hydraulic systems
Condition
• Appears new / unused stock
• Clean housing
• Port plugs installed
• No visible installation marks
