Danfoss HPR 02 indicator/transmitter unit and a control valve/block TELEX 46 231
Danfoss HPR 02 indicator/transmitter unit and a control valve/block TELEX 46 231

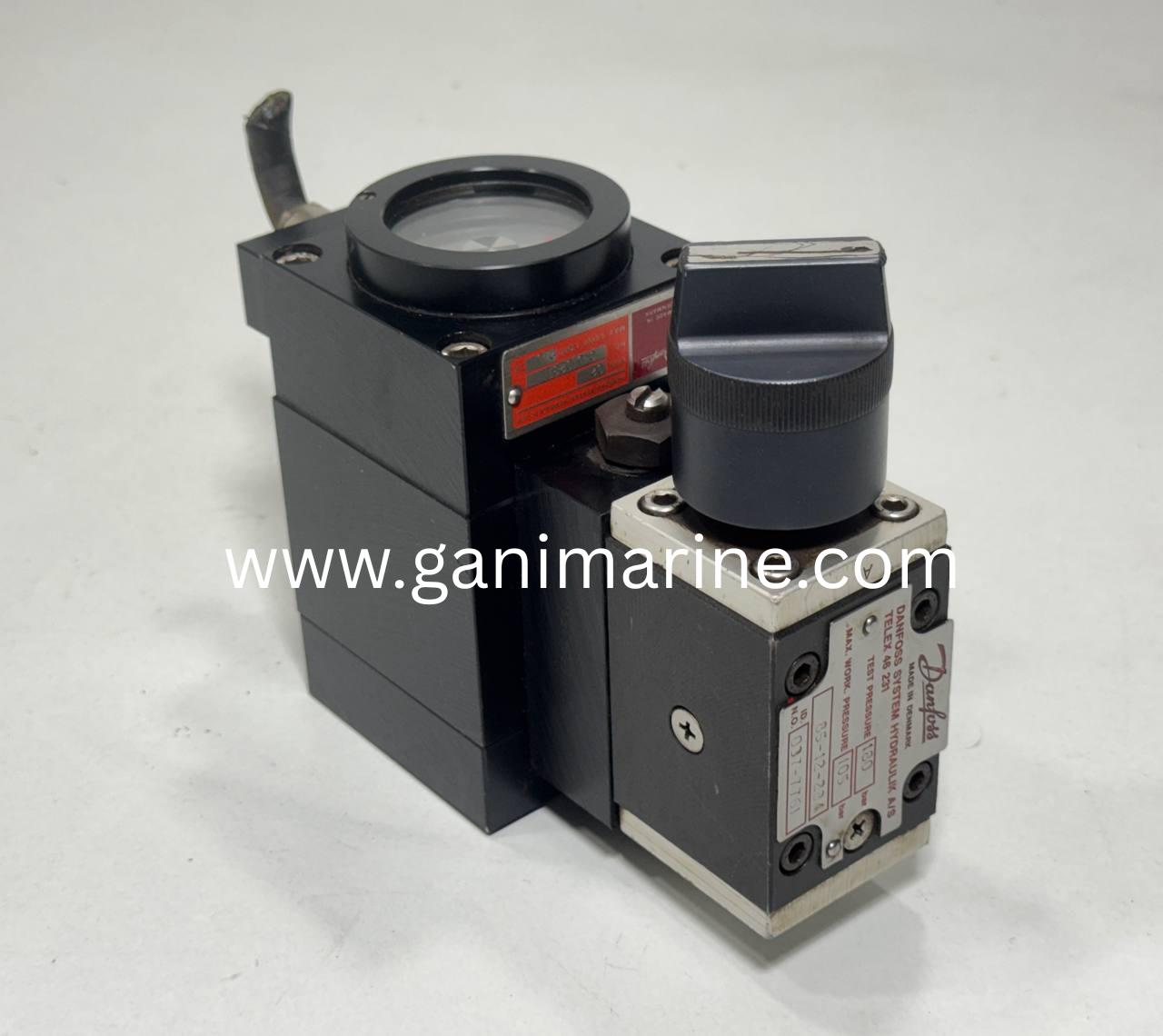

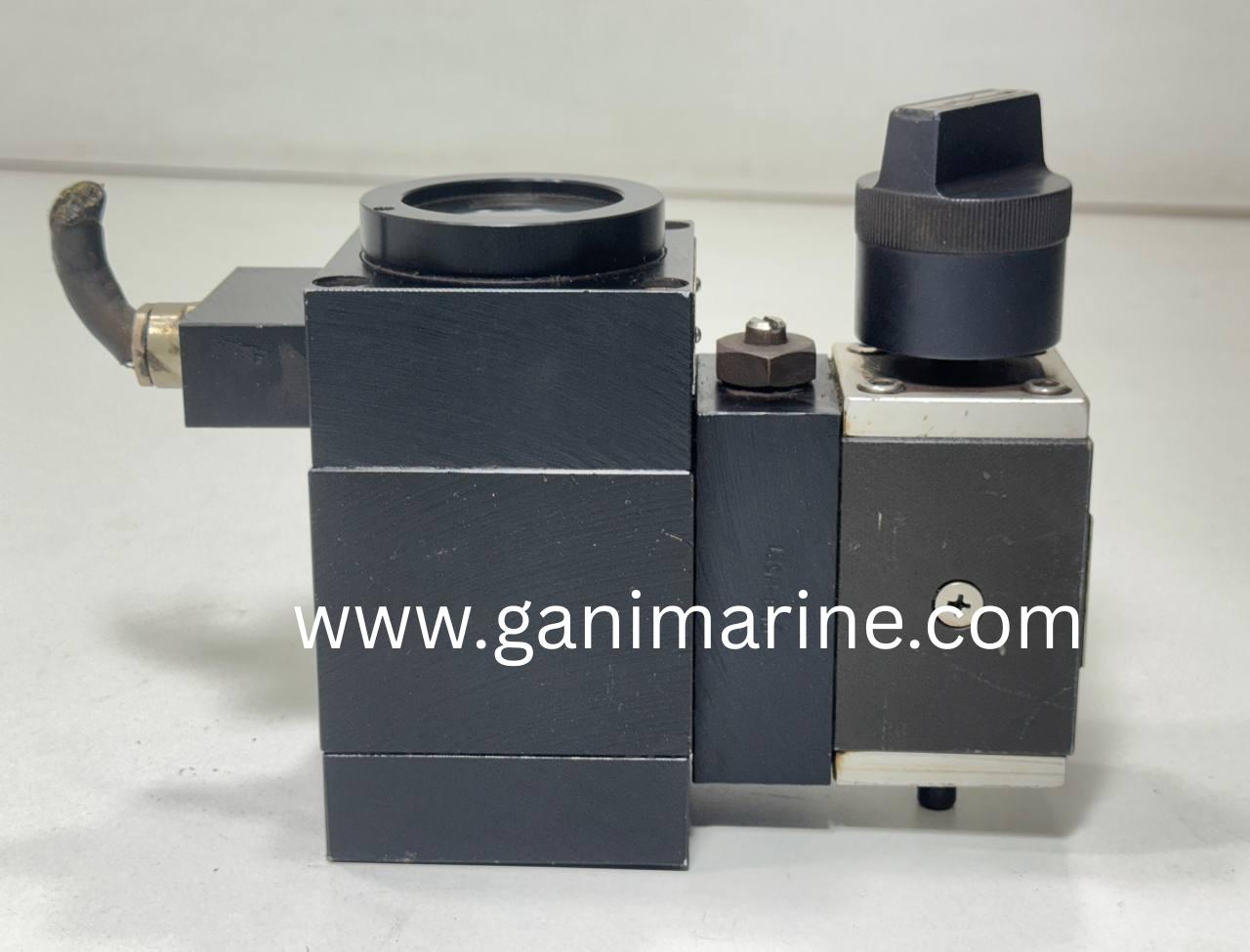

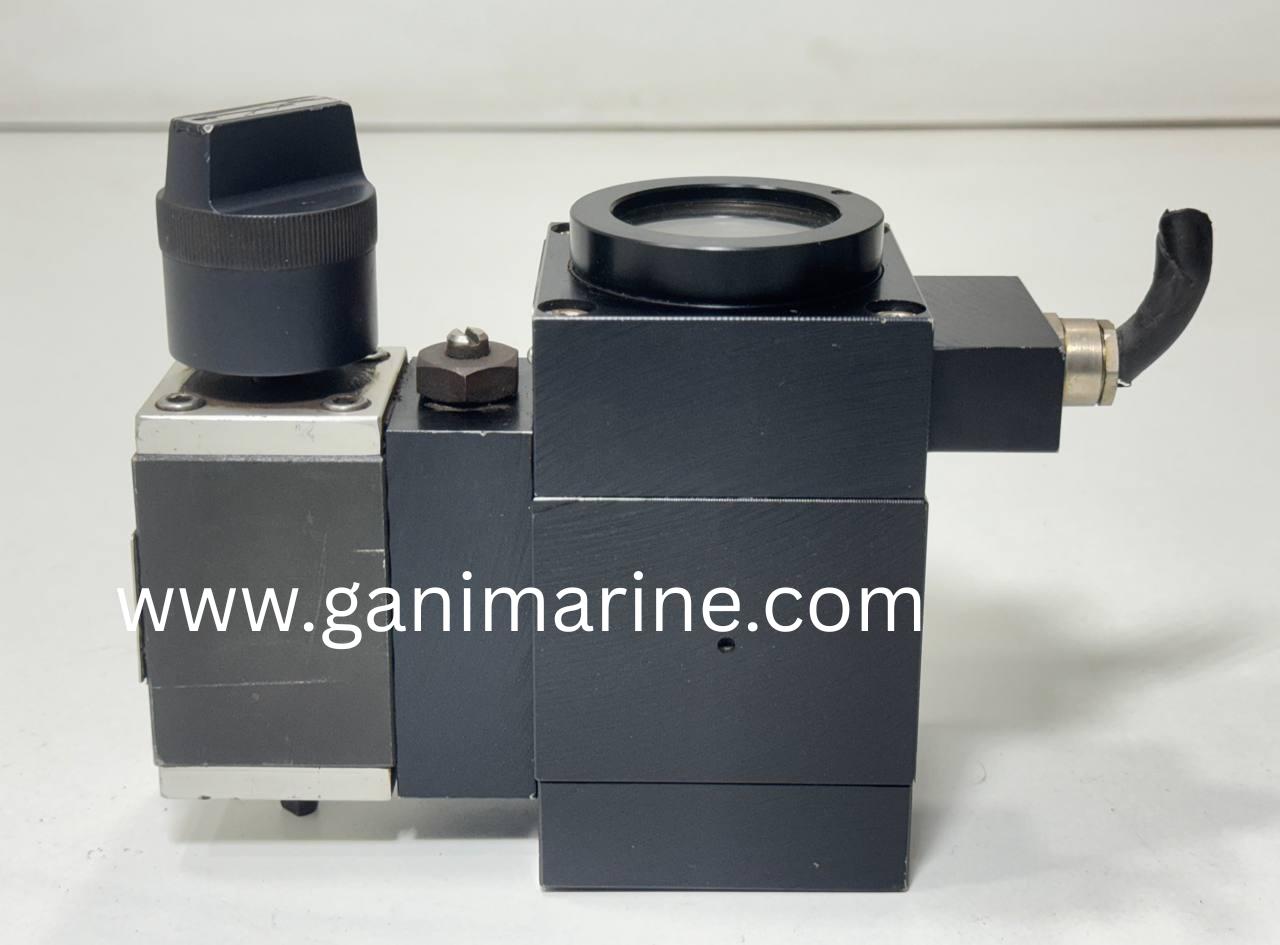

The Danfoss / Damcos HPR 02 + TELEX 46 231 assembly is a marine hydraulic positioner and control unit used for operating and monitoring remote valves in ship systems such as ballast, cargo, and fuel lines. This unit combines a position transmitter (HPR 02) with a hydraulic control/manifold block (TELEX 46 231) for complete local and remote valve control.
Component Overview

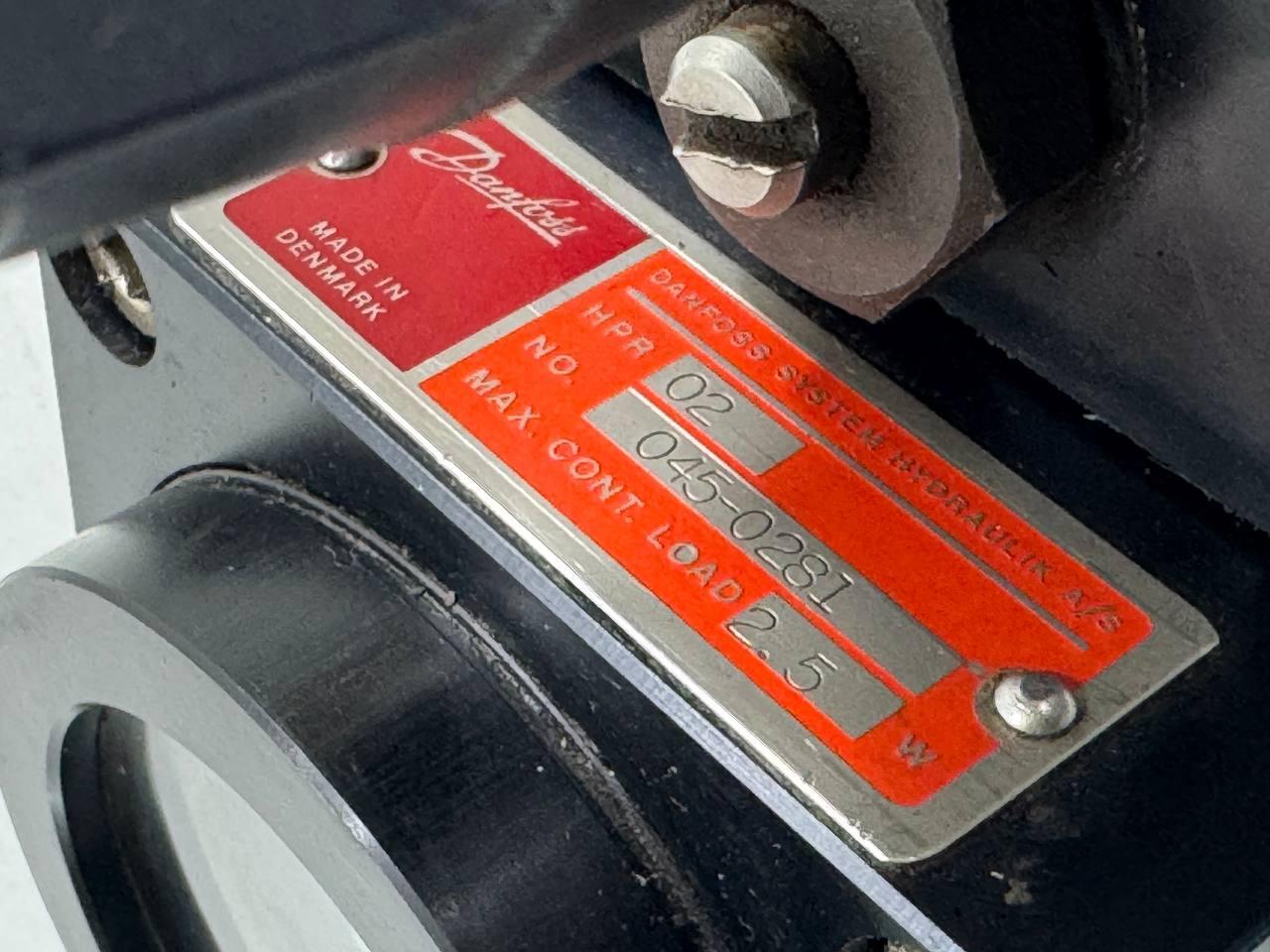

1. HPR 02 Indicator / Transmitter
• Model: HPR 02
• Part Number: 045-0281
• Function: Hydraulic position indicator / transmitter
• Max Continuous Load: 2.5 W
• Output: Electrical feedback signal to control system
• Application: Valve position monitoring (open/close status)

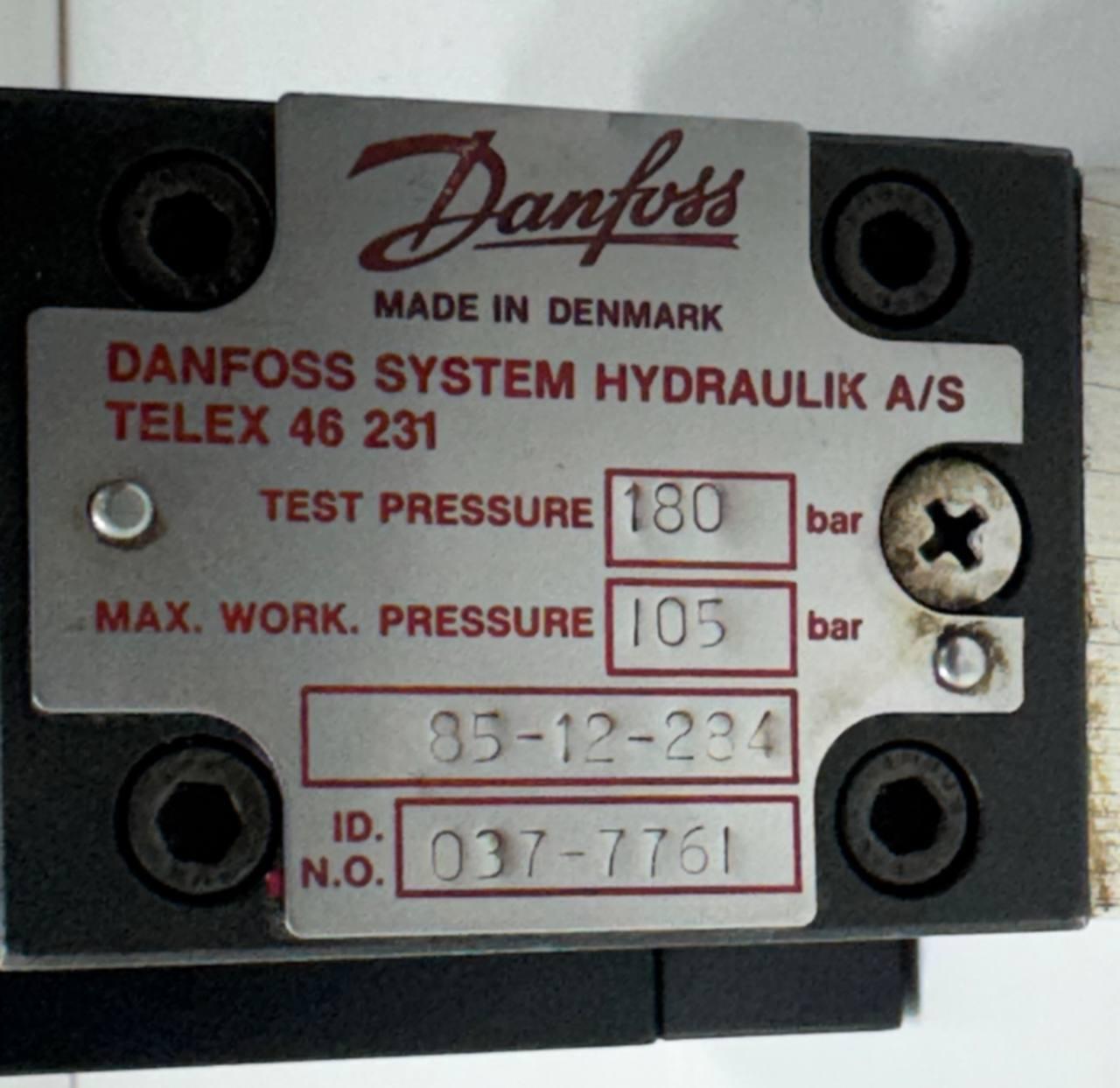

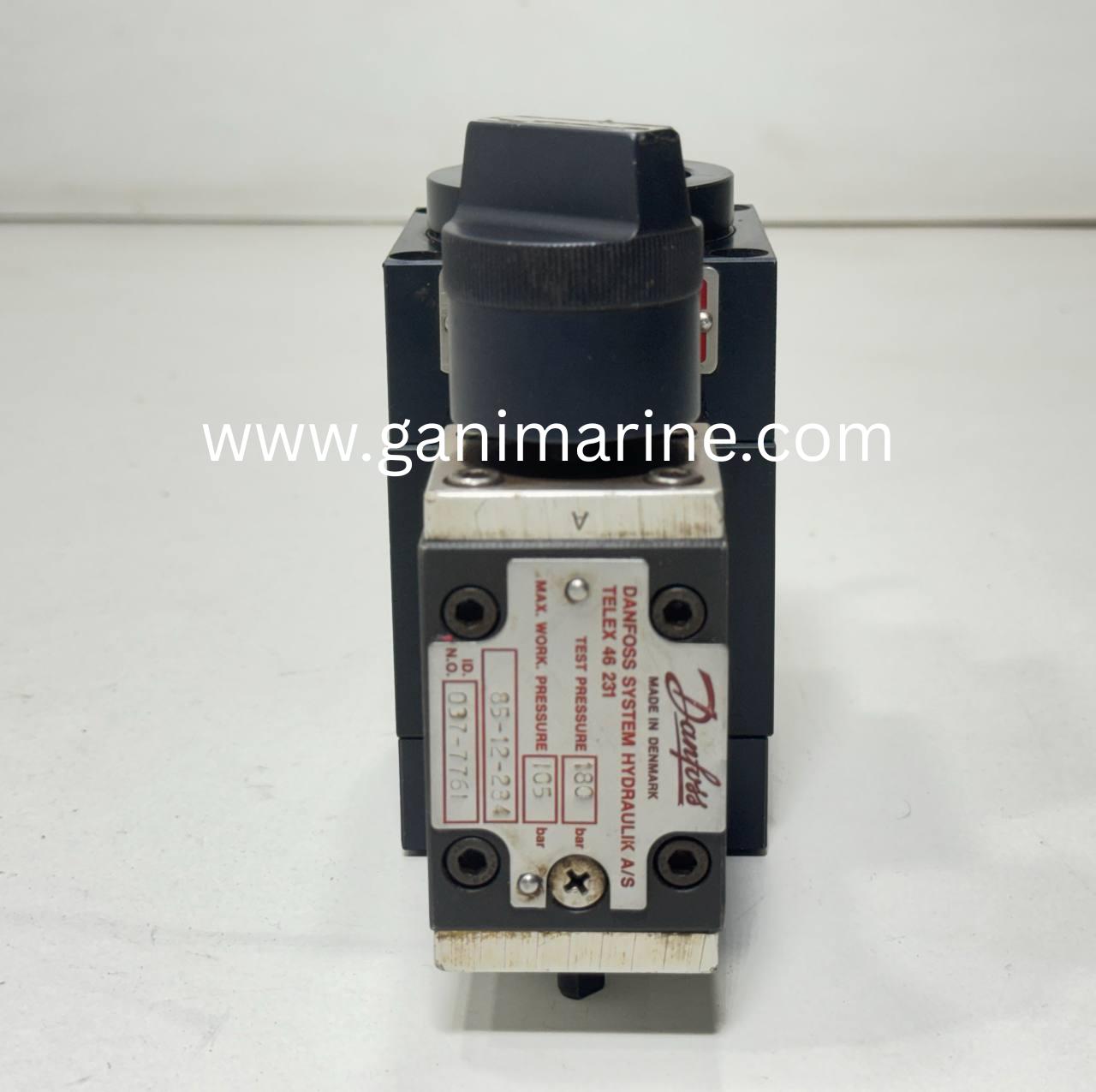

2. TELEX 46 231 Control Valve Block
• Model: TELEX 46 231
• Part Number: 037-7761
• Serial: 85-12-234
• Max Working Pressure: 105 bar
• Test Pressure: 180 bar
• Function: Hydraulic control / distribution block
• Features: Manual selector, flow control, integrated manifold
Working Principle
The system operates as a Valve Remote Control System (VRCS) component:
• Hydraulic oil is directed through the TELEX control block to actuate the valve
• The HPR 02 unit measures movement of the actuator
• Position feedback is transmitted electrically to the control room
• Local manual override allows operation in case of system failure
Key Features
• Integrated control + feedback system
• Reliable operation in marine environments
• Manual override for emergency use
• Visual position monitoring via sight glass
• Electrical signal output for automation systems
• Compact and rugged design for ship installation
Physical Characteristics
• Heavy-duty marine-grade construction
• Integrated selector knob for direction control
• Sight glass for real-time position confirmation

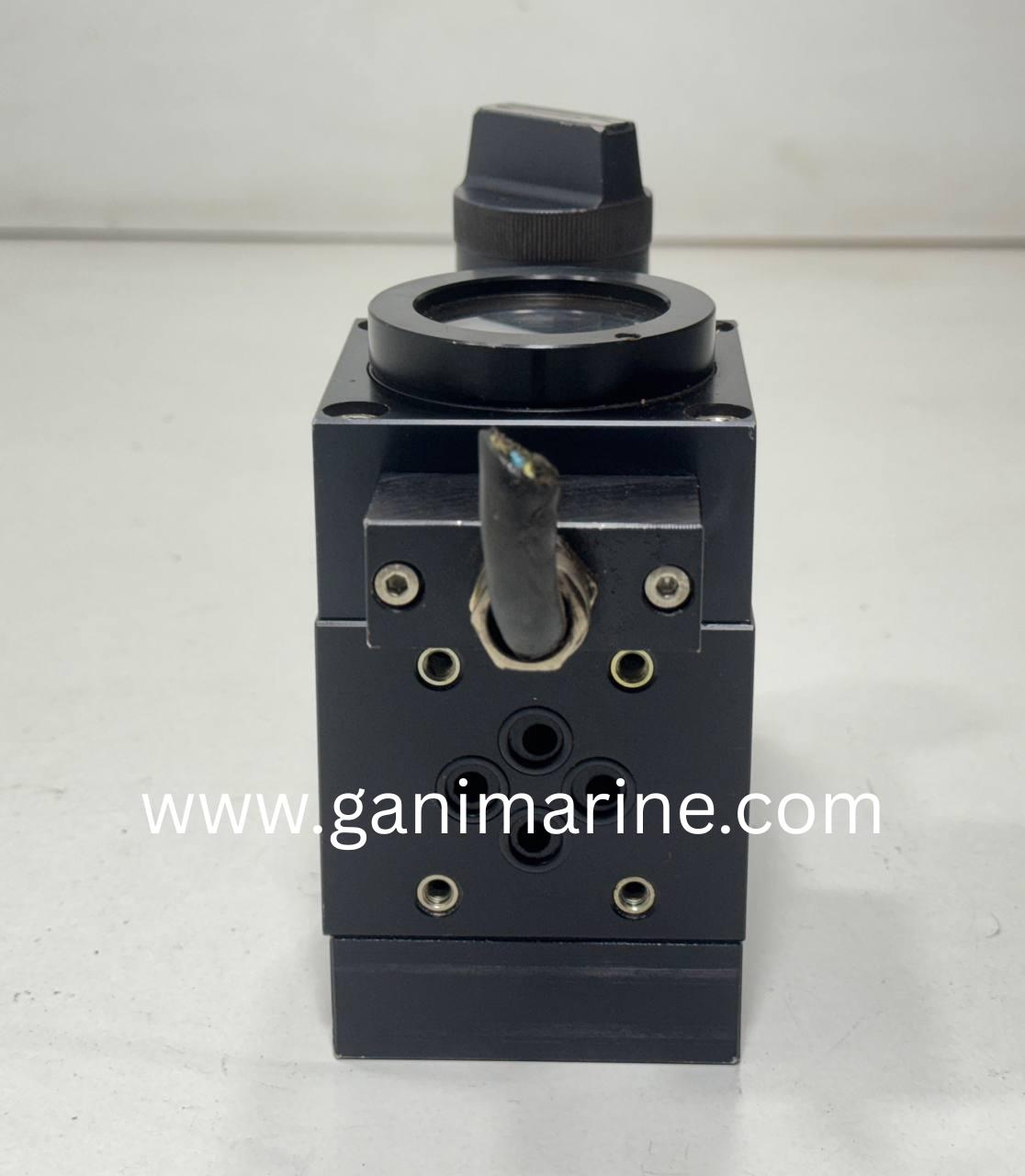

• Compact manifold design with hydraulic ports
Typical Applications
• Ship ballast valve control systems
• Cargo valve operation systems
• Fuel oil transfer systems
• Marine tank management systems
• Offshore platform valve control
• Hydraulic actuator control units
Advantages
• Combines control and feedback in one unit
• Improves operational safety and monitoring
• Works in harsh marine and offshore conditions
• Ensures precise valve positioning
• Supports both remote and local operation
