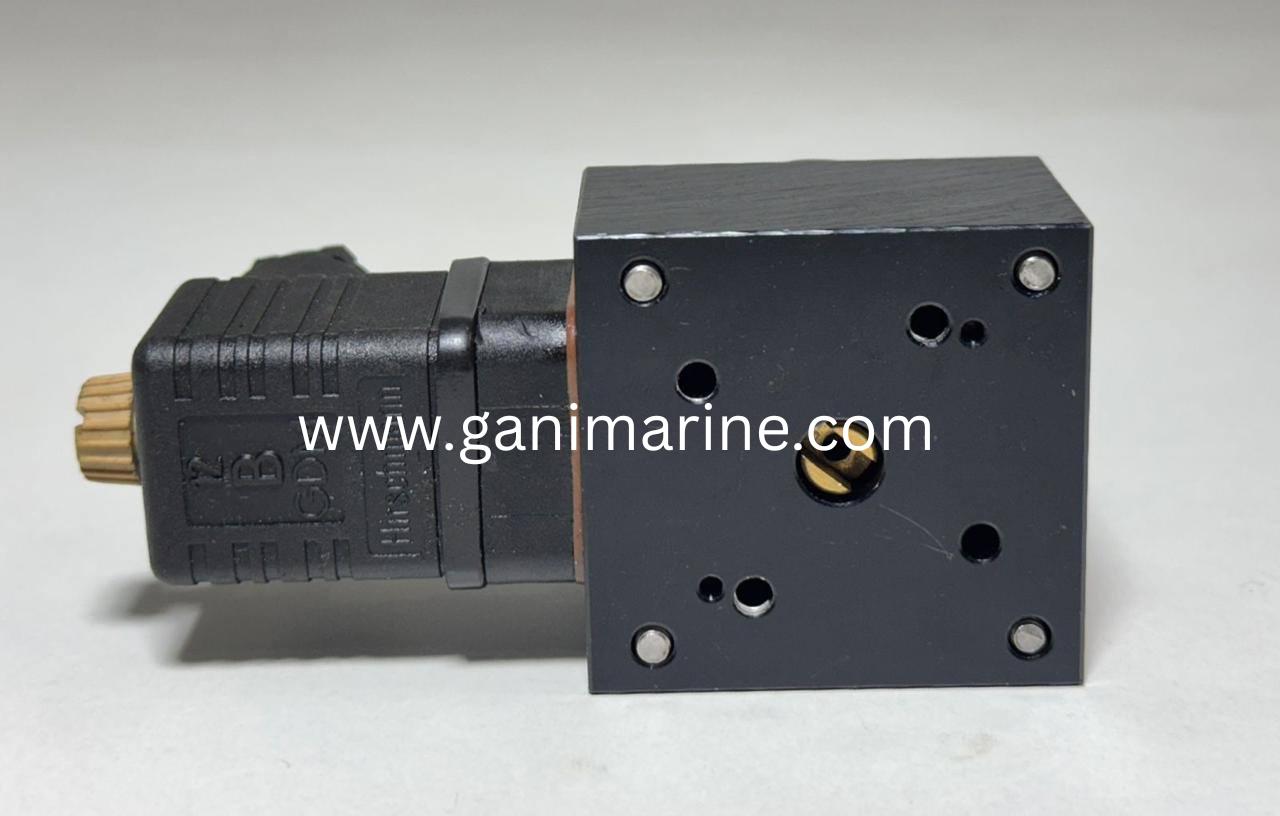

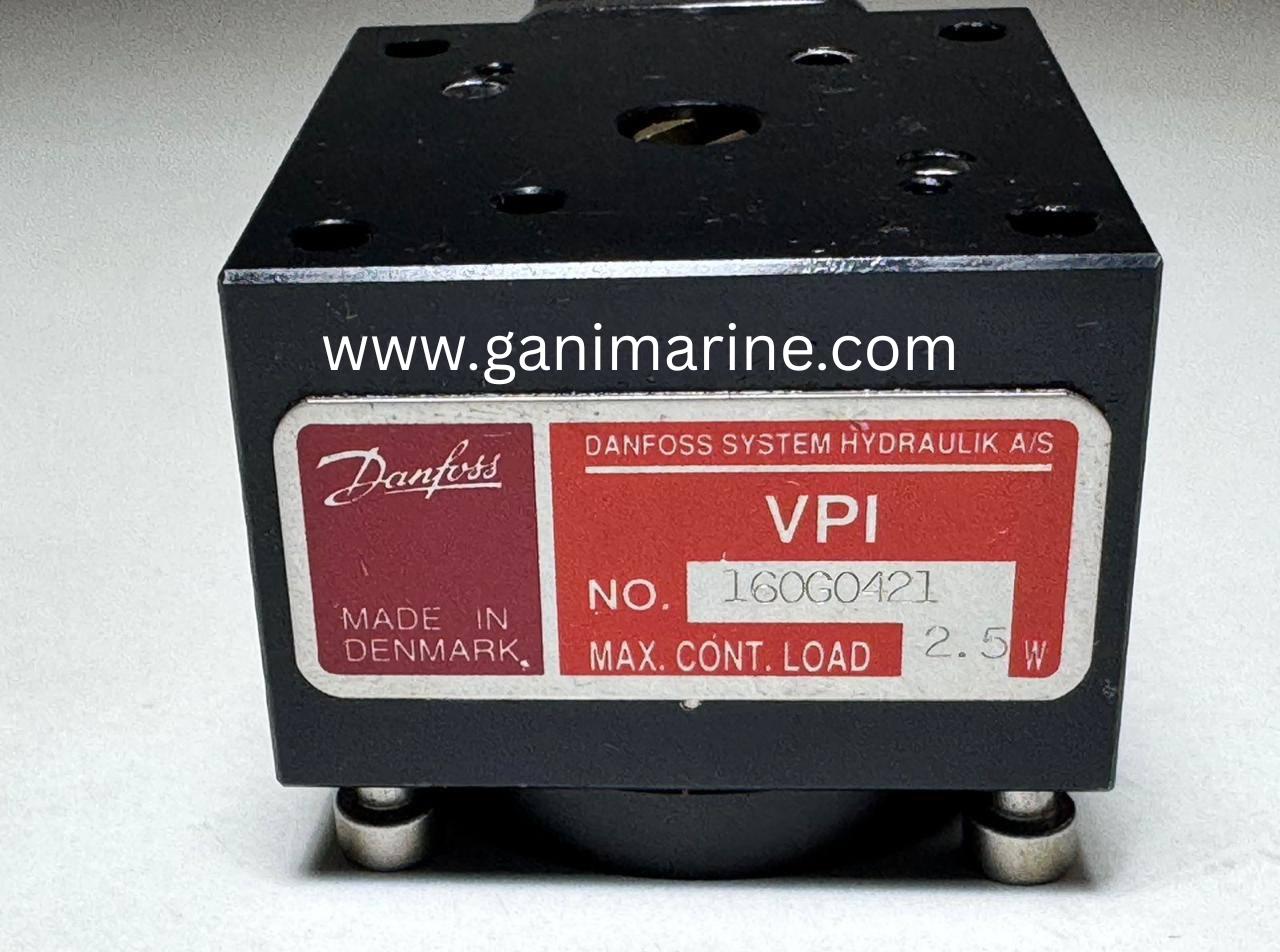

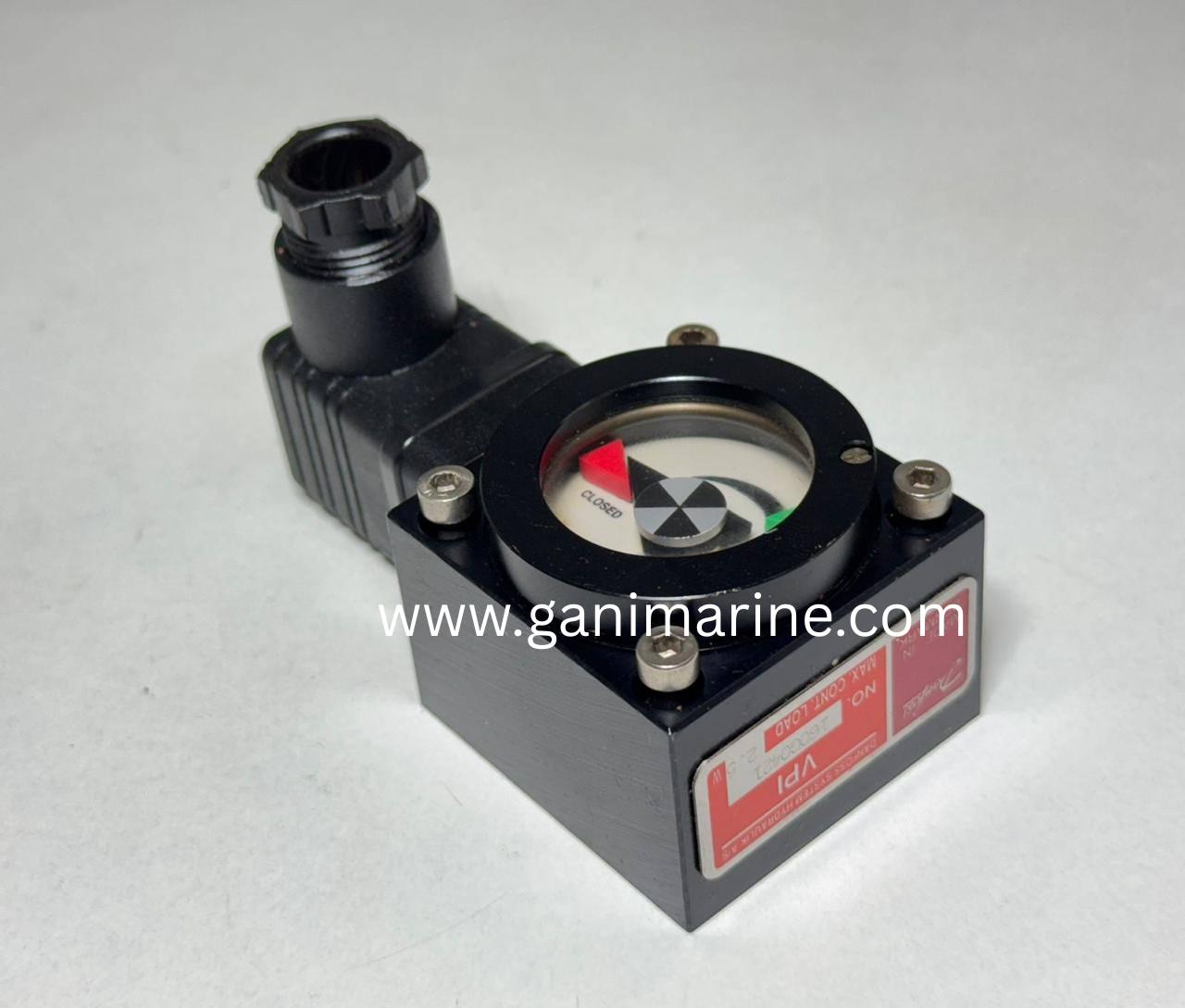

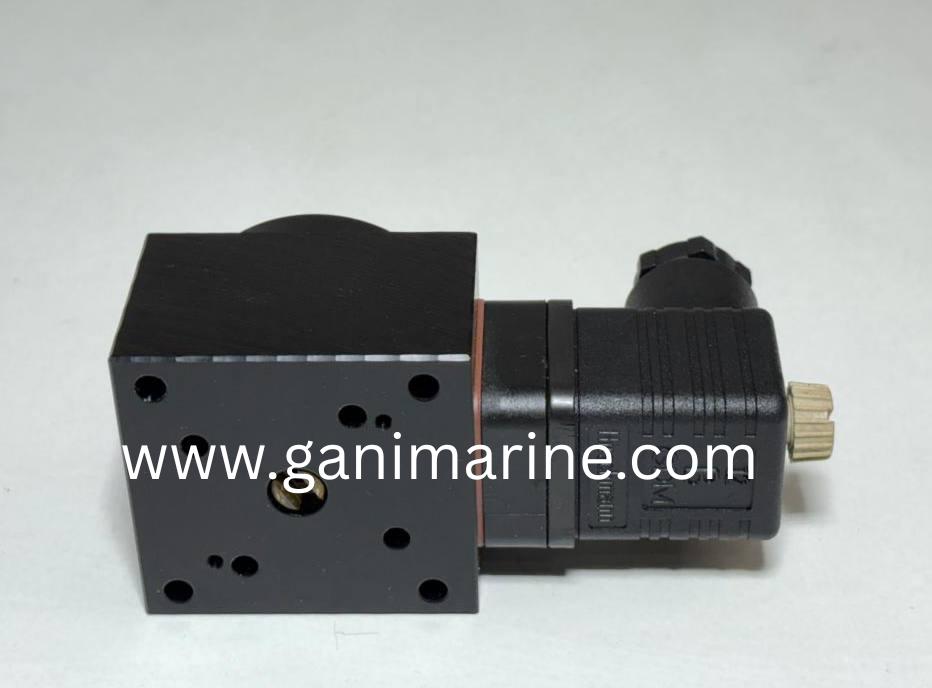

Danfoss / Damcos 160G0421 VPI-E (Valve Position Indicator)
Danfoss / Damcos 160G0421 VPI-E (Valve Position Indicator)
The Danfoss / Damcos VPI-E (Valve Position Indicator) is a precision hydraulic feedback device used to monitor the exact open/closed position of remote valves in VRCS and industrial systems. Model 160G0421 includes an electrical plug for remote signal transmission to control rooms.
Key Specifications
•Manufacturer: Danfoss System Hydraulik A/S (Damcos)
•Type: VPI-E Valve Position Indicator
•Part Number: 160G0421
•Max Continuous Load: 2.5 W
•Origin: Made in Denmark
•Feedback: Visual + Electrical
•Connection: Hirschmann DIN plug
•Application: Hydraulic valve monitoring
Working Principle
Volumetric measurement using internal micro-gear motor. Hydraulic flow from the actuator rotates the gears. Calibrated volume corresponds to full valve travel. Magnetic clutch transfers motion to dial without fluid leakage. Internal micro-switches provide electrical open/closed signals.
Features
•Leak-free magnetic coupling design
•Direct visual dial indication (open / closed)
•Remote electrical feedback to PLC/DCS
•Rugged marine-grade construction
•Suitable for submerged or inaccessible valves
•High accuracy volumetric sensing
Typical Applications
•Marine Valve Remote Control Systems (VRCS)
•Ballast valve monitoring
•Cargo valve systems
•Bilge systems
•Offshore platforms
•Refineries
•Power plants
•Chemical processing facilities
