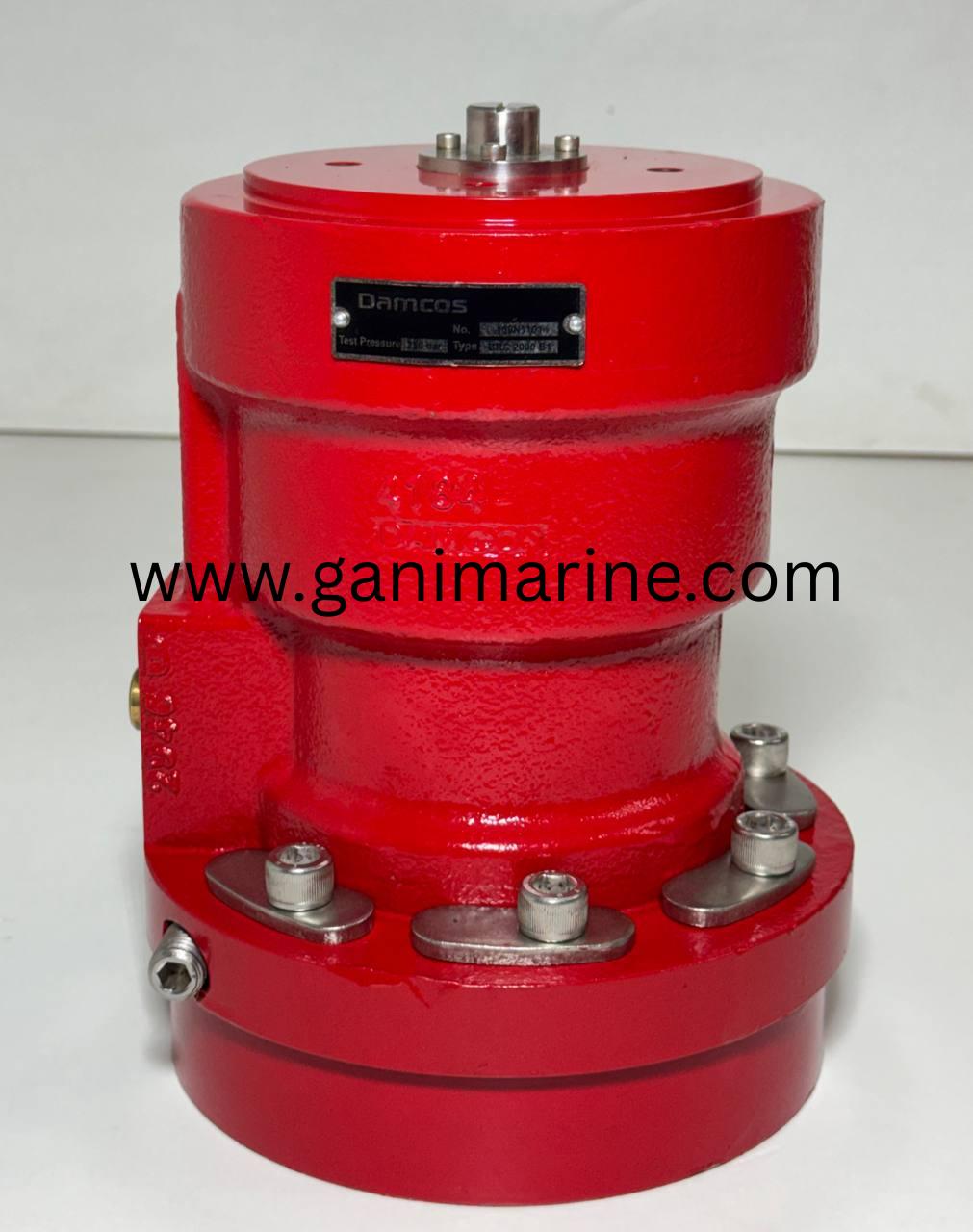

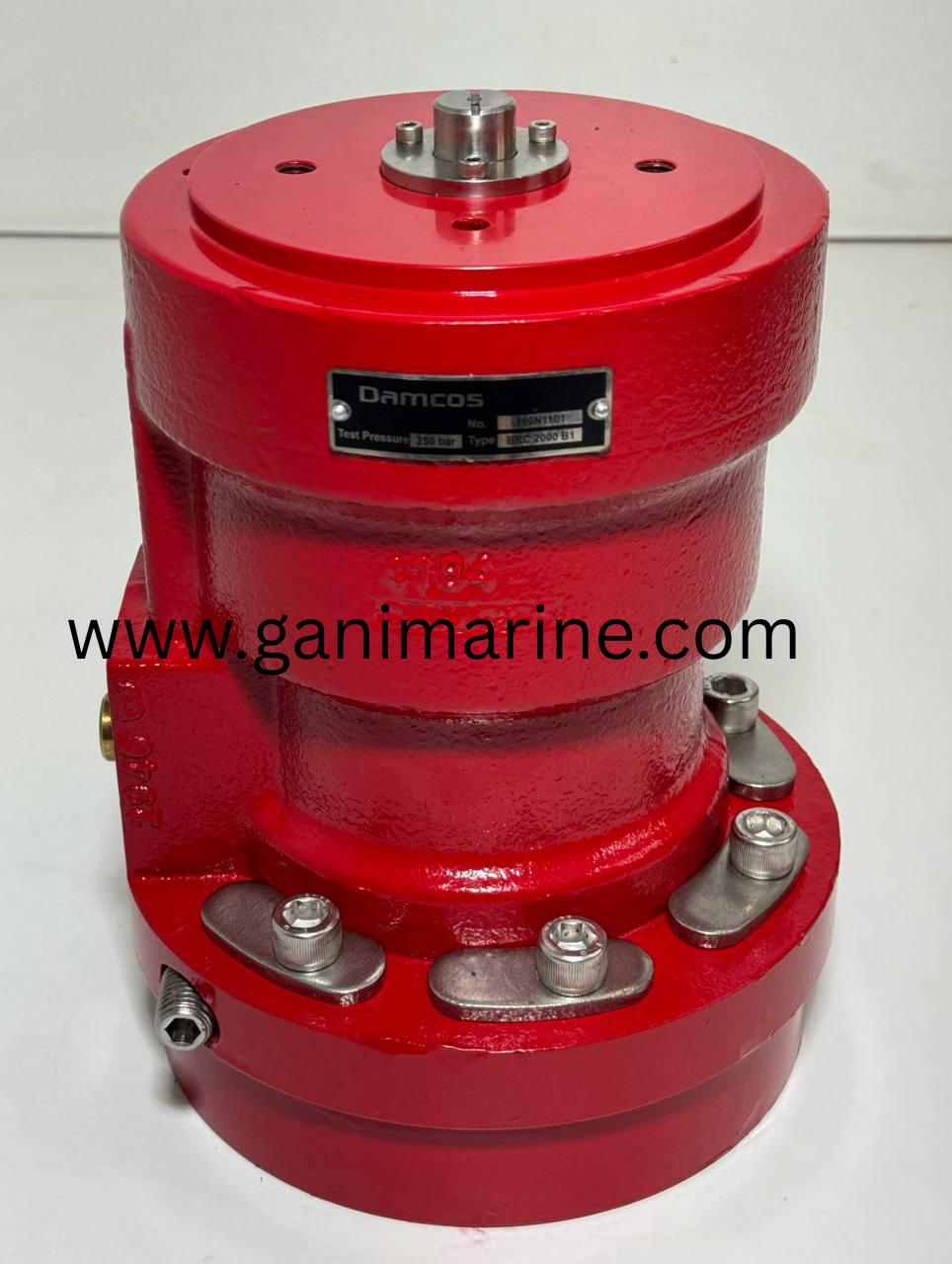

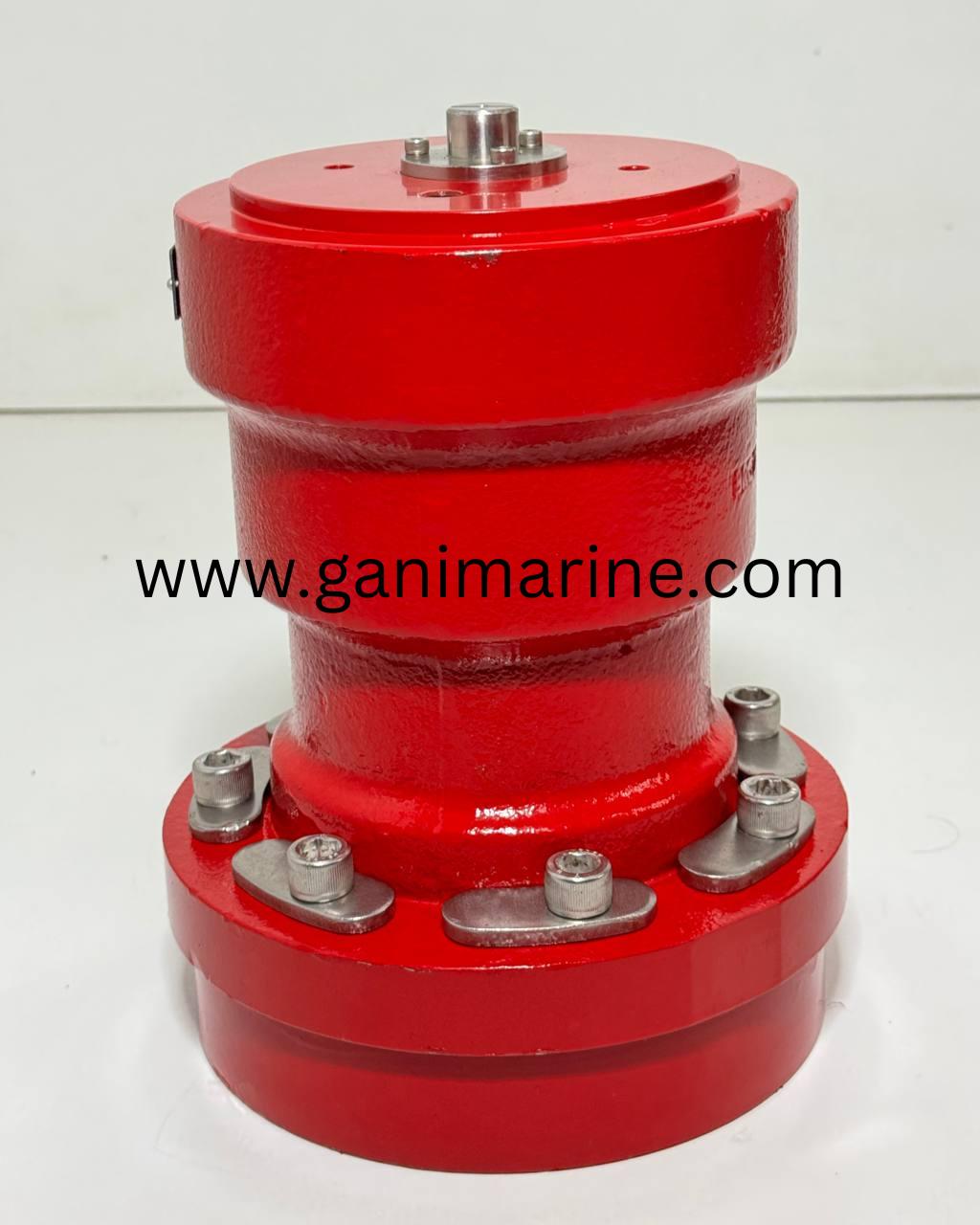

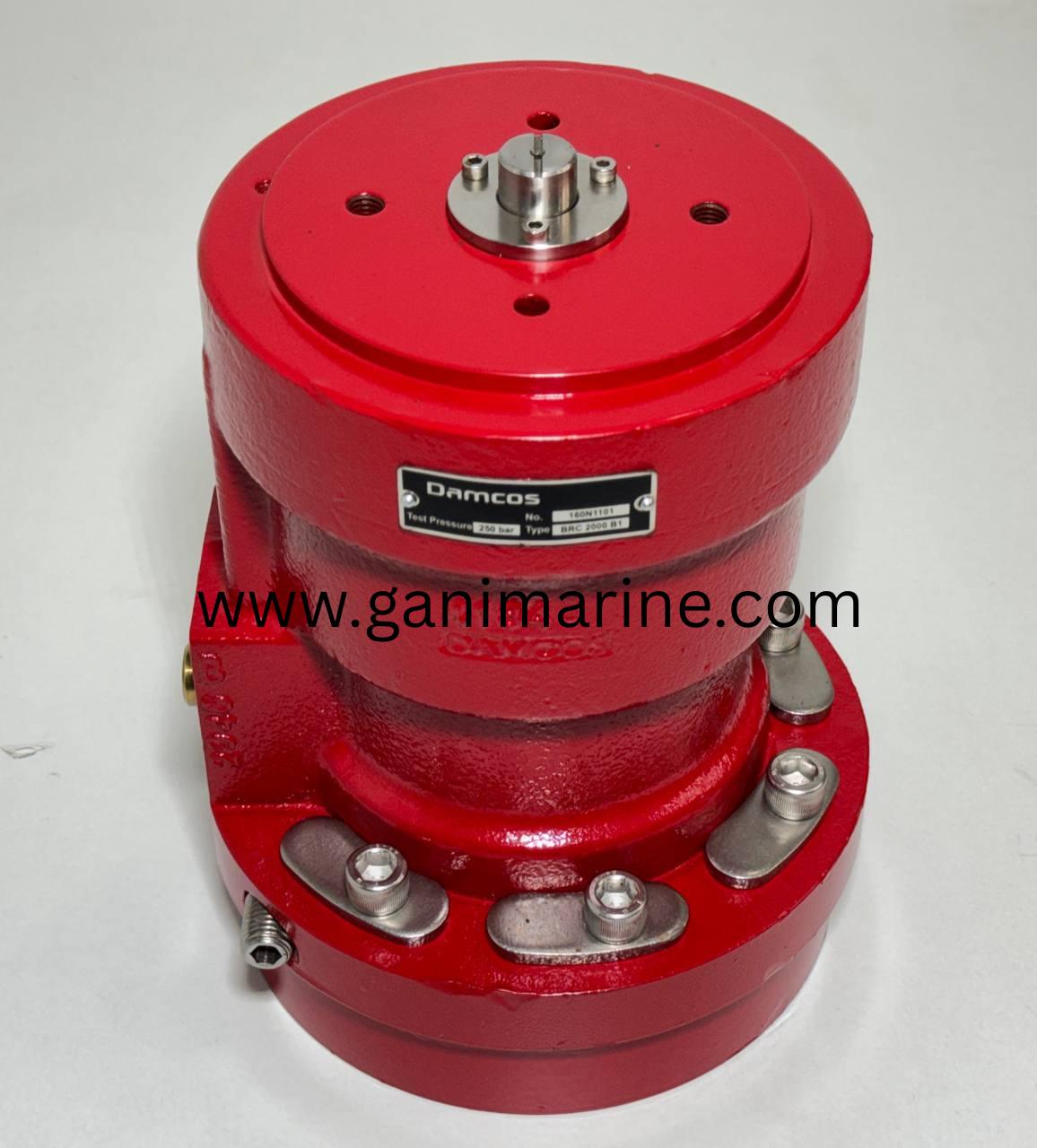

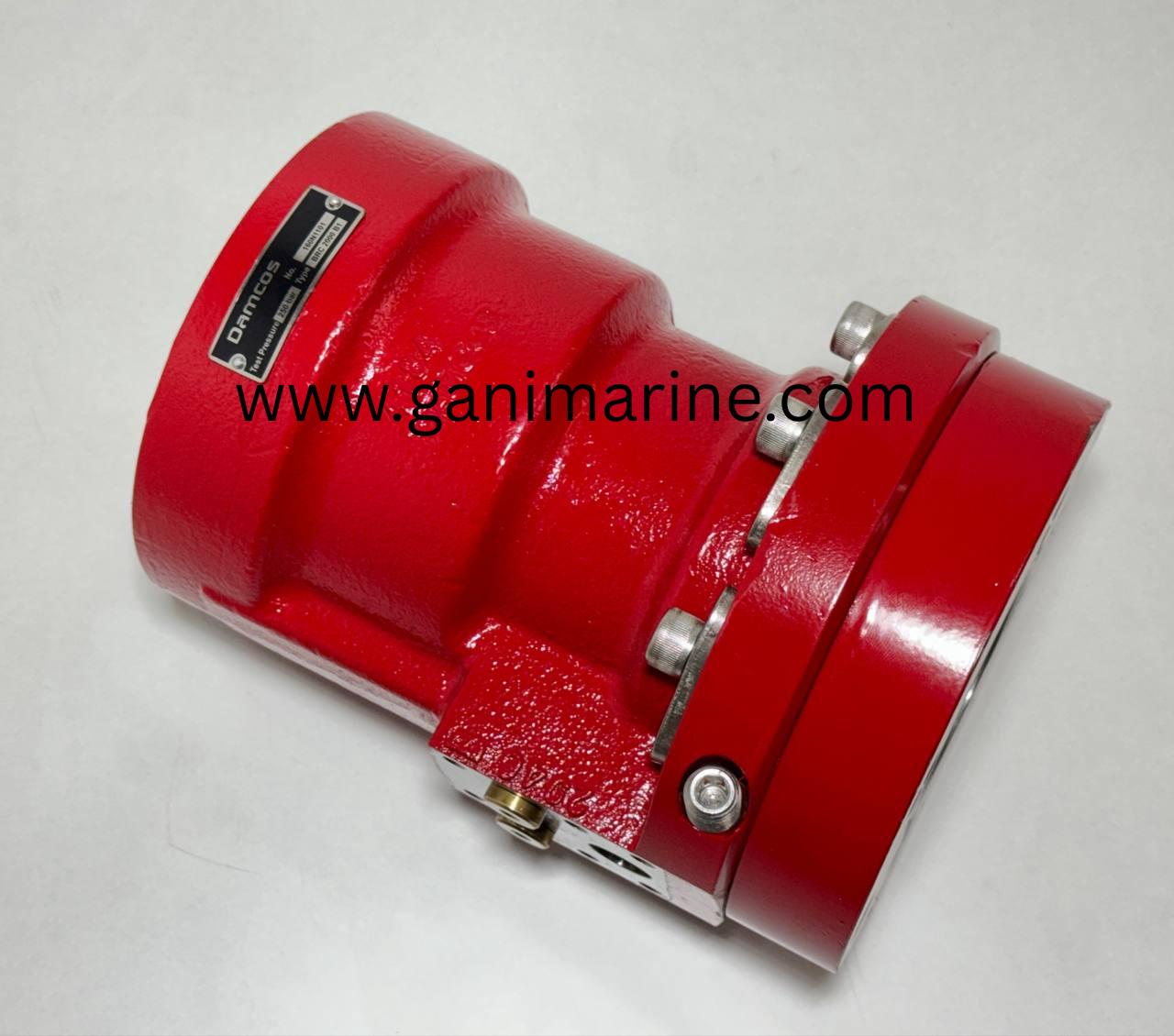

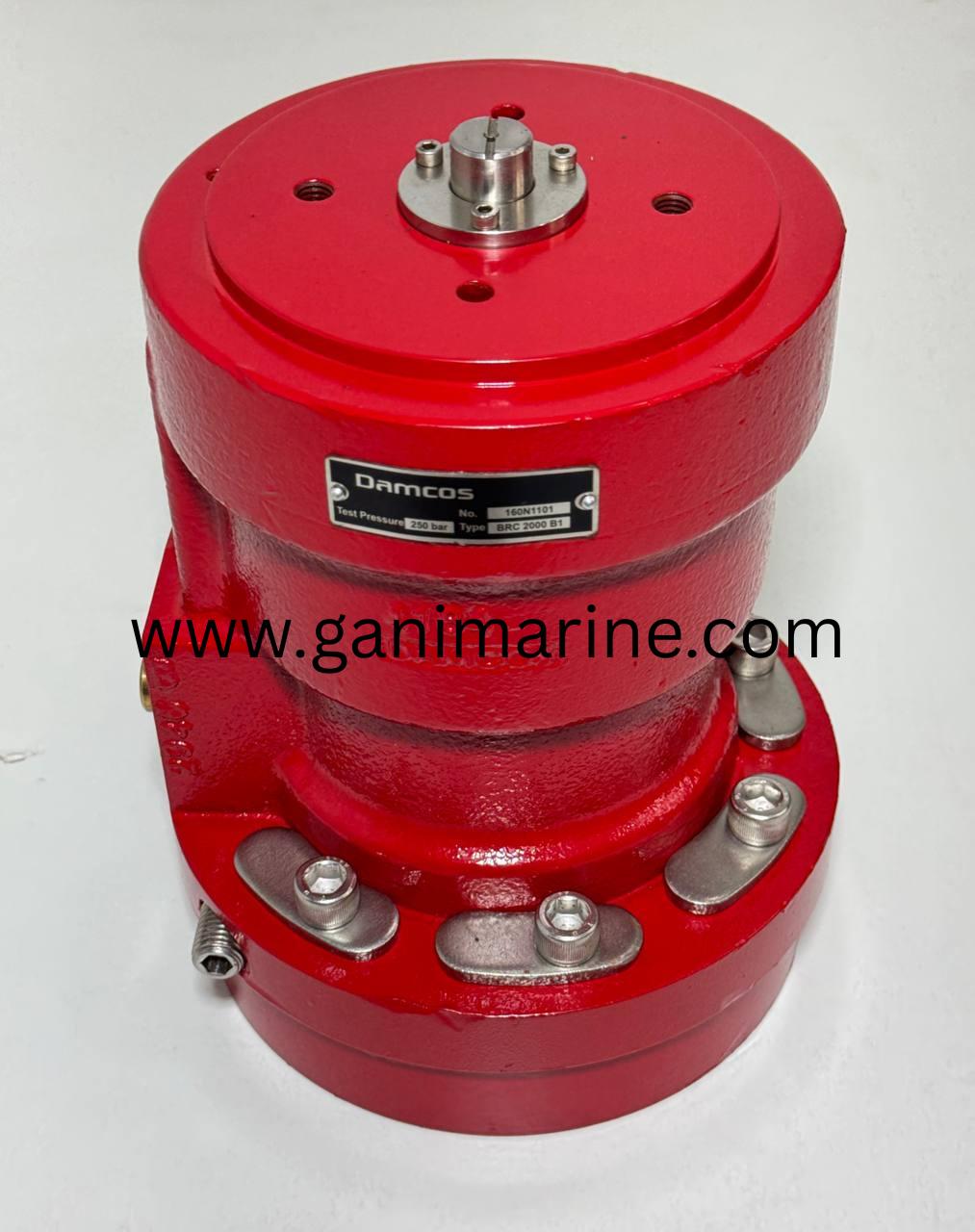

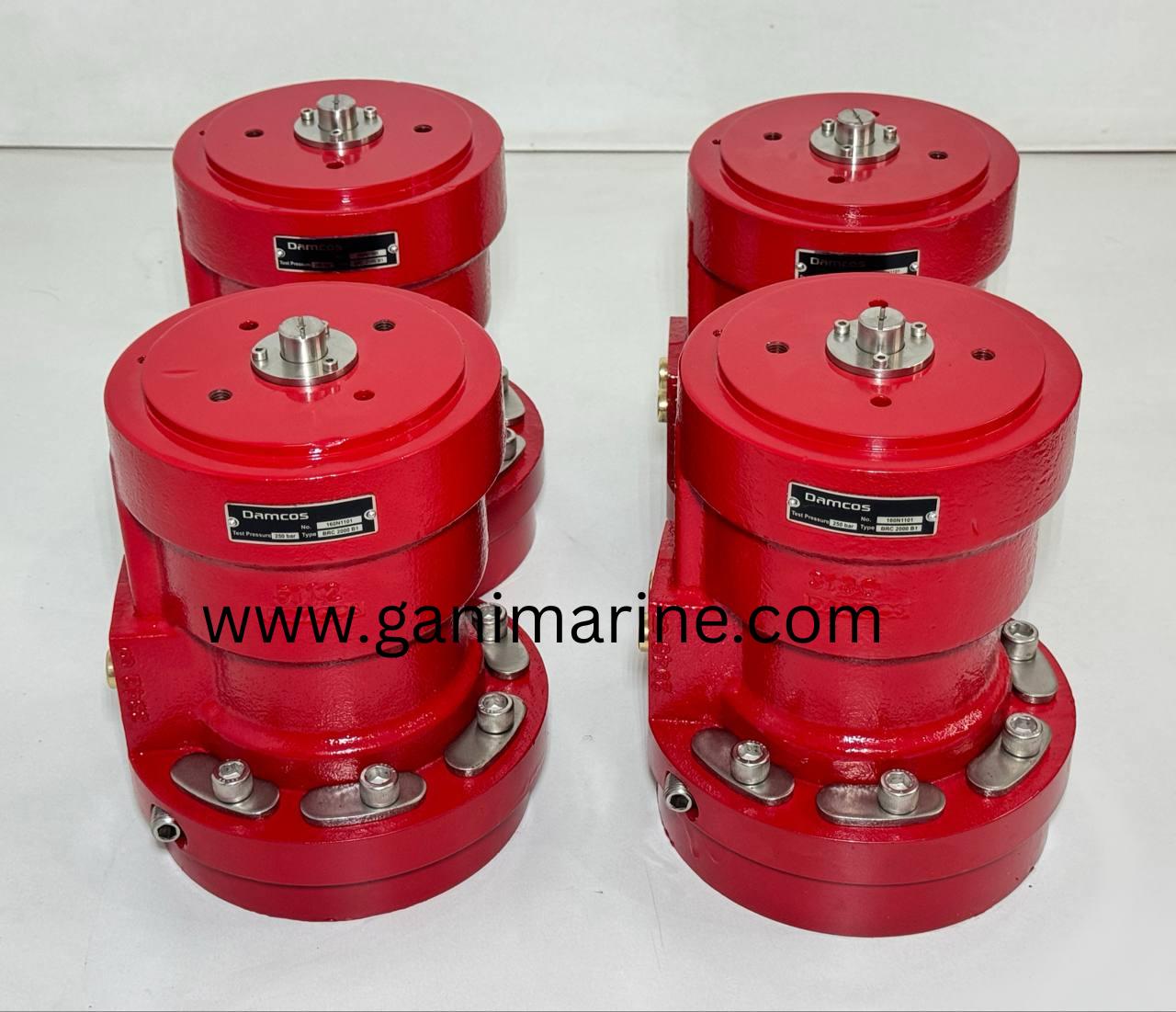

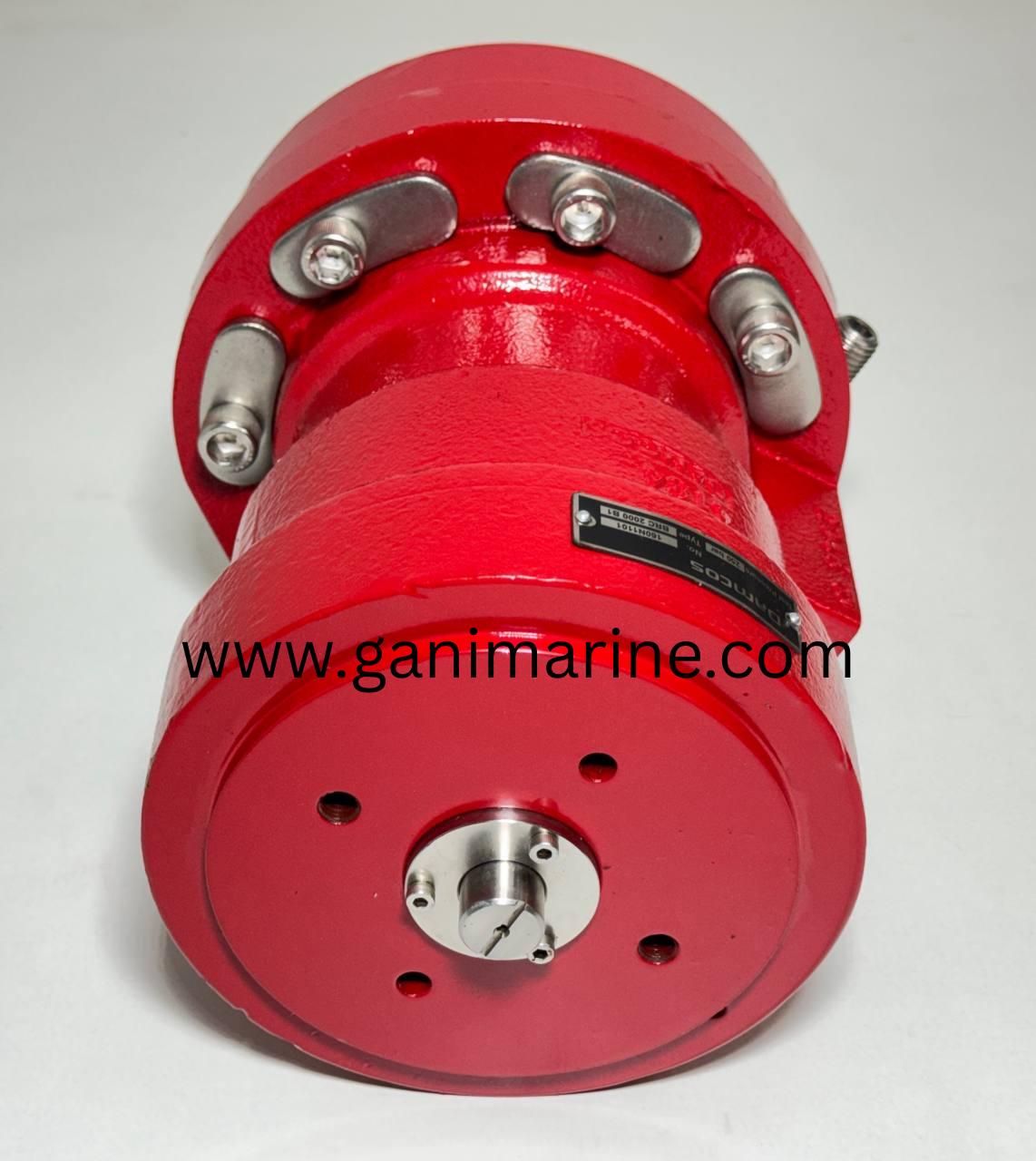

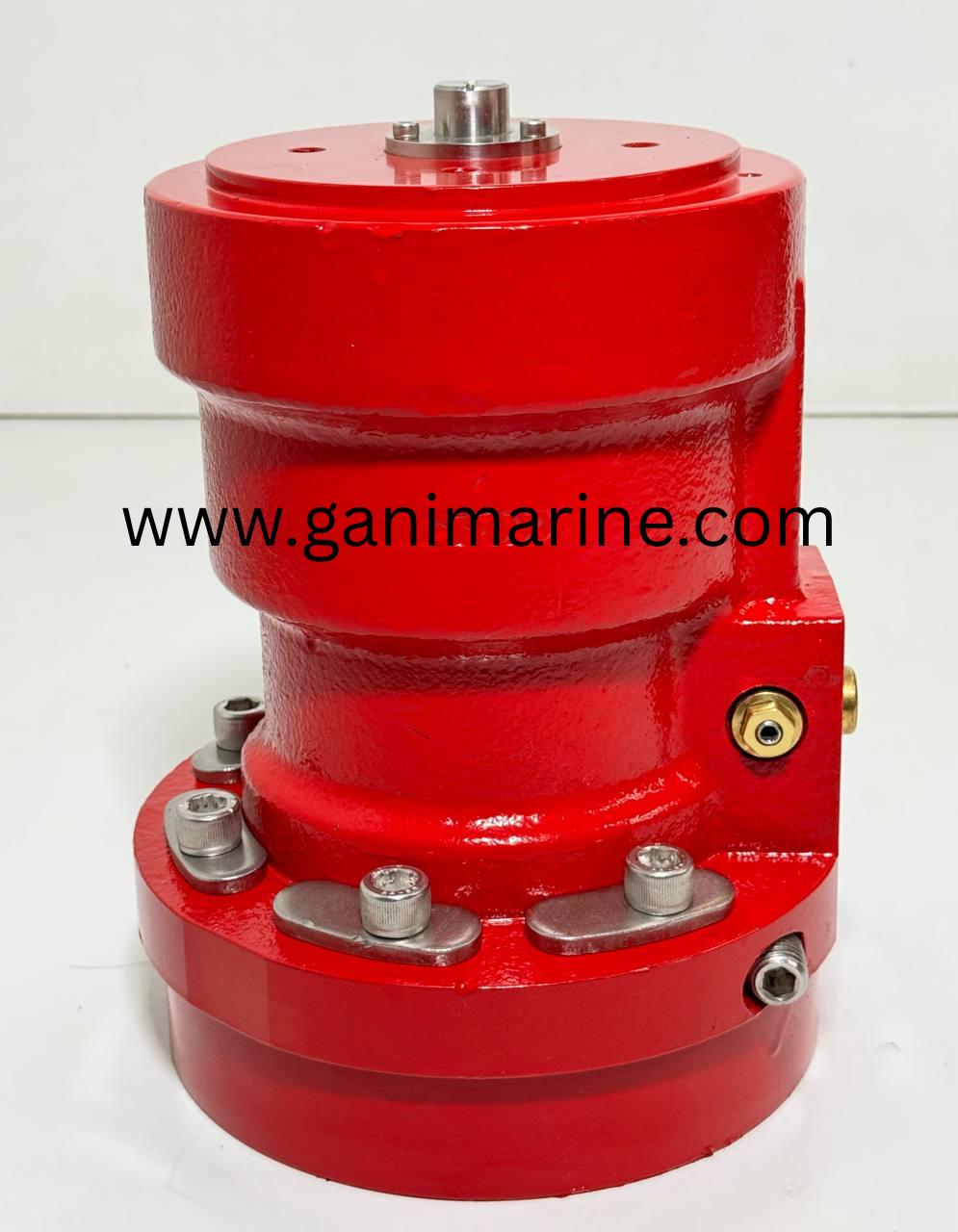

DANFOSS BRC 2000 B1 double-acting balanced rotary actuator 160N1101
DANFOSS BRC 2000 B1 double-acting balanced rotary actuator 160N1101
Danfoss BRC 2000 B1 (Code: 160N1101) is a heavy-duty hydraulic double-acting balanced rotary actuator designed for 90° quarter-turn valve operation under harsh marine, offshore, oil & gas, and industrial environments. Delivering constant torque up to 8000 Nm at 135 bar, the BRC 2000 actuator uses helical spline technology to ensure precise, smooth, and reliable performance even under high loads. Manufactured with corrosion-resistant materials, this actuator is engineered for long service life in seawater, marine deck, engine room, and oilfield applications. Suitable for butterfly valves, ball valves, plug valves, ESD systems, ship automation, FPSO, offshore rigs, refineries, and industrial plants.
We supply original Danfoss / Damcos BRC 2000 actuators with global shipping and complete support.
Specifications
• Model: DANFOSS BRC 2000 B1 / DAMCOS BRC 2000

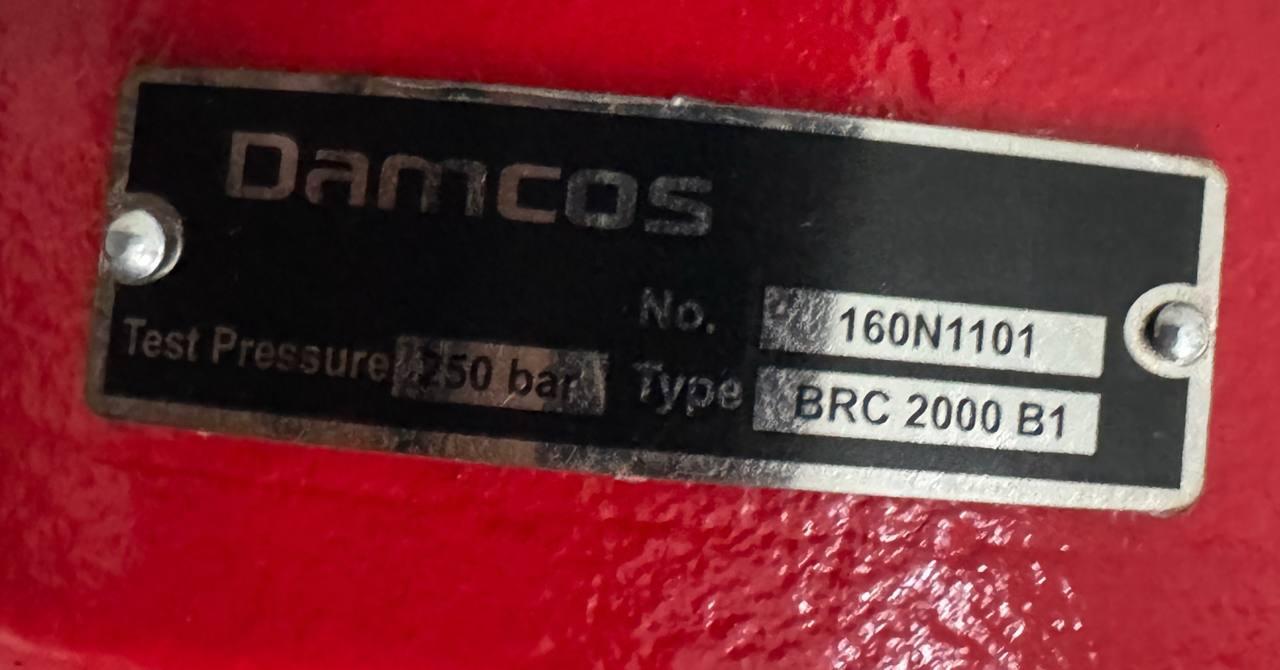

• Part Code: 160N1101
• Type: Hydraulic Double-Acting Balanced Rotary Actuator
• Rotation: 90° ±1°
• Technology: Helical Spline Constant Torque
• Working Pressure: 30 – 135 bar
• Max Operating Pressure: 135 bar
• Limit Pressure: 210 bar
• Burst Test Pressure: 675 bar
• Factory Test Pressure: 250 bar
• Oil Displacement: 0.400 Liters / 90° stroke
• Temperature Range: –20°C to +80°C (NBR)
• Media: Acid-free hydraulic oil

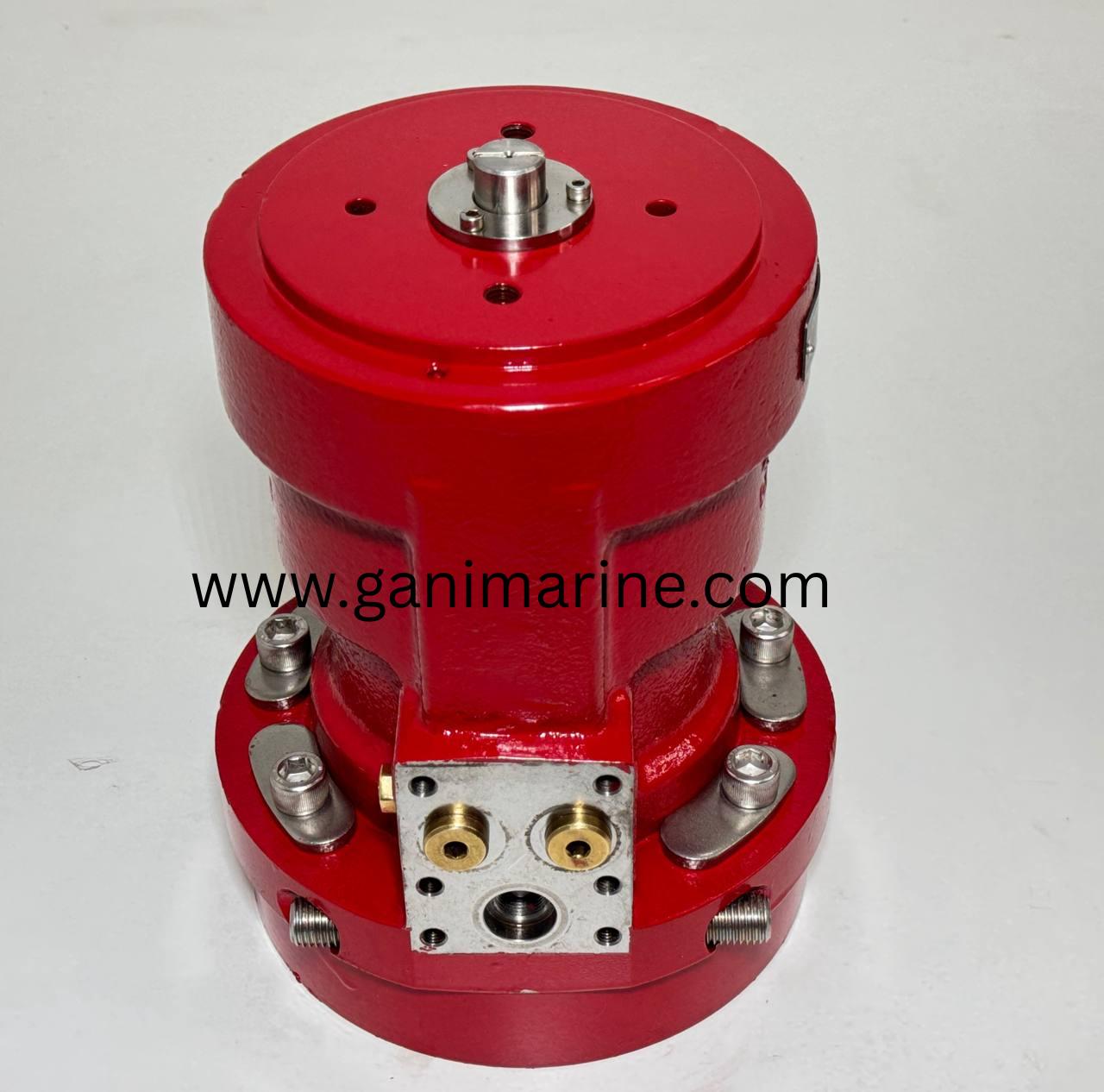

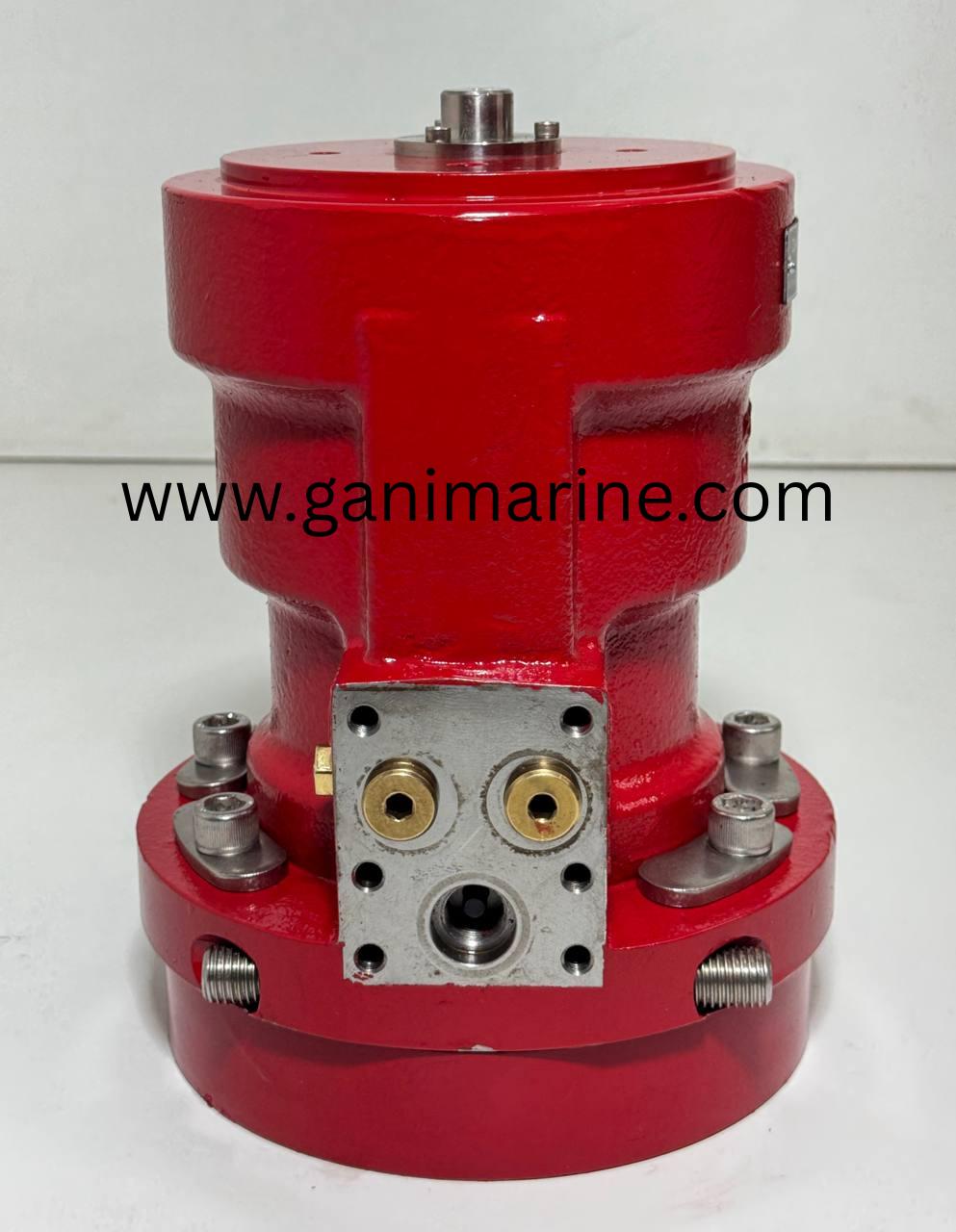

• Ports: G 1/4”, M8 bolts
• Shaft Adaptation: DIN 6885 / 79 Keyway
• Max Shaft Diameter: Ø58 mm (DIN 6885) / Ø66 mm (DIN 79)
• Shaft Intrusion: 50 mm
• Weight: 33.1 kg (Mounting set 10.1 kg)
• Body: GGG40 Cast Iron
• Shaft / piston: Stainless Steel SS2142
• Coating: Red Primer + Alkyd Topcoat
• Mounting: Any Position
• End Stop Adjustment: Approx. 5°
Torque Performance
• 30 bar ? 2000 Nm
• 135 bar ? 8000 Nm
• 210 bar ? 10,000 Nm
• Constant torque across full rotation
Applications
Suitable for:
• Marine Hydraulic Systems
• Ship Engine Room Systems
• Ball Valve Automation
• Butterfly Valve Operation
• Quarter Turn Valve Control
• Offshore Platform Actuators
• FPSO & Oil Tankers
• Oil & Gas Refinery Plants
• Industrial Hydraulic Systems
• Power Plant Valve Control
• Petrochemical Plants
• Water Treatment Plants
• Desalination Plants
• LNG Terminals
• Steel Plants
Product Features
• Double-acting balanced rotary design
• 90° controlled rotation
• Constant torque delivery
• Helical spline mechanism
• Heavy-duty marine grade construction
• Built-in crossover valve
• Seawater & salt-atmosphere resistant
• Maintenance friendly design
• Adjustable mechanical end stops
• Long service life
• Proven Danfoss / Damcos reliability
