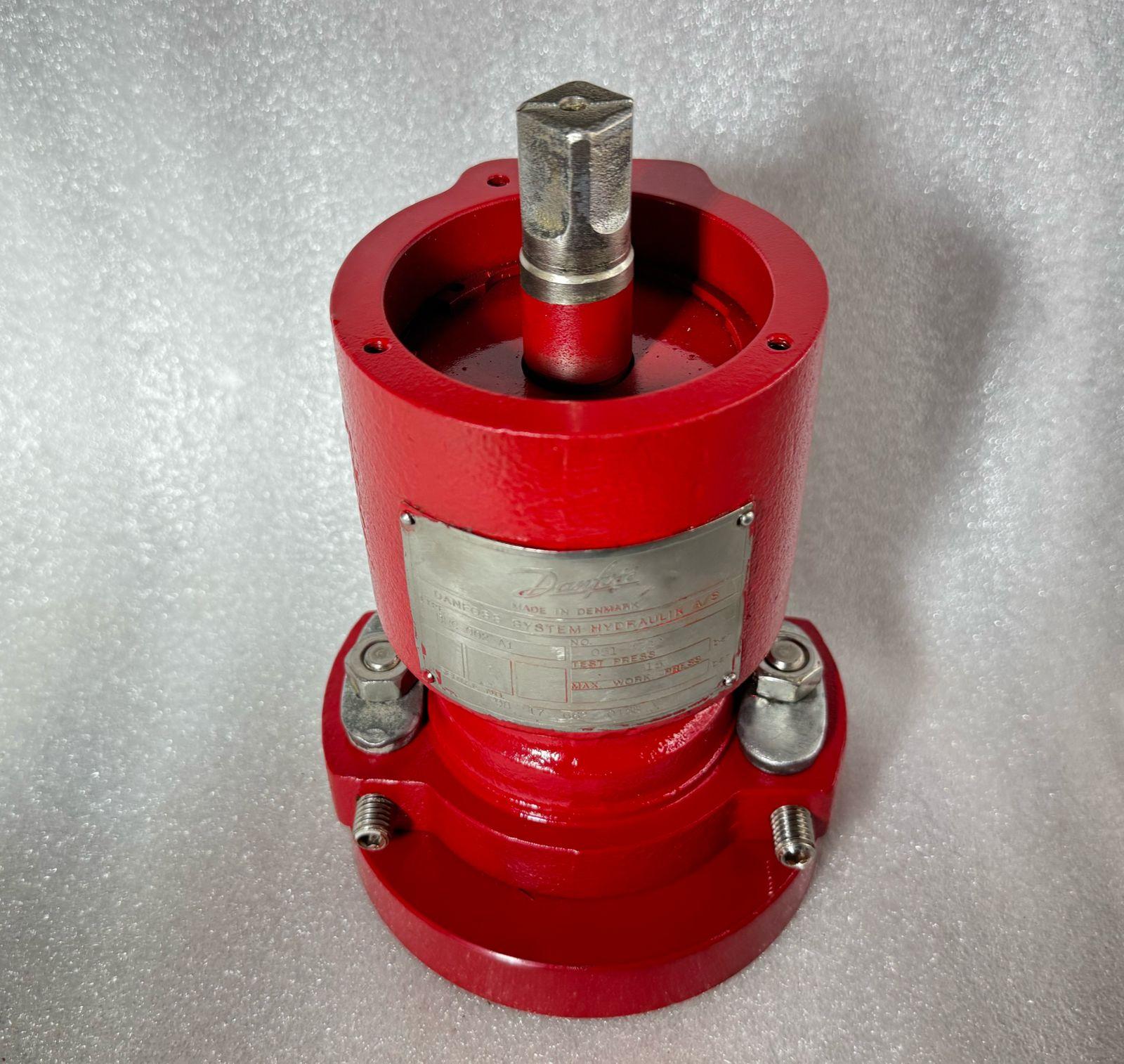

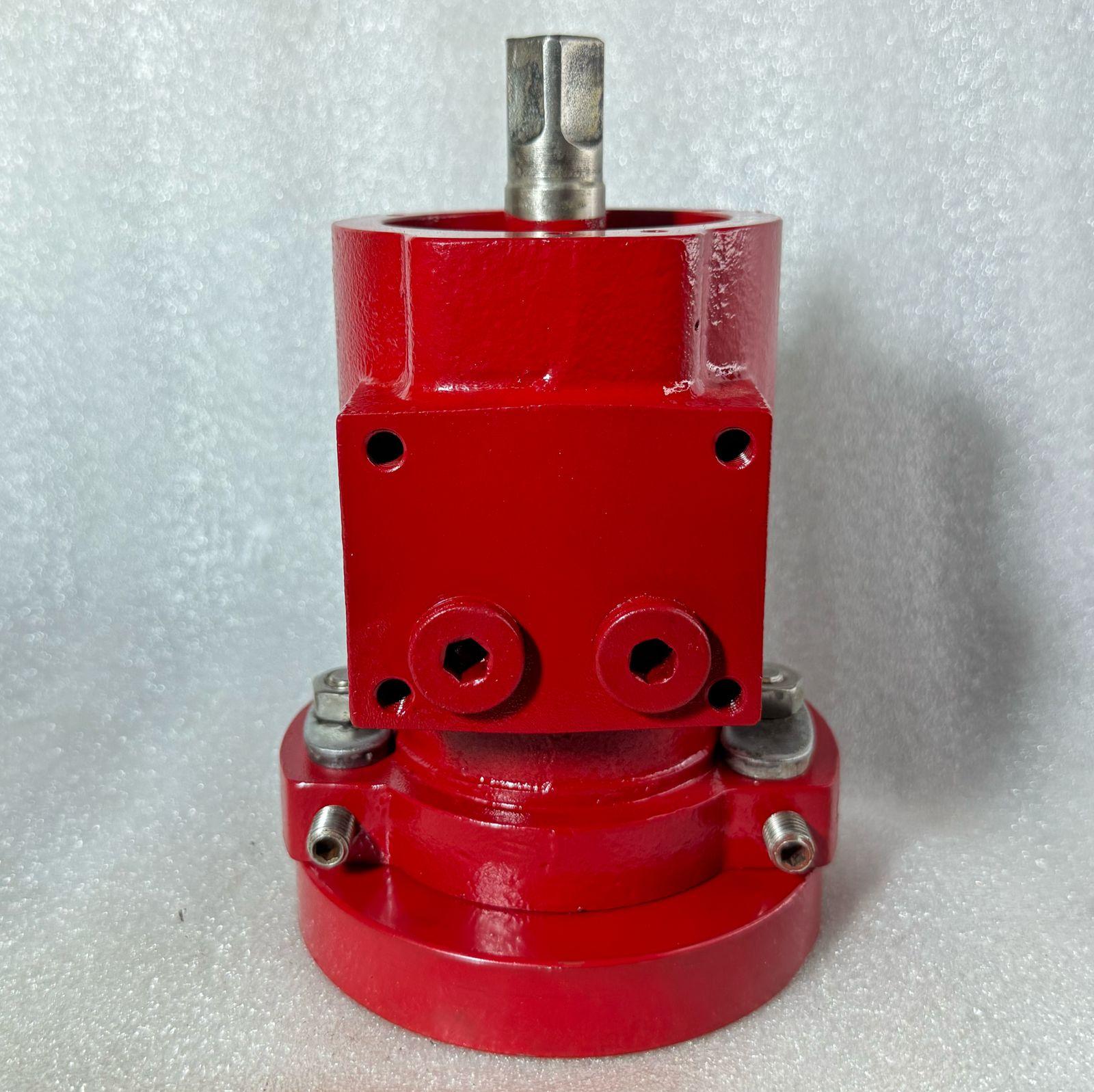

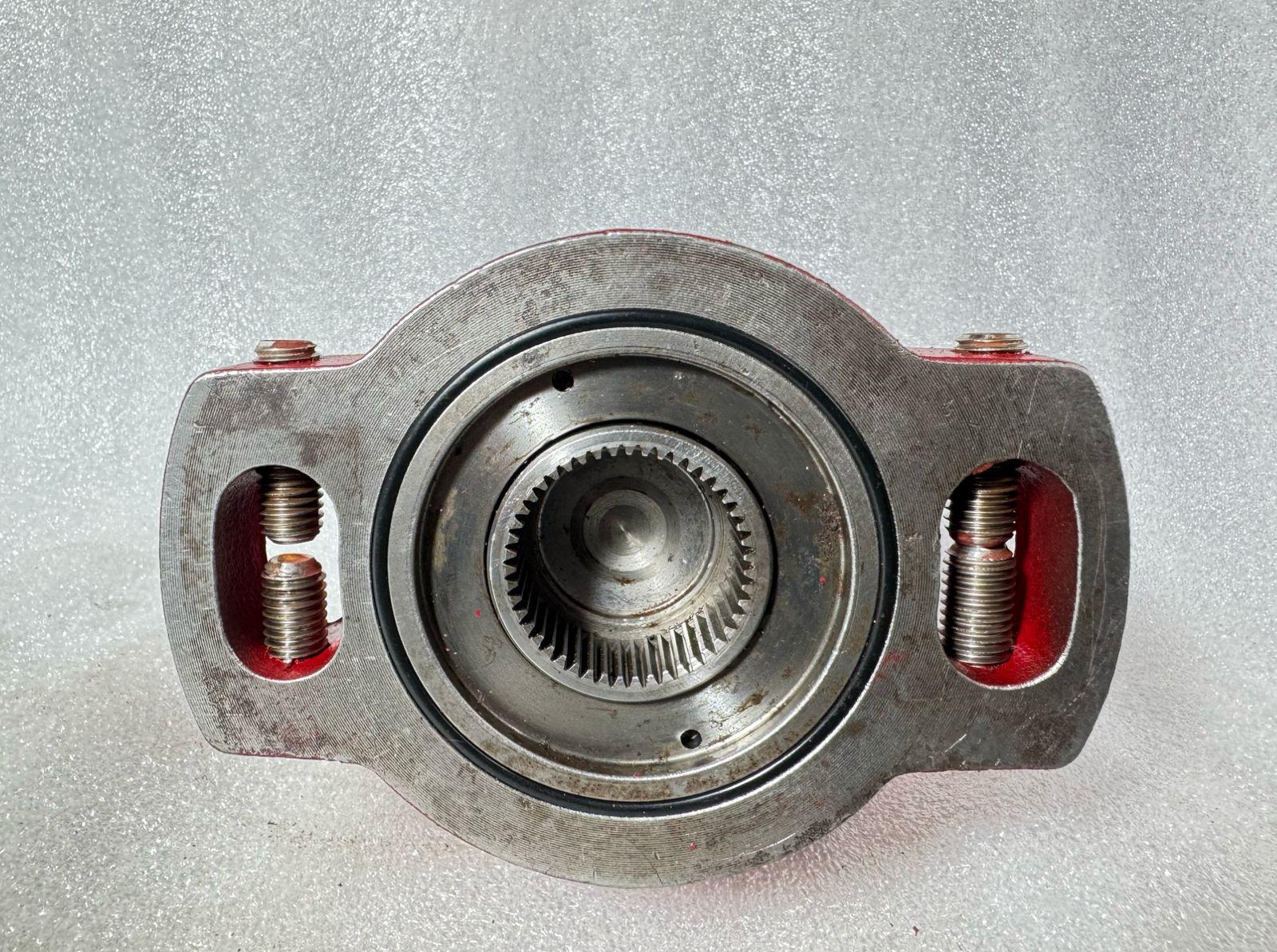

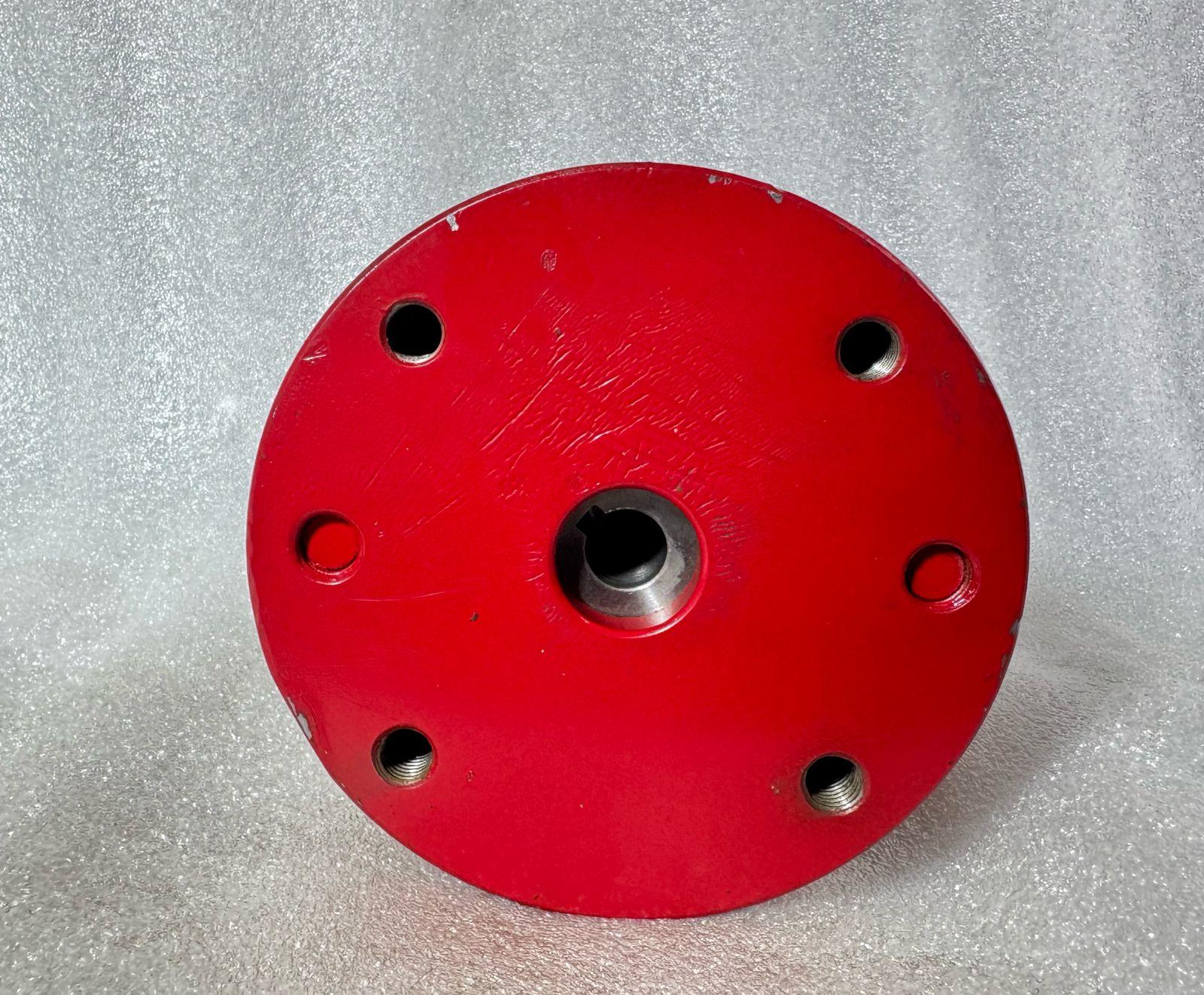

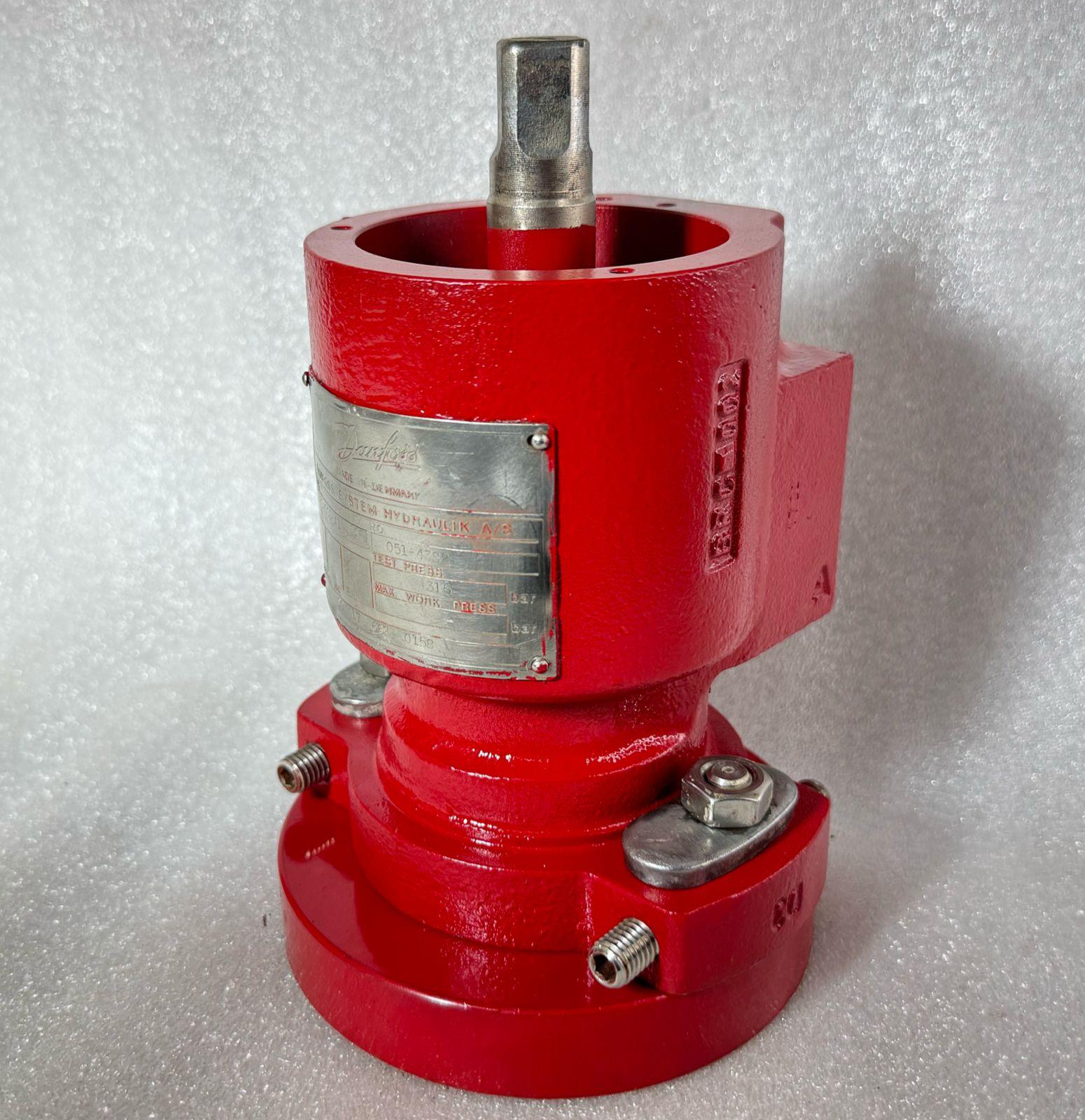

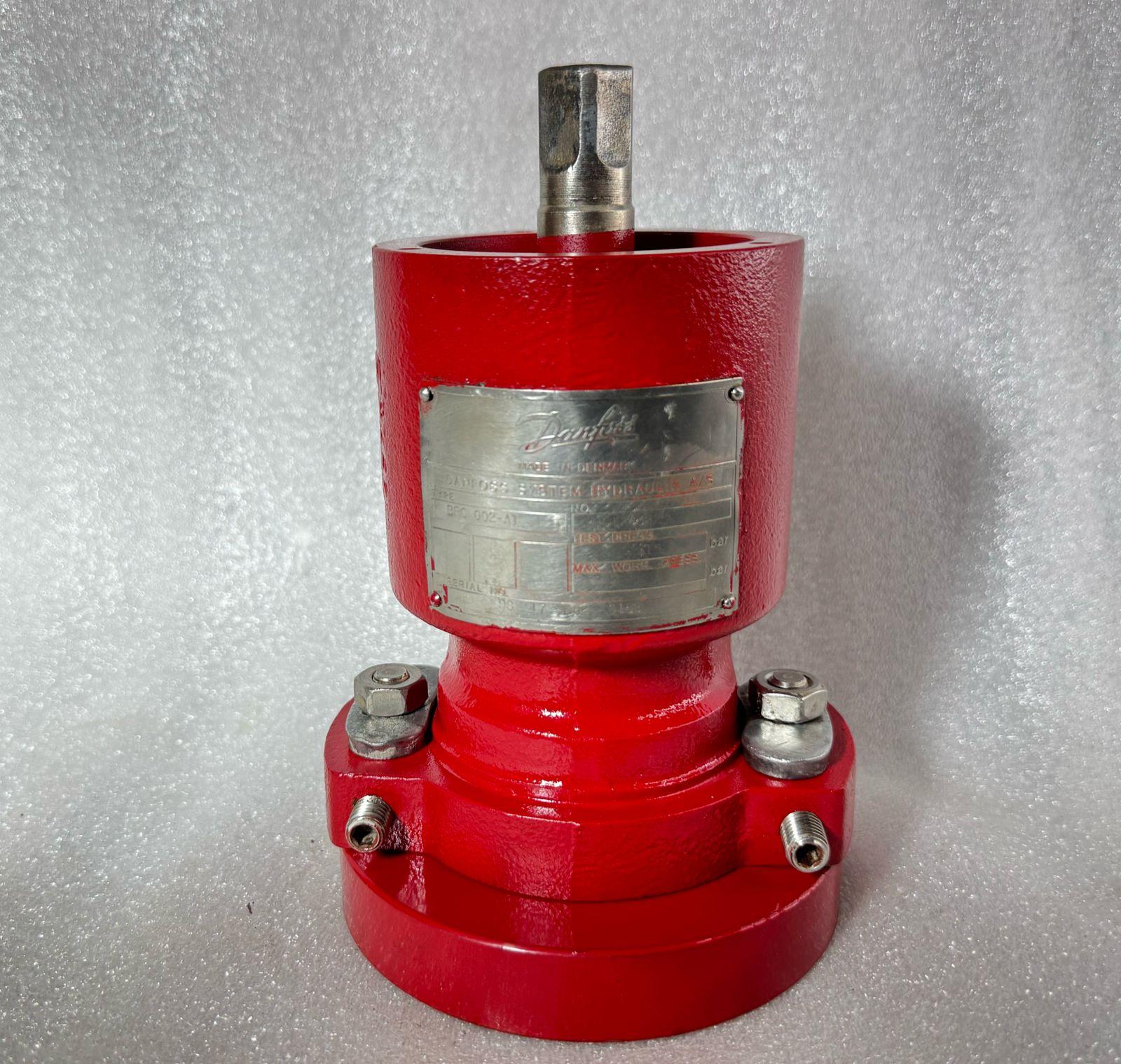

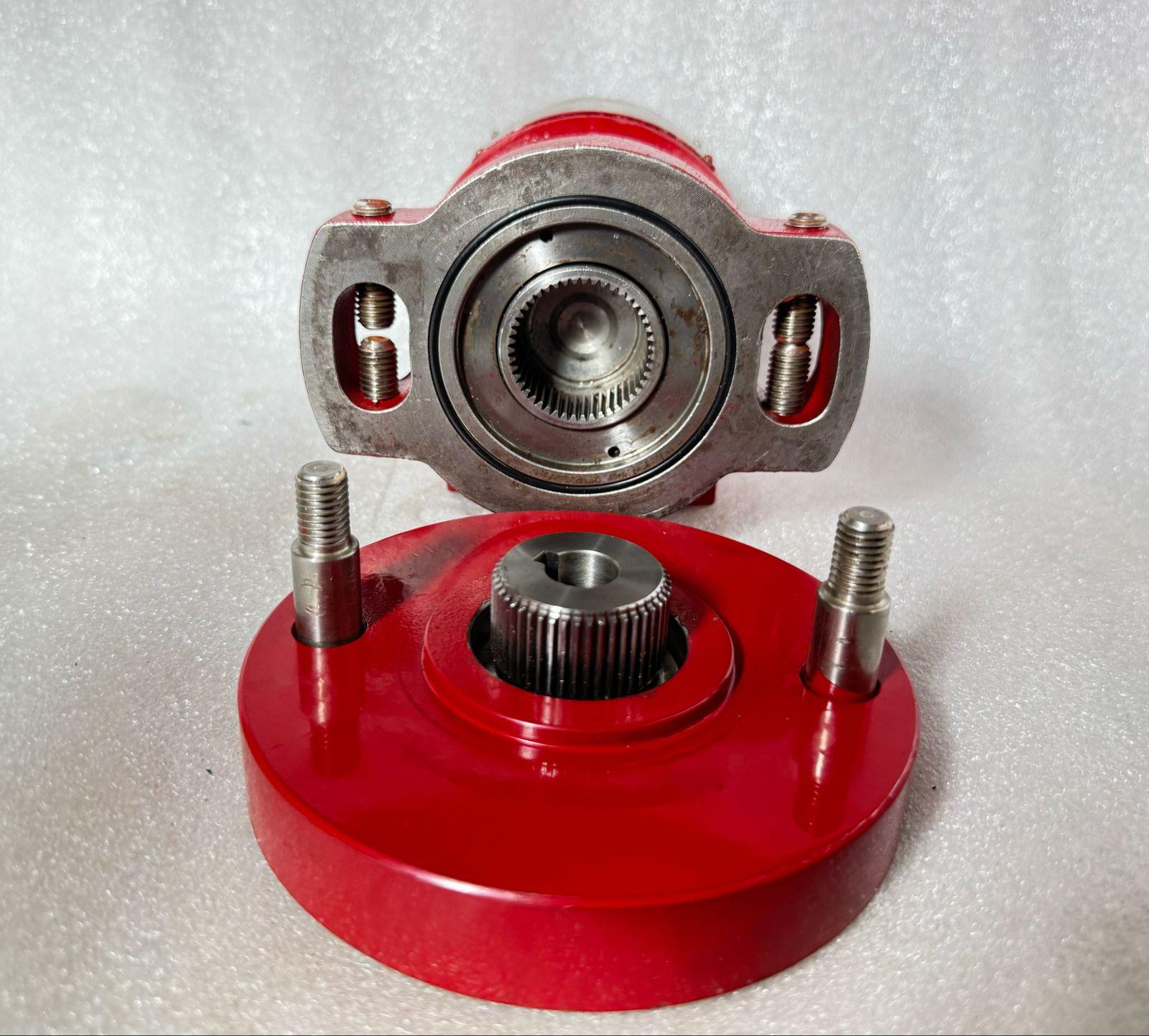

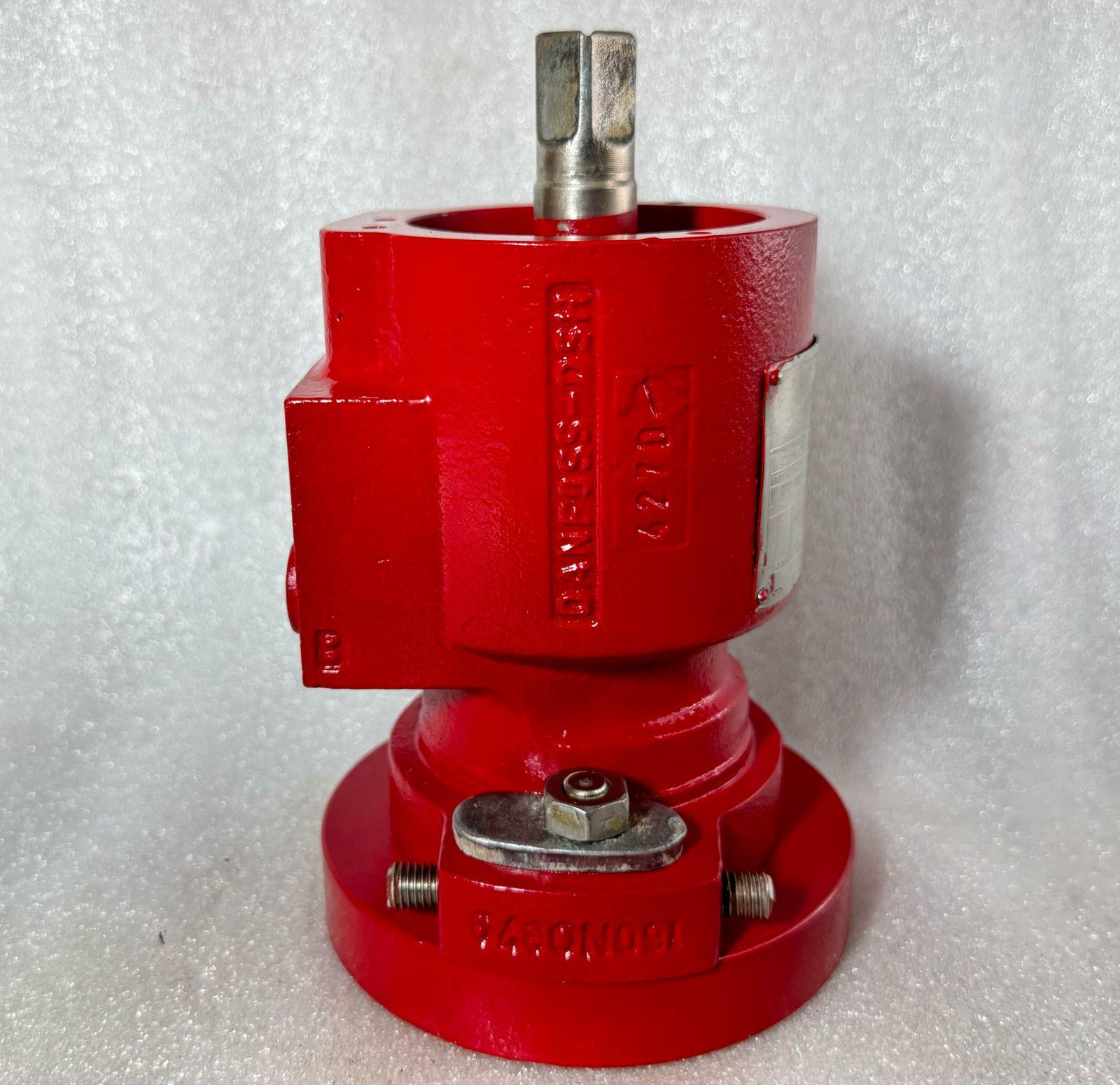

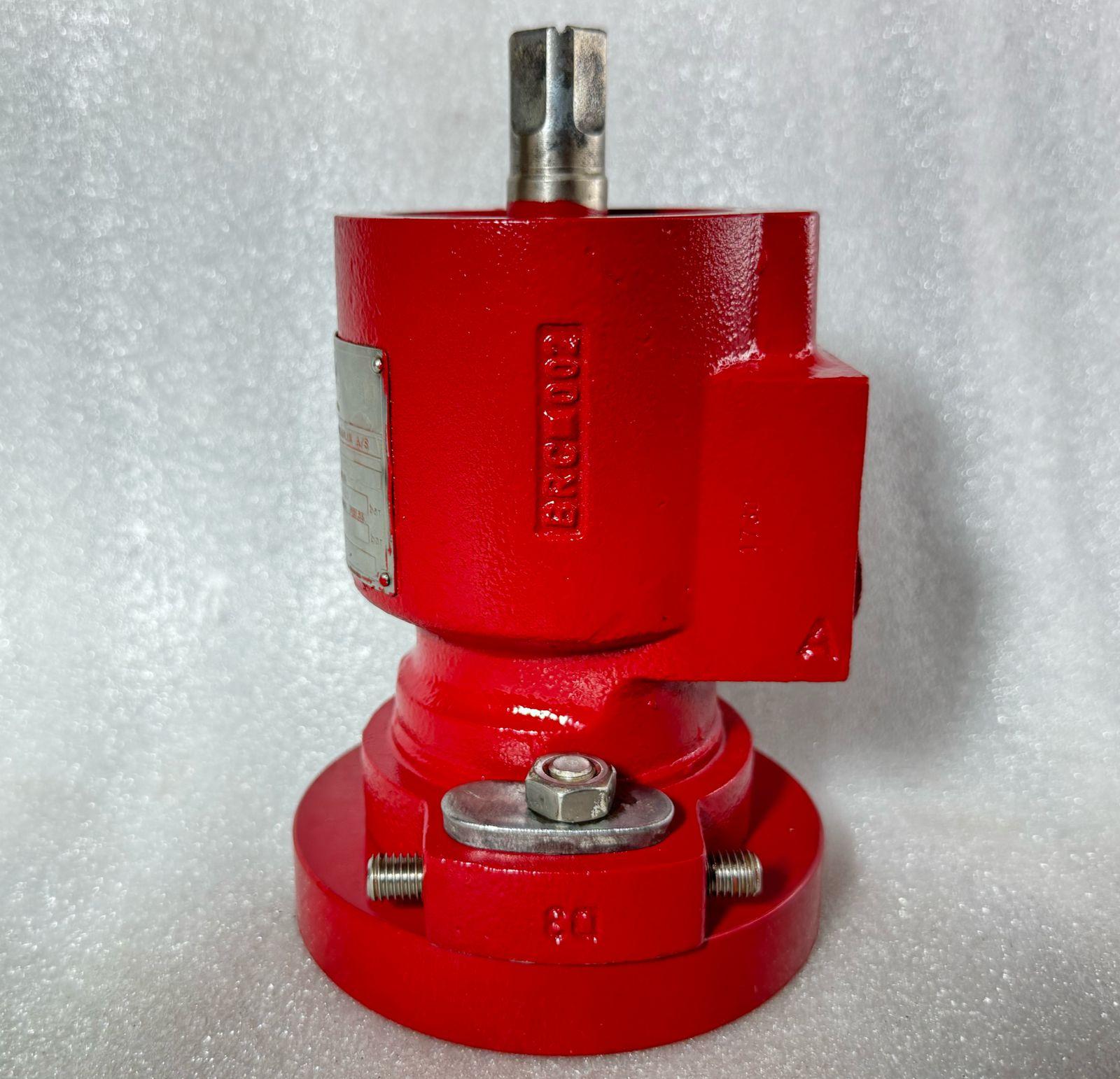

Danfoss BRC 002 Hydraulic Double-Acting Balanced Rotary Actuator

The Danfoss BRC 002 is a compact, high-torque double-acting balanced rotary actuator designed for 1/4-turn (90°) valve operations in marine, offshore, and industrial hydraulic systems. Engineered for precise rotary motion, this robust actuator ensures reliable actuation of butterfly, ball, and plug valves under high-pressure conditions up to 315 BAR.

Manufactured for demanding environments, the BRC 002 is widely used in ship engine rooms, offshore drilling platforms, and industrial valve automation, offering long operational life and resistance to corrosion. Supplied globally by Gani Marine, your trusted hydraulic partner for worldwide exports.

---

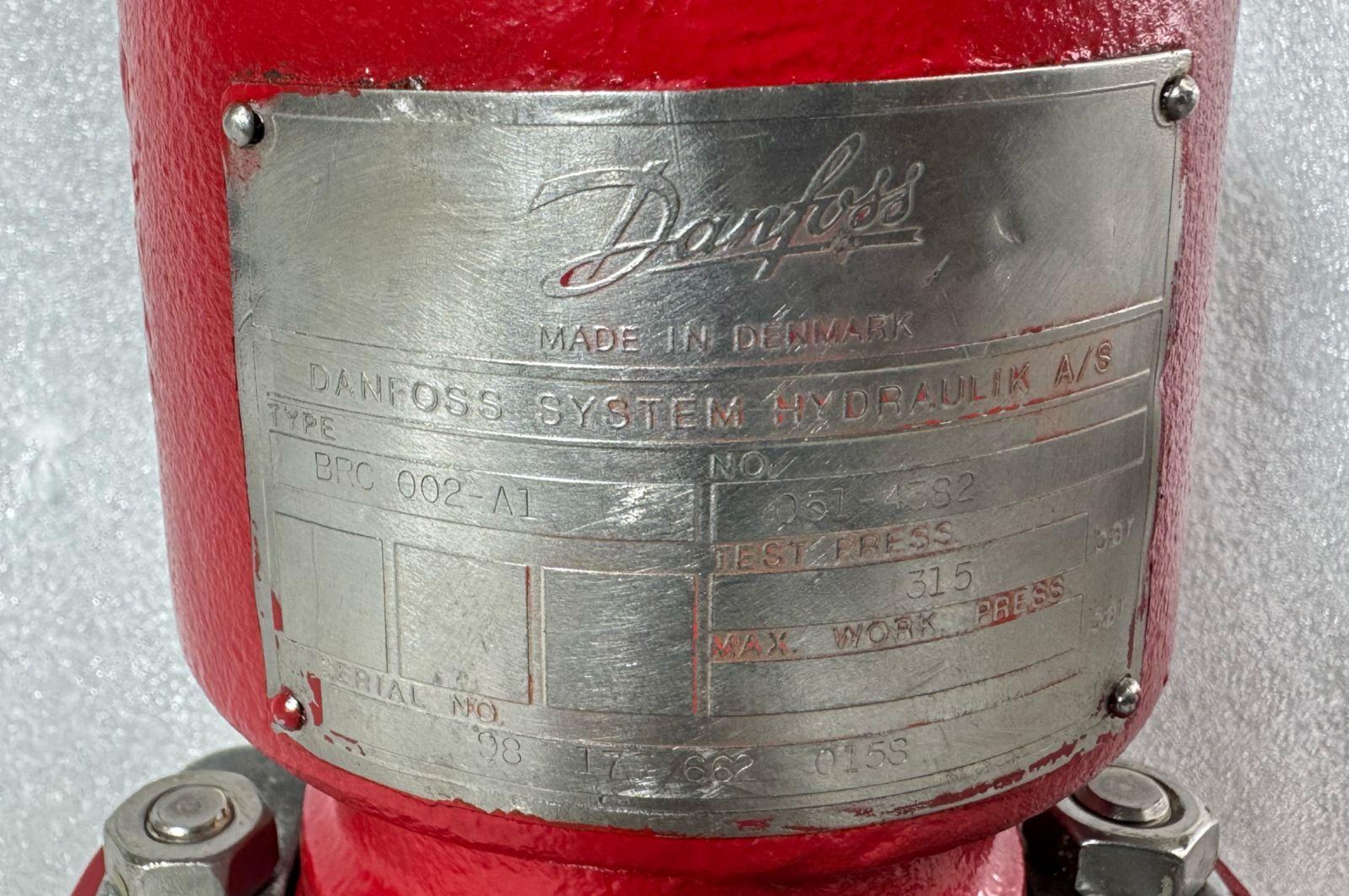

 Technical Specifications

Manufacturer: Danfoss

Model: BRC 002

Part No.: 051-4382

Serial No.: 93 08 322 0130

Type: Double-Acting Balanced Rotary Actuator

Function: 1/4-turn (90°) rotation

Test Pressure: 315 BAR

Mounting: ISO-compatible valve interface

Material: Heavy-duty cast housing with corrosion protection

Fluid Compatibility: Mineral hydraulic oil, synthetic options

Actuation Type: Hydraulic-driven quarter-turn for valves

Application: Valve control in high-pressure hydraulic systems

---

 Applications

Marine engine room valve actuation

Offshore platform valve automation

Hydraulic control of butterfly and ball valves

Desalination plants and water treatment facilities

Oil & gas plant process systems

Shipboard hydraulic flow control systems

Industrial pipeline valve management

---

 Product Features

Double-acting balanced rotary output for accurate valve control

1/4-turn movement for fast and safe actuation

Rated for high-pressure systems up to 315 BAR

Built to withstand harsh marine and offshore environments

Minimal internal leakage and maintenance-friendly design

Supplied globally with full support from Gani Marine's hydraulic network
