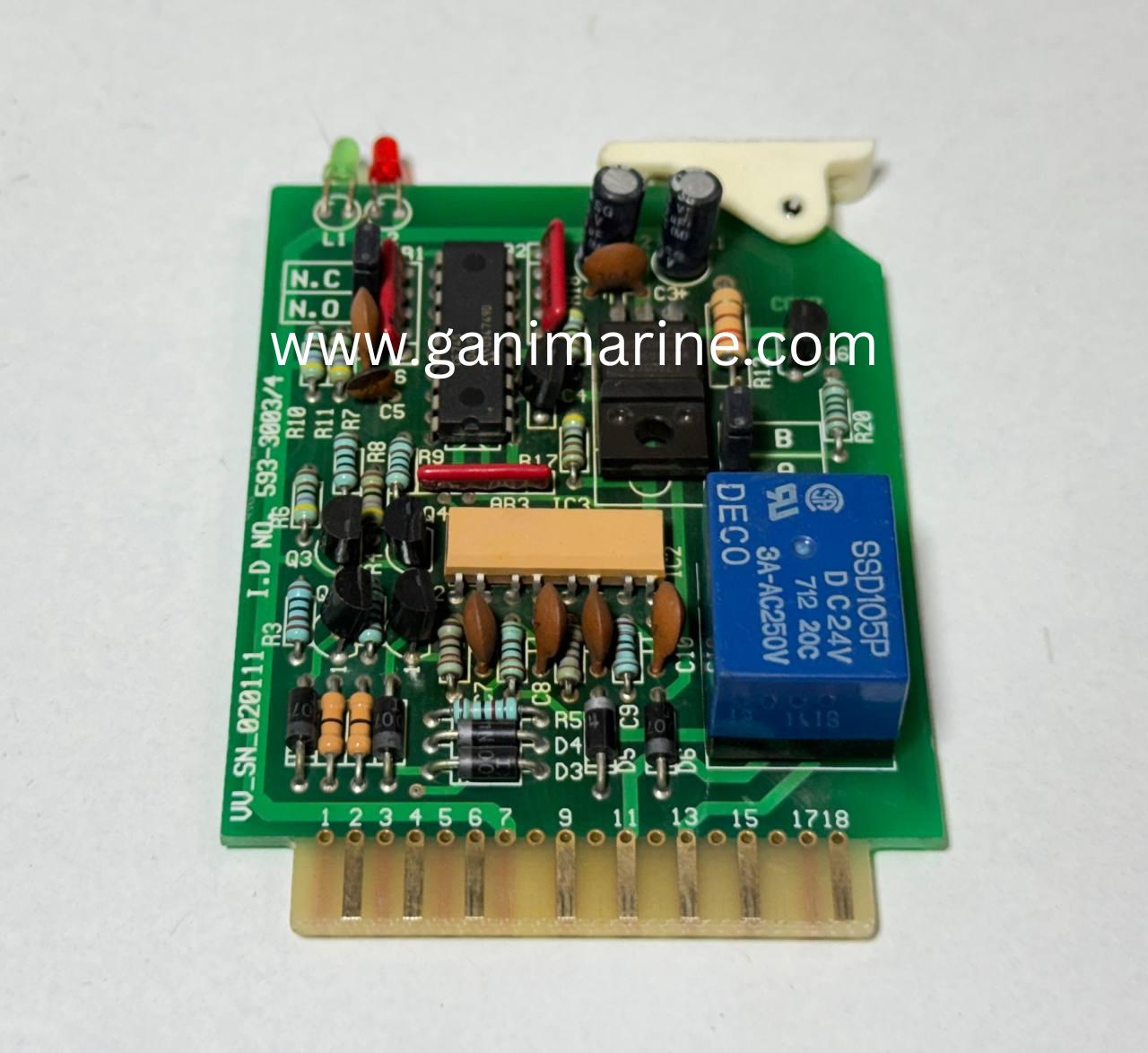

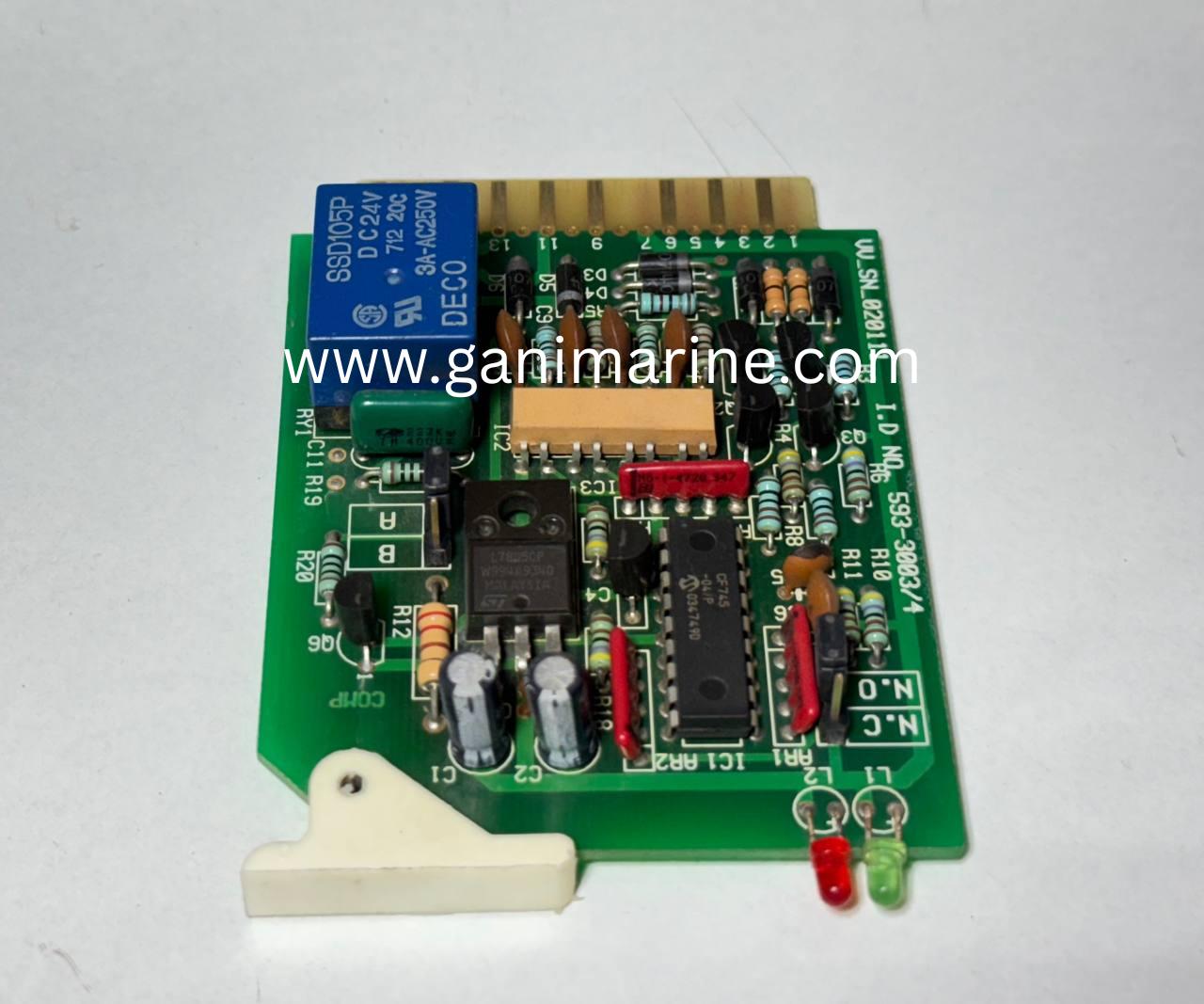

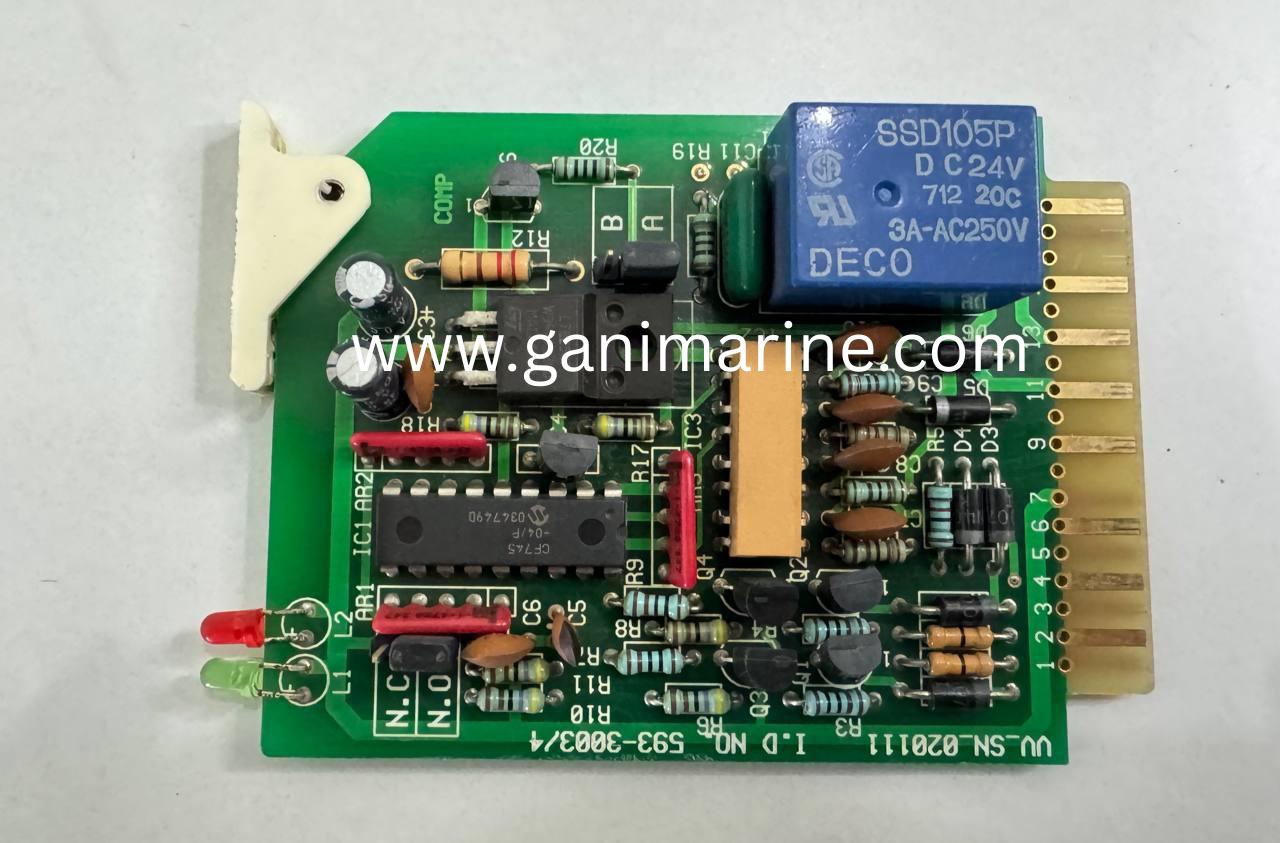

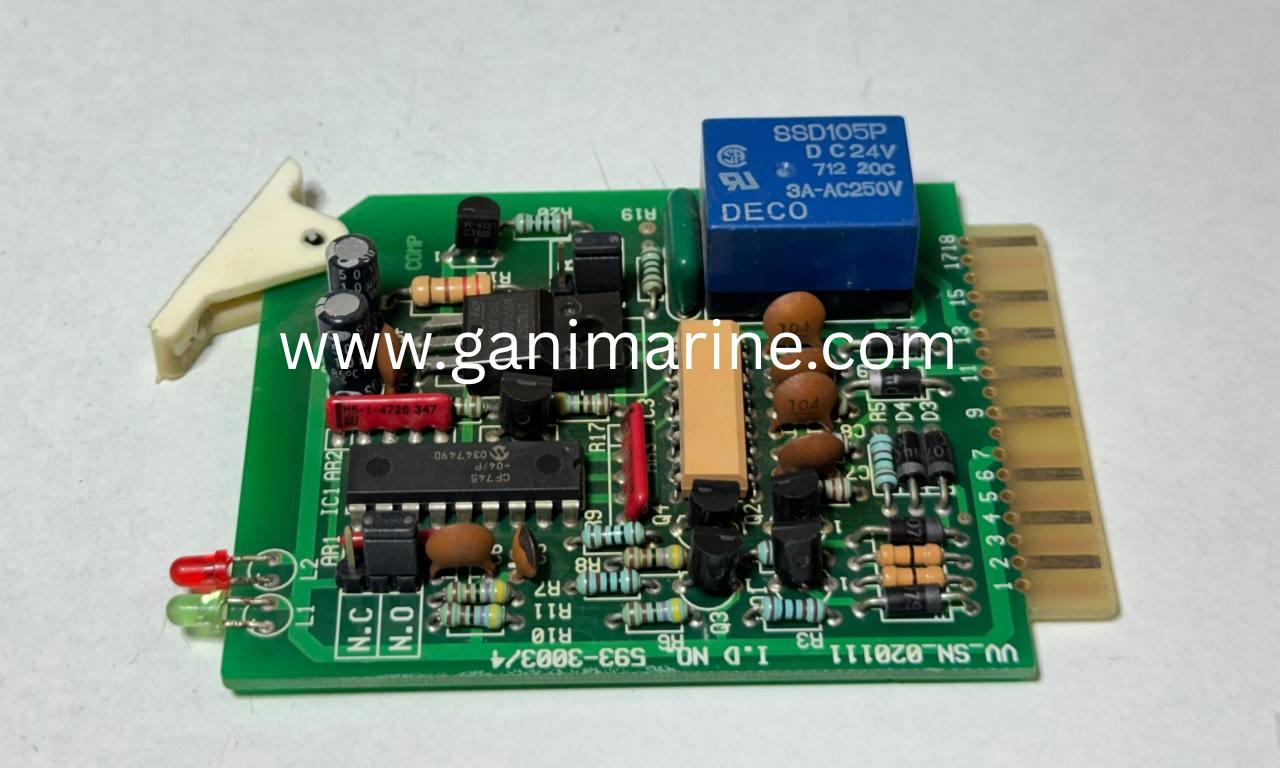

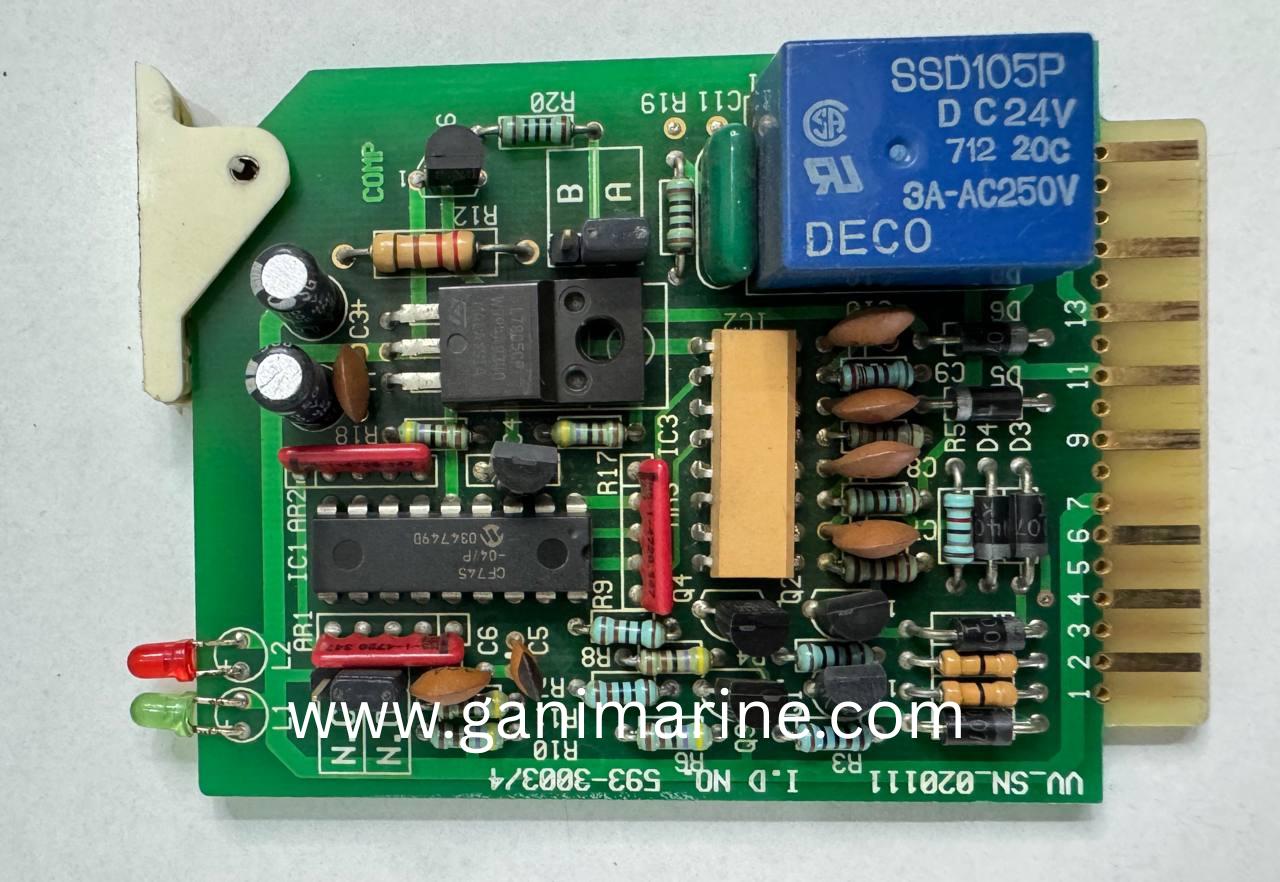

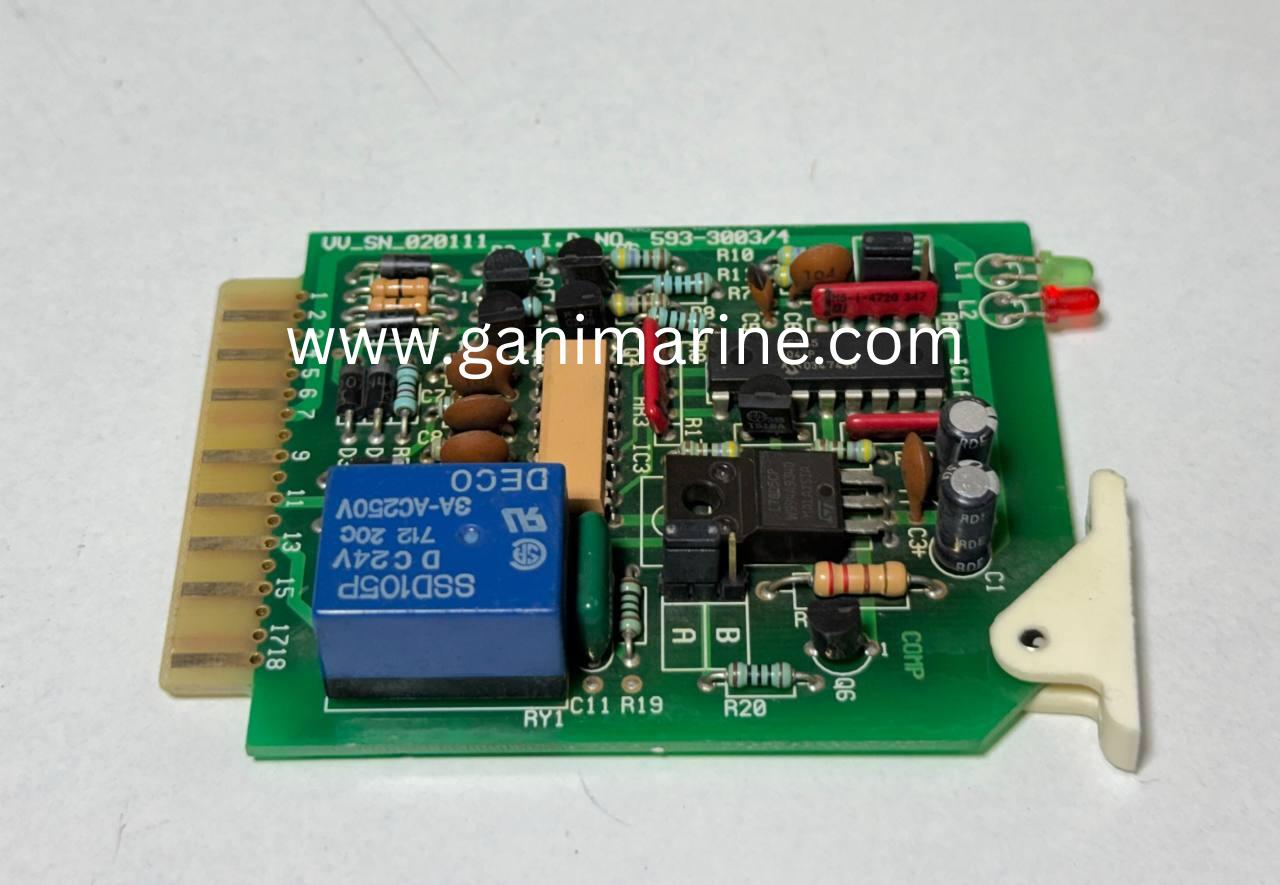

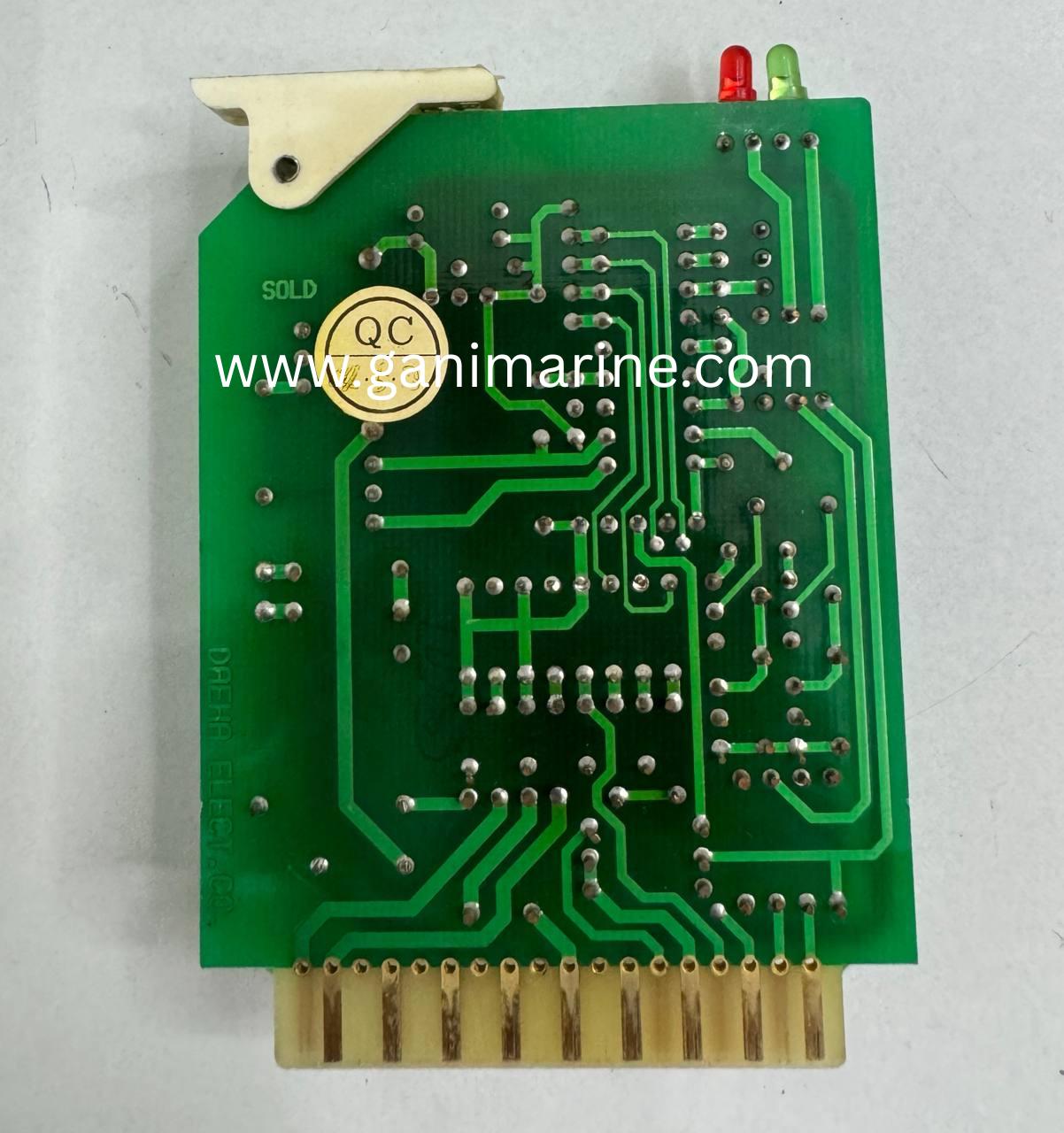

DANFOSS 593-3003/4 PCB

The Relay Control PCB Module (I.D. No.: 593-300314, WJ-SN: 020111) is a dedicated electronic interface board designed for industrial, marine, and hydraulic automation systems. Equipped with a 24V DC coil relay, IC logic, optocouplers, LED indicators, and discrete protection circuitry, it ensures safe signal processing, isolation, and load switching.

This robust PCB is widely integrated in marine control panels, hydraulic actuators, VRCS systems, and industrial automation units, making it a critical part of reliable operation and fault-free switching.

---

Technical Specifications

• I.D. No.: 593-300314

• WJ-SN: 020111

• Relay (SSD105P – DECO):

?– Coil: 24V DC

?– Contacts: 3A @ 250V AC

?– Function: SPDT, N.C. / N.O. outputs

• IC Components:

?– IC1: Dual op-amp / comparator (signal conditioning)

?– IC2: CF7145 microcontroller / logic IC (control processing)

?– IC3: Optocoupler / signal isolator (safety isolation)

• Transistors / Regulators: Q1–Q3 (relay driver & voltage regulation)

• LED Indicators: L1 (Red) – fault/relay status, L2 (Green) – power ON

• Protection: Diodes D1–D5 for reverse polarity & surge protection

• Connector: Edge terminal (1–10 pins) for easy integration

• Operating Voltage: 24V DC (industrial standard)

• Output Type: Relay-based isolated contact switching

• PCB Application: Control, monitoring, and interface

---

Key Features

• 24V DC relay interface board with N.O./N.C. contacts

• Provides isolation and protection for control signals

• Onboard status indication (red/green LEDs)

• Built-in microcontroller logic & op-amp processing

• Compact, rugged PCB design for industrial and marine environments

• Field-replaceable for Danfoss / Damcos / marine automation systems

---

Applications

• Marine Hydraulic Actuator Systems

• VRCS (Valve Remote Control Systems)

• Industrial Automation Panels

• Remote Switching & Relay Logic

• Oil & Gas Offshore Equipment

• Ship Repair & Retrofit Control Boards

---
