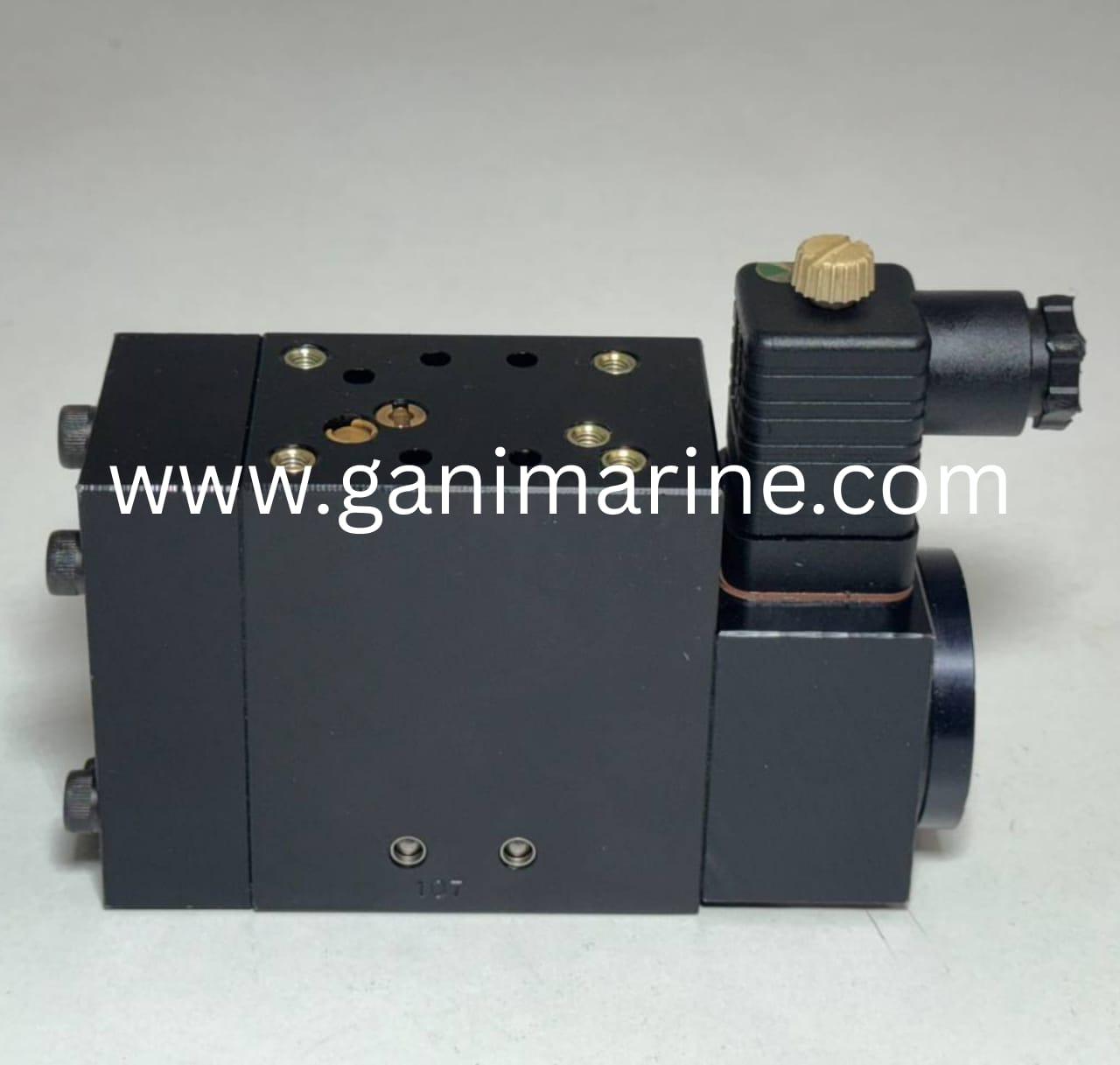

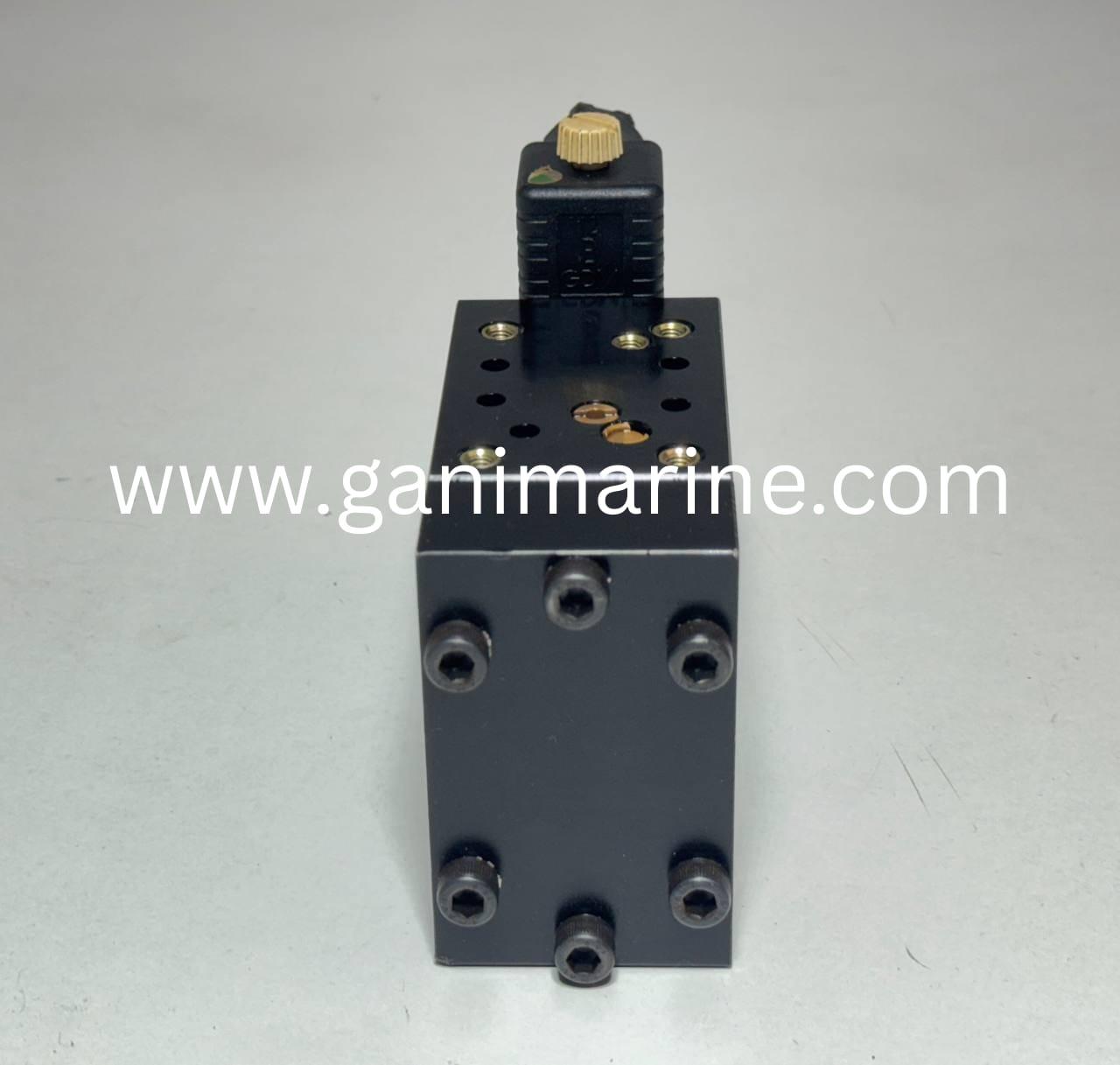

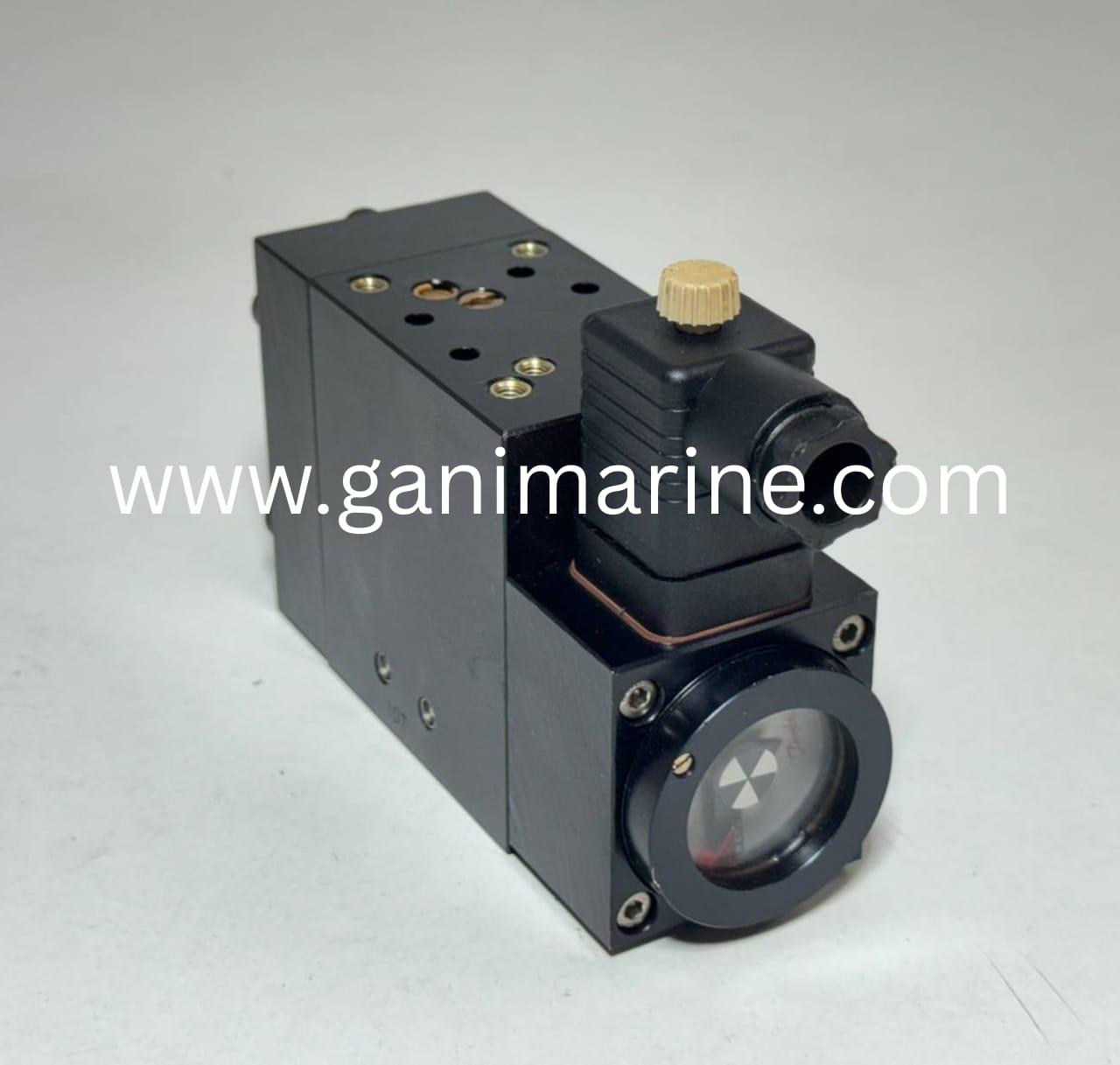

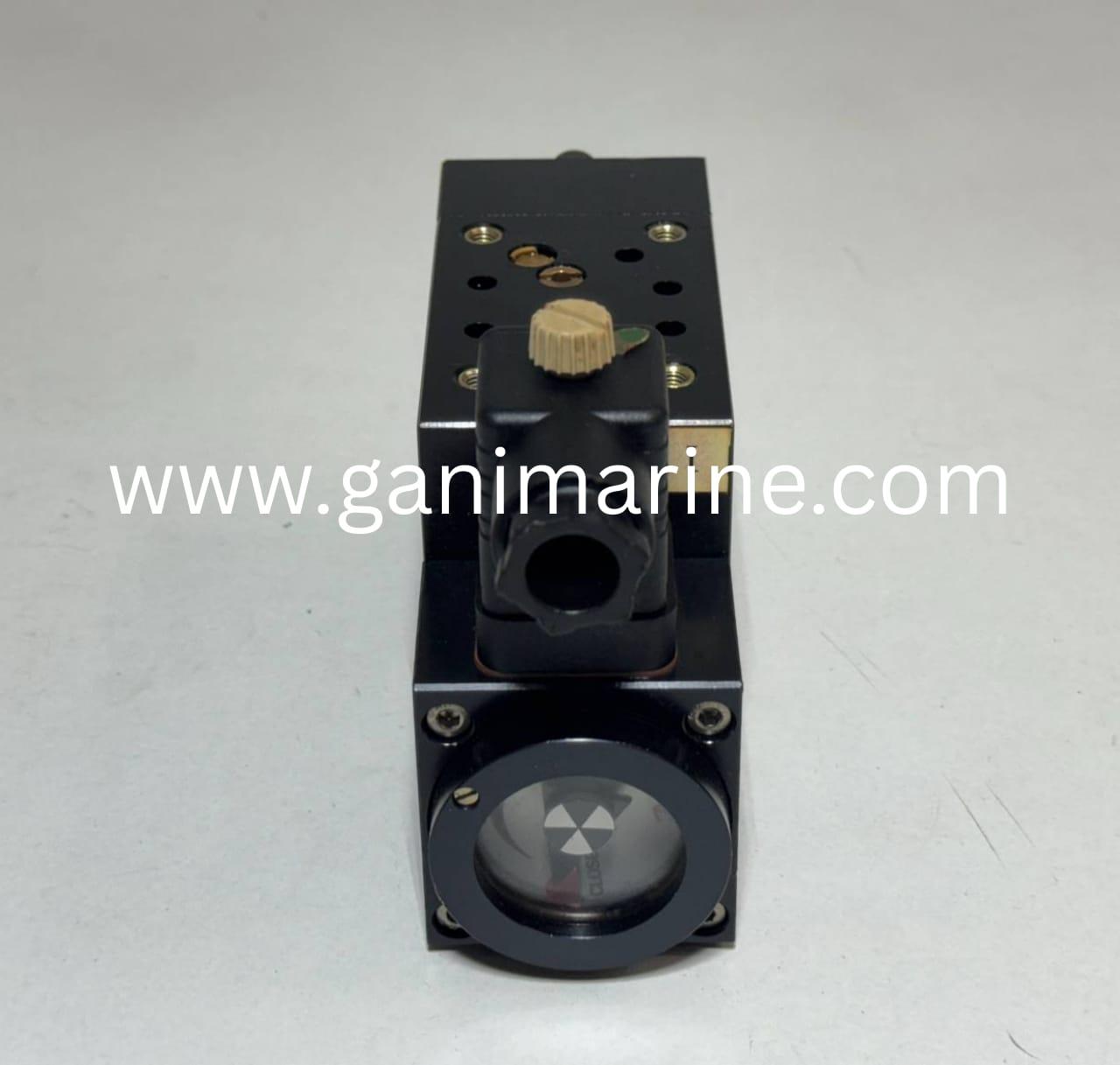

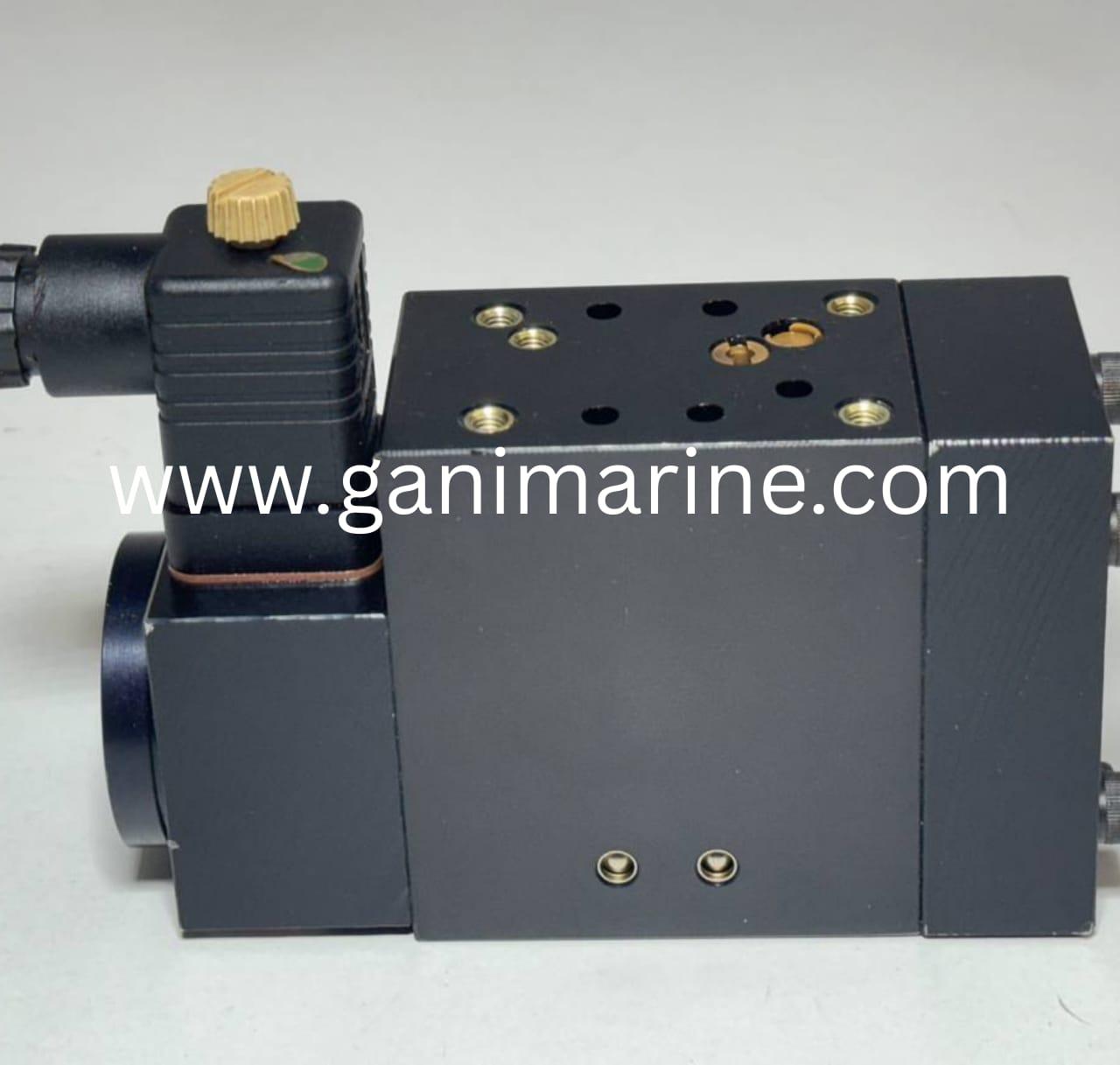

Danfoss 160G0424 Complete Valve Position Indicator (VPI)

The Danfoss / Damcos VPI-C Valve Position Indicator (160G0442) is a precision-engineered hydraulic feedback device designed to provide visual and electrical analog feedback for valve actuators in marine, offshore, and industrial applications. Manufactured by Danfoss System Hydraulik A/S, Denmark, this rugged and compact indicator ensures accurate monitoring of valve positions even in harsh environments.

The VPI-C features a magnetic clutch mechanism, eliminating external leakage while transferring gear motor movement to the indicator shaft. With an adjustable indication range of 75°–200°, the VPI-C is available in multiple versions, making it suitable for remote monitoring, hazardous area operations, and shipboard control systems.

Trusted worldwide, the VPI-C enhances safety, efficiency, and reliability in hydraulic control systems for ships, offshore platforms, and industrial installations.

---

Key Specifications

Model Number: 160G0442

Type: Valve Position Indicator (VPI-C – visual + electric analog feedback)

Max Continuous Load: 2.5W

Manufacturer: Danfoss System Hydraulik A/S, Denmark

Max Working Pressure: 135 bar (~1,958 psi)

Test Pressure: 225 bar (~2,973 psi)

Burst Pressure: >525 bar (~7,615 psi)

Temperature Range: -20°C to +80°C

Viscosity Range: 15–200 cSt

Hydraulic Medium: Acid-free hydraulic oil

Filtration Requirement: 25 ?m nominal

Max Flow: 100 cm³/s (6 L/min)

Min Flow: 3 cm³/s (0.2 L/min)

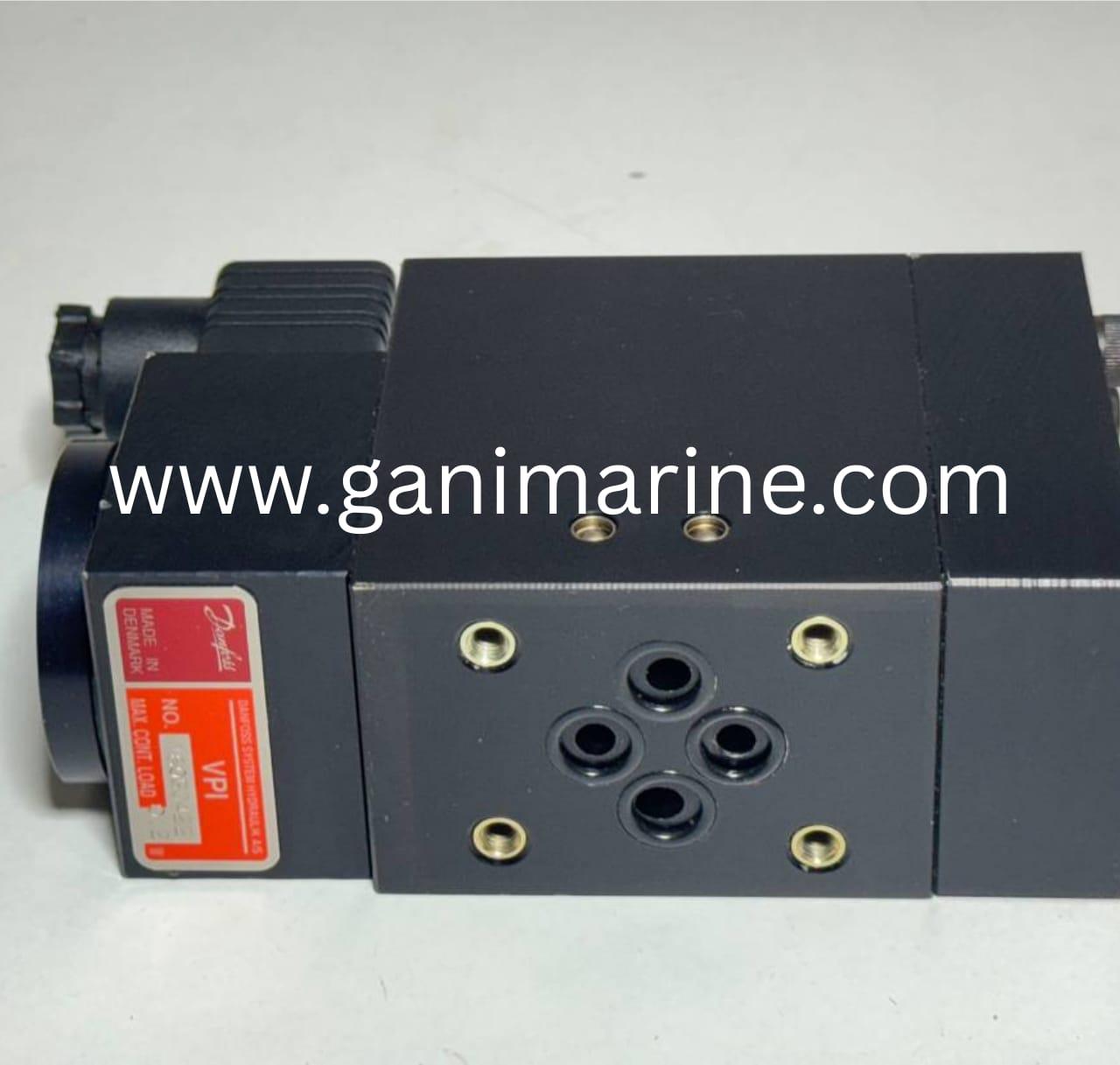

Mounting Interface: CETOP-3 (DIN 24 340)

---

How It Works

Uses a gear motor assembly to measure hydraulic fluid displacement.

Transfers movement via a magnetic clutch to prevent external leakage.

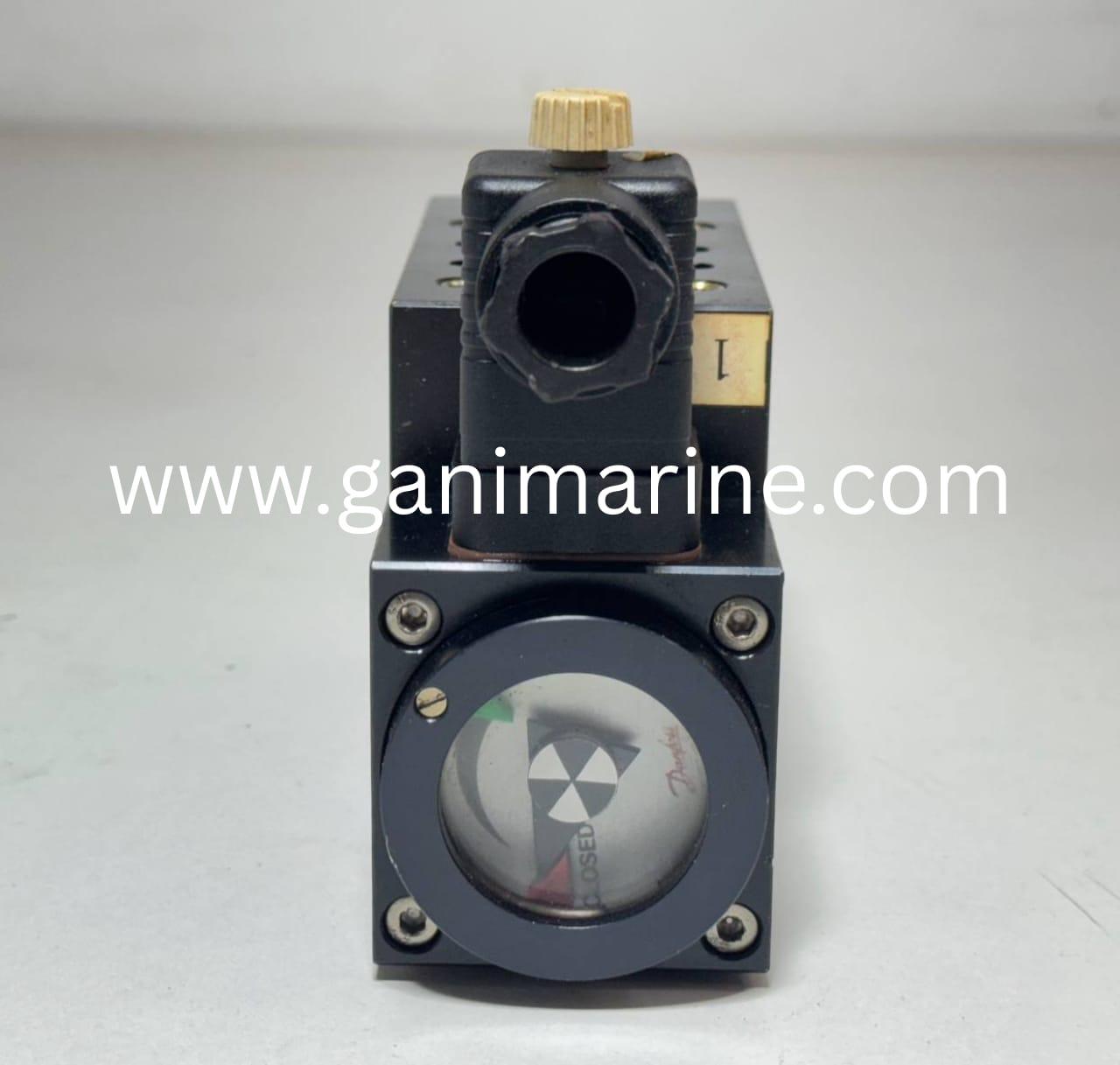

Provides both visual indication (arrow or scale) and electrical analog feedback.

Supports indication range adjustment from 75° to 200°.

---

Typical Applications

Installed on hydraulic manifolds to remotely indicate actuator positions.

Used in submerged valves, hazardous zones, and shipboard hydraulic systems.

Ensures remote monitoring and safety control in marine and offshore operations.

---

Notable Features

Magnetic clutch – no direct mechanical linkage, eliminating leakage risk.

Multiple versions available: VPI-V (visual), VPI-E (visual + ON/OFF), VPI-C (visual + analog).

Compact, rugged design ideal for marine and offshore environments.

Provides highly accurate valve position feedback under demanding conditions.

---
