DAMCOS LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF POWER UNIT With BUTTERFLY VALVE With BRC 250
DAMCOS LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF POWER UNIT With BUTTERFLY VALVE With BRC 250

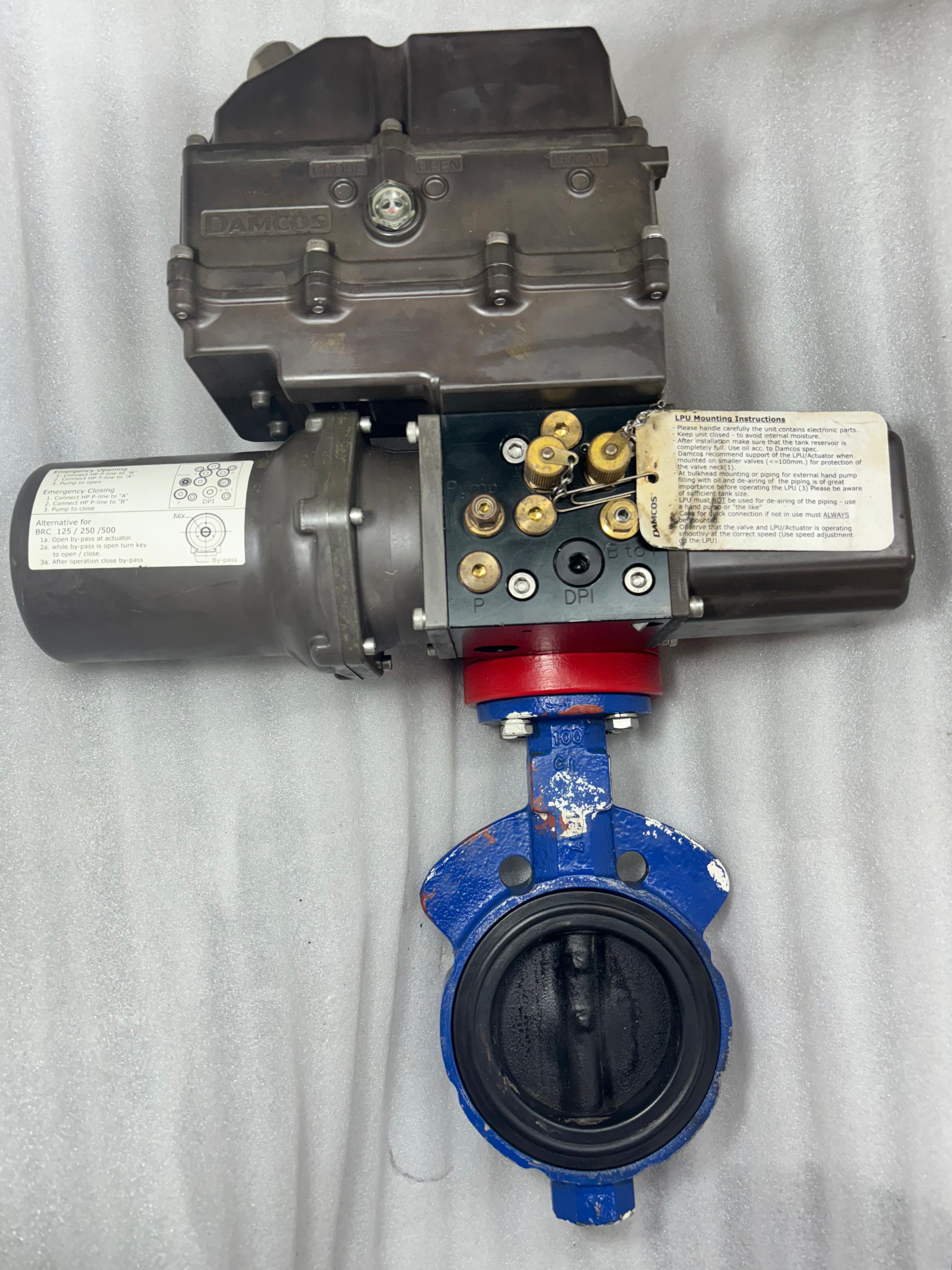

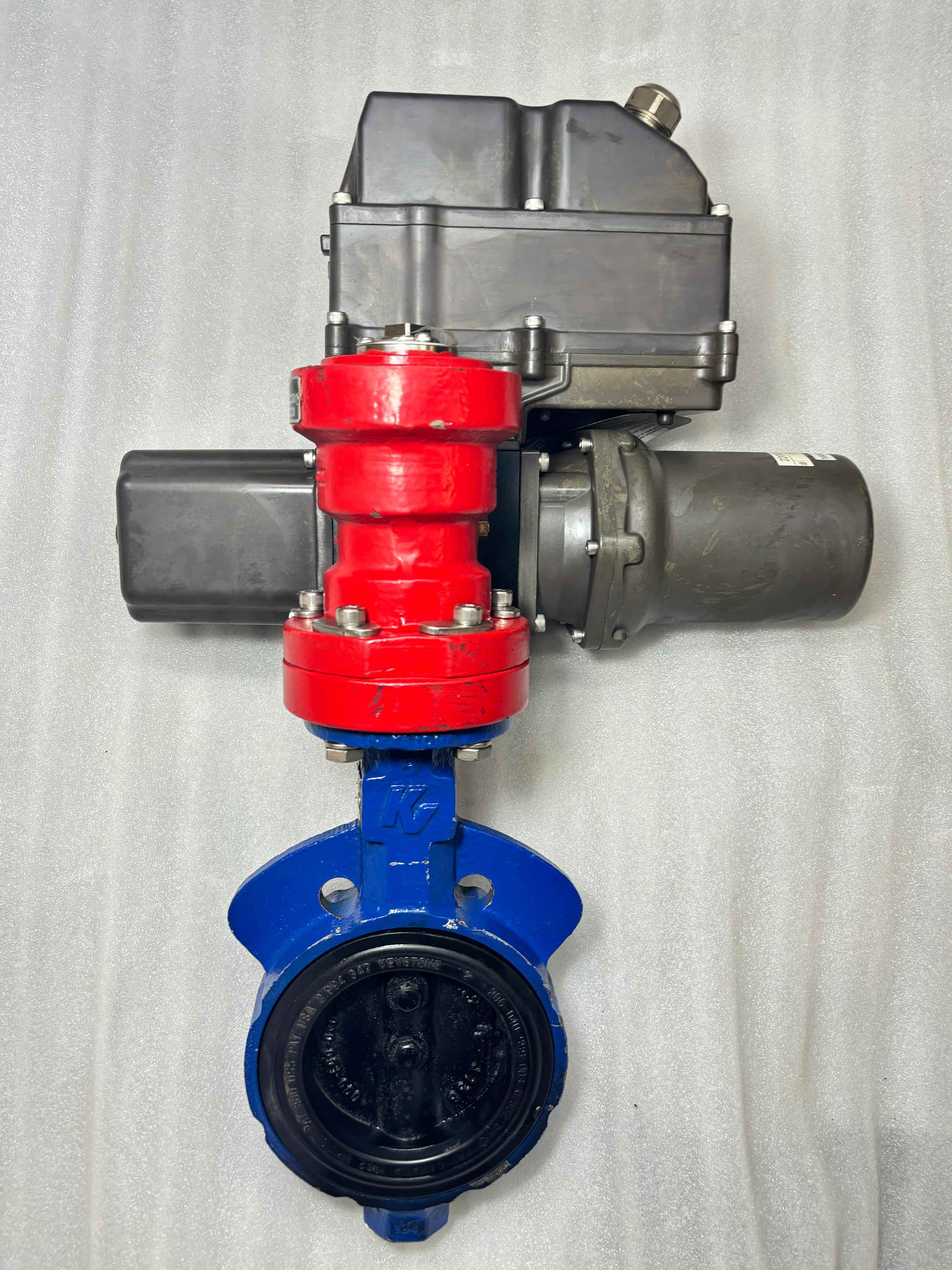

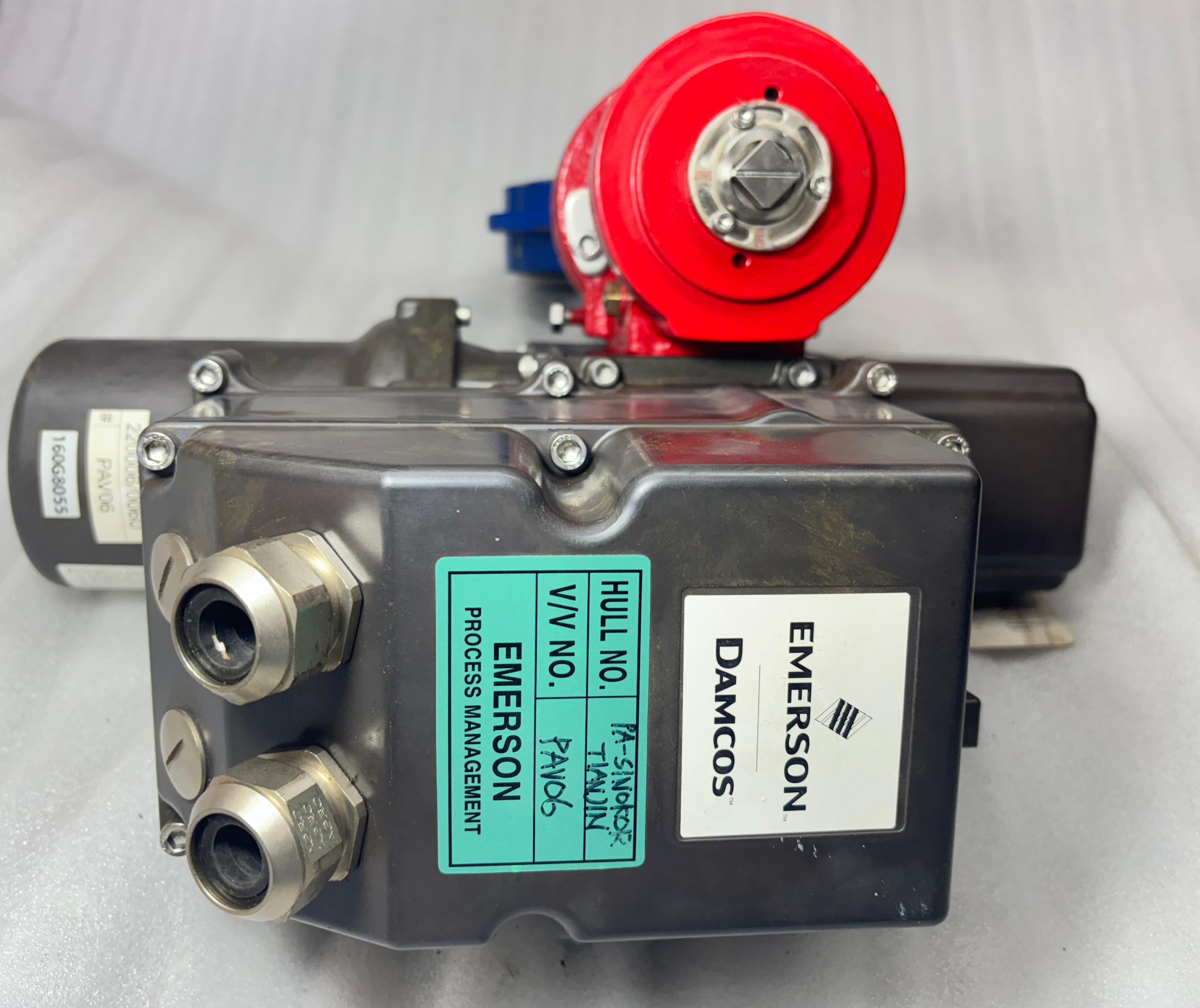

This complete hydraulic valve automation system features a DAMCOS / DANFOSS / EMERSON LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF, paired with a BRC 250 B1 Double-Acting Rotary Actuator, DPI-E ON/OFF feedback, and a high-performance 100mm (4") butterfly valve. Engineered for critical 90° quarter-turn valve control, this setup is ideal for marine, offshore, and shipboard Valve Remote Control Systems (VRCS).
The compact, direct-mount LPU delivers pulse-based 24VDC control, rated for 135 BAR working and 225 BAR test pressure, while the actuator provides fail-safe, balanced torque. The butterfly valve is constructed with corrosion-resistant A126B body, C95200 bronze disc, and NBR seat, ensuring high reliability in harsh maritime environments.
Gani Marine, a trusted global supplier of Damcos systems and spares, ships this system worldwide with full documentation, support, and configuration options.
---
Complete System Specifications:

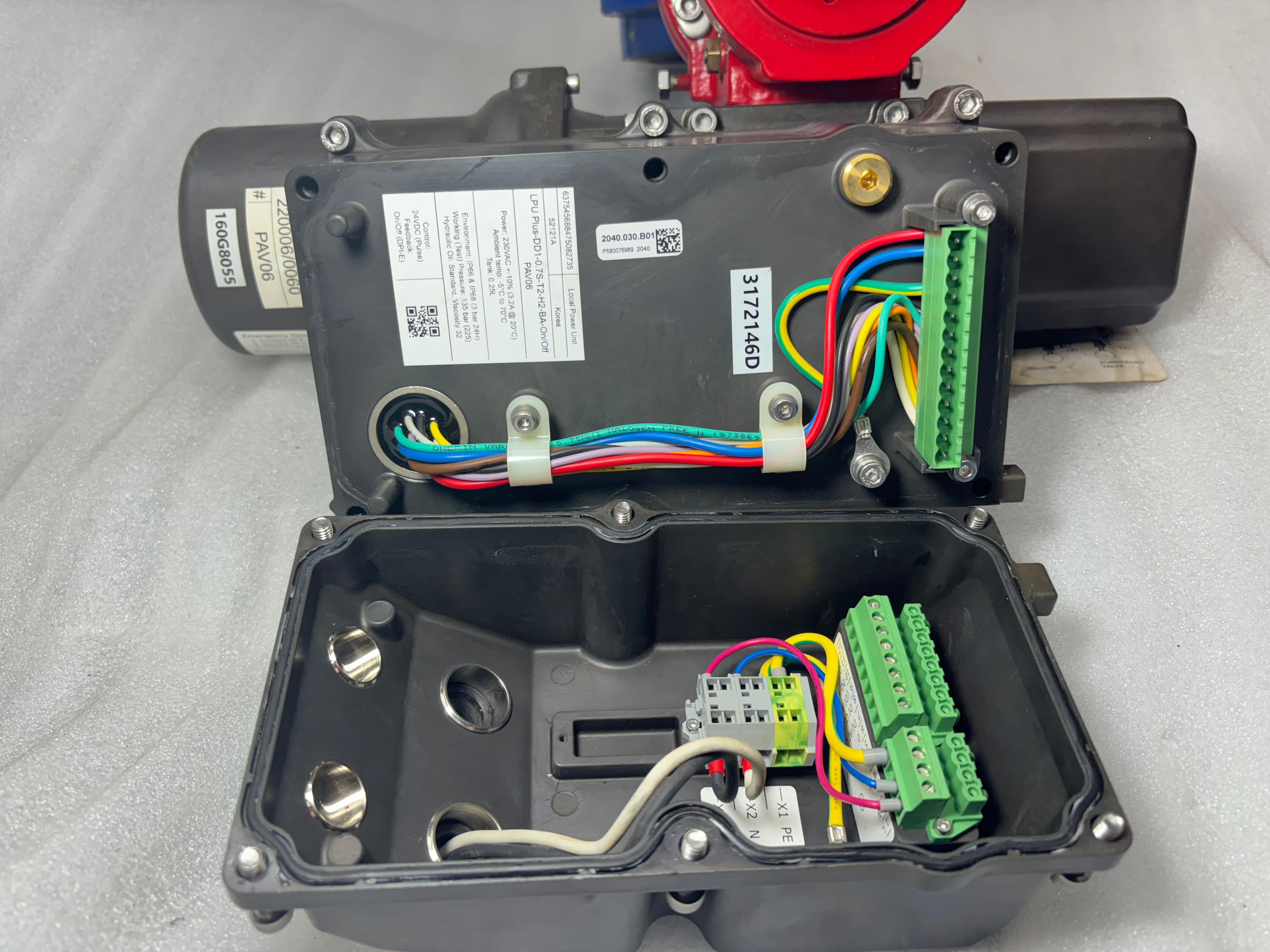

Local Power Unit (LPU):

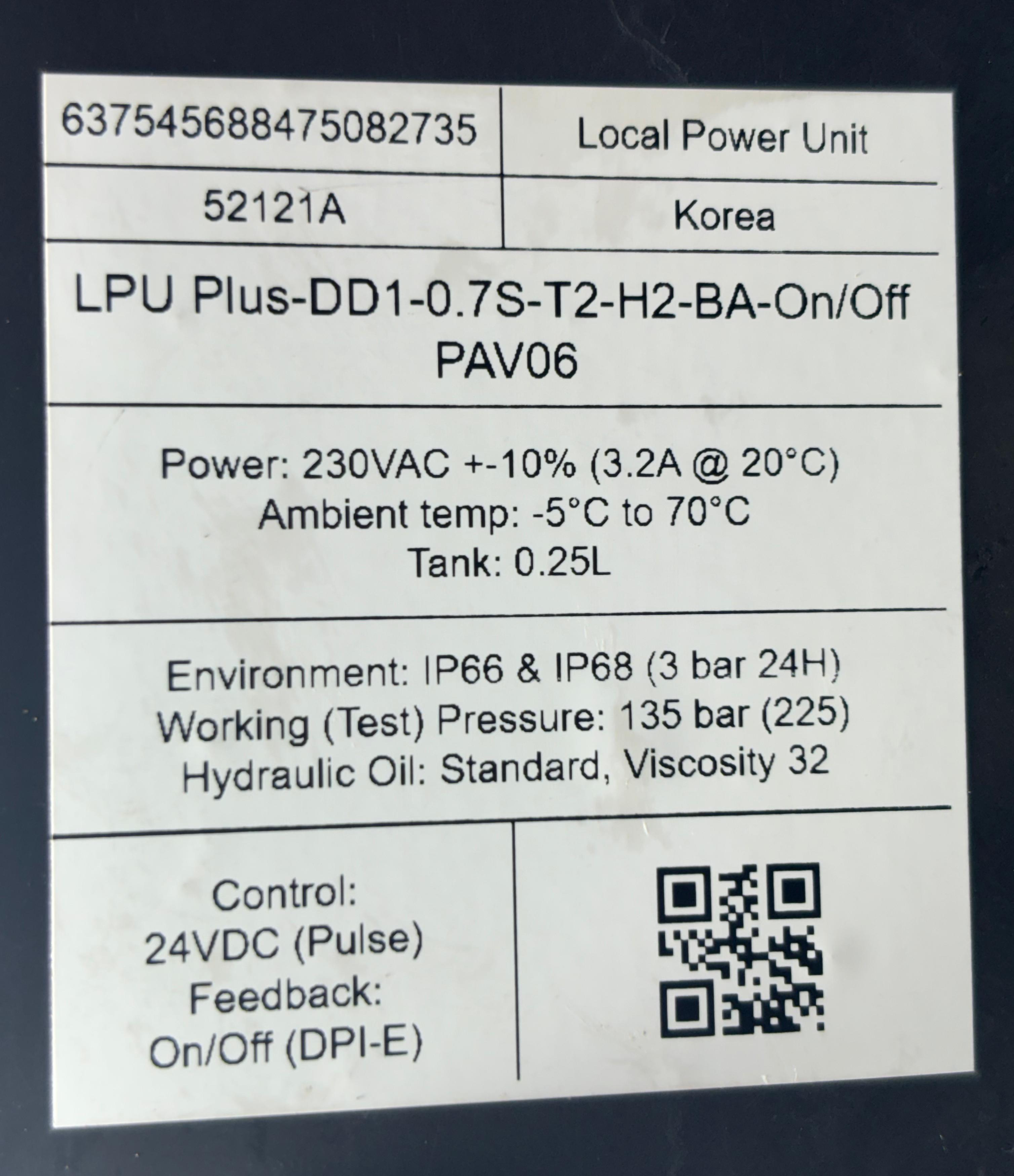

Model: LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF
Control Signal: 24VDC (Pulse-Based)
Feedback: DPI-E ON/OFF
Tank Size: 0.25 L (T2)
Mounting: Directly on Actuator (BA)
Pump Type: DD1 (Double Acting)
Motor: Small Motor (S)
Power Supply: 230VAC ±10% (3.2 A @ 20°C)
Working Pressure: 135 BAR
Test Pressure: 225 BAR
Ambient Temp: -5°C to +70°C
Protection Class: IP66 & IP68 (3 BAR / 24h)
Hydraulic Oil: ISO VG 32 Standard
Controller: NG LPU Controller G120B001 Rev. 1.3b2
---

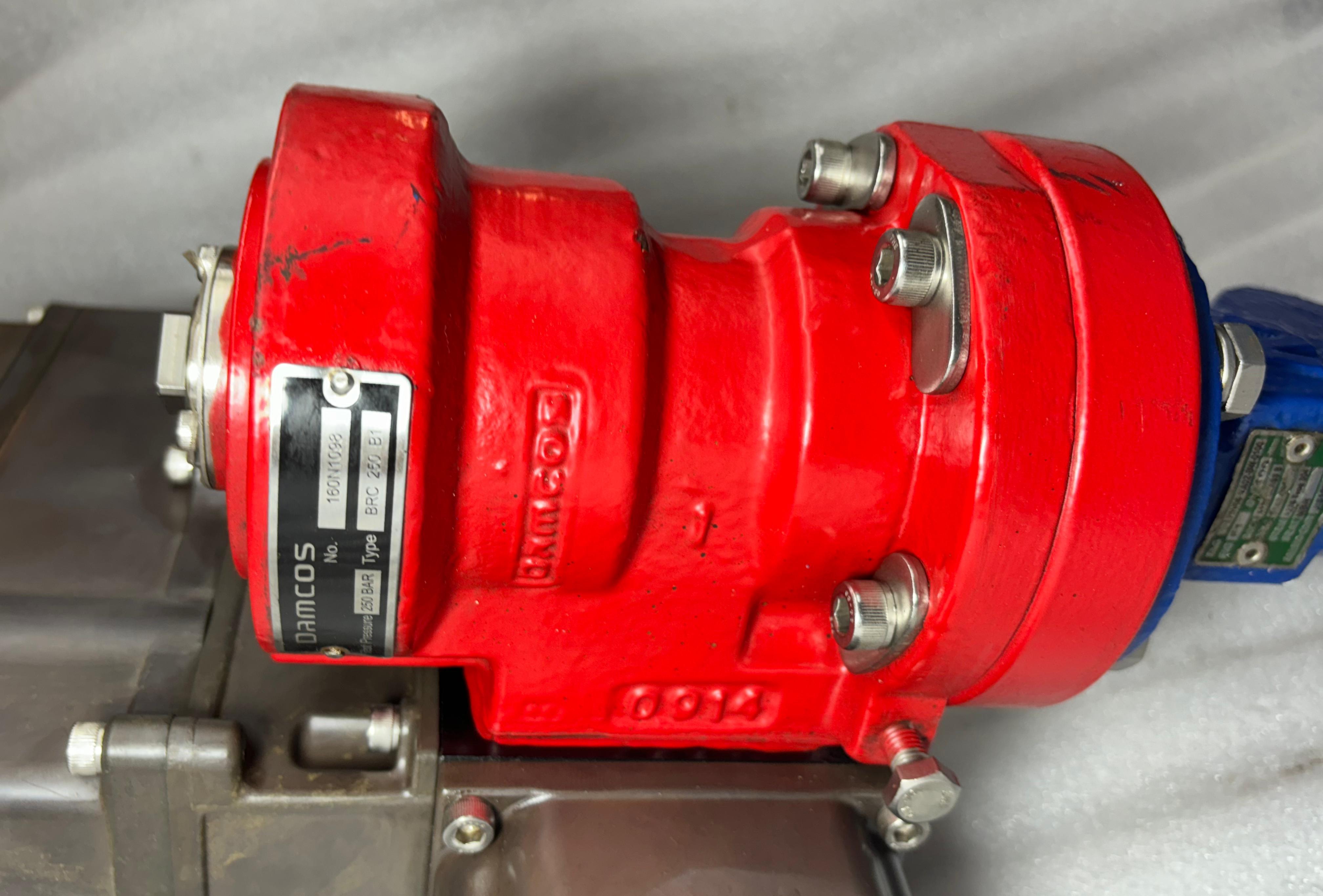

Hydraulic Actuator:

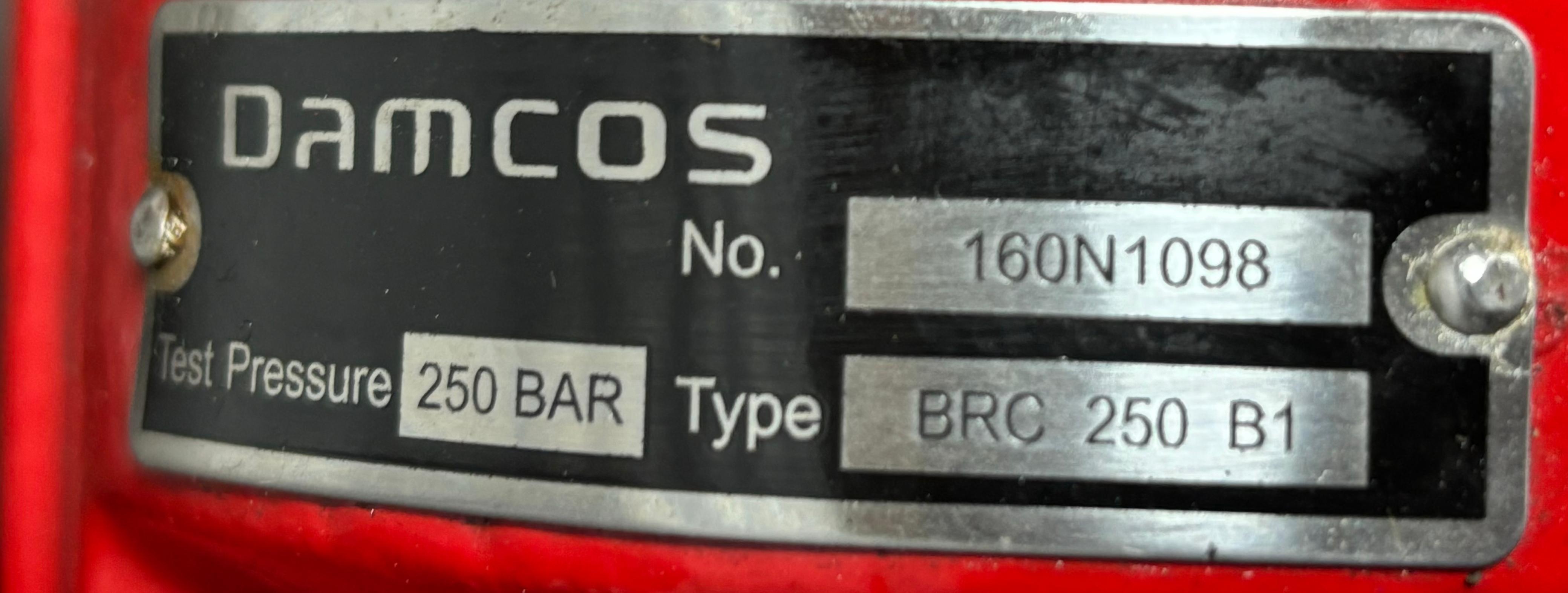

Type: BRC 250 B1
Part No: 160N1098
Design: Double-Acting Balanced Rotary
Rotation: 90° (Quarter Turn)
Test Pressure: 250 BAR
Mounting: Flanged Direct to Valve
---

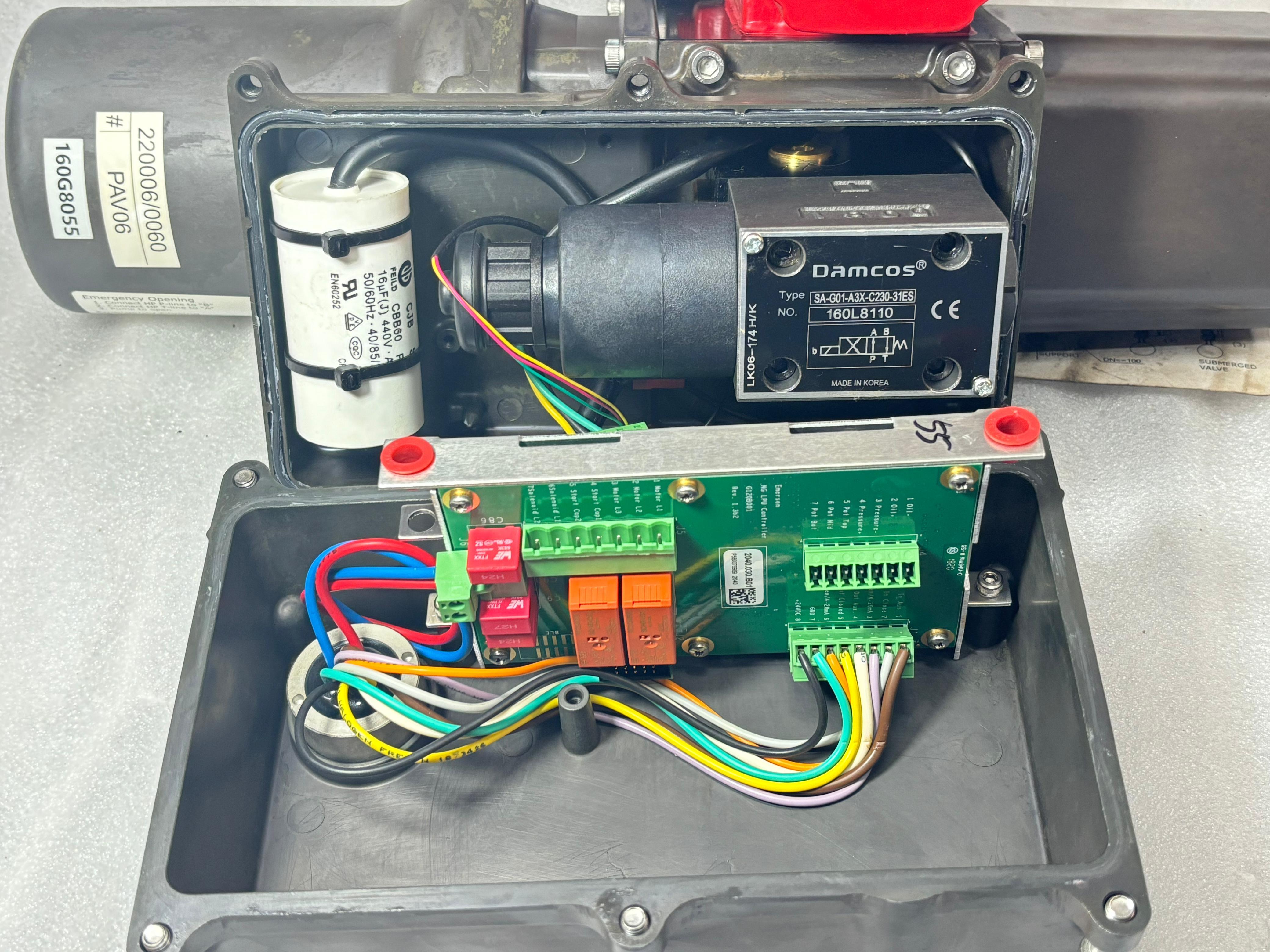

Solenoid Valve:
Model: SA-G01-A3X-C230-31ES
Part No: 160L8110
Voltage: 230 VAC
Type: Directional Control Solenoid Valve
---

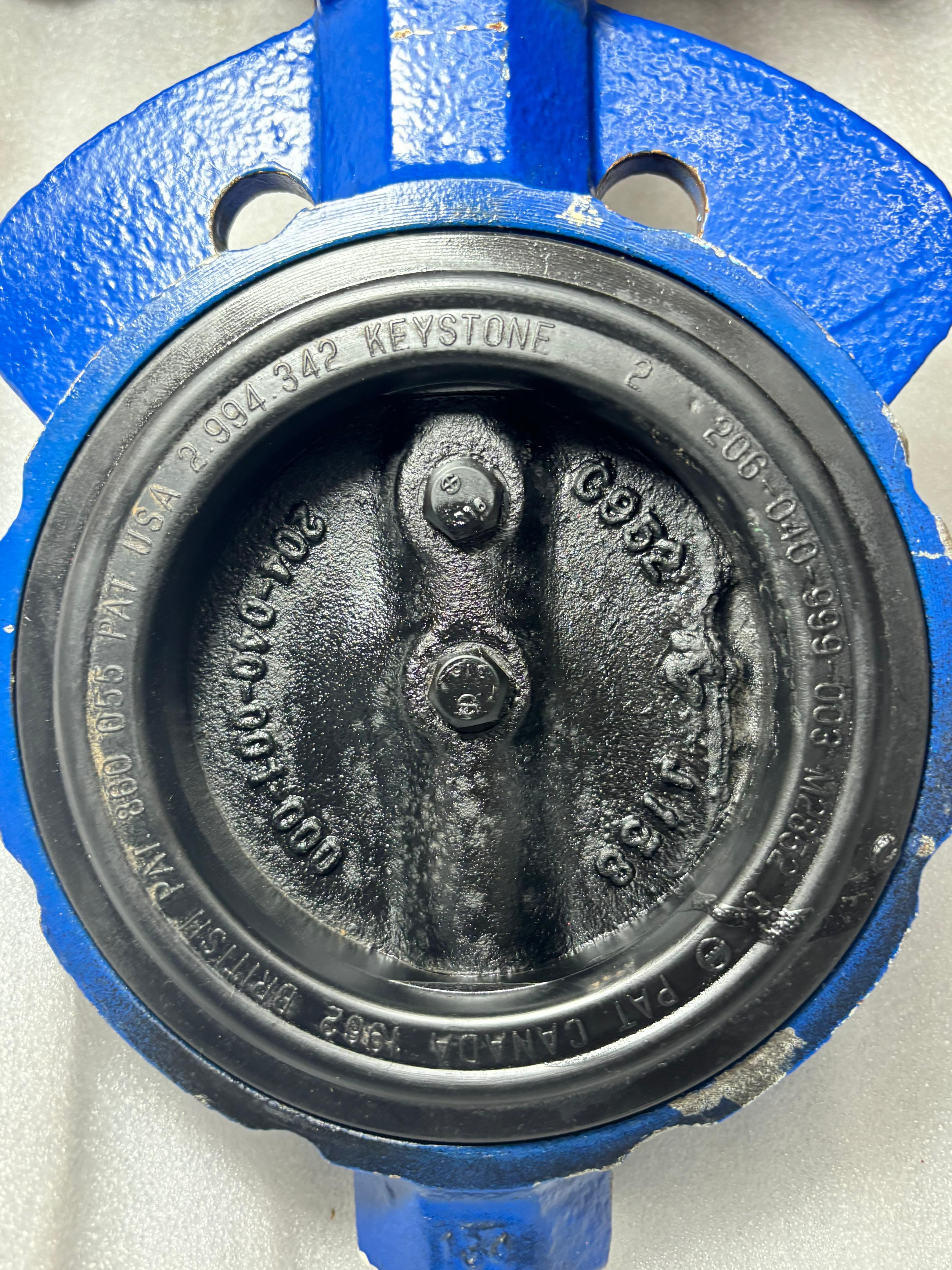

Butterfly Valve:

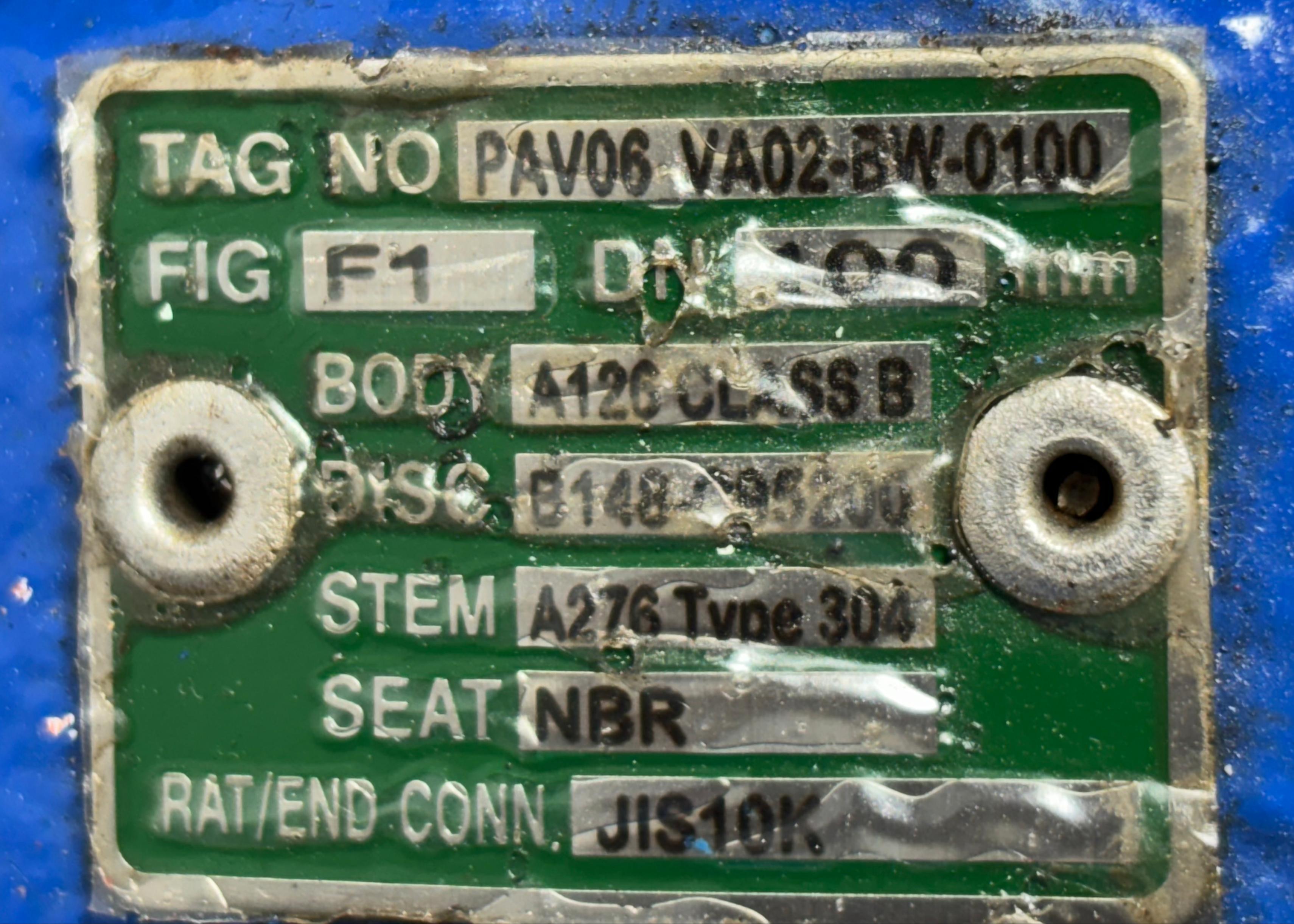

Tag No: VA02-BW-0100
FIG: F1
DN: 100 mm
Body: A126 Class B
Disc: B148-C95200 (Bronze)
Stem: A276 Type 304 (Stainless Steel)
Seat: NBR (Nitrile Rubber)
End Connection: JIS 10K
---
Applications:
Ship Engine Room Valve Control
Offshore Valve Remote Control Systems (VRCS)
Marine Ball / Butterfly Valve Automation
Cargo & Ballast Systems
Emergency Shutdown (ESD) Operations
Floating Platforms (FPSO), Drilling Units
Shipbuilding, Retrofitting, and Drydock Overhaul
---
Product Features:
Fully integrated marine valve actuation package
Direct-mount LPU for compact installation
DPI-E feedback for precise ON/OFF valve position indication
Heavy-duty actuator tested up to 250 BAR
High-grade butterfly valve for saltwater & chemical resistance
Ideal for automation in tankers, LNG vessels, and FPSOs
Available globally through Gani Marine
---
