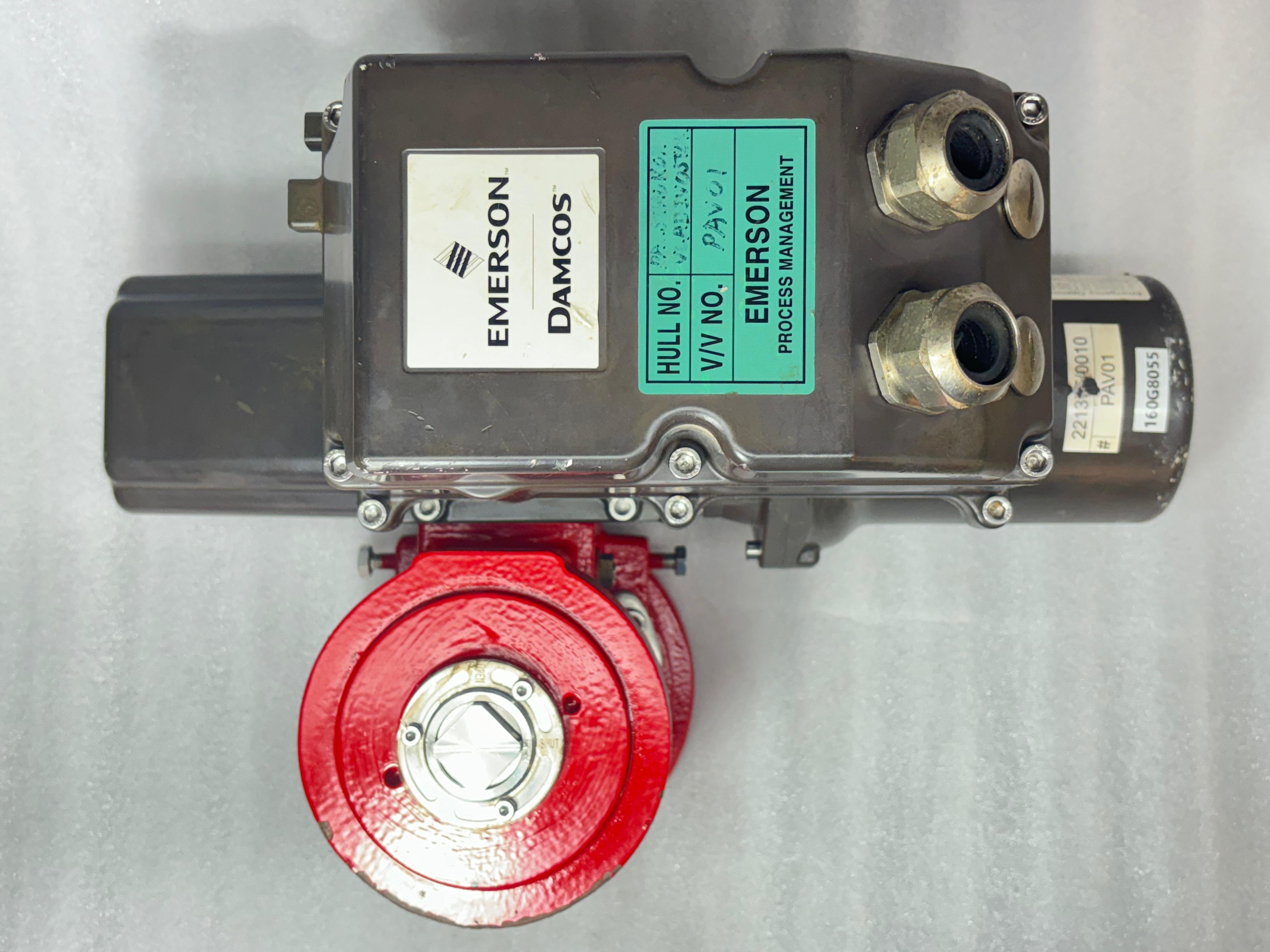

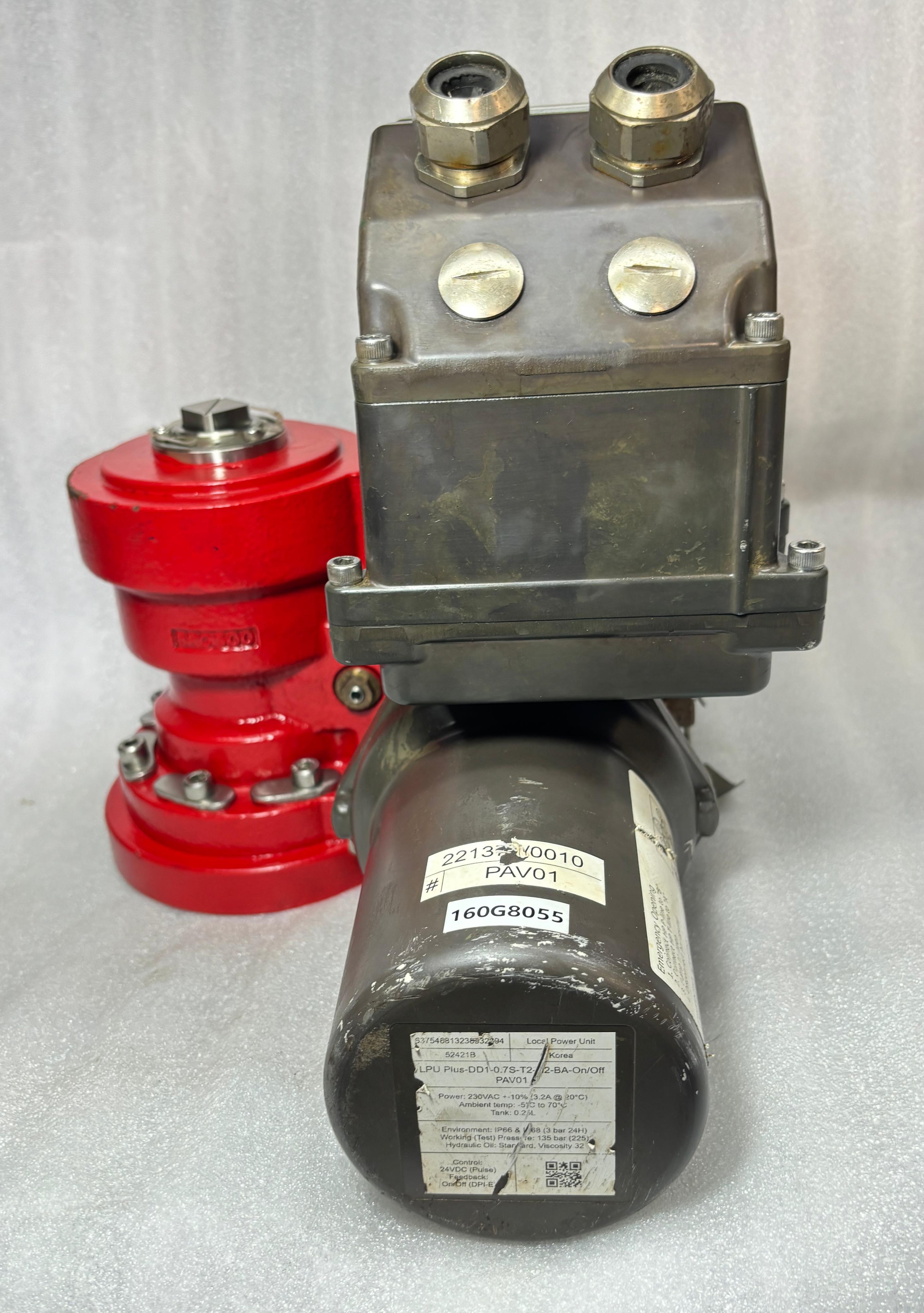

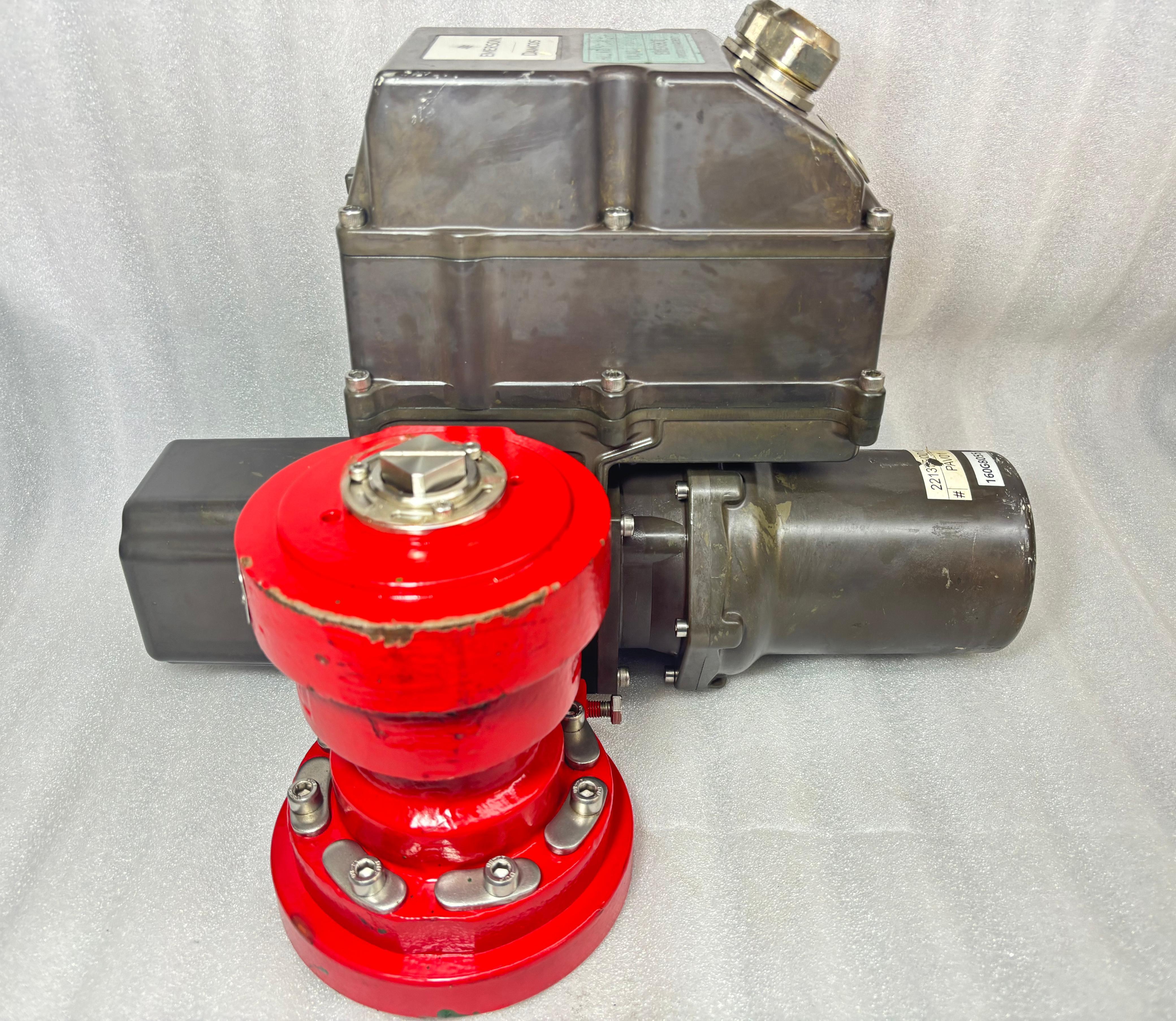

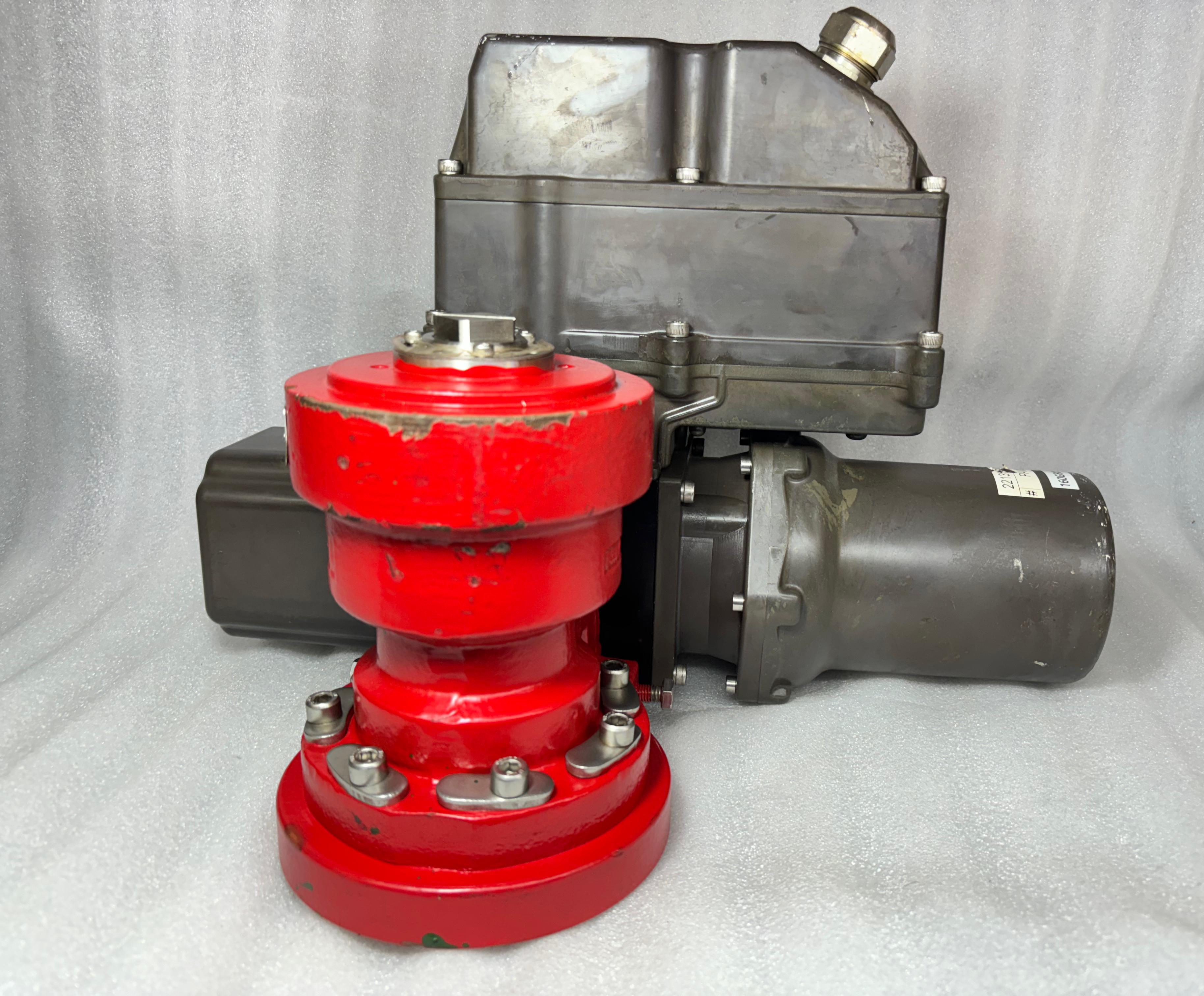

DAMCOS LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF POWER UNIT With ACTUATOR BRC 500 B1

The DAMCOS / DANFOSS / EMERSON LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF is a complete, compact hydraulic Local Power Unit (LPU) solution, combined with the robust BRC 500 B1 double-acting balanced rotary actuator and DPI-E feedback indicator, tailored for marine, offshore, and shipboard valve control systems.

This integrated system is ideal for use in Valve Remote Control Systems (VRCS) and emergency valve automation. With IP66/IP68 (3 BAR/24h) environmental protection, 135 BAR working pressure, and 24VDC pulse control, this LPU assembly offers precise, fail-safe control and feedback under the harshest sea conditions.

Gani Marine, a leading Global Marine Hydraulic Supplier, offers this unit with full support, fast international shipping, and direct supply of Damcos original spares and systems.

---

 Component Breakdown & Specifications:

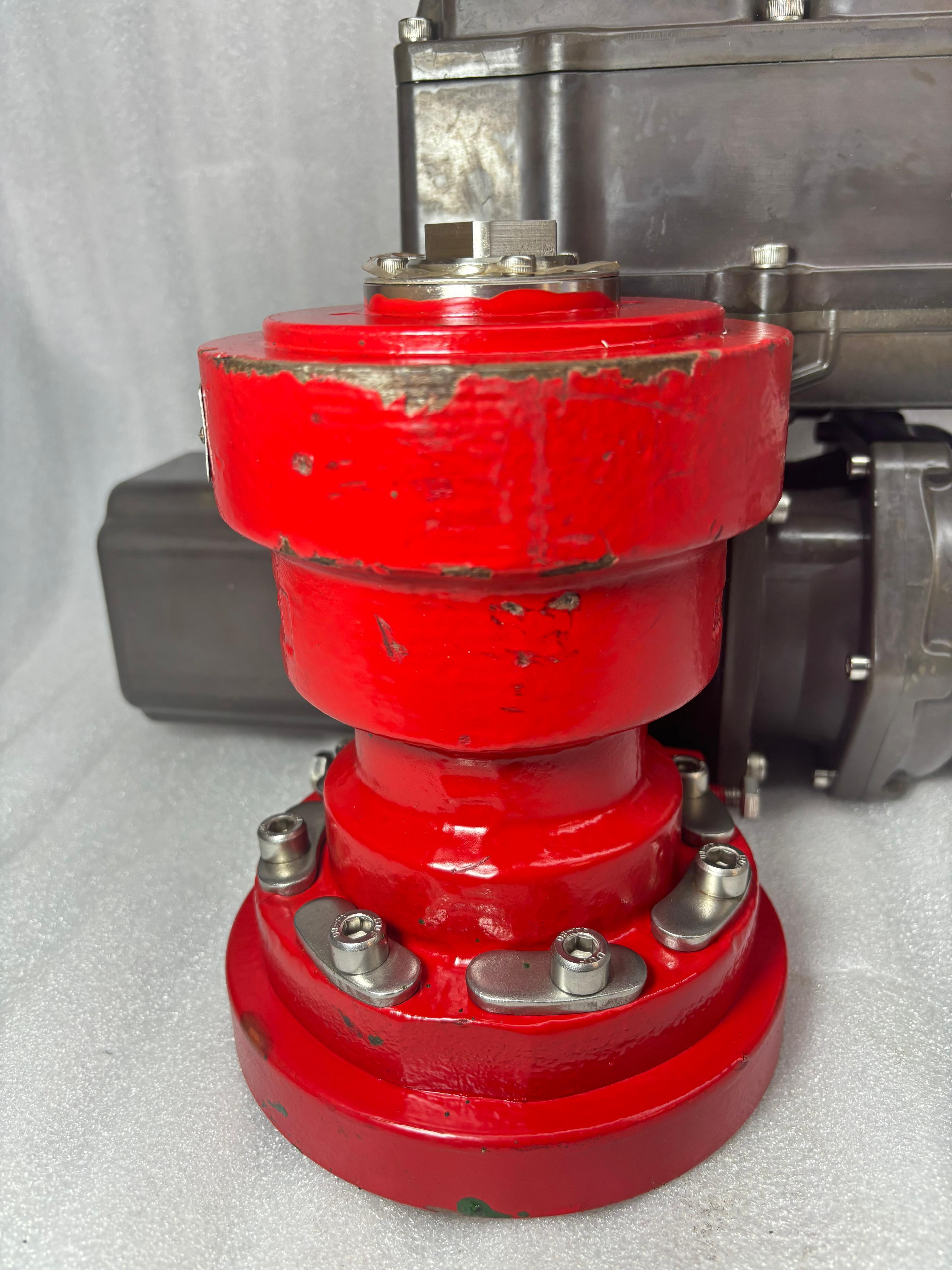

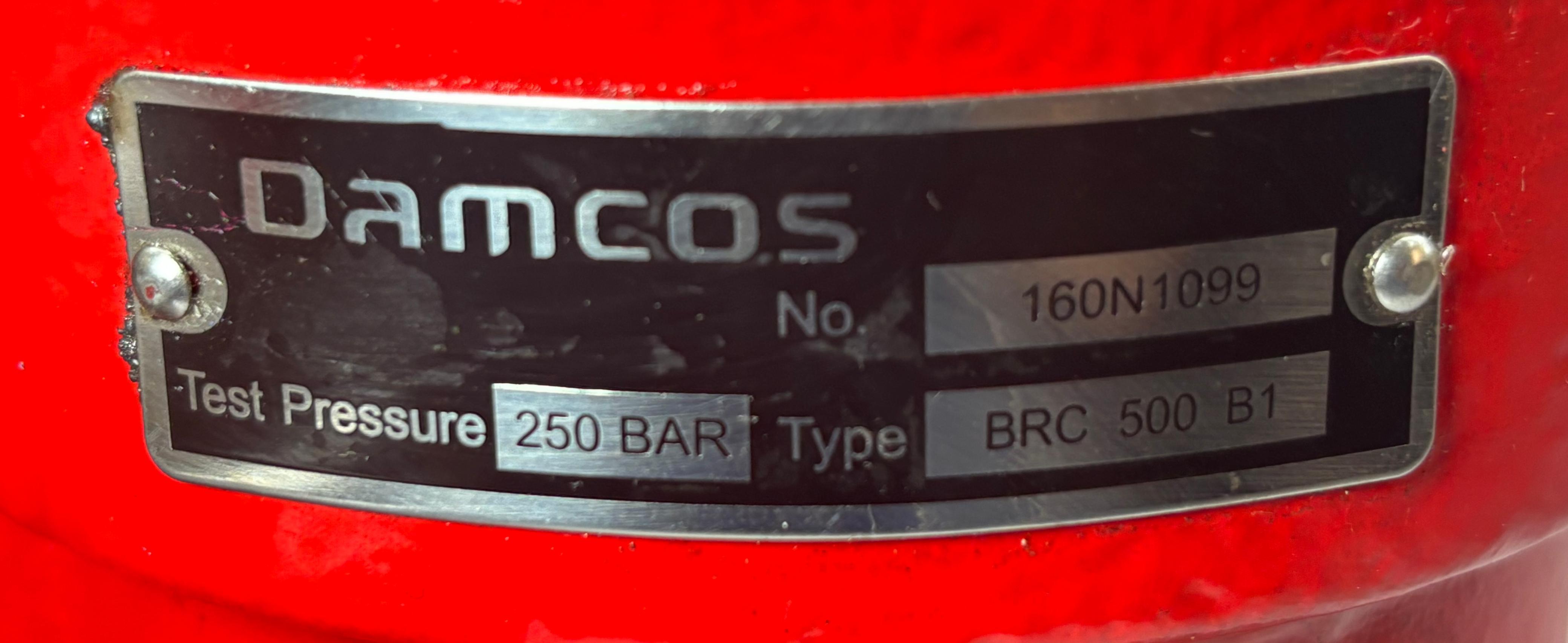

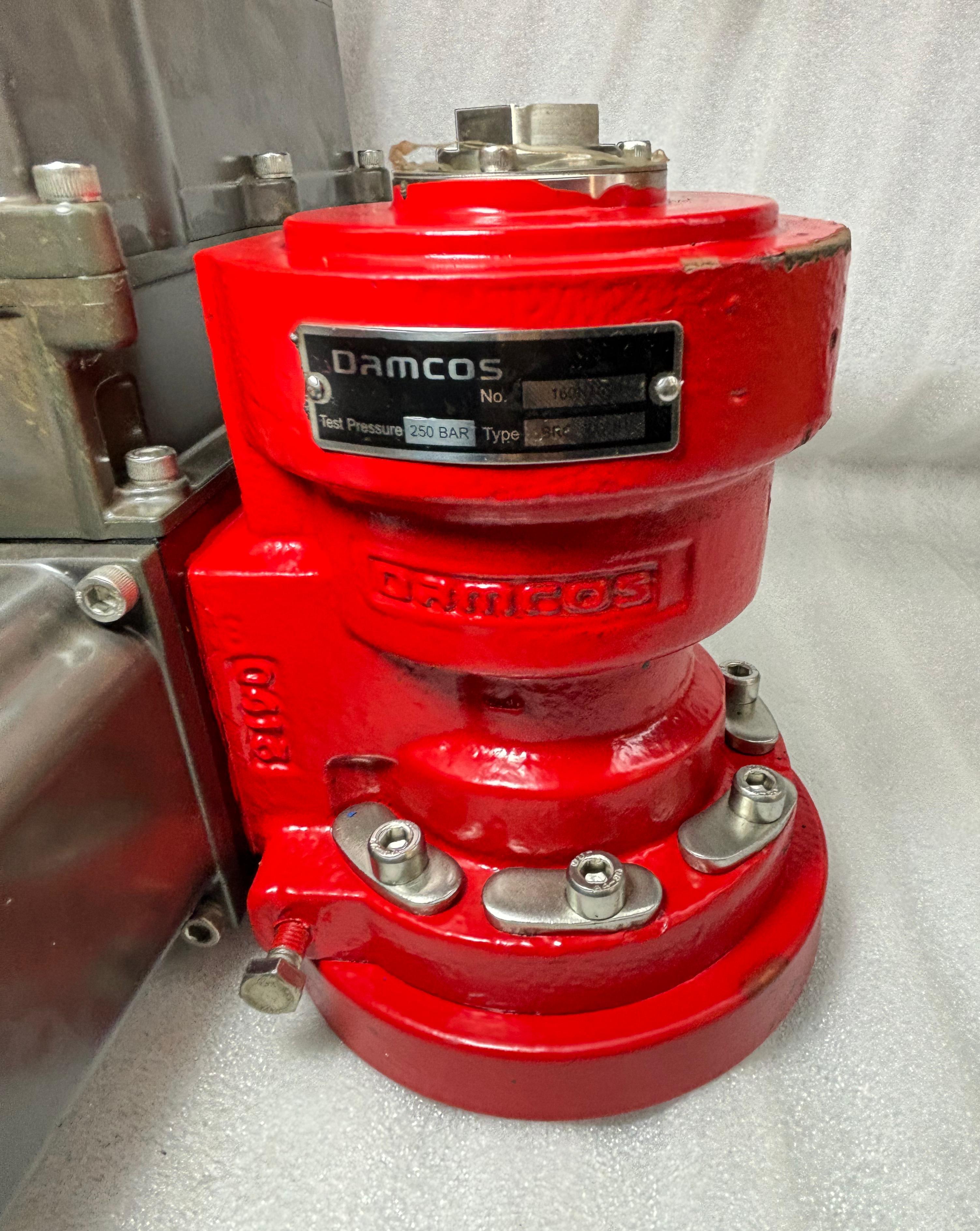

 Hydraulic Actuator:

Type: BRC 500 B1

Part No: 160N1099

Design: Double-Acting Balanced Rotary

Operation: 90° (Quarter-Turn)

Test Pressure: 250 BAR

---

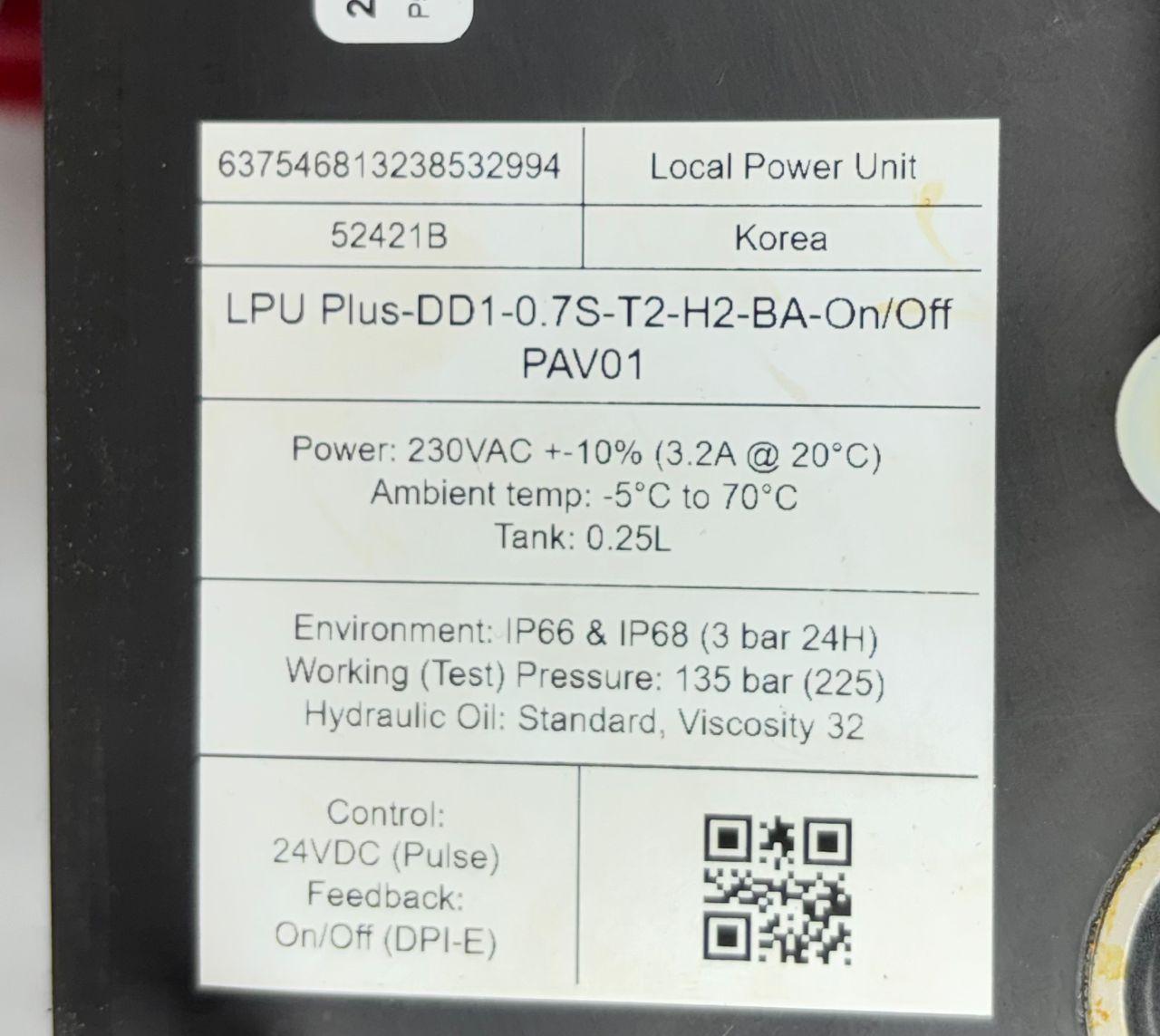

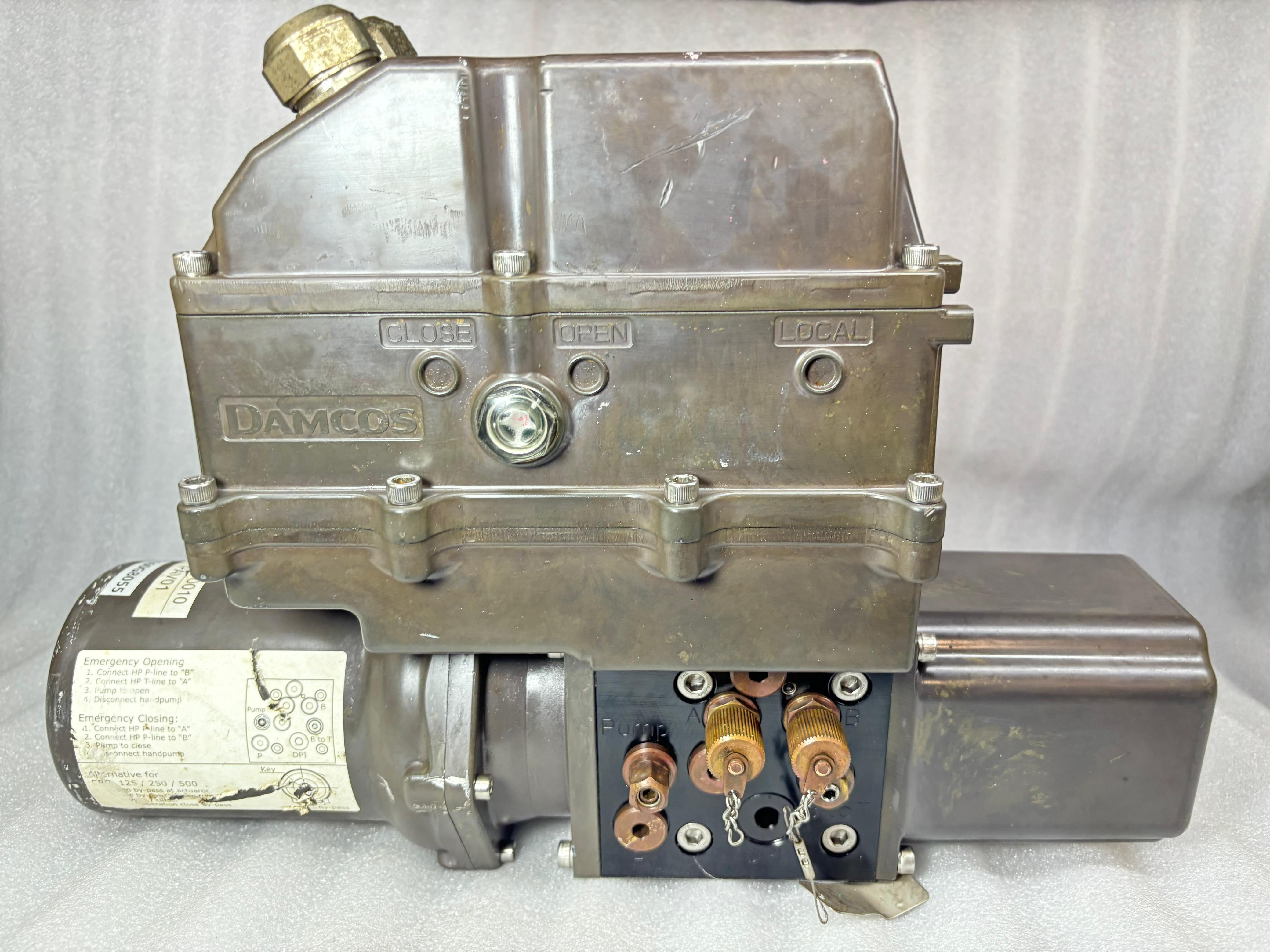

 Local Power Unit (LPU):

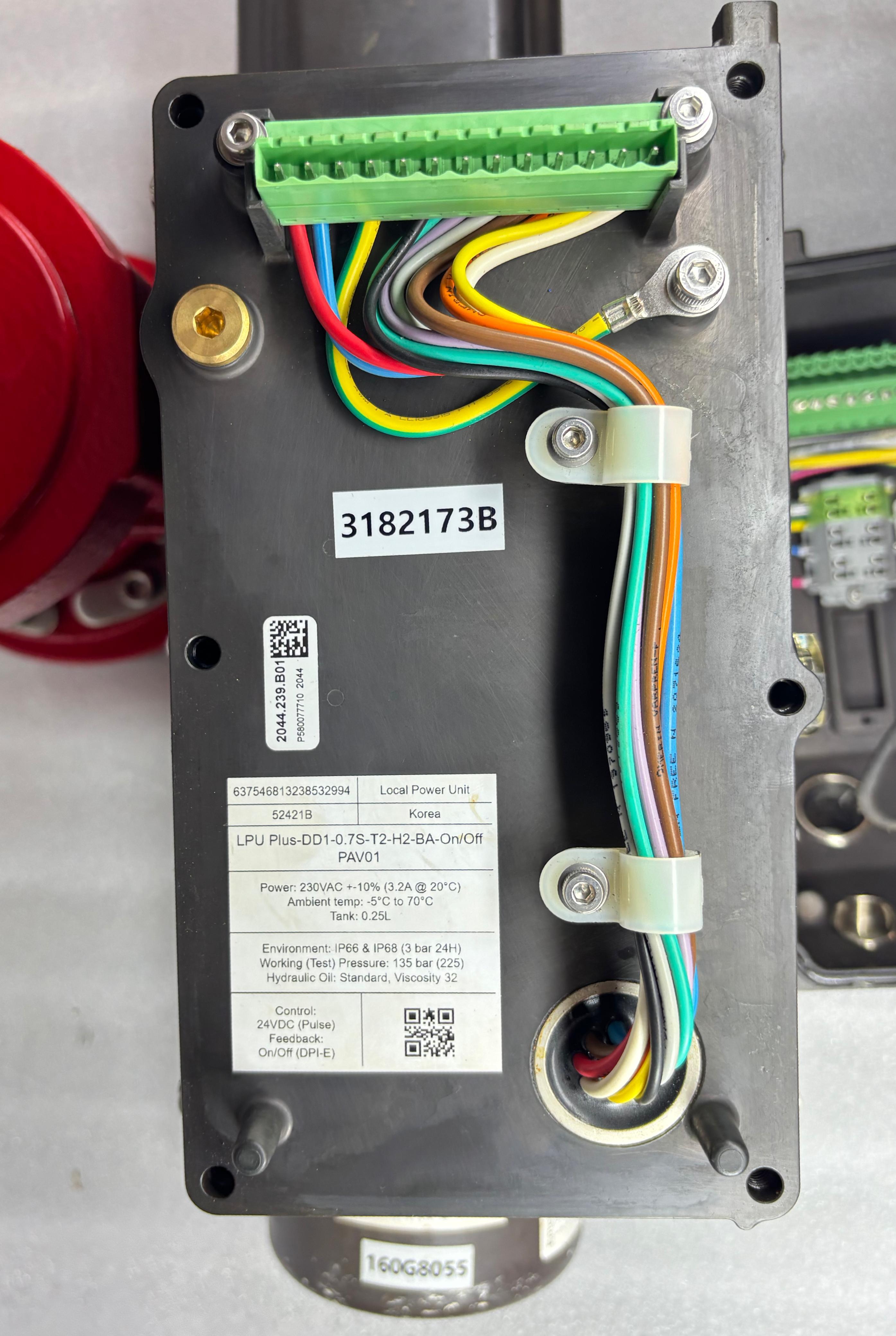

Model: LPU PLUS-DD1-0.7S-T2-H2-BA-ON/OFF

Pump Type: DD1 (Double-Acting)

Pump Size: 0.7

Motor: Small

Tank Volume: 0.25 L (T2)

Mounting: Directly on actuator (BA)

Control Signal: 24VDC (Pulse)

Feedback: ON/OFF (DPI-E Feedback Sensor)

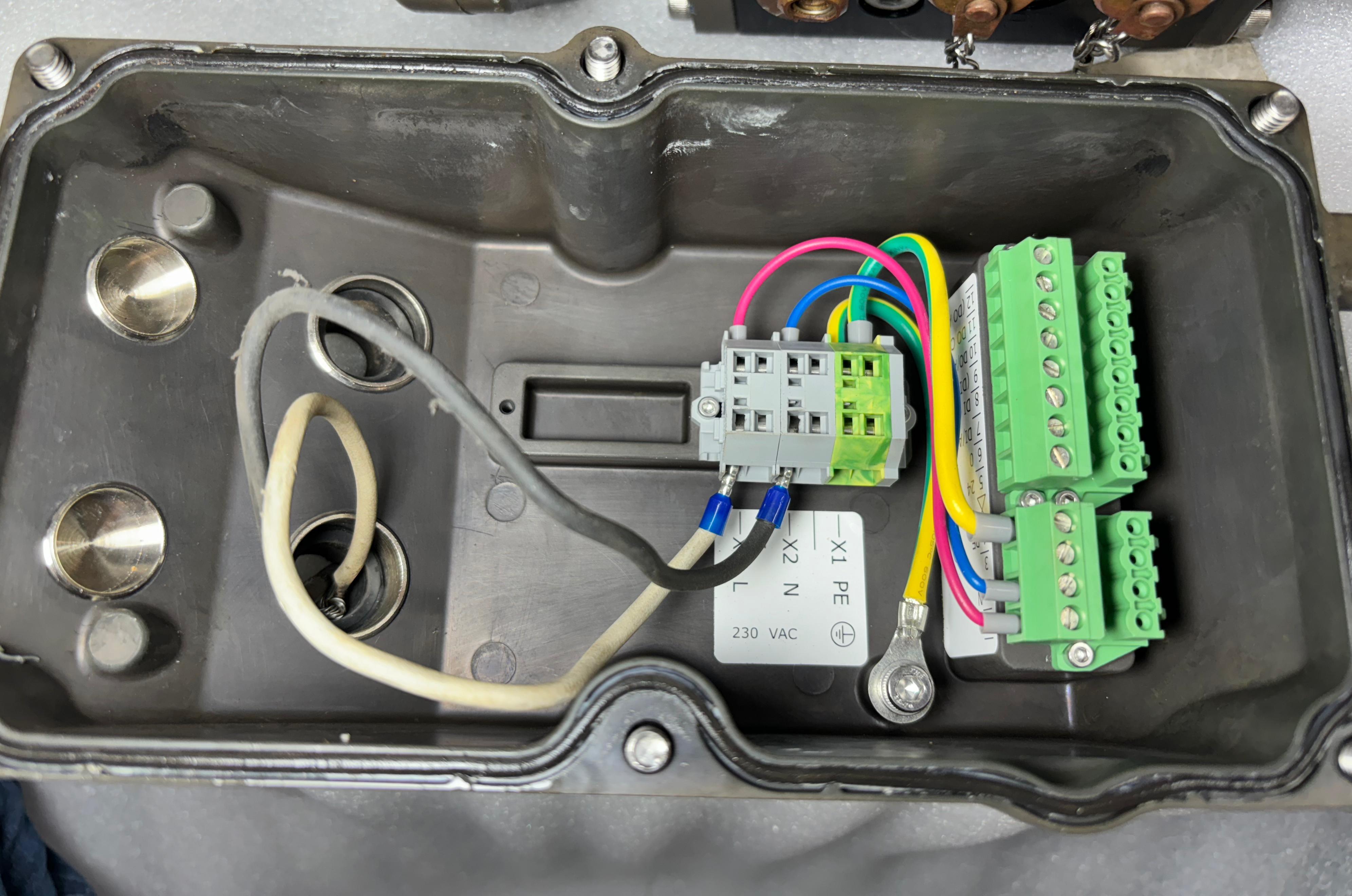

Power Supply: 230 VAC ±10% (3.2 A @ 20°C)

Ambient Temp: -5°C to +70°C

Protection Class: IP66 & IP68 (3 bar / 24h)

Test Pressure: 225 BAR

Working Pressure: 135 BAR

Hydraulic Oil: ISO VG 32 (Standard)

---

 DPI-E Feedback Unit:

Function: ON/OFF signal position indication

Compatible With: VRCS systems

Sensor Type: Electrical Position Feedback

---

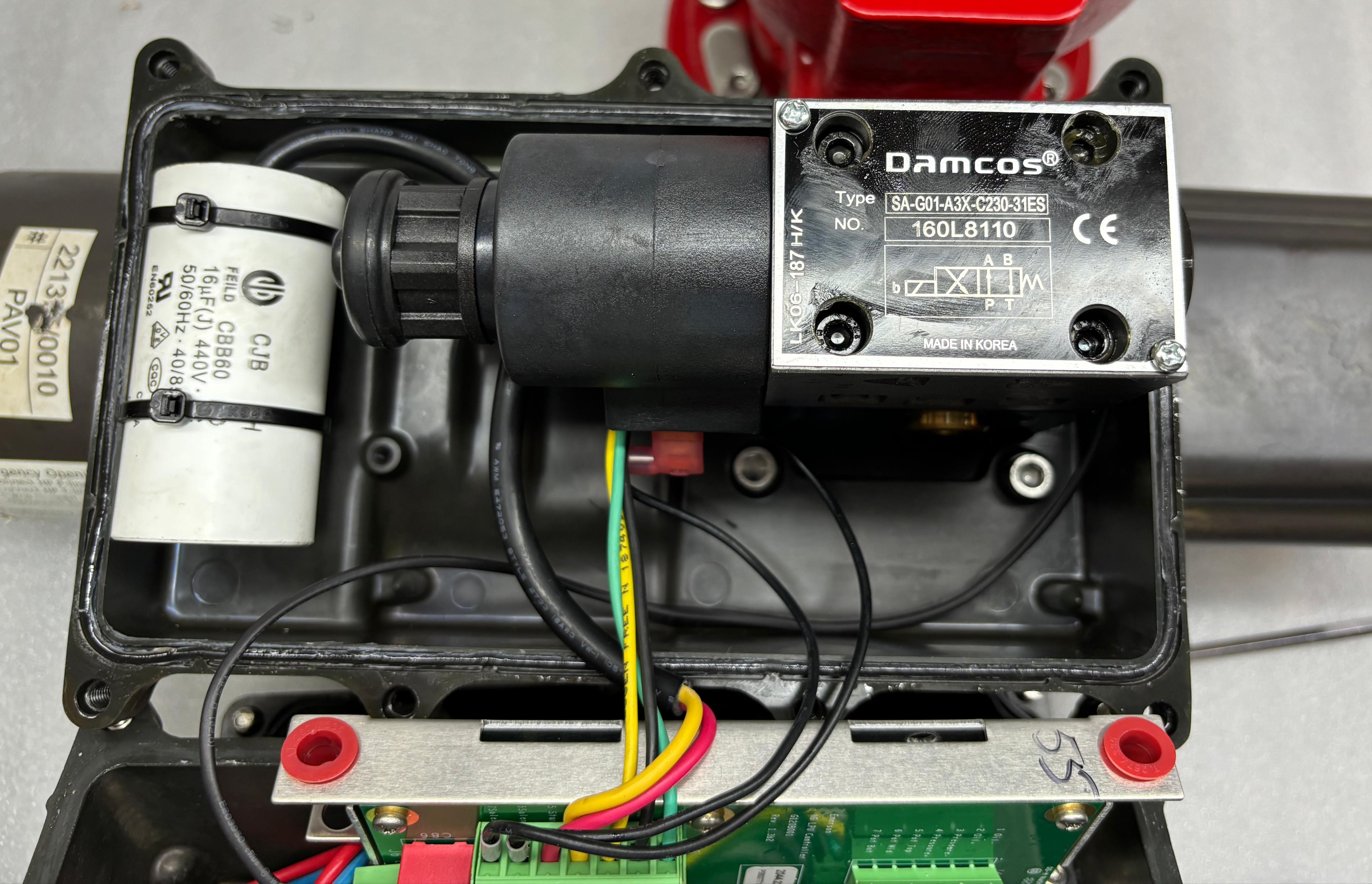

 Solenoid Valve:

Model: SA-G01-A3X-C230-31ES

Part No: 160L8110

Type: Solenoid valve for directional control

Voltage: 230V AC

Manufacturer: DAMCOS / DANFOSS

---

 Key Product Features:

Complete plug-and-play actuator & LPU setup

Springless double-acting actuator with direct-mount power unit

DPI-E feedback for reliable ON/OFF valve position indication

Highly resistant to saltwater, vibration, and oil exposure

Suitable for shipboard deck & engine room automation

Low maintenance, durable marine-grade construction

Supplied globally with support from Gani Marine

---
