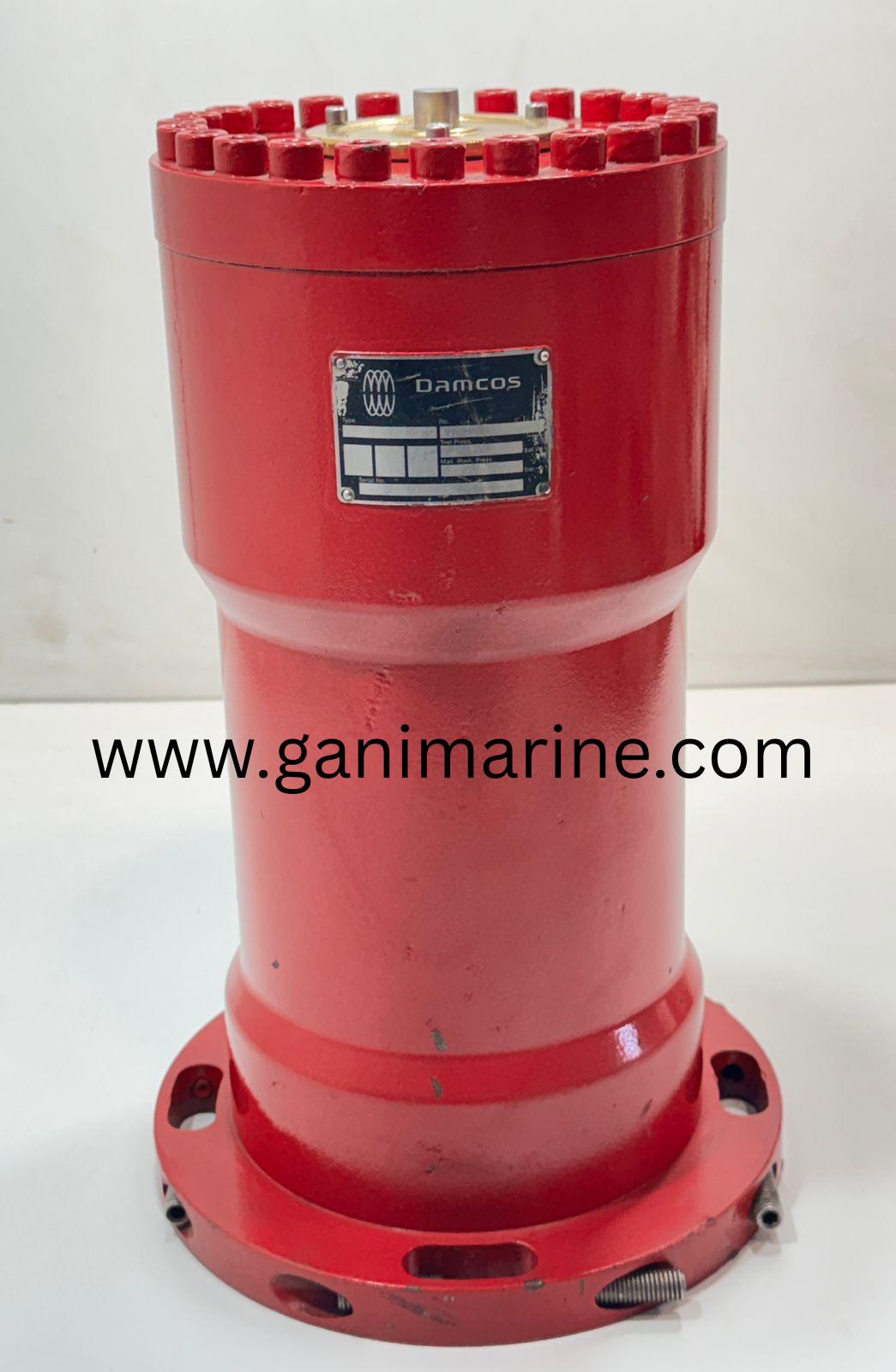

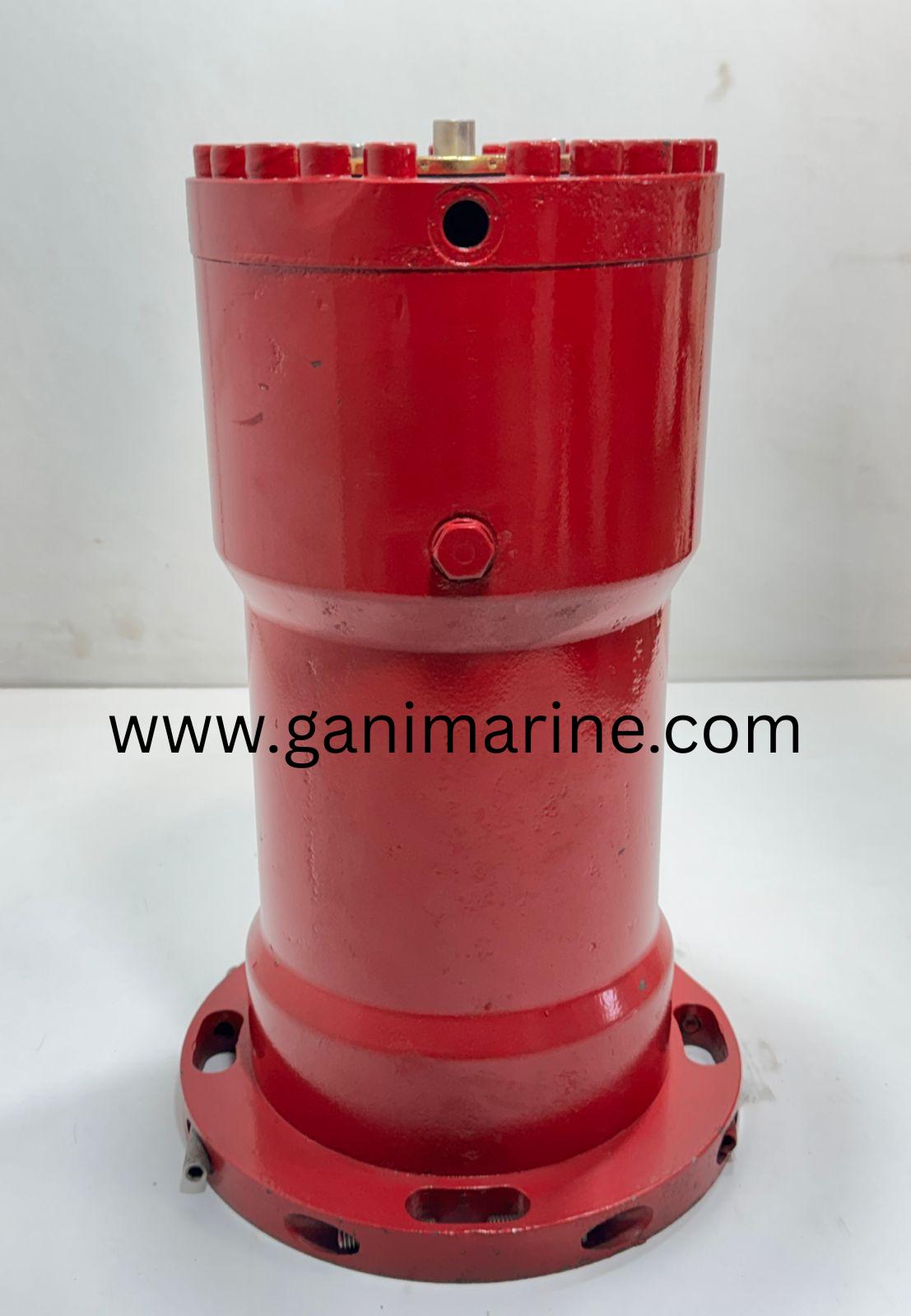

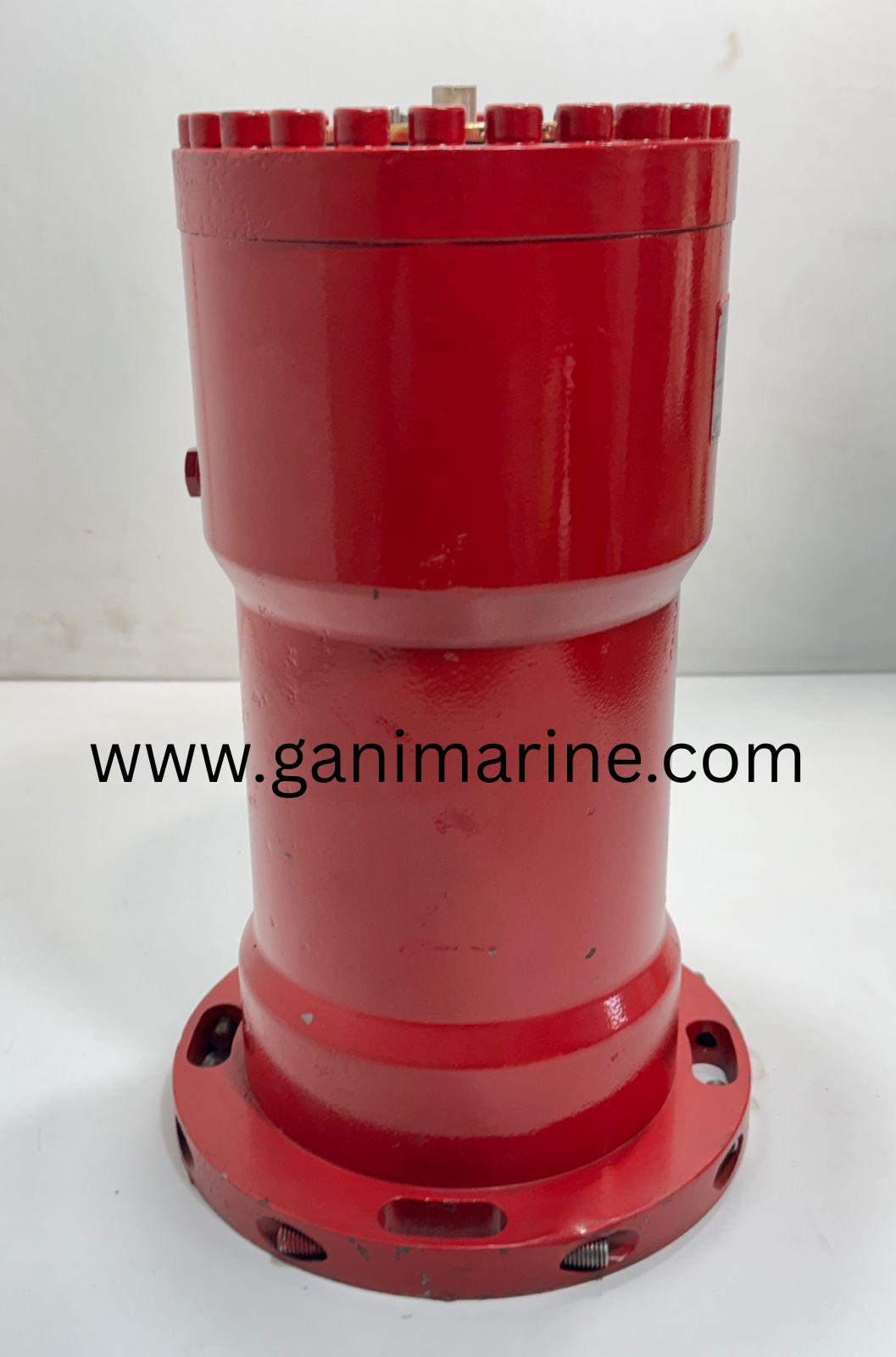

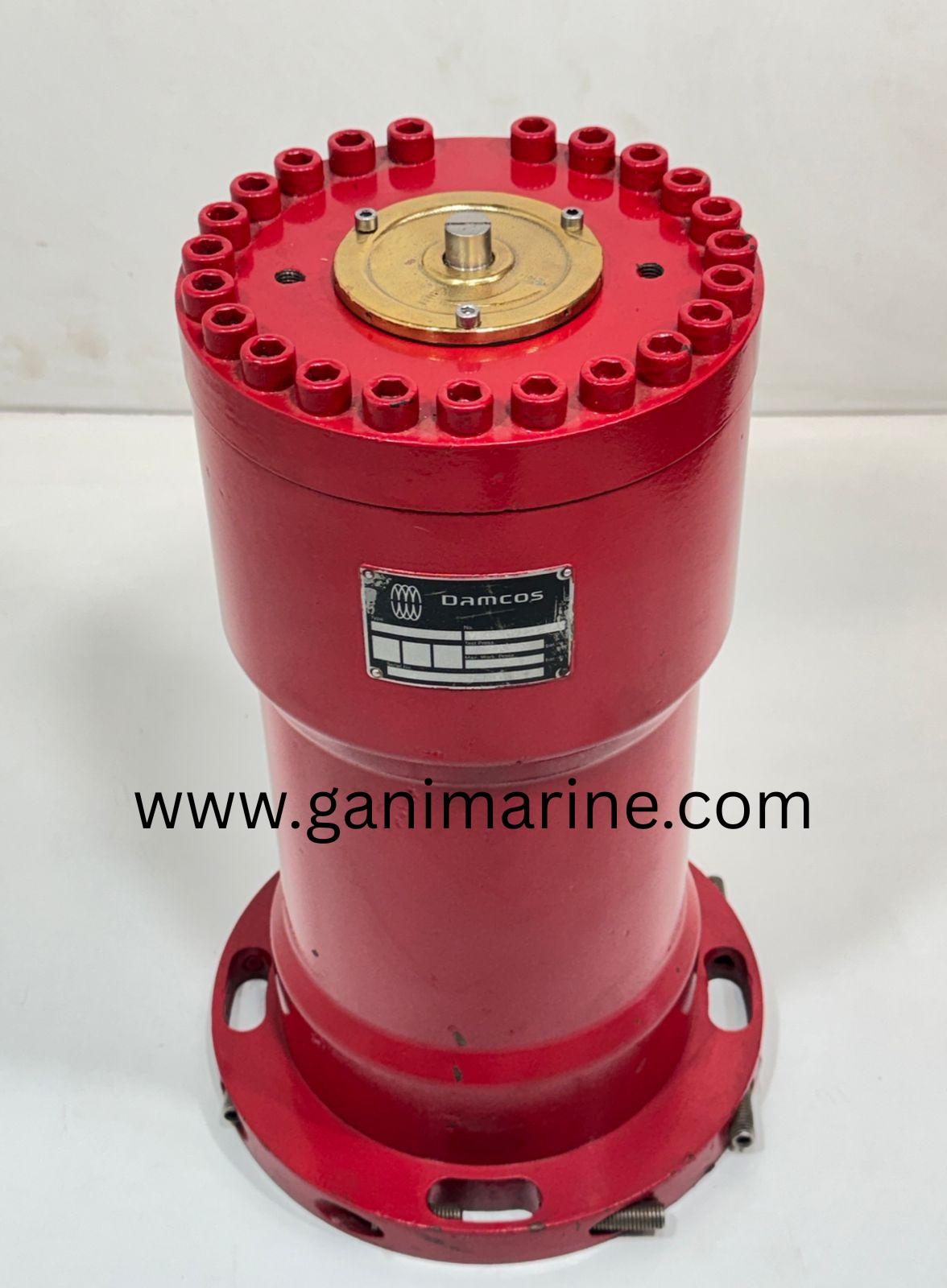

DAMCOS / DANFOSS BRCF 032-B1 Hydraulic Single-Acting Balanced Rotary Actuator 160N4011
DAMCOS / DANFOSS BRCF 032-B1 Hydraulic Single-Acting Balanced Rotary Actuator 160N4011
The Danfoss / Damcos BRCF 032 B1 (Part No. 160N4011) is a hydraulic single-acting balanced rotary actuator designed for 90° quarter-turn valve operation with fail-safe spring return. It is widely used in marine, offshore, and industrial valve automation systems where safety and reliability are critical.
Key Specifications

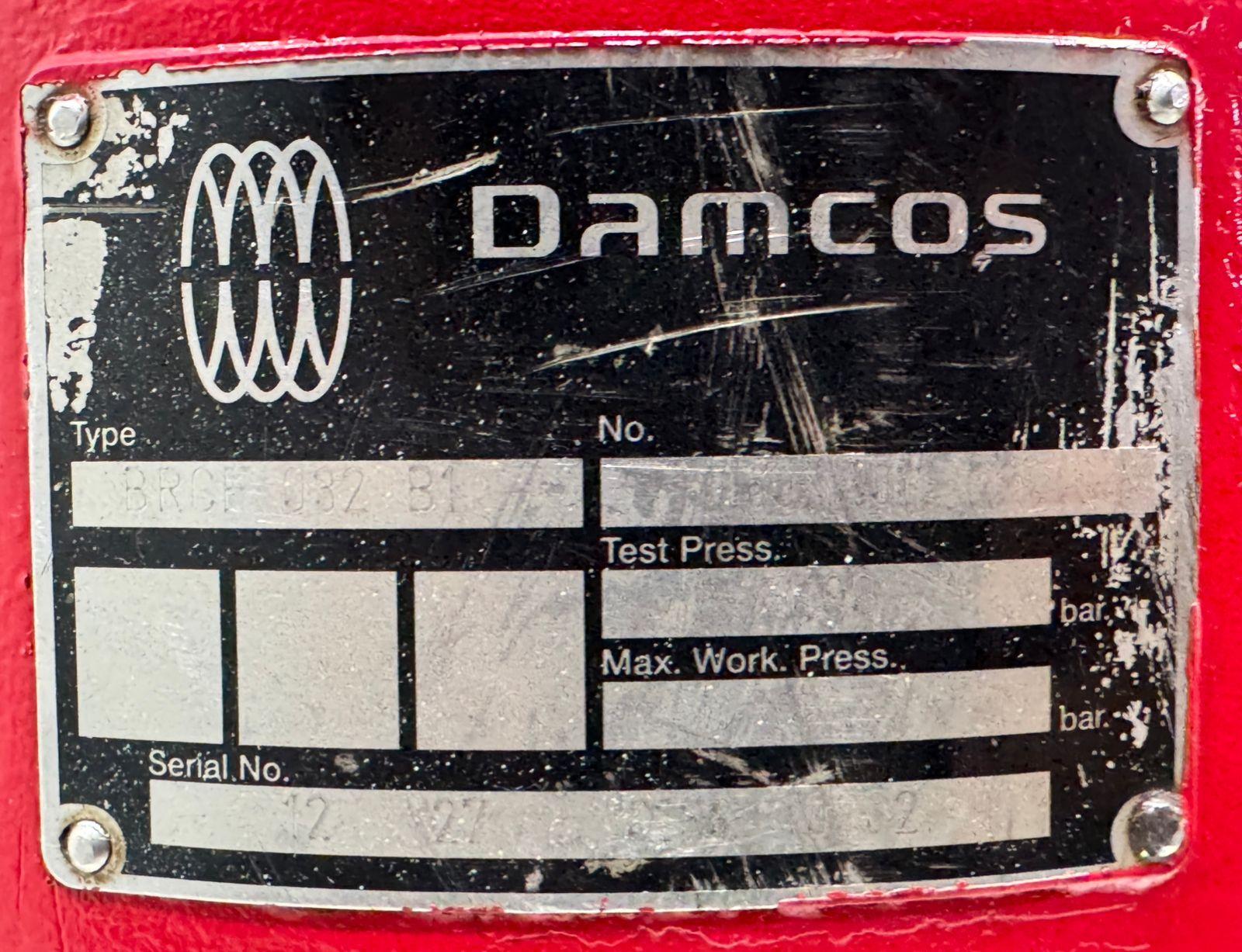

• Model: BRCF 032 B1
• Part Number: 160N4011
• Type: Single-acting (spring return) hydraulic actuator
• Rotation: 90° ±1°
• Max Working Pressure: 115 bar
• Test Pressure: ~180 bar
• Burst Pressure: 590 bar
• Oil Displacement: 1039 cm³
• Weight: 76.5 kg (incl. mounting set 16.5 kg)
• Temperature Range: -20°C to +80°C
• Hydraulic Media: Mineral oil (15–200 cSt)
Working Principle
• Hydraulic pressure is used to open the valve
• Internal spring mechanism ensures automatic closing (fail-safe)
• Balanced rotary design reduces side load on valve stem
• Helical spline converts linear piston movement into rotary motion
Key Features
• Fail-safe spring return operation
• Balanced rotary mechanism for long valve life
• High torque output for heavy-duty valves
• Marine-grade corrosion-resistant construction
• Reliable in extreme offshore environments
• Compatible with control blocks and indicators (VPI systems)
• Easy maintenance with available seal kit (160N4260)
Applications (Where It Is Used)
• Ship ballast valve control systems
• Cargo oil valve automation
• Fuel oil and lube oil systems
• Seawater cooling systems
• Offshore oil & gas platforms
• FPSO and tanker valve systems
• Marine engine room piping systems
• Power plant valve automation
• Chemical processing plants
• Industrial hydraulic valve control
• Emergency shutdown (ESD) systems
• Pipeline flow control systems
Maintenance & Service Notes
• Use acid-free hydraulic oil (15–200 cSt)
• Apply Molycote lubrication for internal parts
• Pre-fill ~0.7 L gear oil before piston assembly
• Ensure proper indicator alignment with special tool
• Seal Kit Available: 160N4260 (complete O-ring & gasket set
