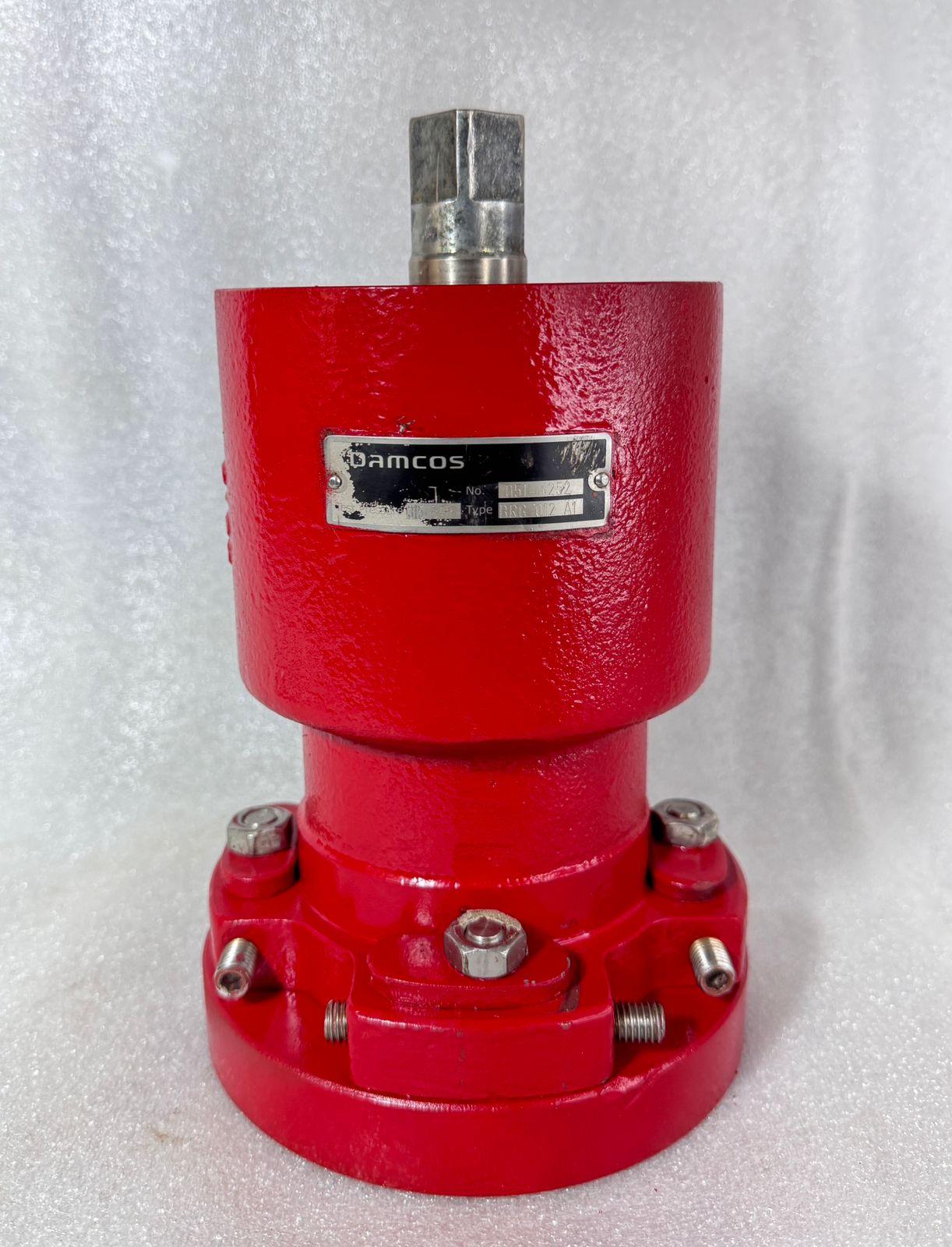

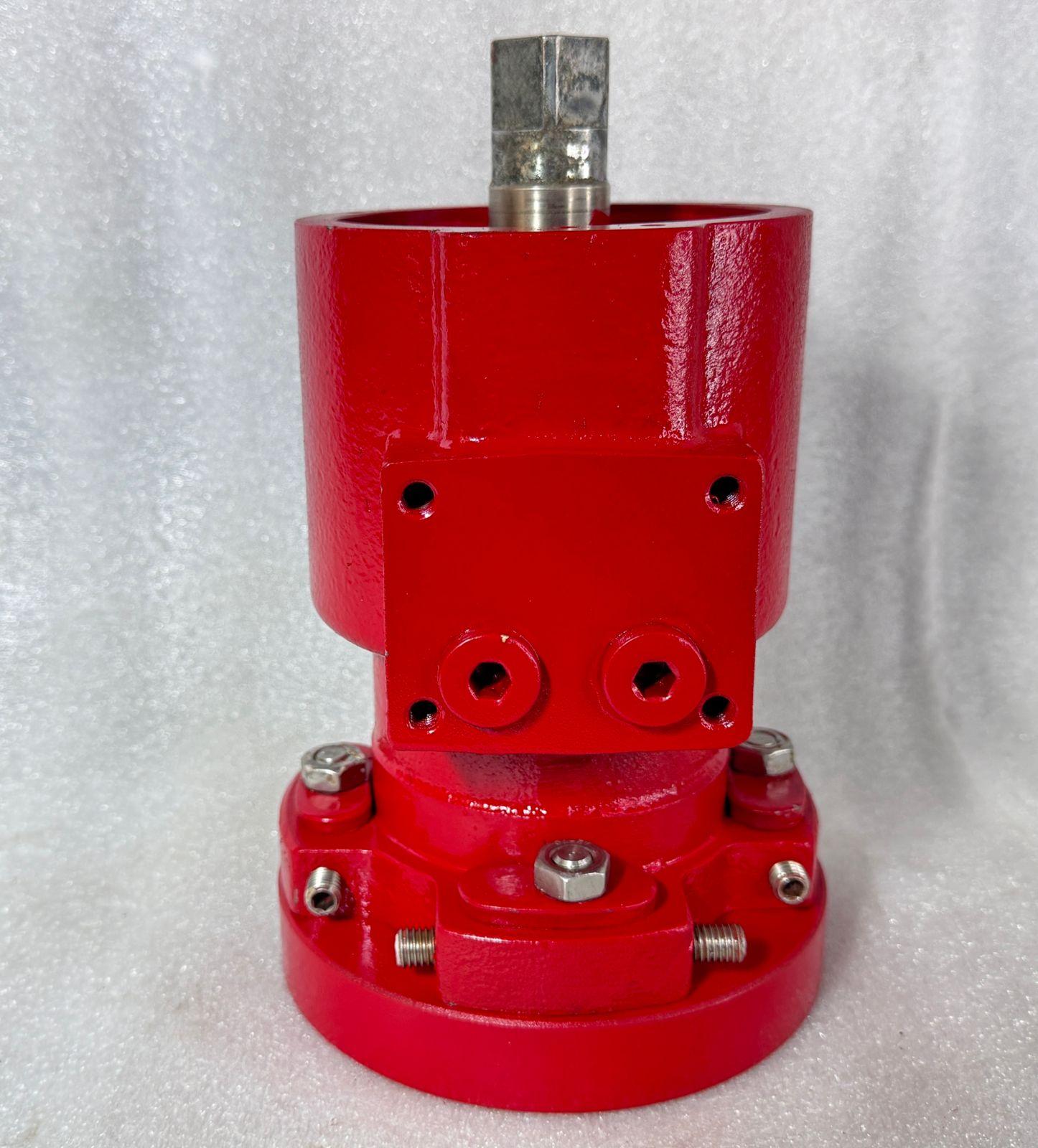

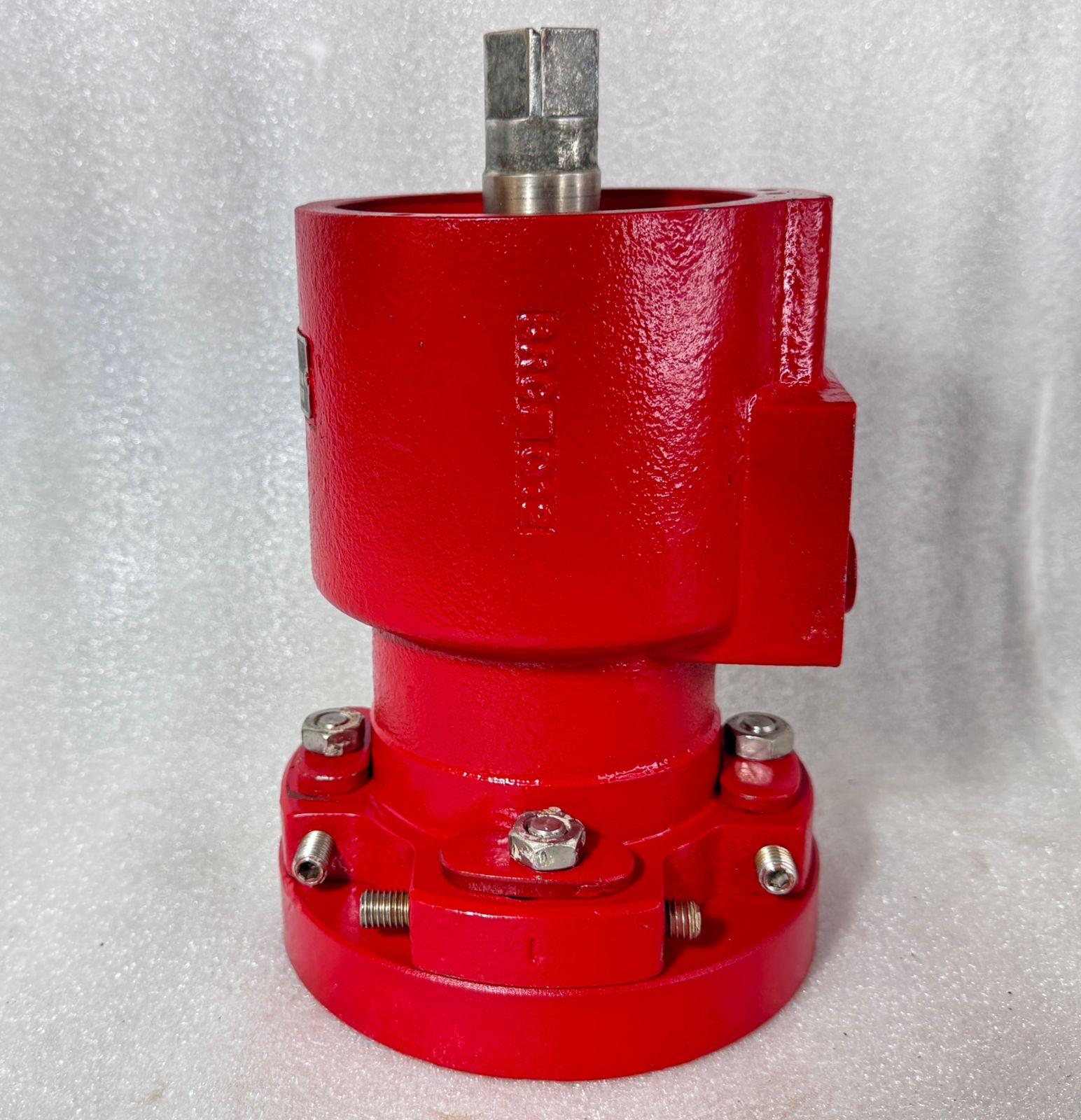

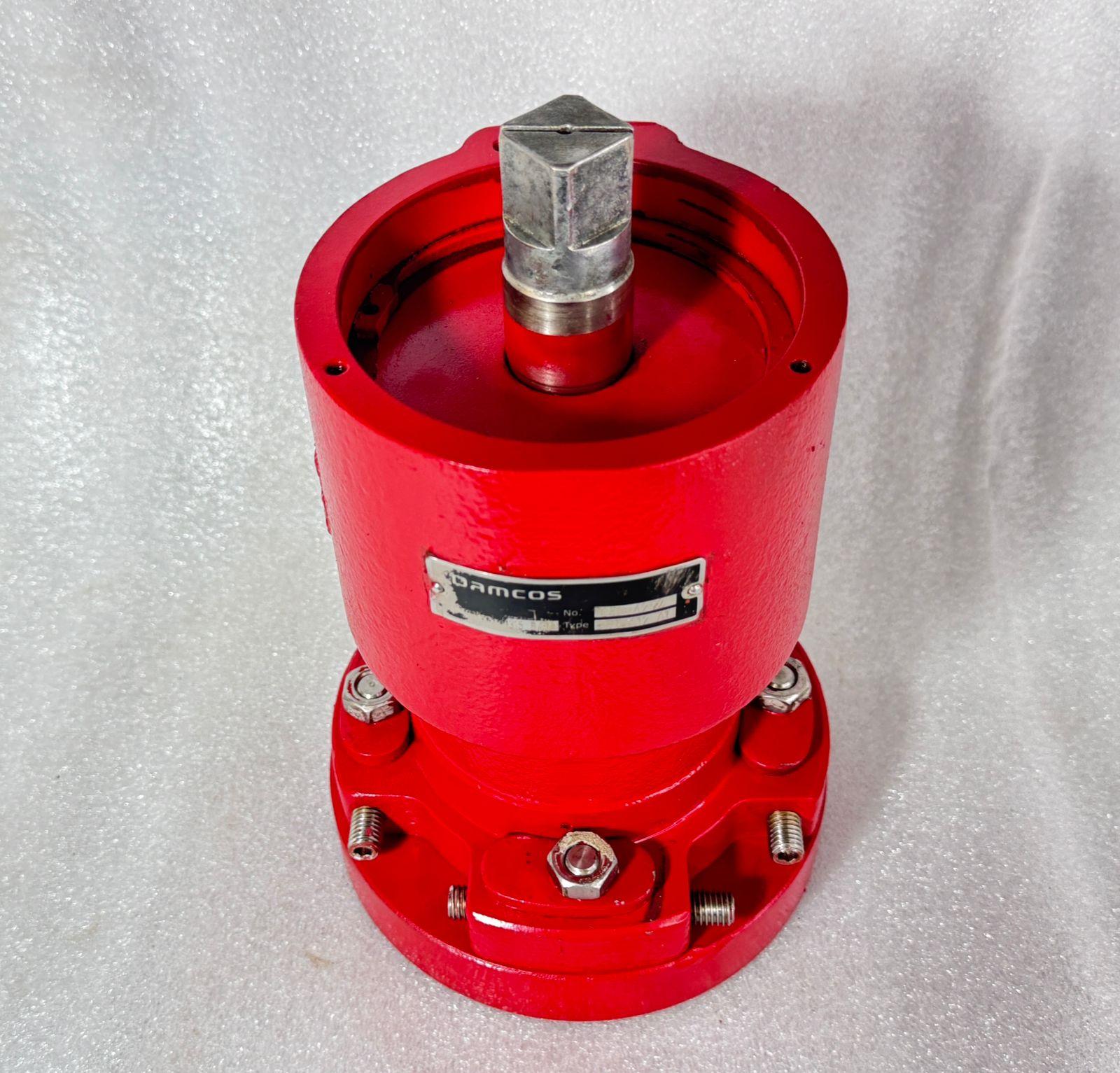

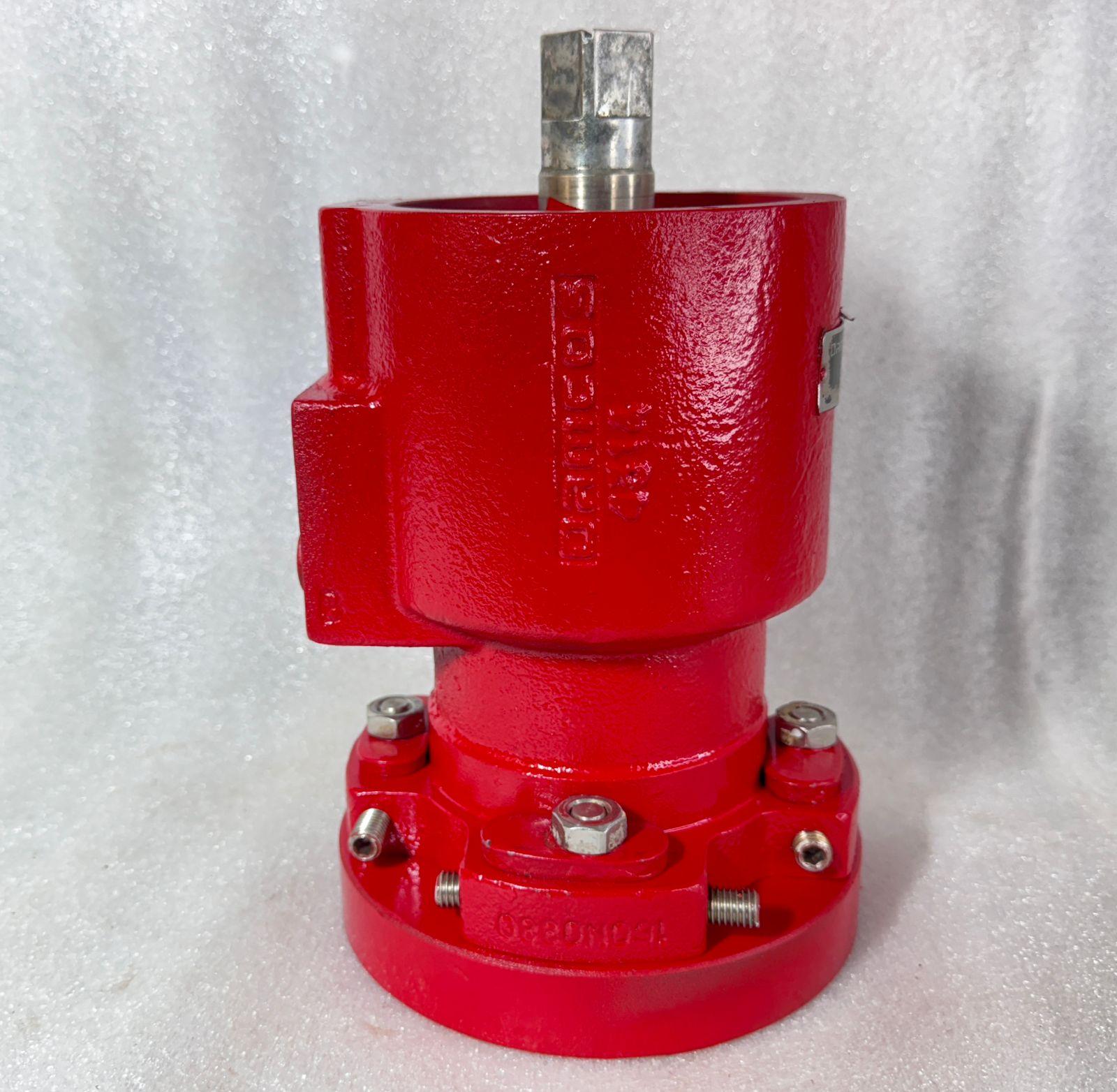

Damcos / Danfoss BRC 012 A1 Hydraulic Double-Acting Balanced Rotary Actuator 051-4252

The BRC 012 A1 is a compact yet high-performance Hydraulic Double-Acting Balanced Rotary Actuator developed by DAMCOS / DANFOSS / EMERSON, purpose-built for quarter-turn (90°) valve automation. Designed for marine and offshore use, it delivers precise torque in both rotational directions with a rugged build and a test pressure rating of 315 BAR.

Ideal for Valve Remote Control Systems (VRCS), this actuator (Part No: 051-4252 | Serial No: 96 51 147 0093) is trusted in ships, tankers, FPSOs, and industrial automation. Gani Marine ensures rapid global delivery and expert support for all BRC hydraulic actuator requirements.

---

 Technical Specifications:

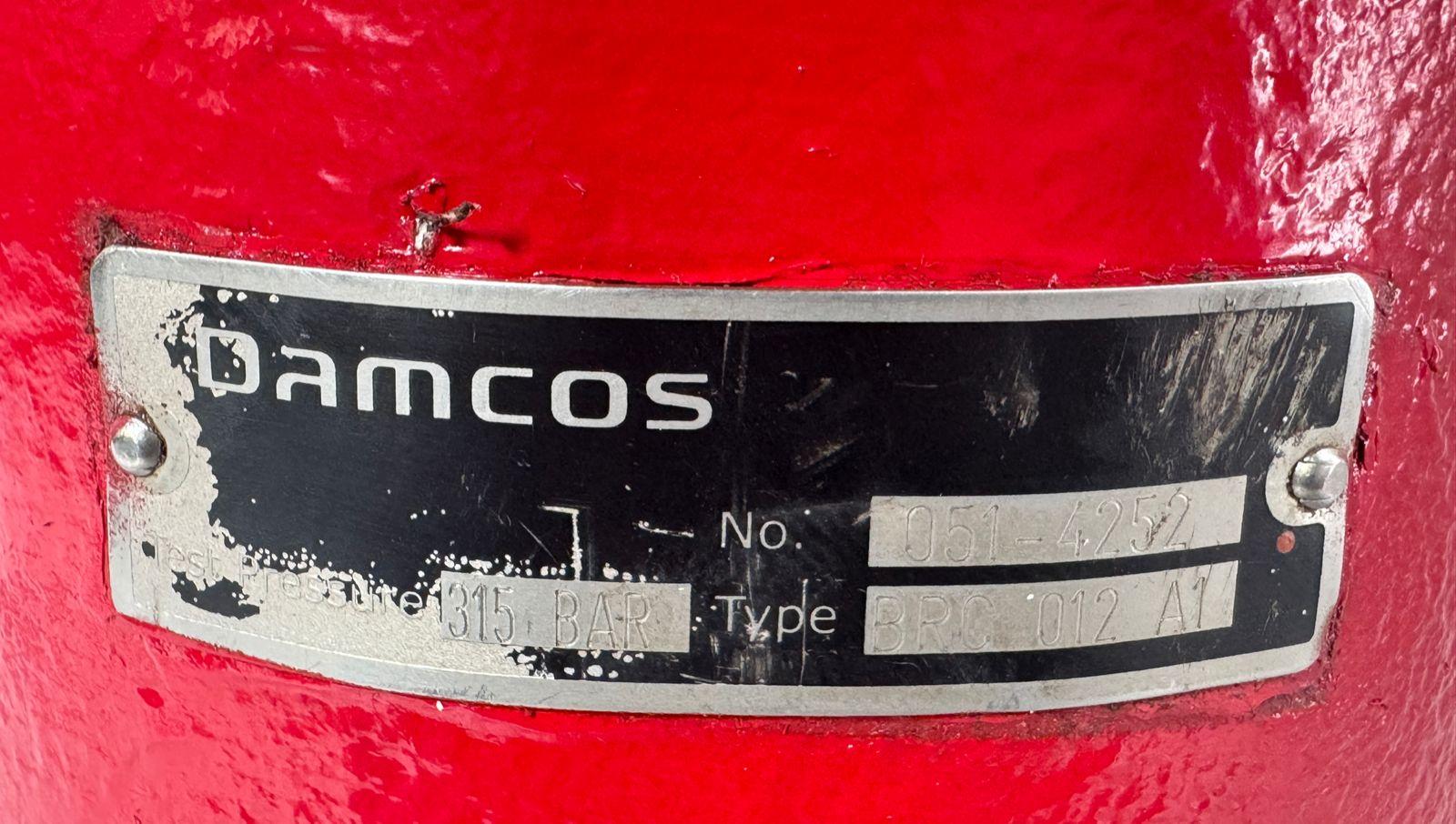

Model: BRC 012 A1

Part Number: 051-4252

Serial Number: 96 51 147 0093

Type: Hydraulic Balanced Rotary Actuator

Design: Double-Acting

Rotation: 1/4 Turn (90 Degrees)

Test Pressure: 315 BAR

Operating Medium: Hydraulic Oil

Material: Marine-grade corrosion-resistant

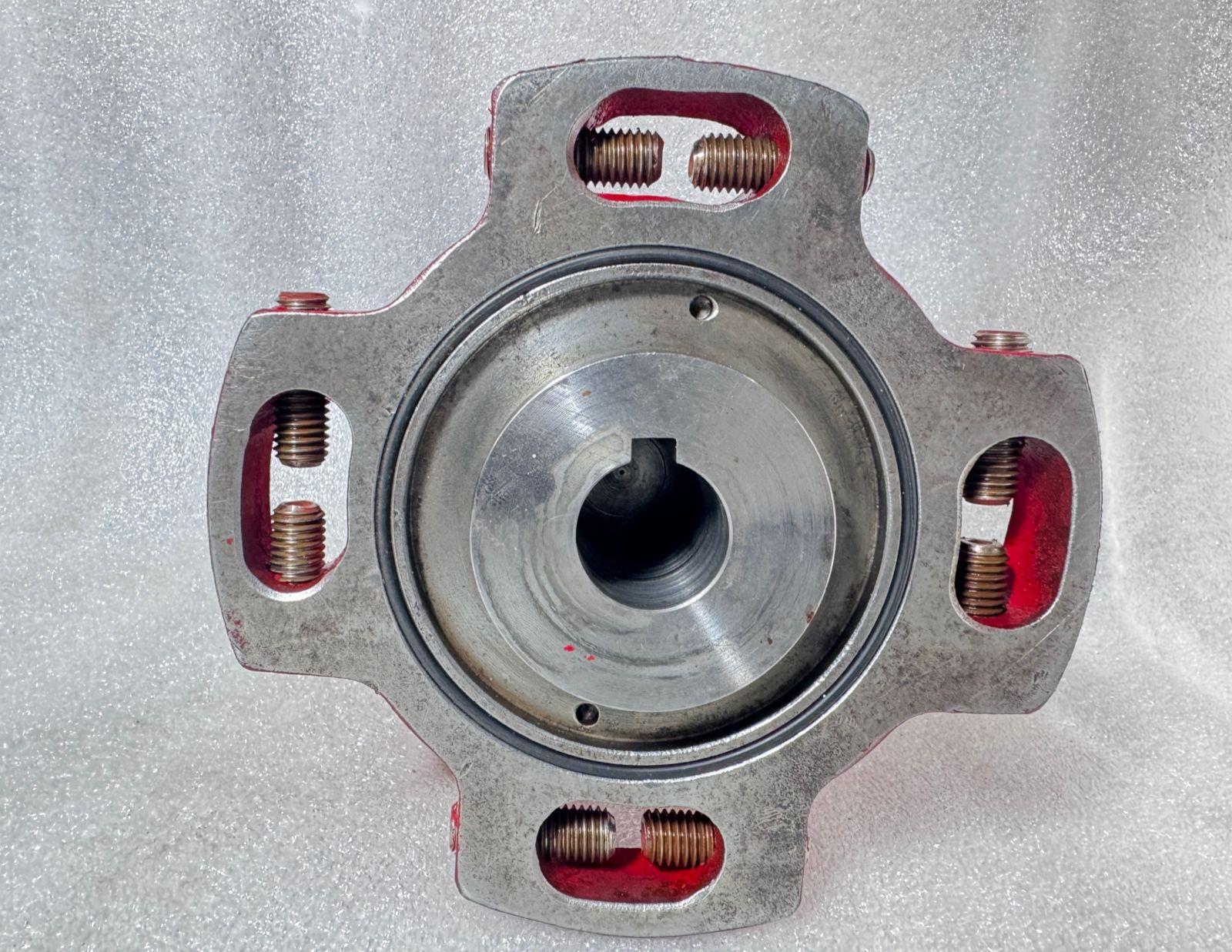

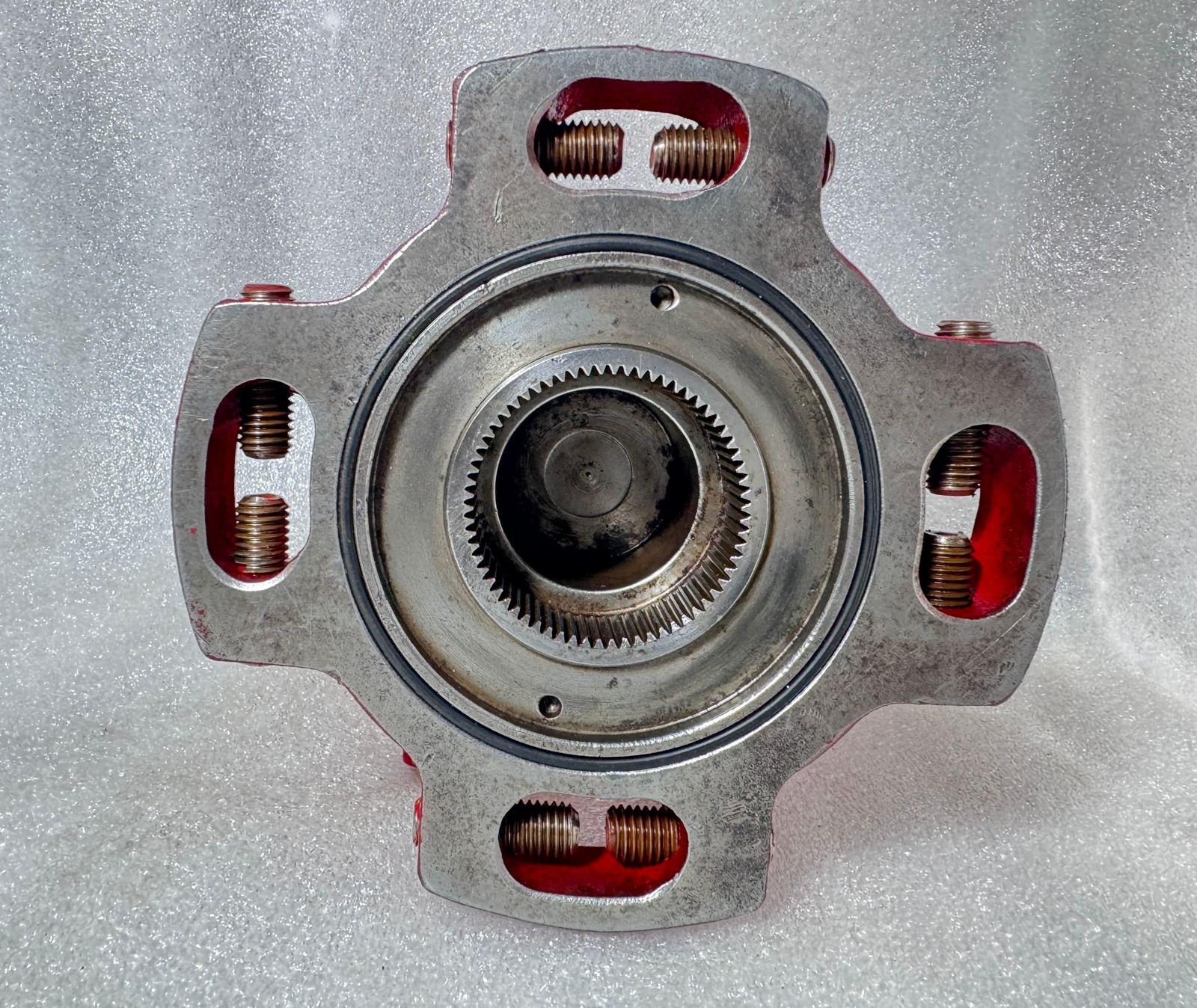

Mounting: Flanged (ISO compatible)

Brand: DAMCOS / Danfoss / Emerson

---

 Applications:

Marine Valve Automation Systems

Offshore Platforms & FPSOs

Engine Room Ball & Butterfly Valve Control

Chemical and Oil Refinery Hydraulic Systems

Shipbuilding, Ship Repairs, Vessel Retrofitting

Emergency Valve Shut-off Systems (ESD)

Tanker Cargo Valve Control

---

 Product Features:

Double-acting balanced torque output

Designed for precise 90° valve actuation

High-pressure operation up to 315 BAR

Durable housing for harsh marine conditions

Compatible with Damcos control setups and VRCS

Easy integration and low maintenance design

Reliable for continuous and emergency use

---

 Export & Global Delivery – Gani Marine

Gani Marine offers worldwide supply of BRC actuators with full technical support and export documentation:

 Asia: India, Singapore, UAE, Qatar, Saudi Arabia, Oman, China, South Korea, Japan, Malaysia, Indonesia, Vietnam, Philippines, Thailand

 Europe: Germany, Denmark, UK, Netherlands, France, Italy, Spain, Greece, Norway, Turkey

 Americas: USA, Canada, Brazil, Mexico, Argentina

 Africa: Egypt, Nigeria, South Africa, Ghana, Kenya

 Oceania: Australia, New Zealand
