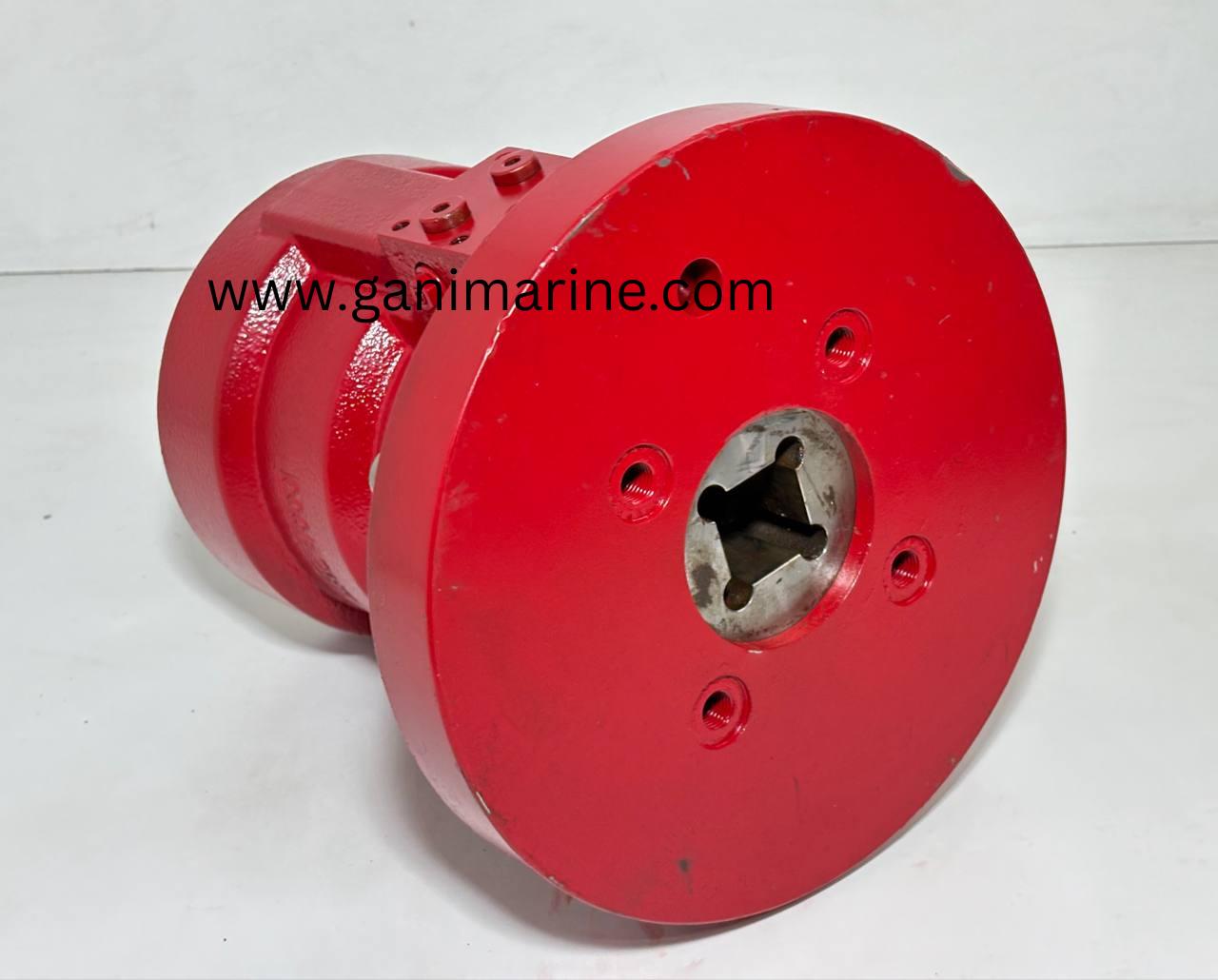

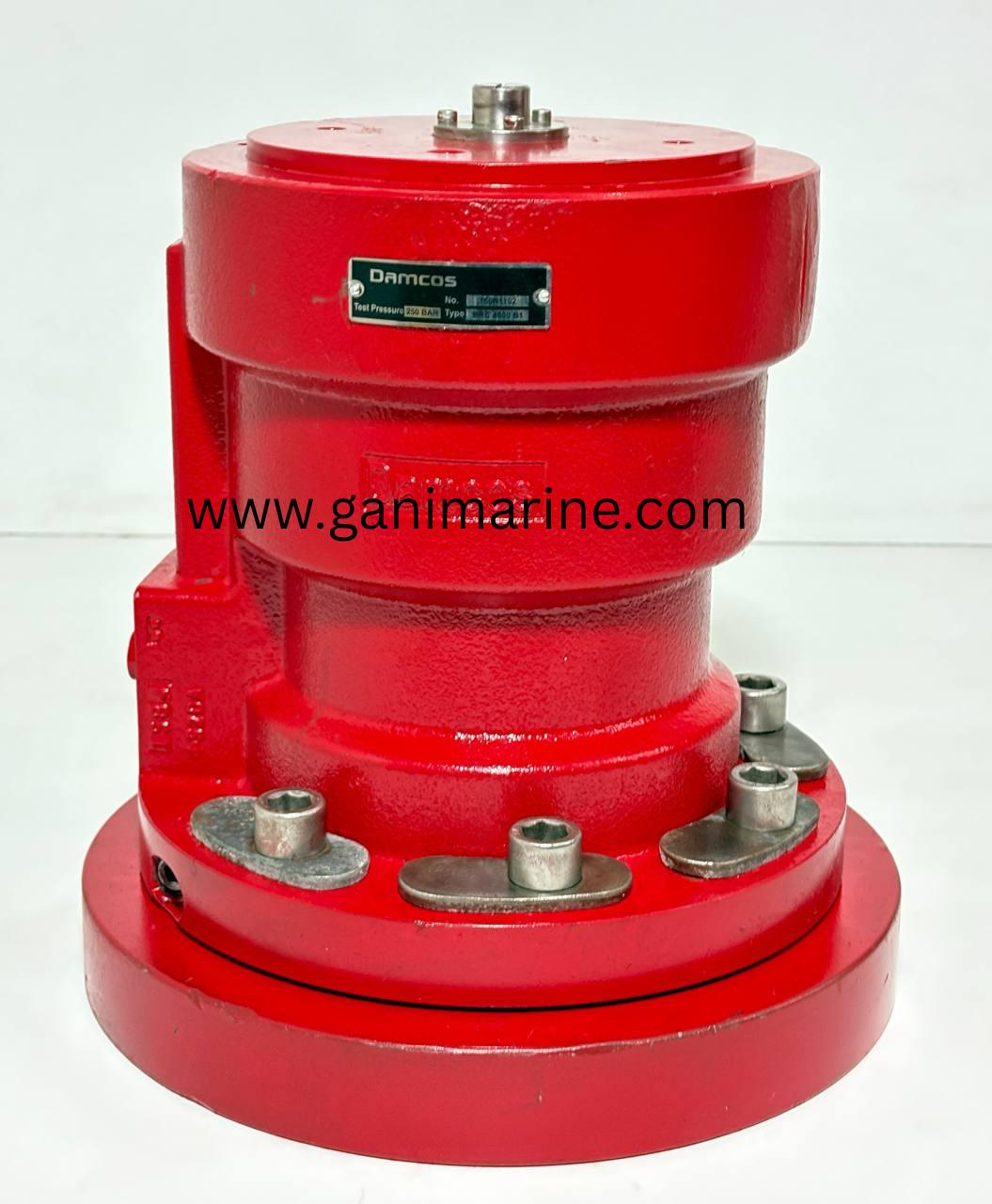

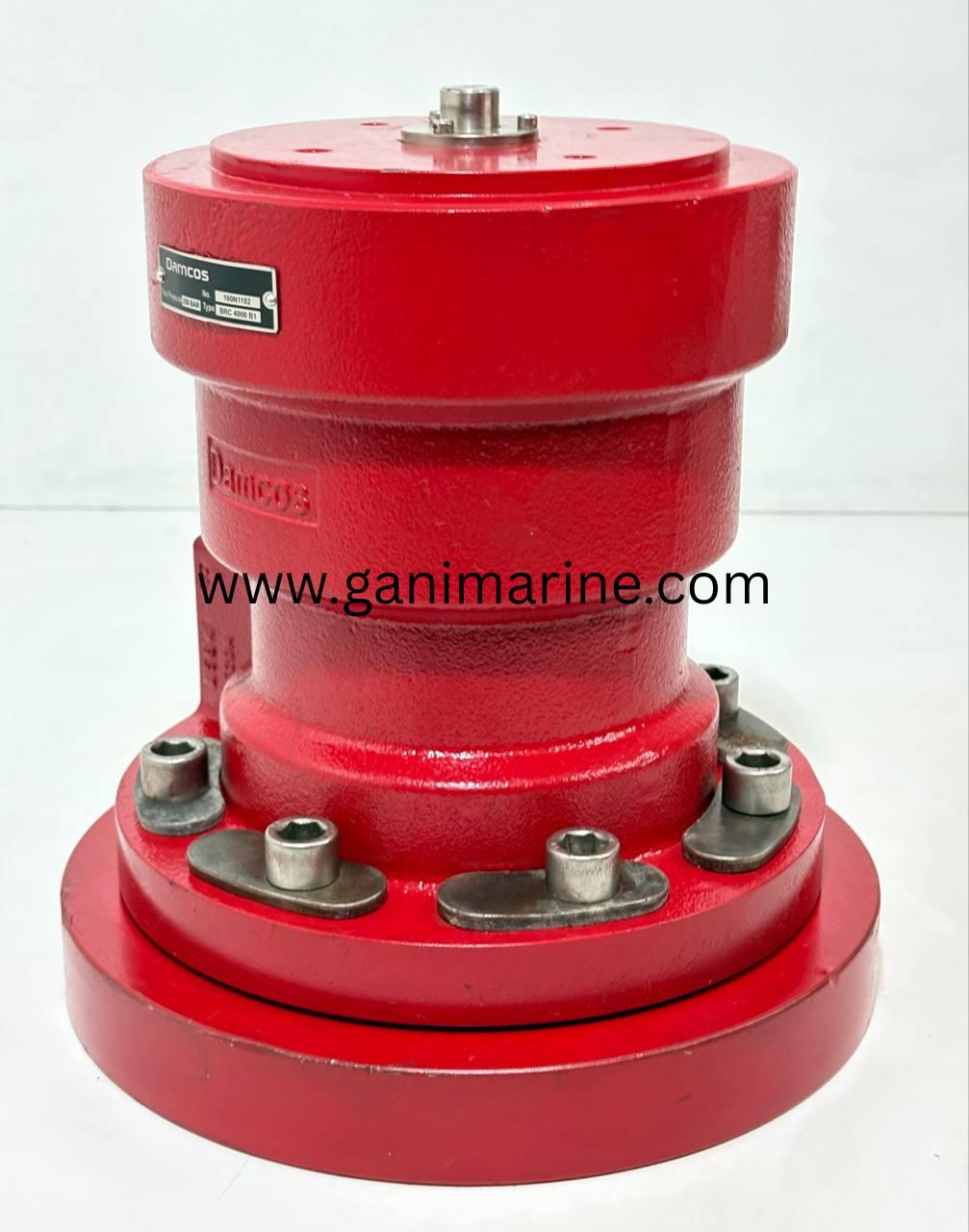

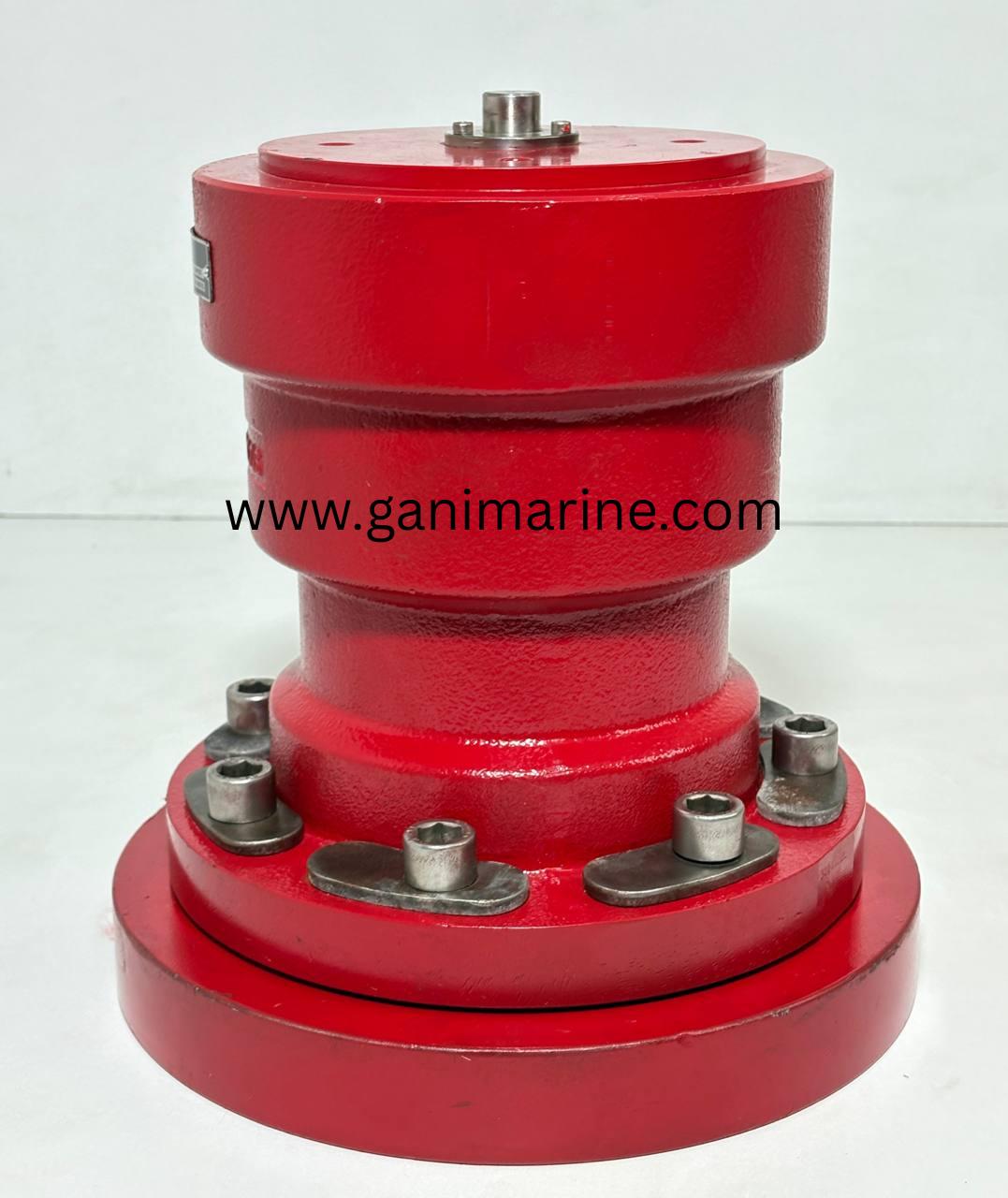

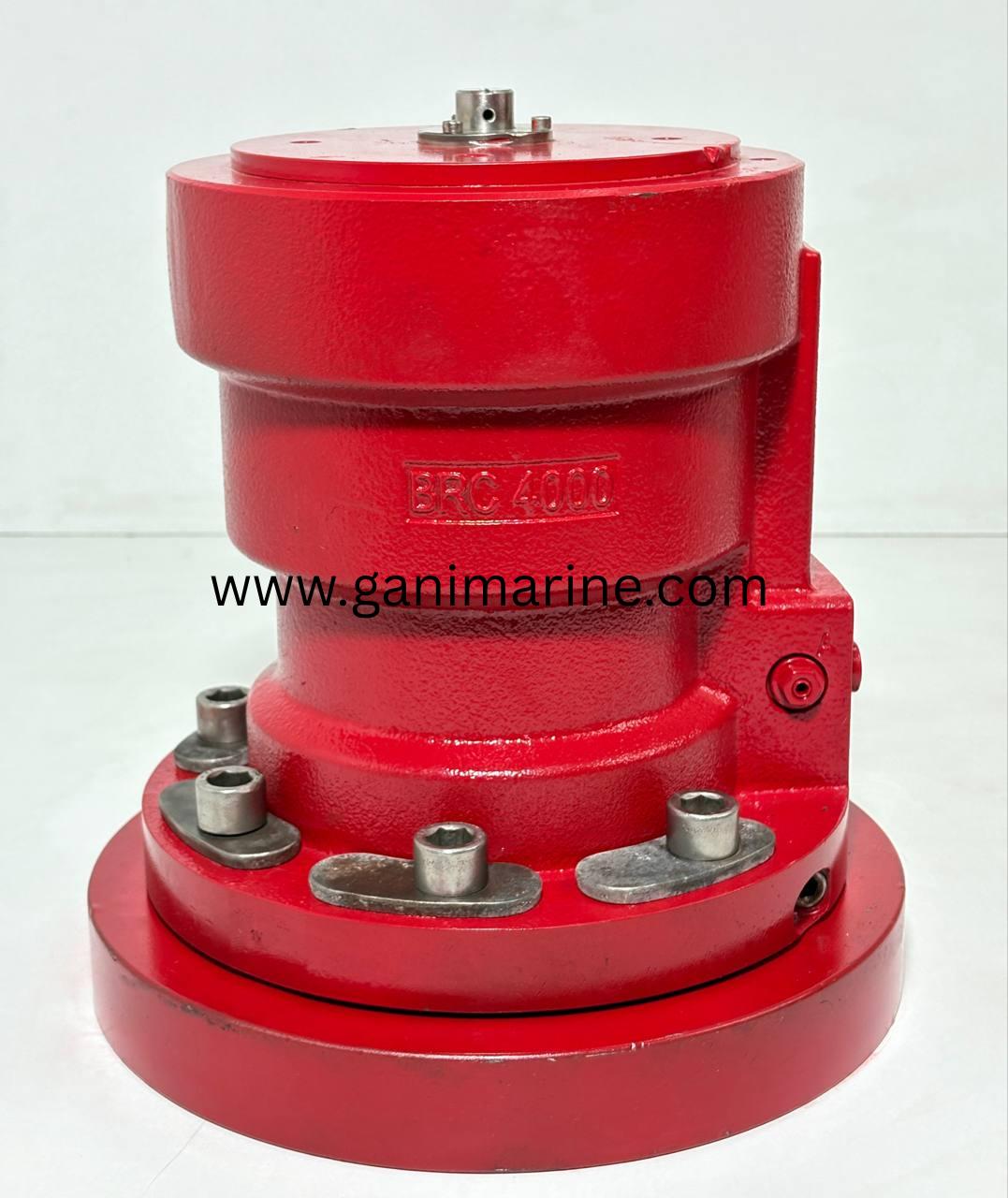

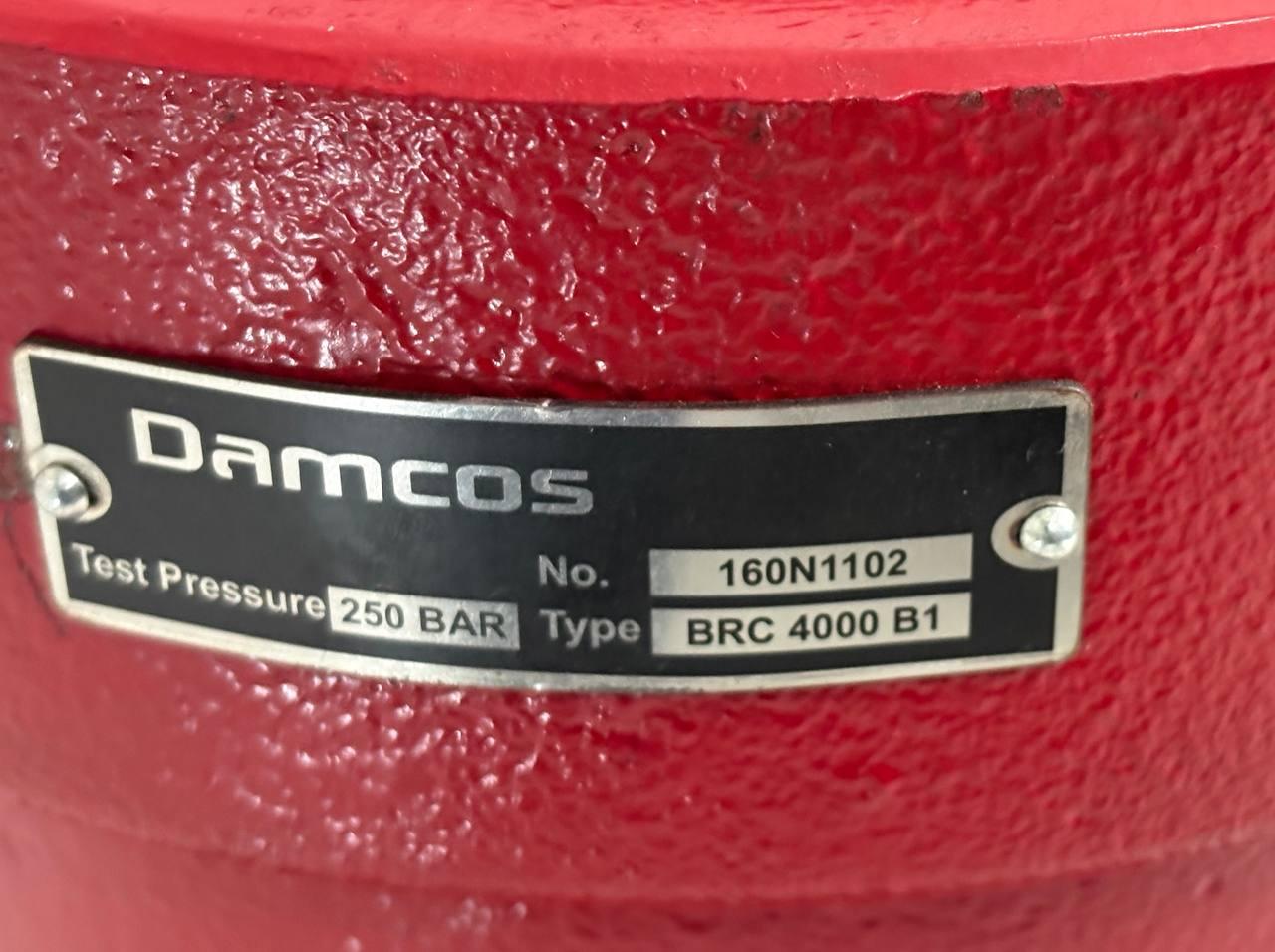

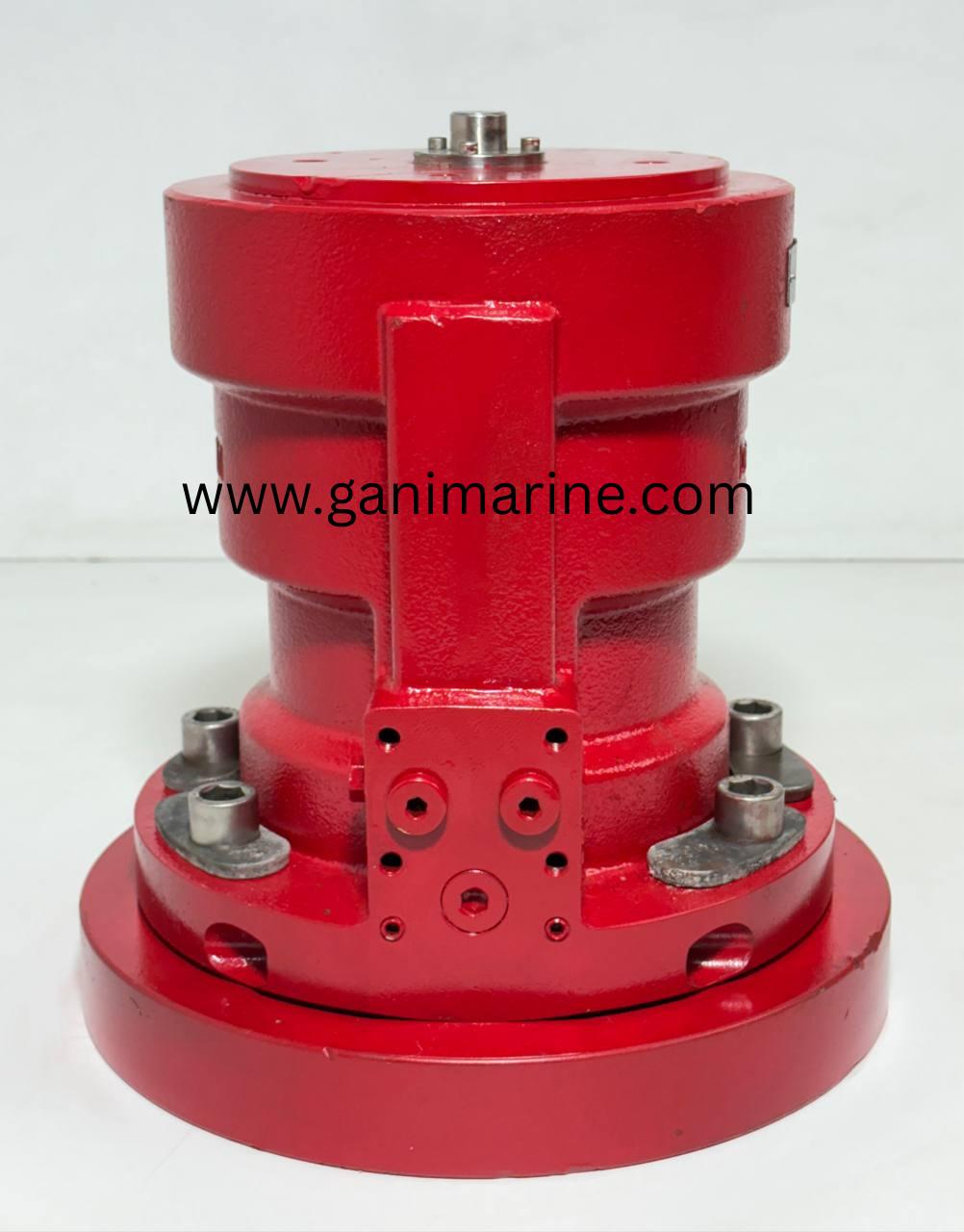

Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102
Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102

Damcos BRC 4000 B1 Hydraulic double-acting balanced rotary actuator 90o 160N1102

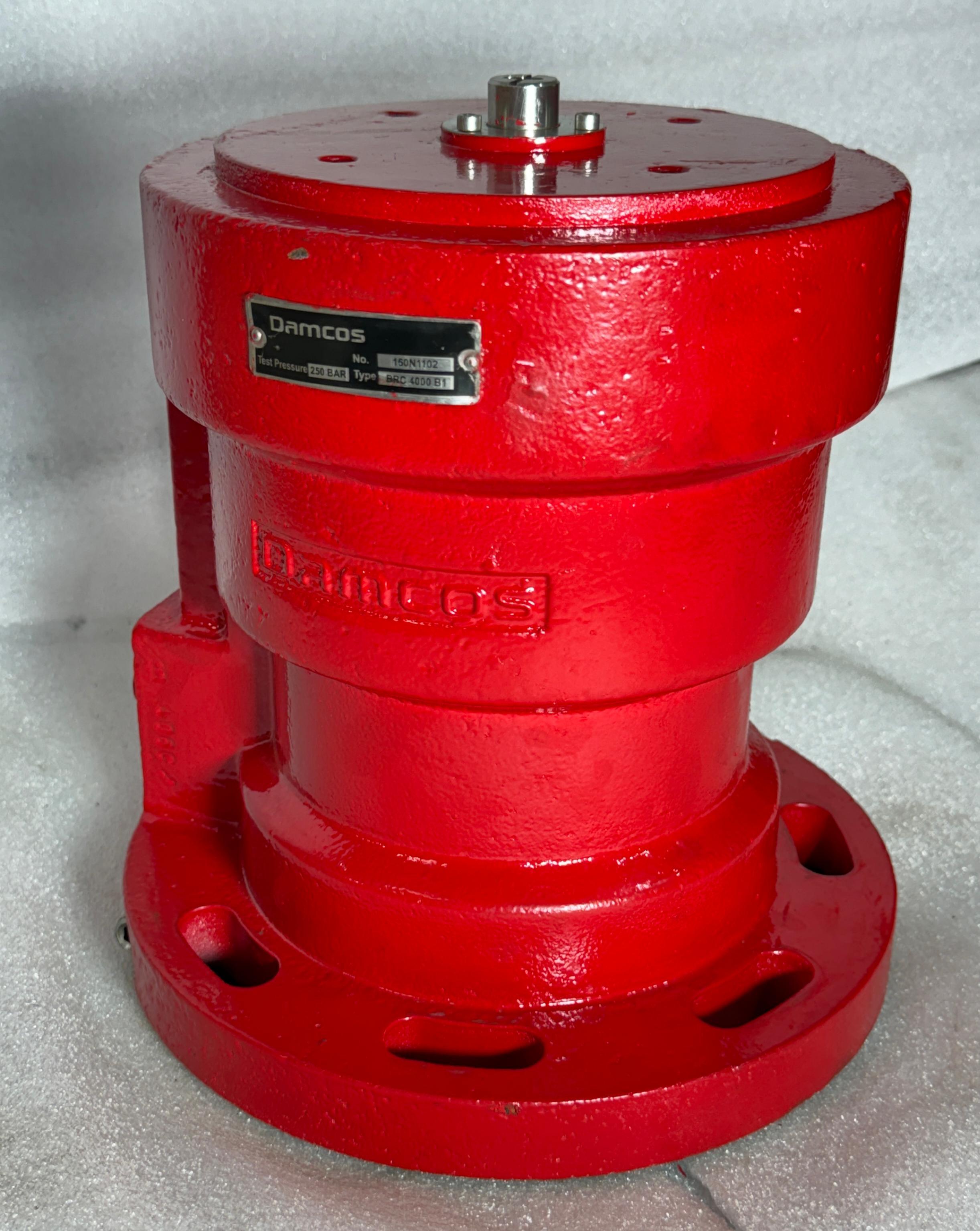

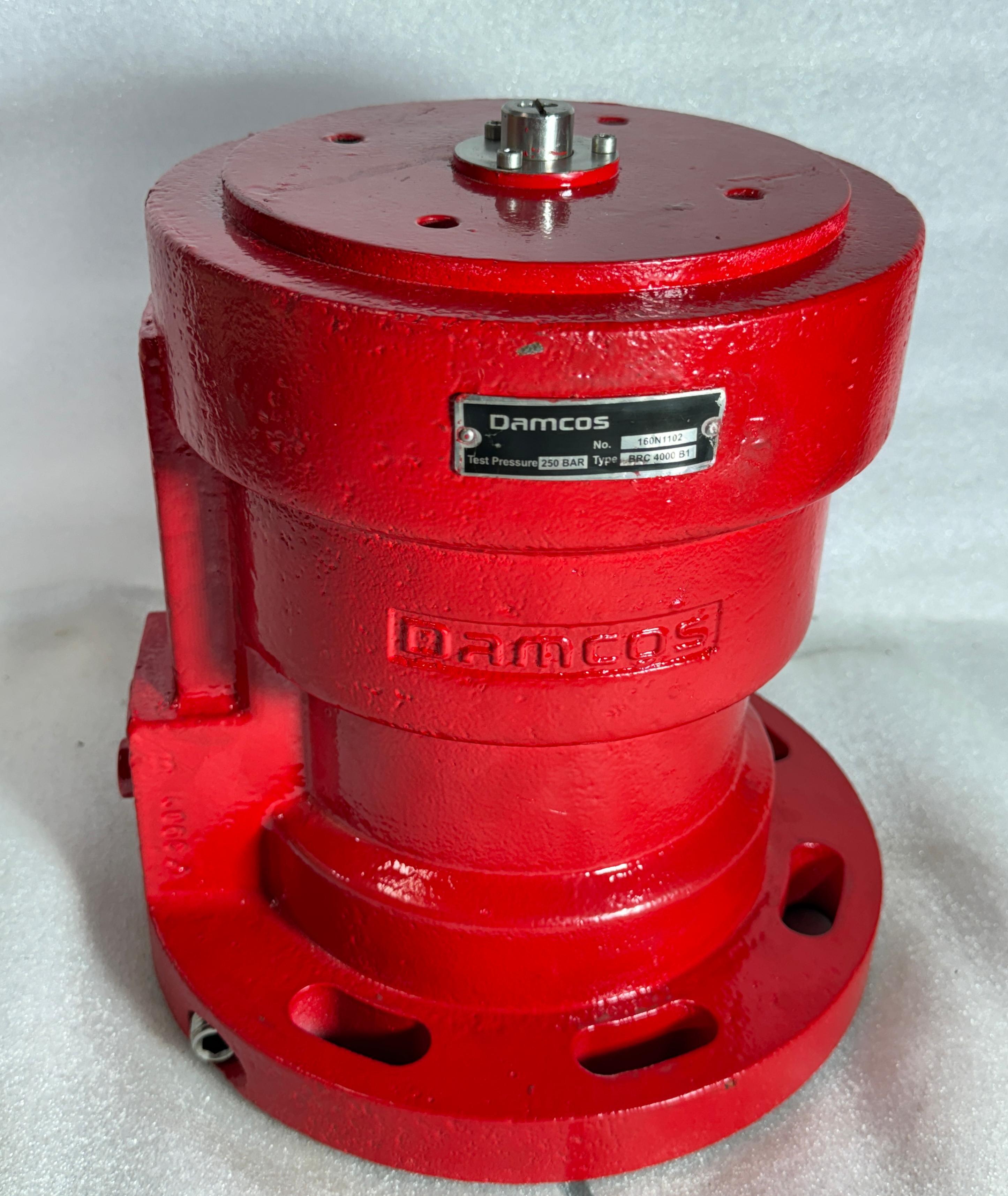

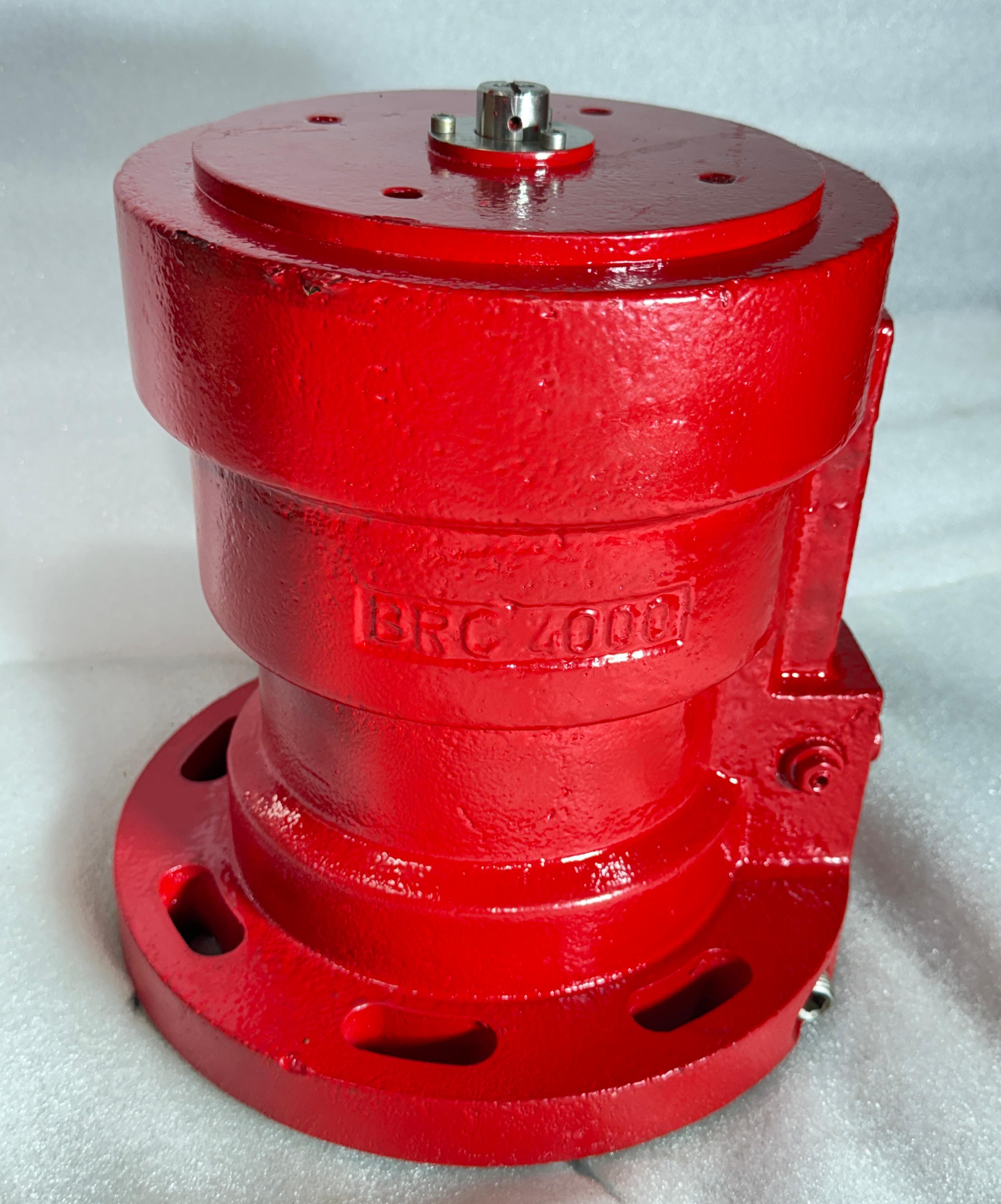

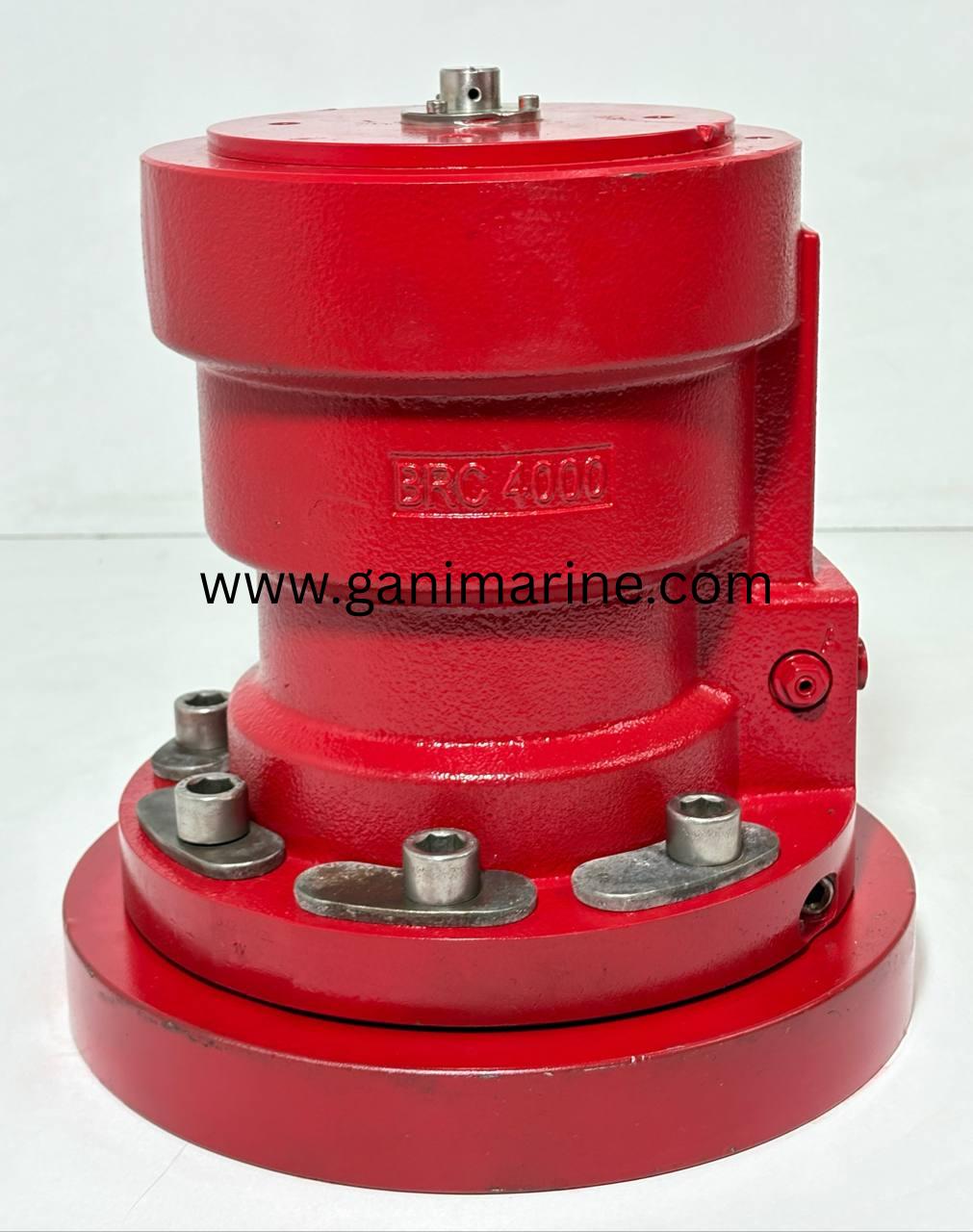

The DAMCOS BRC 4000 Hydraulic Actuator is a high-torque, double-acting balanced rotary actuator designed for precise 90° valve movement in marine and offshore hydraulic systems.
Built for reliability, corrosion resistance, and pressure endurance, it performs efficiently at 135 bar working pressure and up to 675 bar burst pressure.
Available worldwide through Gani Marine Exporter, your trusted supplier for genuine DAMCOS / Danfoss marine actuators and valve control solutions.


Technical Specifications

• Type: Double-acting balanced rotary actuator, quarter-turn (90°)
• Model: BRC 4000
• Working Pressure: 30 to 135 bar (recommended)
• Burst Pressure: 675 bar tested
• Oil Displacement: 0.800 liters per full stroke
• Rotation Angle: 90° ±1° (quarter-turn valve movement)
• Weight: 68.9 kg including mounting bracket
• Temperature Range:
?– Normal: –25°C to +80°C (NBR seal set)
?– High temperature: –20°C to +120°C (Viton seal set)
?– Low temperature: –45°C to +40°C (T.L.T. NITRIL seal set)
• Hydraulic Fluid: Acid-free mineral hydraulic oil, viscosity 15–200 cSt
• Material: Marine-grade alloy housing with corrosion-resistant coating
• Seal Options: NBR, Viton, or T.L.T. Nitrile depending on temperature range
• Manufacturer: DAMCOS (a Danfoss / Emerson brand)


Performance Overview

The DAMCOS BRC 4000 actuator is engineered for precision valve automation in marine and offshore applications.
It provides equal torque output during both opening and closing movements, ensuring balanced and accurate control.
Tested for burst pressures up to 675 bar, the unit offers exceptional reliability for heavy-duty hydraulic environments.

Its rugged construction and wide temperature tolerance make it ideal for shipboard valve control, offshore process systems, and industrial automation where continuous and accurate operation is required.


Applications

• Hydraulic valve control for ball, plug, and butterfly valves
• Marine hydraulic systems – ballast, fuel, and cooling water controls
• Offshore oil & gas platforms – remote-operated valve systems
• Ship repair and maintenance projects
• Hydraulic power units (HPU) and skid-mounted automation systems
• Industrial and process control plants requiring quarter-turn automation



Key Features

• Balanced double-acting rotary design ensures consistent torque and accuracy
• Compact and robust body for harsh marine or offshore conditions
• Standardized 90° operation suitable for all quarter-turn valves
• Temperature-flexible seal options for global environments
• Pressure-tested for safety and durability
• Compatible with Damcos valve control units, solenoids, and indicators
• Reliable performance and easy integration in hydraulic automation setups
• Factory-tested and certified by Danfoss / Damcos

Marine Hydraulic Use & Reliability

The DAMCOS BRC 4000 actuator is built to perform in extreme marine environments, offering reliable valve control under vibration, pressure, and temperature variations.
For ship operators, shipbuilders, and offshore service engineers, it provides long-term reliability, low maintenance, and compatibility with a wide range of Damcos hydraulic components.
