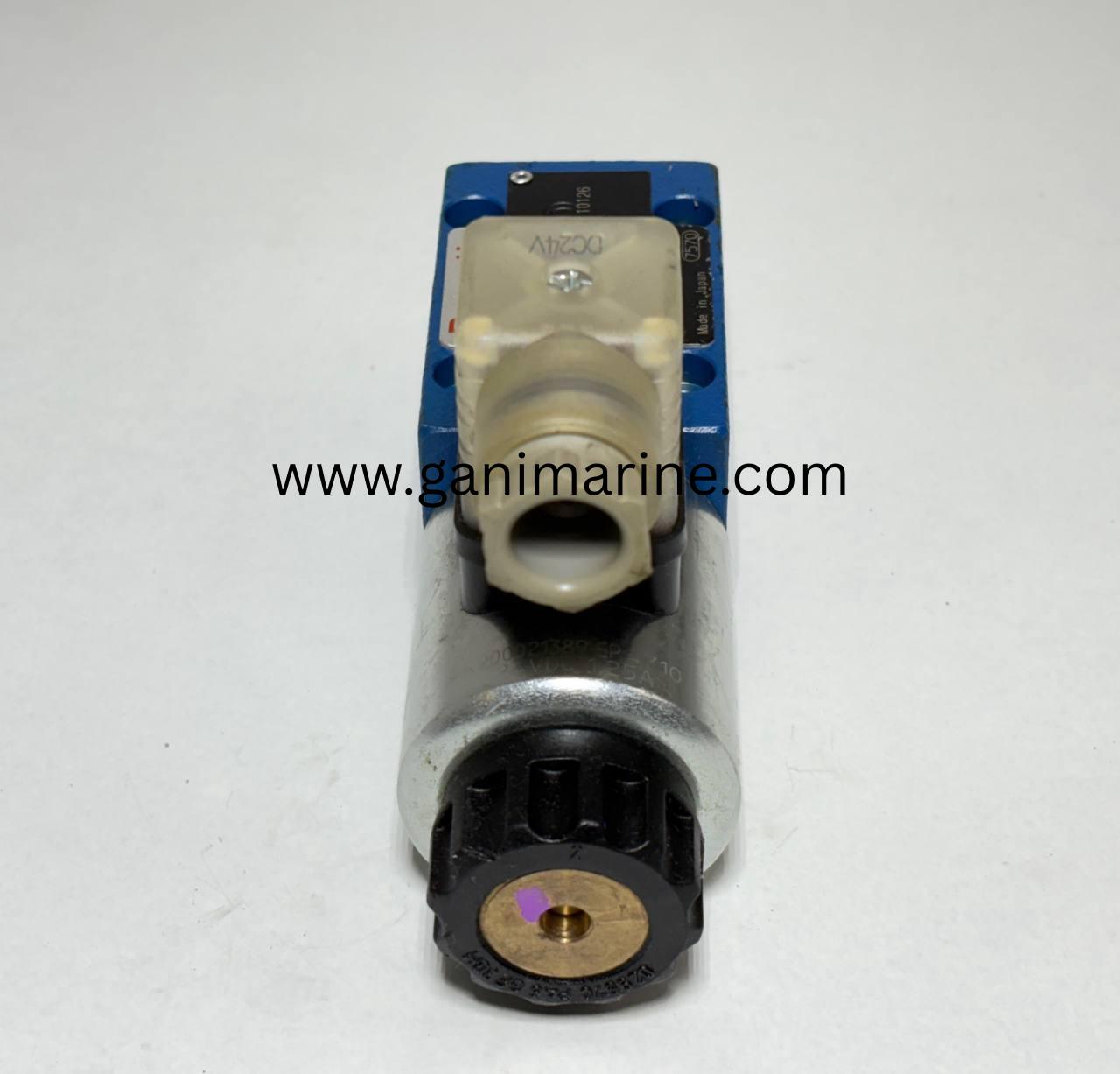

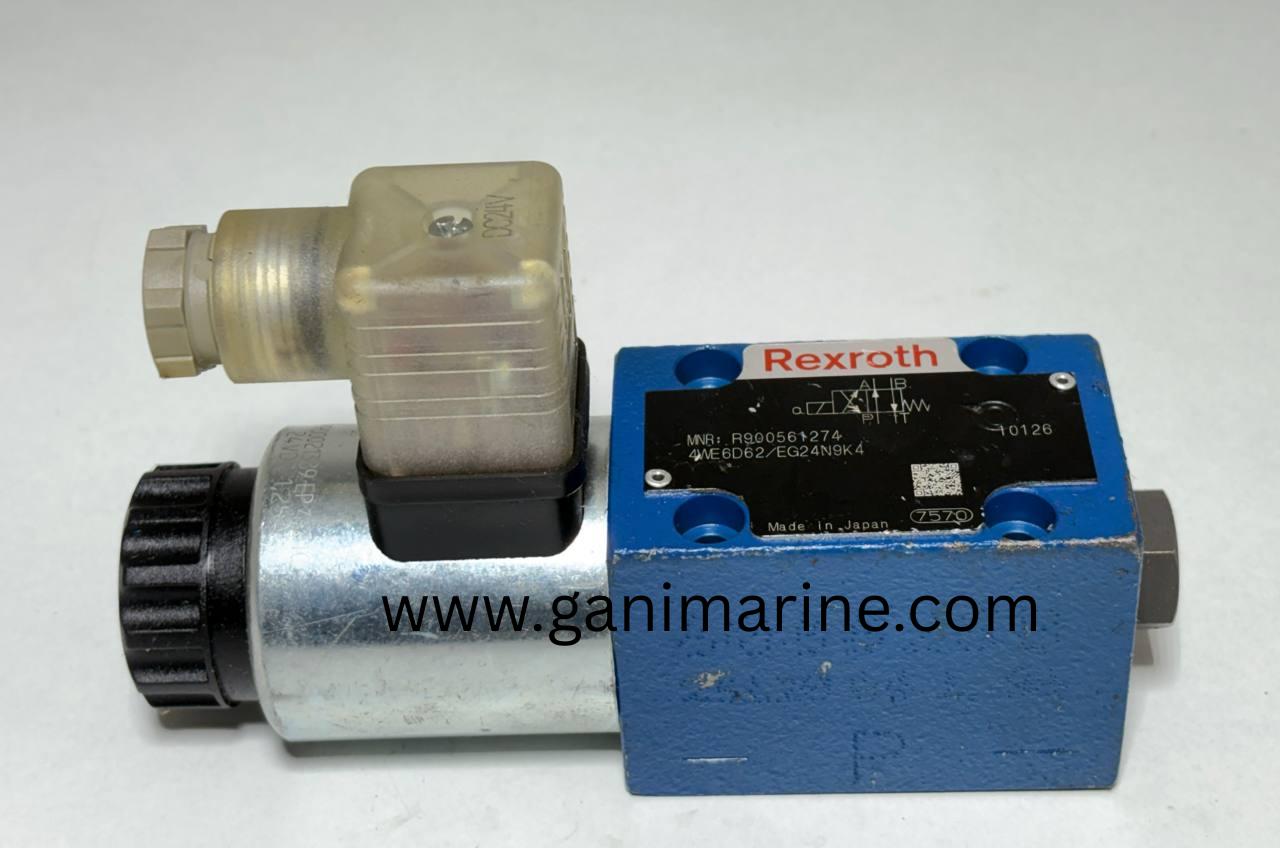

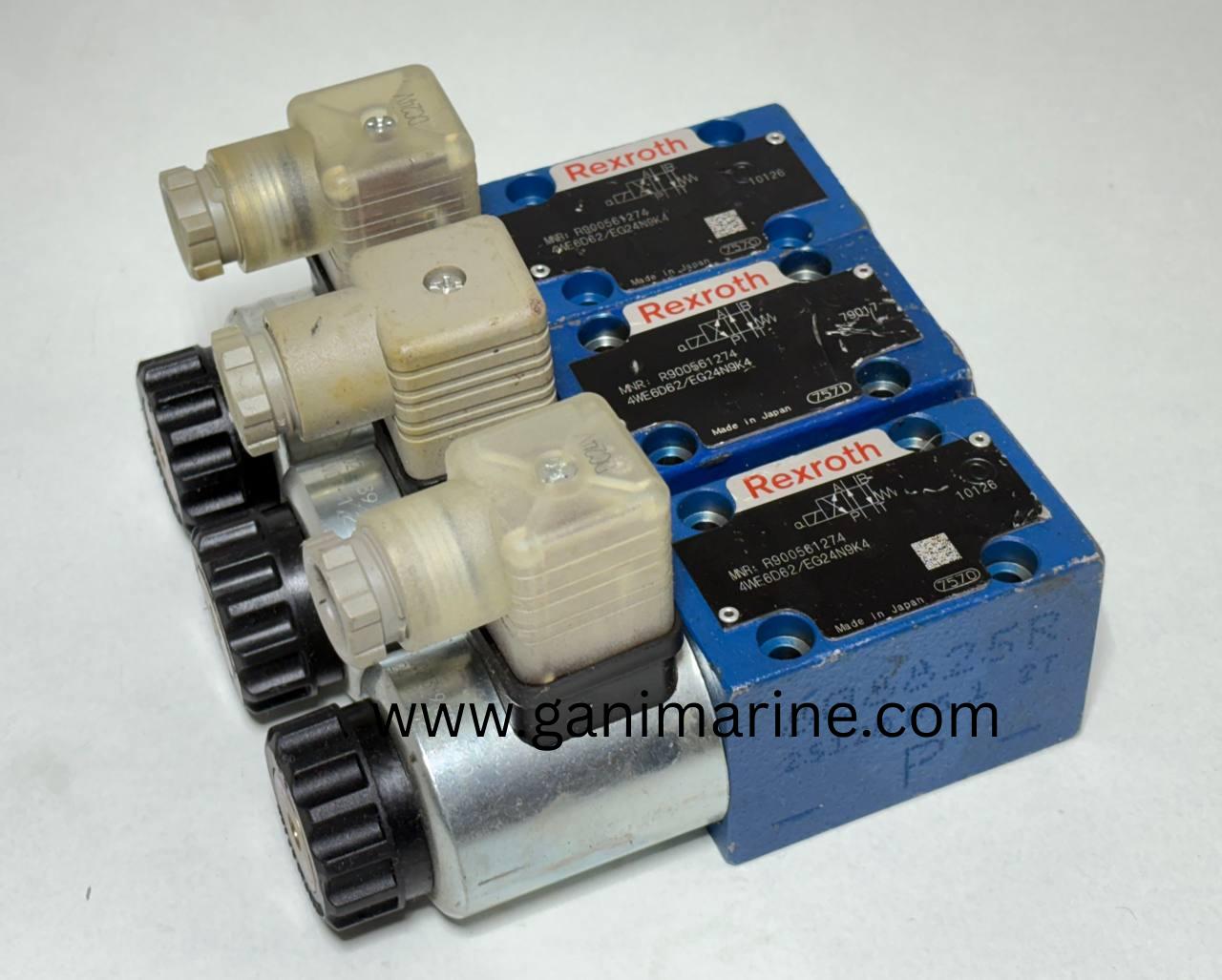

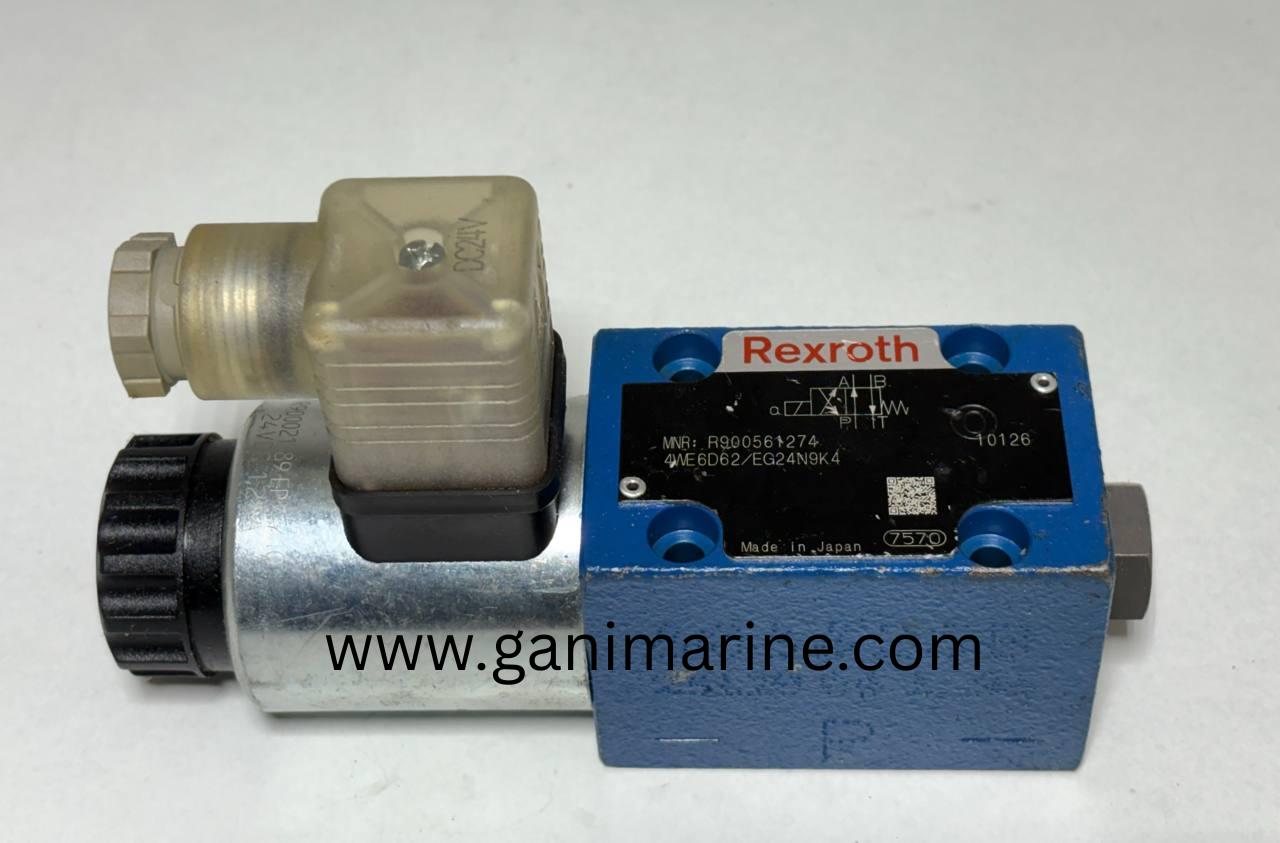

Bosch Rexroth 4WE6D62/EG24N9K4 Directional Control Solenoid Valve R900561274
Bosch Rexroth 4WE6D62/EG24N9K4 Directional Control Solenoid Valve R900561274
The Bosch Rexroth 4WE6D62/EG24N9K4 is a direct-operated 4/3-way directional control solenoid valve, designed for precise hydraulic flow switching in industrial systems.
Material Number (MNR): R900561274
Manufactured in Japan under Rexroth production standards.
This valve is equipped with replacement solenoid coil R900021389 (GZ45-4), rated for 24V DC, 1.25A, suitable for WE6 series hydraulic valves with DIN EN 175301-803 connector.

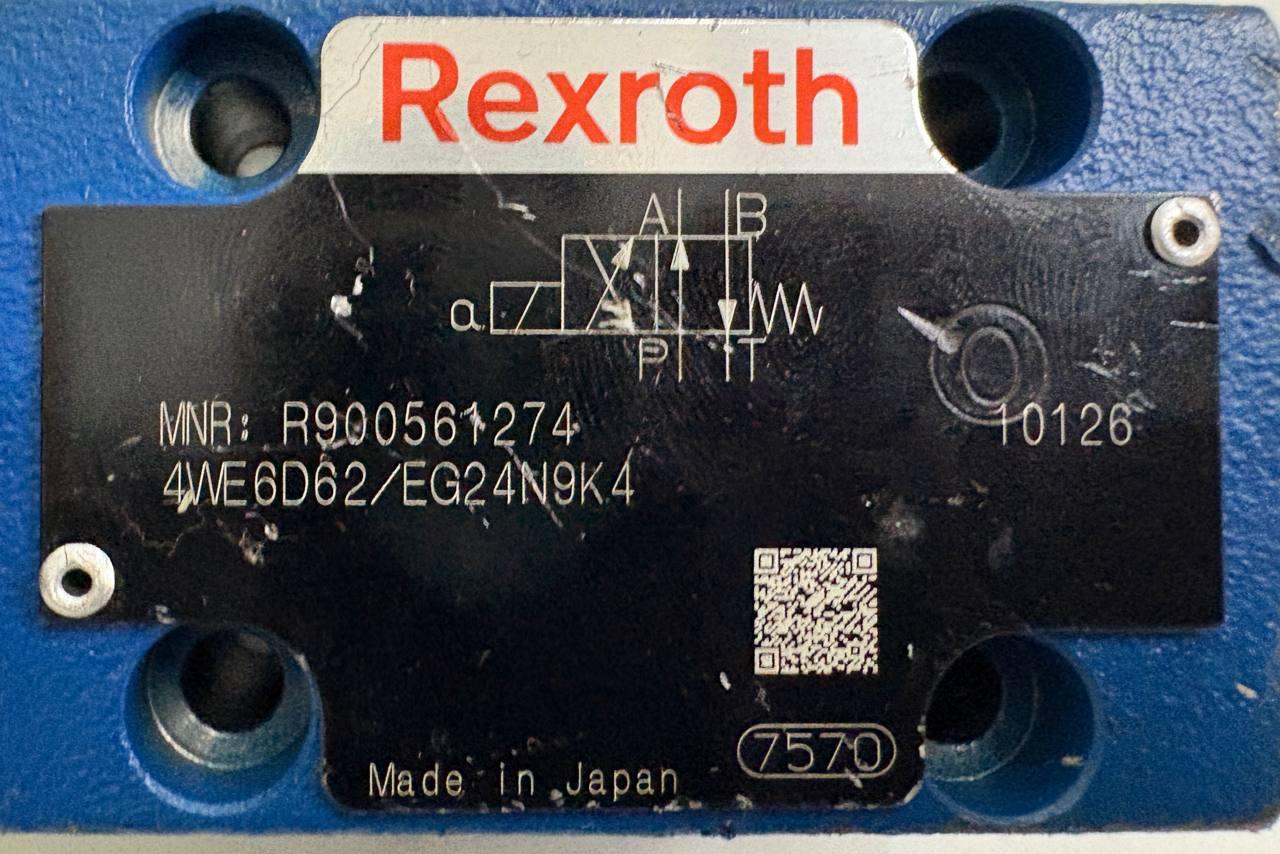

Valve Identification
• Manufacturer: Bosch Rexroth
• Model Code: 4WE6D62/EG24N9K4
• Material Number: R900561274
• Series: 6
• Configuration: 4/3-way directional spool valve
• Spool Symbol: D (parallel center configuration)

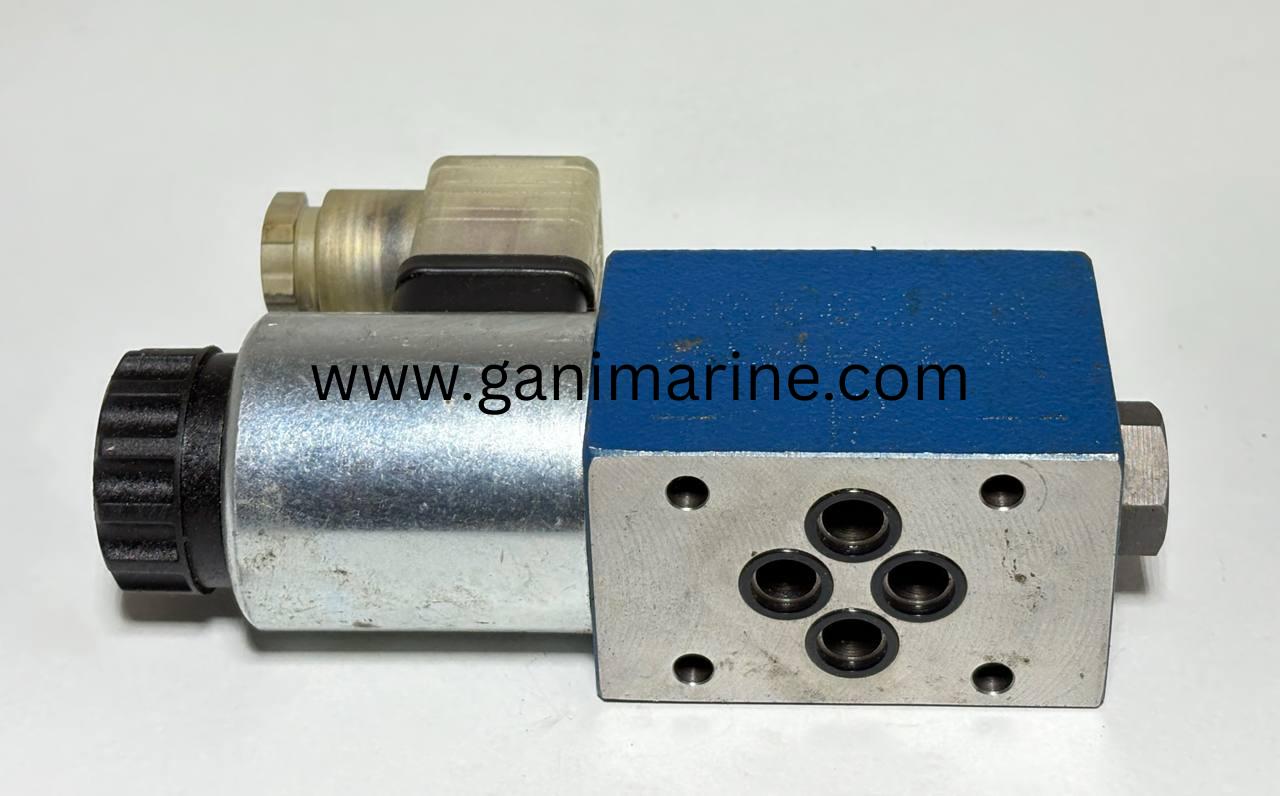

• Mounting Type: Subplate mounted
Main Hydraulic Specifications
• Nominal Size: NG6
• Mounting Interface: CETOP 3 / ISO 4401-03-02-0-05
• Maximum Operating Pressure:
• Ports P, A, B ? 350 bar
• Port T ? 210 bar
• Maximum Flow Rate:
• 80 L/min (DC version)
• 60 L/min (AC version)
• Seal Material: NBR
• Compatible Fluids: HLP, HLPD mineral oil based hydraulic fluids
• Operating Temperature Range: -20°C to +50°C
Electrical Specifications
Solenoid Coil Details
• Coil Part Number: R900021389
• Type: GZ45-4
• Voltage: 24V DC
• Current: 1.25A
• Connector Standard: DIN EN 175301-803 (3-pin, 2 + PE)
• Coil Dimensions:
• Inner diameter: 23 mm
• Outer diameter: 45 mm
• Height: 51 mm
High-power wet-pin solenoid design ensures reliable switching under load.
Functional Description
This is a direct solenoid actuated spool valve:
• Energizing one solenoid shifts the spool
• Spring return centers the spool when de-energized
• Manual override (N9 designation) allows emergency actuation
Spool symbol D configuration generally provides parallel center positioning, suitable for specific hydraulic circuit designs.
Key Features
Compact NG6 / CETOP 3 design
High pressure capability up to 350 bar
24V DC high-power solenoid
Manual override included
Subplate mounting compatibility
Industrial grade construction
Reliable and fast switching response
Typical Applications
• Hydraulic power packs
• CNC machinery
• Injection molding machines
• Marine hydraulic systems
• Industrial automation
• Press machines
• Steel and manufacturing plants
• Construction equipment
Industries Served
• Manufacturing
• Marine & offshore
• Oil & gas
• Heavy engineering
• Automation industry
• Power generation
