Bosch Rexroth 4WE 6 G62/EW230N9K4/ZV Directional Spool Valve R901129420
Bosch Rexroth 4WE 6 G62/EW230N9K4/ZV Directional Spool Valve R901129420

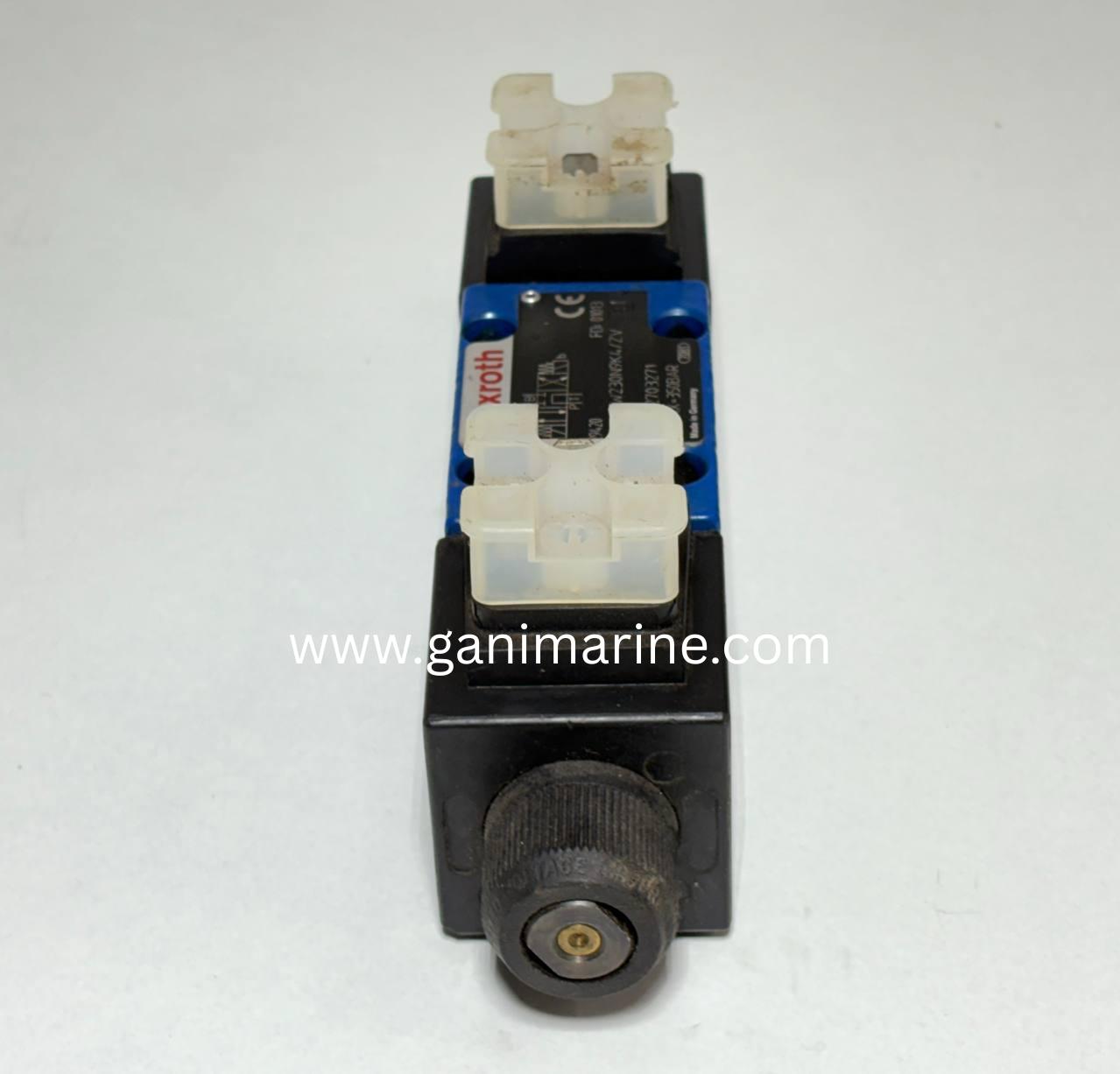

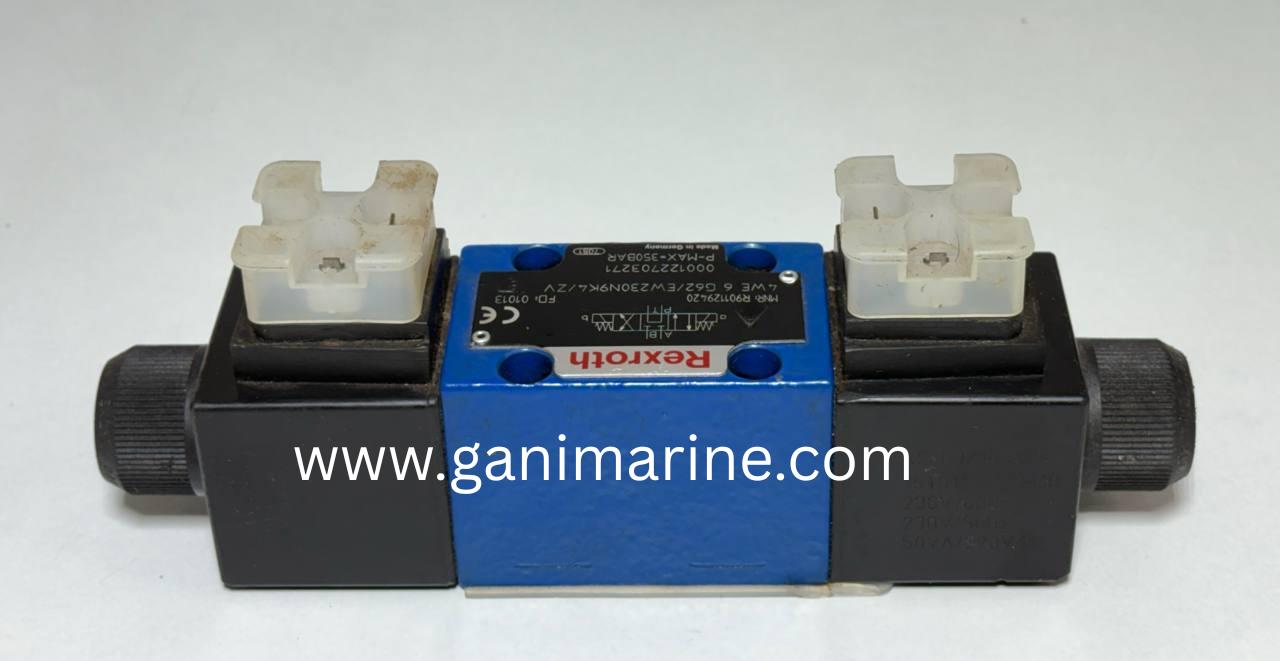

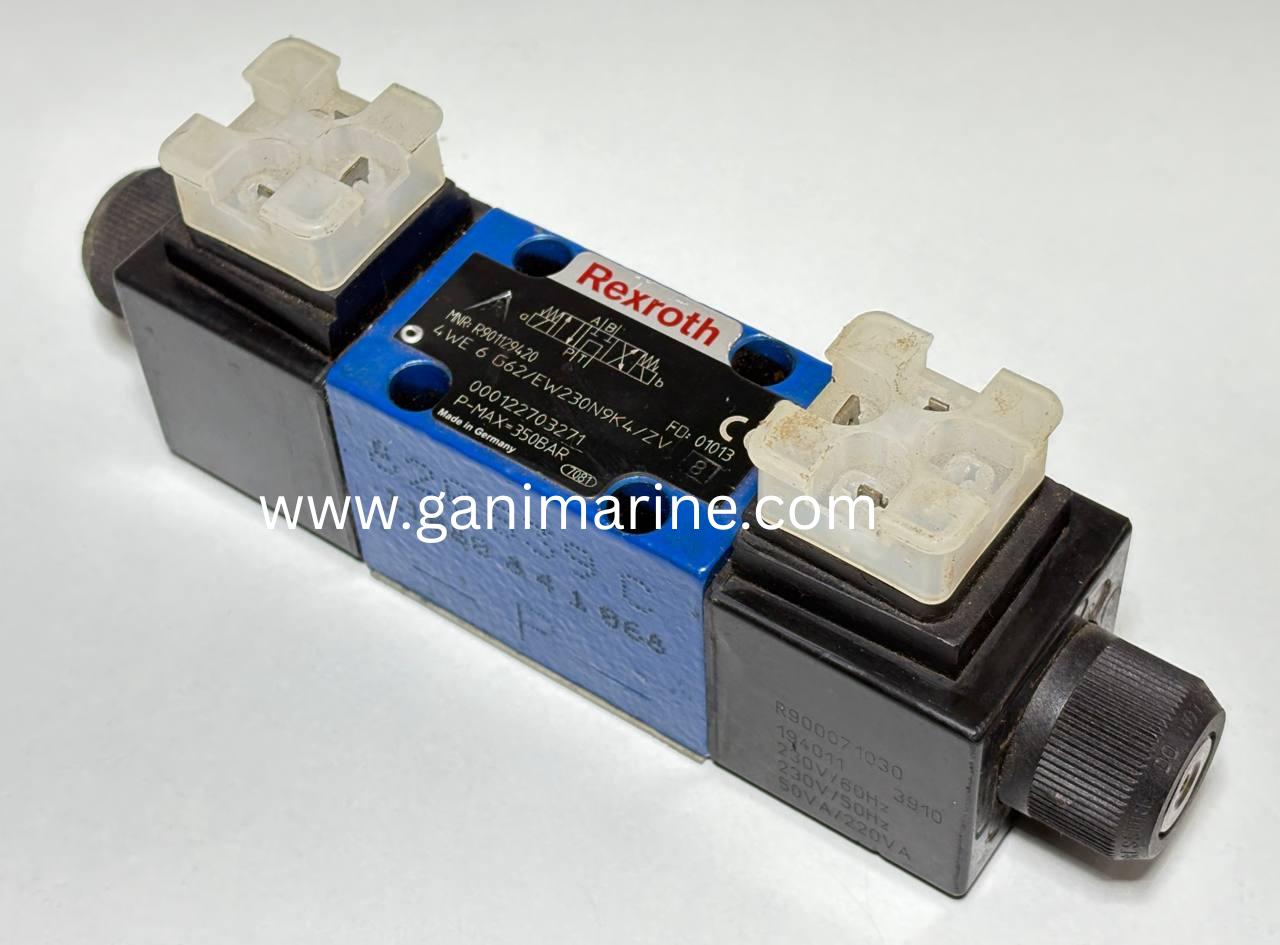

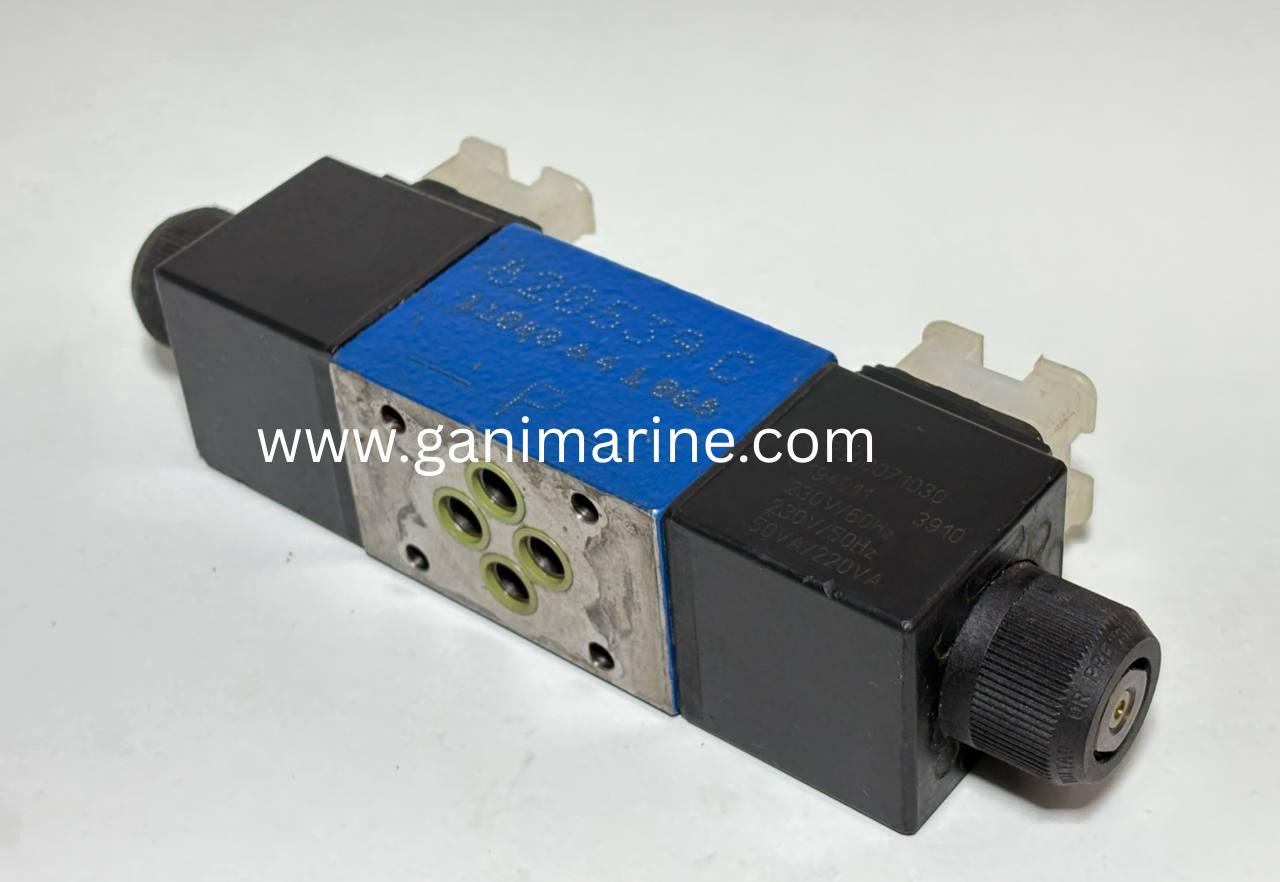

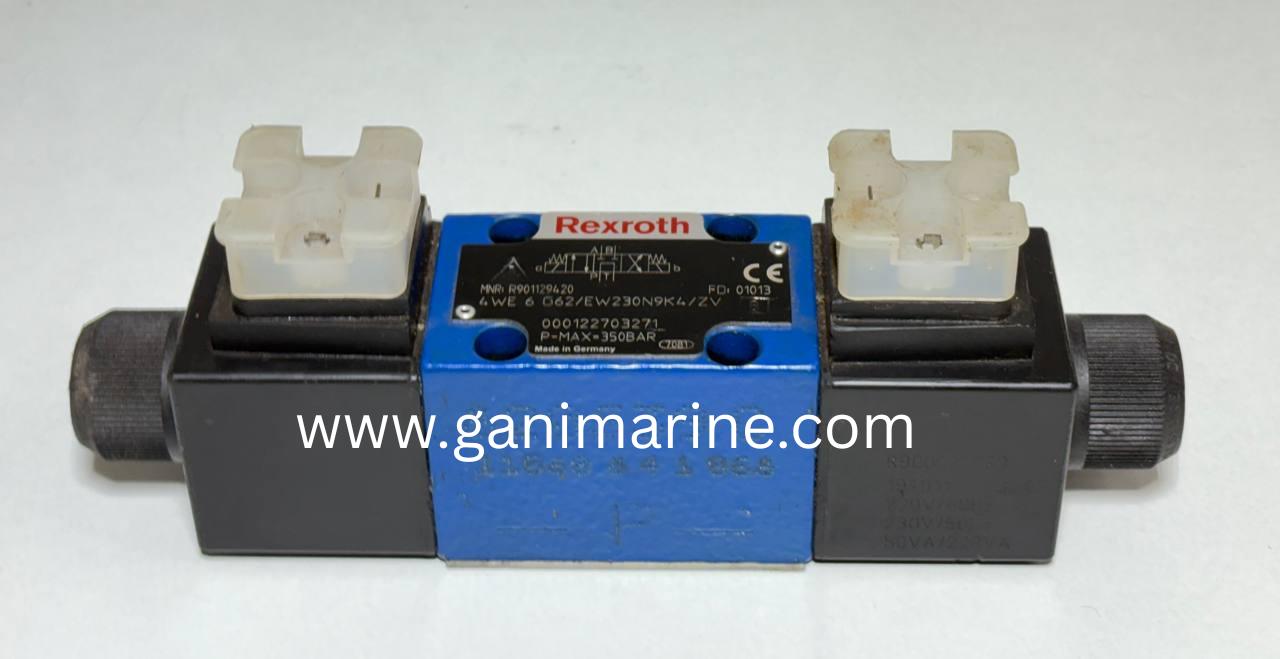

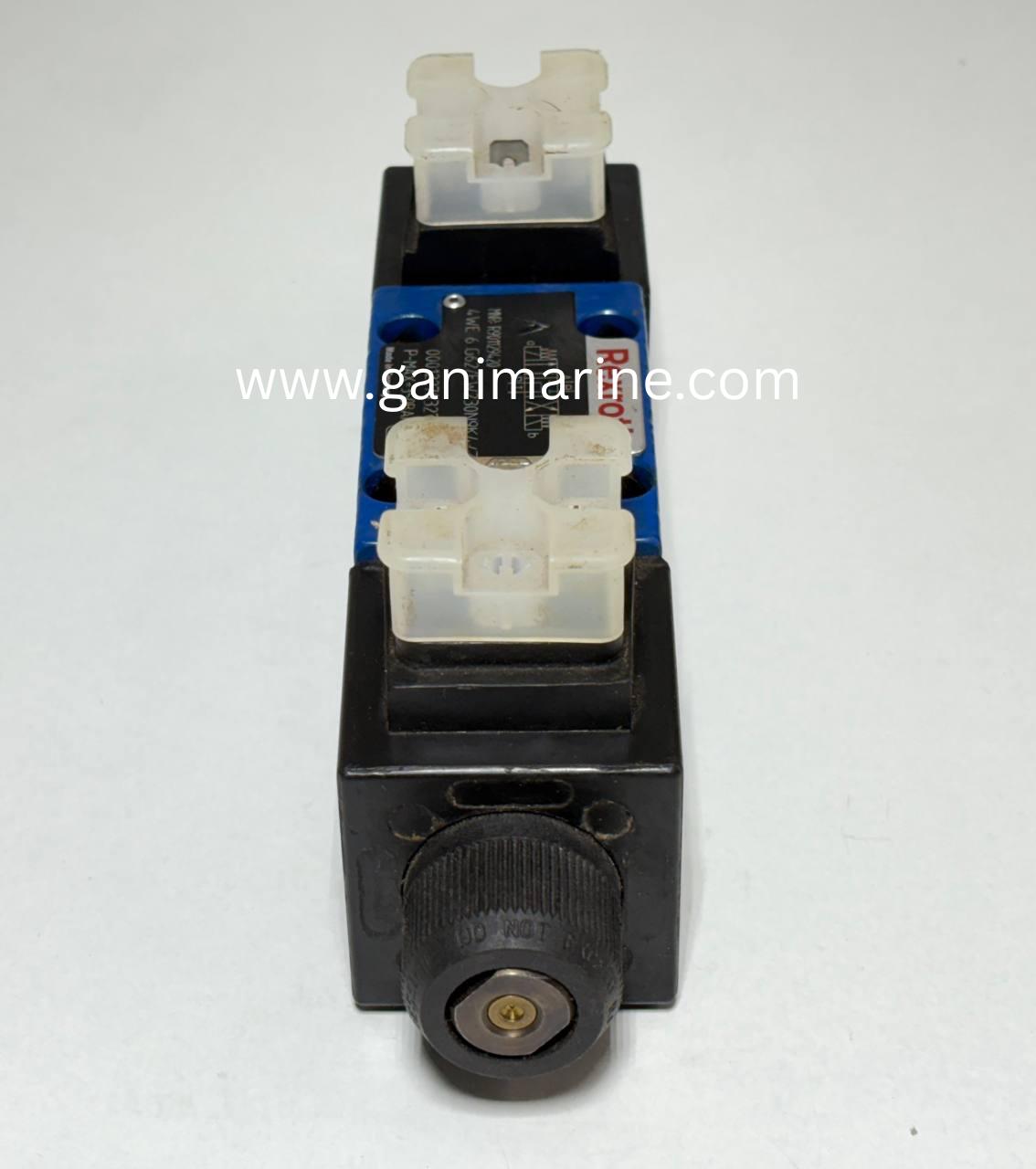

The Bosch Rexroth 4WE6 G62/EW230N9K4/ZV is a direct-operated 4/3 way directional spool valve from the WE6 industrial hydraulics series. This valve is equipped with 230V AC wet-pin solenoids and coil type R900071030, designed for reliable switching in medium to high-pressure hydraulic systems.
We are a trusted Bosch Rexroth directional valve supplier India, WE6 valve UAE distributor, Rexroth NG6 hydraulic valve USA supplier, CETOP 3 solenoid valve Singapore exporter, industrial spool valve Brazil supplier, hydraulic control valve exporter India, 4WE6 valve UAE, Rexroth solenoid valve USA distributor, supplying worldwide.

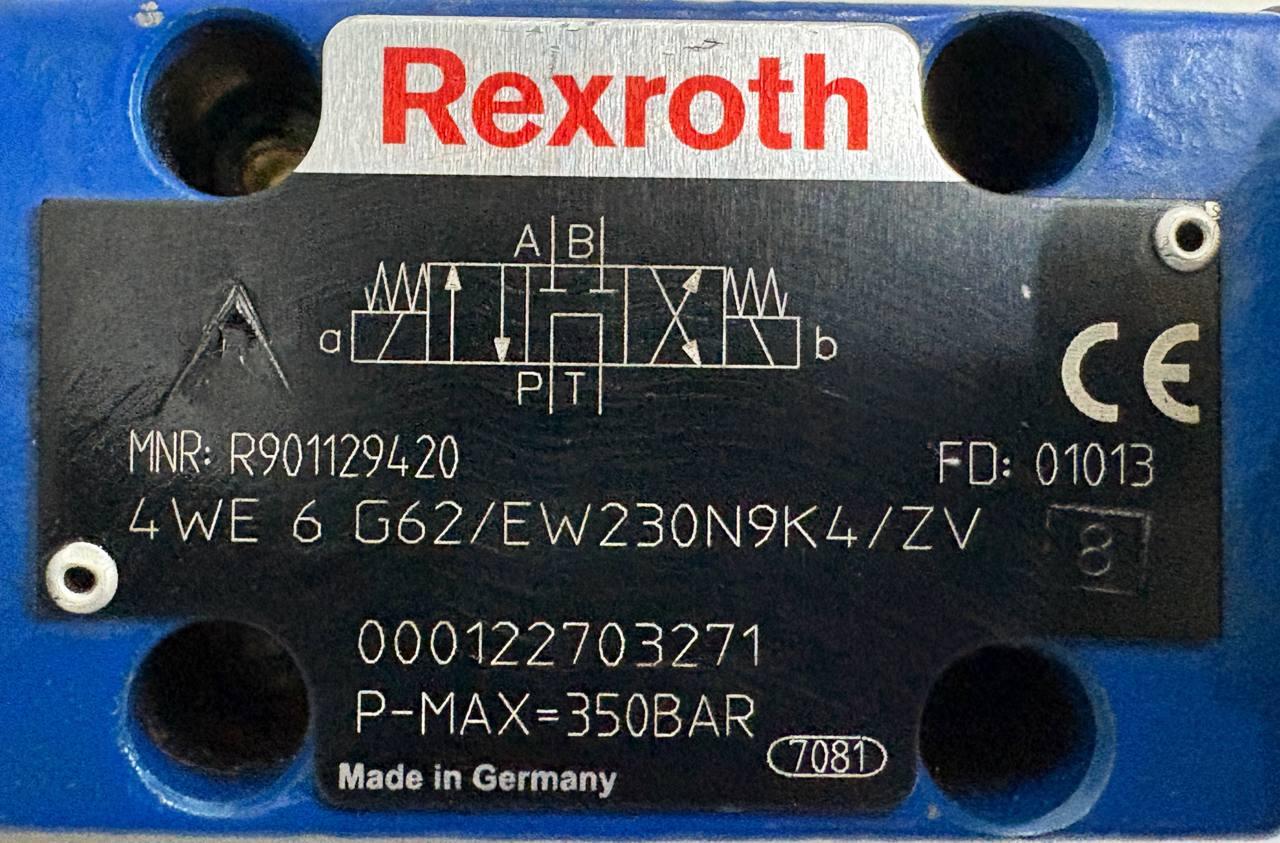

Valve Identification
• Manufacturer: Bosch Rexroth
• Material Number: R901129420
• Type Code: 4WE 6 G62/EW230N9K4/ZV
• Series: 6X
• Valve Type: 4/3-way direct operated directional spool valve
• Actuation: Dual AC solenoids with spring return
• Symbol: G (as marked on nameplate)
Main Hydraulic Specifications
• Nominal Size: NG6
• Interface: CETOP 3 / ISO 4401-03-02-0-05
• Maximum Operating Pressure:
• P, A, B ports ? up to 350 bar
• T port ? typically up to 160 bar (as per catalog conditions)
• Maximum Flow Rate:
• Approx. 60 L/min (AC version)
• Ports: P, T, A, B
• Switching Positions: 3
• Hydraulic Fluid Compatibility:
• Mineral oil HL / HLP
• Compatible eco and fire-resistant fluids
• FKM seals in this sub-series
Electrical / Coil Specifications
• Coil Part Number: R900071030
• Coil Type: WZ45-4 wet-pin solenoid
• Rated Voltage: 230V AC
• Frequency: 50/60 Hz
• Apparent Power:
• Approx. 50 VA (50 Hz)
• Approx. 220 VA inrush
• Connector Type: 3-pin (2 + PE)
• Standard: EN 175301-803
• Cable Entry: Pg11 (typical mating connector)
Functional Description
This valve is a direct operated spool valve:
• Energizing one solenoid shifts the spool to direct flow between ports
• De-energizing returns spool to center position via springs
• Designed for fast and reliable switching
The N9 designation indicates concealed manual override for emergency operation.
Key Features
Compact NG6 / CETOP 3 design
High pressure capability up to 350 bar
Reliable wet-pin AC solenoids
230V AC industrial standard voltage
CE marked
Spring centered 4/3 configuration
Robust industrial construction
Applications
• Hydraulic power packs
• CNC machinery
• Injection molding machines
• Marine hydraulic systems
• Steel plants
• Automation systems
• Press machines
• Industrial equipment
Industries Served
• Manufacturing
• Marine & offshore
• Oil & gas
• Construction equipment
• Heavy engineering
• Power plants
Compliance & Conformity
• CE marked
• Compliant with Low-Voltage Directive 2014/35/EU
• Industrial hydraulic safety standards
