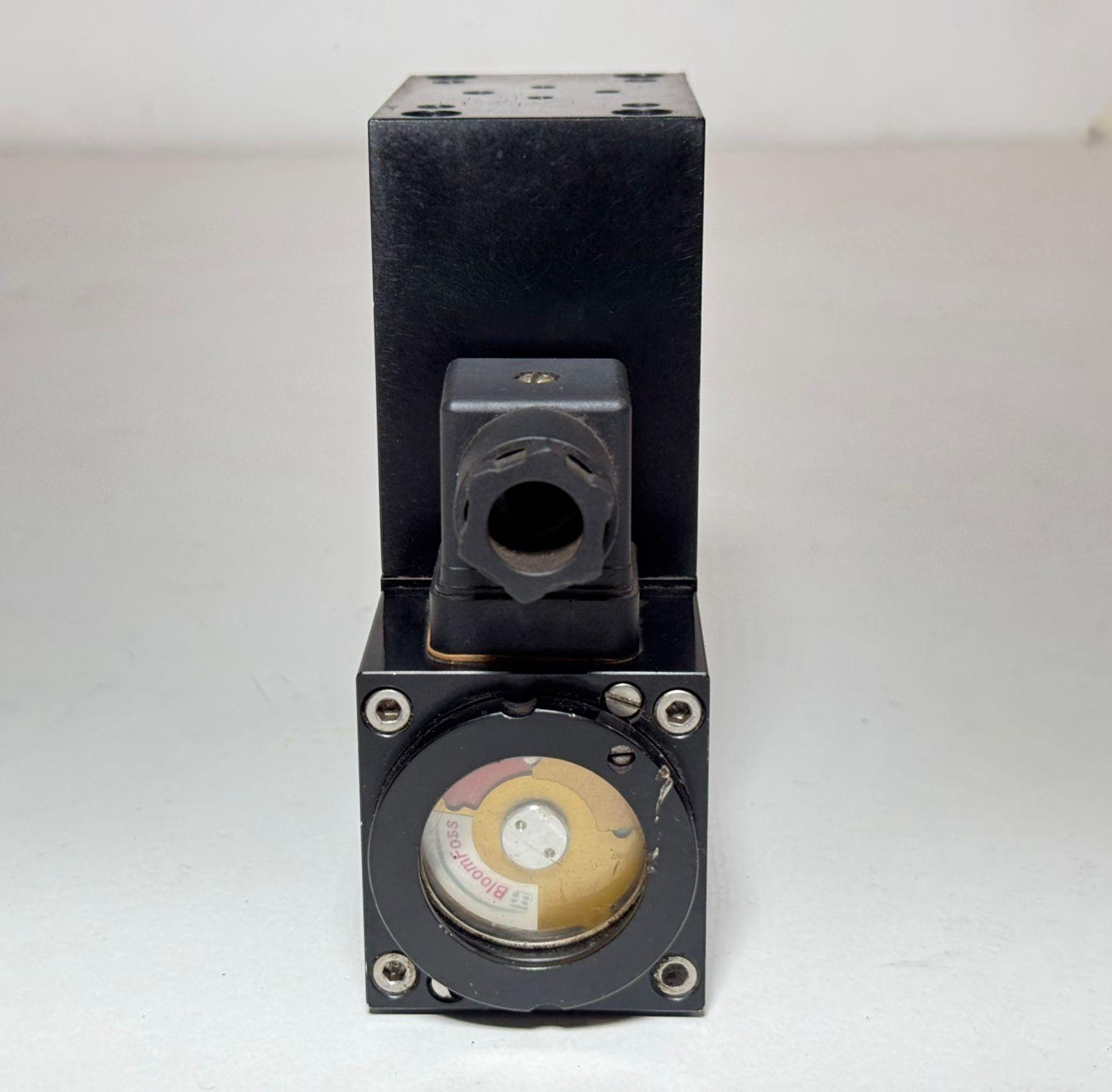

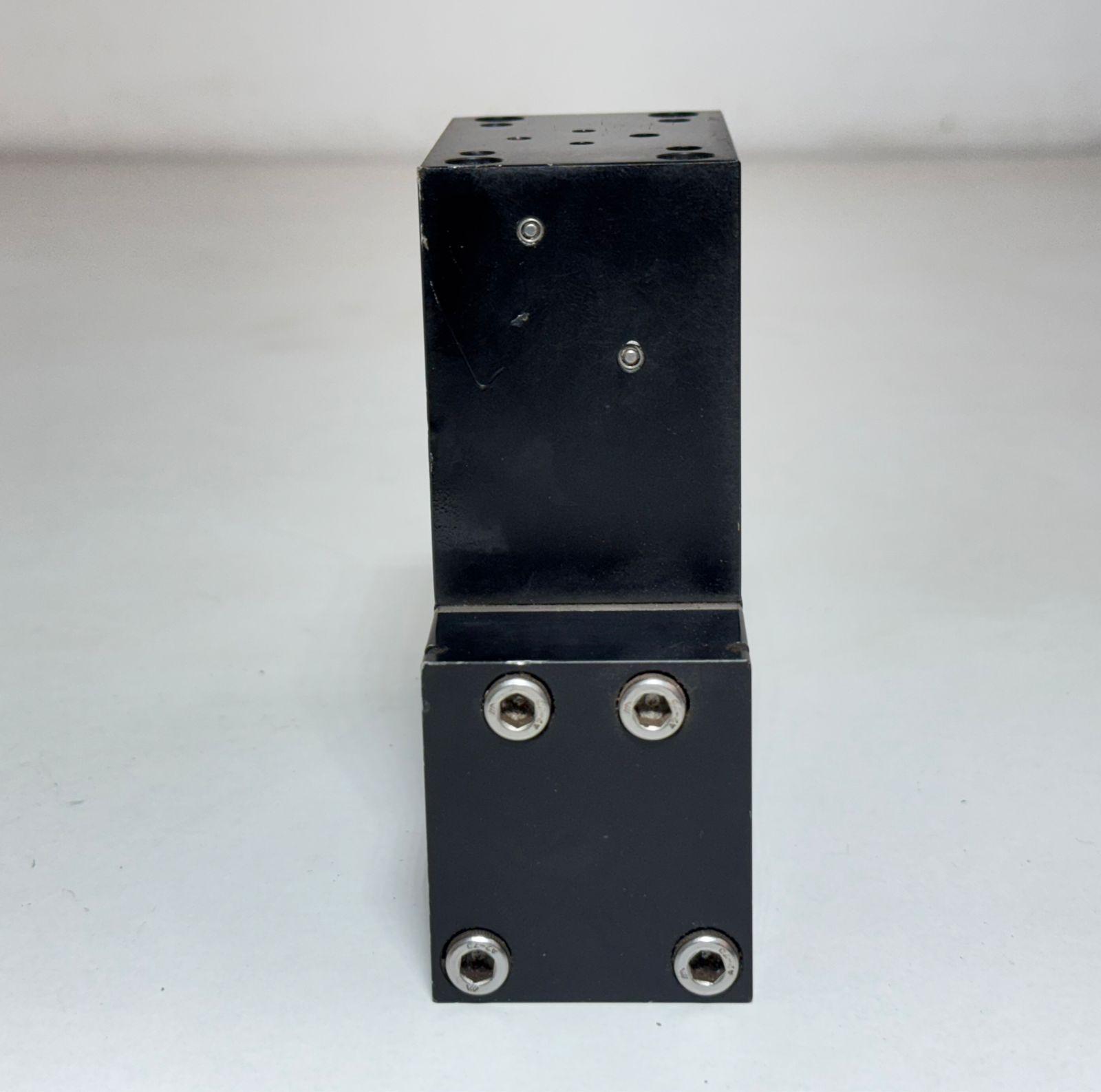

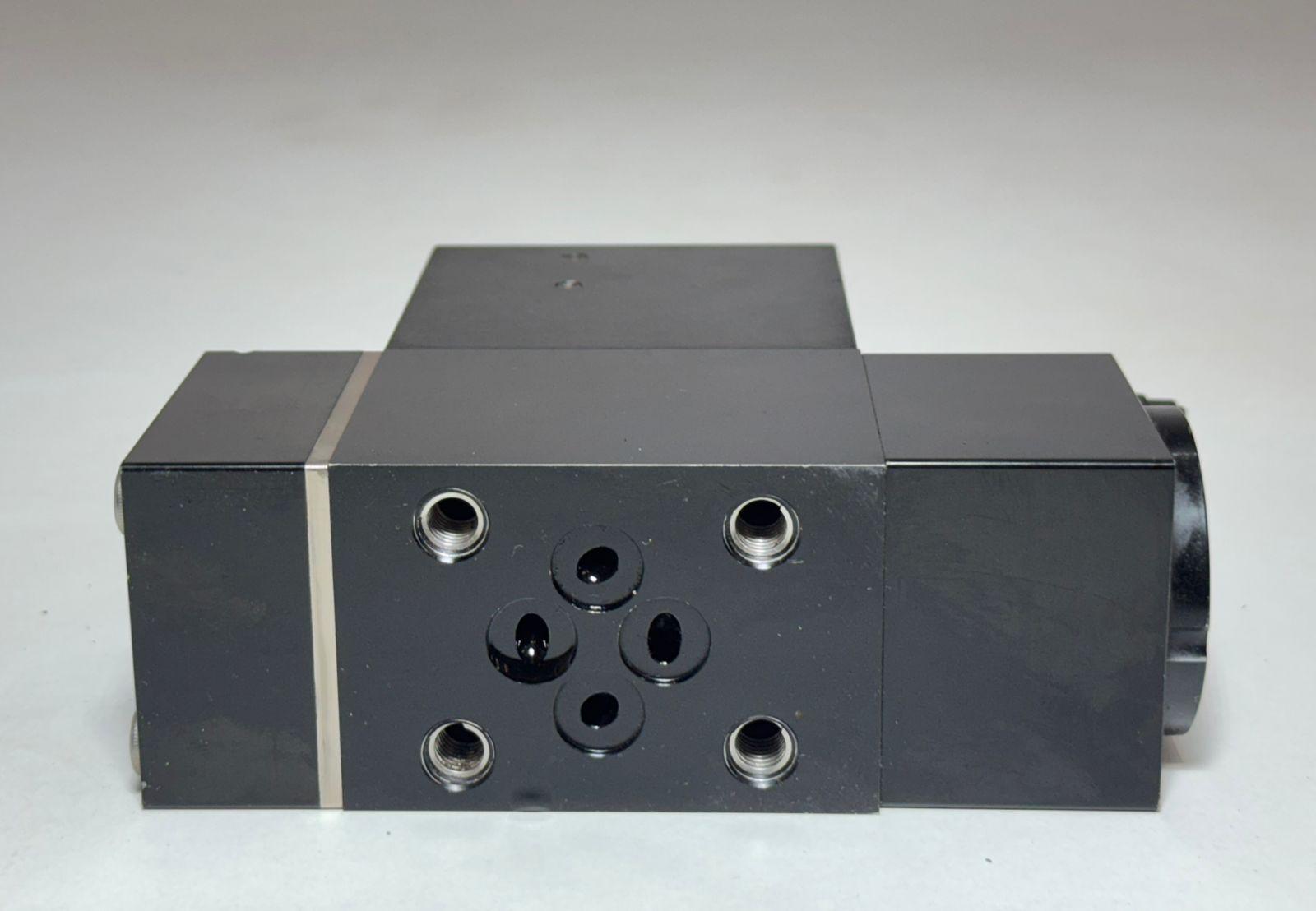

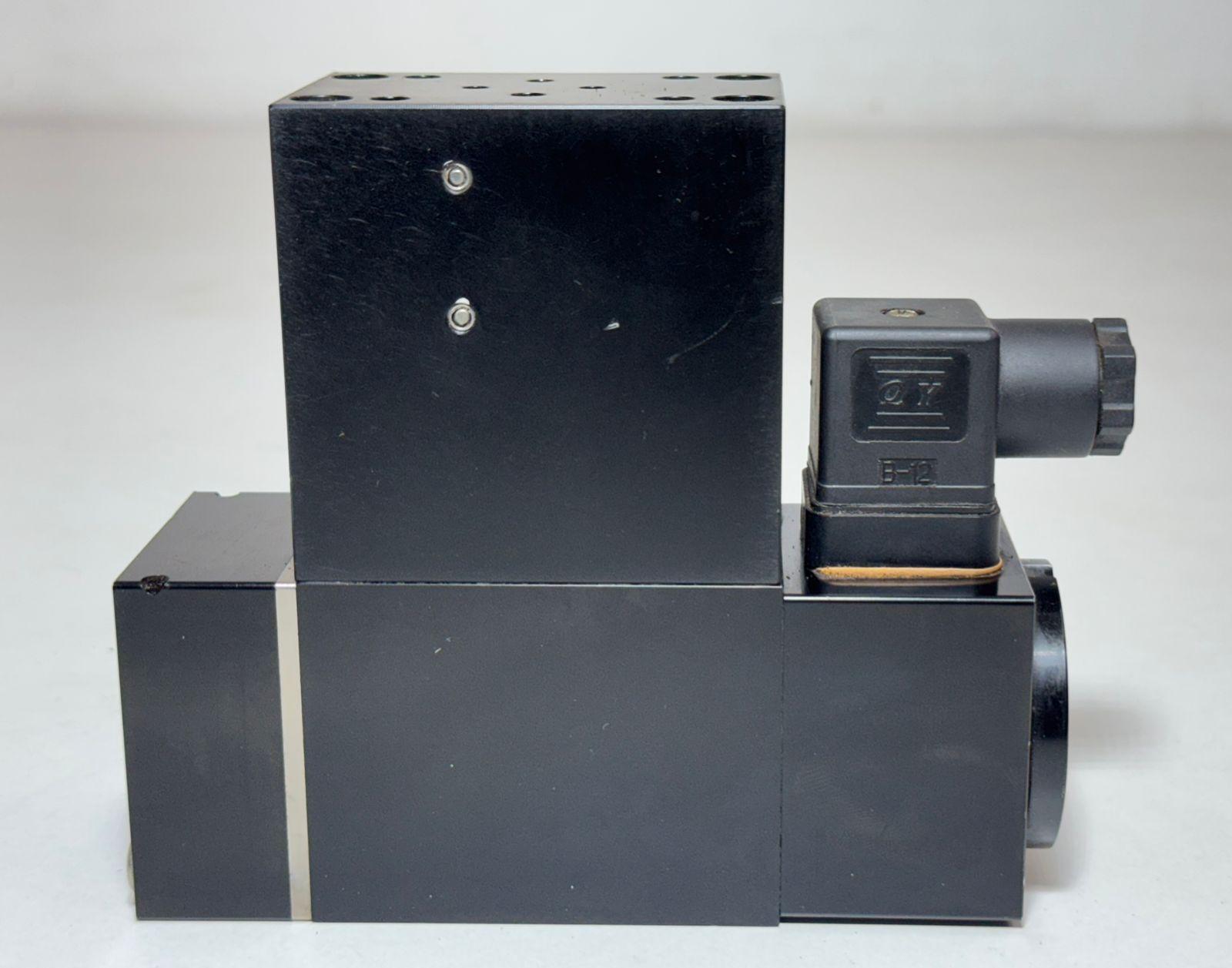

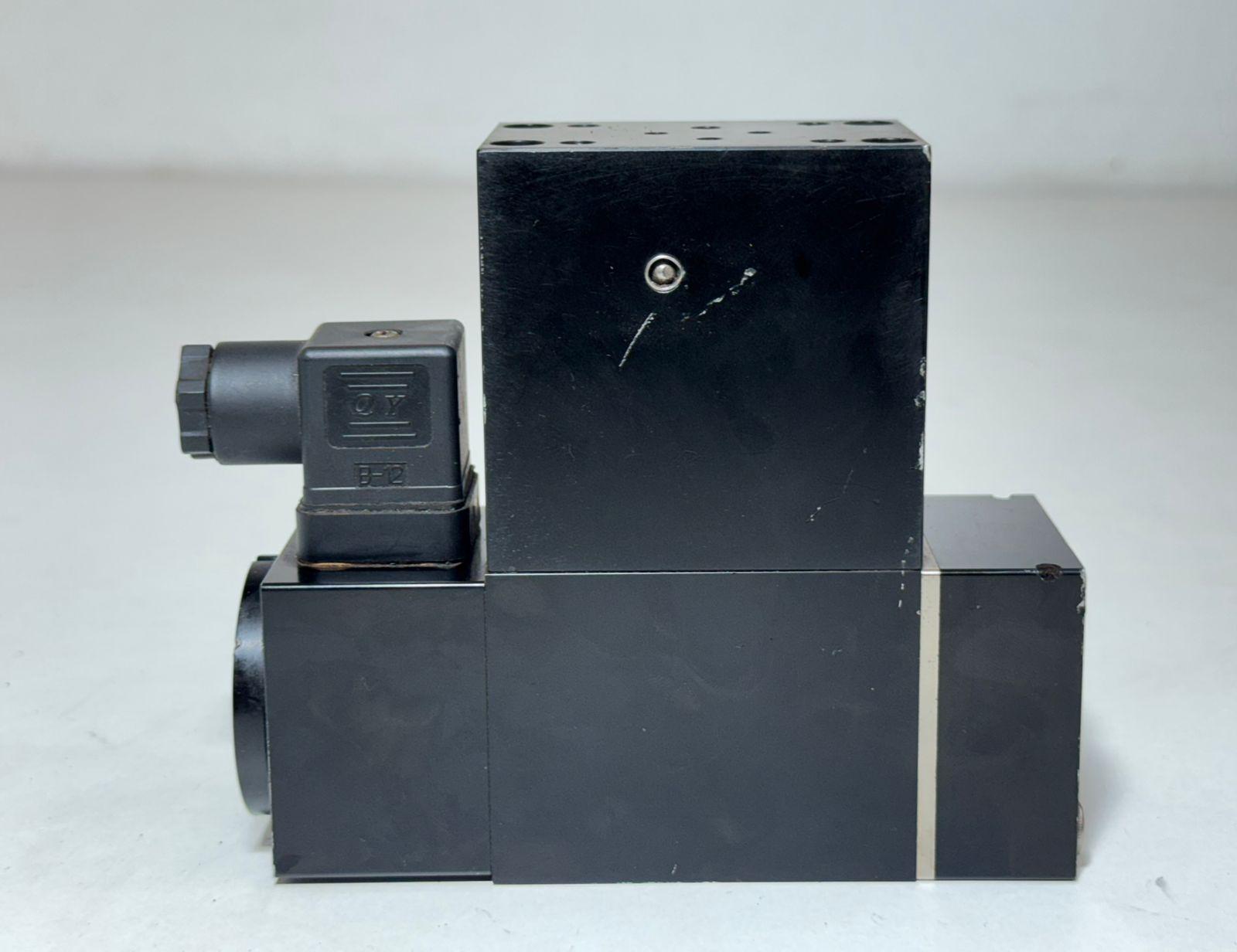

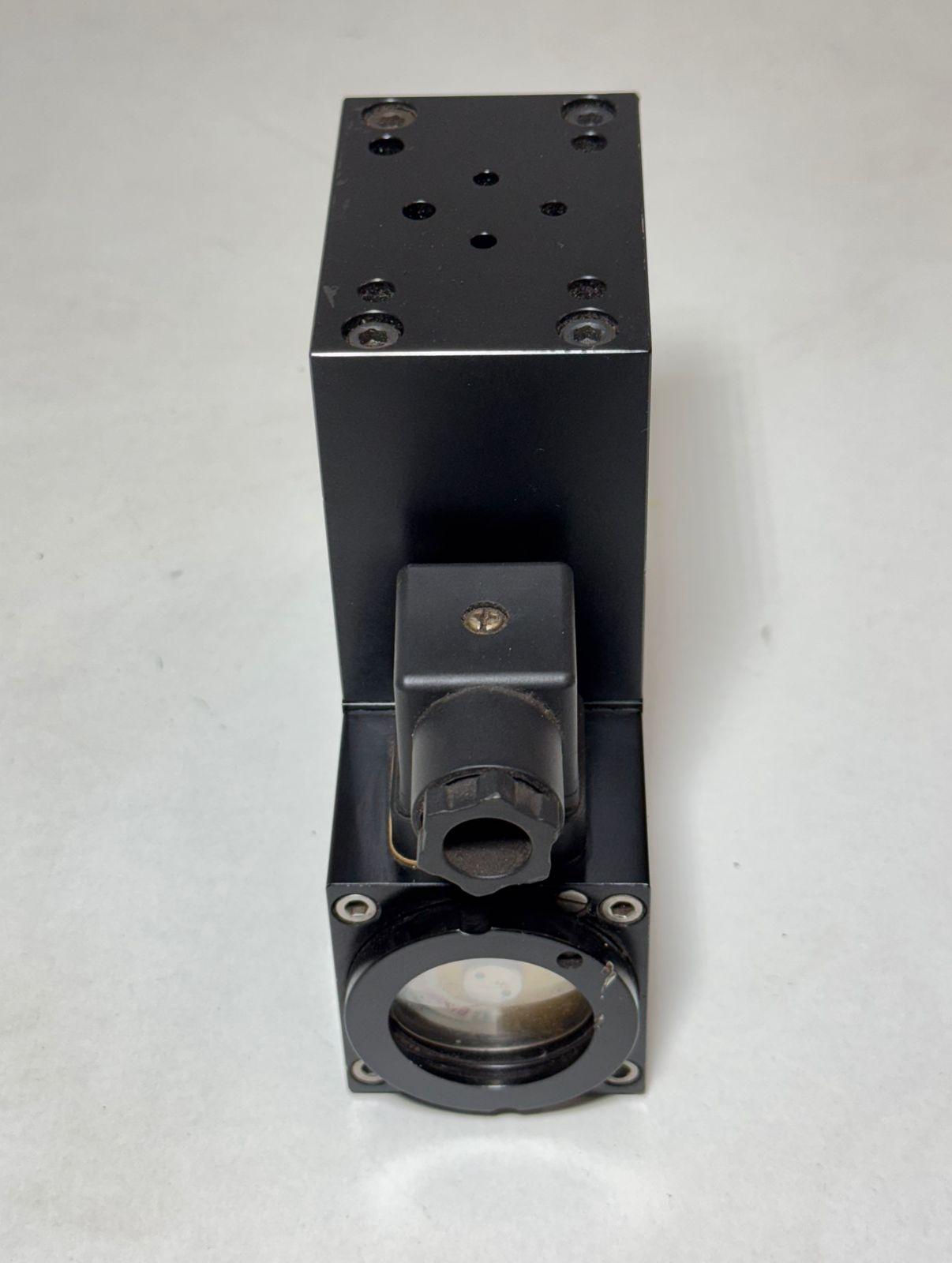

Bloomfoss VPI-E CETOP-3 Volumetric Position Indicator.

The Bloomfoss VPI-E is a CETOP-3 mounted volumetric position indicator that combines visual monitoring with electrical on/off output for valve status signaling. Featuring a Biomerics rotary sensor, it provides real-time feedback of actuator movement — ideal for marine, offshore, oil & gas, and automated hydraulic systems.

Used across the globe in demanding environments, the VPI-E is designed to fit hydraulic manifolds for single and double acting actuators, giving accurate position monitoring and electrical switching without the need for complex electronics.

Gani Marine Export keeps VPI-E models in ready stock, supporting urgent marine delivery worldwide.

---

 Technical Specifications:

Model: VPI-E

Type: Visual + Electrical on/off indication

Mounting: CETOP-3

Sensor: Biomerics Rotary Feedback

Working Pressure: 50 – 130 bar

Temperature Range: -20°C to +80°C

Seal: NBR (Standard)

Material: AI6061 Aluminum or Brass

Electrical Ratings:

UL1054: 3A @ 125VAC, 2A @ 30VDC

Min. 6,000 operations (electrical life)

Ingress Protection: IP66 (Optional IP67)

Gear Ratios Available: 64, 125, 256, 512, 1024, 2048, 4096

Filtration: 10?m Nominal

Weight: 1.5 kg

Certifications: ABS Type Approved, DNV-GL Certified

---

 Applications:

Marine Deck Machinery (Winches, Cranes, Steering Gear)

Offshore Platform Hydraulic Valve Monitoring

Cargo & Ballast Systems

CETOP Valve Blocks

Hydraulic Power Units (HPUs)

Shipyard & Engine Room Automation

Tanker Valve Controls

---

 Key Features:

 On/Off switching for open/close detection

 CETOP-3 standard mount

 Visual + electrical feedback in one compact unit

 ABS & DNV certified for marine use

 IP66 protection with optional IP67

 Available gear ratios for actuator compatibility

 Supplied globally by Gani Marine Export

---

 Export Coverage – Gani Marine Export

We supply Bloomfoss VPI-E models worldwide to: UAE, India, Singapore, Saudi Arabia, Qatar, Oman, South Korea, Germany, Greece, UK, Netherlands, USA, Australia, and many more.
