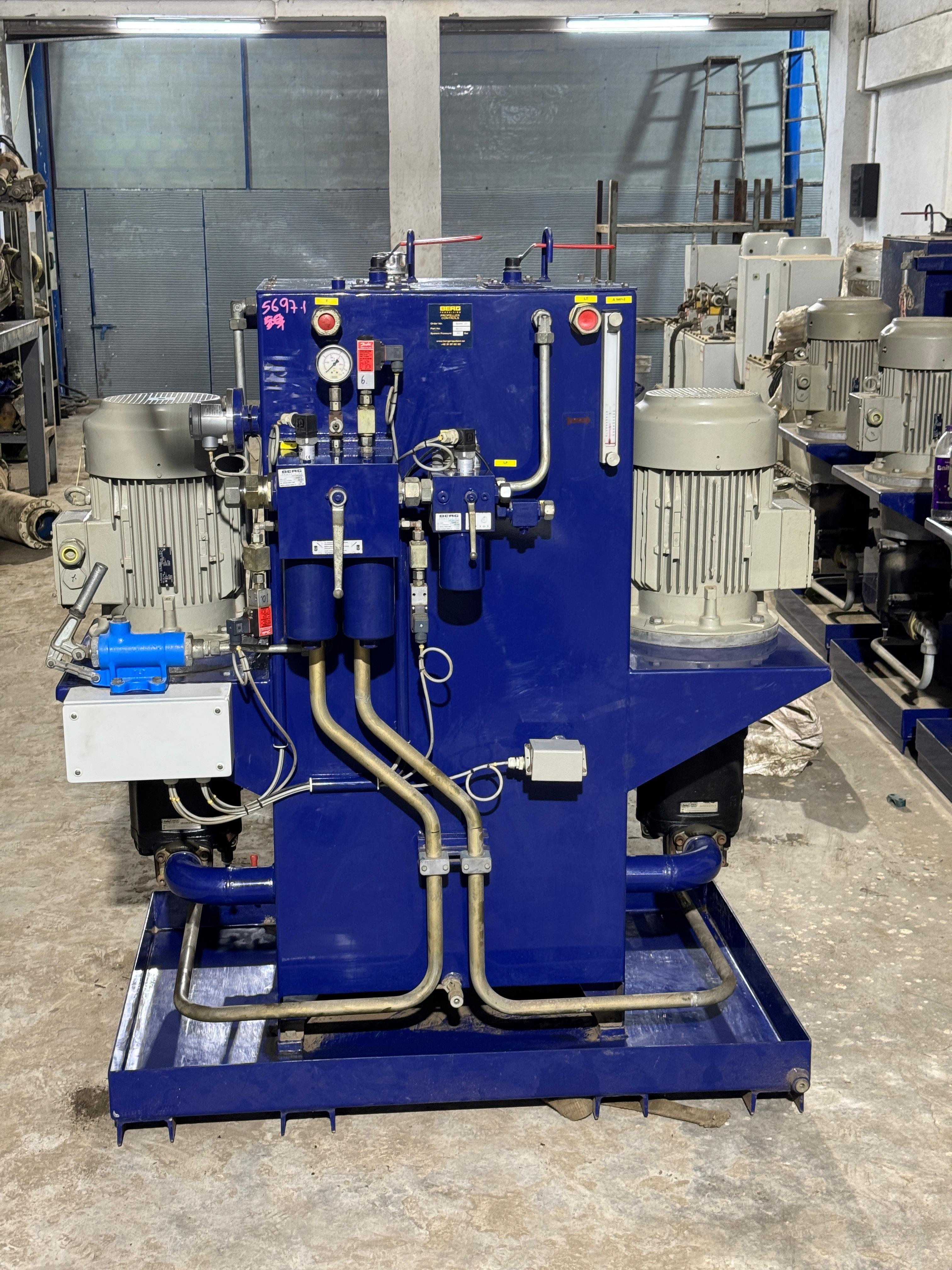

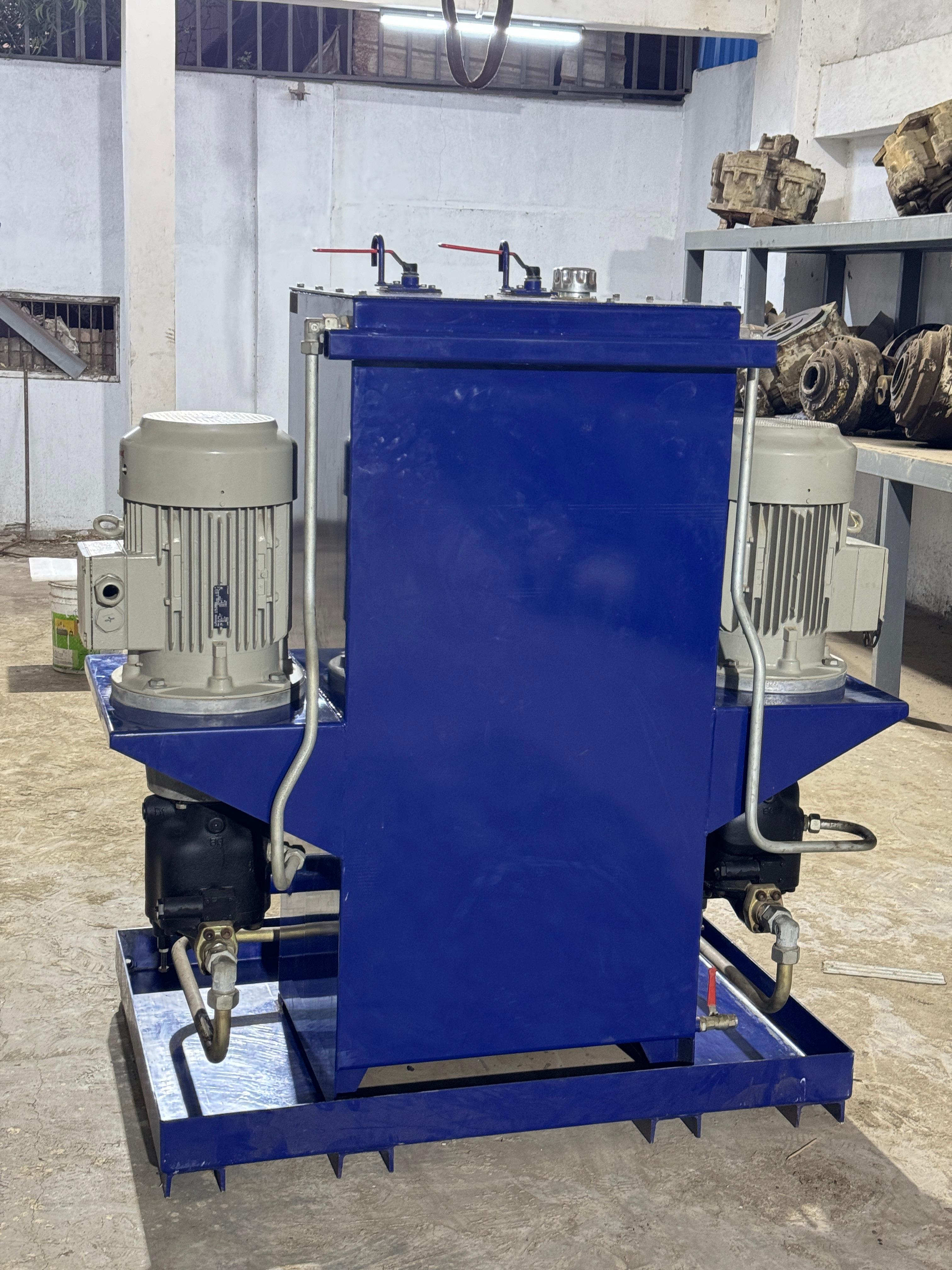

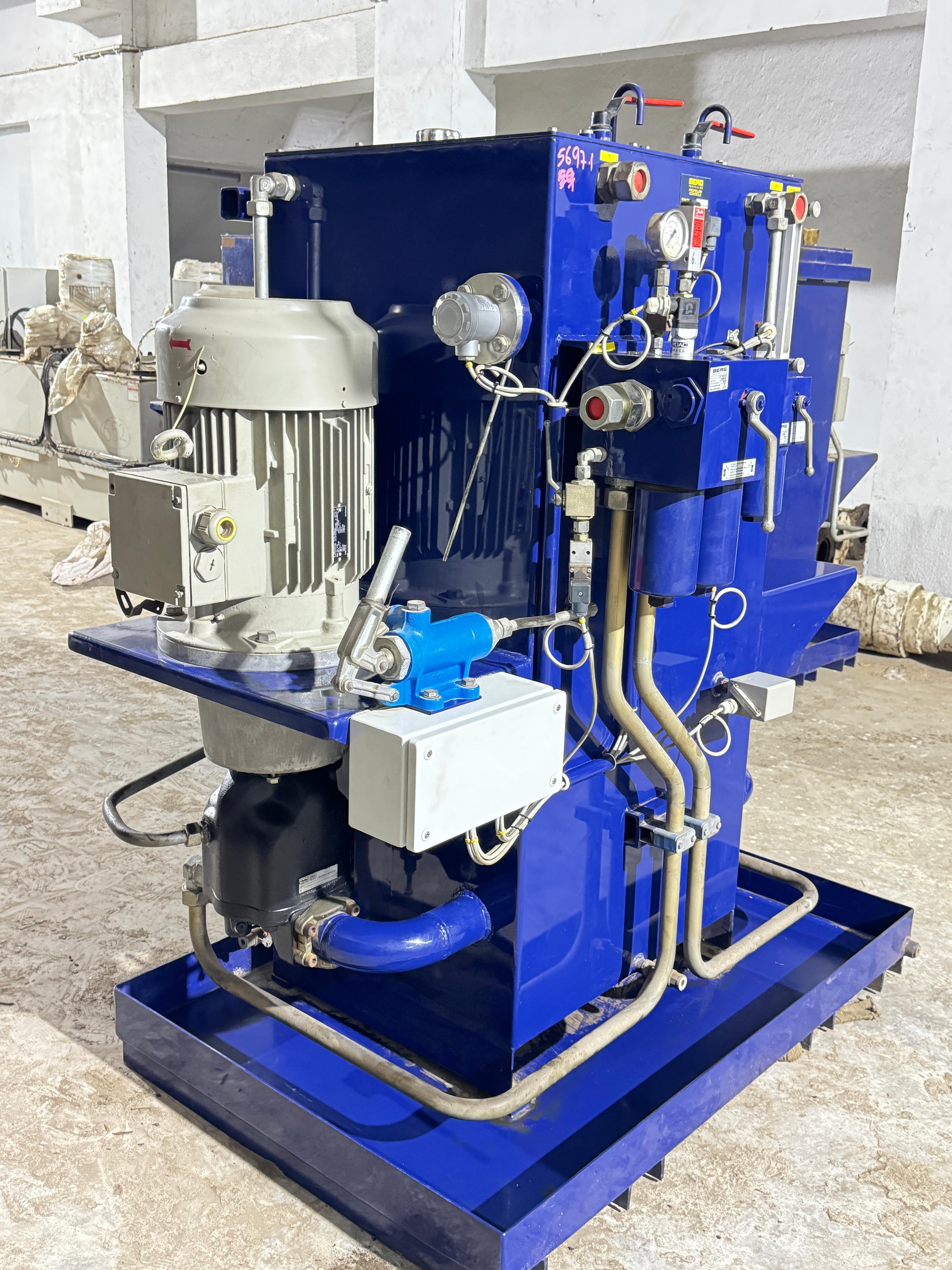

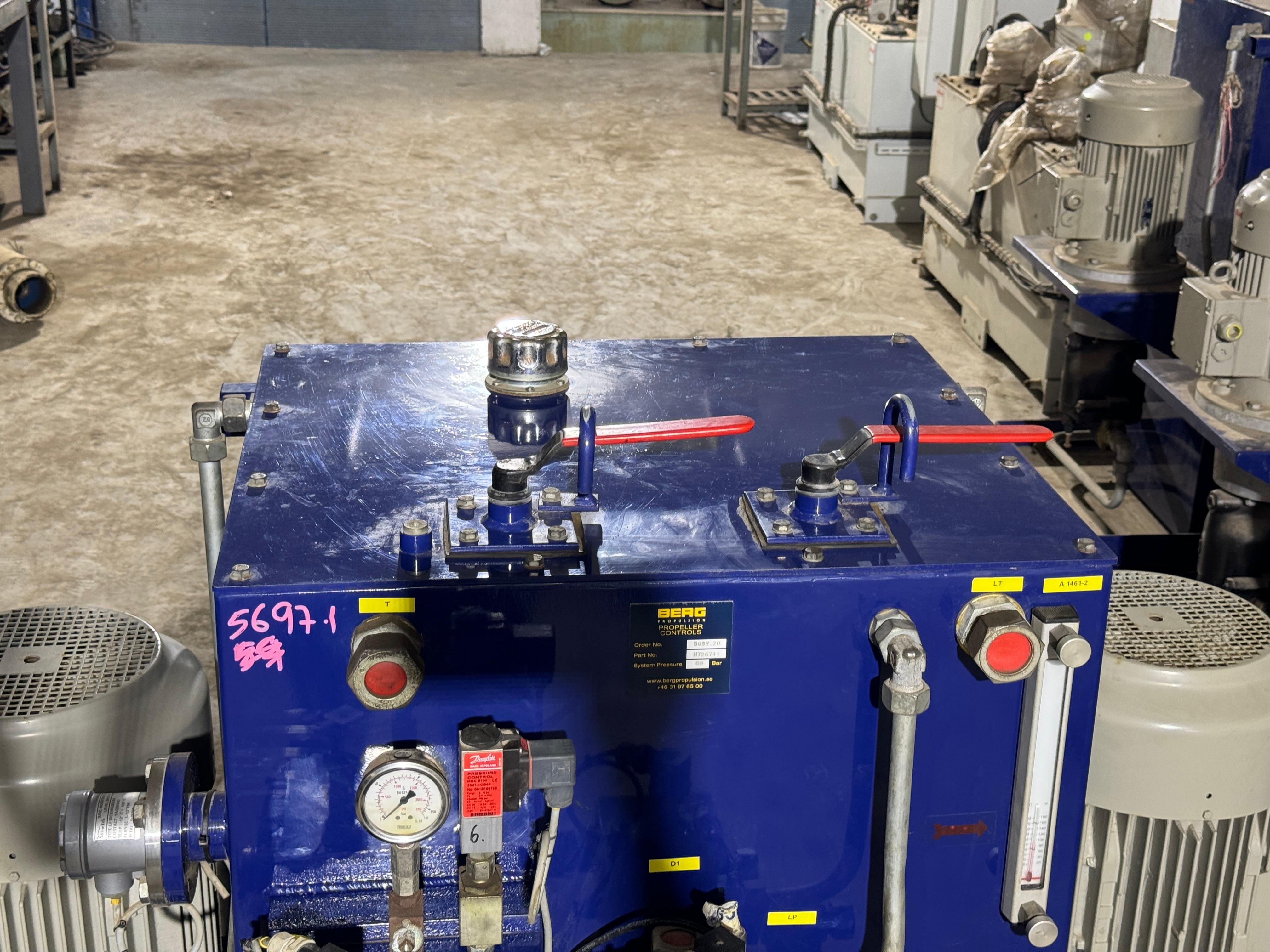

BERG PROPULSION HT95349 HYDRAULIC PROPELLER CONTROLS POWER UNIT

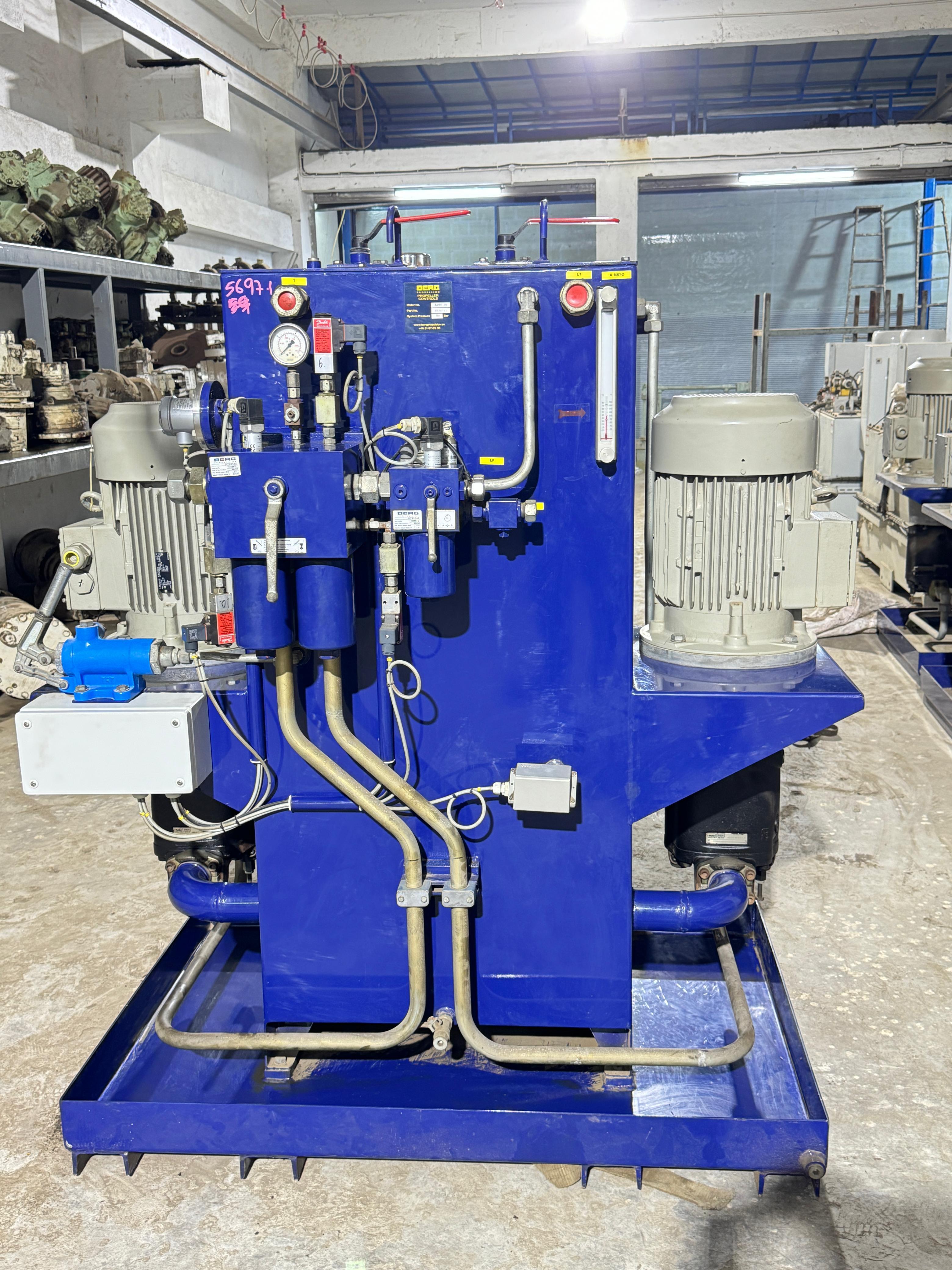

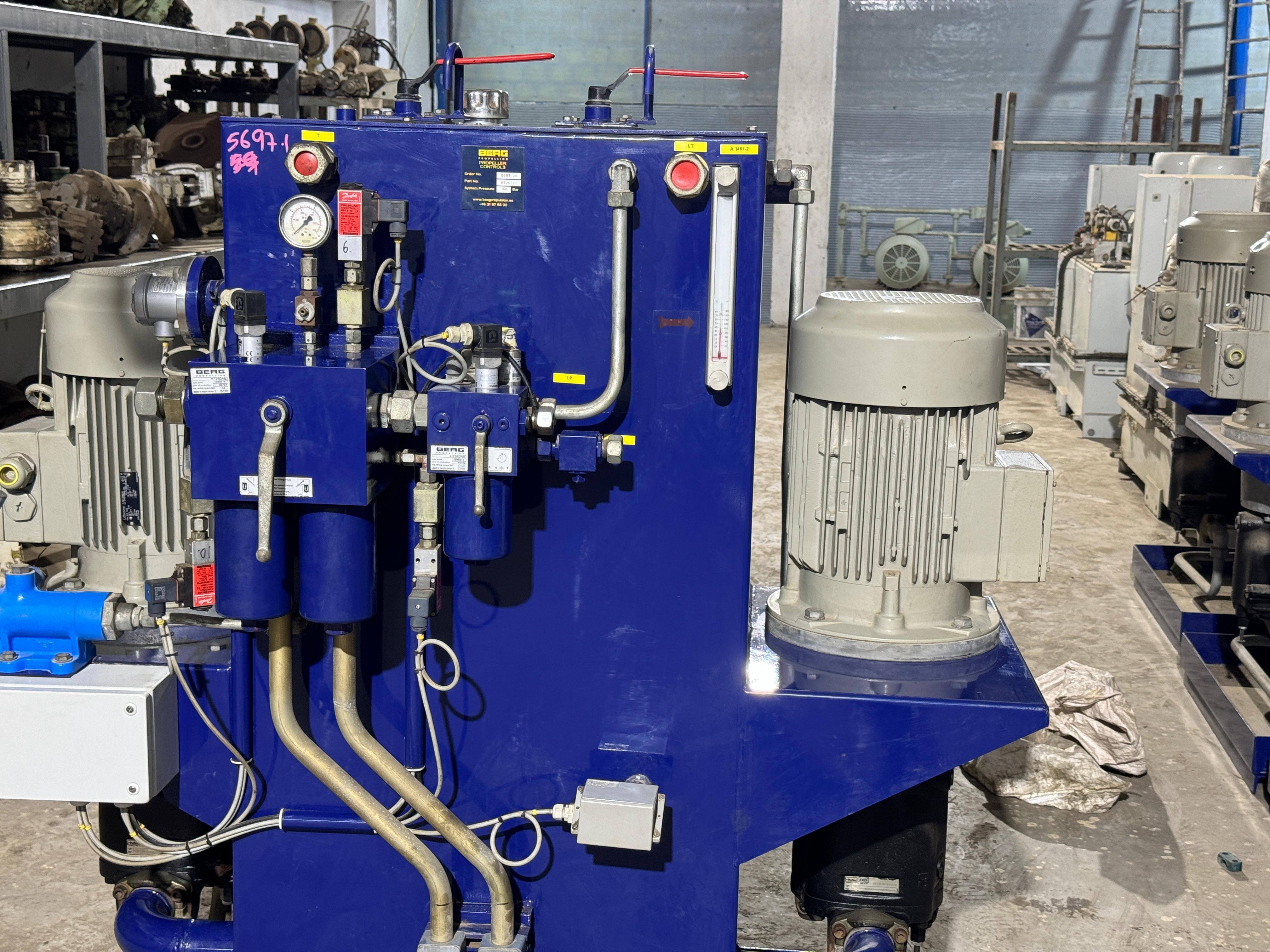

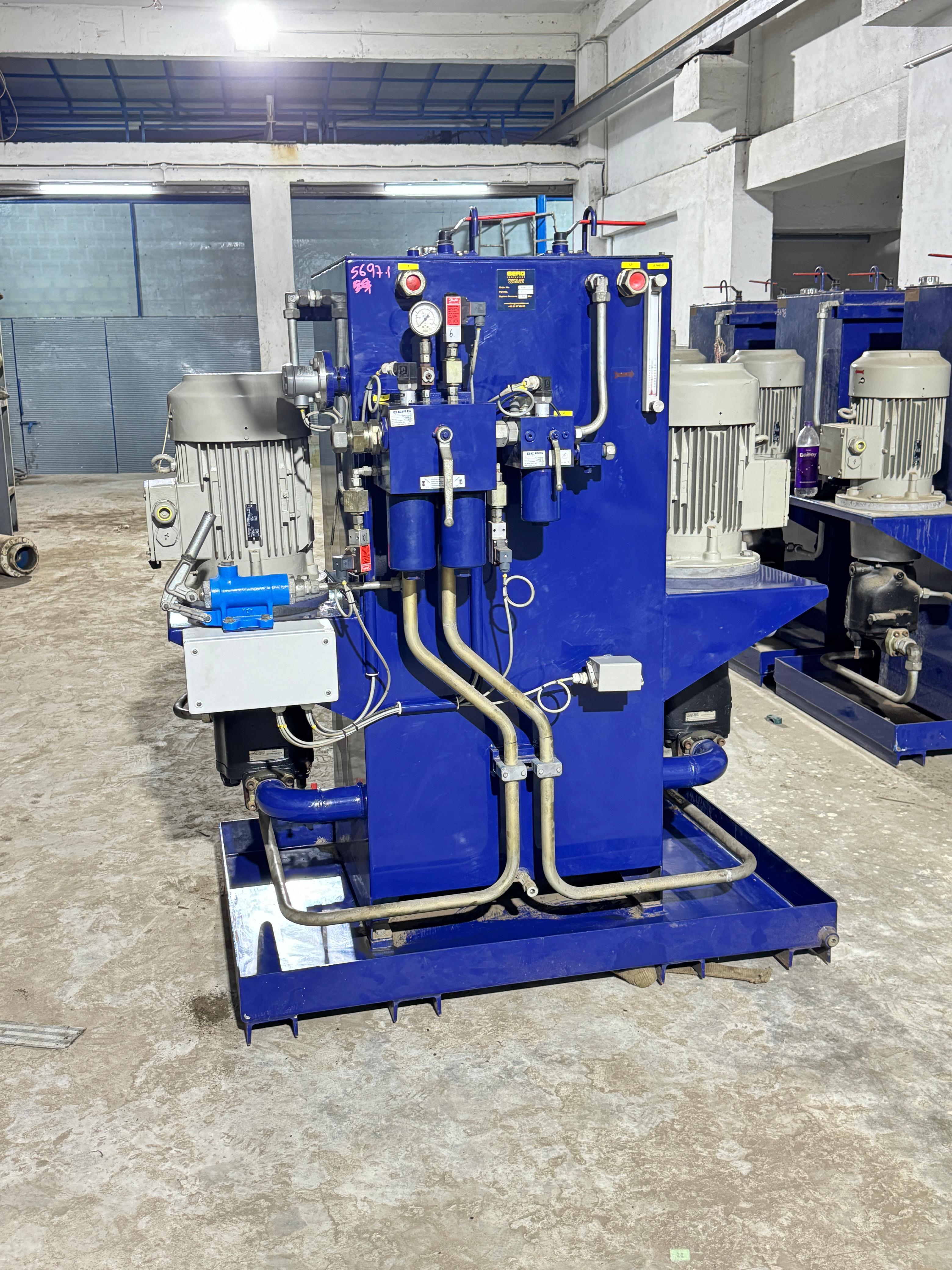

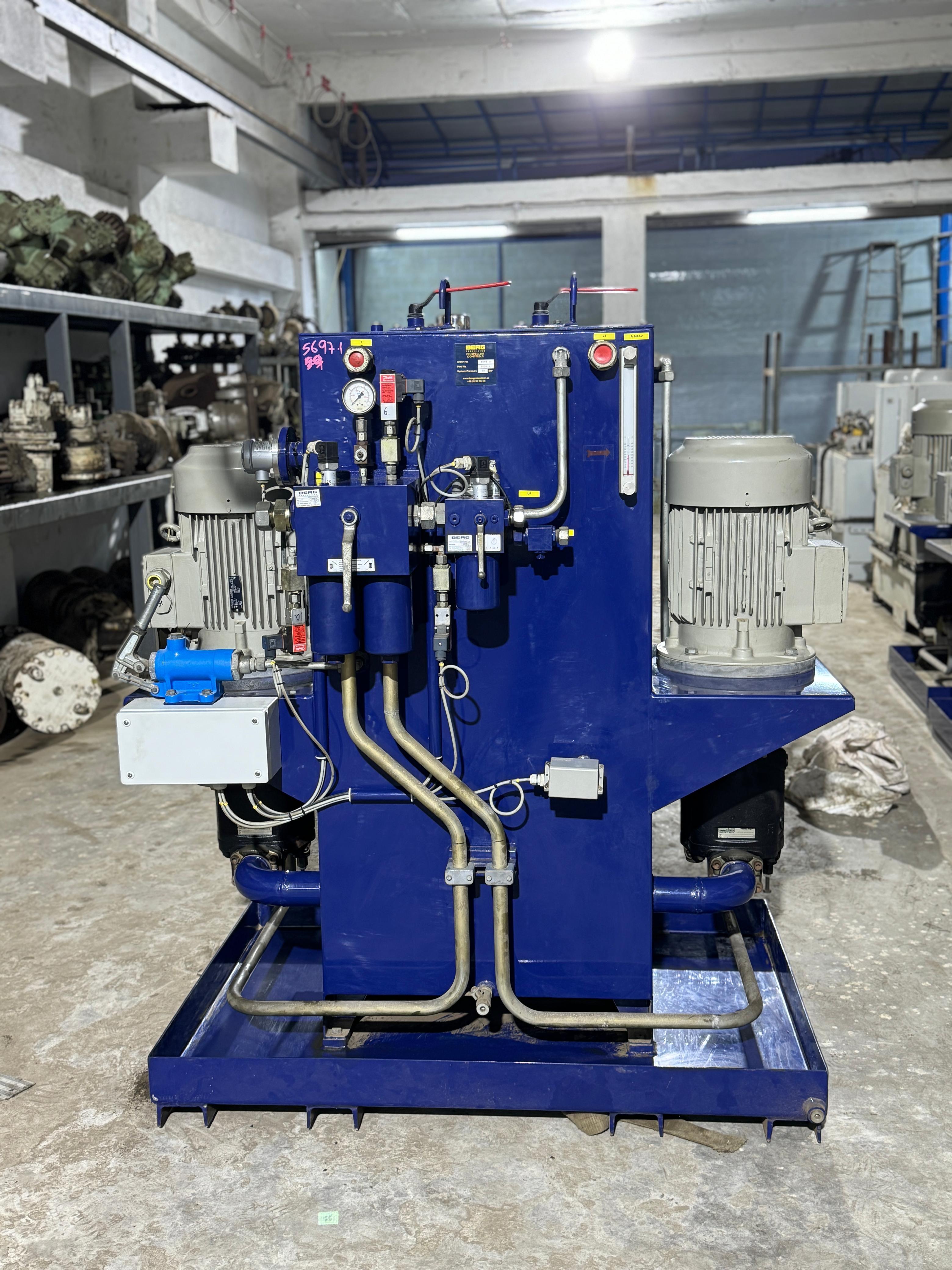

The BERG PROPULSION HT95349 Hydraulic Power Unit is engineered for precision control of ship propeller systems, ensuring reliable and smooth thrust adjustments. This marine-rated HPU features dual PARKER DENISON PD100PS hydraulic pumps and twin Lønne 15–17.3 kW motors, making it ideal for continuous-duty applications in propulsion control, shaft-line management, and maneuvering systems.

With integrated dual hydraulic filters (1289515 & 1289514), this HPU offers exceptional filtration performance and durability, suitable for all vessel types including tankers, OSVs, ferries, and naval ships.

Gani Marine stocks and exports genuine BERG hydraulic control units globally, with support for installation, retrofitting, and ship automation upgrades.

---

 Technical Specifications

 Hydraulic Unit

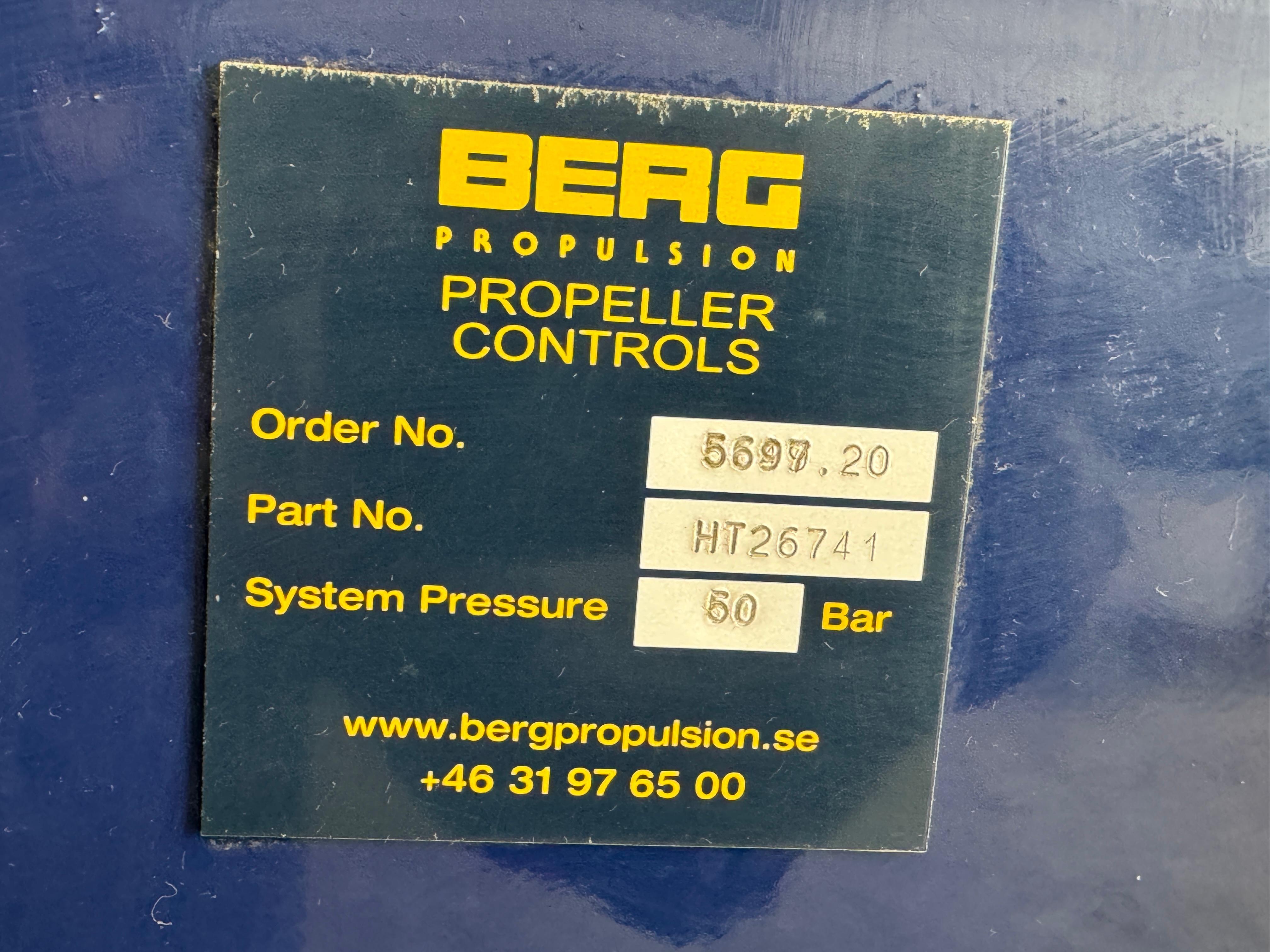

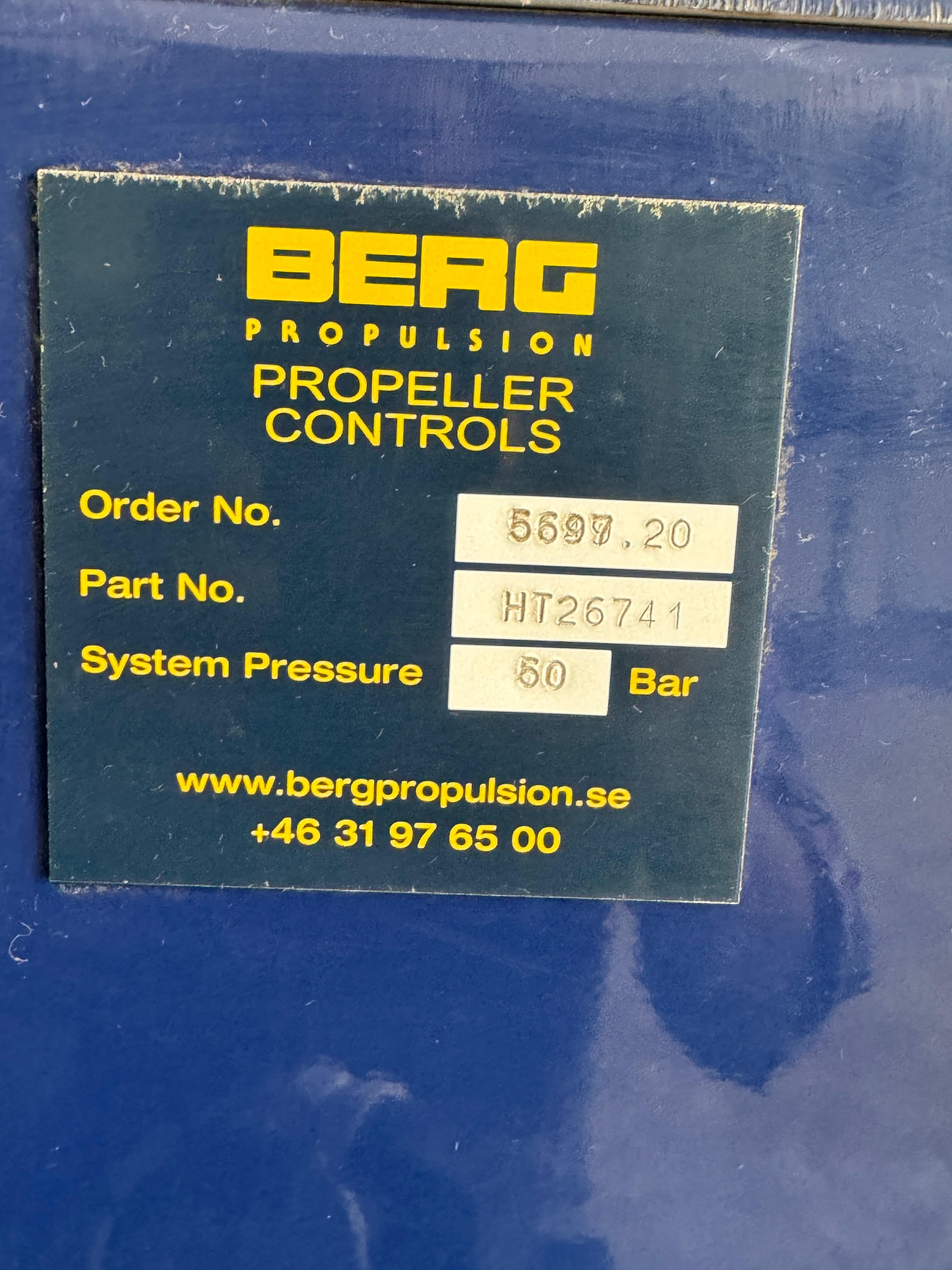

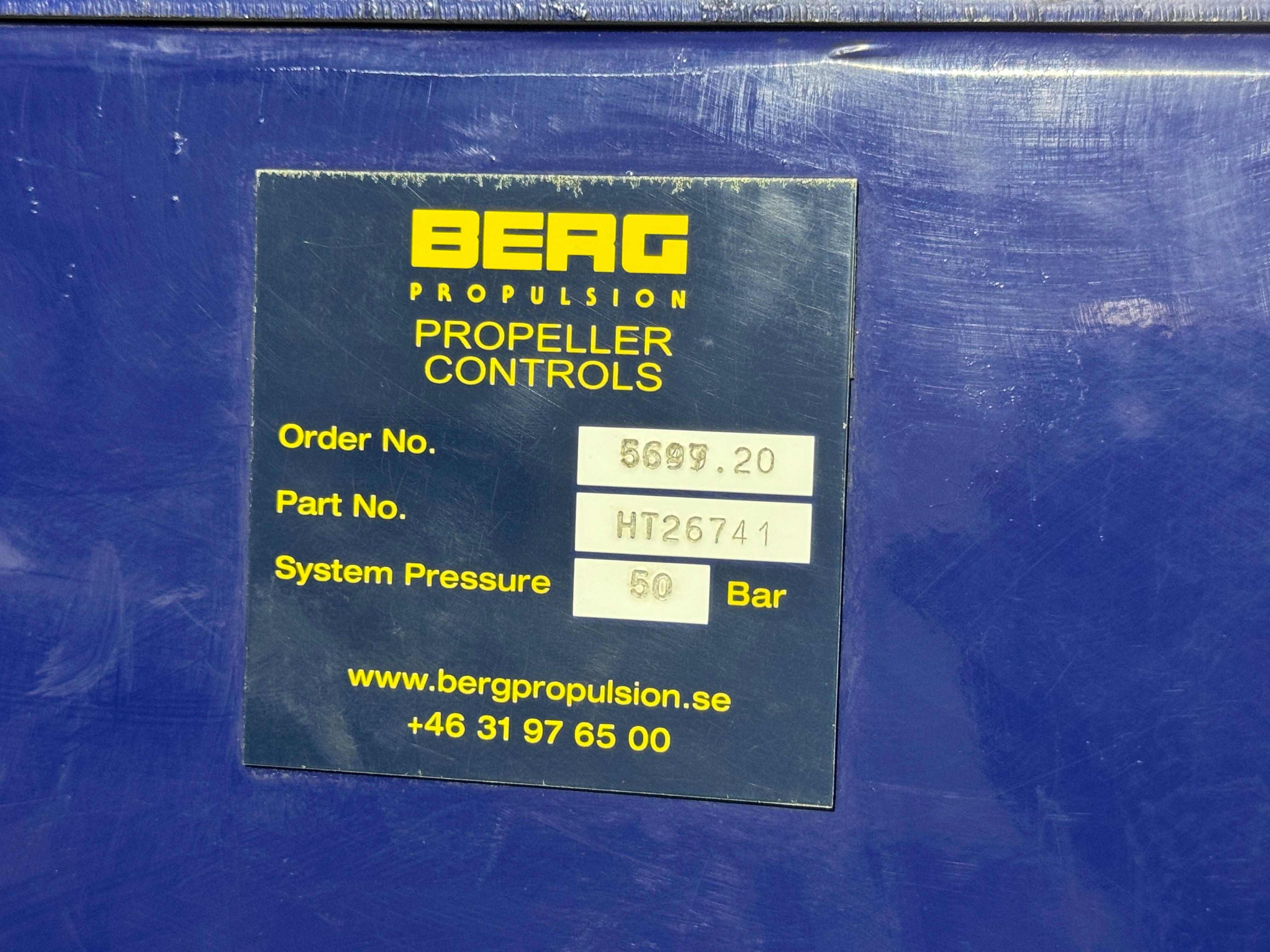

Model: HT95349

System Pressure: 50 BAR

---

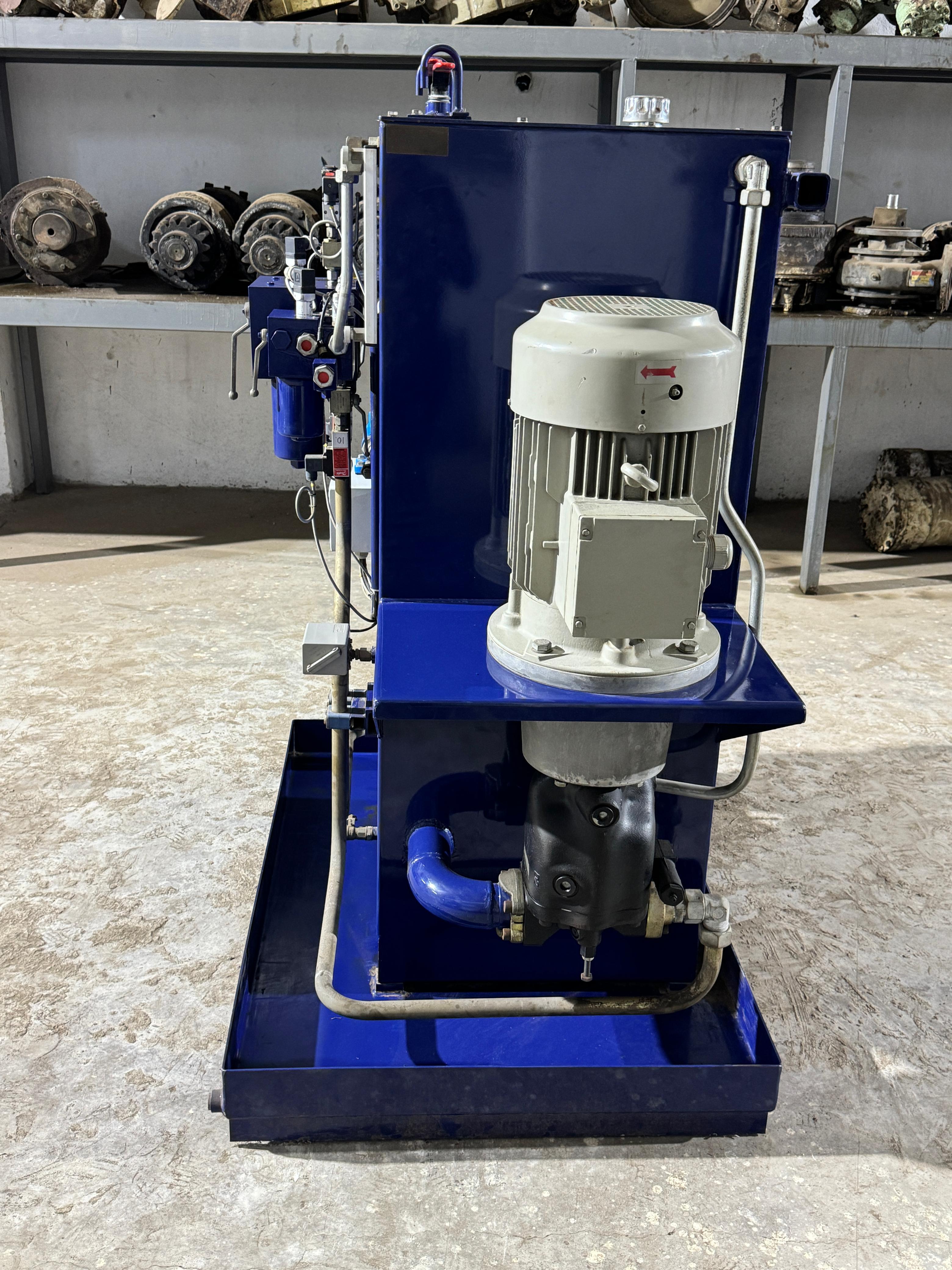

 Electric Motors – Lønne x 2

Model: UD 0711/1111998-039-8

Standard: IEC/EN 60034 ISOL 155(F)

Power: 15 kW (50Hz) / 17.3 kW (60Hz)

Voltage: 380-420V (50Hz) / 440-480V (60Hz)

Current: 28.5A / 28.0A

RPM: 1460 / 1760

COS?: 0.84 / 0.85

---

 Hydraulic Pumps – Parker Denison x 2

Type: PD100PS 02SR S5A C10 S100 PB

Code: 02E-83961-5

Design: High-performance axial piston pump for marine systems

Use: Propeller pitch control, shaft management

---

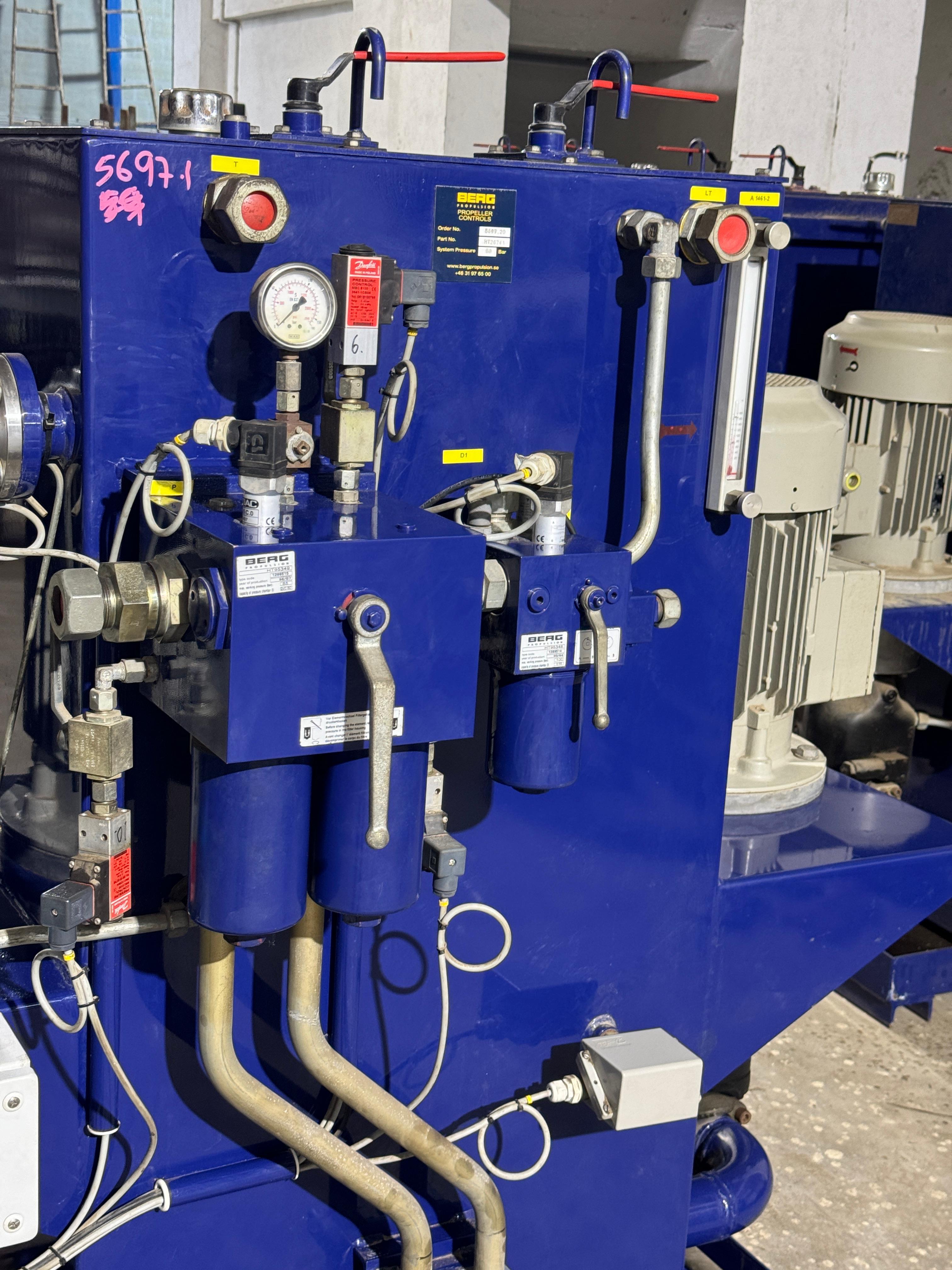

 Hydraulic Filters

Filter 1:

Type Code: 1289515

Max Working Pressure: 65 BAR

Capacity (Chamber): 2 x 0.60

Filter 2:

Type Code: 1289514

Max Working Pressure: 100 BAR

Capacity: 0.55

---

 Applications

Marine Propeller Pitch Control

Ship Shaft and Steering Hydraulic Systems

Offshore Vessel Dynamic Positioning

Naval & Commercial Vessel Propulsion Units

Marine Automation and Hydraulic Retrofits

Shipbuilding & Drydock Overhauls

---

 Product Features

 Dual Lønne marine-grade motors

 High-pressure PD100 Parker Denison pumps

 Dual hydraulic filters with high-capacity design

 Compact design for ship engine rooms

 Continuous-duty performance for propulsion control

 Global spares and retrofit support from Gani Marine

---
