Azbil HD-ETM400 Ethernet Communication Module
Azbil HD-ETM400 Ethernet Communication Module
The Azbil Corporation HD-ETM400 is an advanced Ethernet communication interface module designed for industrial automation systems. Part of the Smart Display / NX Series ecosystem, this module enables seamless communication between Azbil controllers, field devices, and Ethernet-based networks such as PLC or SCADA systems.
Manufactured in Japan, the HD-ETM400 provides reliable industrial network connectivity with diagnostic monitoring features.
Product Identification
• Manufacturer: Azbil Corporation
• Model Number: HD-ETM400
• Product Number: 1933005
• Series: Smart Display / NX Series
• Input Power: 24V DC
• Current Consumption: 0.28A
• Origin: Made in Japan
Communication Specifications
• Ethernet Port: 1 × RJ45
• Supported Speeds:
• 10BASE-T
• 100BASE-TX
• LED Indicators: LINK 10 / LINK 100
• Data Activity Indicators: RX / TX
Designed for stable industrial LAN connectivity.

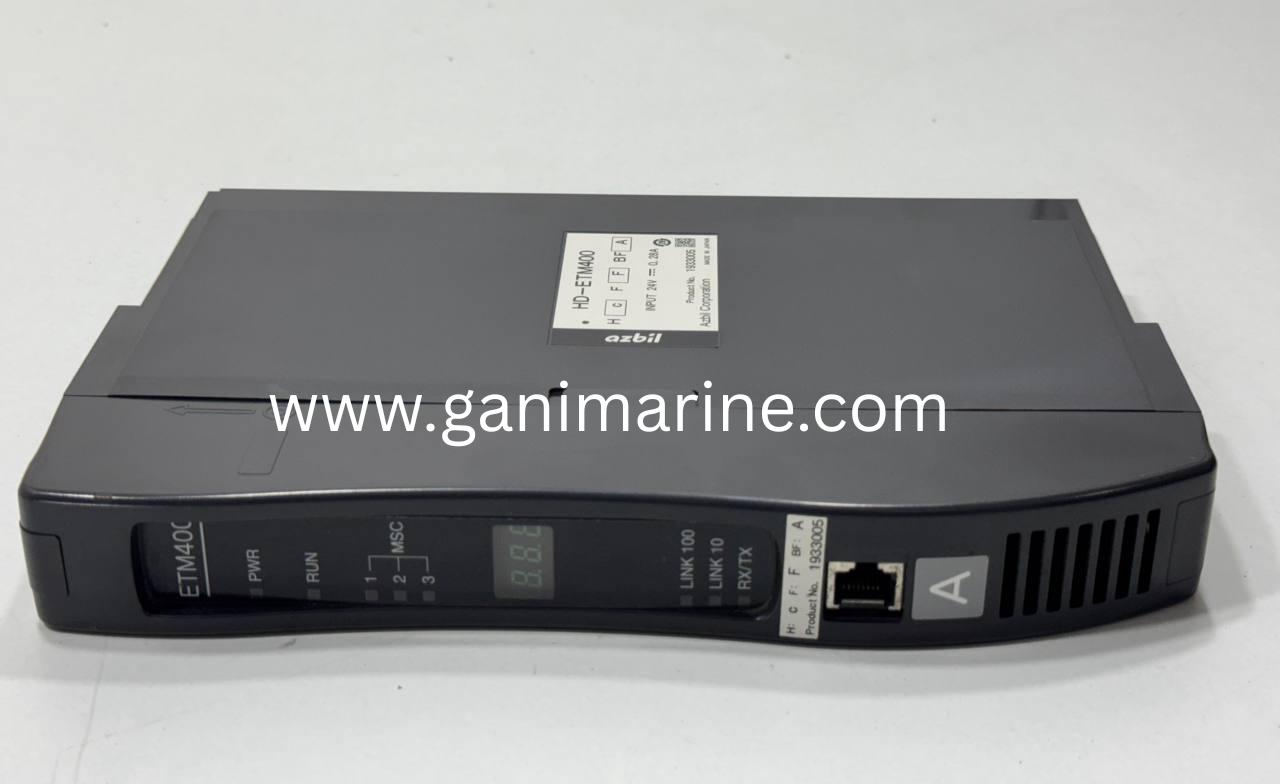

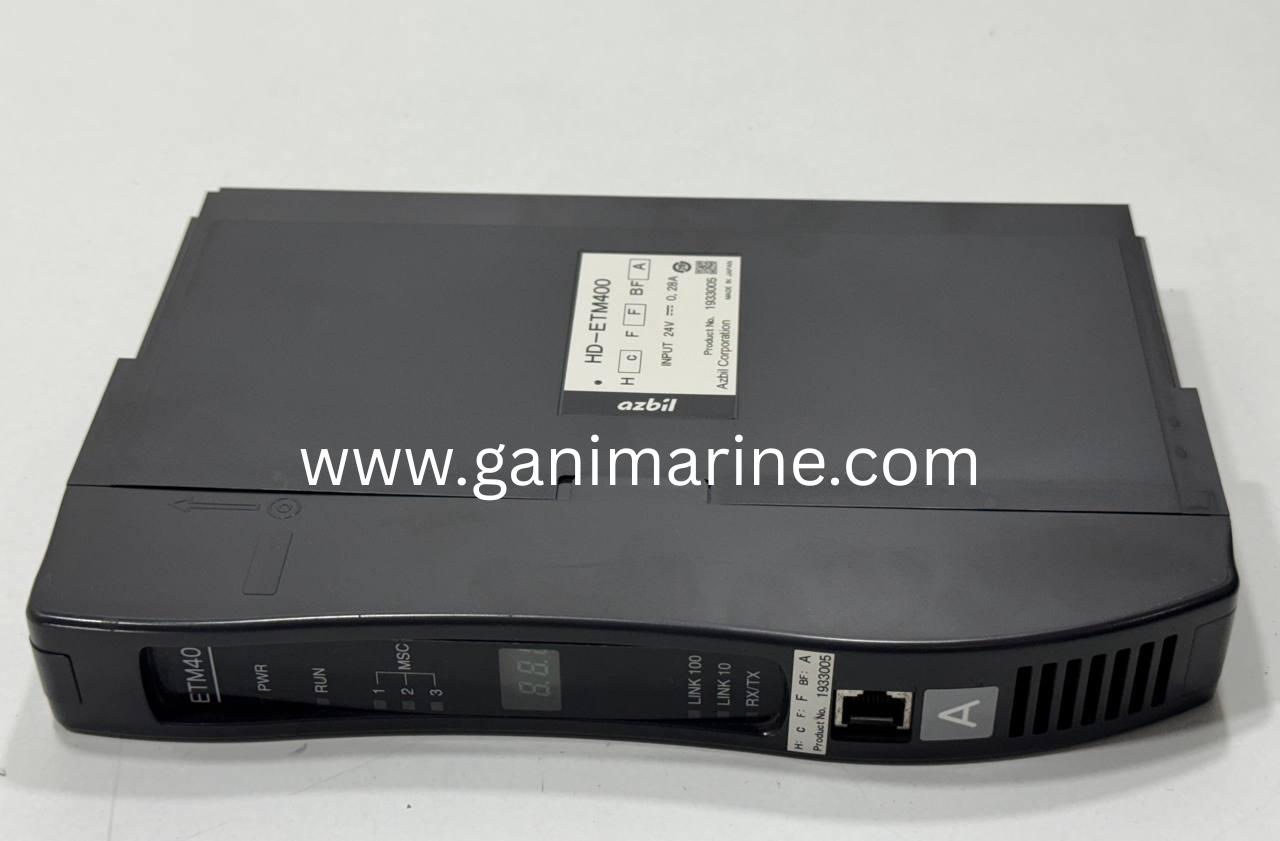

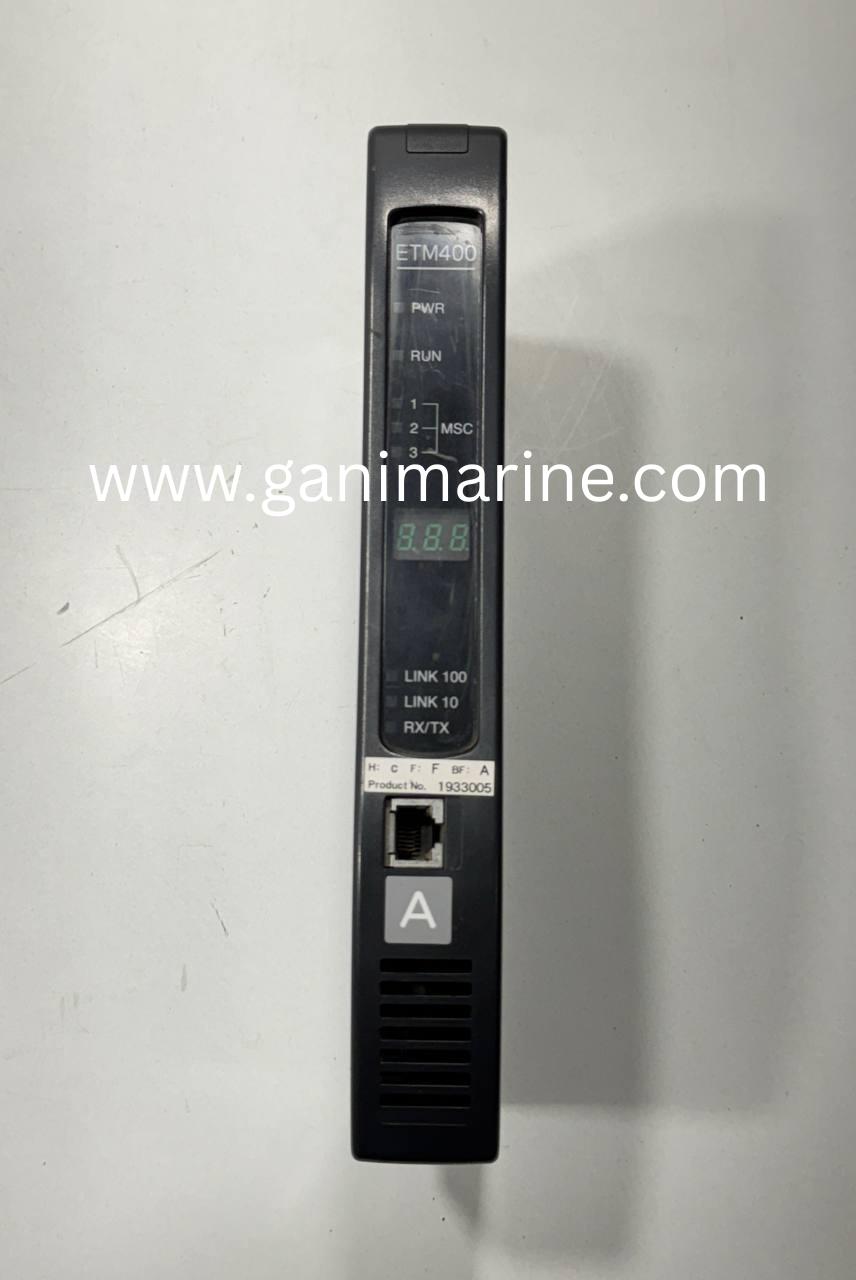

Front Panel Indicators
• PWR / RUN ? Power and operational status
• MSC (1, 2, 3) ? Side-bus communication status with connected modules
• LINK 100 / LINK 10 ? Network speed detection
• RX / TX ? Data transmission & reception activity
Display Interface
• 3-digit 7-segment LED display
• Module status
• Addressing
• Diagnostic information
Provides quick configuration and troubleshooting access.

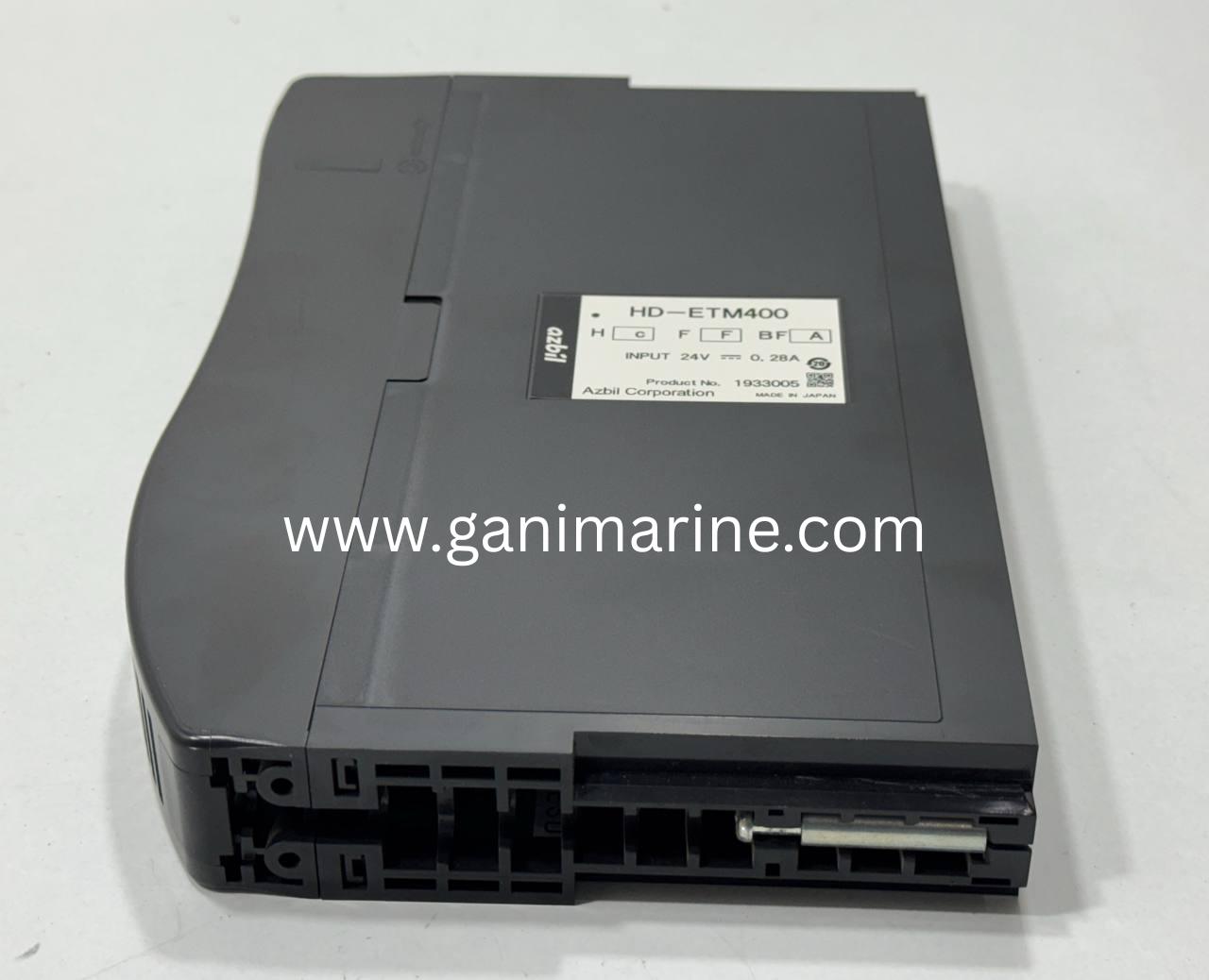

Configuration Code
Configuration string on label:
H: C F: F BF: A
This typically defines:
• Hardware revision
• Firmware version
• Communication protocol compatibility
• Factory configuration settings
May support industrial Ethernet protocols such as:
• Modbus/TCP
• EtherNet/IP
• Integration with PLC & SCADA systems
Key Applications
Remote Monitoring
Allows PLC or SCADA systems to monitor and control Azbil NX controllers over Ethernet.
Centralized System Management
Enables multiple linked modules to communicate through a single Ethernet gateway.
Industrial Network Integration
Connects field instruments to enterprise-level automation systems.
Industries Served
• Manufacturing plants
• Semiconductor industry
• HVAC automation
• Power plants
• Oil & gas
• Chemical processing
• Infrastructure & smart facilities
Key Advantages
Reliable Japanese manufacturing
10/100 Mbps Ethernet support
Compact DIN rail mounting
Integrated diagnostic display
Easy integration with PLC / SCADA
Suitable for distributed automation systems
