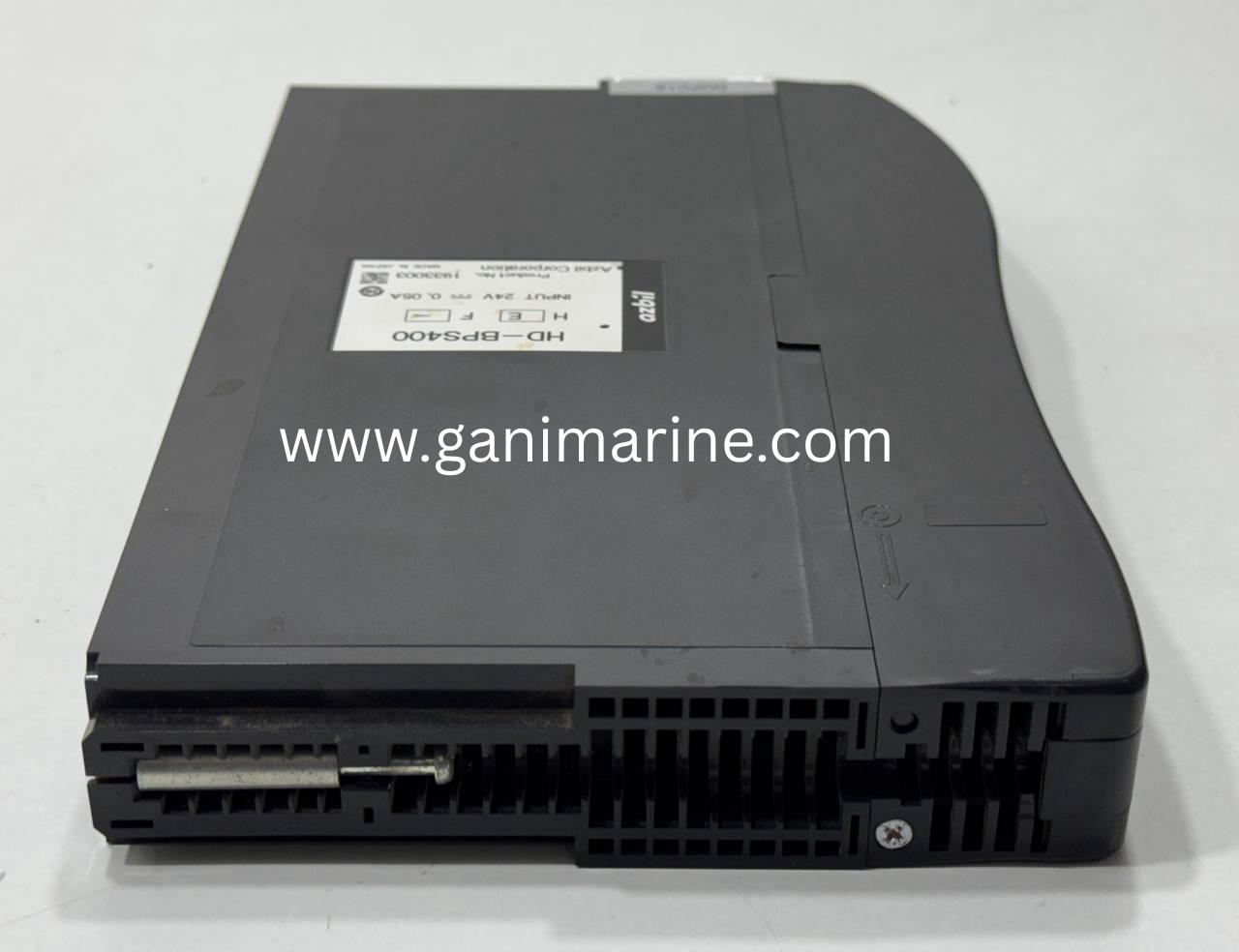

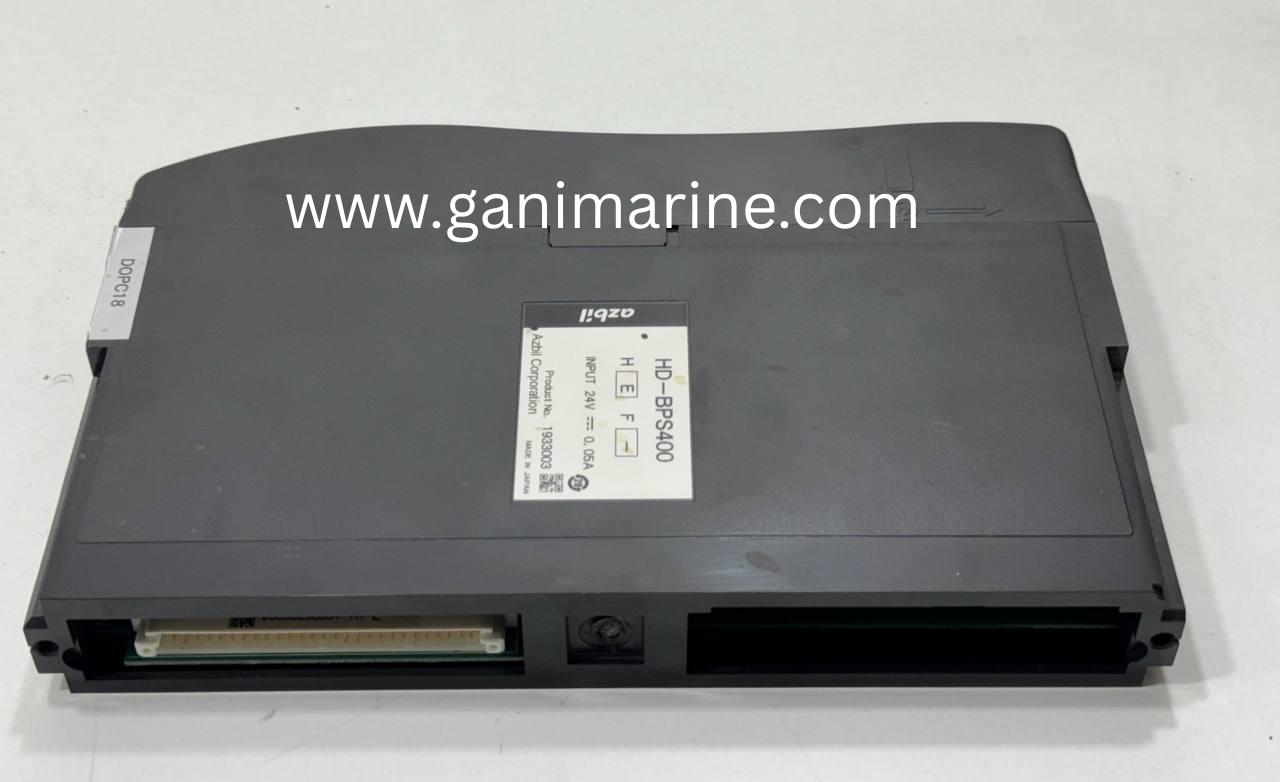

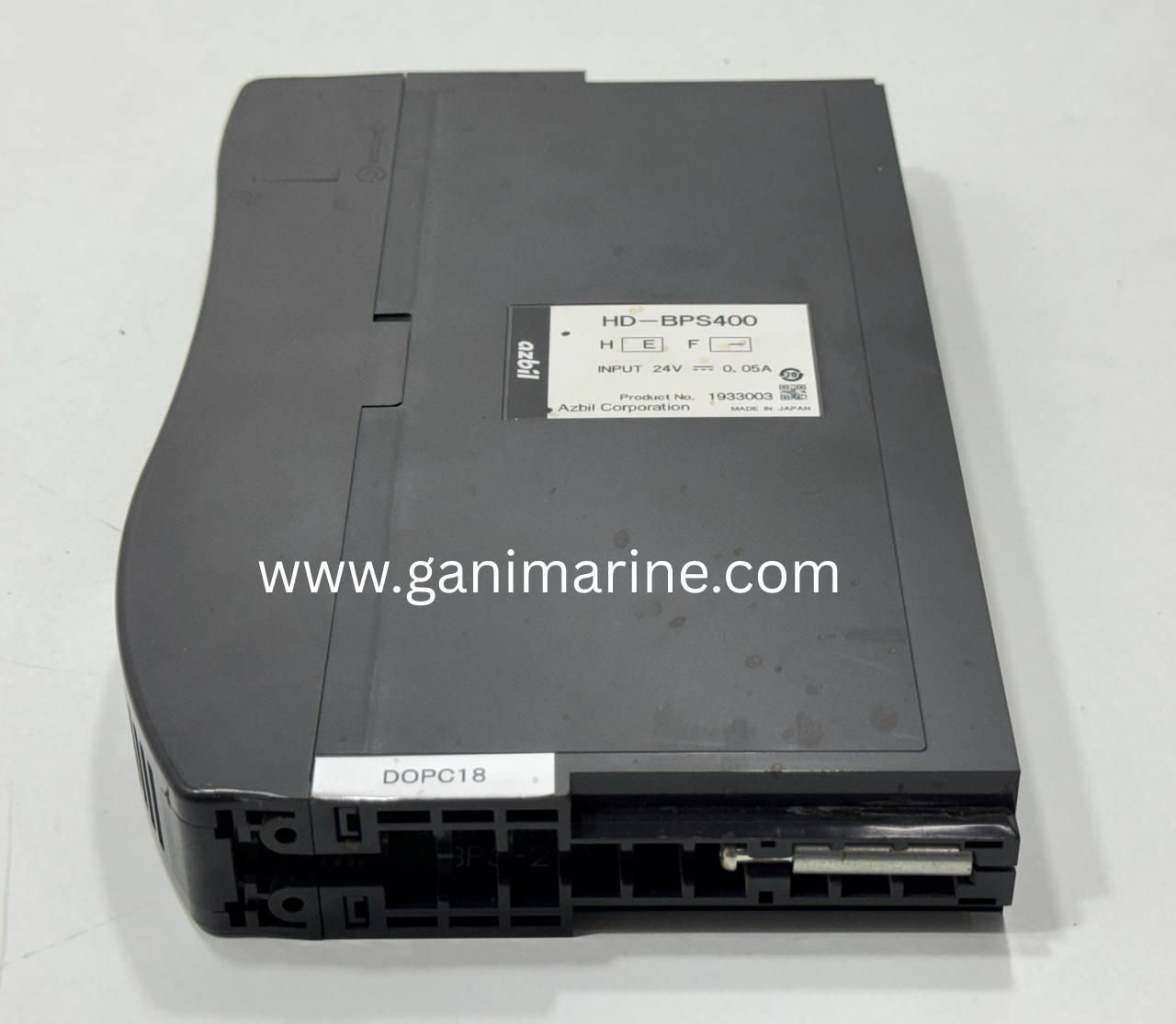

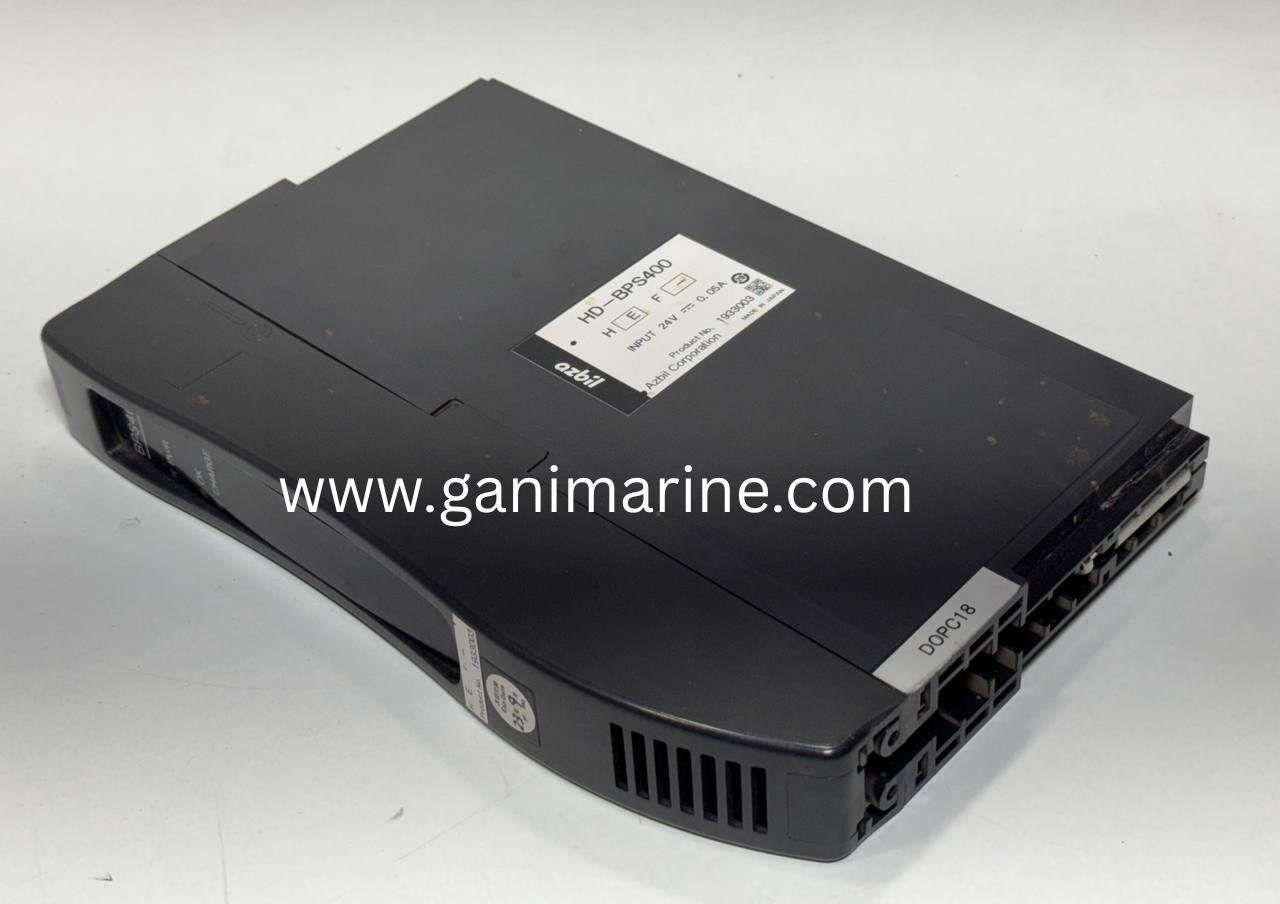

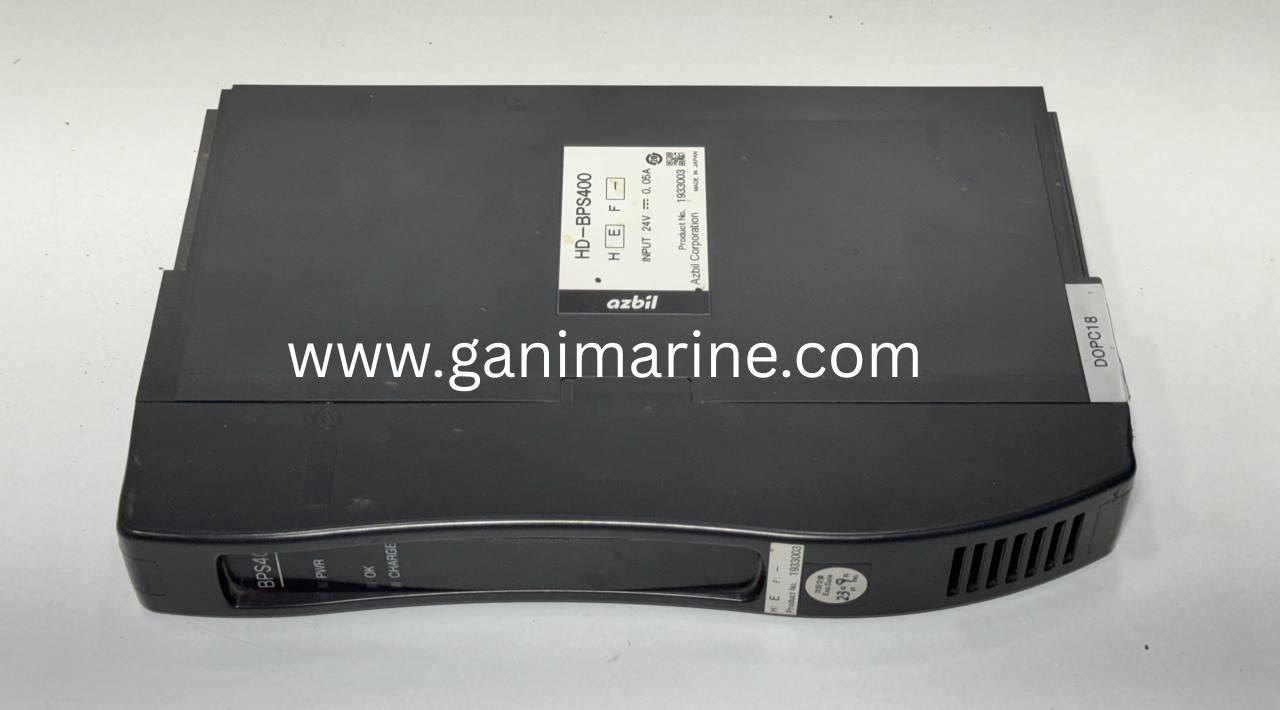

Azbil HD-BPS400 Basic Power Supply Module
Azbil HD-BPS400 Basic Power Supply Module
The Azbil Corporation HD-BPS400 is a high-performance Basic Power Supply Module designed for industrial automation and process control systems.
This module provides stable 24V DC power distribution to connected control modules, I/O units, and communication interfaces within Azbil Smart Display or related automation platforms.
Manufactured in Japan, the HD-BPS400 is engineered for reliable long-term operation in industrial and marine environments.

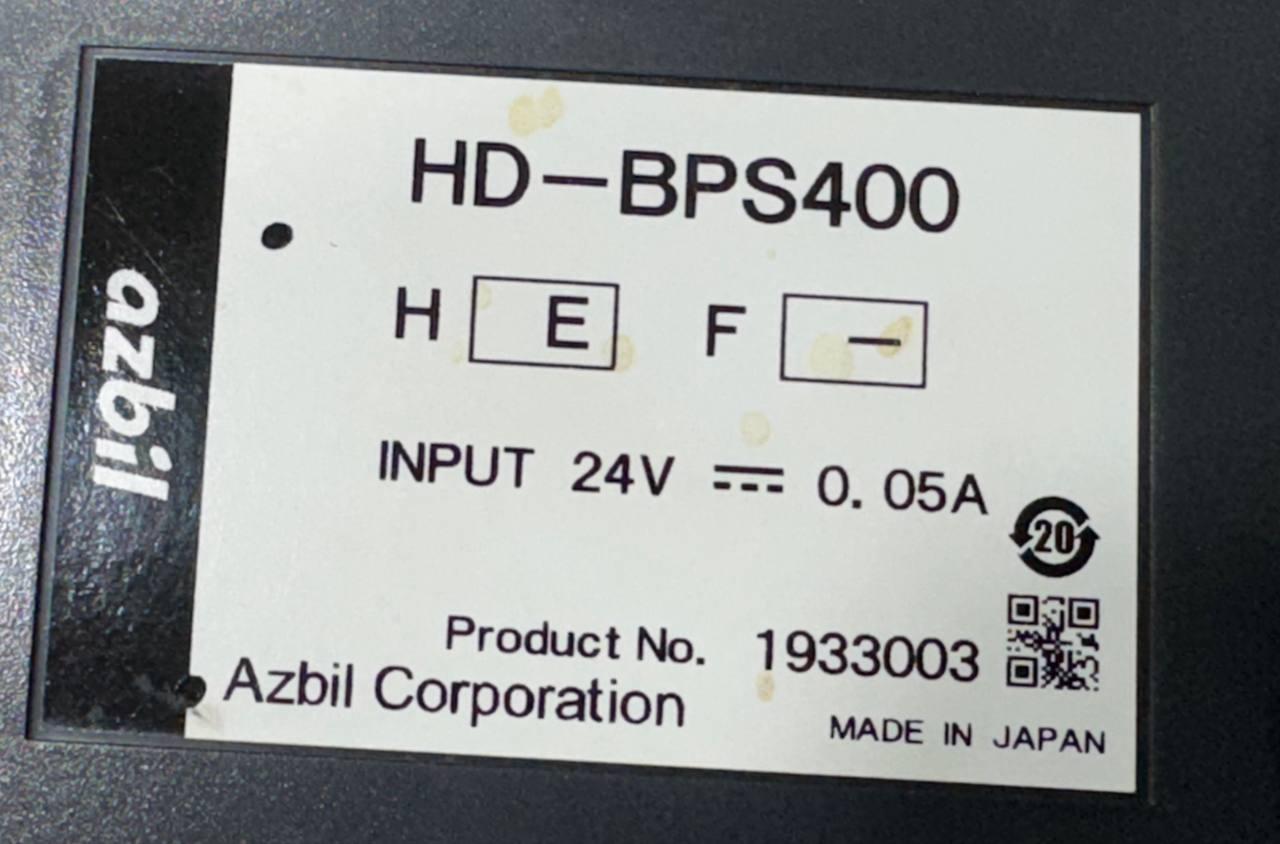

Product Identification
• Manufacturer: Azbil Corporation
• Model Number: HD-BPS400
• Product Number: 1933003
• Input Voltage: 24 V DC
• Current Consumption: 0.05 A
• Origin: Made in Japan
• Compliance Marking: “20” logo (China RoHS environmental use period)
Technical Function
The HD-BPS400 is designed to:
Supply regulated internal power to control modules
Stabilize voltage within rack-mounted systems
Protect internal electronics from fluctuations
Ensure continuous operation of connected automation modules
It acts as a central power distribution unit within the Azbil system architecture.
Mechanical & Installation Features
• Slide-in modular design
• Multi-pin rear connector
• Backplane interfacing
• DIN rail / rack integration (depending on system)
• Compact footprint for panel installation
Designed for seamless integration into larger Azbil automation assemblies.

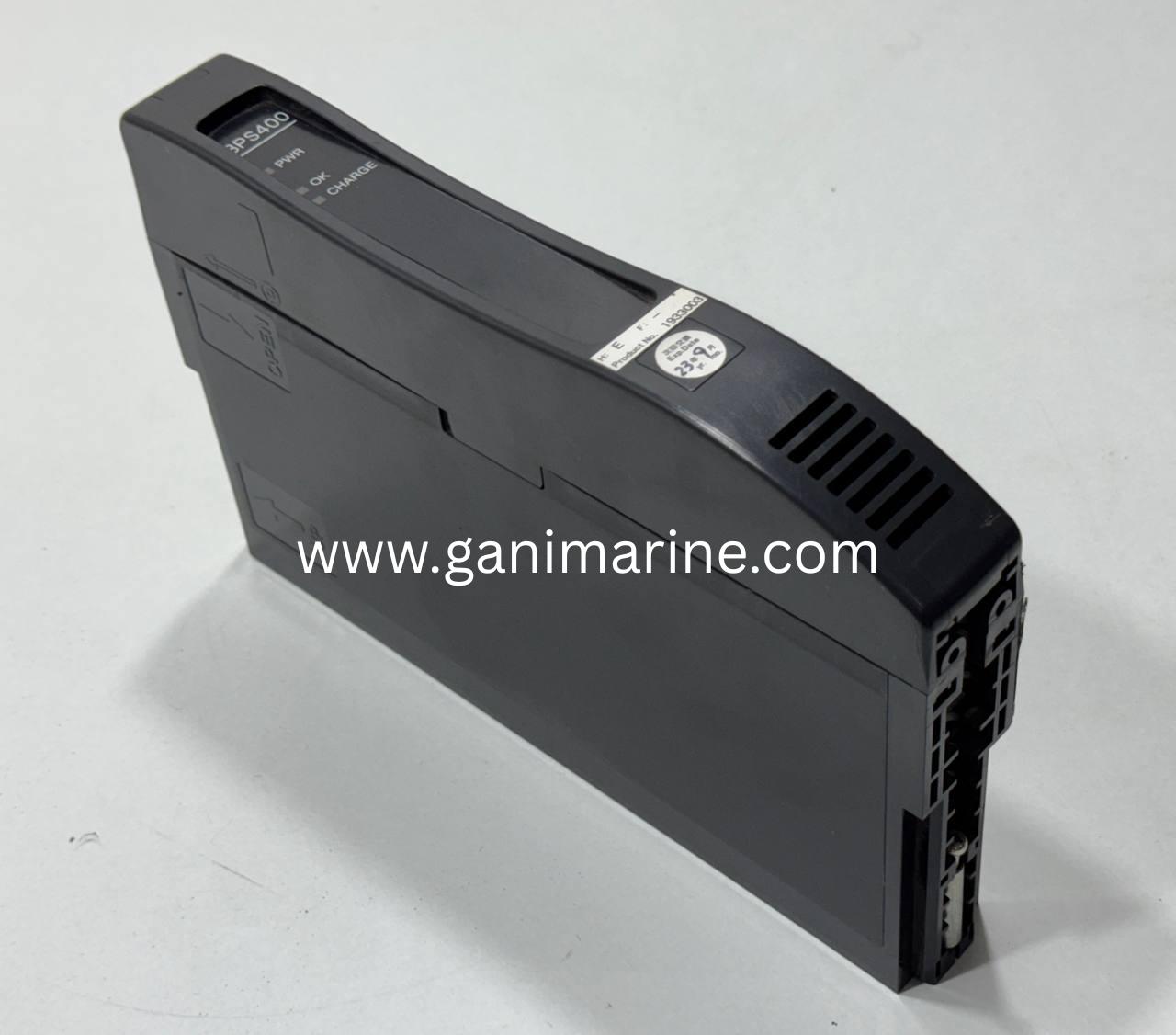

Front Panel Status Indicators
The label includes status indicators typically defined as:
• H (Health/Power) Input voltage present and within acceptable range
• E (Error) Internal hardware or voltage fault
• F (Fail) Critical system failure indication
These indicators allow fast diagnostics during maintenance.
Common Applications
Marine Automation Systems
• Engine control systems
• Cargo monitoring systems
• Alarm monitoring panels
HVAC & Building Automation
• Chiller plant control
• Energy management systems
• Facility automation panels
Industrial Process Control
• Distributed Control Systems (DCS)
• PLC-based automation panels
• Semiconductor equipment
• Power generation systems
Industries Served
• Marine & offshore
• Oil & gas
• Power plants
• Commercial buildings
• Manufacturing
• Infrastructure projects
Key Advantages
Reliable Japanese manufacturing
Stable 24V DC power distribution
Compact modular design
Easy backplane integration
Low current consumption
Suitable for marine & industrial environments
