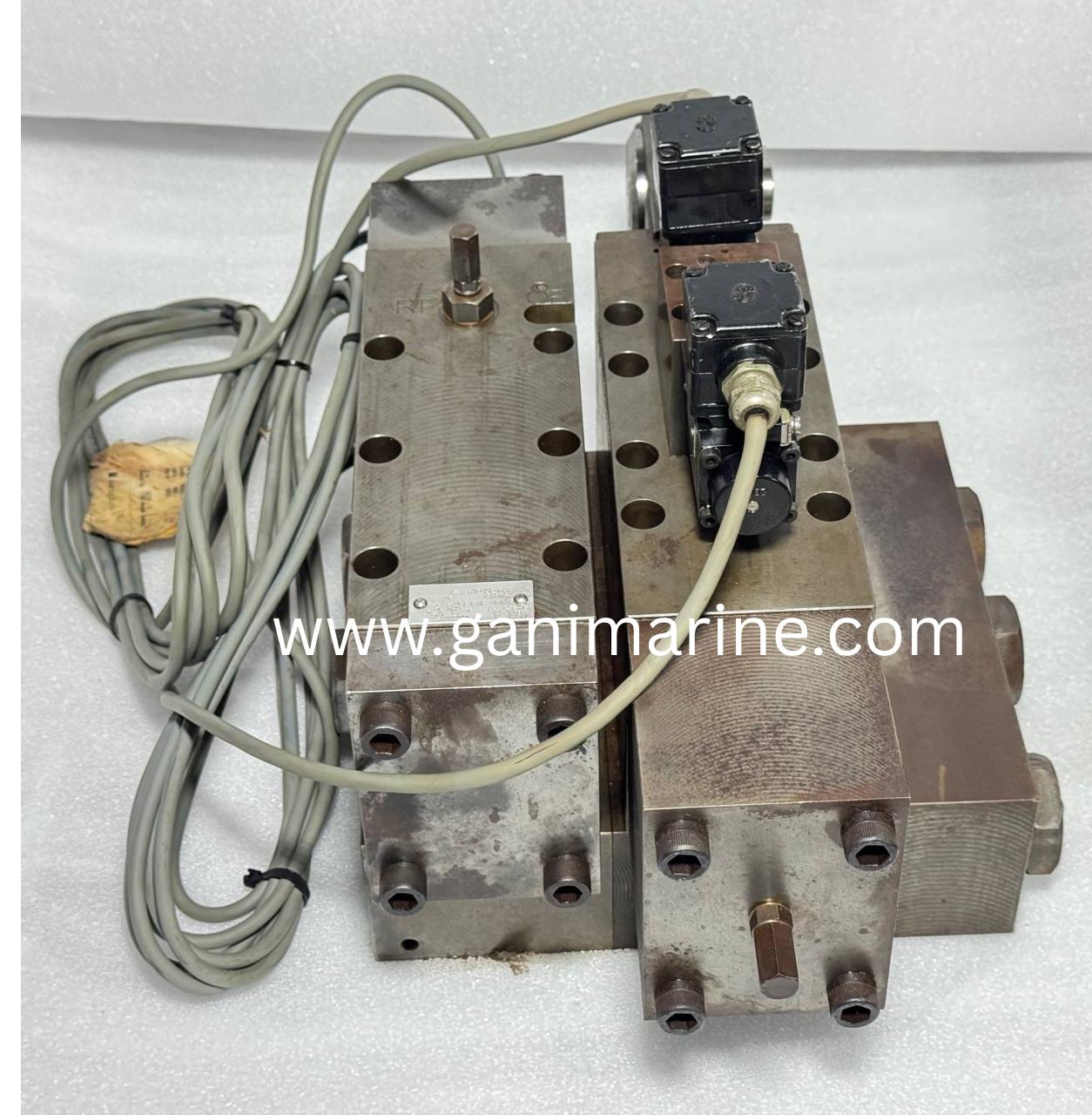

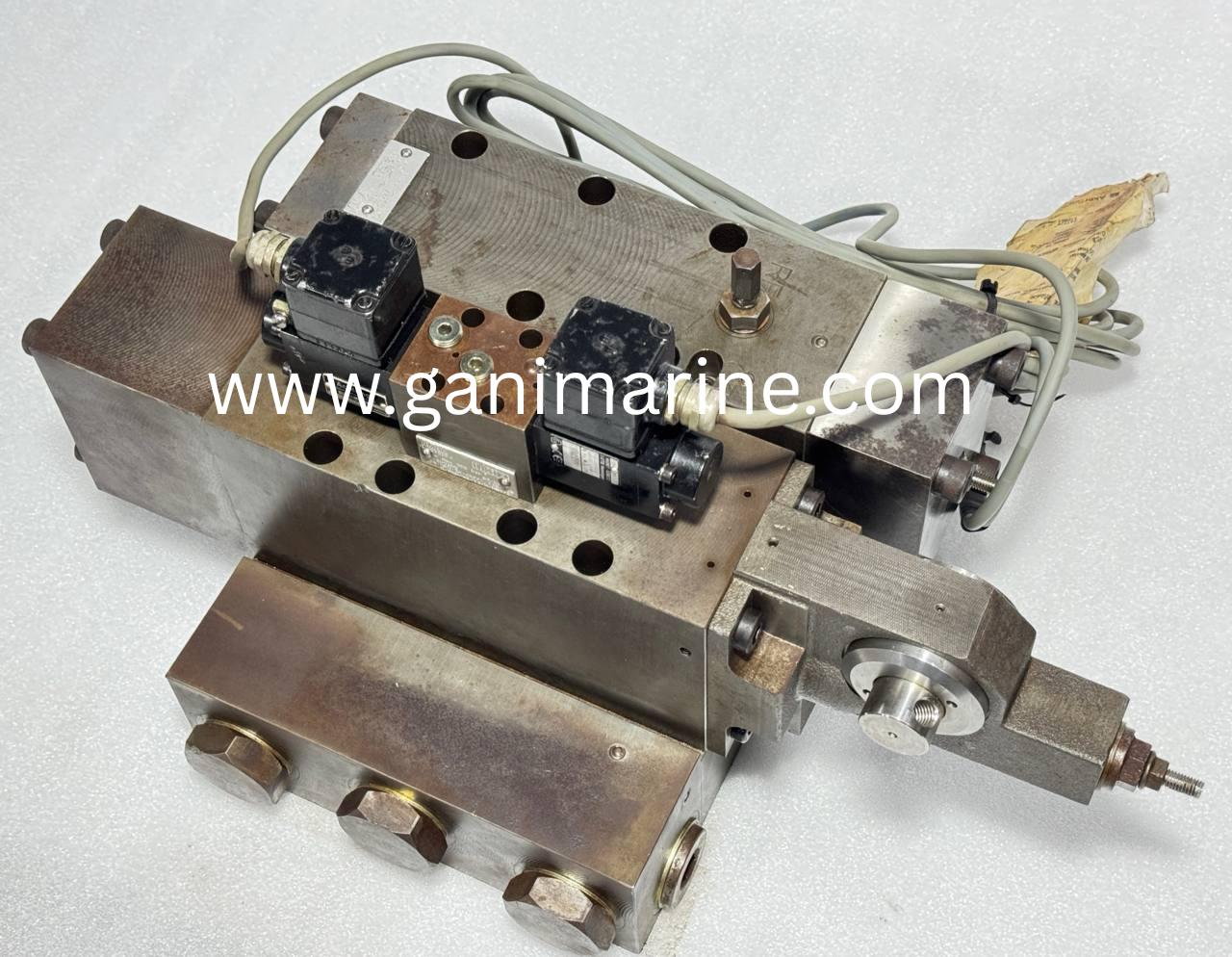

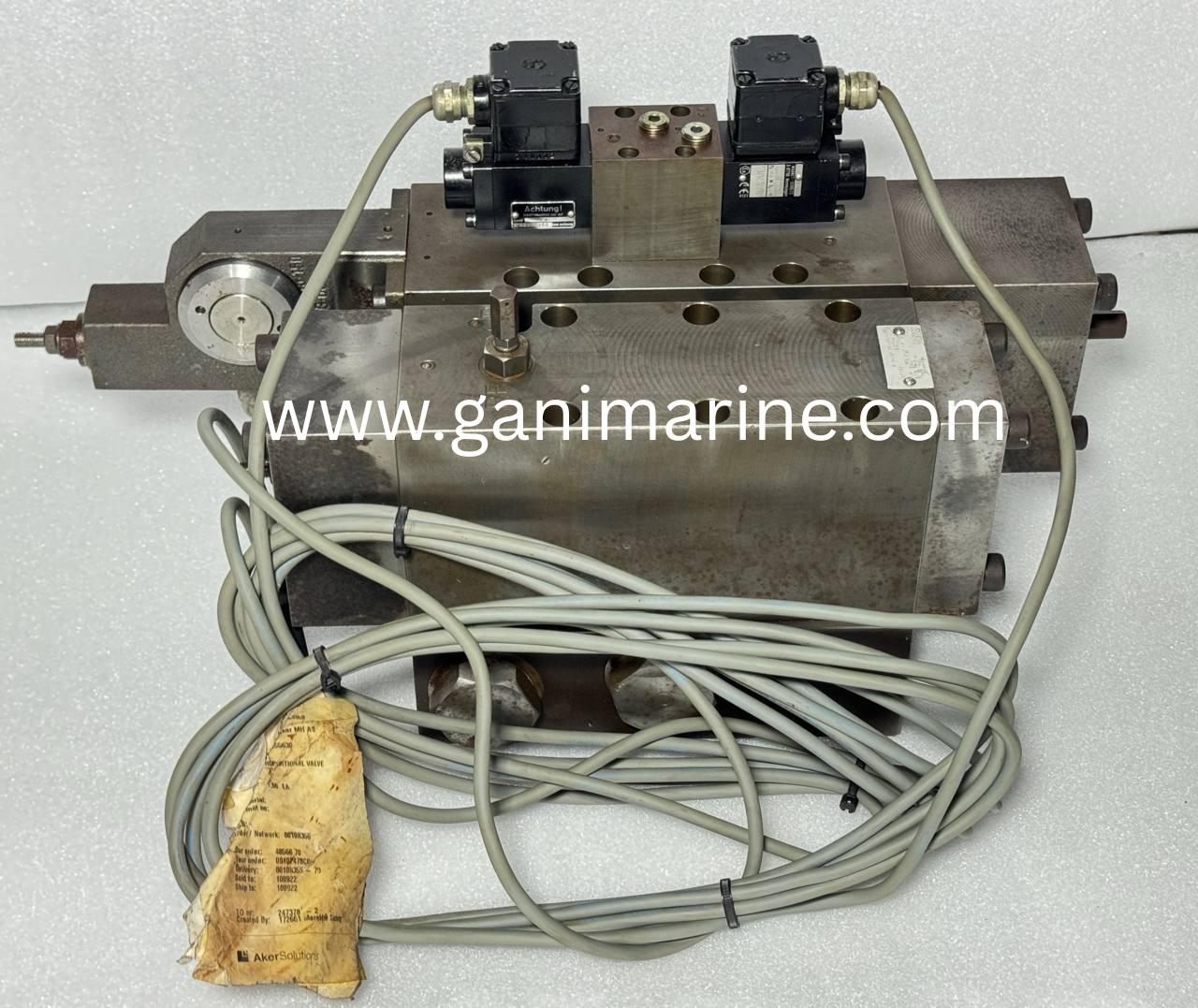

AMCA MEV-32 Hydraulic Control Valve Block MEV-32-ASFFC-430/320
AMCA MEV-32 Hydraulic Control Valve Block MEV-32-ASFFC-430/320

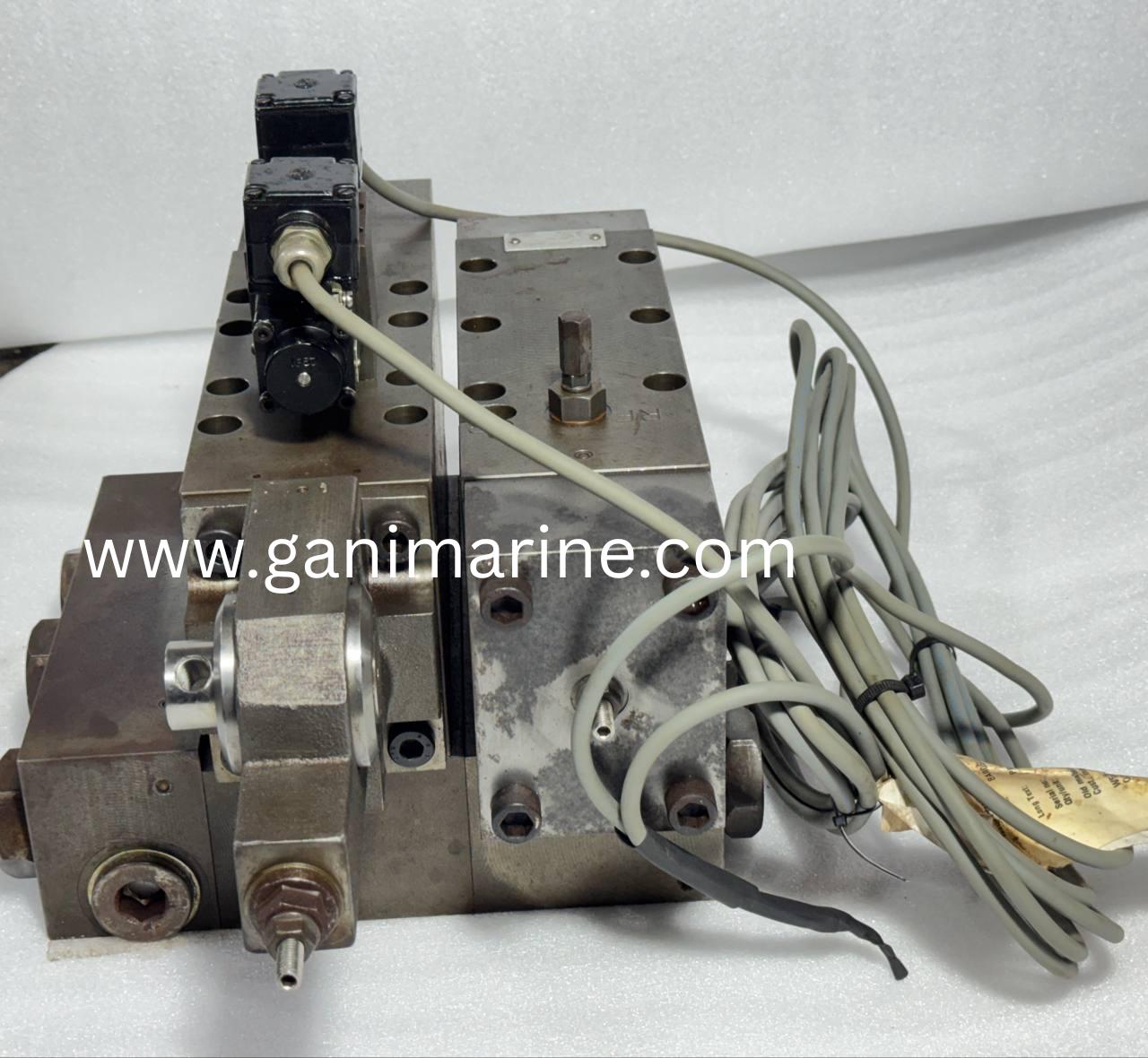

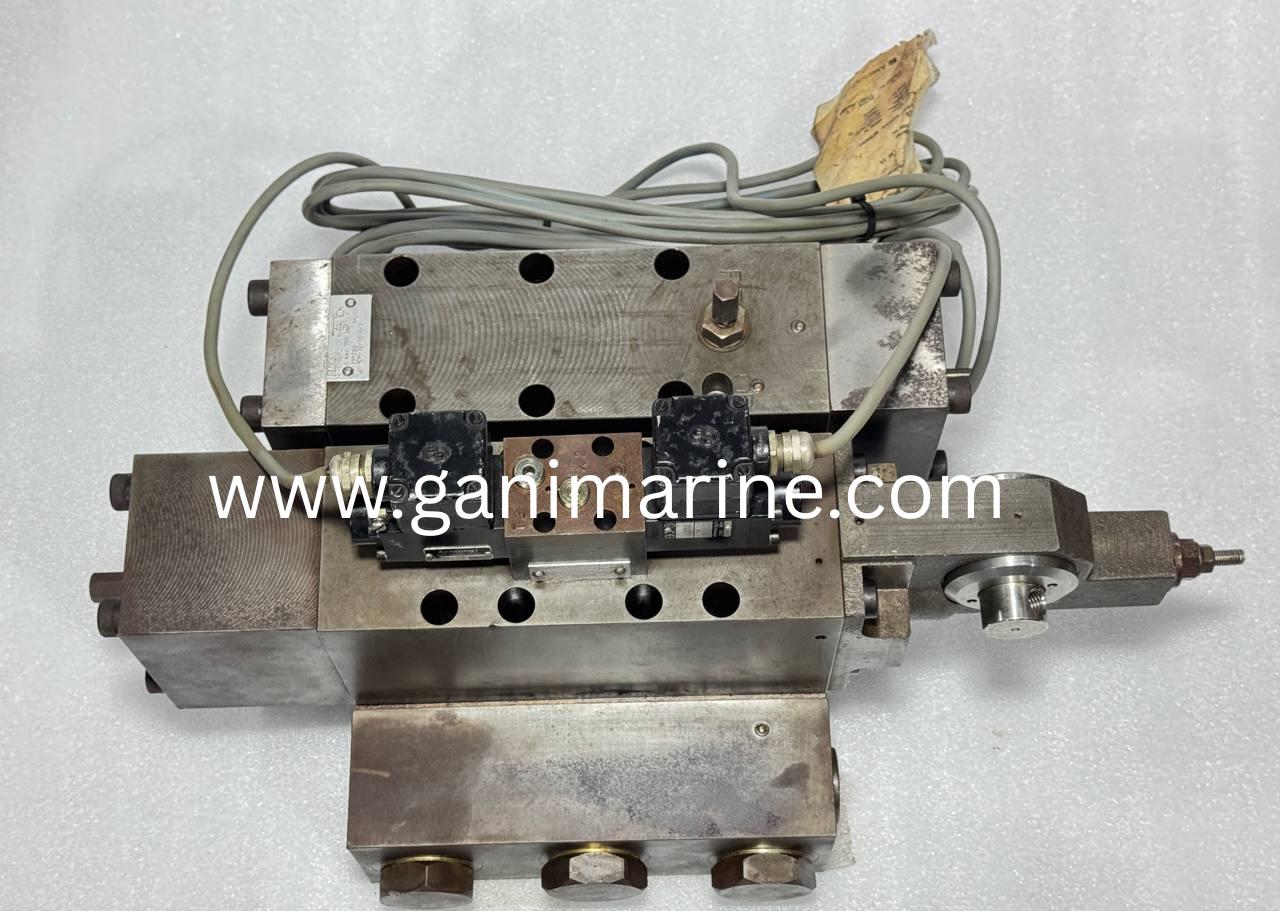

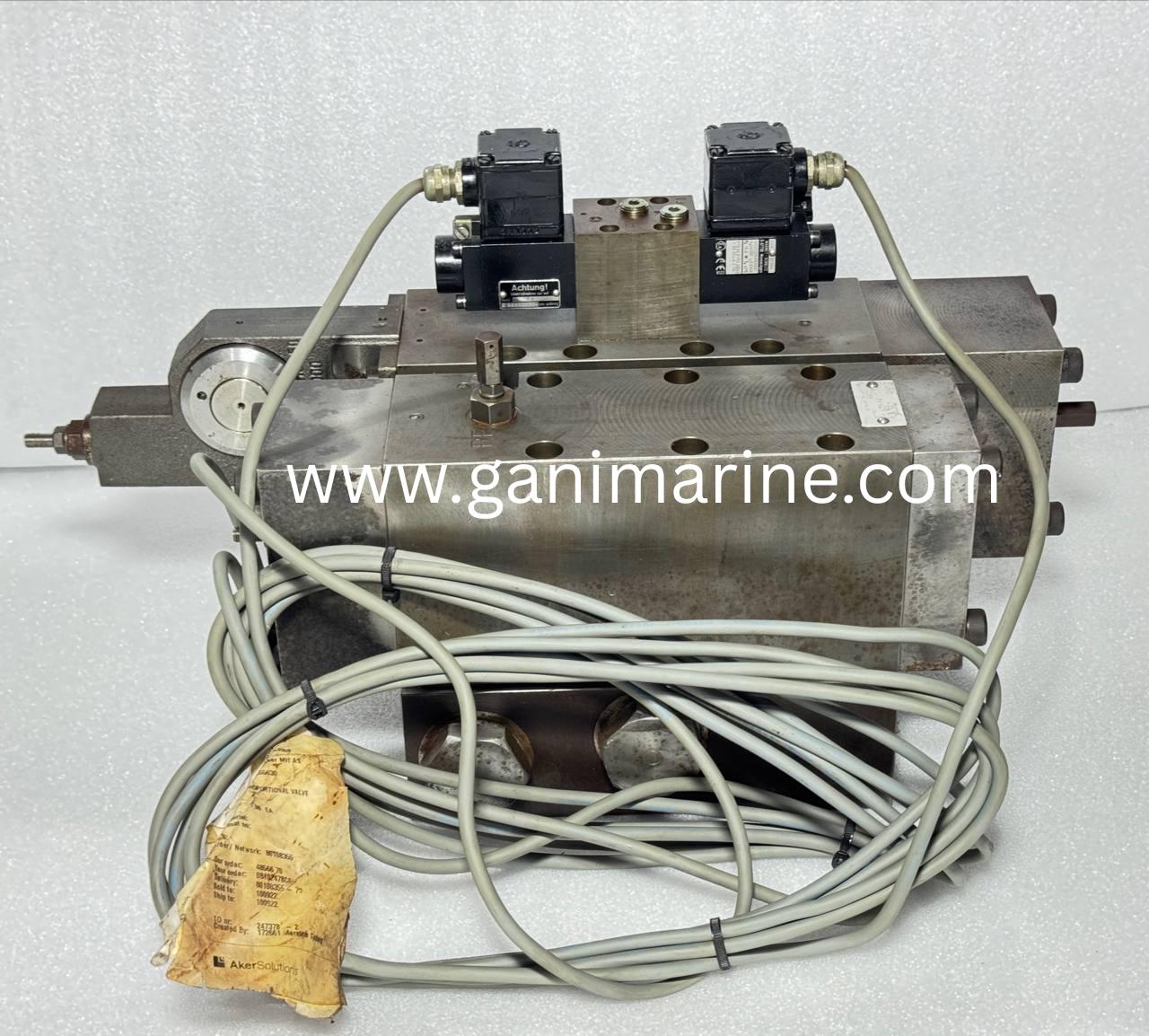

The AMCA MEV-32 Hydraulic Control Valve Block is a high-pressure proportional directional control valve assembly designed for marine, offshore, oil & gas, and heavy industrial hydraulic systems.
It is equipped with Magnet-Schultz explosion-proof solenoids, making it suitable for hazardous area operation where safety and precision are critical.
This valve provides smooth, load-independent proportional control of hydraulic flow, ideal for cranes, winches, steering gear, and offshore machinery.

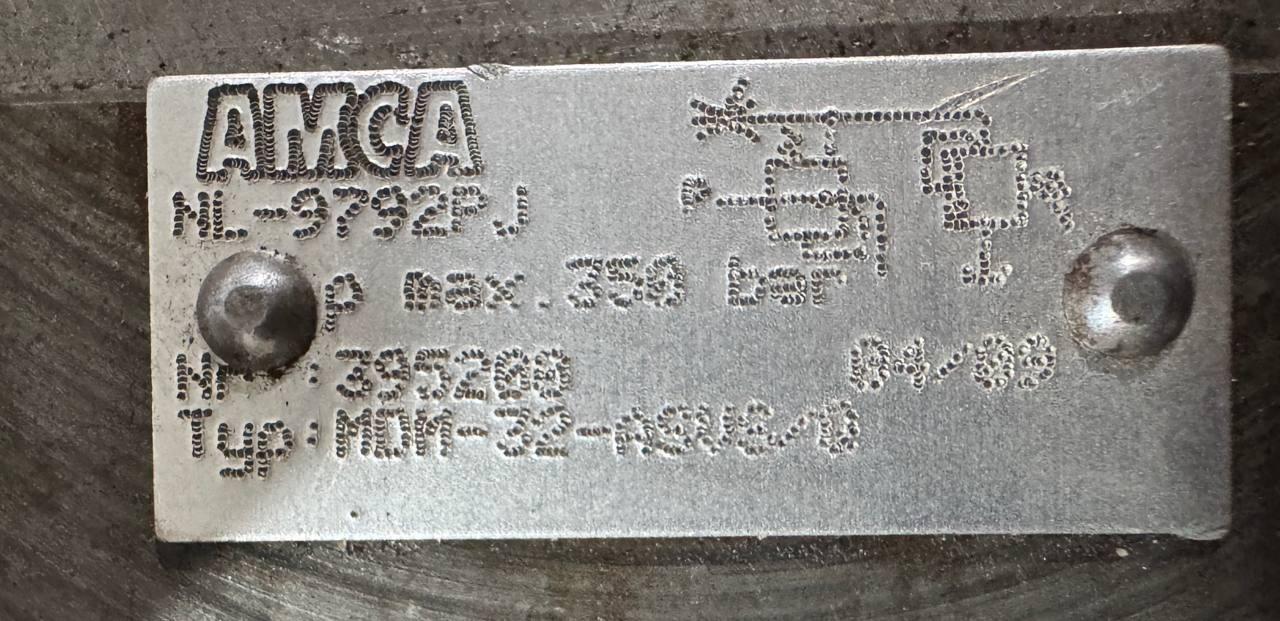

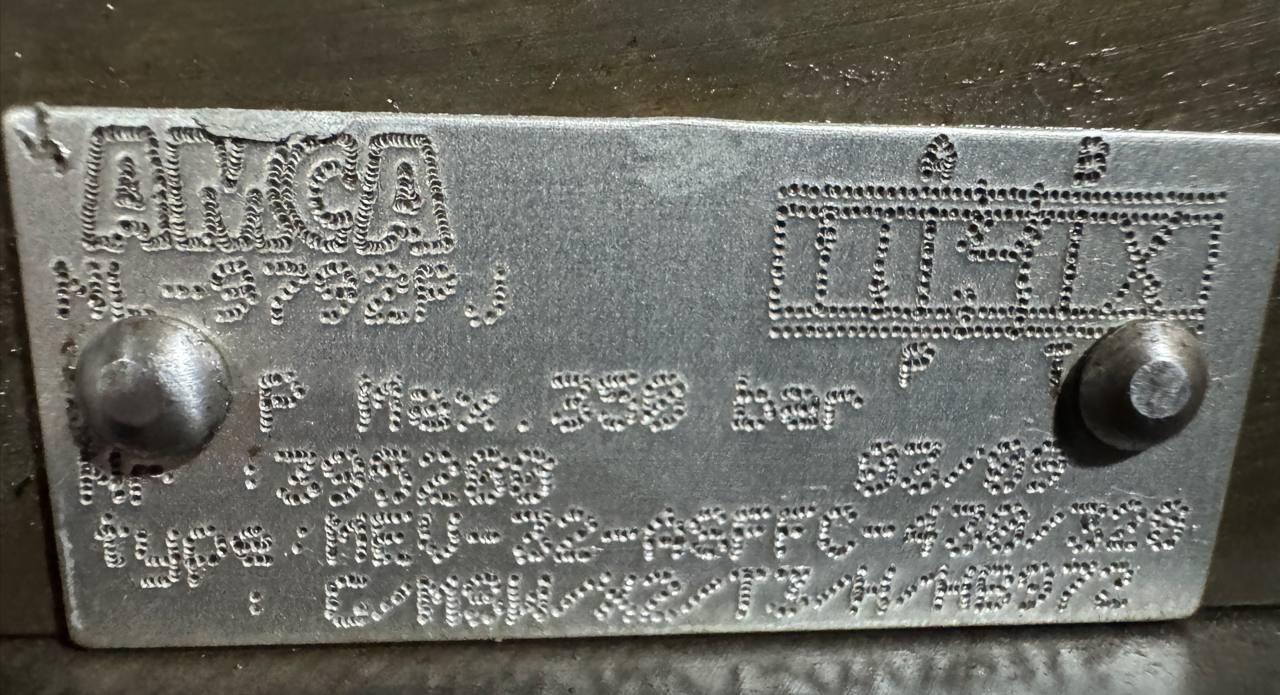

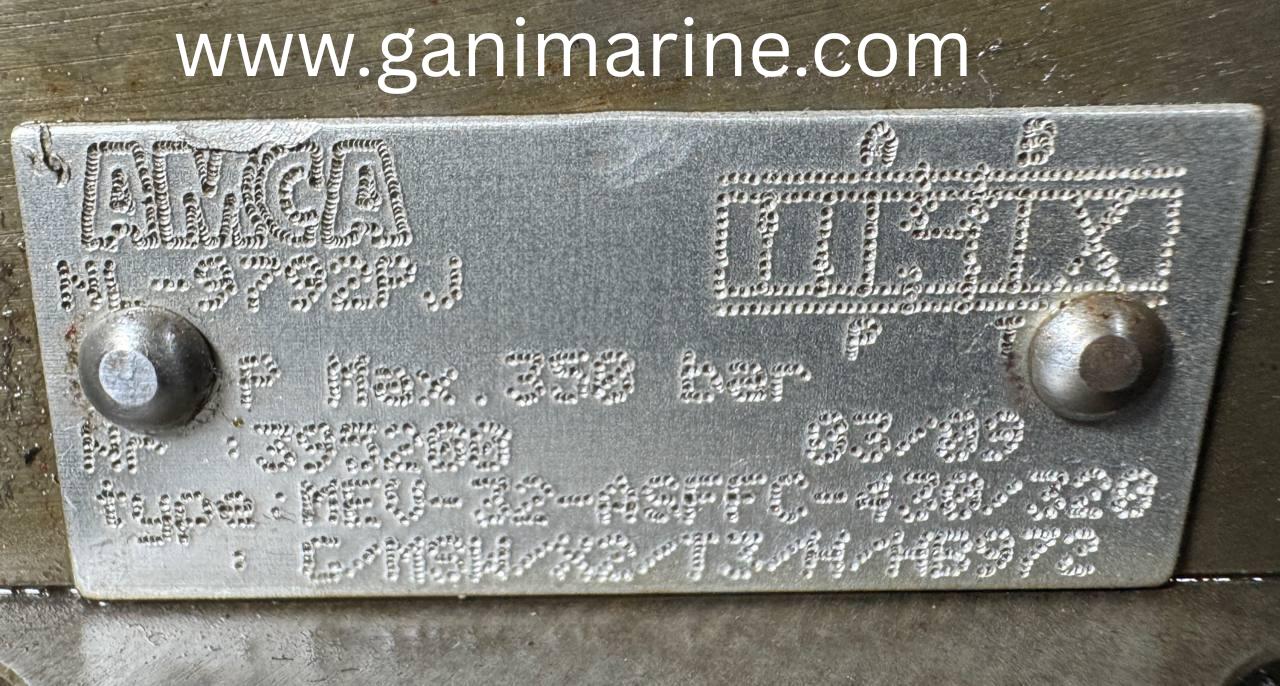

Manufacturer & Identification
• Valve Manufacturer: AMCA Hydraulic Controls, Netherlands
• Valve Series: MEV-32
• Valve Model: MEV-32-ASFFC-430/320
• Serial Number: 393200
• Manufacturing Date: 04/1999
Technical Specifications – Valve Block
• Valve Type: Proportional Directional Control Valve
• Nominal Size: 32
• Maximum Operating Pressure: 350 bar
• Control Type: Load-independent proportional control
• Design: Modular sandwich valve block
• Spool Code: C/MSW/K2/T3/H/H5972
• Application Duty: Continuous heavy-duty operation

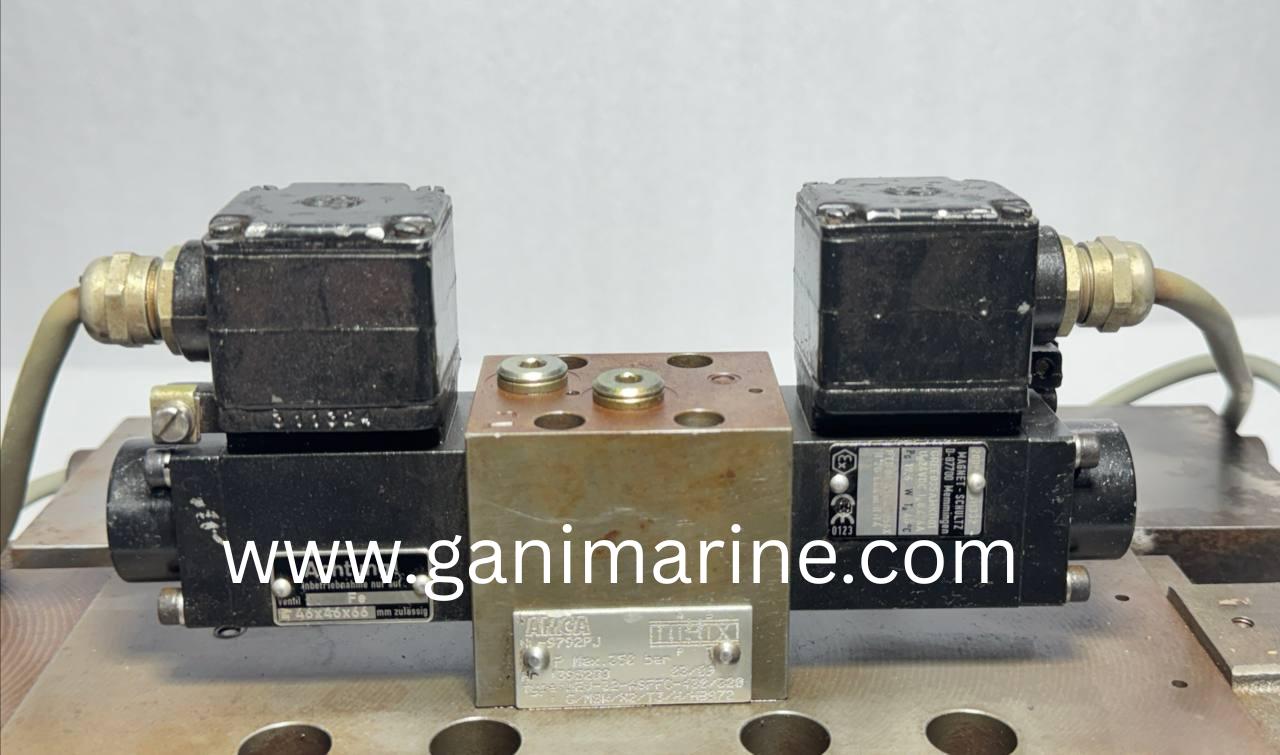

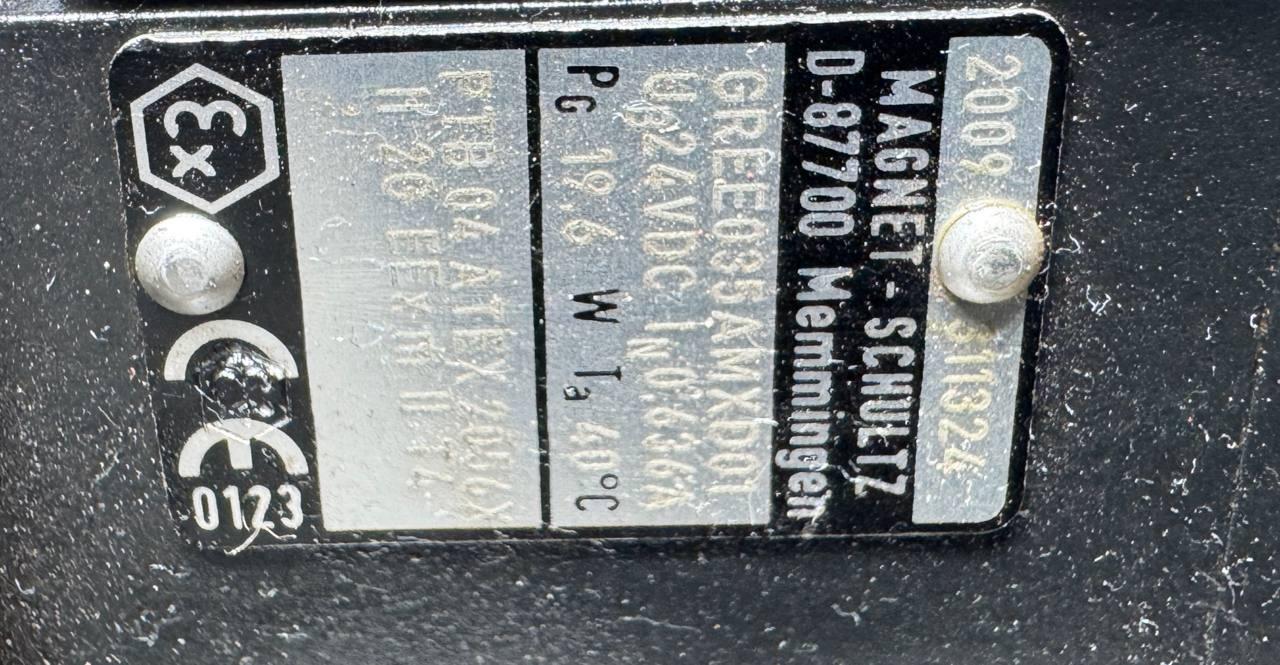

Solenoid Specifications (Magnet-Schultz)
• Manufacturer: Magnet-Schultz, Germany
• Solenoid Model: GREE 035 AMX D01
• Voltage: 24V DC
• Current (IN): 0.636 A
• Power Rating: 19.6 W (P20)
• Explosion Protection: ATEX / EEx m II T4
• Protection Class: IP65 / IP67
• Ambient Temperature Rating: up to 40°C
Explosion-Proof Certification
The Magnet-Schultz solenoids are m-encapsulated, ensuring:
• Safe operation in Zone 1 / Zone 2 hazardous areas
• Protection against gas, vapor, and dust ignition
• Compliance with offshore and tanker safety standards
Functional Advantages
• Smooth proportional flow control
• High pressure capability up to 350 bar
• Load-independent performance
• Modular stackable valve design
• Explosion-proof solenoids for hazardous zones
• Long service life in harsh environments
• Suitable for continuous marine and offshore duty
Typical Applications
• Marine deck cranes
• Offshore winches
• Ship steering gear systems
• Oil & gas hydraulic skids
• FPSO and drilling rigs
• Chemical and petrochemical plants
• Heavy industrial machinery
Industries Served
• Marine
• Offshore
• Oil & Gas
• Shipbuilding
• Heavy engineering
• Chemical processing
• Power and energy sector
Condition & Notes
• Industrial-grade heavy hydraulic assembly
• Designed for harsh environmental conditions
• Commissioning to be performed as per AMCA specifications

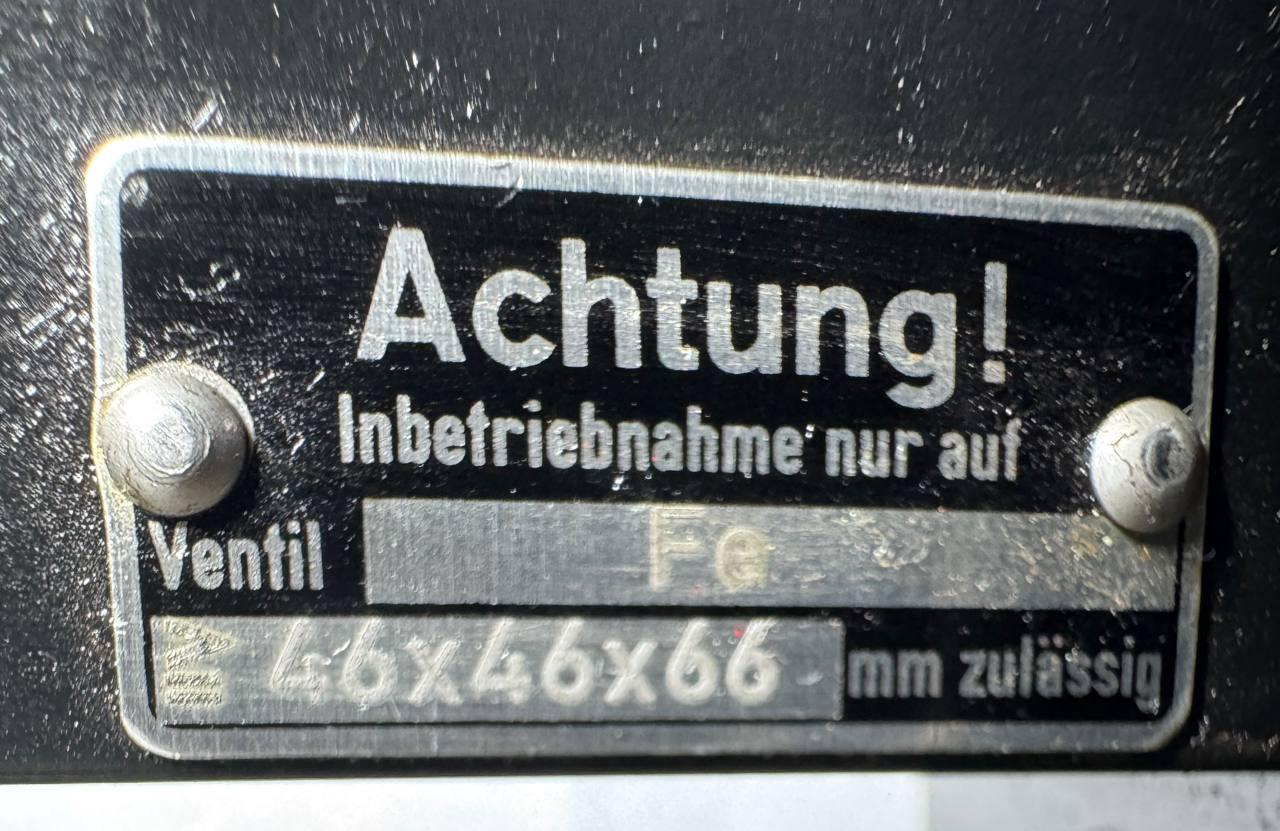

• Warning plate indicates dimensional compliance required during installation
